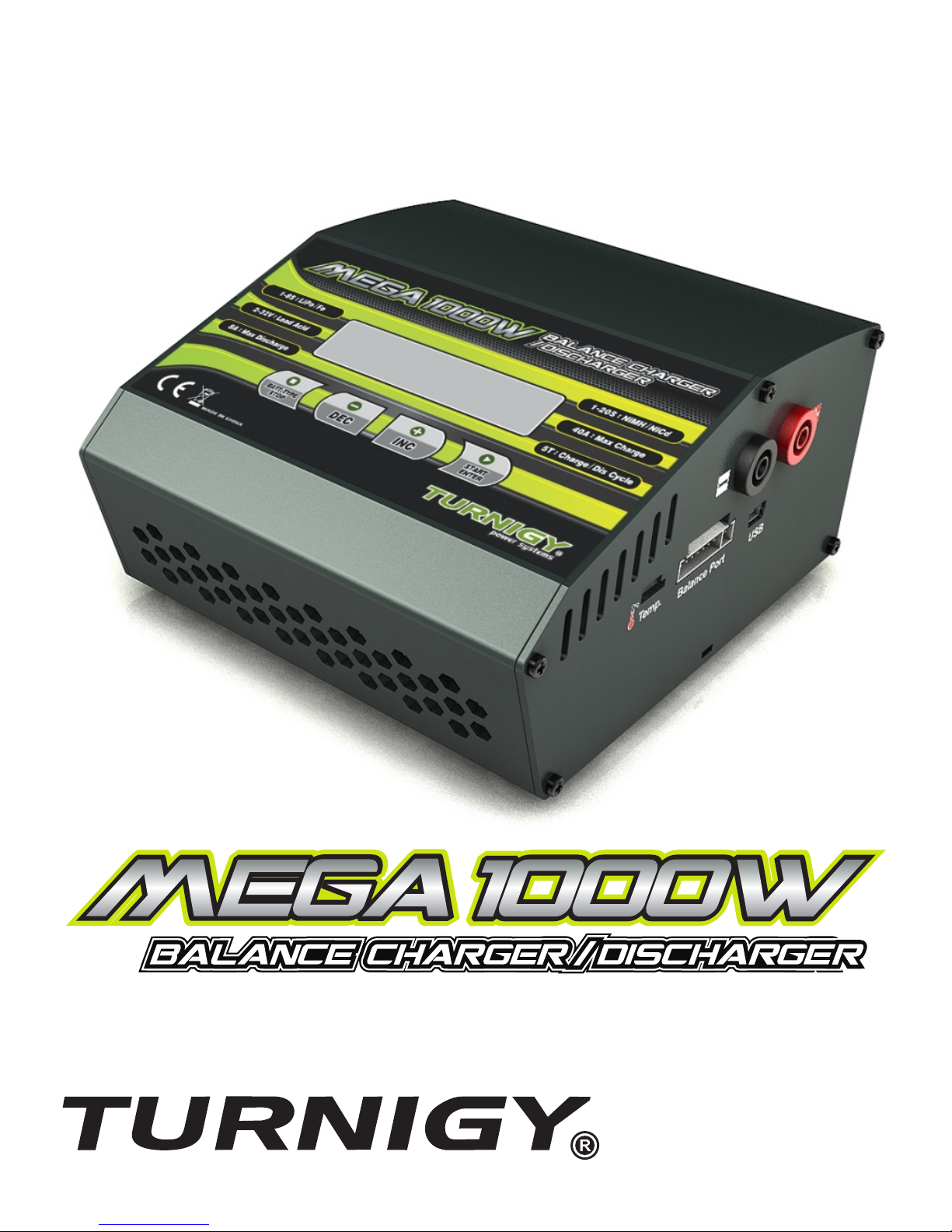

Turnigy MEGA 1000W User manual

OPERATING MANUAL
For LiPo/LiFe/LiIon/NiMH/NiCd/Pb Batteries
MEGA 1000WMEGA 1000WMEGA 1000WMEGA 1000W

Turnigy Mega 1000W
TABLE OF CONTENTS
· 01
INTRODUCTION............................................................................................................
SPECIAL FEATURES....................................................................................................
WARNING AND SAFETY NOTES.................................................................................

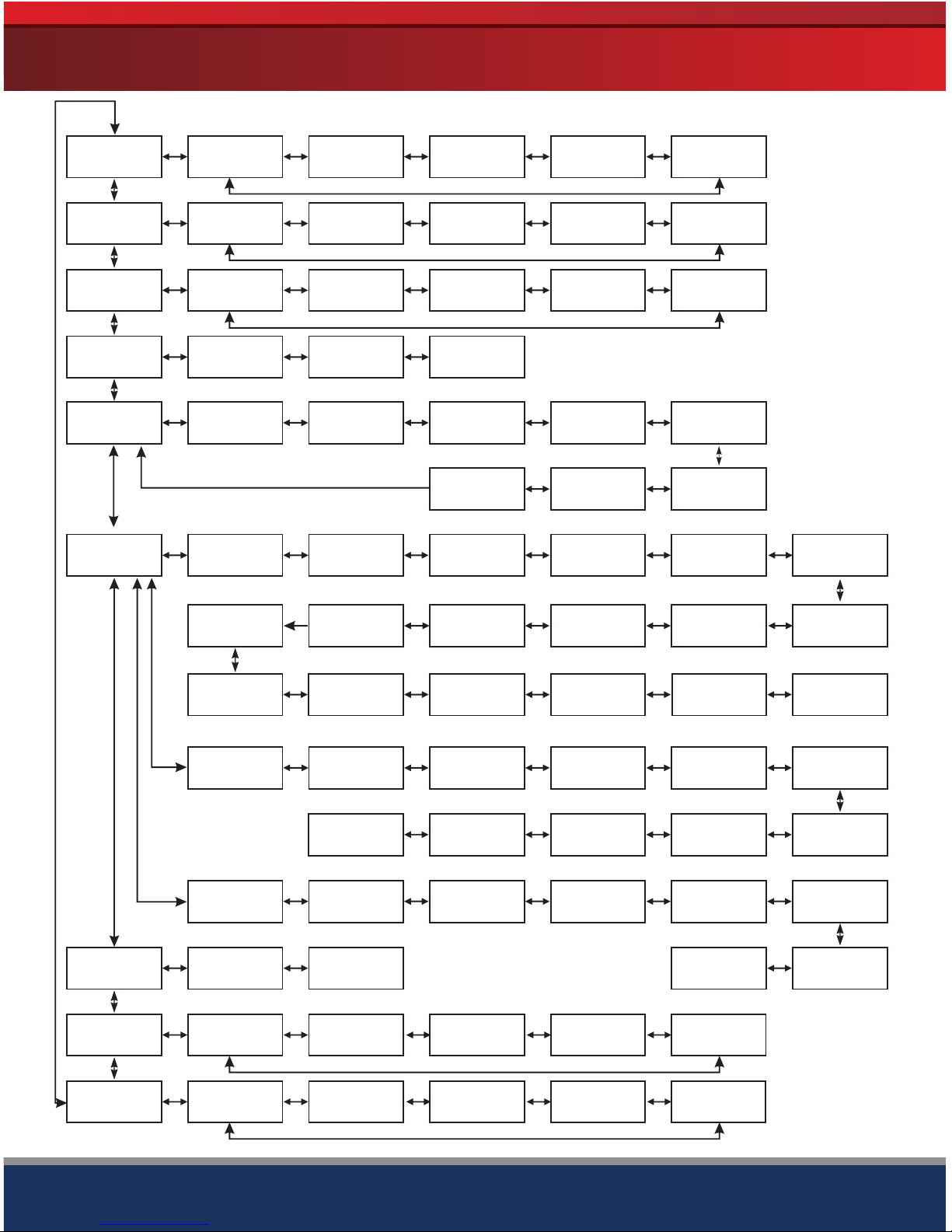

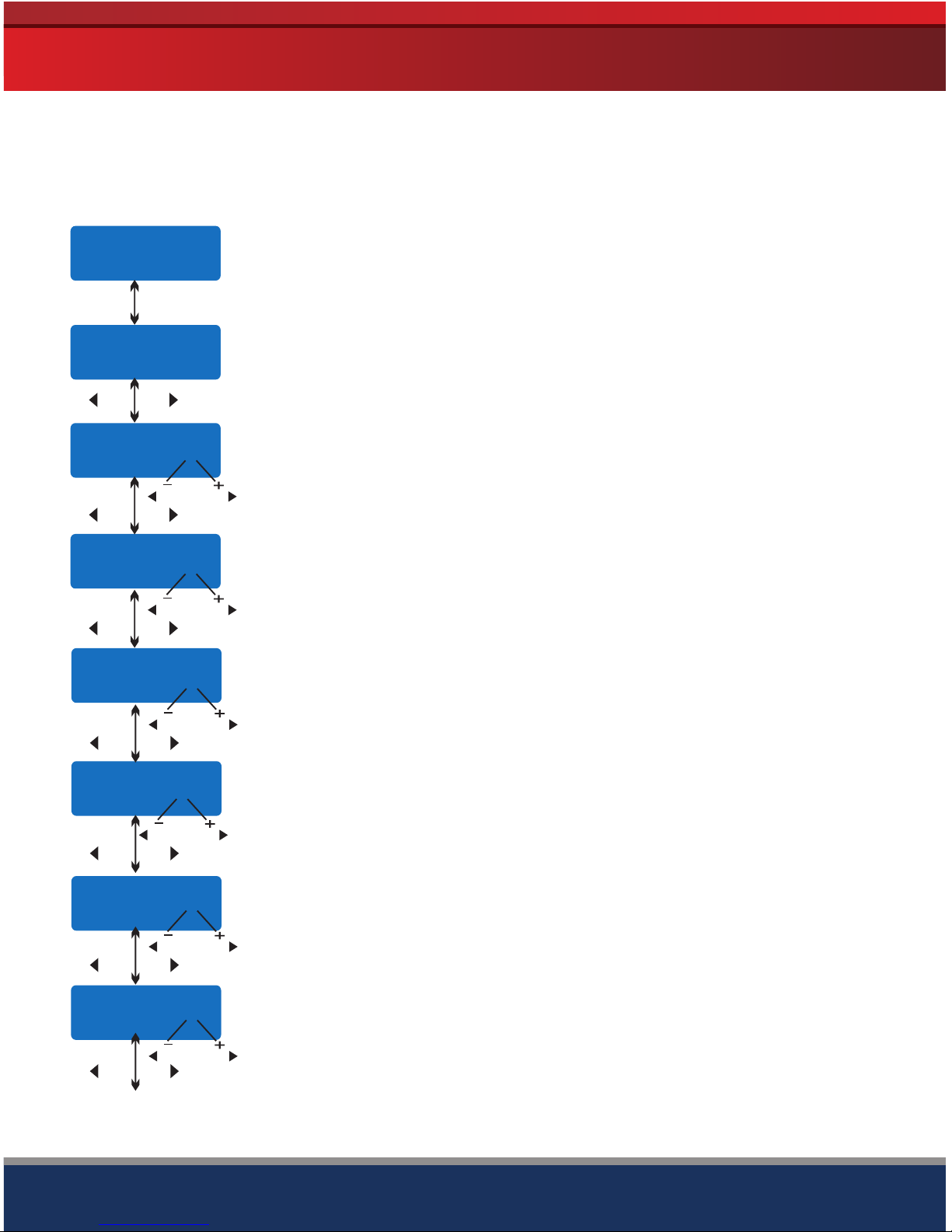

PROGRAM FLOW CHART ...........................................................................................
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM.........................................................
.........................................................
..................................................................................
.......................................................................
...................................................................
..................................................................................
PB( LEAD-SULPHURIC ACID) BATTERY PROGRAM.................................................
...........................................................................................
......................................................................................
NIMH/NICD BATTERY PROGRAM................................................................................
.............................................................................
.....................................
........................................................................
........................................
..................
BATTERY MEMORY SET..............................................................................................
LITHIUM BATTERY METER..........................................................................................
PROGRAM SET UP.......................................................................................................
VARIOUS INFORMATION DURING THE PROCESS....................................................
WARNING AND ERROR MESSAGE.............................................................................
SPECIFICATION............................................................................................................
MAXIMUM CIRCUIT POWER CHART...........................................................................
COMMONLY USED TERMS..........................................................................................
WARRANTY AND SERVICE..........................................................................................

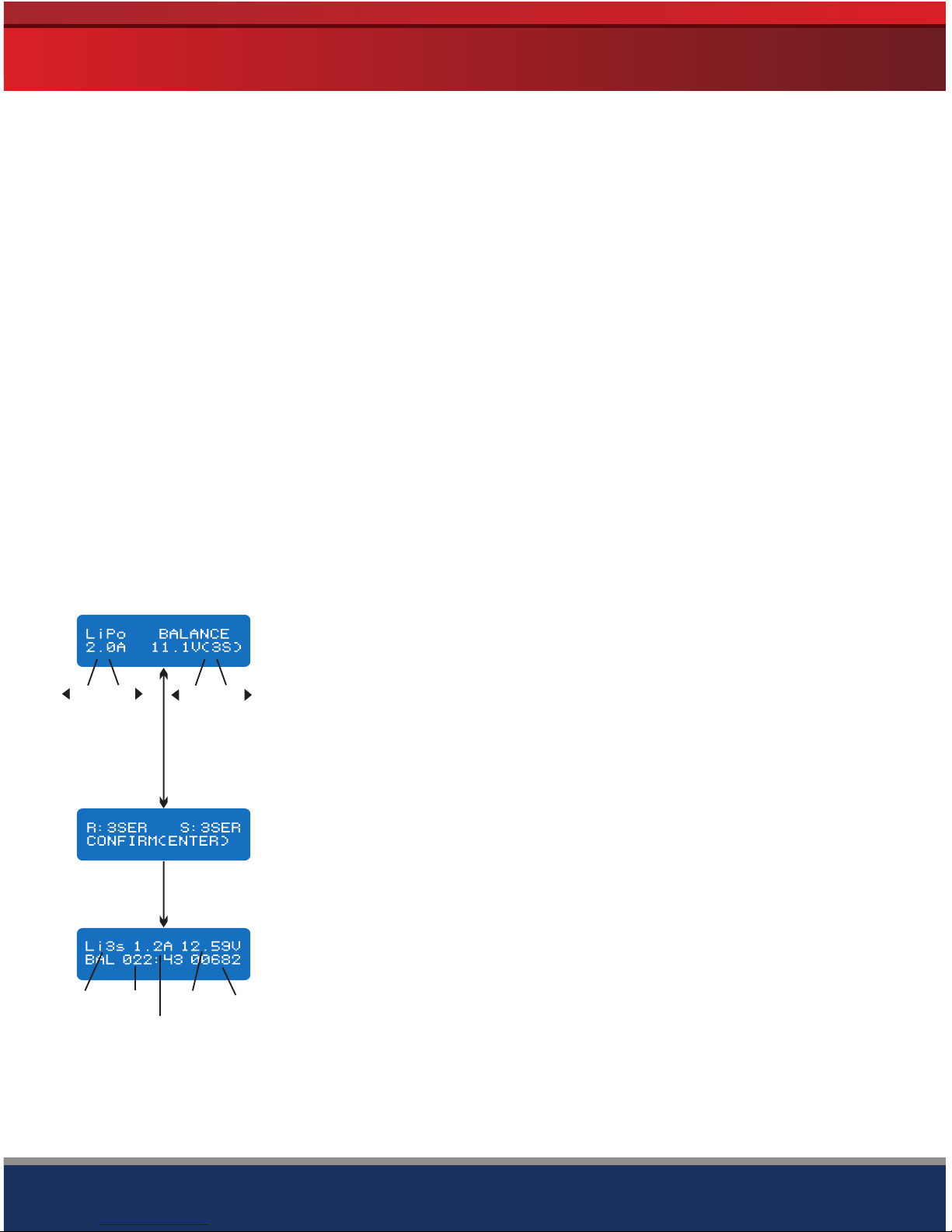

Charging Lithium battery at balance mode
Charging of Lithium Battery
‘FAST' charging of Lithium battery
'STORAGE' control of lithium battery
Discharging Lithium battery
Charging of Pb battery
Discharging of Pb battery
Charging of NiCd/NiMH battery
Charging NiCd/NiMH battery in the AUTO charge mode
Discharging of NiCd/NiMH battery
Charging NiCd/NiMH battery in re-peak charge mode
Charge/discharge & discharge/charge cycle of NiMH/NiCd battery
02
04
06
09
10
12
12
13
14
14
15
15
15
16
16
16
16
17
17
18
20
21
23
24
25
26
27
28

Turnigy Mega 1000W
Congratulations on your choice of the Turni digital intelligent charger
from Hextronik. You are now the owner of a professional charger/discharger with battery
management and integral balancer.
gy Mega 1000W
INTRODUCTION
02 ·
Display
Large 2x16 LCD for
Easy Reading
DC INPUT 11-30V
Output
Temperature
Sensor
Balancing
Port
Batt Type
/Stop
Button
DEC/INC
Button
Start/
Button
Enter
Cooling
Fan
USB Port for PC
Control & Firmware
Upgrade

INTRODUCTION
Please read this entire operating manual completely and attentively before using this
product, as it covers a wide range of information on operating and safety. Or please do
use this product in company with a specialist!
This unit is simple to use, but the operation of a sophisticated automatic
charger/discharger such as the Turnigy Mega 1000W does require some knowledge on
the part of the user. These operating instructions are designed to ensure that you quickly
become familiar with its functions.
It is therefore important that you read right through the Instruction Manual, Warning and
Safety Notes before you attempt to use your new automatic charger for the first time. We
hope you have many years of pleasure and success with your new battery charger.
Turnigy Mega 1000W employs the circuit that features output power of 1000 watts. It can
charge or discharge up 20 cells of NiCd/NiMH or 8 series of Lithium batteries with
maximum current of 40A. Turnigy Mega 1000W has an individual cell voltage balancer, so
it does not required any balancer separately when charging Lithium batteries
(LiPo/LiIon/LiFe) for voltage balancing.
More reliable/durable membrane button systems are using for charger controls. The fan
cooling system is so smart and efficiently. The fan speed is controlled by internal
temperature sensor.
Please BE SURE to read these instructions and Warning and Safety Notes before you use the
charger for the first time.
It can be dangerous to mishandle batteries and battery chargers, as there is always a risk of
batteries catching fire and exploding.
· 03 Turnigy Mega 1000W

04 ·
Optimized operating software
Turnigy Mega 1000W features the so-called AUTO function that set the feeding current
during the process of charging or discharging. Especially for Lithium batteries, it can
prevent the overcharging which may lead to an explosion due to the user's fault. It can
disconnect the circuit automatically and alarm once detecting any malfunction. All the
programs of this product were controlled through two way linkage and communication, to
achieve the maximum safety and minimize the trouble. All the settings can be configured
by users!
Internal independent lithium battery balancer
Turnigy Mega 1000W employs an individual-cell-voltage balancer. It isn’t necessary to
connect an external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, Turnigy Mega 1000W can monitor and balance each
cell of the battery individually. Error message will be indicated and the process will be
ended automatically if the voltage of any single one cell is abnormal.
Special features
SPECIAL FEATURES
Adaptable to various type of lithium battery
Turnigy Mega 1000W is adaptable to various types of lithium batteries, such as Li-Ion, LiPo and
the new LiFe series of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, fast charge reduce the duration of charging,
whereas store state can control the final voltage of your battery, so as to store for a long time
and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of the
Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process
will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH
battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging
mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the
charging capacity exceeds the limit, the process will be terminated automatically when you set
the maximum value.
Turnigy Mega 1000W

SPECIAL FEATURES
Temperature threshold
The batteries internal chemical reaction will cause the temperature of the battery to rise. If the
temperature limit is reached, the process will be terminated. This function is available by
connecting temperature probe, which is included in the package.
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Data store/load
For user’s convenience, it can store maximum 10 data of different batteries. You can establish
the data contains program setting of the battery to charge or discharge. These data can be
called back at any time you need and the process can be executed without program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for
battery refreshing and balancing to stimulate the batteries activity.
Terminal voltage control(TVC)
The charger allows user to change the end voltage.
Lipo battery meter
The user can check battery's total voltage, the highest voltage, the lowest voltage and each
cell's voltage.
· 05 Turnigy Mega 1000W

06 ·
These warnings and safety notes are particularly important. Please follow the
instructions for maximum safety; otherwise the charger and the battery can be
damaged or at worst it can cause a fire.
Never leave the charger unattended when it is connected to its power supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the
operation manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and .
Never drop it.
vibration
The allowable input voltage is 11~30V DC
This charger and the battery should be put on a heat-resistant, noninflammable and
nonconductive surface. Never place them on a car seat, carpet or similar. Keep all
the inflammable volatile materials away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to
ensure it meets the requirements of this charger. If the program is set up incorrectly,
the battery and charger may be damaged .It can cause fire or explosion due to
overcharging. This warranty is not valid for any damage or subsequent damage
arising as a result of a misuse or failure to observe the procedures outlined in this
manual.
Standard Battery Parameters
Be very careful to choose the correct voltage for different types of battery otherwise you
may cause damage to the batteries. Incorrect settings could cause the cells to fire or
explode.
3.7V/cell
Nominal
Voltage
Min. Discharge
Voltage
Max Charge
Voltage
Storage
Voltage
Allowable
Fast Charge
3.7V/cell
4.2V/cell
3.8V/cell
≦1C
LiPo LiIon
3.6V/cell
4.1V/cell
≦1C
3.3V/cell
3.6V/cell
3.3V/cell
≦4C
LiFe
1.2V/cell
1.5V/cell
n/a
1C-2C
NiCd
1.2V/cell
1.5V/cell
n/a
1C-2C
MiMH
2.0V/cell
2.46V/cell
n/a
≦0.4C
Pb
WARNING AND SAFETY NOTES
3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell 0.1-1.1V/cell 0.1-1.1V/cell
1.8V/cell
Turnigy Mega 1000W

· 07
A battery pack which consists of different types of cells (including different
manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
Batteries that require a different charge technique from NiCd, NiMh, LiPo or Gel cell
(Pb, Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other components.
Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process.
Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery you are
charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in parallel
and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure?
Make sure there are no intermittent contacts at any point in the circuit.
Charging
During charge process, a specific quantity of electrical energy is fed into the
battery. The charge quantity is calculated by multiplying charge current by charge
time. The maximum permissible charge current varies depending on the battery
type or its performance, and can be found in the information by the battery
manufacturer. Only batteries that are expressly stated to be capable of quick-
charge are allowed to be charged at rates higher than the standard charge current.
Connect the battery to the terminal of the charger: red is positive and black is
negative. Due to the difference between resistance of cable and connector, the
charger can not detect resistance of the battery pack, the essential requirement
for the charger to work properly is that the charge lead should be of adequate
conductor cross-section, and high quality connectors which are normally gold-
plated should be fitted to both ends.
Always refer to the manual by the battery manufacturer pertaining to charging
methods, recommended charging current and charging time. Especially, the
Lithium battery should be charged according the charging instruction provided
by the manufacturer strictly.
Never attempt to charge or discharge the following types of batteries.
WARNING AND SAFETY NOTES
Turnigy Mega 1000W

08 ·
Discharging
The main purpose of discharging is to clean residual capacity of the battery, or to
reduce the battery voltage to a defined level. The same attention should be paid to
the discharging process as charging. The final discharge voltage should be set up
correctly to avoid deep-discharging. Lithium battery can not be discharged to lower
than the minimum voltage, or it will cause a rapid loss of capacity or a total failure.
Generally, Lithium battery doesn't need to be discharged. Please pay attention to the
minimum voltage of Lithium battery to protect the battery.
Some rechargeable batteries have a memory effect. If they are partly used and
recharged before the whole charge is accomplished, they remember this and will only
use that part of their capacity next time. This is a memory effect It is said that NiCd
and NiMH batteries are suffering from memory effect. NiCd has more memory effect
than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully
discharged. Frequent full discharging should be avoided if possible. Instead, charge
the battery more often or use a battery of larger capacity. Full capacity cannot be
reached until it has been subjected to 10 or more charge cycles. The cyclic process
of charge and discharge will optimize the capacity of battery pack.
Attention should be paid to the connection of Lithium battery especially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that Lithium battery packs can be wired in parallel and in
series. In the parallel connection, the battery s capacity is calculated by multiplying
single battery capacity by the number of cells with total voltage stay the same. The
voltages imbalance may cause fire or explosion .Lithium battery is recommended to
charge in series.
WARNING AND SAFETY NOTES
Turnigy Mega 1000W

· 09
PROGRAM FLOW CHART
PROGRAM SELECT
BATT MEMORY ENTER
START BATT MEMORY [1]
ENTER SET ENTER
START BATT TYPE
LiPo DEC
INC BATT VOLTS
7.4V ( 2S ) DEC
INC CHARGE CURRENT
4.9A DEC
INC DSCH CURRENT
2.2A
DSCH VOLTAGE
3.0V/CELL
TVC=YOUR RISK
4.20V
DEC
INC
ENTER
START
ENTER
START
PROGRAM SELECT
SYSTEM SET->
Rest Time
CHG>DCHG 10Min
VERSION
1.00
ENTER
START
DEC
INC SAFETY TIME
ON 120Min DEC
INC Capacity Cut-Off
ON 5000mAH DEC
INC Key Beep ON
Buzzer ON
DECINC
Input Power Low
Cut-Off 11.0V
Ext. Temp 0C
Int. Temp 37C
DEC
INC
LOAD FACTORY SET
ENTER
DEC
INC
Stop
Batt Type
DECINC
SAVE PROGRAM
ENTER
SAVE PROGRAM
SAVE….
BATT MEMORY [1]
LiPo 7.4V (2S ) ENTER
START
BATT MEMORY [1]
C:4.9A D:2.2A
ENTER CHARGER
LOAD……
LiPo BALANCE
4.9A 7.4V(2S)
DEC
INC LiPo CHARGE
4.9A 7.4V(2S)
DEC
INC LiPo FAST CHG
4.9A 7.4V(2S)
DEC
INC LiPo STORAGE
4.9A 7.4V(2S)
LiPo DISCHARGE
2.2A 7.4V(2S)
DEC
INC
DEC
INC
BATT MEMORY 2
NiMH 2.4V (2S)
BATT TYPE
MiMH DEC
INC BATT VOLTS
2.4V (2S)
ENTER
START CHARGE CURRENT
3.3A
DEC
INC
DEC
INC TRICKLE
100mA DEC
INC PEAK DELAY
1Min
DECINC
DSCH CURRENT
2.2A
DEC
INC
DSCH VOLTAGE
1.1V/CELL
DEC
INC
DELTA PEAK SENSE
4Mv/C
SAVE PROGRAM
ENTER DEC
INC
BATT MEMORY 3
Pb 4V (2S) ENTER
START BATT TYPE
Pb
BATT VOLTS
4.0V (2S)
DEC
INC CHARGE CURRENT
3.3A
DEC
INC DSCH CURRENT
1.5A
DEC
INC DSCH VOLTAGE
1.7V/CELL
DEC
INC
DEC
INC
SAVE PROGRAM
ENTER
DECINC
PROGRAM SELECT
Pb BATT ENTER
START Pb CHARGE
2.0A 2.0V (1P) DEC
INC Pb DISCHARGE
0.1A 2.0V (1P)
DECINC
PROGRAM SELECT
NiCD BATT
NiCD CHARGE
CURRENT 2.0A
ENTER
START
DEC
INC NiCD DISCHARGE
0.1A CUT: 1.0V DEC
INC NiCD CYCLE
CHG>DCHG 1
DECINC
PROGRAM SELECT
NiMH BATT ENTER
START NiMH CHARGE
CURRENT 2.0A DEC
INC NiMH DISCHARGE
0.1A CUT: 1.0V
NiMH CYCLE
CHG>DCHG 1
DEC
INC
PROGRAM SELECT
LiPo BATT
LiPo BALANCE
2.0A 7.4V (2S)
LiPo CHARGE
2.0A 7.4V (2S)
LiPo FAST CHG
2.0A 7.4V (2S)
LiPo STORAGE
2.0A 7.4V (2S)
LiPo DISCHARGE
2.0A 7.4V (2S)
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DECINC
DECINC
PROGRAM SELECT
Lilo BATT
Lilo BALANCE
2.0A 7.2V (2S)
Lilo CHARGE
2.0A 7.2V (2S)
Lilo FAST CHG
2.0A 7.2V (2S)
Lilo STORAGE
2.0A 7.2V (2S)
Lilo DISCHARGE
2.0A 7.2V (2S)
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
PROGRAM SELECT
LiFe BATT
LiFe BALANCE
2.0A 6.6V (2S)
LiFe CHARGE
2.0A 6.6V (2S)
LiFe FAST CHG
2.0A 6.6V (2S)
LiFe STORAGE
2.0A 6.6V (2S)
LiFe DISCHARGE
2.0A 6.6V (2S)
ENTER
START
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DECINC
ENTER
START
PROGRAM SELECT
Li BATT METER
4.20 4.19 4.19 V
0.00 0.00 0.00 V
MAIN 0.00V
H0.000V L0.000V
DEC
INC
DEC
INC
DECINC
DECINC
DECINC
DEC
INC
NiCD RE-PEAK
1
DEC
INC
NiMH RE-PEAK
1
DEC
INC
NiMH Auto CHARGE
CURRENT 2.0A
DEC
INC
NiCD Auto CHARGE
CURRENT 2.0A
DEC
INC
TEMPERATURE
CUT-OFF 50C
DEC
INC
TEMPERATURE
CUT-OFF 50C
DEC
INC
DECINC
TEMPERATURE
CUT-OFF 50C
Turnigy Mega 1000W
0.00V 0.00V
DEC
INC
ENTER
START
ENTERSTART

10 ·
Important !!! Before connecting a battery it is absolutely essential to check one last time
that you have set the parameters correctly. If the settings are incorrect, the battery may
be damaged, and could even burst into flames or explode. To avoid short-circuits
between the banana plugs, always connect the charge leads to the charger first, and only
then to the battery. Reverse the sequence when disconnecting the pack.
CONNECTING THE BATTERY
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM
Turnigy Mega 1000W

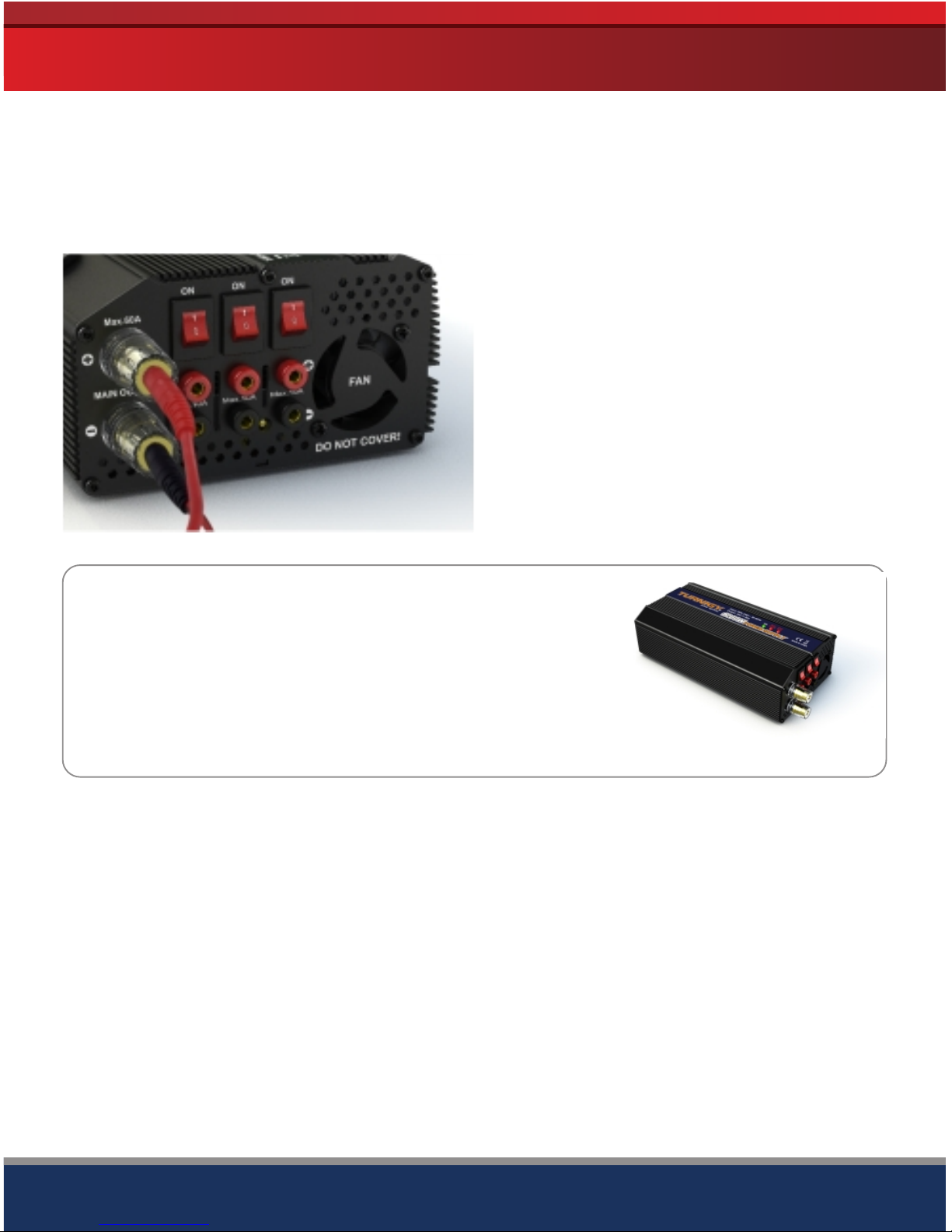

Turnigy Mega 1000W comes with male 4mm Bullet connectors attached to the power
INPUT cables. These cables are appropriate for attaching directly to most high-quality
AC-DC power supply units, such as TURNIGY 1200W Power supply:Part No.22820(100-
120V AC) or Part No.22821(200-240V AC).
CONNECTING THE CHARGER
4mm Bullet
Connectors
plugging
to TURNIGY power
supply directly
Important Notice
To take advantage of Turnigy Mega 1000W’s full power
capability, the power source should be 11V-30V DC, and
output power should be capable of 1200W or higher.
Low quality DC power source may damage your Turnigy
Mega 1000W charger. We recommend you to choose
TURNIGY 1200W Power Supply. Part No. 22820(100V-120V AC)
Part No. 22821(200V-240V AC)

· 11

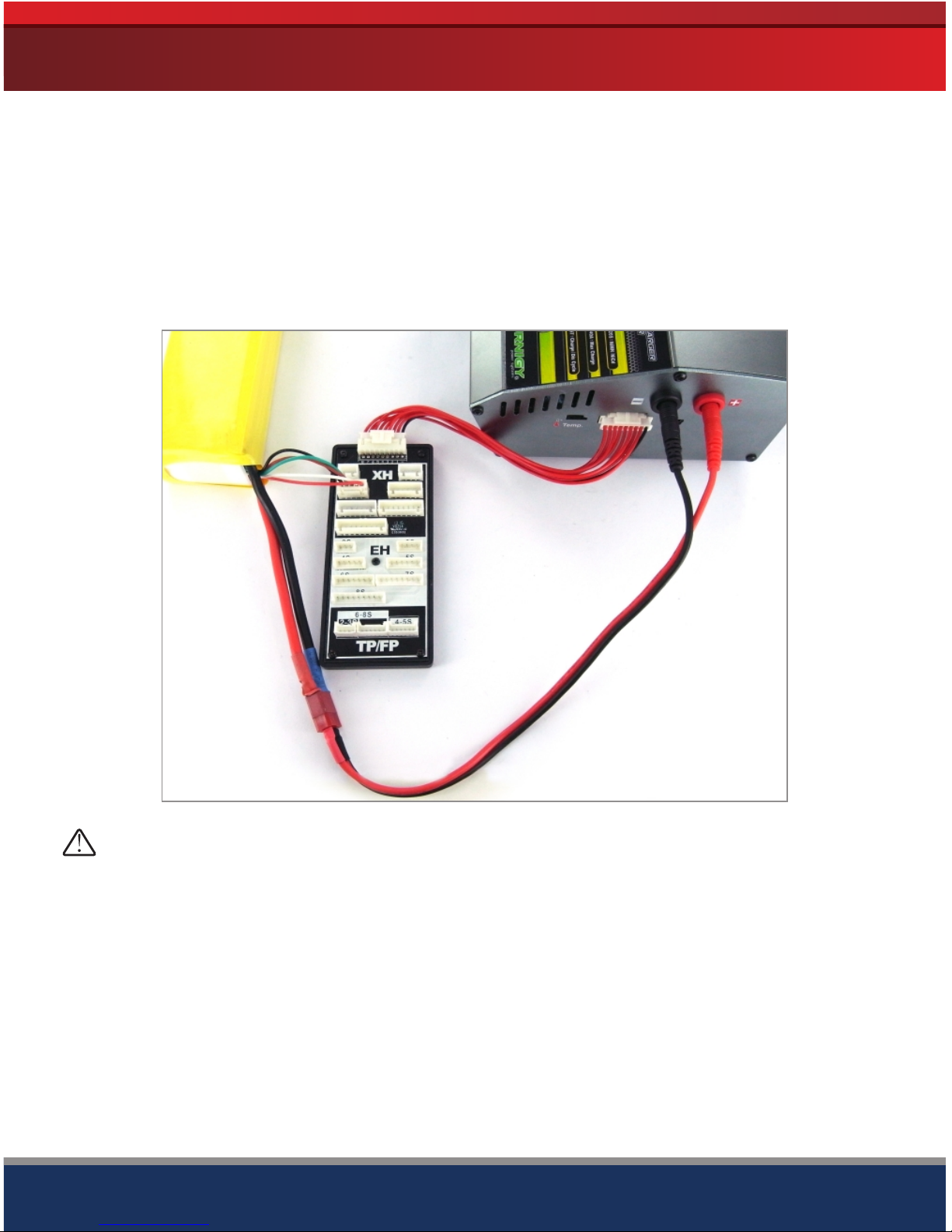

This diagram shows the correct way to connect your battery to the Turnigy Mega 1000W
while charging in the balance charge program mode only.
Failure to connect as shown in this diagram will damage this charger.
To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
WARNING:
Balance socket:
The balance wire attached to the battery must be connected to the charger balancing
port. Take care to maintain correct polarity!
(Wiring diagram: see below.)
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM
Turnigy Mega 1000W

12 ·
These programs are only suitable for charging and discharging Lithium batteries with a
nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different
charge technique is termed a constant voltage(CV) and constant current(CC) method.
The charge current varies according to the battery capacity and performance. The final
voltage of charge process is also very important; it should be precisely matched with the
charade voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6 V for LiFe.
The charge current and nominal voltage as for cell count set on the charge program must
always be correct for the battery to be charged.
When you are willing to alter the parameter value in the program, press Start/Enter key to
make it blink then change the value with INC or DEC key. The value will be stored by
pressing Start/Enter key once.
Charging Lithium battery at balance mode
This function is for balancing the voltage of Lithium-polymer battery cells while charging.
In the balance mode, the battery needs to have a balance lead to connect to the battery's
power lead to the output of charger.
In this mode, the charging process will be different from ordinary charging mode. The
internal processor of the charger will monitor the voltages of each cell of the battery pack
and controls charging current that is feeding to each cell to normalise the voltage.
Note: We recommends charging lithium batteries with a balance lead in the balance
mode only.
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set. After setting the current and voltage, press Start/Enter
key for more than 3 seconds to start the process.(charge current:
0.1-40.0A, voltage: 2S-8S).
Number
of
cells
Battery
voltage
Charging
time Charged
capacity
This screen shows the real-time status during charge process.
Press Batt Type/Stop key once to stop the charge process.
This displays the number of cells you set up and the processor
detects. R shows the number of cells detected by the charger and
S is the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter
button. If not, press Batt Type/Stop button to go back to previous
screen to carefully check the number of cells of the battery pack
before going ahead.
Charging
current
'> 3 seconds '
Charging of Lithium Battery
This charging mode is for charging Li-Po/Ion/Fe battery without balance lead.
Note: We recommends charging lithium batteries with a balance lead in the balance
mode only.
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM
Turnigy Mega 1000W

· 13
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
'> 3 seconds '
INCINC DECDEC
-- ++
Start
Enter
Batt type
Stop '> 3 seconds '
Start
Enter
Current
voltage
battery
Supplied
capacity
Charge
current
Charging
time
Number
of
cells
The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set. After setting the current and voltage, press Start/Enter
key for more than 3 seconds to start the process.(charge current:
0.1-40.0A, voltage: 1S-8S).
This displays the number of cells you set up and the processor
detects. R shows the number of cells detected by the charger and
S is the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter
button. If not, press Batt Type/Stop button to go back to previous
screen to carefully check the number of cells of the battery pack
before going ahead.
This screen shows the real-time status during charge process.
Press Batt Type/Stop key once to stop the charge process.
The value on the left side of the second lines sets the charge
current. The value on the right side of the second lines sets the
battery pack's voltage. After setting current and voltage, press
Star/Enter for more than 3 seconds to start the process.
This displays the number of cells you set up and the processor
detects. R shows the number of cells detected by the charger and
S is the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter
button. If not, press Batt Type/Stop button to go back to previous
screen to carefully check the number of cells of the battery pack
before going ahead.
This screen shows the real-time status during charge process.
Press Batt Type/Stop key once to stop the charge process.
‘FAST' charging of Lithium battery
The charging current is getting smaller as the process goes to the near end term of
Lithium battery charging. To finish charging process earlier, this program eliminate certain
term of CV process. Actually, the charging current will goes to 1/5 from the initial value to
end the process while the normal charging goes to 1/10 during CV term. The charging
capacity may be a bit smaller than normal charging but the process time will be reduced.
Turnigy Mega 1000W

14 ·
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM
'STORAGE' control of lithium battery
This is for charging or discharging Lithium battery not to be used for the time being. The
program will determine to charge or discharge the battery to the certain voltage
depending on the voltage of the battery at its initial stage. They are different from the type
of the battery, 3.75V for LiIo, 3.85V for LiPo and 3.3V for LiFe per cell. If the voltage of
battery at its initial stage is over the voltage level to storage, the program will start to
discharge.
Number
of
cells
DEC
-+
Batt type
Stop
Elapsed
time
INC
Charge
or discharge
current
Supplied
capacity
DEC
Start
Enter
-
INC
+
Current
voltage
battery
'> 3 seconds '
Start
Enter
Number
of
cells
DEC
-
Batt type
Stop
elapsed
time
INC
+
Battery
voltage
DEC
Start
Enter
-
INC
+
Discharged
capacity
discharge
current
'> 3 seconds '
Start
Enter
Discharging Lithium battery
At this screen, you can set up the current and voltage of the battery
pack. Charging and discharging will make the batteries come to the
voltage level of storage state.
This screen shows the real-time status charging. Press Batt
Type/Stop key once to stop the charge process.
This displays the number of cells you set up and the processor
detects. R shows the number of cells detected by the charger and
S is the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter
button. If not, press Batt Type/Stop button to go back to previous
screen to carefully check the number of cells of the battery pack
before going ahead.
The value of discharge current on the left can not exceed 1C, and
the value on the right can not be under the voltage recommended
by the manufacturer to avoid deep discharging. Press Start/Enter
for more than 3 seconds to start discharging.
This shows the real-time status of discharging, you can press Batt
Type/Stop key to stop discharging.
This displays the number of cells you set up and the processor
detects. R shows the number of cells detected by the charger and
S is the number of cells set by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter
button. If not, press Batt Type/Stop button to go back to previous
screen to carefully check the number of cells of the battery pack
before going ahead.
Turnigy Mega 1000W

· 15
PB( LEAD-SULPHURIC ACID) BATTERY PROGRAM
This is programmed for charging Pb(lead-sulphuric acid) battery with nominal voltage
from 2 to 32V. Pb batteries are totally different from NiCd or NiMH batteries. They can
only deliver relatievely lower current compare to their capacity, and similar restrictions
definitely apply to charge. So the optimal charge current will be 1/10 of the capacity. Pb
batteries must not be charged rapidly. Always follow the instruction is supplied by the
manufacturer of battery.
When you are willing to alter the parameter value in the program, press Start/Enter key to
make it blink then change the value with INC or DEC key. The value will be stored by
pressing Start/Enter key once.
Charging of Pb battery
Discharging of Pb battery
Battery
type
DEC
-
Batt type
Stop
Elapsed
time
INC
+
Charge
current
Battery
voltage
DEC
Start
Enter
-
INC
+
Charged
capacity
'> 3 seconds '
DEC
-
Batt type
Stop
INC
+
DEC
Start
Enter
-
INC
+
Battery
type
Elapsed
time Discharge
current
Battery
voltage
Discharged
capacity
'> 3 seconds '
Set up the charge current on the left and the nominal voltage of the
battery on the right. The charge current ranges from 0.1 to 40.0A
and the voltage should be matched with the battery being charged.
Start the charge process by pressing Start/Enter key for more than
3 seconds.
The screen displays the state of charging process. To stop
charging forcibly, press Batt type/Stop key once.
The audible sound indicates you at the end of process.
Set discharge current on the left and final voltage on the right. The
discharge current ranges from 0.1 to 8.0A.
To start the process, press Start/Enter key for more than 3
seconds.
The screen displays the current state of discharge. You can alter
the discharge current by pressing Start/Enter key during the
process. Once you change the current value, store it by pressing
Start/Enter button again.
To stop discharging press Batt Type/Stop key once. The audible
sound indicates you at the end of process.
Turnigy Mega 1000W

16 ·
NIMH/NICD BATTERY PROGRAM
These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or NiCd
(Nickel-Cadmium) battery commonly used for R/C model aplications. To alter the value at
the display, press Start/Enter key to make it blink then change the value using INC or
DEC key. The value will be stored by pressing Start/Enter key once.
To start the process, press Start/ Enter button for more than 3 seconds.
Charging of NiCd/NiMH battery
Discharging of NiCd/NiMH battery
The charger will charge NiCd and NiMh batteries using the charge current set by the user.
NiMH CHARGE
CURRENT 2.0A
NiMH DISCHARGE
0.1A CUT:1.0V
Battery
type DEC
-
INC
+
Battery
type
DEC
-
INC
+
Batt type
Stop
Elapsed
time
Start
Enter
Charged
capacity
Battery
type Charge
current
Battery
voltage
'> 3 seconds '
Discharge
current
Battery
type
Battery
voltage
Elapsed
time
Discharged
capacity
Batt type
Stop
Start
Enter
'> 3 seconds '
NiMH 0.1A 7.42V
DSC 022:45 00890
The screen displays the current state of charging.
To stop the process, press Batt type/Stop key once.
The audible sound indicates you the end of process.
This program is for charging of NiCd/NiMH batteries associated
with R/C models applications. You can press Start/Enter key to
make it blink and then Inc or Dec to change the parameter value.
Press START/ENTER key to store the value.
Set discharge current on the left and final voltage on the right. The
discharge current ranges from 0.1 to 8.0A and the final voltage
ranges from 0.1 to 32.0V). To start the process, press Start /Enter
key more than 3 seconds.
The screen indicates the discharging state. You can press
Start/Enter key to alter discharge current. Press Start/Enter again
to store the value. Press Batt Type/Stop key to stop discharging.
The emitted sound alerts the end of discharging.
Charging NiCd/NiMH battery in the AUTO charge mode
In this program the charger detects the condition of the battery which is connected to the
output and automatically charges the battery. In this mode, you should set up the upper
limit of the charge current to avoid damage by excessive feeding current. Some batteries
of low resistance and capacity can lead to higher current in the auto charging mode.
This program is for charging of NiCd/NiMH batteries. You can
press the Start/Enter button to make it blink and then press the
Dec/Inc button to change the parameter value. Press the
Start/Enter button more than 3 seconds to start the charging
process.
N i M H Au t o C HA R G E
C U R RE N T 2 .0 A
N i M H 2. 0 A 9 .5 2 V
A U T 0 00 : 1 3 00 0 0 0
ENTER
/START
Turnigy Mega 1000W

· 17
NIMH/NICD BATTERY PROGRAM
Charging NiCd/NiMH battery in re-peak charge mode
Re-peak Charge Mode (NiCd and NiMH batteries only): In re-peak charge mode, the
charger can peak charge the battery once, twice or three times in a row automatically.
This is good for confirming the battery is fully charged, and for checking how well the
battery receives fast charges. A five minute cool-off delay occurs after each re-peak
charge. See the diagram below for using re-peak charge mode. To start charging, press
the Start/Enter button for 3 seconds.
N i M H RE - P EA K
1
N i M H 2. 0 A 9 .5 9 V
R P C 0 00 : 3 3 00 0 1 7
ENTER/START
“Re-peak cycle: 1” shows on the display. Press the Start/Enter
button to make the re-peak cycle number blink and press the
Dec/Inc button to find the desired number of times to re-peak.
Press the Start/Enter button to confirm selection.
Charge/discharge & discharge/charge cycle of NiMH/NiCd battery
DEC
-
Batt type
Stop
INC
+DEC
Start
Enter
-INC
+
Battery
type
Elapsed
time
Battery
voltage Discharged
or charged
capacity
'> 3 seconds '
NiMH CYCLE
CHG＞DCHG 1
NiMH 1.0A 7.42V
C>D 022:45 00890
You can set up sequence on the left and the number of cycles on
the right. Range of the cycle number is 1-5.
Press Batt Type/Stop key to stop program, you can press
Start/Enter key to alter charge current. The sound indicates the end
of program.
Turnigy Mega 1000W

Enter the battery memory program, you can change the battery
type(Lipo, Lilo, LiFe, NiMH, NiCd, Pb battery), voltage, charge
current by pressing the Start/Enter button to make the value blink,
the INC or DEC buttons to change the value, and Start/Enter
button once more to store the value and move to the next value or
screen. (Note: The battery used for this example is a 2S(7.4V) Lipo
battery.
Set the voltage and number of cells, along with the normal voltage
(1-8S).
Set the charge current, which can be adjusted(0.1-40.0A).
18 ·
BATTERY MEMORY SET
The charger can store up to 10 different charge/discharge profiles for your convenience,
and the stored profiles can be recalled quickly without having to go through the setup
process.
BATT MEMORY【1】
ENTER SET
BATT TYPE
LiPo
BATT VOLTS
7.4V(2S)
CHARGE CURRENT
4.9A
ENTER
START
DEC INC
＞3 seconds
DEC INC
DEC INC
DEC INC
DEC INC
DSCH CURRENT
2.2A
Set the discharge current, which can be adjusted(0.1A-8.0A,
each port).
DSCH VOLTAGE
3.0V/CELL
Set the discharge voltage, which can be adjusted(3.0V/CELL-
3.3V/CELL).
TVC=YOUR RISK
4.20V Set the terminal voltage, which can be adjusted(4.18v-4.30v).
DEC INC
DEC INC
DEC INC
DEC INC
DEC INC
DEC INC
TEMPERATURE
CUT-OFF 50C
DEC INC
DEC INC
Set the temperature, which can be adjusted(20C-80C).cut-off
Turnigy Mega 1000W

· 19
SAVE PROGRAM
SAVE
DEC INC
ENT ER
START ＞3 seconds
BATT MEMORY【1】
LiPo 7.4V(2S)
BATT MEMORY【1】
C:4.9A D:2.2A
ENTER CHARGER
LOAD……
next flash
DEC INC
Save the program set by pressing the Start/Enter button for more
than three seconds.
This screen indicate the saved profile.
Once you've saved a charge profile, you can load those settings to
use later. To load a memory, you have to press the Start/Enter Button
for more than 3 seconds. Otherwise you only enter the setting mode.
This screen indicates that the charge profile is being loaded.
BATTERY MEMORY SET
SAVE PROGRAM
ENTER
Turnigy Mega 1000W
