Turnigy M8 User manual

INSTRUCTION MANUAL
M8 MULTIFUNCTIONAL
CHARGER

Turnigy M8
www.hobbyking.com

Contents 2
Safety 3
Introduction 4
Specication 5
Battery Parameter 6
Quick start 7
Charge and discharge 8
1.Battery type setting 8
2.Cuto voltage setting（TVC） 9
3.NiMH Setting（PeakV）10
4.Battery Setting 11
5.Current setting 12
6.Charging mode 13
Charging Operations 16
Signal Measurement 18
Battery measurement 21
ESC measurement 23
Signal output 24
Power output 27
Drone Battery Charging 28
System settings 30
Other functions 32
CONTENTS

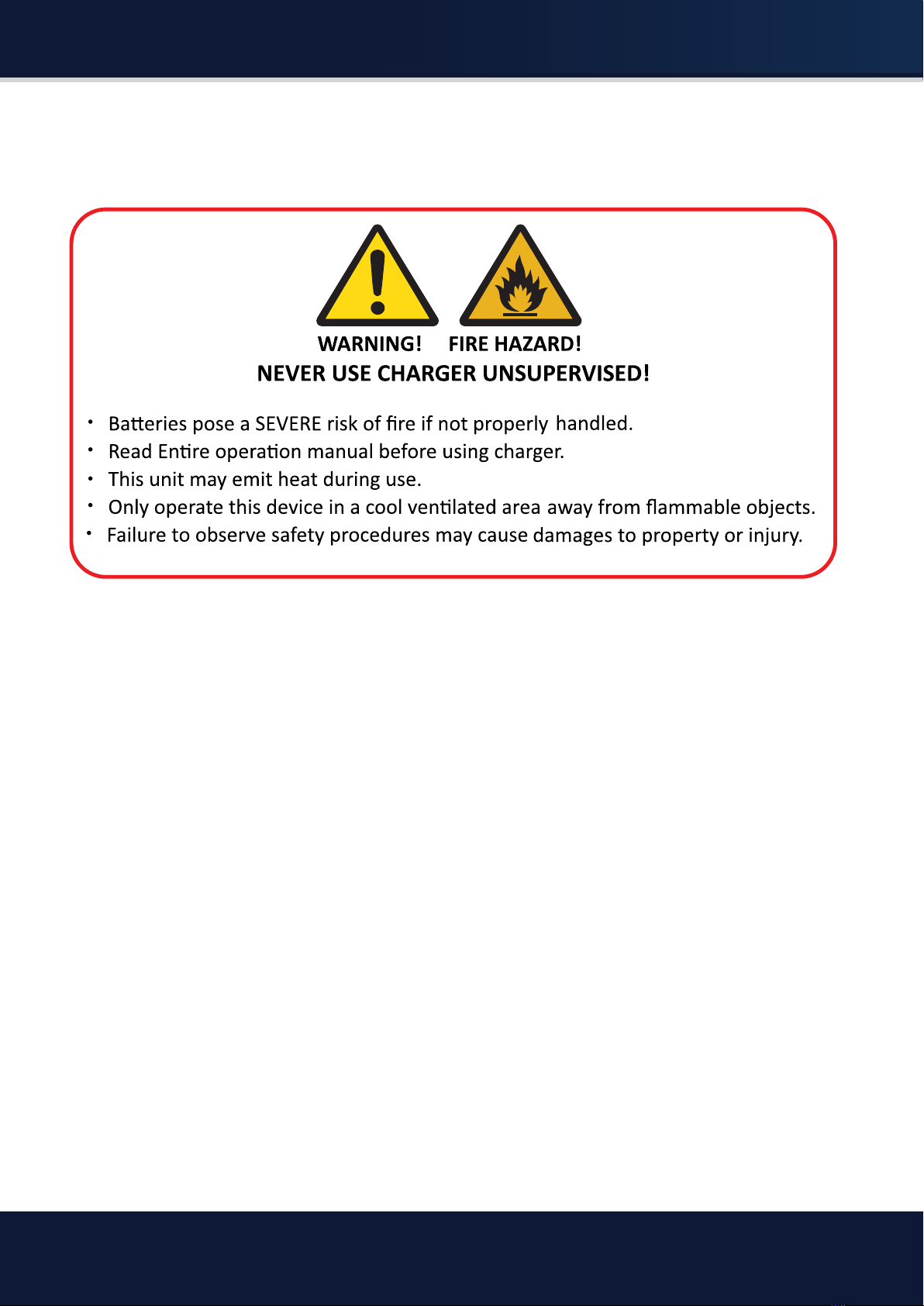

1. Keep the charger away from children and pets at all times.
2. Never leave the charger unsupervised when charging or discharging. If you
leave, please disconnect the battery to prevent any unexpected dangers or
damage.
3. Do not mix batteries of different types, different capacities or from different
manufacturers.
4. Do not disassemble the charger.
5. Turnigy M8 allows an input voltage of 7-30V, to ensure that the power supply
voltage is consistent, pay attention to the positive and negative polarity of the
power supply.
6. Do not use this product in heat, moisture, flammable or explosive atmospheres
3

Thank you for purchasing the Turnigy M8. Please read the entire instruction manual com-
pletely and attentively before using this product, as it covers a wide range of information on
operation and safety.
INTRODUCTION
Display
Sh uttle Button
Output Port
Balance Port
Front
Back
Signal Port
USB
Cooling Fan
Cooling Fan
Input Port
4

SPECIFICATION
Charging
Input 7- 30V@MAX16A
Battery Type LiPo LiHV LiFe Li-lon @1-8S
NiMh @1- 20S Pb @1- 10S
Bal Cur. 800mA @2 - 8S
Accuracy ± 0.02V
Charging
Power 0.1- 15A@300W
Discharging
Power
0.1- 15A@300W Recycle Mode
0.1- 3A@20W Normal Mode
USB
2.1A@5V upgrade
Measuring
PWM 880us- 2200us @20- 400Hz
PPM 880us- 2200us*8Ch @20- 50hz
SBUS
880us- 2200us*16ch @20- 100Hz
Voltage 1.0V- 5.0V @1- 8S
IR 1- 99mR @1 - 8S
ESC
0.1A -15A @MAX 300W
Output
PWM 500us - 2500us @20- 1000Hz
PPM 880us - 2200us*8ch @50hz
SBUS 880us - 2200us*16ch @74Hz
Power 1-15A@1- 30V Mode: CC+CV
Display LCD 2.2 inch 132*64 resolution
Product
Size 98mm*68mm*35mm
Weight 142g
Individual
packing
Size 108.5mm*80.5mm*46mm
Weight 235g
5

STANDARD BATTERY PARAMETERS
supported supported supported supported
supported
1-12 1-8S 1-8S 1-8S
1.20V
1.40V
Not supported
1.10V
0.90V
Not supported
supported
1-20
15.0A 15.0A 15.0A 15.0A 15.0A
NiCd/NiMH Pd LiFe LiPo Lilon
LiHV
2.00V
2.46V
Not supported 3.30V 3.80V 3.85V
4.35V
4.20V3.65V
3.2V 3.7V 3.8V
1.90V 2.90V 2.90V
1.80V 2.60V 3.00V
supported supported
2.90V
3.00V
supported
1-8S
15.0A
3.70V
4.10V
3.6V
supported
2.90V
3.00V
Not supported
Rated Voltage
Full Charge Voltage
Storage Voltage
Discharge Voltage
Pre-discharge Voltage
Balance Charge
Unbalanced Charge
Suport Cells
Max Charge Current
Be very careful to choose the correct voltage for dierent types of battery otherwise you may cause
damage to the batteries. Incorrect settings could cause the cells to explode.
6

QUICK START
1. Turn on the charger by connecting a 7-30V power source to the input port on the
back of the Turnigy M8.
2. The Display will show bootup and is ready to operate within 2 seconds.
3. Once the bootup is complete the main interface will show as below.
4. Operate by rotating the Shuttle button, move the cursor to select the function, press
the Shuttle to enter the selected function and enter the corresponding interface.
5. After entering the function interface, rotate the Shuttle to move the cursor, press the
Shuttle again to modify the options or values. After the modification is complete
press the Shuttle button once more for confirmation.
Select [Charge] function on the main interface, press [Shuttle button] to enter the charging
function, the following interface is displayed as below.
CHARGE AND DISCHARGE
7

1. Battery type setting
Rotate the Shuttle button, move the cursor to select the battery that has been set, or
create a new battery profile,both by pressing [Shuttle key] to enter the battery setting
interface, as shown below.
8

Move the shuttle to desiredbattery type. The charger supports the charging and
discharging of 5 types of batteries: Lipo, LiHV, LiFe, NiMh, PB. After selecting the desired
battery settings that matches the actual battery give the [Shuttle button] a short press for
Confirmation and [Exit] if you want to return to previous menu..
1. Incorrect battery type charging may damage the battery or
charger, and may lead risks of unexpected dangers or damage.
2. Batteries that cannot be found in the menu then pleasedo not
use this product to charge them.
3. PB: often referred to as lead-acid battery, nominal voltage
2.00V.
2. Cutoff voltage setting（TVC）
Terminal Voltage Control (TVL) can be adjusted by moving the cursor to [4.200V] and
press [Shuttle] to modify the cut-off voltage. Adjust the value and step 1mV by
rotating the shuttle button.
Important:
9

1. Only LiPo, LiHV, LiFe battery can be set for cutoff voltage
2. Do not modify the cutoff voltage when you are unfamiliar with
battery characteristics.
3. The cutoff voltage can be set to the range of positive and
negative 50mV of full voltage.
3. NiMH Setting（PeakV）
When the battery type is NiMh, you can set the negative internal pressure value when
the battery is full, and the range can be set from 5mV to 20mV, as shown below.
Tips：
1. Only NiMh battery can set the battery negative internal pressure
value
10

4. Battery Setting
Move the cursor to the [Auto] or [1 - 8S] by pressing the [Shuttle] and rotate to change
the number of battery cells. When set to [Auto], the charger will automatically
recognize the number of connected batteries according to the voltage of battery which
is connected to the output port or Balance Port.
Tips：
1. Batteries which are over-discharged may cause the number of
cells to be falsely recognized, you need to manually set the
correct number of cells or by connect to the balances port.
2. If the number of cells is set incorrectly the battery may be
overcharged and damaged, please set it carefully.
11

5.Current setting
Move the cursor to the charging current position and press [Shuttle] to modify the
charging current values. Turn [Shuttle] to adjust the value.
Move the cursor to the discharge current position and press [Shuttle] to modify the discharge
current. Turn [Shuttle] to adjust the value. The charger supports 2 discharge modes.
1. Discharge mode, through internal heat dissipation discharge, maximum support up to
3.0A@20W discharge.
2. Recovery Discharge mode, if the input is battery power, this function will recover
electrical energy back to the input battery, the maximum support 15.0A@300W
discharge
12

13
Tips:
1. Please set the charging rate according to the battery capacity.
For example, if the battery capacity is 2000mAh, please set the
charging current to 2.0-4.0A.
2. Charging and discharging current is only valid in the
corresponding working mode.
3. Discharge mode setting, please refer to the <System Settings> .
6.Charging modes
Move the cursor to STR [Store] DSC [Discharge] CHG [Charge] position, press
[Shuttle], the charger will work on the basis of the mode you have selected. It will
indicate the target voltage that will charge the battery. As shown below ;

14
When selected as DSC [Discharge], it will prompt the target voltage to the battery. If
Recovery Discharge Mode, it is also necessary to set the cutoff voltage of the power battery.
As shown below;

When selected as STR [Storage], it will prompt the target voltage to charge and discharge
the battery. If Discharge Recovery Mode it is also necessary to set the cutoff voltage of the
battery. As shown below;
Tips:
1. The discharge cutoff voltage should be set according to the
discharge characteristics of the battery from the manufacturer.
2. If the recovery limit voltage is set to the highest protection
voltage of the power supply, the charger will automatically stop
the recovery discharge. Setting too high might overvoltage and
damage the input power.
15

Rotate [Shuttle] on this screen to switch the bottom status display information or press and
hold [Shuttle Button] for 2 seconds to dynamically set the working current. As shown below
CHARGING OPERATIONS
When charging or discharging the charger enters the working interface menu as
shown below.
16

Please refer to Red marking for operation desciptions;
1. The battery voltage of the output port
2. Operation Modes : Current limit flag. P: power, C: maximum current I: input over
current or Powe A: activate charging
3. Charge or discharge power of the charger
4. Internal temperature of the charger5
5. Operation time since started. Unit: minute: second
6. Capacity that has been charged or discharged
7. Currently set battery type and number of Cells
8. Current operating current set. Long press to modify.
9. Input supply voltage
10. Input power that has been discharged from the power supply.
11. 1st - 8th battery voltage via Balance port
-.--V : no battery connected
To end the charge and discharge operations, press [Exit], pop-up prompt box, press [Shuttle]
to terminate the operation.
When charging is complete, or charging ecountersErrors. Apop-up window is displayed and
a warning sound will be heard.As shown below;
17

1. Charging or discharging, should be under supervision
throughout the process.
2. When charging and discharging the lithium battery, if you only
connect the output port, battery will not be balanced. Connect
the battery with balance port, the balance management will
automatically perform.
3. When charging is completed, unplug the battery, if you plug a
new battery, it will automatically continue to charge and
discharge according to the current setting. please pay attention
to whether the number of detected cells matches the actual
ones.
Selecting the Measuring [Measurement] function on the main interface, press [Shuttle] to
enter the function, display the following interfaces as shown below; .
Turn [Shuttle] to select the type of signal to be tested.
SIGNAL MEASUREMENT
18

PWM
Rotate the Shuttle to move the cursor to the [PWM] item, press [Shuttle] to enter the PWM
test interface as shown below.
Tips:
1. PWM and PPM signals can automatically identify and switch to
the corresponding interface.
2. sBus is an inverted signal, Turnigy M8 can test up to baud rate
100kbps 8-bit data bit, 2-bit stop bit.
Rotate the Shuttle on the measurement interface to move the cursor to the [PPM] item, press
[Shuttle] to enter the PPM test interface as shown below.
PPM
19
