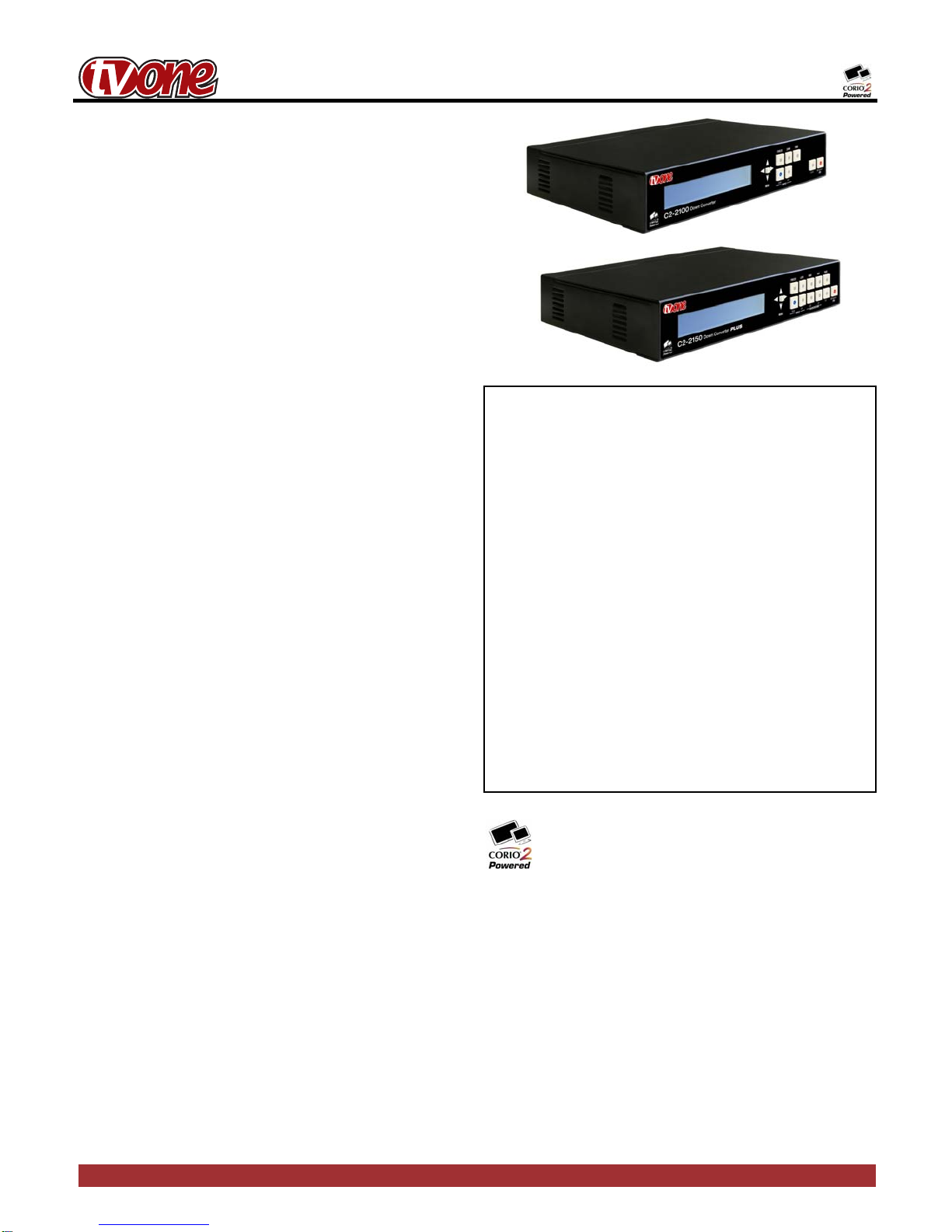

C2-2100 Down Converter is based on TV One’s
exclusive CORIO2™ technology and provides high
quality scan conversion from DVI or Analog Computer o
r
HDTV signals to standard video formats. It handles any
computer resolution up to 2048x2048 at any vertical
refresh rate and all HDTV resolutions up to 1080p. In
order to deal with PC, Mac and most Compute
r
Workstation signals, a wide variety of computer signal
formats can be accommodated. Video outputs are
switchable between NTSC and PAL and are
simultaneously provided in Composite, S-Video and
YUV Component. Alternatively, the output can be YPbP
r
Component (Progressive Scan). A PC loop-thru is also
provided. C2-2105 provides an SDI output as well.
Our exclusive AutoSet® feature takes the hassle out o
f
setup by automatically sizing and positioning the
computer image to fit exactly on the video screen. All
settings are stored in non-volatile memory and are
retained even when power is switched off. All the
functions can be controlled via the front panel Push
Buttons, an Infrared Control Remote Unit or via an RS-
232 or IP connection. A Windows Control Panel is
provided and most third party control systems interface
directly with the entire C2 range of products.
A
front
panel LCD makes setup easy.
Variable Zoom to 10X allows you to enlarge any part o
f
the computer screen to fill the entire video screen and
position controls allow you to move around to any area
desired. Variable Shrink to as little as 10% allows fitting
the image onto most displays. The advanced Digital
Flicker Elimination circuitry and high sampling rate
insures crisp, clear images, while full bandwidth chroma
sampling insures faithfully reproduced, high resolution
colors. C2-2000 series units are housed in desktop
cases and rackmount kits are available as options.
The Genlock feature insures precise synchronization o
f
the incoming signals by providing a wide Subcarrier lock
range with Subcarrier phase adjustment
C2-2150 Down Converter PLUS has all the functions
and features of the C2-2100 and adds a wide variety o
f
additional capabilities, such as Picture-In-Picture,
Chromakey, Lumakey and Mix. The Key Mode allows
computer graphics to be keyed over an external
Composite or S-Video signal. The keyed image may be
faded in and out. Due to the 4:4:4 sampling format,
precise keying at the pixel level can be achieved. The
Mix Mode permits glitch-free mixing between the
computer image and external video. The PIP Mode
allows either of the computer inputs to be inset in a
window over either of the video inputs. The C2-2155
provides an SDI output as well.
Input Expansion is available for all models by choosing
the appropriate S2 Series Input Switcher, which links to
the main unit via an Options Interconnect Cable. The
routing of these additional inputs is controlled directly
from the C2-2000 Series converter’s control system.
Key Features of the C2-2100, C2-2105
•Automatic incoming resolution detection
•Analog Computer Input via HD-15 w/Loop-thru
•DVI-D Computer Input via DVI-I Connector
•Genlock with Subcarrier Phase Adjustment
•Analog PC to 2048x2048, HDTV to 1080p
•DVI PC to 1280x1024, HDTV to 1080p/30
•AutoSet®- Automatic picture sizing
•Multiple Worldwide Television Standards
•Composite, S-Video, YUV, YPbPr Outputs
•SDI Output (C2-2105 only)
•RS-232 & IP Interface and Windows Control Panel
•IR Remote Control
•Variable Image Zoom to 10X and Shrink to 10%
•Optional Single/Dual Rackmount Kit
•Optional Input Expansion for additional inputs
Additional Features of the C2-2150, C2-2155
•Picture-in-Picture
•Chromakey and Lumakey
•Composite and S-Video Input
•SDI Out (C2-2155 only)
Unlike most manufacturers, who use third party chipsets
to provide video conversion, TV One has developed its
own proprietary technology known as CORIO2™. This
frees TV One products from the constraints imposed b
y
third parties and results in an unsurpassed degree o
f
flexibility. Products based on third party chipsets have a
feature set frozen at the introduction of the product.
Since the CORIO2™ video processing engine is entirely
firmware based, it can be upgraded at any time by
downloading the latest firmware version form the suppor
t
website and flash upgrading the unit in the field. This
enables new features to be added to units many years
after the initial purchase. This “obsolescence insurance”
means that a CORIO2™ based product can always be
upgraded to the latest version of that model.
This symbol on a product indicates that it is
powered by CORIO2™ technology, the mos
t
flexible video processing engine now available.

Down Converters
Models C2-2100, C2-2105, C2-2150, C2-2155
www.tvone.com •www.tvone.co.uk •www.tvonela.com
•
www.tvoneasia.com •www.tvonechina.com
Specifications
Panel Drawings
Computer Inputs (2x)
Signal Type 1x Analog via HD-15F w/Loop-thru
1x DVI-D via DVI-I Connector
Format RGBHV, RGBS, RGsB, YPbPr
Sync TTL Level, 10KΩ, Pos or Neg
Termination Auto-terminating into 75Ω
R-G-B Level Range 0.5-2.0 Vp-p
Scan Rate Detection Automatic
Analog Signals PC to 2048x2048,HD to 1080p
DVI Signals PC to 1280x1024,HD to 1080p/30
Vertical Refresh Rate Any to 250Hz
Max Horiz Scan Rate 150KHz
Computer Compatibility PC, Macintosh, Workstations
Video Outputs
Television Standards NTSC, PAL, PAL-M, PAL-N, SECAM
Impedance 75Ω
Composite Video 1x via BNC
S-Video (Y/C) 1x via 4-PIN Mini-DIN
YUV, YPbPr 1x via 3-BNC
SDI (SMPTE 259M) 1x via BNC (C2-2105 & C2-2155)
Video Inputs (C2-2150, C2-2155)
Composite Video 1x via BNC
S-Video (YC) 1x via 4-Pin Mini-DIN Connector
Genlock 1x via BNC
General
Size and Position Automatic via AutoSet or Manual
Image Size User-Definable Presets
Image Freeze One Video Frame
Settings Memory Non-Volatile
Zoom Range Variable to 10X Zoom
Shrink Range Variable to 10%
Image Mirroring Horizontal and/or Vertical
Horizontal Filtering Full Digital
Conversion Technology Proprietary – CORIO2™
Color Resolution 24-bit (16.8 Million Colors)
Sampling Rate 108MHz
Digital Sampling 24-bit, 4:4:4 format
Firmware Memory Flash, Upgradeable via RS-232
Video Encoder 8-bit Digital
Video Adjustments R-G-B Levels
Operational Modes (C2-2150, C2-2155)
Key Chromakey or Lumakey
Mix Mix PC to/from Video
PIP Variable Window Size & Position
Genlock Adjustments
Subcarrier Lock Range +/- 200Hz for NTSC Operation
(+/- 250Hz for PAL Operation)
Subcarrier Phase +/- 180°
Control Methods
Local via Front Panel Buttons & OSD
RS-232 Interface via D9 Female Connector
IP Interface RJ45 Connector
Infrared Remote via IRC-5 Remote Unit
Input Expansion Control via D-15 Options Connector
Warranty
Limited Warranty 2 Years Parts and Labor
Regulatory Compliance
Main Units FCC, CE, RoHS
Power Supplies UL, CE, CSA, RoHS
Mechanical
Size (H-W-D) 1.6”x8.6”x5.8” (41.5x218x147mm)
Weight (Net) 2.6 lbs (1.2 kg)
Environmental
Operating Temperature +4°to +45°C (+40°to +113°F)
Operating Humidity 10% to 85%, Non-condensing
Power Requirement
External Power Supply 12VDC@1A
Accessories Included
1x C-Video Cable 6’ (2m) BNC to BNC
1x VGA Cable 6’ (2m) HD15 Male to Male
1x DVI Cable 6’ (2m) DVI Male to Male
1x Serial Cable 6’ (2m) D9 Male to Male
1x IR Remote IRC-5
1x Operations Manual C2-2000 Series
1x In-Plug Power Supply US, UK or Euro
Product Item Numbers
C2-2100 (C2-2105) Down Converter (w/SDI Out)
C2-2150 (C2-2155) Down Converter PLUS (w/SDI)
Optional Accessories
RM-220 Single/Dual Rackmount Kit
S2 Series Input Expansion Switcher
