FOREWORD
Welcome to your new story! A story in which you will use your new TVS
RONIN to explore the many facets of life.
Whether it’s a daily ride, a weekend getaway, or a long and exciting tour, your
TVS RONIN is built to take you, wherever your heart pleases.
With its 225cc Oil Cooled engine, 19.9Nm of
torque and 20.4 PS of power, it’s the only bike
that clubs the best of power and manoeuvrability.
Its front Upside Down Suspension (USD)
makes it very stable, while the rear mono-shock
suspension always keeps you comfortable. Your
bike also comes with Rain & Urban ABS modes,
so you can ride with confidence in any weather.
Make sure to visit our website and experience the
virtual configurator which lets you add a whole
range of accessories. Plus, you can now download
the TVS SmartXonnect App (only in the TVS Ronin
TD variant) and pair it with your bike to unlock all
its smart features.
This instruction manual will help you learn all
about your new bike and how to make the most of
its state-of-the-tech features. Also, be sure to get
your bike serviced ONLY at authorisedTVS service
centres. It’s the only way to ensure smooth
operation and a long life for your new bike.
We at TVS want you to always be safe while
riding, so please make sure you wear a helmet
every time you ride out. And we’ve got you
covered there too! From stylish riding helmets to
an extensive range of TVS RONIN merchandise
and accessories, everything you would ever need
for your bike is available on our website - http://
tvsmotor.com/tvs-ronin

6
SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions on safety, we have
provided necessary operating procedure and other information in the owner’s manual. This information alerts you on
potential hazards that could hurt you or others. Since it is not possible to warn you about all the hazards associated
with operating or maintaining the vehicle, you must use your own judgement.
You will find important safety information in following form in this manual.These words carry the following connotations:
Disregarding this message might result in injury to the rider or deadly accidents.
Warning
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
Caution
This message provides further clarification for clear understanding of any particular information.
Note

7
7
NOTICE
Take time to familiarize yourself with your TVS RONIN and its performance characteristics.
This Owner‘s Manual contains a host of useful information. Please take the time to read this manual before you ride
your new TVS RONIN. Get familiarised with the operation of your motorcycle for maximum safety and pleasure. The
better you know your vehicle, the more pleasure you will experience riding your new vehicle. Ensure that anyone else
riding your TVS RONIN does the same.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the latest
product information available at the time of this publication. TVS Motor Company Limited may, however, incorporate
modifications or improvements on its vehicles at any time without notice, and therefore, in such events it is possible
that the relevant part of the owner‘s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this
owner’s manual.
Accessories shown in the picture may not be a part of standard equipment.
Pictures shown in the manual are of TVS RONIN with connected instrument cluster until otherwise specified.
Your motorcycle is provided with always glowing head lamp (AHO). The head lamp glows automatically once the engine is
started.
Since your vehicle is fitted with side stand cut-off system ensure to retract the side stand before starting / moving the vehicle.
Note
Revision 0 As on 23 Jun 2022

8
RUNNING-IN INFORMATION
The first 1000 km is a crucial part of your motorcycle. Proper running-in operation during this period helps in ensuring
a maximum life and smooth performance of your motorcycle.
The reliability and performance of your motorcycle depends on the special care and restrain exercised during the
running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could
expose the engine parts to excessive stress. Recommended speed during the running-in is:
Maximum 50 km/h speed upto 1000 km (vary the engine speed for better mating of parts).
The first free service at 750 ~ 1000 km is most important. During running-in period all the engine components and
other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine cum transmission oil
to be replaced. Timely performance of the first free service will ensure optimum service life and performance from
the engine.
Replacing the engine cum transmission oil during first service is most important for better life of engine. Always use TVS
TRU4 FULLY SYNTHETIC oil (SAE 10W30 API-SL, JASO MA2) for better performance and life.
Since your motorcycle is fitted with Evaporative Emission Control System, the motorcycle should not be laid on the floor
during water wash. Else it may lead to difficulty in starting and improper running of the motorcycle.
Caution

9
9
ANTI-LOCK BRAKE SYSTEM (ABS)
Your motorcycle is fitted with an Anti-lock braking system (ABS) which is designed to prevent skidding and help riders
to maintain steering control during emergency-stopping situation in dry or wet roads, loose gravels etc. Incase of
single channel ABS system, the ABS system is provided only on the front brake whereas dual channel system has the
ABS system on both front and rear brakes.
How does ABS work?
When a rider applies the front brake (in single channel system) or any of the brake (in dual channel system) continuously,
as he detects a dangerous obstacle in dry or wet roads, loose gravels etc. transmits an excessive brake force to the
wheels. This excessive force may cause the wheels to stop spinning and leads to lose of road grip. With no firm
contact between the tire’s contact patch and the road surface, the bike becomes unstable and a crash is imminent.
The slipping wheels on a riding surface results in losing control of whole motorcycle which usually occurs in fractions
of a second. Restoring traction while keeping the bike balanced is only a result of luck, or extreme training, as is
the case of professional stunt riders who drift. Preventing the wheels from slipping due to excessive braking force
compensates losing control and help the rider to maneuver the vehicle and to avoid accidents.
So what the ABS does is actually limiting the braking force exerted by the rider by either squeezing the lever and keep
the wheel spinning. Once the imminence of the locking (and therefore skidding) is avoided, the system re-applies the
maximum braking force until the next skid is anticipated. By limiting the max force of the braking maneuver, the ABS
systems practically allow the riders to use the greatest stopping force possible without locking the wheels.
How does the ABS understands the wheel locking?

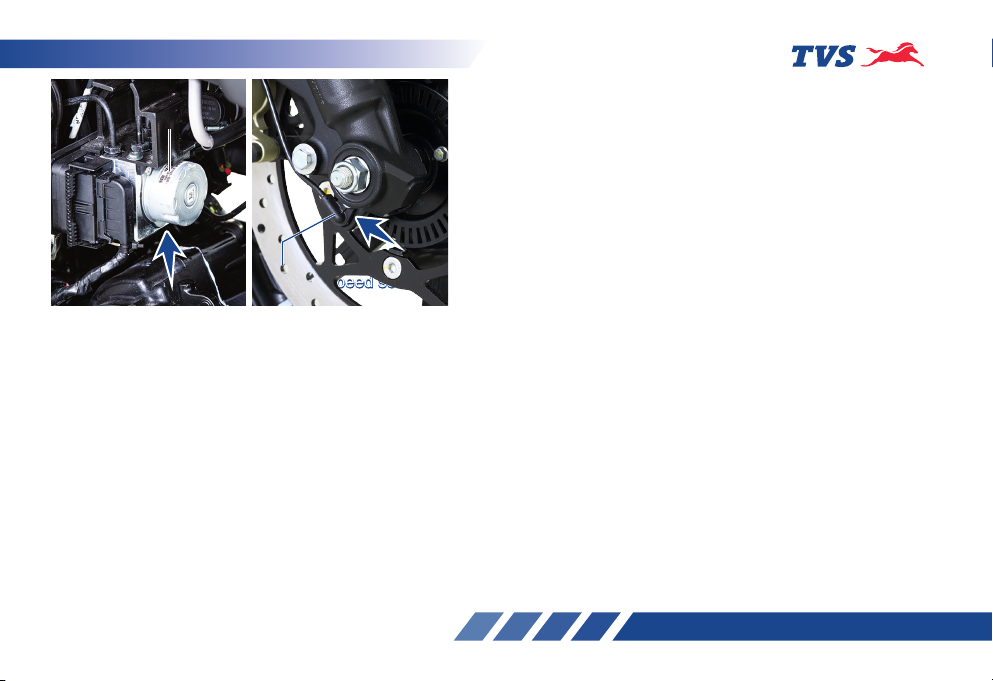

The ABS uses continuous wheel speed monitoring system; wheel speed sensors and toner rings and a Hydraulic
Electronic Control Unit (HECU).
During normal operation the ABS works similar to a normal brake. The speed sensors fitted on the both the wheels
(incase of dual channel ABS) measures the rotational speed of the wheels, when the wheel speed reduces rapidly
i.e. wheels tends to lock, the HECU modulates the pressure in the brake circuit and thereby prevents the wheels
from locking.
ANTI-LOCK BRAKING SYSTEM

10
How the irregular road surface affects the braking?
Humps and irregular surfaces of the road can cause
the wheels to lose contact temporarily with the road
surface; if this happens the braking force that can be
transmitted to road surface is zero.
If the brakes are applied under these condition, the
ABS has to reduce the braking force to ensure and
maintain the directional stability when the wheels
regains its contact with the road surface. At this
instant the ABS must reduce the traction, so that the
wheels will continue to rotate under all imaginable
circumstances, because this is the precondition for
ensuring directional stability.
As soon as the actual circumstances arises, the
system reacts instantly and adjusts braking force
accordingly to achieve optimum braking.
Why does brake pedal / lever pulsate during brake
application?
Vehicles fitted with ABS uses the conventional brake
system during normal operation. But during hard
stop the brake pedal / lever feels different, i.e., a
rapid pulsation in the brake pedal / lever; This is
absolutely normal.
It is not necessary to have this pulsation feel every
time the brake is applied. Pulsations are felt only
during wheel locking tendency, occurs due to the
modulation of pressure in the brake circuit by HECU.
Pulsation means that the vehicle is in limit. This
pulsation feel also depends on the road condition.
Rear wheel lift
Under very severe and sudden deceleration,
however, under certain circumstances it is possible
that the ABS unit fitted in your vehicle will be unable
to prevent the rear wheel from lifting clear of the
ground and flip over. Severe braking can cause the
rear wheel to lift off the ground. When you brake, bear
in mind that ABS control cannot always be relied on
to prevent the rear wheel from lifting clear of ground.
Wheel speed sensorWheel speed sensor
HECUHECU

11
11

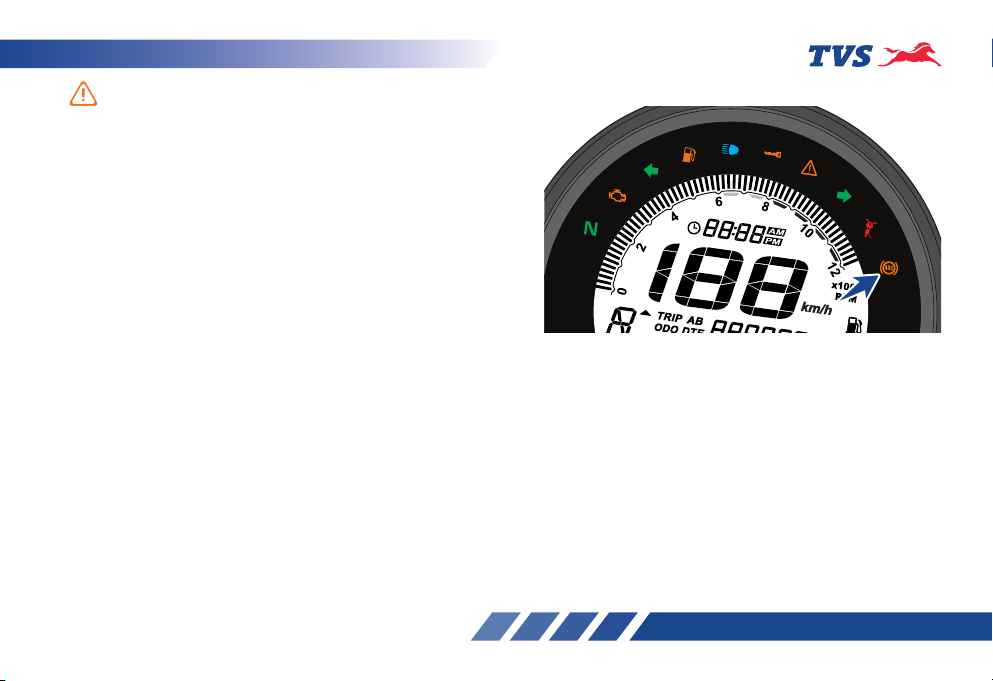

ABS warning lamp
Warning
The ABS can apply and release the pressure in the brake
circuit much faster than that rider can do with brake lever
/ pedal to avoid wheel locking. So there is no need to
pump the brake, it requires only continuous application.
Incase of single channel ABS system, only the front
brake of your motorcycle is fitted with ABS system
and not the rear brake. Applying rear brake alone
can cause wheel skidding just like normal braking
system. Always apply both front and rear brake for
better performance.
The TVS RONIN does an automatic self check
every time whenever the ignition lock of the bike is
turned ‘ON’. The ABS warning lamp provided on the
instrument cluster blinks and informs you that the
ABS is under check.
This ABS warning lamp goes ‘OFF’ once the bike
reaches 10 km/h speed and above in dual channel
ABS system and 6 km/h speed and above in single
channel ABS system. This ABS warning lamp blinks
whenever the bike speed goes below 6 km/h in
single channel ABS system to indicate that the ABS
system is working fine.

12
If the warning lamp glows continuously even after
the bike crossing the specified speed limits, then the
ABS has an error and your bike should be taken to
any of our nearest TVS Motor Company Authorised
Main dealer / Authorised Dealer for inspection.
DO‘S AND DONT‘S
Do’s
Check the ABS warning lamp for any warning
before driving the vehicle.
Apply both front and rear brake for better
performance.
Apply continuous brake for better performance.
Do not pump.
Perform the periodic maintenance as per the
schedule.
ABS should be serviced only at TVS Motor
Company Authorised Main Dealer / Authorised
Dealer.
Carefully remove the wheels during puncture /
tyre replacement to prevent toner ring damage
/ bend.
Keep the wheel in such a way that the toner
ring is facing upwards.
ABS helps only in improving the vehicle control. It is
always good to remember not to exceed the physical
limits of the vehicle stability. It is rider’s responsibility to
ride at a suitable speed, while taking care of conditions
and road surface. ABS will not compensate for errors
in the judgement or improper brake use in the various
situation. ABS never eliminates the danger of falling
while turning.
Hard braking during sharp cornering on slippery surface
may lead to vehicle instability. Under such circumstances
gradual braking is recommended.
Warning
Always use recommended brake fluid. Use fresh,
clean brake fluid.
Use only the recommended make, type and size
of tyre (ABS tuned with tyre specified by the TVS
Motor Company).
Dont’s
Do not use non-standard tyres.
Do not pump the brakes. Apply the brakes
continuously.
Do not ignore any warning lamp on speedometer.
Do not adjust the wheel speed sensor air gap
your self.

13
13
Do not run the engine and ride or rotate the rear
wheel alone in gear with vehicle on centre stand,
for drive chain lubrication, during water wash etc.,
Do not attempt to correct the toner ring teeth by
bending manually or by using any other method.
Do not use different toner ring.
Do not insert any metallic parts near wheel speed
sensor.
Do not test the ABS on road!!, but use ABS (it is
already tested).
Do not use non-genuine spares like pads,
discs, tyres etc.
Do not try to service HECU or open to separate
parts.
Do not disengage the ABS by removing the ABS
coupler.
Incase of ABS failure, the braking system will work like
a non ABS braking system and provides normal stopping
distance.
This motorcycle is equipped with ABS and tubeless
tyres. For repair or replacement please contact
nearest TVS Motor Company Authorised Main Dealer /
Authorised Dealer.
As a general riding practice it is advisable to apply more
front brake and less of rear brake.
Use of non-genuine brake pads, tyres, disc etc. leads to
poor braking performance and unsafe riding conditions.
Never open HECU on your own, it is a very sensitive
part of ABS and needs to be handled only by the trained
personnel. Contact your nearest TVS Motor Company
Authorised Main Dealer / Authorised Dealer.
Note
Do not ride the vehicle in conditions like wheelie, stoppie,
on-stand engine revving in gear for chain lubrication and
during water wash etc... for more than three minutes as
it will result in ABS error and ABS warning lamp glowing
continuously. In such cases, just switch ‘OFF’ and switch
‘ON’ the ignition key once. ABS warning lamp may glow
continuously if any ABS error had occurred before.
This error gets cleared automatically and ABS warning
lamp goes ‘OFF’ after riding the vehicle above 6 km/h in
single channel ABS and 10 km/h speed in dual channel
ABS. If the ABS warning lamp is still ‘ON’, then contact
the nearestTVS Motor Company Authorised Main Dealer
/ Authorised Dealer (applicable only for dual channel
ABS system).
Warning

14
SAFE RIDING TIPS
SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion rider and other
road users. These precautions are:
Familiarise yourself with new TVS RONIN motorcycle
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice
riding TVS RONIN in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls.
Remember practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two wheeler
riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help you
to avoid accidents.
Two wheeler safety starts with wearing a good quality helmet. One of the most serious injuries that can happen is a
head injury. Always wear an ISI approved helmet that should fit your head comfortably and securely. You should also have
good quality goggles to protect your eyes and help your vision.
To prevent or minimize accident, never consume alcohol or drugs before or during the operation of your vehicle. Even minimal
consumption of these will affect the rider’s ability to control the vehicle.
Warning

15
15
Posture
Proper vehicle riding starts with proper posture.
1. Sit erect on the seat at the position which you
feel most comfortable.
2. Keep your arms relaxed to give extra cushion for
body on uneven road surfaces.
3. Keep right arm and foot close to the brake lever
and pedal, so as to enable fast action during panic
braking.
4. Look widely instead of gazing at one point.
5. Alter your sitting location / posture slightly at
intervals during long rides. This will reduce
fatigue.
Cornering
When cornering, centrifugal force works in a direction
perpendicular to the direction in which the vehicle
is moving. Centrifugal force increases in proportion
with speed and the radius of the corner.
During cornering, reduce speed so as to reduce the
effects of centrifugal force. Avoid abrupt application
of brake or sudden steering by all means.
Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brakes is safer.
4. Never declutch while braking at higher speeds.
5. Apply both the brakes.
6. Do not pump the brakes.
One-hand riding is dangerous. Keep both hands firmly
on the handle bar and both feet securely on the foot
rest. Under no circumstances should both the hands be
removed from the handle bar, as it is very dangerous.
Avoid use of mobile phones while riding as it could
lead to fatal accident.
Do not downshift the gears in the midst of cornering.
Slow down to a safe speed before negotiating a corner.
If this is the first time that you are riding a vehicle of
this type, we suggest that you practice on a safe, open
area to thoroughly familiarise with the operation of the
vehicle.
Warning

16
7. Riding down hills, while cornering and wet roads
close throttle and down shift the gear to take
advantage of gearbox and engine which acts as
an additional brake. This will avoid the loss of
control over the vehicle due to over speed.
Causes for poor braking
1. If the brake shoes / pads or drum / disc are worn
out or if there is water or oil on them, sufficient
friction does not develop and brakes do not work
well.
2. Even when the brake works normally, if the road
surface is wet or the tyre surface is worn-out,
tyres do not take a firm hold on the surface,
increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.
ACCESSORY INSTALLATION AND SAFETY TIPS
Use extreme caution while selecting and installing
the accessories for your motorcycle.
The addition of unsuitable accessories can lead to
unsafe operating conditions. Your friendly Dealer
will assist you in selecting quality accessories and
installing them correctly.
While selecting the accessories, make sure
the accessories should not obstruct lighting,
steerability, suspension level and ground
clearance. Please ensure that, if the tank cover is
used, it is not getting en-trapped between fuel tank
and fuel tank cap.
Additional electrical equipments is not acceptable
as it will void the warranty terms of the vehicle.
As the vehicle speed increases, the stopping distance
also increases progressively. Be sure that, you have
sufficient distance between you and the vehicle or
obstruction ahead of you.
Avoid directing the water jet directly towards brake drum
/ disc pads during water wash.
Using only the front or rear brake is dangerous and can
cause skidding and loss of control. Apply both the
brakes together and with great care on a wet road or
other slippery surfaces.
Any abrupt braking on slippery or irregular roads can
cause loss of rider control.
Warning

17
17
EMISSION CONTROL
All the TVS vehicles are tested in the factory for
optimum fuel efficiency and CO levels. If the vehicle
needs any adjustments, please consult nearest TVS
Motor Company Authorised Main Dealer / Authorised
Dealer.
While adequate care is exercised at the factory
to ensure that the emissions are within the limits,
it is essential for the owner to always maintain the
motorcycle in good condition by getting it periodically
checked and serviced by TVS Motor Company
Authorised Main Dealer / Authorised Dealer so
that the emission and fuel consumption levels are
maintained as per norms.
Crankcase emission control system
The engine of new TVS RONIN is equipped with a
closed crankcase system to prevent discharging
crankcase emissions into the atmosphere. Blow-by
gas is returned to the combustion chamber through
the air cleaner.
Evaporative Emission Control System
The TVS RONIN is equipped with an evaporative
emission control system which consists of a canister
and associated piping. This system prevents the
escape of fuel vapors from the fuel tank.
Your vehicle is tested and certified for emission which
meets BS VI emission norms and is valid for initial 12
months from the date of purchase. Get your vehicle
certified by the Government authorised emission
testing station after initial 12 months of usage. And
ensure to get the vehicle certified on expiry of the
certificate obtained.
Note
If there is any abnormal jerk, startability issue are felt in
the vehicle or noise due to sudden escape of gas during
opening of fuel tank cap, immediately report to the TVS
Motor Company Authorised Main Dealer / Authorised
Dealer.
Warning
