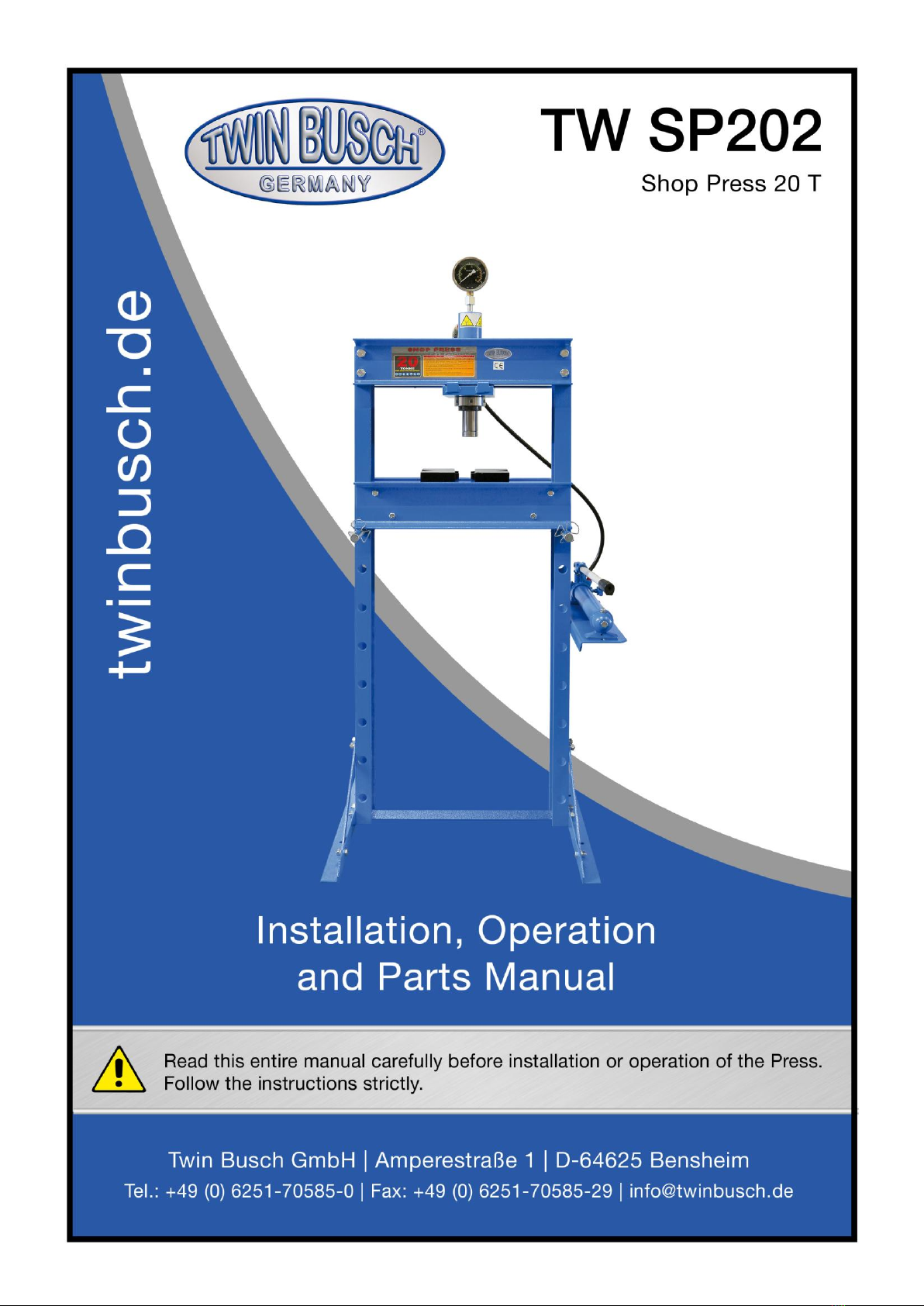

twin busch TW SP202 Guide

1

2

3
Instruction Manual
IMPORTANT
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFETY INSTRUCTIONS AND WARNINGS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FALURE
TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR SERIOUS PERSONAL INJURY. PLEASE KEEP THIS
INSTRUCTION MANUAL SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS AND WARNINGS
1.1 Use a qualified person to maintain the press in good condition.
1.2 The maximum load is 20 tons. DO NOT exceed this rated capacity. Never apply excessive force to a workpiece and always use
the pressure gauge to accurately determine the applied load.
1.3 Use this press for the purpose for which it is intended. DO NOT use it for any other purpose it is not designed to perform.
1.4 Keep children and unauthorized persons away from the work area.
1.5 Remove loose fitting clothing. Remove ties, watches, rings and other loose jewelry, and contain long hair.
1.6 WearANSI approved impact safety goggles, full-face impact safety shield and heavy-duty work gloves when operating
the press.
1.7 Keep proper balance and footing, do not overreach and wear nonskid footwear.
1.8 Only use this press on a surface that is stable, level, dry and not slippery, and capable of sustaining the load. Keep the surface
clean, tidy and free from unrelated materials and ensure that there is adequate lighting.
1.9 Inspect the press before each use. DO NOT use if bent, broken, cracked, leaking or otherwise damaged, any suspect parts are
noted or it has been subjected to a shock load.
1.10 Check to ensure that all applicable bolts and nuts are firmly tightened.
1.11 Ensure that the workpiece is center-loaded and secure.
1.12 Keep hands and feet away from bed area at all times.
1.13 DO NOT use the shop press to compress springs or any other item that could disengage and cause a potential hazard. Never
stand directly in front of loaded press and never leave loaded press unattended.
1.14 DO NOT operate the press when you are tired or under the influence of alcohol, drugs or any intoxicating medication.
1.15 DO NOT allow untrained persons to operate the press.
1.16 DO NOT make any modifications to the press.
1.17 DO NOT use brake fluid or any other improper fluid and avoid mixing different types of oil when adding hydraulic oil. Only good
quality hydraulic jack oil can be used.
1.18 DO NOT expose the press to rain or any other kind of bad weather.
1.19 If the press needs repairing and/or there is any part that needs to be replaced, have it repaired by authorized technicians and
only use the replacement parts supplied by the manufacturer.
1.20 WARNING: the warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot
be built into this product, but must be supplied by the operator.
2. SPECIFICATIONS
Capacity 20 ton Stroke 185 mm
Working Range 68.5-1028.5 mm Bed Width 542 mm

4
3. ASSEMBLY
Use the exploded drawing as your guide to assemble. Lay all parts and assemblies out in front of you before beginning.
The following procedure is recommended:
3.1 Attach one base section (21) to left post and lower cross member (26) using bolts (25), washers (22), lock washers (23)
and nuts (24), then attach another to right post and the lower cross member.
3.2 Put the press frame in an upright position, attach one upper cross beam (10) to left and right posts (20) using bolts (9), washers
(13), lock washers (12) and nuts (11).
3.3 Put another upper crossbeam into position and insert the under plate (7) to the two upper cross beams at the same time, then
secure this cross beam to the posts using bolts (9), washers (13), lock washers (12) and nuts (11).
3.4 Screw the upper round nut (6) onto the ram (3), insert the ram into the hole in the under plate (7), then screw the under round
nut (8) onto the ram and attach the serrated saddle (5) to the ram.
3.5 Join the two press bed frame (18) together by inserting the four bolts (27) through the bushings (28) and the holes in the bed
frames, then secure the four bolts by tighten the washer (14), lock washer (15) and nut (16) on it.
3.6 Insert bed frame pin (19) into the holes in the posts, then insert the joined press bed frame (18) into press frame and onto
bed frame pin.
3.7 Attach the setting plate (31)to the right post using bolts (25), washers (22), lock washers (23) and nuts (24), then secure
the pump assemblies using the screws (29)and washers (30), and then insert the handle to the handle bracket.
3.8 Connect the hydraulic hose coupler (P17) to the connection nut (R15)and assemble the pressure gauge (1) to the pressure
gauge connection nut (R13) which is on the top of ram (3).
3.9 Tighten all bolts and screws.
4. BEFORE FIRST USE
4.1 Note: Before first use of this product, purge away air from the hydraulic system: open the release valve by turning it
counterclockwise. Pump several full strokes to eliminate any air in the system.
4.2 Check all parts and conditions, if there are any broken parts, stop using it and contact your supplier immediately.
5. OPERATING INSTRUCTIONS
WARNING! Ensure that you read, understand and apply the safety instructions and warnings before use.
5.1 Place the heel block (17) on press bed frame (18), then insert workpiece onto the heel block.
5.2 Close the release valve by turning it clockwise until it is firmly closed.
5.3 Pump the handle until serrated saddle nears workpiece.
5.4 Align workpiece and ram to ensure center-loading.
5.5 Pump the handle to apply load onto workpiece.
5.6 When work is done, stop pumping the handle, slowly and carefully remove load from workpiece by turning the release
valve counterclockwise in small increments.
5.7 Once the ram has fully retracted, remove workpiece from bed frame.
6. MAINTENANCE
6.1 Clean the outside of the press with dry, clean and soft cloth and periodically lubricate the joints and all moving parts with a
light oil as needed.
6.2 When not in use, store the press in a dry location with ram and piston fully retracted.
6.3 Check the hydraulic oil: remove the oil filler screw (P06) on the pump, if it is not adequate, fill with high quality hydraulic jack
oil as necessary, then replace the oil filler nut, purge away air from the hydraulic system as described in 4.1.

5
7. PARTS LIST
The Whole Machine
Part No.
Description
Qnty
Part No.
Description
Qnty
1
Pressure gauge
1
19
Bed frame pin
2
2
Nylon ring
1
20
Post
2
3
Ram
1
21
Base section
2
4
Lock nut
1
22
Flat washer
6
5
Serrated saddle
1
23
Lock washer
6
6
Upper round nut
1
24
Nut
6
7
Under plate
1
25
Bolt
4
8
Under round nut
1
26
Lower cross member
1
9
Bolt
8
27
Bolt
4
10
Upper crossbeam
2
28
Bushing
4
11
Flat washer
8
29
Bolt
3
12
Lock washer
8
30
Flat washer
3
13
Nut
8
31
Setting plate
1
14
Flat washer
12
32
Pump assy
1
15
Lock washer
12
33
Bolt
8
16
Nut
12
34
Support bar
4
17
Heel block
2
35
Bolt
2
18
Press bed frame
2

6
Ram
Part No.
Description
Qnty
R1
Nut
1
R2
Screw
1
R3
Sealing ring
1
R4
PTFE Ring
1
R5
Bushing
1
R6
O-ring
1
R7
Piston
1
R8
Copper Ring
1
R9
Screw
1
R10
Spring
1
R11
Screw
1
R12
Gauge coupler
1
R13
Gauge connection nut
1
R14
Pin
1
R15
Connection nut
1
R16
Coupler
1
R17
O-ring
1
R18
Dust cap
1
R19
Ram
1
R20
Limited ring
1
2
Nylon ring
1

7
Pump
Part No.
Description
Qnty
Part No.
Description
Qnty
P01
Pump
1
P23
Nylon ring
1
P02
Filter
1
P24
Screw
1
P03
O-ring
2
P25
Screw protecter
1
P04
Reservoir
1
P26
Screw
1
P05
Tie rod
1
P27
Nylon ring
1
P06
Screw
1
P28
Sealing ring
1
P07
O-ring
2
P29
O-ring
1
P08
Base of valve
1
P30
Nylon ring
1
P09
Steel ball
1
P31
Base of pump core
1
P10
Screw
1
P32
O-ring
1
P11
Spring
1
P33
Nylon ring
1
P12
Pump foot
1
P34
Pump core
1
P13
Steel ball
2
P35
Pin
1
P14
O-ring
1
P36
Retaining ring
2
P15
Release valve
1
P37
Pin
1
P16
Hydraulic hose
1
P38
Base of handle
1
P17
Coupler
1
P39
Handle
1
P18
Dust cover
1
P40
Handle sleeve
1
P19
Steel ball
1
P41
Screw
1
P20
Base of steel ball
1
R17
O-ring
1
P21
Spring
1
2
Nylon ring
1
P22
Screw
1
1

8
