Tylo SENSE COMBI User manual
1311
ENGLISH
INSTALLATION GUIDE
SENSE COMBI
29005195 -ENG
X
Keep this user guide!
In the event of any problems, please contact the retailer
where you purchased the equipment.
© This publication may not be reproduced, in part or in whole,
without the written permission of Tylö. Tylö reserves the right to
make changes in materials, construction and design.
TABLE OF CONTENTS
Before installation ..........................................................1
Parts .......................................................................................1
Installation requirements ........................................................ 1
Installation tools ..................................................................... 2
Planning installation ............................................................... 2
Installation ...................................................................... 4
Sauna heater installation ....................................................... 4
Installation of control panel ...................................................6
External ON/OFF switch (option) ........................................... 7
Extra control panel (option) ....................................................7
Connection/wiring diagram ........................................... 8
Checking installation ..................................................... 9
1
BEFORE INSTALLATION
Parts
Check that the following parts are included in the packaging:
32
1
4
6
13
12
9
15
16 17
5
7
10
11
8
14
!
"#$%&&'
"("()*"+,-
%
#.-),-
,
,
,"
,/
0(1"$#2,"3,"
4-)5)66,-
'7358,-)
Contact your dealer if anything is missing.
Installation requirements
For detailed instructions concerning sauna construction/ventila-
tion etc., go to: http://www.tylö.se/byggabastu and download this
document: "Building a sauna.pdf".
To ensure safe use of the heater, check that the following criteria
are met:
• The sauna cabin should meet the requirements for
and according to: "Building a sauna.pdf".
• The sauna cabin should meet the requirements for
and according to: "Building a sauna.pdf".
• Cable (EKK) or electrical ducting for connecting the heater
must be run on the outside of the heat insulation.
• Cable installation must be correctly performed (see The sec-
tion called Connection/wiring diagram, Page 8).
• Fuse size (A) and power cable size (mm²) must be suitable
for the heater (see The section called Connection/wiring dia-
gram, Page 8).
• The sauna ventilation must comply with the instructions in this
manual (see The section called Positioning the inlet vent,
Page 3, The section called Positioning the outlet vent,
Page 4).
• The position of the sauna heater, control panel and sensors
must comply with the instructions in this manual.
• The heater output (kW) must be suitable for the sauna volume
(m³) (see Page 1). The minimum and maximum
volumes must not be exceeded.
1
*9:
:-*";"<
.*
=.
Output kW Sauna volume min./max. m³
6,6 4-8
8 6-12
!
!"#$%&'&()%(('%'*(+',('%%
&%-('(*.''-%+%,-/%'(+',%
0,1%&(%&&2,(%&,
!
!"#$%,00&%(%,('%'0(*,%&%
&%+',0,1
!
!"#3,'0(*.'%2(,%(*&%
,&*,&*+'-+,('-(&&%+',0
,1
!
!"#**(2,(&'%%&(-/4
0-&(&%&&'-%('(*++&
('%,
2
Installation tools
The following tools and materials are needed for installation and
connection:
• spirit level,
• adjustable spanner,
• electric drill,
• screwdriver.
Planning installation
Before starting to install your sauna heater:
• Plan where to position the sauna heater (see The section
called Positioning the heater - normal installation, Page
2).
• Plan where to position the control panel (see The section
called Positioning the control panel, Page 3).
• Plan where to position the sensor (see Page 2
and Page 3).
• Position the inlet vent (see The section called Positioning the
inlet vent, Page 3).
• Position the outlet vent (see The section called Positioning
the outlet vent, Page 4).
1
2 5
3 4
9,78
9,78
Positioning the heater - normal installation
!
!"#5'(*%'%*(&%%,(-%
(*,2,%&%
Position the sauna heater:
• on the same wall as the door (or the side wall if very close to
the door wall). The heater can also be positioned in a recess
(see Page 3).
• at a safe distance from the floor, side walls and interior fittings
(see Page 2).
Position the sensor according to the diagram (see Page
2).
16
9
8
10
2
4
3
7
5
4>--)
>"))
> )
4>-)/)
4>-))
4>-6))
4>")
4>/)
?>-))"5)7>-))8
If the wall that the sensor is to be installed on is made of highly
heat absorbing material (e.g. concrete, brick) or of toughened
glass, the sensor can be installed directly above the heater
(above the centreline of the heater as seen from the front and
side see Page 3).
3
1
"))
Positioning the heater - recess installation
To position the sauna heater in a recess:
Position the heater at a safe distance from the floor, side walls
and interior fittings (see Page 3).
Position the sensor according to the diagram (see
Page 3).
7
10
9
11
14
1
5
2
3
8
6
4>"))
>"))
4,*-)))
> )
4>-)/)
4>-))
4>-6))
4>")
4>/)
?>-))"5)7>-))8
Positioning the control panel
The control panel must be correctly positioned with regard to
safety distances.
1
2
4
3
@
4,*6))
4*/))
Positioning the inlet vent
Install the inlet vent straight through the wall under the centreline
of the heater. Vent size for a family sauna approx. 125 cm².
The air circulation from the door must concord with the hot air cir-
culation from the heater.
4
1 2
3 4
.
$.*
=.*
=..@*
=..*
Positioning the outlet vent
!
!"#*'(()%(2,(%'(-'(-'',
*,&'-&,(*)%(('%-&('%('
),-.*&*2/%()/00&((**((2
+(&('(
!
!"#!%/+')(*,%&%,*'-
%'(,-.(*'()%(,('%)%(*'
'%(*,2.,(*,%-''
Position the outlet vent
• at the maximum possible distance from the inlet vent, e.g. di-
agonally (see Page 4).
• high on the wall or in the ceiling (see Page 4).
• so that it vents into the space the door and inlet vent open in-
to.
The outlet vent must have the same area as the inlet vent.
Ensure that the outlet vent is open.
Mechanical ventilation is not recommended due to the risk of poor
air exchange, which can negatively affect the heater temperature
cut-out.
INSTALLATION
Sauna heater installation
It is easiest to prepare for installation with the heater lying down.
To install the heater:
Lay the heater down front upwards.

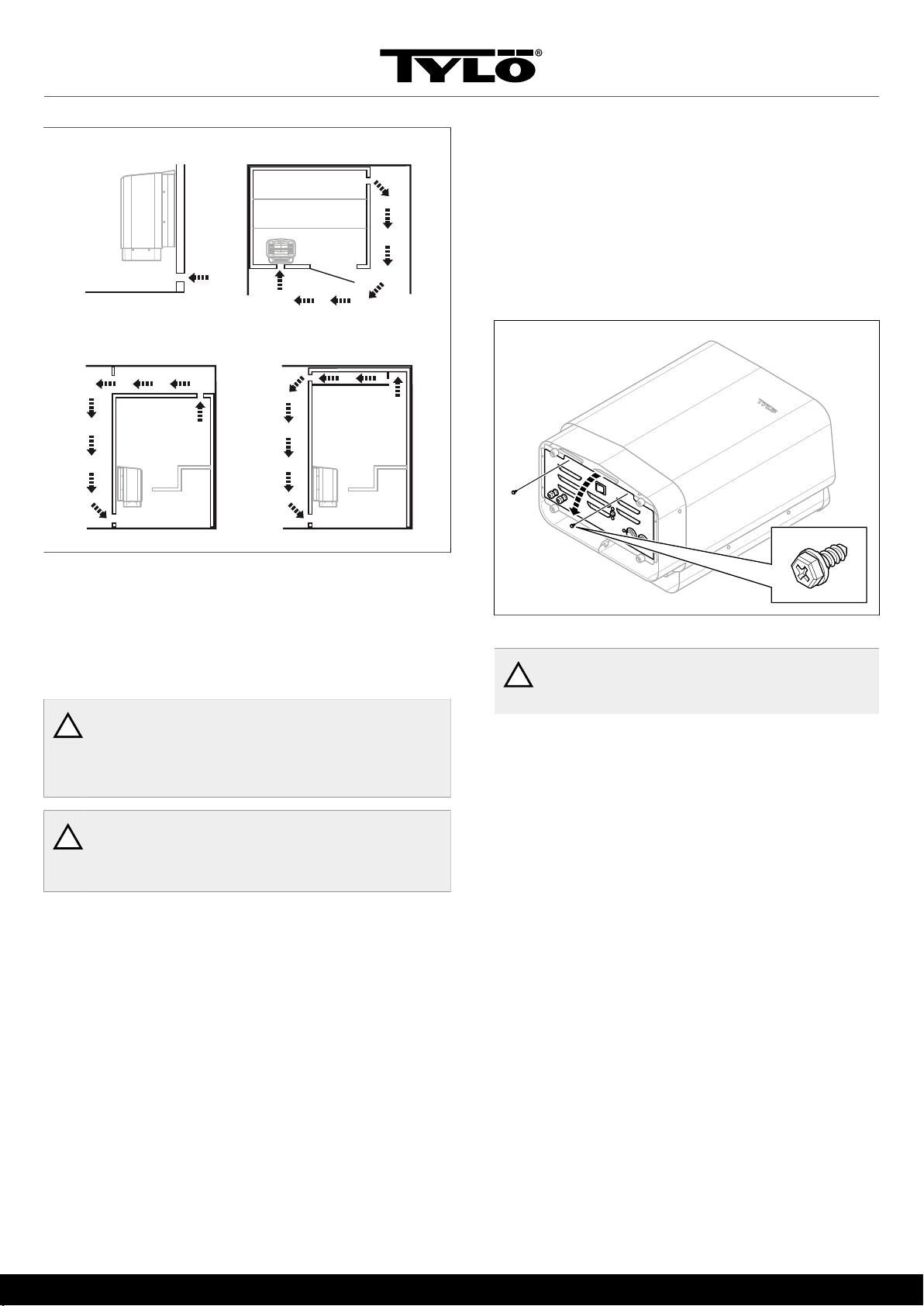

Slacken the screws and open the cover (see Page
4).
=.
!
6!#$"!./,&*&1(*((**(,&'%
%&(-('(*&'&(2%7+*,)'(
Connect the heater using standard wiring (Fk or EKK) ap-
proved for fixed installation.
Any single wires (Fk) must be protected in electrical conduits
(VP) to the heater.
5

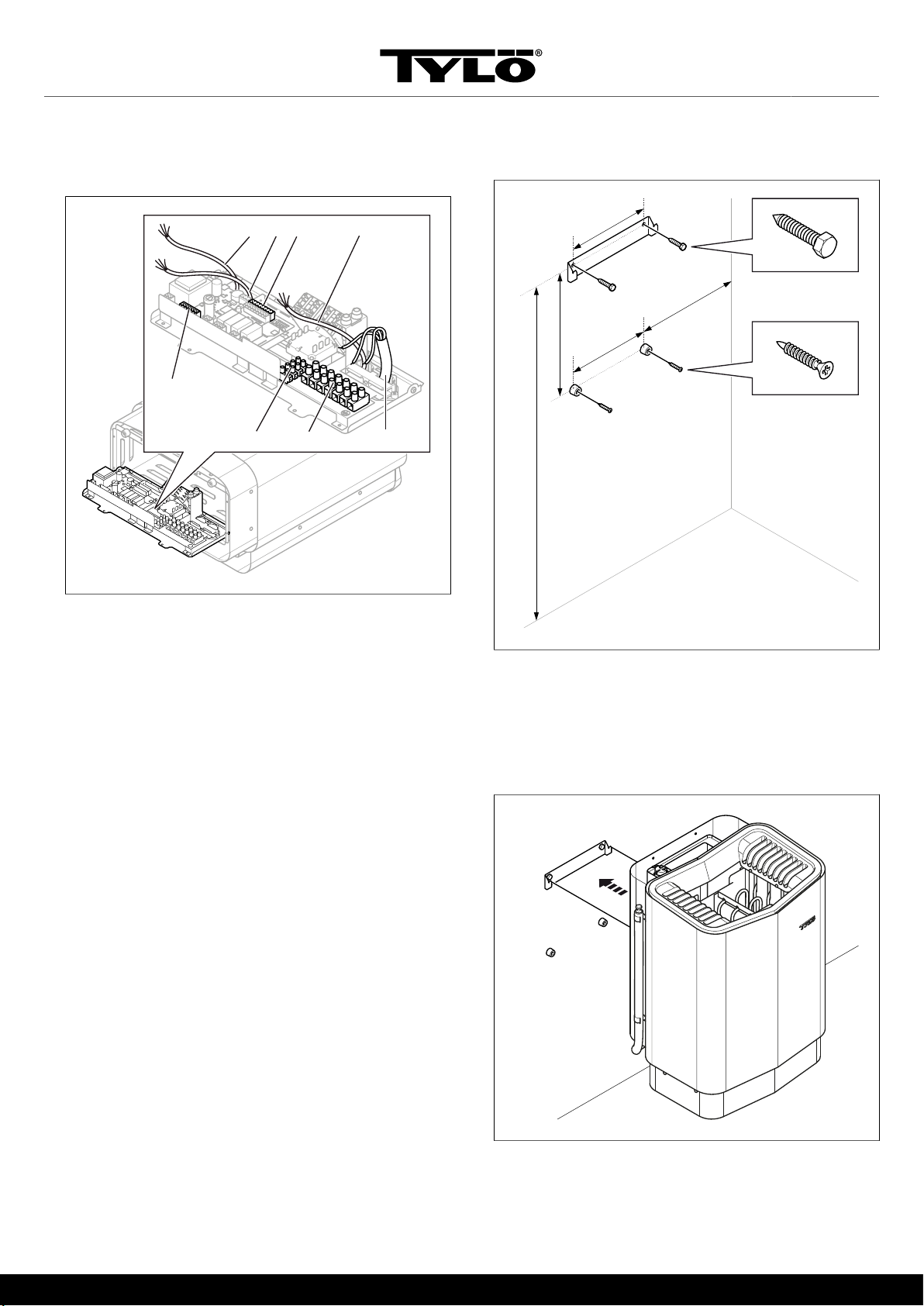

Connect the electrical cable (1) to terminal (2) (see
Page 5) according to wiring diagram (see The section
called Connection/wiring diagram, Page 8).
7435
1
28
6
9
'
'
'
#7.8
'7.8
Connect the control panel cable (3) to terminal(4) (see
Page 5) according to wiring diagram (see The section
called Connection/wiring diagram, Page 8).
Connect the sensor cable (5) on the terminal (6) (see The
section called Connection/wiring diagram, Page 8) ac-
cording to the wiring diagram (see The section called Con-
nection/wiring diagram, Page 8).
Connect light cable (if relevant) (7) see Page 5
to terminal (8) according to the wiring diagram
Page 8.
Close the cover and tighten the screws (see Page
4).
Attach the bracket and spacers to the wall following the spe-
cified dimensioning (see Page 5).
1
2
3
3
4
52)
"A)
-A3
"/)78
Hang the heater on the bracket (see Page 5).
*
6
Fit the spacers between heater and wall (to prevent the heater
from being lifted off) (see Page 6).
%
Fit the cover for the water reservoir, herb grille and fragrance
holder/air humidifier (see Page 6).
%..
Install the sensor on the wall see Page 6.
Tighten the screws carefully to avoid breaking the circuit
board.
$
Unusual voltages/numbers of phases
Before connecting to voltages or numbers of phases not listed in
the wiring diagram Page 8, contact Tylö Customer
Service.
Installation of control panel
The control panel can be installed inside or outside the sauna. If
installing it inside, the upper edge must not be more than 90 cm
from the floor. Use a type 2-LIFYCY 2X2X0.2 mm Twisted Pair
cable to connect control panel to heater.
To install the control panel:
Slacken the lock screw and split the panel and back piece
(see Page 6 pos 1).
2
5
3
6
4
1
$
4
'
B
'
Glue the seal onto the back piece (see Page 6
pos 2).
Mount the back piece leaving sufficient room for electrical
cables to pass through their openings. Note that the hole for
the retaining screw must be at the bottom (see
Page 6 pos 3).
7
Alternative cabling: e.g. external cabling: drill a small hole in
the bottom edge of the plastic cover for external cabling, for
the cable to go into the wall (see Page 7).

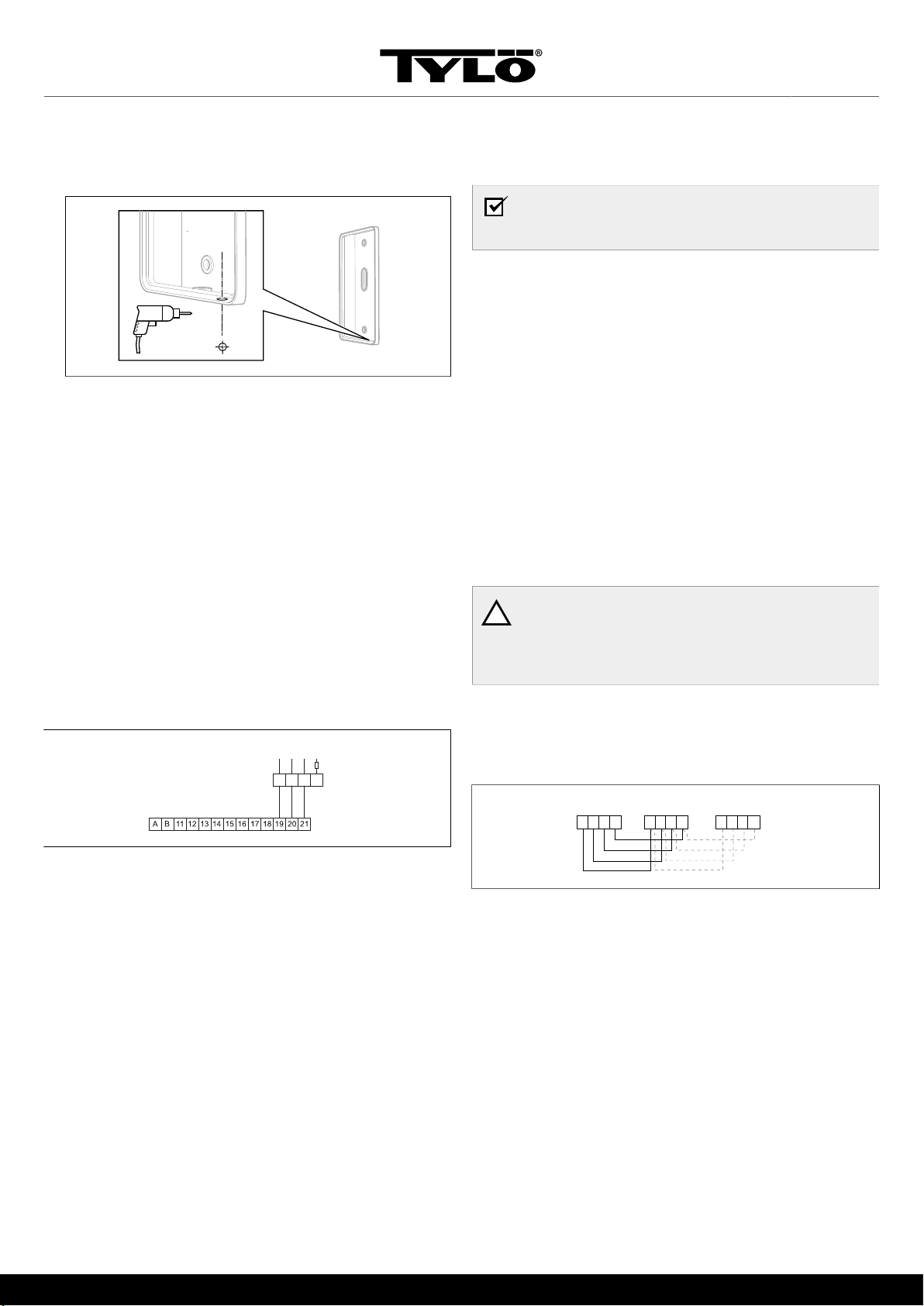

1.
Screw the wires onto the terminals according to the wiring dia-
gram (see Page 6 pos 4). To simplify connec-
tion, the long terminal can be removed from the circuit board
when screwing on the wires. Pull the terminal straight out, do
not bend it to avoid damage (see Page 6 de-
tailed picture.
Slide on the control panel glass element from the bottom, and
hold in place (see Page 6 pos 5).
Tighten the lock screw in the bottom edge (see
Page 6 pos 6).
External ON/OFF switch (option)
The external ON/OFF switch can be positioned at any distance
from the control panel.
Connect the switch using low voltage wire (see Page
7 pos 4).
1
2
3 4 5 6
!,=C=%%
"
9,=C=%%78
0
!
Additional ON/OFF switches must be connected in parallel. Sev-
eral individual units can be started or stopped via a single extern-
al switch.
'
..*
Terminal (-)21 is for indication - e.g. to show users status on the
control panel (built-in to Tylö external switches/impulse). The
function for this is:
• When the heater is unprogrammed: No diode lit. When
pressed, the heater will go to = and a steady diode light will
show on the external switch.
• When the heater is programmed but =. The diode will flash
slowly. When pressed, the heater will start. The diode will
show a steady light.
• When the heater is in @-program: The diode will flash
rapidly. When pressed, the heater will switch from @
to =, and the diode will be on constantly. Indication must
be connected between (+)19 and (-)21, (3 V/DC max 0.3W
100mA).
Extra control panel (option)
Extra control panels (h2) can be connected as an option.
!
6!#$"6*%%,(%%8(&'%('+%
(**(2,(-,&'%%&(-0'2(*2%,
!0(%8(+%*,%&'%%&(-&'%%&(
('(*2%,%-(*,/,(2,-/0',
The control panel can be connected in serial from terminal A or
B on the panel to A or B on the extra panel. Voltage can be con-
nected from terminal +11 and -12 on the control panel to termin-
als +11 and -12 on the extra panel (see Page 7).
12
11BA 12
11BA 12
11BA
1 2 3
*
*
*
** 4
!,
9,
,)*"+71!D" 8
8

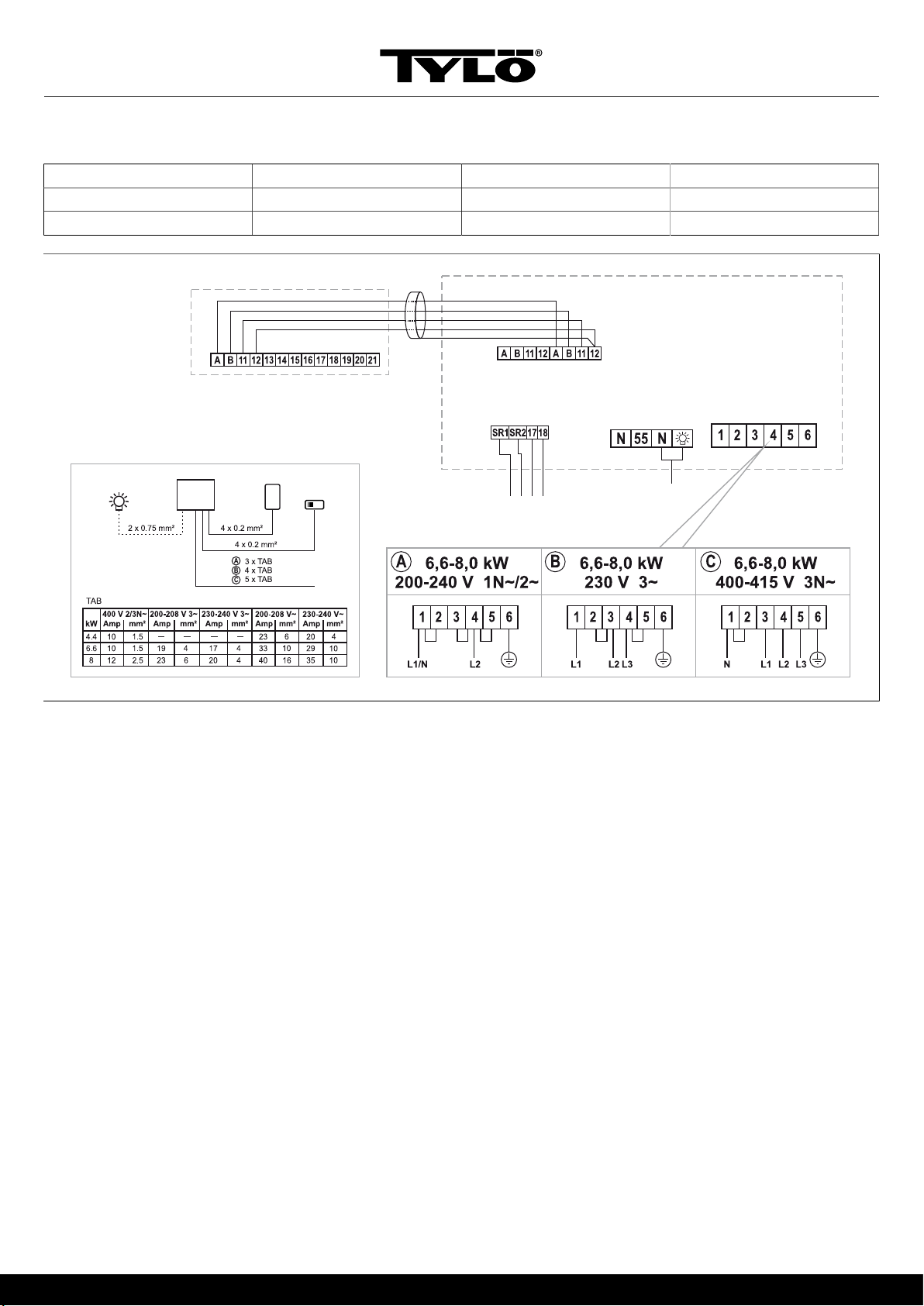

CONNECTION/WIRING DIAGRAM
Output kW Voltage Amperage Wiring area mm²
6,6 400V 3N~ 10 1,5
8 400V 3N~ 12 2,5
1
1
77
3
2
3
55
4
6
1 2 3 4
!
'
'
'
#
9
CHECKING INSTALLATION
To check the installation:
Switch heater on (see User Guide).
Check that the control panel lights up .
Start the heater (see User Guide).
Check that all three tubular elements start to heat up (go red).
Other manuals for SENSE COMBI
2
This manual suits for next models
1
Table of contents
Other Tylo Plumbing Product manuals
Tylo
Tylo Prime 1812 User manual
Tylo
Tylo Prime+ 1814 User manual
Tylo
Tylo 1105-120 User manual
Tylo
Tylo tx202/i User manual
Tylo
Tylo Alu Line 190 User manual
Tylo
Tylo INFRA PANEL User manual
Tylo
Tylo FLEX SAUNA HARMONY GC User manual
Tylo
Tylo Sauna i1915 Corner User manual
Tylo
Tylo ix210 Instruction manual
Tylo
Tylo Prime+ 1811 User manual
Tylo
Tylo T870H User manual
Tylo
Tylo SAUNA REFLECTION WIDE GF User manual
Tylo
Tylo Panacea 2117 User manual
Tylo
Tylo Combi 7 User manual
Tylo
Tylo Evolve Tradition User manual
Tylo
Tylo Sauna i1713 User manual
Tylo
Tylo HARMONY User manual
Tylo
Tylo Space Vision 200 User manual
Tylo
Tylo Panacea 1717 User manual
Tylo
Tylo Sauna i1309 User manual
Popular Plumbing Product manuals by other brands
Gerber
Gerber 40-445-W Installation
ProFlo
ProFlo PFXC3127CP installation instructions
Sanela
Sanela SLU 17B Mounting instructions
Fantini Rubinetti
Fantini Rubinetti 8403 instructions
Invacare
Invacare IH6300ADH Owner's operator and maintenance manual
Forbes Marshall
Forbes Marshall FMSTR34 Installation and maintenance manual
Hans Grohe
Hans Grohe PuraVida 15406009 Instructions for use/assembly instructions
Armitage Shanks
Armitage Shanks Sensorflow 21 compact A4854AA installation instructions
Homewerks Worldwide
Homewerks Worldwide AQUA VISTA 10SHO1H-CH-AV manual
BELLOSTA
BELLOSTA revivre 8031/3/A/LB quick start guide
SUMS
SUMS uridan CADET GHC-10 installation instructions
Bristan
Bristan COB SHC3STP C (D9) Installation instructions & user guide
American Standard
American Standard Heritage 7830.000 Specification sheet
Oras
Oras Electra 6575 Installation and maintenance guide
Moen
Moen SHOW HOUSE S214 Series manual
pure cube
pure cube CU570 Assembly instructions
METHVEN
METHVEN Kiri K1MSK INSTALLATION INSTRUCTIONS & MAINTENANCE GUIDE
Symmons
Symmons Oxford Trim Series Installation & operation instructions
