Tylo T870H User manual
3PersonInfraredSaunaPage1210121
Rev.2
3 person infrared sauna
T870H
User Manual
Note: Room must be installed on flat, level surface.
Precautions Before Use 2
Preassembl
y
Information 2
Electrical Requirements 3
Sauna Assembly 4
Electrical Connection-Under Bench 7
Electrical Connection-Inside Ceiling 13
How to Use Sauna 15
Tips & Troubleshooting 16

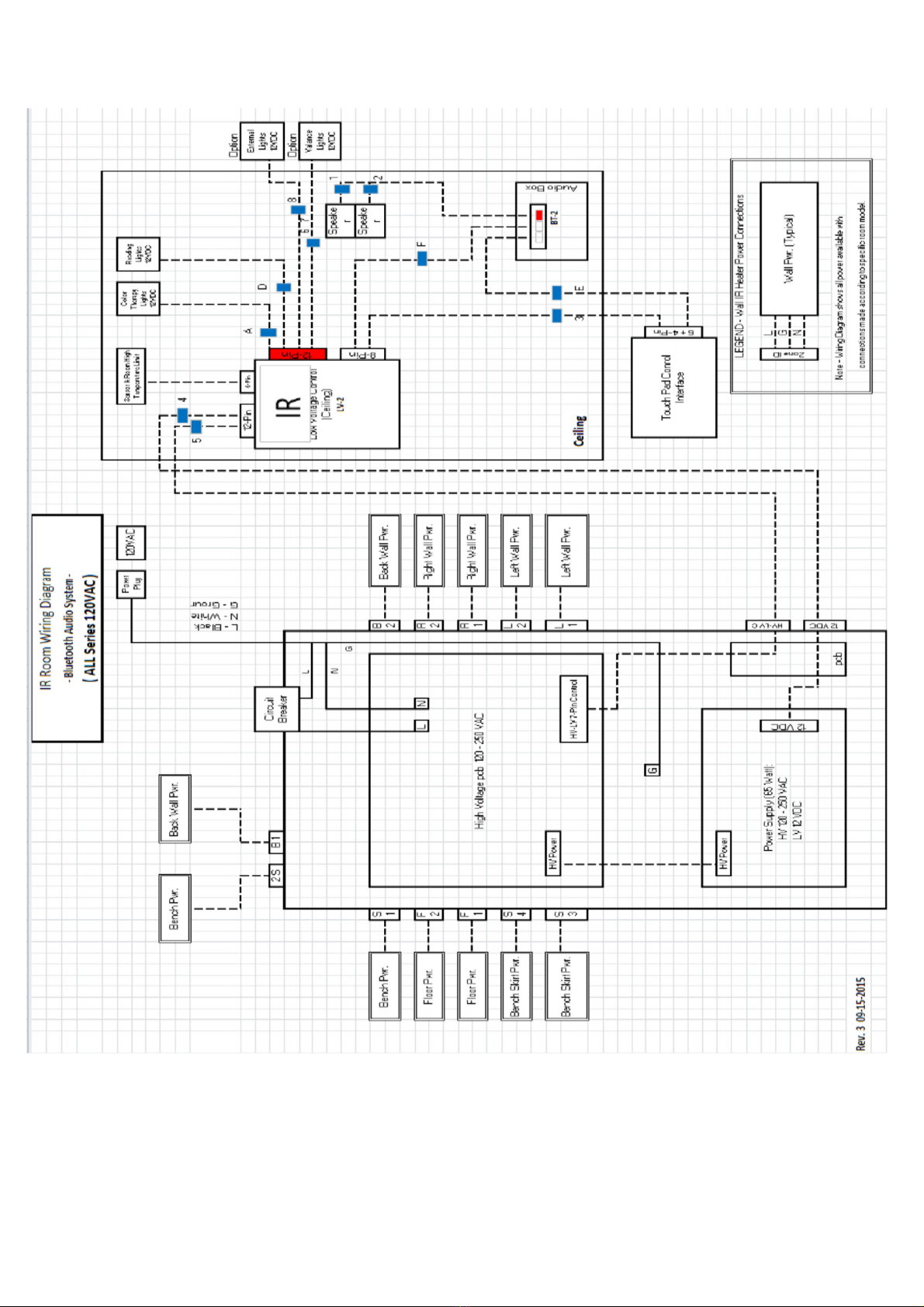

Wiring Diagram 17

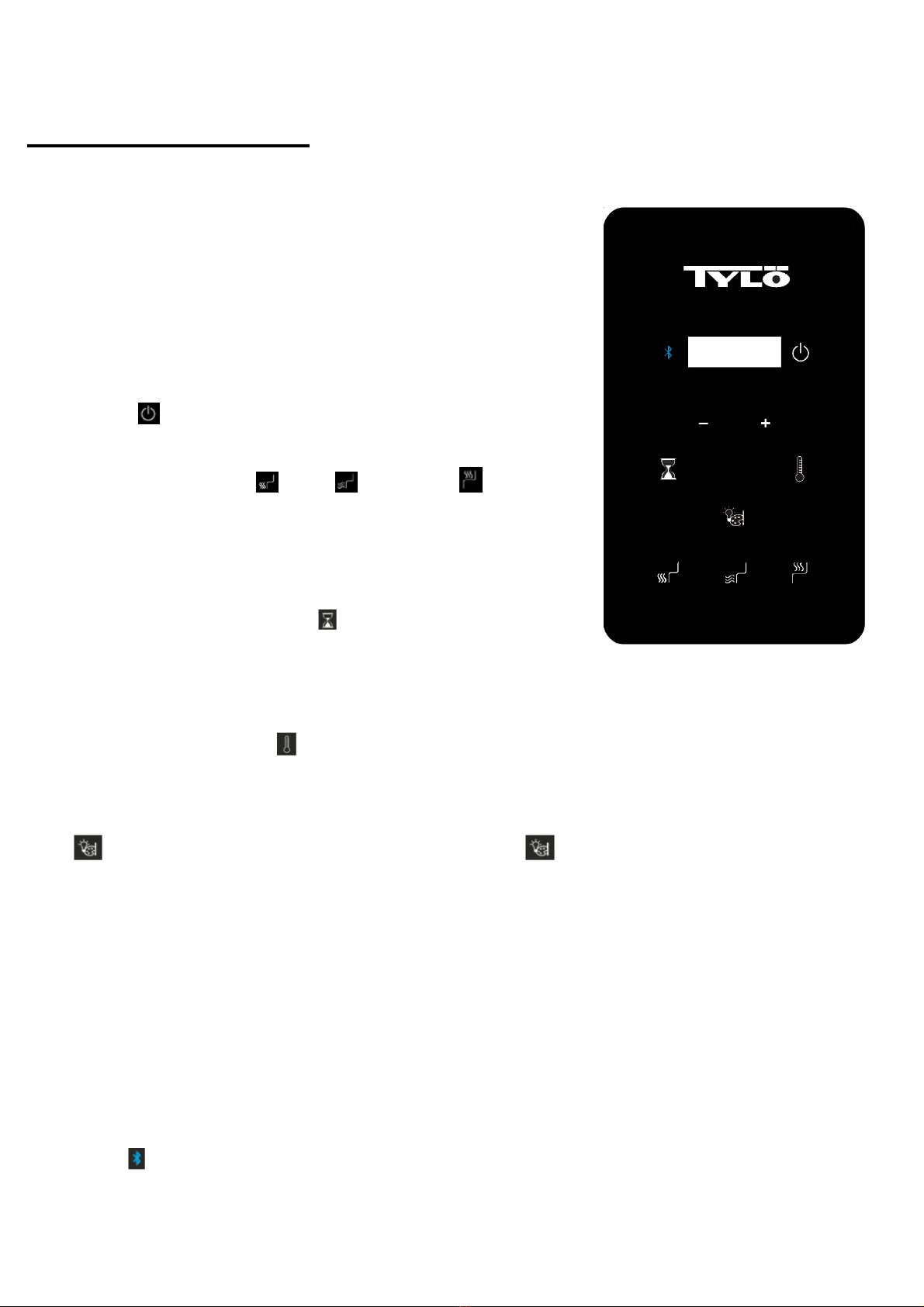

Control Panel Instructions 18
Lighting Operation 18
A
udio System 18

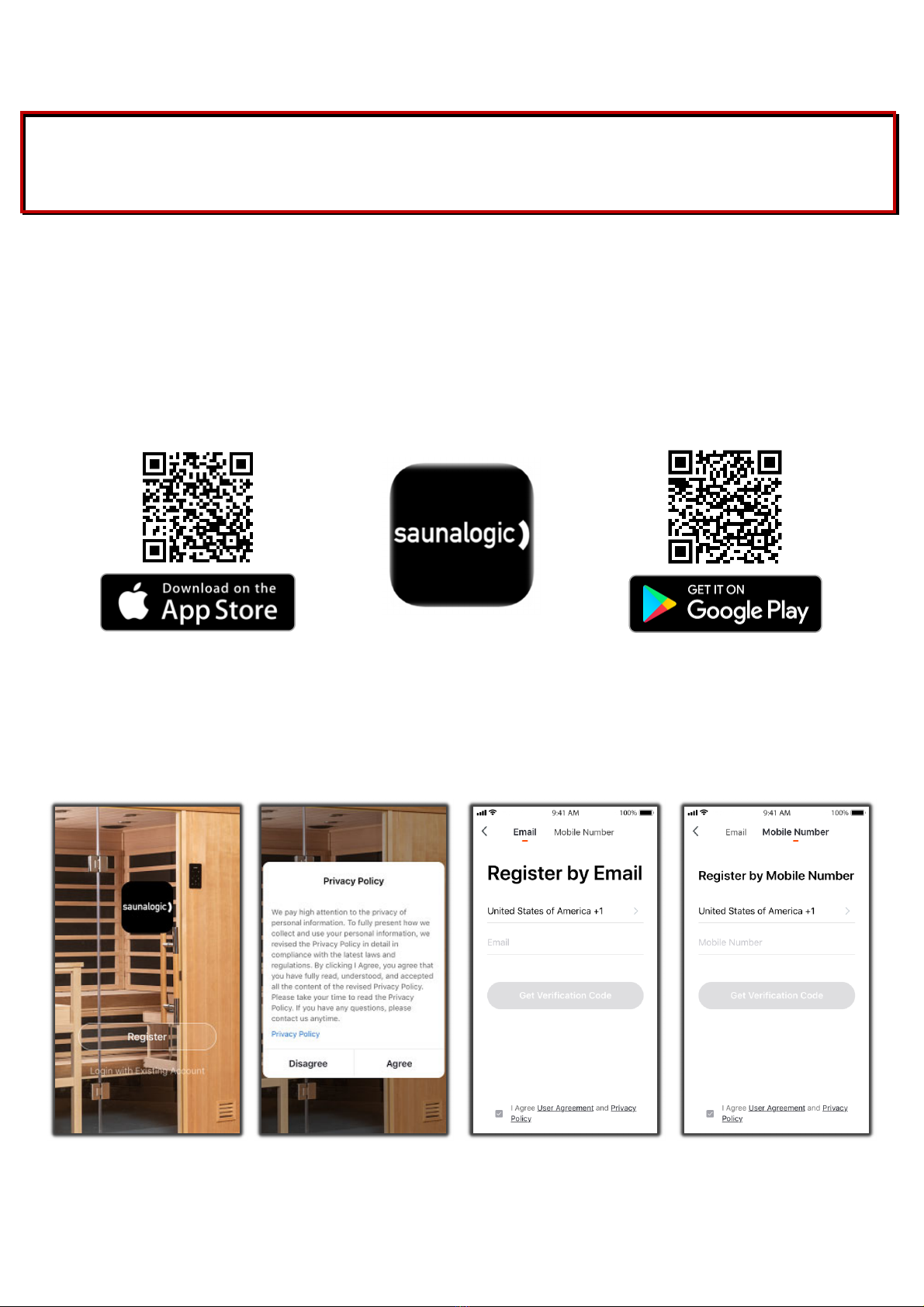

How to Pair IR2 Control to SaunaLogic App 20
2021‐01‐21
3PersonInfraredSaunaPage2210121
Rev.2
Precautions before Use: Warning (Room Configuration & Use):
Proper Electrical Grounding is Required
Electrical Receptacles not Allowed in the Room
Do not Apply Water to any Heating Element
Do not Add a Locking or Latching System to the Door
Do not Block Ventilation Openings
Children Must be Supervised at all Times in the Sauna
Electrical Caution – Do not plug the room power cord into an electrical outlet until Room Assembly
is completed!
a. Warning (Human Limitations):
Prolonged Exposure at Elevated Temperatures May Cause Hyperthermia (Body Temperature is Several
Degrees Above 37˚C (98.6˚F))
Hyperthermia Symptoms include: Dizziness, Lethargy, Drowsiness, and Fainting
Hyperthermia can cause:
Fetal Damage in Pregnant Women
Physical In-Ability to Exit the Room
Loss of Consciousness
Notice - Use of Alcohol or Drugs Increases the Risk of Fatal Hyperthermia
If You Have any Health Problems or Health Conditions, Consult Your Physician Prior to Sauna Us,
Discontinue Use if Nervousness, Tremor, Headache, Feeling of Sickness or Nausea Occurs
b. Warning (Fire Hazards):
Do Not Use the Sauna Room for Drying Cloths, Bathing Suits, Etc.
Do Not Hang Towels or Other Objects on Heater Grills
Never Operate this Sauna Room if it Has a Damaged Cord or Plug
Pre-assembly Information:
a. Two (2) adults are required for the assembly and installation of the room.
b. Assembly Tools: Phillips Screw Driver
c. Boxes are labeled in the order of room assembly
d. Note: Front wall glass assembly is heavy and fragile.
Box #1: Floor, Ceiling, Bench Skirt, Bench, Manual & Door Handle Set
Box #2: Left & Right Front Walls
Box #3: Back Walls
3PersonInfraredSaunaPage3210121
Rev.2
Electrical Requirements: The IR Sauna Room is designed for a 230 Volt AC / 10 Amp Circuit Breaker!
A230VoltAC(dedicated)circuitisrecommendedtoavoidunnecessarytrippingofthebreaker.
Record your model number and serial number in the event you should need to contact your
dealer or technical support.
Serial Number ______________________________
Model Number ______________________________
Dealer Name________________________________
3PersonInfraredSaunaPage4210121
Rev.2
Sauna Assembly Instructions
_________________________________________________________________________

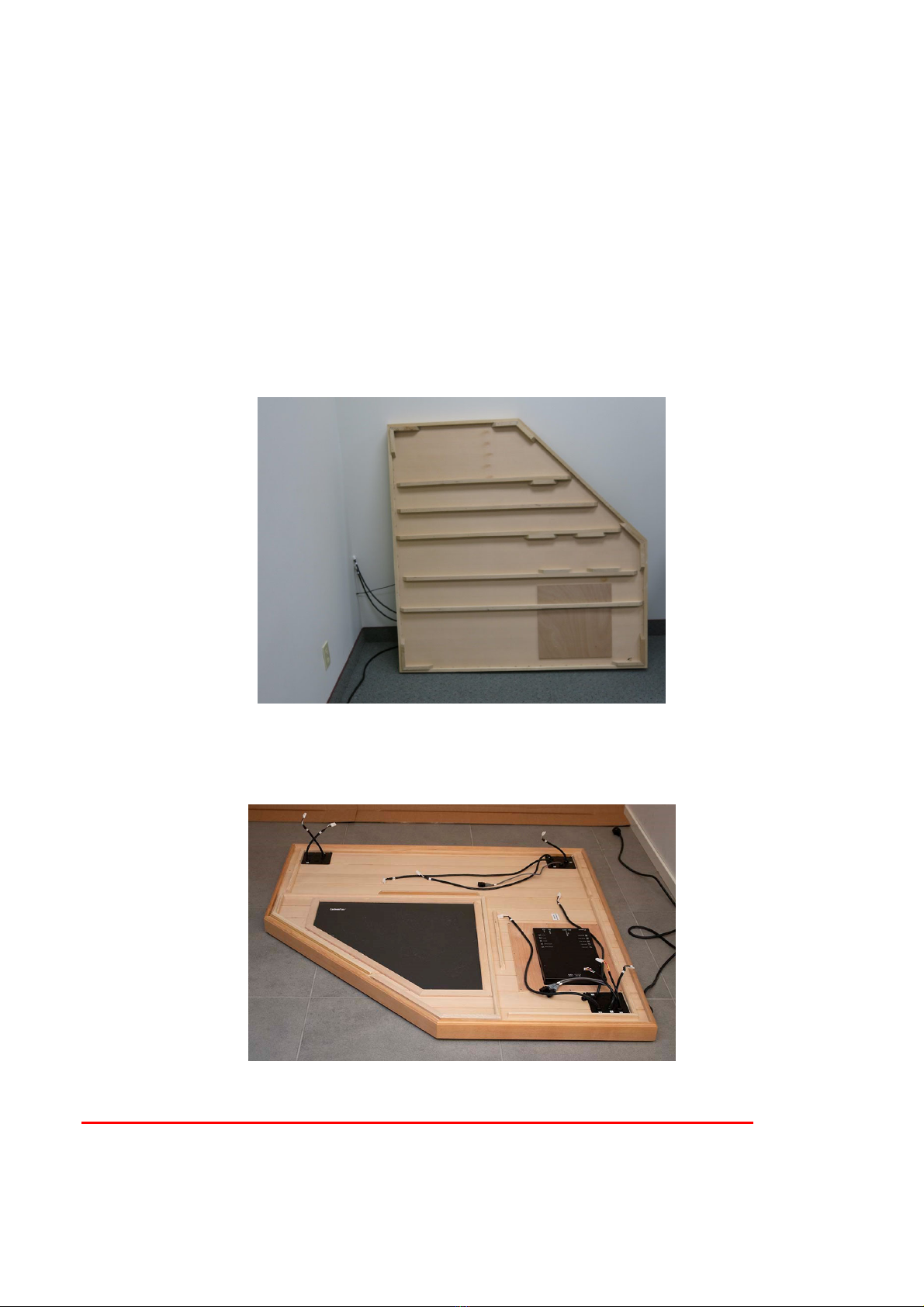

Floor Panel (Box #1):
Locate the Floor Panel on a level surface 8-15 cm (3-6 inches) from wall and no more than 150
cm (5 ft) from 230 Volt AC / 10 amp dedicated receptacle.
Position the Floor panel so that the Ceramic tiles / IR Floor Heaters are to the front of the room
Note: place the Ceiling, Bench Skirt and Bench to the side until the appropriate steps.
Note: place the power cord on the ground to the side of the floor; be sure that all wires and
connectors on the sauna floor are clear of the slots.
Note – Do NOT Plug the Sauna Room 230 VAC Power Cord into the Outlet Yet!
3PersonInfraredSaunaPage5210121
Rev.2

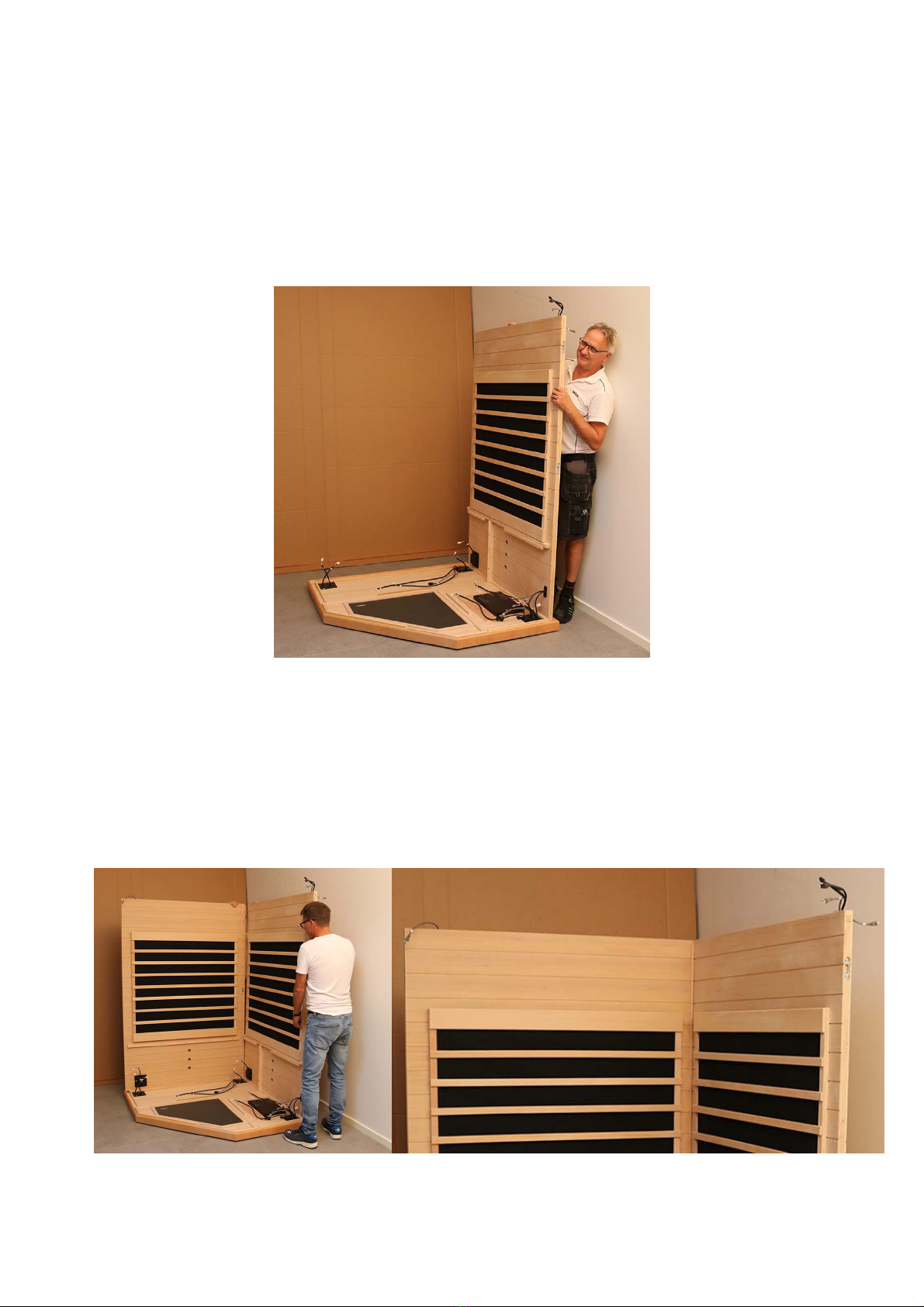

Right Back Wall (Box #3):
Place Back Right Wall panel into the back slot of the Floor Panel.
Back Right Wall panel must be held in place until the Back Left Wall panel is added.
Left Back Wall (Box #3):
Place Left Back Wall section into the left slot of the Floor Panel
Attach Left Back Wall to the Right Back Wall by lifting up the Left wall sliding into the corner
interlock brackets.
3PersonInfraredSaunaPage6210121
Rev.2

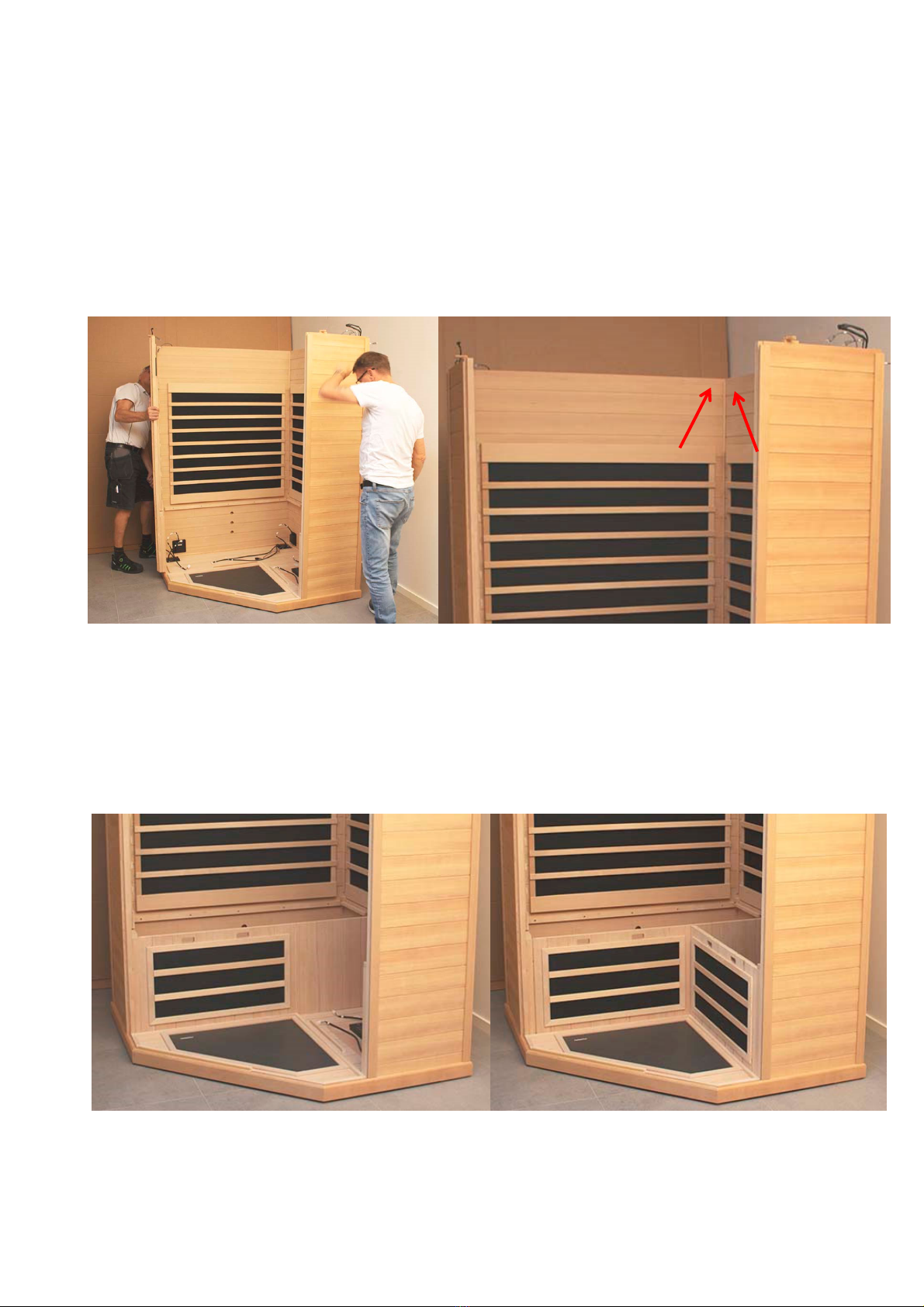

Left & Right Front Wood Walls (Box #2):
Place Left Front Wall section into the left slot of the Floor Panel.
Attach the Left Back Wall to the Left Front Wall by lifting up the
Left Front
Wall slid
ing
into the
corner interlock brackets.
Place Right Front Wall section into the right slot of the Floor Panel.
Attach the Right Back Wall to the Right Front Wall by lifting up the
Right Front
Wall slid
ing
into
the corner interlock brackets.
Note: When wall panels are connected in place properly the corners will be level and flush on top.
Bench Skirt:
Insert the left Bench Skirt in between the Right Back Wall and the Left Front Wall panels
tracks.
Slide Bench Skirt all the way to the floor. Do not pinch any wires under the skirt.
Insert the right Bench Skirt in between the left Bench Skirt and the Right Front Wall.
3PersonInfraredSaunaPage7210121
Rev.2

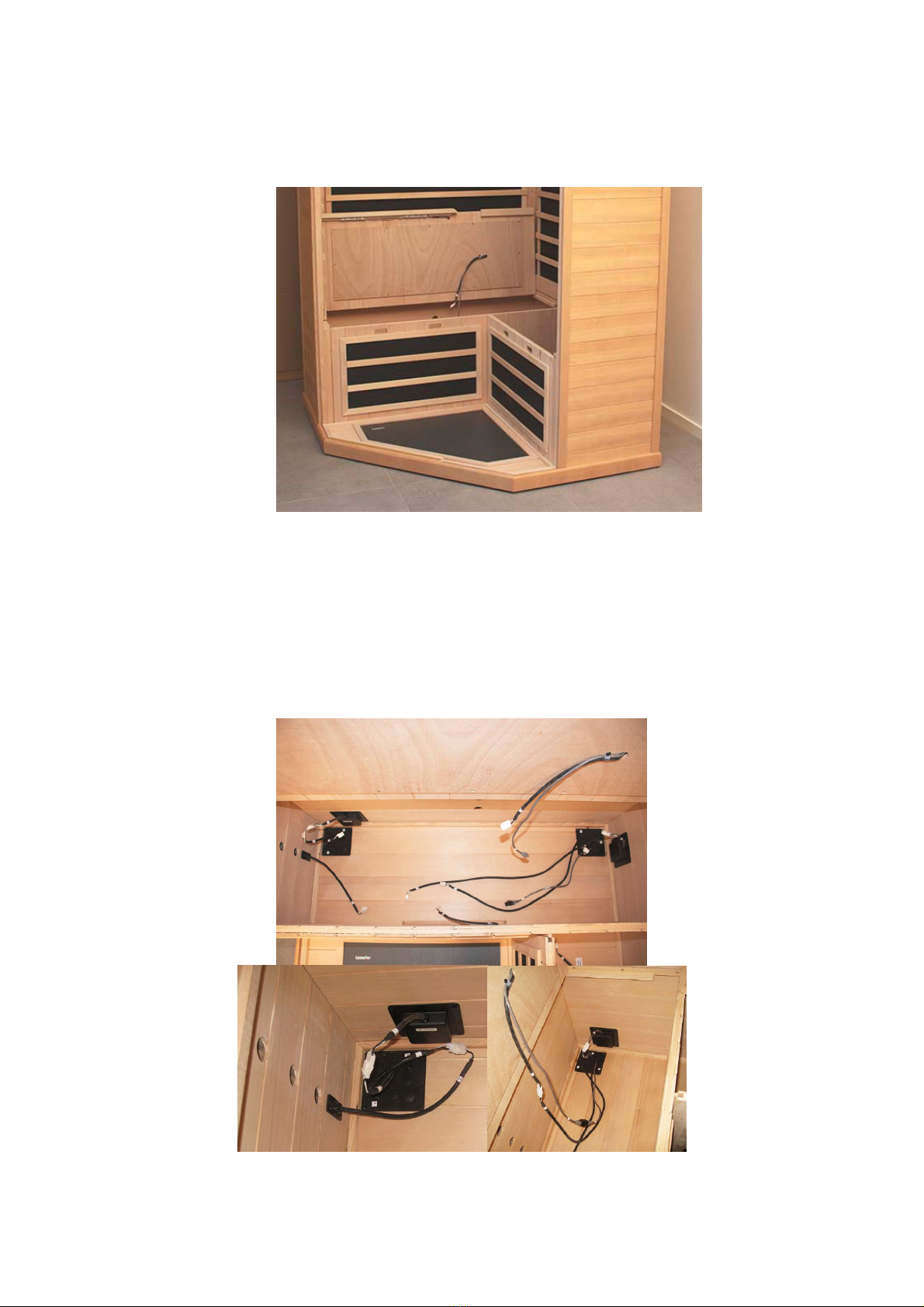

Bench Top (Box #1):
Slide the Long Bench seat down against the back wall with Power Junction Box facing you.
Tilt the Bench against the Back Wall so it will remain standing.
Electrical Connections (under bench - left side):
Connect wire L1 from the distribution plate to L1 from the Left Front Wall panel.
Connect wire B1 from the distribution plate to B1 from the Left Back Wall panel.
Connect wire #6 from the distribution plate to #6 from Bench Skirt.
Connect wire S2 from the distribution plate to S2 from the Bench Top.
Connect wire S4 from the distribution plate to S4 from the Bench Skirt.
3PersonInfraredSaunaPage8210121
Rev.2

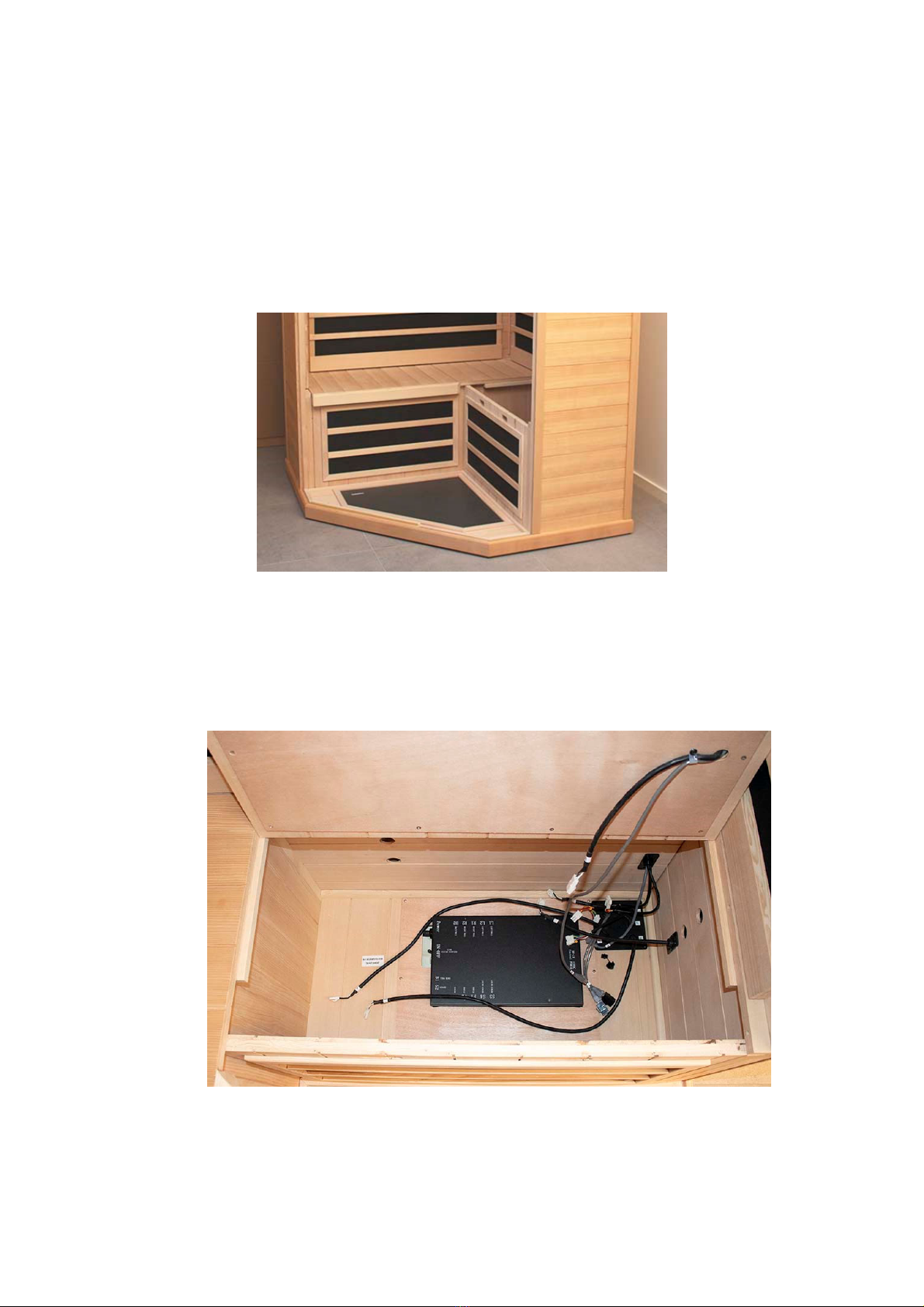

Bench Top (Left Side):
Install the left Bench Top by tucking the back of the bench under the heater guard. Push
Bench Top all the way to the Left Back Wall.
The Bench Top should fit down flush from front to back. It may be necessary to use the
openings in the skirt to apply pressure forward or rearward on the skirt to allow the bench to
drop into place.
Electrical Connections (under bench - right side):
Connect wire #4 from distribution plate to #4 from Back Wall harness.
Connect wire #5 from the distribution plate to #5 from the Back Wall harness.
Connect wire #6 from the Back Wall harness to the distribution plate wire #6.
Connect wire R1 from the distribution plate to R1 from the Right Wall junction box.
Connect wire S3 from the distribution plate to S3 from the Bench Skirt.
Connect wire S1 from the distribution plate to S1 from the Bench Top.
Connect wire #6 from the distribution plate to #6 on Bench Top.
3PersonInfraredSaunaPage9210121
Rev.2

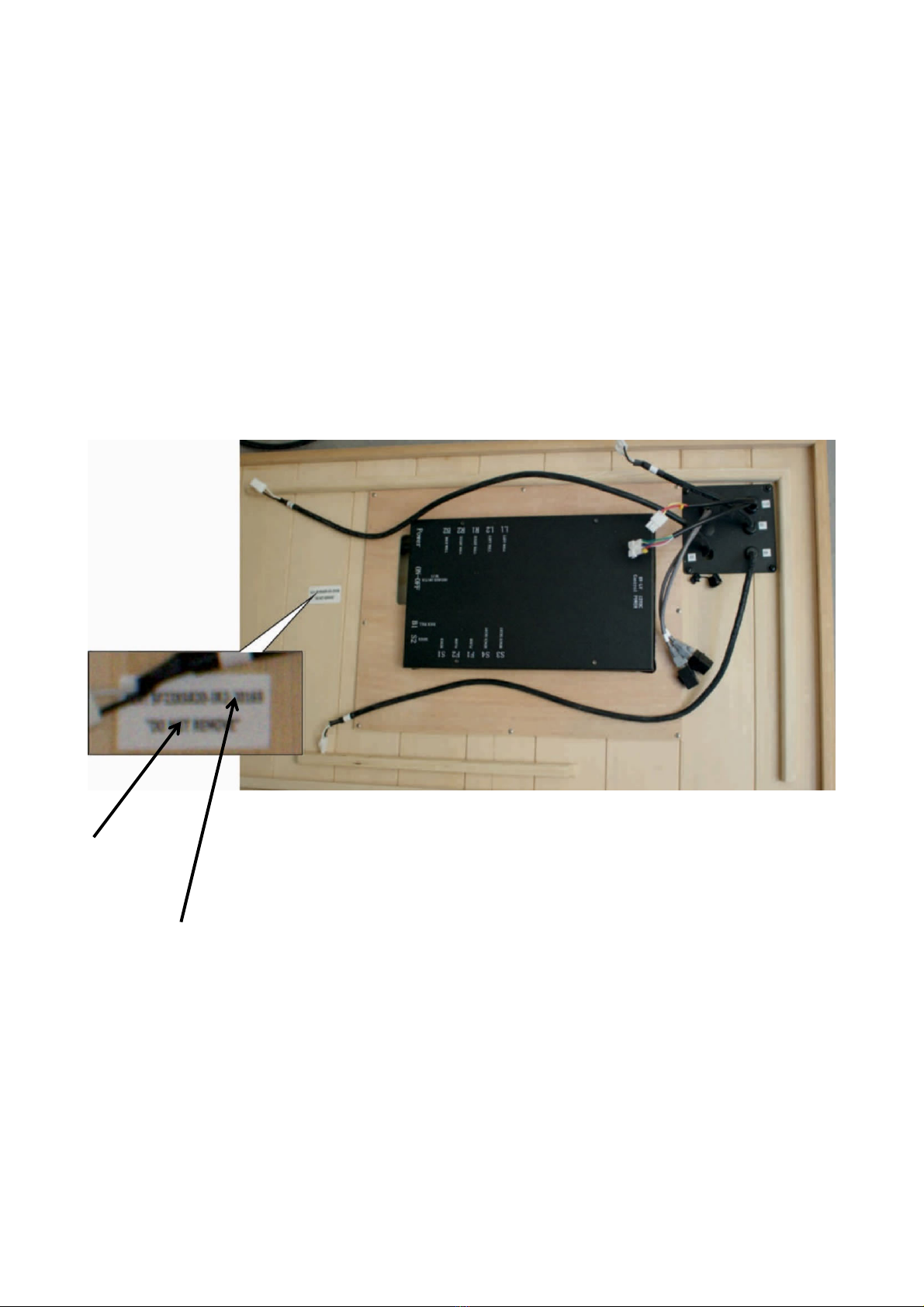

Locate the electrical switch on the black Master Control Box and ensure the switch is on.
Bench Top (Right Side):
Install the Right Bench Top by tucking the back of the bench under the heater guard. Push
Bench Top all the way to the Right Back Wall.
3PersonInfraredSaunaPage10210121
Rev.2
The Bench Top should fit down flush from front to back. It may be necessary to use the
openings in the skirt to apply pressure forward or rearward on the skirt to allow the bench to
drop into place.

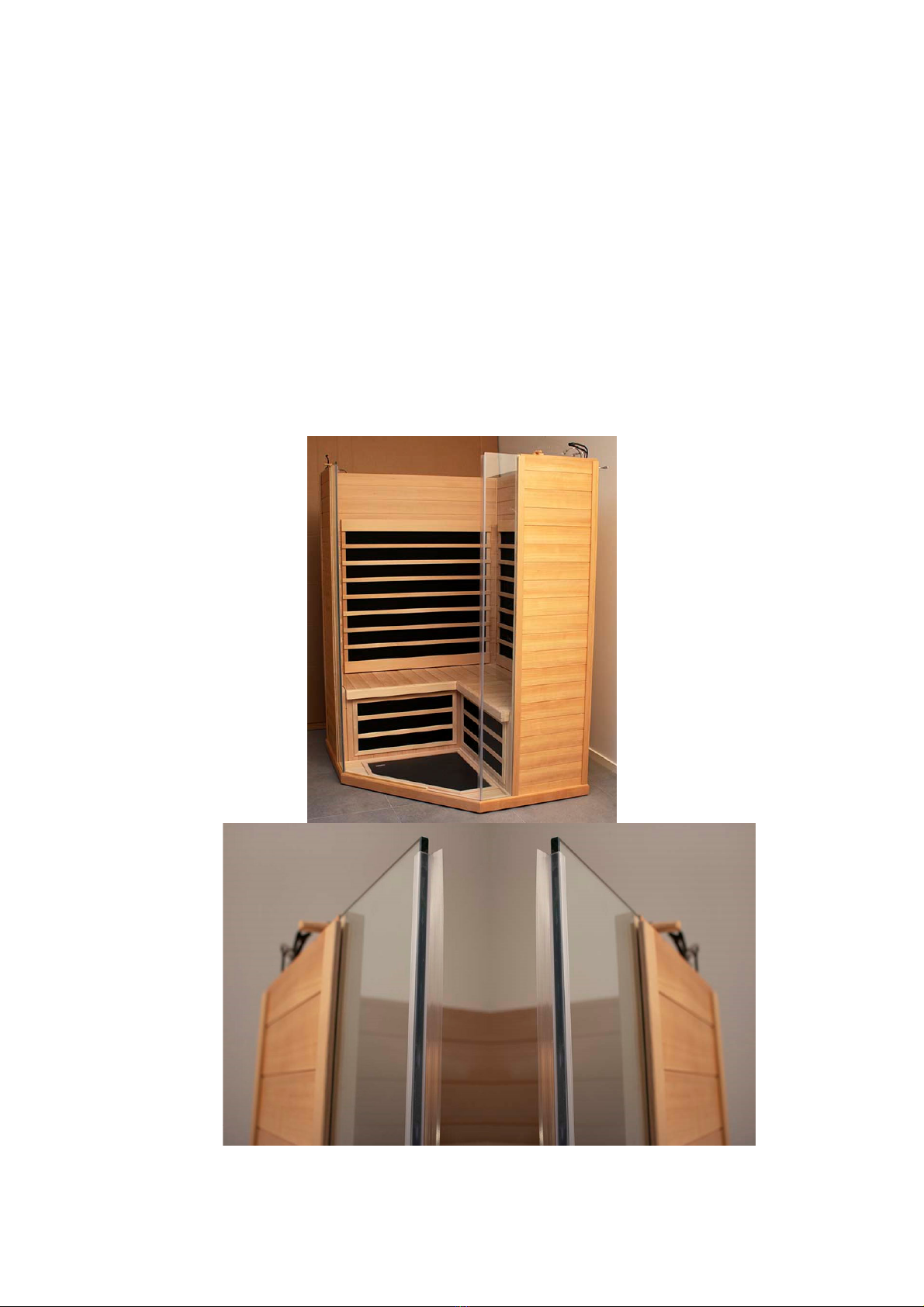

Left & Right Glass Sidelights (Box #2):
Place the Front Left Sidelight panel into the Floor panel slot and the adjacent Left Wall panel
slot.
Place the Front Right Sidelight panel into the Floor panel slot and the adjacent Right Wall
panel slot.
3PersonInfraredSaunaPage11210121
Rev.2
Ceiling (Box #1):
The ceiling can now be set in place.
Once the Ceiling panel is lined up directly above the Wall panels; insert the wires harnesses
from the wall panels into the holes in the Ceiling panel.
Note: Position the cam locks on the top of the Left & Right Wall panels as shown above.
3PersonInfraredSaunaPage12210121
Rev.2

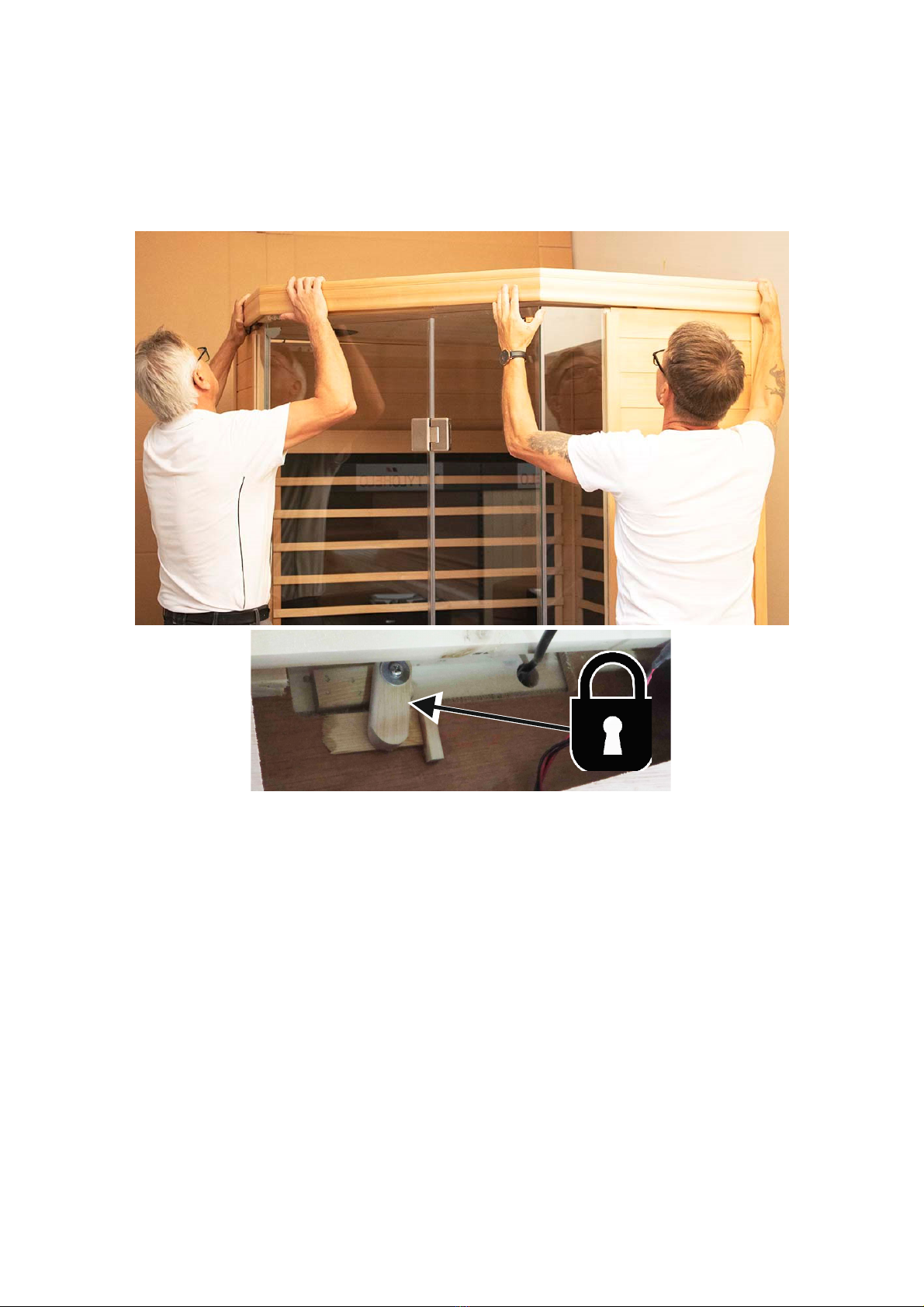

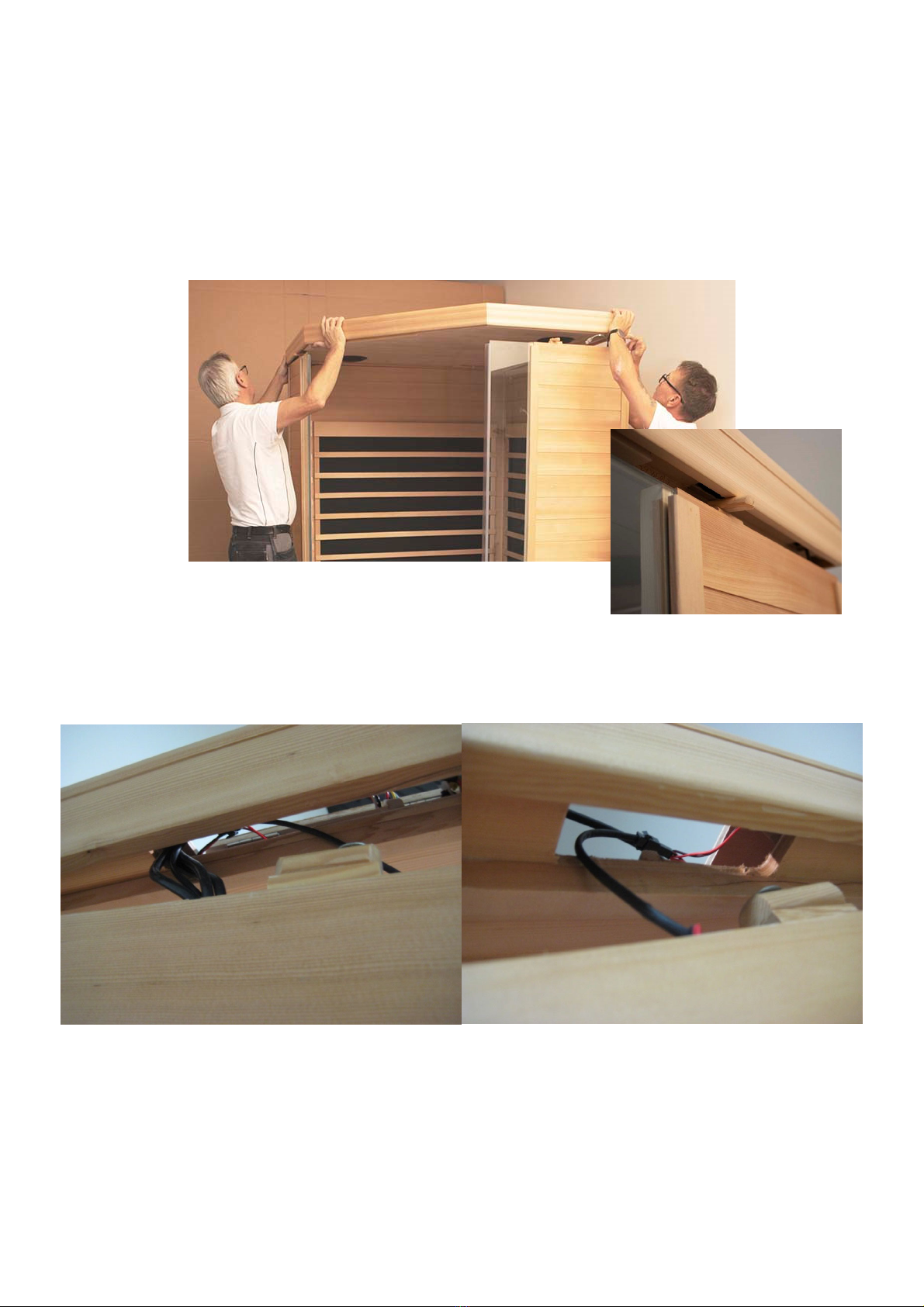

Front Wall Glass (Box #2):
Place the Right Side Front / Door panel into the Floor panel slot.
Note: Do not let go of glass panel, it needs to be held in place.
While carefully still supporting the Front Wall Glass, one person on each side.
Lower the Ceiling panel onto the Walls & Glass panels.
Glass panels must recess into the slot in the Ceiling panel.
Make sure the ceiling fits tight and is flat and level.
Turn the wood ceiling cam locks to lock the ceiling into place.

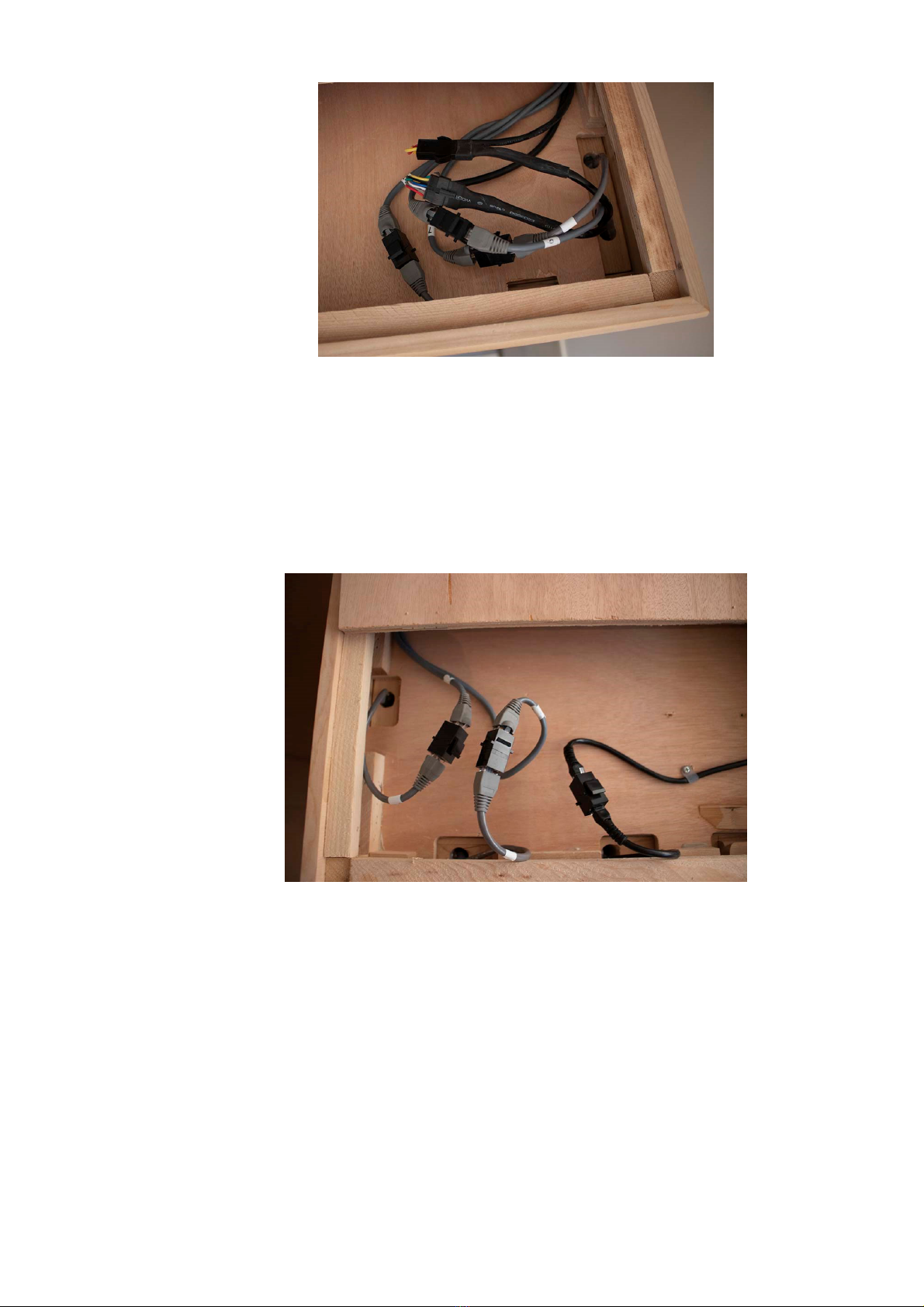

Electrical Connections (inside the Ceiling panel-front right side):
Open all hatch doors on the ceiling to locate the necessary electrical plugs.
Access the connectors and connect them according to the labels on the harness.
Connect wire #4 from the Back Wall harness to the Ceiling wire #4.
Connect wire #5 from the Back Wall harness to the Ceiling wire #5.
Connect wire #6 from the Back Wall harness to the Ceiling wire #6.
Connect wire #7 from the Right Wall to the Ceiling Wire #7.
3PersonInfraredSaunaPage13210121
Rev.2
Electrical Connections (inside the Ceiling panel-rear left side):
Near the Touch Screen harness in Ceiling connect Left Wall wire #3 to Ceiling wire #3.
Connect Left Wall wire #7 to the Ceiling wire #7.
Connect Left Wall wire F to Ceiling wire F.
Connect Left Wall wire E to Ceiling wire E.
Sauna Room 230 Volt AC Power Cord:
Plug the Sauna room power cord into the 230 VAC 10 amp wall receptacle as noted in page 3
Note: It is important that the sauna be plugged into a dedicated outlet of the correct rating. Plugging your
sauna into a shared circuit through can cause poor performance, circuit breaker tripping, or overheating
of the circuit.
3PersonInfraredSaunaPage14210121
Rev.2
Door handles:
InsideOutside
3PersonInfraredSaunaPage15210121
Rev.2
How to Use Infrared Sauna:
Avoid eating large meals and excessive alcohol intake before using Sauna.
Never smoke or drink alcohol or exercise inside of Sauna.
If you are taking any medications or under the care of a Physician, consult with them prior to Sauna usage.
Refer to Sauna Usage Warning signs located inside of Sauna Room
Prior to Sauna session, if possible before using Sauna, take a warm shower without drying.
Note! Avoid using wet clothes in the sauna, use a dry towel or similar to sit on to protect the wood.
Clothing is optional or wear loose fitting clothes. You may choose to sit or lie on a clean soft towel.
Set desired time & temperature.
The Sauna is producing the correct wavelengths to be absorbed into the body within 10-15 minutes of
operation. It is not necessary to wait unit the sauna is at maximum temperature, the absorption of the
wavelength is the same whether the room in heat up or at set temperature.
Enter Sauna and relax, you may choose to enjoy music. Refer to the above Color Therapy System
instructions.
Sit or lie on bench. Close the door and open the interior ceiling vent allowing for fresh air circulation.
Remain in the Sauna long enough to warm up and stimulate a mild perspiration. Typically that may occur in
10 – 15 minutes. This varies with every individual and their comfort level. Do not over do it!
Drink plenty of cool water or a refreshing healthy drink while using the sauna.
Leave the Sauna and cool down. Shower or bathe if possible to cool down and cleanse the skin.
Cool down period usually is the same length of time as the Sauna session.
Then reenter the Sauna for another 10-15 minute session.
Continue this process of alternating using the Sauna and Cooling Down for 3 to 4 cycles.
Length of time in the Sauna and cool off period varies and depends on the individual.
After final Sauna session and upon leaving the Sauna turn the Sauna off the timer if it is still operating.
Open the door and clean the Sauna walls, bench and floor areas with a soft clean damp cloth.
Enjoy a final shower or bath to cool down. Relax, in the special “after sauna glow” and you may choose to
enjoy a healthy snack and cool drink.
3PersonInfraredSaunaPage16210121
Rev.2
Maintenance / General Cleaning
Tips:
DO NOT USE: Alcohol or any strong Cleaning Chemicals
Note: Some chemicals can damage clear finish and wood surfaces.
Interior: Perspiration and dirt may absorb into the wood, so periodic cleaning is needed,
scrubbing benches, back supports, floor boards and walls with a stiff brush and mild detergent
is normally sufficient. Light sanding is another option for cleaning interior surfaces.
Exterior: Use a damp cloth of a mild soap mixed with warm water.
Trouble Shooting Tips:
a. Main Control Touch Pad Lights Not Lit:
Ensure electrical connections between ceiling and back and the ceiling and front wall
Ensure power cord is plugged in to the proper power receptacle and dedicated circuit breaker
Ensure main circuit breaker (house) is not tripped (power is found at the receptacle)
Ensure the room main controller circuit breaker (under the bench) is not tripped and is ON
b. Room not heating:
Ensure power cord is plugged in to the power receptacle
Ensure main circuit breaker (house) is not tripped (power is found at the receptacle)
Ensure the room main controller circuit breaker (under the bench) is not tripped and is ON
Ensure room desired temperature is greater than room actual temperature (controller
demands heat)
Ensure that there is no time in the Delay Start timer if you do want to delay the start
c. Door rubbing or binding:
Ensure that the room is assembled properly; walls and ceiling should all be interlocked.
Ensure the floor is flat by using a level on the ceiling of the room. It may be necessary to use a
small door or window shim to adjust the level under the floor.
-------------------------------------------------------------------------------------------
3PersonInfraredSaunaPage17210121
Rev.2
3PersonInfraredSaunaPage18210121
Rev.2
IR2 Control Operation
Operating Instructions
Default settings for temperature are preset to 65°C, the time is set to 60
minutes. These settings are adjustable as described below. Any changes
are remembered by the room for your next bath. Should the room power be
lost then restored, the settings will return to their default values.
STARTING IR2
Press the start icon once.
The default setting is that all heaters are active. You have the possibility to
turn on/off heaters by pressing (floor), (skirt) and/or (bench). The
wall heaters are always on when start button is activated.
SETTING THE TIME AND TEMPERATURE
To set the sauna length time, press the icon and then press the “"+" or "-"
icons to increase or decrease time for desired setting. The maximum of time
is 60 minutes.
To set the temperature, press the and next "+" or "-" icons to increase or decrease temperature for desired setting.
The minimum temperature is 25°C and maximum temperature is 65°C.
Operating Instructions for Lighting
Press icon to cycle through lighting options. Press and hold the
icon for 3 seconds to turn off the lights.
Lights will turn off automatically 10 minutes after sauna cycle is completed.
-Color sequence – White – Red – Green – Blue – Yellow – Aqua – Purple – Rotation of Colors – Off
Choose the color of choice and then set lighting brightness. The brightness will be on display for 3 seconds. Press the
“+” or “-“ icon to increase or decrease the light setting. Setting options are 25, 50, 75, and 100% light output.
AUDIO OPERATION
Audio Power On
Press icon to toggle On or Off the Bluetooth System.
3PersonInfraredSaunaPage19210121
Rev.2
Note: The control does not have to be active for Sound System to operate.
Pairing
Refer to your mobile device to pair to the unit.
The Room device name is TyloHelo Audio
Operation
All operations are controlled by the mobile device
Volume is controlled by the mobile device
3PersonInfraredSaunaPage20210121
Rev.2
SaunaLogic App Quick Start Guide:
How to Pair IR2 Control to SaunaLogic App
The SaunaLogic App allows you to turn your sauna on/off, set temperature, turn on Bluetooth, adjust lighting, and more
from the convenience of your smart phone or tablet. The following are the steps to pair your IR2 Control to the
SaunaLogic App.
NOTICE: THE SAUNA HEATER AND IR2 CONTROL MUST BE INSTALLED AND OPERATIONAL PRIOR
TO PAIRING TO THE SAUNALOGIC APP.
1) Download the SaunaLogic App and install onto your smart phone or tablet by scanning the QR Code
below or searching for “SaunaLogic” in the appropriate app store.
2) Register a New Account: When you open the SaunaLogic App for the first time, you will be given the
option to Register or Login with Existing Account. You will need to select Register and follow the
prompts to complete the registration requirements. A valid email address or a mobile phone number
will be required to complete the registration process.
Table of contents
Other Tylo Plumbing Product manuals
Tylo
Tylo Prime+ 1515/C User manual
Tylo
Tylo T825H User manual
Tylo
Tylo Prime+ 1814 User manual
Tylo
Tylo Prime 910 User manual
Tylo
Tylo Evolve Corner Tradition User manual
Tylo
Tylo HARMONY User manual
Tylo
Tylo Sauna i1515 Corner User manual
Tylo
Tylo Combi 7 User manual
Tylo
Tylo Alu Line 150 User manual
Tylo
Tylo Sauna i1915 Corner User manual
Tylo
Tylo Tylosand T-870 Operation manual
Tylo
Tylo tx202/w User manual
Tylo
Tylo Sauna i1713 User manual
Tylo
Tylo INFRA PANEL User manual
Tylo
Tylo T810H User manual
Tylo
Tylo Round Vision 150 User manual
Tylo
Tylo HARMONY GF User manual
Tylo
Tylo Panacea 1717 User manual
Tylo
Tylo SENSE PLUS PURE 2.0 U 7 User manual
Tylo
Tylo SAUNA REFLECTION WIDE GF User manual
Popular Plumbing Product manuals by other brands
American Standard
American Standard Right Height Toilet Ravenna Specifications
ProFlo
ProFlo PFWSCM2A100 installation instructions
Teka
Teka Intra VK60LB quick start guide
Franke
Franke XINX140 Installation and operating instructions
American Standard
American Standard Hamilton 7024 installation instructions
Schell
Schell POLAR 03 979 06 99 Installation and service instruction
Hans Grohe
Hans Grohe Focus E2 31806 Series Instructions for use/assembly instructions
Signature Hardware
Signature Hardware SHSK82 quick start guide
Dynamic Saunas
Dynamic Saunas DYN6434 owner's manual
American Standard
American Standard Lakeland 4114.100 installation instructions
VADO
VADO AXCES ASTRA AX-AST-106/CD-CP Instruction booklet
Glacier bay
Glacier bay FSU1Z2719A1 SA1 Use and care guide
