TypeS BT57132 User manual

Important, retain for future reference:
Read carefully
WIRELESS BACKUP CAMERA
Solar Powered With 6.8” Widescreen HD Monitor
ITM. / ART. 1344584
WP ITM. BT57132
Care & Use Instructions

TABLE OF CONTENTS
1. Introduction ...............................................................................................................................................................................1
2. Package Contents ...................................................................................................................................................................2
3. Product Specications ..........................................................................................................................................................3
4. Before You Install ......................................................................................................................................................................4
5. Installation Guide ....................................................................................................................................................................4
6. Settings and Operation ........................................................................................................................................................9
7. Safety Information ................................................................................................................................................................14
8. Maintenance & Warranty ...................................................................................................................................................17
9. General Information ............................................................................................................................................................ 20

1
Please read all of the installation instructions carefully before installing the product. Improper
installation will void manufacturer’s warranty. The installation instructions do not apply to all types
of vehicles, and are written as guidelines to assist in installing the system.
Consult an experienced technician if you are not comfortable installing the product. You can also
contact Type S at 866.294.9244 to speak to one of our installation specialists if you have any specic
questions regarding the Solar Wireless Backup Camera.
BEFORE using the Solar Wireless Backup Camera with 6.8” Widescreen HD Monitor, please
read the safety information provided in this user manual. ALWAYS use the product as
outlined in this user manual.
Please make sure to read and understand all local laws and regulations regarding cameras and their
use in a vehicle. Laws vary by state.
1. INTRODUCTION

2

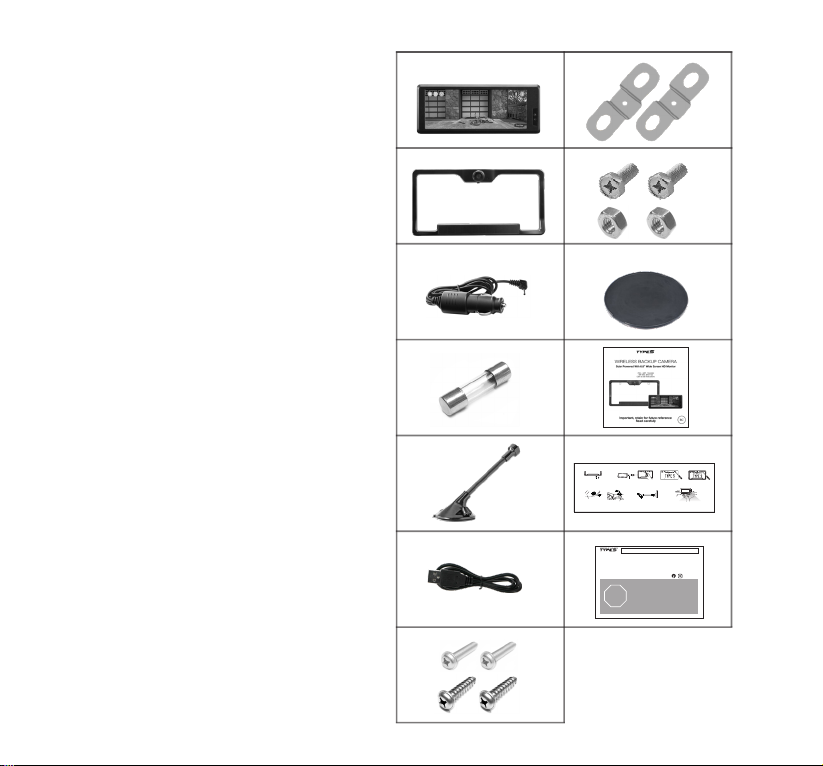

1. 6.8” Motion Activated
HD Monitor
2. Solar Wireless Backup Camera
3. 12V / 24V Power Adapter
4. 250V 2A Spare Fuse
5. Windshield Mount
6. 33” MicroUSB Charging/Data Cable
7. 2 x License Plate Machine Screw
(Optional)
2 x License Plate Self-Tapping Screw
(Optional)
8. 2 x Two Way Mounting Tab (Optional)
9. 2 x Mounting Screw & Nut (Optional)
10. Dash Mount
11. Instruction Manual
12. Quick Install Guide
13. Warranty Card
2. PACKAGE CONTENTS
6.
2.
7.
4.
1.
5.
8.
11.
9.
10.
12.
QUICK INSTALLATION GUIDE
PlaceWindshield Mount on the windshield or Dash Mount and lower
thelever to secure. Attach Dash Monitor onto the Windshield Mount
andadjust to your desired position.
NOTE:Fully charge and test camera before installation.
3.Unscrew your license plate.
Mountand power the monitor. Power using the 12V/24V
adapterprovided. Remove overlay and adjust angle as need.
Aligncamera with license plate and
secureto vehicle. See Manual for
additionalmounting guidance.
Plugin monitor, power on camera, and test connection.
(Cameraand monitor come pre-paired)
Fullycharge camera. Fold back camera power port
plugand insert included charging cable. Most AC
walladapters will work with the USB charging cable.
4.2.
or
Windshield
DashMount
Afterthe monitor has been connected to power, wake up the
screenand camera by waving your hand in front of the monitor.
7.6.5.
1.
13.
www.ty pesaut o.com/register
Register this product within 30 days of purchase to receive 1 FREE YEAR of additional warranty coverage
(beyond the standard one year warranty), along with special product offers and announcements.
Enregistrez ce produit dans les 30 jours suivant l'achat pour recevoir une couverture supplŽmentaire
GRATUITE DE 1 AN (au-delˆ de la garantie standard d'un an), ainsi que des offres et des annonces spŽciales.
STOP
ARRæT
DETƒNGASE
Mon-Fri, 8am-5pm PST / Lundi au vendredi, 8h ˆ 17h HNP /
Lun-vie, 8 a. m. a 5 p. m. Hora del Pac’fico
[email protected] / [phone]
Please contact our customer service before returning this product to
the store. Our friendly representatives are happy to help with any
questions or concerns you have.
P—ngase en contacto con nuestro servicio a clientes antes de regresar
este producto a la tienda. Anuestros amables representantes les dar‡
mucho gusto ayudarle con cualquier pregunta o inquietud que tenga.
Veuillez communiquer avec notre service ˆ la client leavant de
retourner le produit au magasin. Nos reprŽsentants se feront un plaisir
de vous assister pour toute question ou prŽoccupation.
Product code / Code de produit / C—digo del producto : BT57132
@TypeSAuto
ML-57132DNR_V3
3.

3
3. PRODUCT SPECIFICATIONS
Frequency: 2.4GHz
Operating Voltage: Monitor - DC 12V/24V, Backup Camera - DC 5V
Operating Temperature: 14ºF~122ºF (-10 ºC~50ºC)
Camera Water Resistance: IP65 Rating
Battery Capacity: 3350mAh
Maximum Signal Range: 33 feet/10 meters
(without interference or obstruction)

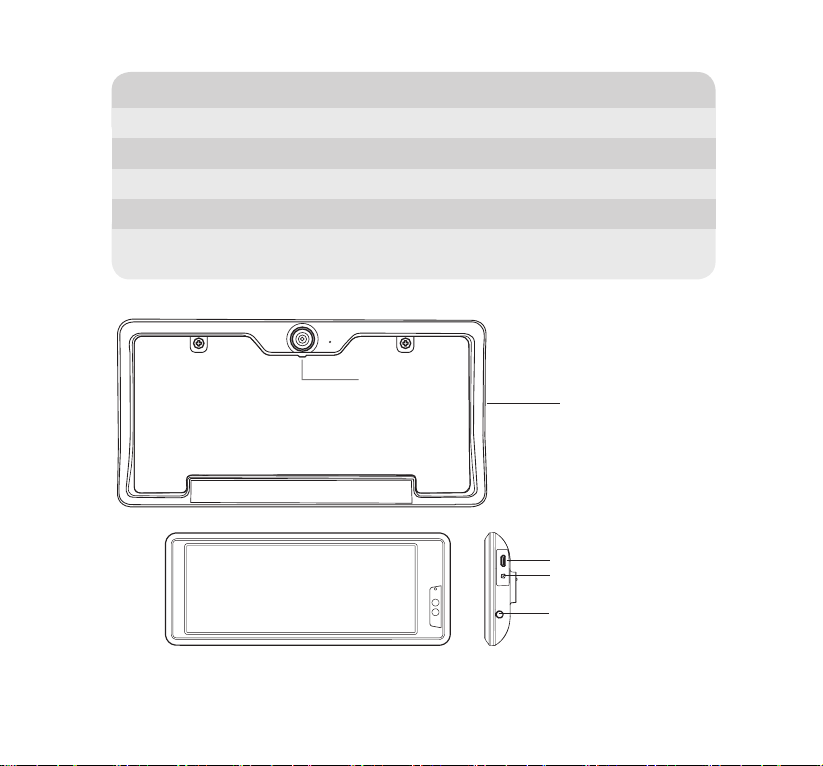

Solar Wireless
Backup Camera
Power Button
DC 12 / 24V
MicroUSB input
Power Button
6.8” Motion Activated HD Monitor

4
Please charge and test the Camera / Monitor before you install on your vehicle.
1. Fully charge camera. Fold back camera power port plug and insert included charging cable.
Most AC wall adapters will work with the USB charging cable.
2. Plug in monitor, power on camera, and test connection. (Camera and monitor come pre-paired)

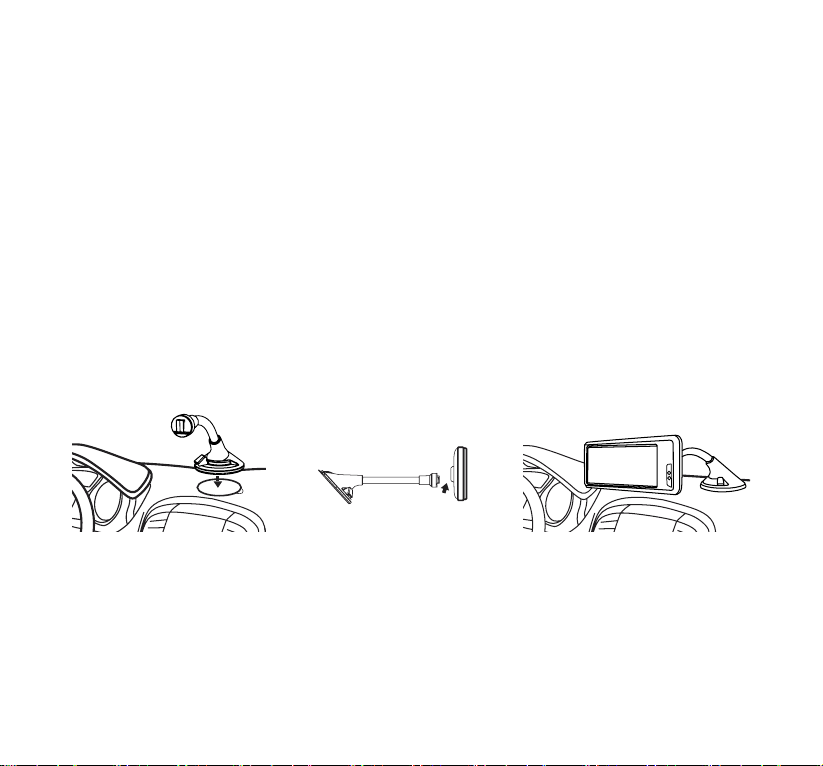

1. Remove the backing tape on the Dash Mount and attach it to the dashboard. Place the suction
cup of the Windshield Mount on top of the Dash Mount and push the knob counter clockwise to
lock in place.
2. Attach Dash Monitor to the Windshield Mount and adjust to your desired position.
3. Adjust the tube of the Windshield Mount so the base of the Dash Monitor is touching the surface
of the dashboard in order to reduce vibration rattling.
DASH MONITOR INSTALLATION  DASH MOUNT
1. 2. 3.
5. INSTALLATION GUIDE
4. BEFORE YOU INSTALL

5
1. Take the 12V/24V power adapter and plug adapter
into the right side of the Dash Monitor. Plug the
other end into 12V/24V power port in your car.
2. Now, the Dash Monitor is ready to be activated
by the motion trigger when you wave your hand
in front of the monitor or tap once on the Dash
Monitor screen.
WARNING: Many vehicles provide constant power to the
12V outlet. If your outlet provides constant power,
please remember to unplug the Dash Monitor when
not in use to avoid draining the vehicle battery.

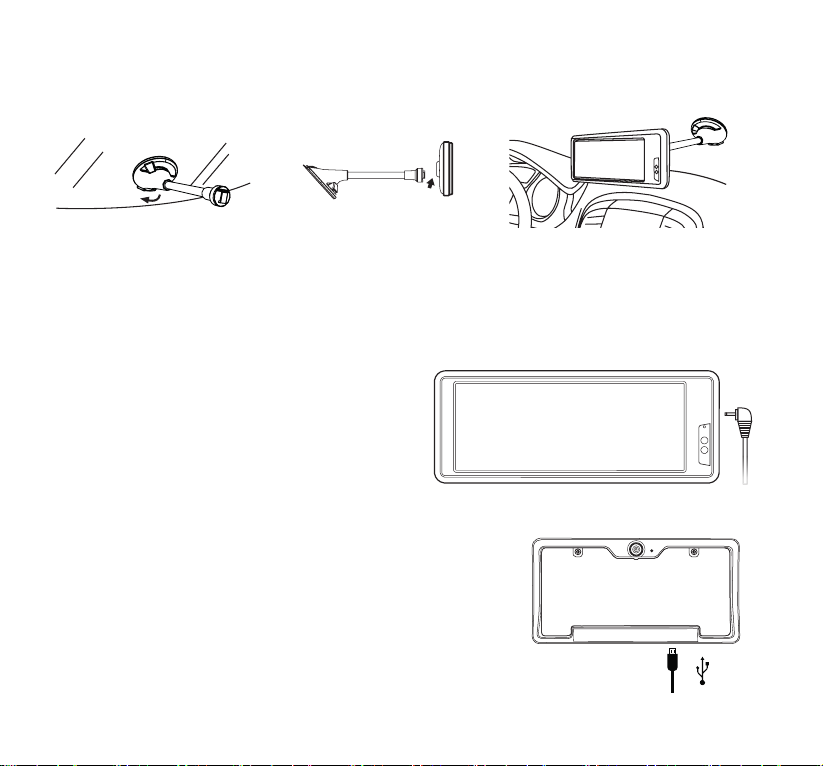

1. Place the Windshield Mount on the windshield and push the knob counter clockwise to lock in
place.
2. Attach Dash Monitor to the Windshield Mount and adjust to your desired position.
3. Adjust the tube of the Windshield Mount so the base of the Dash Monitor is touching the surface of
the dashboard in order to reduce vibration rattling.
DASH MONITOR INSTALLATION  WINDSHIELD MOUNT
POWER UP THE DASH MONITOR
CHARGING THE SOLAR WIRELESS BACKUP CAMERA
1. 2. 3.
Fold back camera power port plug and insert included charging
cable. Most AC wall adapters will work with the USB charging cable.
12V/24V
Power adapter

6
SOLAR WIRELESS BACKUP CAMERA INSTALLATION
A STANDARD INSTALLATION:
*Please follow your local laws and regulations regarding constant monitoring while driving. It is
recommended that you glance at the image only when in reverse, and use as an aid. Do not rely
solely on the camera view to back up.
2. Secure the Solar Wireless Backup Camera
and license plate with screws back onto
the rear of your vehicle.
Blue LED light
4. Power on the Monitor with the 12V/24V
adapter. You can see the parking view when
you wake up the Solar Wireless Backup
Camera by tapping once on the screen or
motion trigger in front of Monitor.
3. Push and hold the power button of
the Solar Wireless Backup Camera
for 1 second, the blue LED light
will ash 2 times.

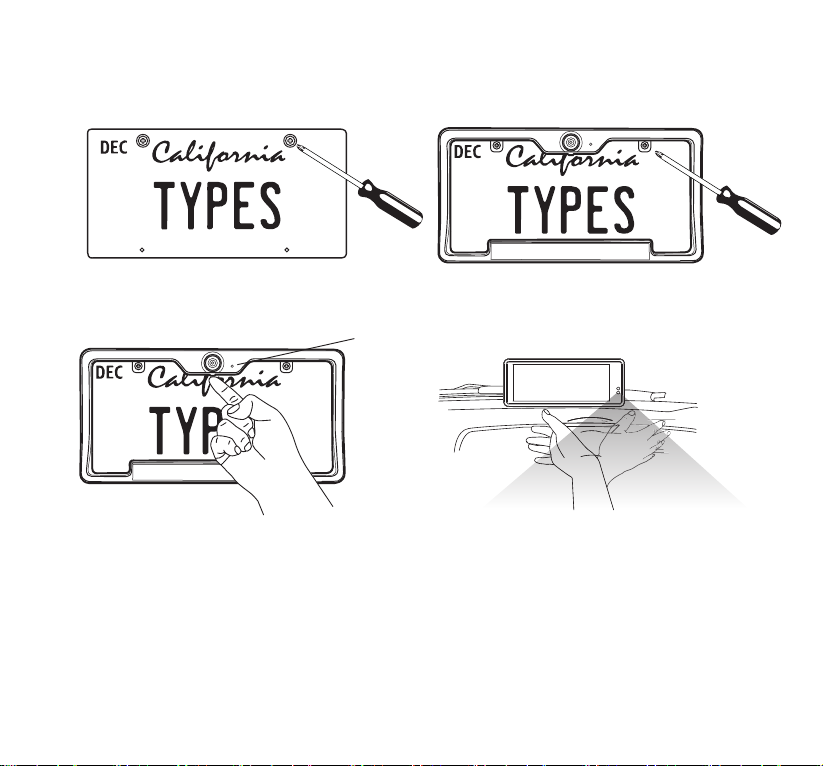

1. Unscrew your license plate.

7
B LOWERING INSTALLATION  FOR VEHICLES WITH TRUNK OR HATCH DOOR RELEASE
1. Unscrew and remove your license plate.
2a. Unscrew and detach the original
Mounting Tabs from the back of the
Solar Wireless Backup Camera.
3. Install the license plate onto the Solar Wireless
Backup Camera with the Mounting Screws &
Nuts.
4. Secure the Solar Wireless Backup Camera
with the license plate back onto the rear of your
vehicle.
2b. Install the Two Way Mounting Tabs onto
the Solar Wireless Backup Camera.
(This allows more clearance for nger tips to release door latch)

8

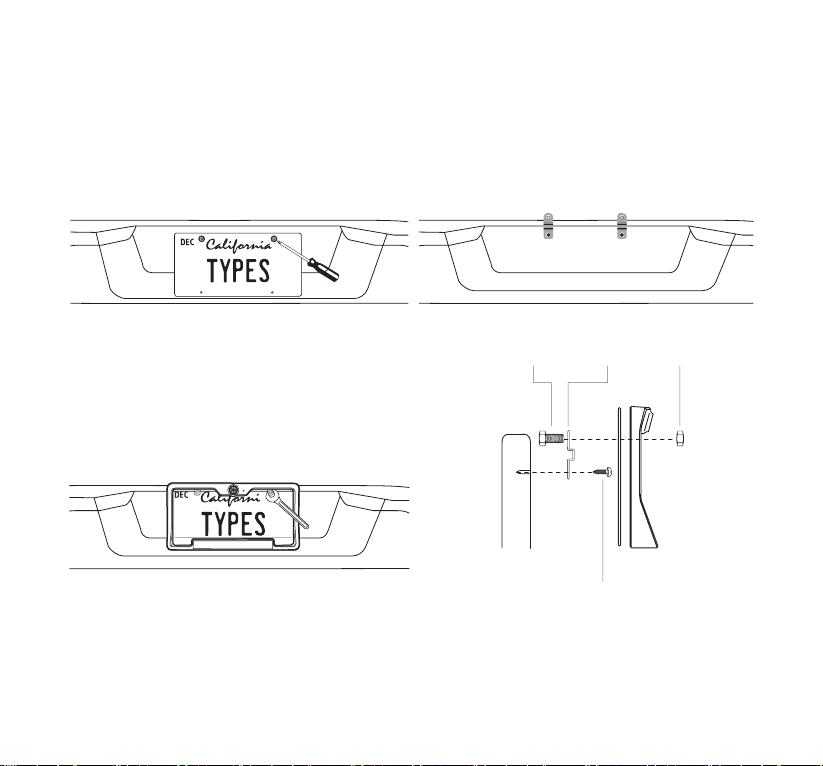

C RAISED INSTALLATION  FOR TRUCKS & SUV WITH STEP BUMPERS
1. Unscrew and remove your license plate.
3. Finally, install the Solar Wireless Backup
Camera and license plate onto the rear of
your vehicle and tighten the Mounting Nuts
with a wrench.
2. Install the Two Way Mounting Tabs using
original Plates Screws and Mounting Screws.
Warning: Lower tailgate on pickup trucks slowly and check for minimum ¼ inch clearance between
gate and top of camera frame. This check is because some bumpers are installed higher than others.
(This will raise the camera frame out of the cavity of the step bumper)
Original Plate Screw
Step Bumper
Mounting
Screw
Two Way
Mounting Tab
Mounting
Nut
