Before you start
4
Before you start
Important Notice
●Read the complete operation instruction carefully contributes to better operation.
●Make sure the source device is correct and workable.
●To guarantee data consistency, strongly suggest the capacity of source and targets
should be the same.
●It is strongly suggest to use “Copy+Compare” to achieve perfect duplication.
Safety Precautions
●The warranty will expire if damage is incurred resulting from non-compliance with
theses operating instructions.
●Please turn off the power before replacing the socket.
●Never turn off the power while processing the firmware update.
●Use only approved power sources.
●The product is only suitable for operation in dry, dust free, clean environment.
Do not allow liquids or foreign objects to enter. Failure to do so may severely
damage your duplicator.

I. Product Introduction
5
I. Product Introduction
1. Overview
The Flash duplicator is a stand alone, high speed and convenient equipment for easily
copy data anytime and quickly check Flash device's quality. The checking capability
assists you to find out defective Flash device efficiently, like Capacity Check enables
you to find out the real capacity of Flash device; Measure Speed helps you to check
each Flash device's read and write speed.
This 2 targets Flash duplicator is stand alone, no need of PC or any installation
procedure, when the system is turned off, nothing will be left in it, so there is no risk
of virus infection. And instant power on and off for quick boot up and shut down the
duplicator can save your time greatly. Its lightweight design, friendly interface and easy
operation is ideal for personal, office and shops application.
2. Features
1. Quick checking function to find out defective Flash device easily.
2. Standalone, no PC required, without risk of virus infection.
3. High writing speed up to 1.5GB/m.
4. Lightweight design and user friendly with instant power on and off.
5. Support multiple Flash media: it enables you to copy multiple Flash media of SD,
MS, CF through a qualified USB interface card reader.
3. Package Content
UB300 Adapter

II. Basic Instruction
6
II. Basic Instruction
1. System Overview
Forward
Backward
LCD
USB Target port
Signal LED
USB Master port
ESC
OK
2. Back Side
Power Switch and Plug of the Power Supply
Power switch
Power supply
3. LCD Configuration
Copy progress
Time (mm:ss)
Copied Size
Total Content Size

III. Function Table
7
III. Function Table
Function Description
1. Copy USB/SD/microSD/CF flash copy.
2. Compare This option makes bit-for-bit comparison between the source and all other copied flash
cards.
3. Copy+Compare This option will make a copy first and then compare the copied Flash media with the
source immediately after the copy has finished.
4. Capacity Check Checks the Flash real capacity.
5. Information
5.1 USB Info
This feature will show USB/SD/CF flash's information; file format, content size, and
capacity.
5.2 System Info
This feature will show information of the duplicator system, including controller model
number and software version.
6. Utility
6.1 Do Format
6.1.1 Auto Format
To Execute flash FAT 16/32 format
6.1.2 FAT Format
Format media to be FAT16.
6.1.3 FAT32 Format
Format media to be FAT32.
6.2 Measure Speed
This function can measure the flash read and support speed. This function might
damage the format and content.
6.3 Media check
6.3.1 H3 Safe 100%
To check the quality of flash by reading it. This safe check will
not delete flash content and format.
6.3.2 H5 RW 100%
To check quality by "0" and "1" reading/writing the flash. Normal
check will delete content and format.
6.3.3 Setup Range
To setup the check area from 1% to 100%
6.3.4 Setup Error Limit
Set the % of error tolerance when checking the Flash.
6.4 Quick Erase
To erase flash media flash content. It will keep the FAT format.
6.5 Full Erase
To completely erase data of flash including format and content, but it needs more
time.
6.6 DoD Erase
Erase Flash three times complying with USA Department of Defense (DoD) standard.
6.7 System Update
System firmware update via the Flash media. i.e. USB/SD/CF/MSD.
6.8 Calc. CheckSum
Calculate the CheckSum number of the Flash media in source port.

III. Function Table
8
7. Setup
7.1 Start-up Menu
To select which function is shown first when the system is turned on.
7.2 Copy Area
7.2.1 System and Files
The system can automatically detect the format FAT16, 32/
NTFS/ Linux (ext2, ext3, ext4) and only copy the data area.
7.2.2 Whole Media
The system will copy the whole content of flash including
the empty space, if the data is not format FAT16, 32/ NTFS/
Linux(ext2, ext3, ext4) .
7.3 Button Beep
Choose whether to hear a beep or not when a button is pressed.
7.4 Asynchronous Hold Time
To set how long the system should wait to ask if to continue or exit the function of
Asynchronous copy job.
7.5 Target Tolerance
To set the tolerance % of capacity gap between the source and target. The default
setting is "No limit".
7.6 Asynchronous
"Enable" to open Asynchronous function, "Disable" to close the function.
7.7 Check Before Copy
Set if you would like to check the Flash media before copy.
7.8 Power Off Time Between Copy+Compare
Set the time gap of power supply between Copy and Compare when executing
"Copy+Compare" function.
7.9 Language
Set system language interface i.e. English, Japanese.
7.10 Working Mode
"Fastest", "Faster", "Normal", "Slower", and "Slowest" to select the speed of data
transmission.
7.11 Set HDD Mode
Set if you would like to copy USB HDD or USB devices only.
7.12 Restore Default
Back to original manufacturer setting.

IV. Function Introduction
9
IV. Function Introduction
1. COPY
There are two kinds of copy modes, which are Asynchronous Copy and Synchronous
Copy. The system will check the content size of the source before executing "copy"
function. If the source content size is less than system's buffer memory, it will
automatically start asynchronous copying. If the source content size is larger than the
system's buffer memory, it will copy with synchronous mode.
1.1 Synchronous Copy
a) How to set "Synchronous Copy"?
1 Go to function "7.6 Asynchronous" to select "Disable".
2 If the source's content size is larger than system's buffer memory, it will execute
Synchronous Copy no matter which copy mode you set at function 7.6.
b) Operating Process
1 Plug in the source and target flash media . Select copy function and then press .
Capacity of source
The number of target flash plugged in and ready to copy
2 When all flash cards are plugged in, press to start copy. Or when all slots are
plugged, the system will automatically start copy.
Progressed time and percentage
Progressed size
Content size

IV. Function Introduction
10
3When finishing copying, the LCD will show the total time of copy, quantity of pass
and quantity of copy fail.
Note
❶When copy is processing, the green LED will flash. When the copy has finished,
the green LED will stop flashing but will remain illuminated. If an error occurs, the
red LED will illuminate.
❷During copying each card slot’s green LED will flash, DON’T take out the card
while copying.
❸It is strongly recommended that the target and source have to be in close range
of capacity. When there is a big difference between the capacities of source and
target, such as copying 1GB source to a 4GB target or 2GB source to a 1GB
target. It may cause error or copy fail.
❹If copy NTFS or Linux format, targets' capacity must be equal or larger than the
source capacity.
❺Some users may like to use a USB converter to copy other different types of flash
cards, such as CF, SD, or Memory stick etc. Since the quality and stability of each
USB converter in the market are very different, a USB converter with poor quality
may cause the damage to the machine and also the copy quality from the Flash
card.
1.2 Asynchronous Copy
a) How to set "Asynchronous Copy"?
1 The source's content size must be smaller than the system's buffer memory.
(Necessary condition to execute asynchronous copy.)
2 Go to function "7.6 Asynchronous" to select "Enable". (The default setting is
"Enable".)
b) Operating Process
1Plug in the source flash and press . The system will start to read the source
content into system's buffer. After finishing that, it will then immediately start to
copy once a target flash card has been plugged in.
Content size

IV. Function Introduction
11
2You can repeatedly take out cards which have finished copy and plug in new flash
media. The LCD will show accumulated quantity of copied pass/fail media and the
media still being in process.
The quantity of flash media in procoess
Quantity of copy pass and copy fail
Note
❶Tthe green LED will flash when executing copying, DON'T take out the flash during
the copy process.
❷When finishing copying, the green LED will stop flashing and remain illuminated.
You can take out the flash and plug in another new one then.
❸During asynchronous copy, you can press key to check each Flash media’s
copy status and progress.
❹When there is an error (Red LED on), you can also press key to check each
Flash media’s status. For example:
2. Compare
Compare function is to check the correctness of copying result. The operation is the
same as copy.
3. Copy + Compare
This function provides a more convenient selection. Instead of going to function "2.
Compare" and pressing again after copying, function "3. Copy+Compare" will
automatically run the compare function after finishing copying to make sure if the
copied result is correct.

IV. Function Introduction
12
4. Capacity Check
This function can check the real capacity of Flash media.
1 Plug the Flash media into slot and select function "4.Capacity Check", then press
. About 2~3 seconds, the system will find out its exact capacity.
2 System will show the checking result by Green/Red LED light.
3You can use button to check the status of each slot.
4This function supports asynchronous operation. You can continuously plug in and
pull out the flash media without pushing any buttons.
Green Light: Correct Size Red Light: Wrong Size
Note
❶The function may change the data and format of the flash media.
❷To protect the source data, the system will not do Capacity Check on the master
device.
❸When the Red light illuminates (Error), you can use to check the error
information.

IV. Function Introduction
13
5. Information
5.1 USB Info.
This function will show Flash media's basic information such as media type, content
size, and total capacity.
Device Format
Port Number
File content size
USB total capacity
Note
Executing this function will not delete the content or format of flash media.
5.2 System Information
This function will show information of the duplicator system, including model number
and software version.
System firmware
USB duplicator model
6. Utility
6.1 Do Format
6.1.1 Auto Format
This function is to do flash FAT formatting. Plug the Flash media in the slot and press
, the system will automatically detect its capacity and formate the media according
to it.
●If Flash media format is already FAT16 or FAT32, the format function won't change
its original format.
●If Flash media format is not FAT format, i.e. NTFS, Linux or FAT multi-partition.
The system will execute format according to flash's capacity. When it is capacity
is above 2GB, the system will format the Flash to FAT32, if its capacity is below
2GB, the system will format the media to be FAT16.
During format process, you can use to check each Flash Card's formatting
status, progress and information.

IV. Function Introduction
14
Note
The source port (port#1) will not execute any formatting, because this function will delete
the data of the flash media.
6.1.2 FAT Format
Format any flash media to be FAT16.
6.1.3 FAT32 Format
Format any flash media to be FAT32.
6.2 Measure Speed
This function can measure the "read" and "write" speed of Flash media.
1 Plug the Flash media into slot and select function "6.2Measure Speed", then press
to start.
2 Use buttons to see Flash media exact "Read" and "Write" speed from each
port.
Note
This function may change the content of data and format of flash.
6.3 Media Check
This function is to analyze flash's quality. There are two kinds of methods to do media
checks, "H3 Safe" and "H5 R/W". Before executing quality check, user can go to
function "6.3.3 Setup Range" "6.3.4 Set Error Limit" to finish setting.

IV. Function Introduction
15
6.3.1 H3 Safe 100%
This function is to check the flash's quality by reading the flash media. After executing
the function, it will show the volume of bad sectors and also the reading speed of the
flash device.
Note
This function will not delete the content or format.
6.3.2 H5 R/W 100%
This function is to check the flash's quality by reading and writing the flash
media. After executing the function, it will show the volume of bad sectors
and also the reading/writing speed of the flash device.
Note
❶This function will delete the content and format of flash media, please do not
execute this function if there is important data in it.
❷To protect the source data, the system will not execute this function on the master
device.

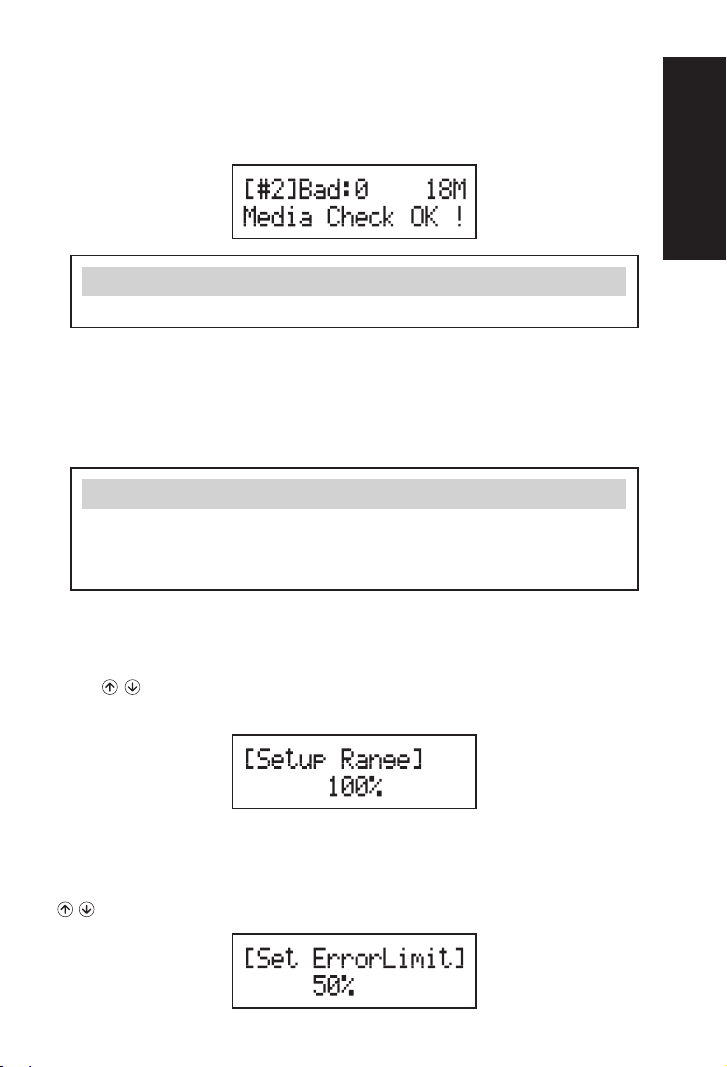

6.3.3 Setup Range
The function is to set the % of the flash which you would like to check for its quality.
Using button to setup the flash examine area from 1% to 100%. 100% means
to check the whole Flash, it will take more time.
6.3.4 Setup Error Limit
This function is to set the % of tolerance range of error when checking the Flash. Using
button to setup the error limit value.

IV. Function Introduction
16
6.4 Quick Erase
This function will erase flash's data content, it will not erase flash FAT16/32 format.
It can use button to check each Flash Card's erasing status, progress and
information.
Note
❶Quick erase function can only erase the flash which is FAT 16/32 format.
❷This function will damage the data in flash, please make sure you have backup all
important data before using this function.
6.5 Full Erase
It will completely erase the whole flash card, including format and content. Therefore
full erase will take more time. During the process, you can use to escape the erase
process, but the original format and content can't be read any more.
Note
This function will damage the data in flash, please make sure you have backup all
important data before using this function.
6.6 DoD Erase
This is to comply with the U.S.A. Department of Defense (DoD 5220) standard to fully
erase the Flash three times bit by bit to guarantee the data was deleted.
Note
This function will damage the data in flash, please make sure you have backup all
important data before using this function.

IV. Function Introduction
17
6.7 System Update
This is to update the system's firmware version. Please save an un-zipped update file
to your Flash media (please don't put it in a folder). Select function 6.7System update,
and press , it will automatically start system updating. When finished, please turn
off the system for 5 seconds and then turn on again. The new version of firmware will
have been uploaded.
6.8 Calc. CheckSum
This function will calculate the CheckSum number of the Flash device plugged in
the source port. The CheckSum calculate area will based on the "copy area" you
set. If you set "Data only", CheckSum will calculate data area only; if you set "Whole
media", the CheckSum number will be calculated based on the whole flash devise
size. Be aware that even two flash devices have the same data, if the capacity has any
difference, their CheckSum value will be different.
Note
The function is not for comparing purpose. If you want to check the correctness of copying
result, please use the Compare function which can provide you the safest and fastest by
hardware bit-for-bit comparison.
7. System Setup Function
7.1 Start-up Menu
You can select which function is shown first when the duplicator is turned on.
7.2 Copy Area
7.2.1. System and Files
This is also called "quick copy" mode. The system will automatically analyze the source
flash card's file format. If the data's file format is FAT16/32, NTFS, Linux (ext2, ext3,
ext4) which is recognizable by the system, it will be able to copy data only instead of
the whole flash. Otherwise, if the file format is non-recognizable, the system will copy
the whole flash card including the empty space. For example, a 2GB flash card which
is FAT32 file format and has only 50 MB data inside, the system will only copy that
specific 50 MB of data, it takes only a few seconds to copy the source.

IV. Function Introduction
18
7.2.2. Whole Media
Setup the duplicator in Whole Media function, the system will copy the whole flash
card, including the empty space and format. This function is used when you have a
flash source which has an unknown file format. For example, a 2GB flash card which is
FAT32 file format and has only 50 MB of data inside, if you setup "Whole Media", the
system will copy whole 2GB of Flash. It will take longer time to copy the source.
7.3 Button Beep
Choose whether to hear a beep or not when a button is pressed.
7.4 Asyn Hold time
This is to set the time to exit asynchronous copying when you've temporarily finished
copying and you've pulled out all the devices, but you haven't exited the copying job.
This is to prevent you from mistakenly overwriting a source device when you'd like to
start a new source copy but you forgot to stop the previous asynchronous copying
job. The default setting is 30 seconds. When the system detects that all the flash cards
have been pulled and no new cards have been plugged in after 30 seconds the LCD
will display:
Press to exit this Asynchronous or press to keep this status.
7.5 Target Tolerance
To set the tolerance % of capacity gap between the source and target. There are three
models of settings as below, and the default setting is "No limit".
●Allow Tolerance: Under this model, users can set the up and low tolerance % of
capacity gap separately between the source and target. And the duplicator will
views the setting as capacity limit of target flash media, and filters out the target
with incorrect capacity.
●For example : If the flash media is marked as 1G with real capacity of 1000MB
inside, when user allows the up and low tolerance to be 1 %, then the workable
capacity of target flash media will be :
99% *1000MB~101% *1000MB ➡ 990MB~1010MB
●No limit: there is no any limit on capacity between the source and target. Please
be noted that, under this model, if the data size in the source is over the capacity
of target, it might lead to incomplete copy.
●100% Same: The capacity of targets has to be exactly the same as the source, or
it will not able to execute any function.

IV. Function Introduction
19
7.6 Asynchronous
You can select "Disable" to close Asynchronous copy or "Enable" to open the function.
If the setup is "Enable", and the data in source is smaller than system buffer memory,
it will automatically use asynchronous mode to do copy. If the setting is "Disable", no
matter what the content size is or copy method, the system will keep synchronous
copy.
7.7 Check Before Copy
You can select if you would like to check the media before copy.
7.8 Power Off Time Between Copy+Compare
To prevent from any data loss problem of unstable flash, we strongly recommend you
to follow function 7.8 to set the time gap of power supply between copy and compare.
The setting range is from 0 to 15 seconds, and the default setting is 3 seconds.
7.9 Language
Set system language interface i.e. English.
7.10 Working Mode
The working mode has 5 options to select the transmission speed :
●Slowest Mode
●Slower Mode
●Normal Mode (Default setting)
●Faster Mode
●Fastest Mode
Please make sure your Flash media has good quality and support faster mode. If you
are not confident on the flash quality or you find a high failure rate on copy or compare.
It is recommended to slow down the working mode. The factory default setting is
"Normal Mode".

IV. Function Introduction
20
7.11 Set HDD Mode
This is the setting when users want to copy USB-HDDs. To copy a USB-HDD, users
could select "Active Mode" first and then start executing other operation. Or, if users
just want to copy USB devices but not USB-HDD, just select "Inactive mode".
Note
The reason to make this setting before copying USB-HDD is not only because USB-HDD
requires more power but also because it has different file format with USB flash stick.
7.12 Restore Default
Return back to original factory default settings.
