U-Reach MD801 User manual

MD Series
Duplicator
User Guide
V3.10
www.ureach-inc.com
the Expert of Duplicators

2
Content Index
I. Introduction
1. Features 3
2. System Overview 3
2-1. Package Content 3
2-2. MD Series Duplicator 3
2-3. Display Interface 4
2-4. Installation of MD Series Controller 4
2-5. Main Function Structure 6
2-6. Reminding 8
II. Function Introduction
Function Table-Multimedia Duplication 9
Chapter 1.MultiMedia Duplication 10
1. Copy 10
2. Compare 12
3. Copy + Compare 14
4. Information 14
4-1. Flash Device Information 14
4-2. Disc Information 15
4-3. System Information 15
5. Utility 16
6. Setup 17
6-1. Multi-Session 17
6-2. Disc Spanning 17
6-3. MultiDisc 18
6-4. Burn Speed 19
6-5. Advanced Setup 19
Function Table-Disc to Disc Duplication 21
Chapter 2. Disc Duplication 24
1. Copy 24
2. Test 25
3. Compare 26
4. Copy + Compare 26
5. Set Burn Speed 27
6. Select Source 28
7. Utility 28
7-1. Information 28
7-2. Erase Disc 29
7-3. PreScan Source 30
7-4. Track Edit 31
7-5. Eject All Disc 31
7-6. Copy Counter 32
7-7. Update BIOS 32
7-8. PRINT LS Label 33
8. Setup 33
8-1. Auto Start Time 33
8-2. Display Mode 34
8-3. Button Beep 34
8-4. Eject On Start 34
8-5. Reader Speed 35
8-6. Compare Speed 35
8-7. Language 35
8-8. Clear Setup 35
8-9. Advanced Setup 35
9. HDD Manager (For HDD-installed duplicator) 37
9-1. Select Image 37
9-2. Disc to Image 37
9-3. Set Reader Speed 38
9-4. Show Image Info. 38
9-5. Rename Image 38
9-6. Delete Image 39
9-7. Show HDD Info. 39
9-8. Format HDD 40
9-9. Load & Copy 40
III. Specication 41
IV. FAQ 42
Appendix

3
I. Introduction
1. Features
●Multi-Session, MultiDisc, Disc Spanning, Disc to Disc duplication.
●Independent 11, 8, 4 SATA port, can really achieve high speed 1-10, 1-7,
1-3 DVD/Blu-ray Duplication.
●High speed DDR2 SDRAM.
●Support various Flash media interface, ex: USB, SD, CF, MicroSD….
●Support high speed 20X DVD, 52X CD, and 8X Blu-ray burning.
●High compatibility with variety brands of burners.
●Special blue light LCD display.
●Support built-in HDD to load disc images.
●Easy operation for separate DVD and Flash to DVD duplication.
●Support Lightscribe printing.
2. System Overview

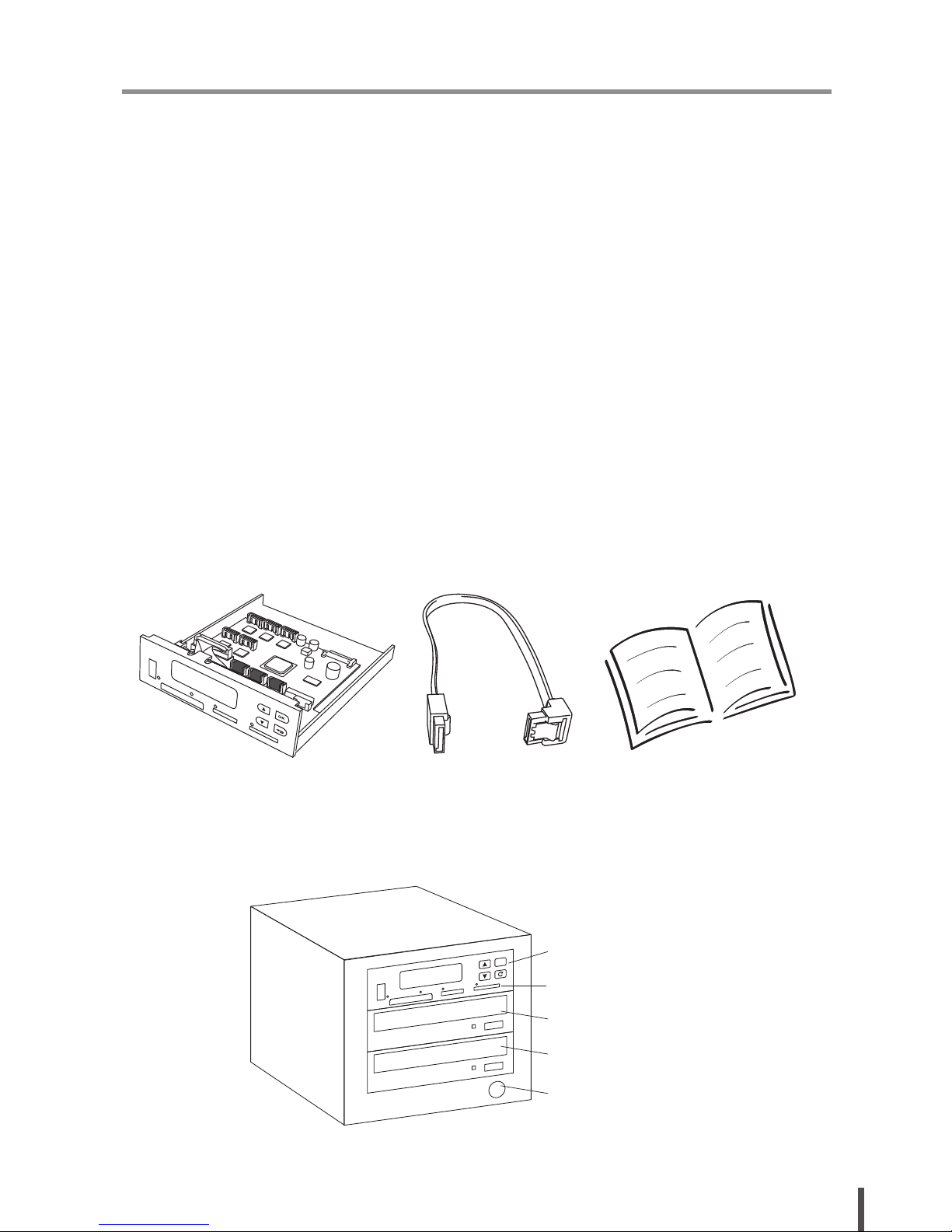

2-1. Package Content
2-2. MD Series Duplicator
Controller User ManualSATA Cables
USB
CF I/II MS/MS pro SD/MMC
OK
Multimedia dupe
1.Copy
Control Button
Card Reader
CD/DVD Reader
CD/DVD Writer
Power Button

4
I. Introduction
2-3. Display Interface
2-4. Installation of MD Series Controller
BD2804
MD810MD807MD803MD801
Display LCD
Forward
SD/MMCMS/MS ProCFUSB
Conrm/Execute
Escape/Cancel
Backward

5
I. Introduction
BD2808
** Each SATA port is independent (without Master and Slave port).
** If HDD is available, HDD should connect to port No.1, if no HDD
installed, Reader should connect to port No.1, and other drives
should connect to the rest ports in order.

6
I. Introduction
2-5. Main Function Structure
There are two main functions of MD series, one is Disc (CD/DVD/Blu-ray)
Duplication, and another one is Flash (USB/SD/microSD/MMS..) to Disc
Duplication.
There are three main copy modes for Memory card or USB copy to CD/
DVD disc:
●Multi-Session: Allows all different types of memory cards with small data
to backup to one disc.
Ex:
Note:
Only ONE Flash device can be applied per time.
Disc to Disc Duplication
** Please refer to Chapter 2 for operation
guide
Flash (USB/SD/CF/MMS...)to
Disc Duplicator
1. Multi- Session
2. Disc Spanning
3. MultiDisc
** Please refer to Chapter 1 for operation
guide
USB
100M data
SD
200M data Disc 1
Session 2 for Disc 1
Session 1 for Disc 1

7
I. Introduction

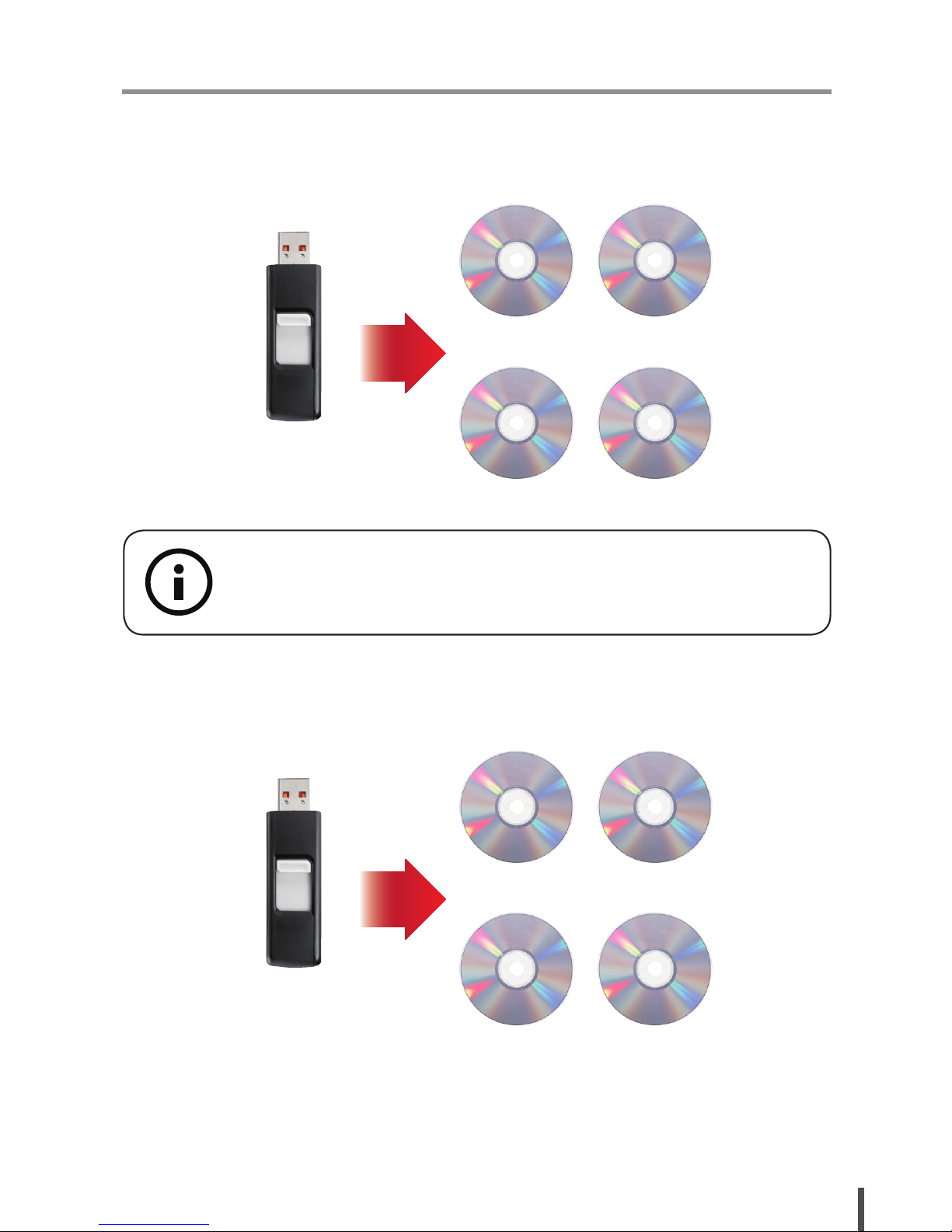

●Disc Spanning: A big capacity memory card with large data can copy to
several discs.
Ex:
●MultiDisc: Allows you to duplicate discs from one Flash device.
Ex:
USB
4GB data
Disc 1/4
Disc 3/4
Disc 2/4
Disc 4/4
USB
300M data
Disc 1
Disc 3
Disc 2
Disc 4
Note:
Disc Spanning does not support copy the Flash device with only ONE
single big le.

8
I. Introduction
Example of Multi-Session, MultiDisc and Disc Spanning
Flash Source Multi-Session MultiDisc Disc Spanning Note
1USB with 100MB
data copy to a CD
First session
of CD1
Yes, as many
blank discs
as you can
No Flash device
with small data
can make multi-
session copy
2
SD card with
200MB data
copy to a CD
Second session
of CD1
Yes, as many
blank discs
as you can
No
3
USB with 8G
data copy to
CDs or DVDs No No 2 DVDs or 11 CDs
Flash device with
only ONE single
big le can not do
disc spanning.
2-6. Reminding:
1. Disc Spanning does not support copy the Flash device with only ONE
single big le.
2. Disc spanning can not execute with Multidisc mode at the same time,
when both modes are enable, the system will primary execute disc
spanning.
3. Each disc will keep some blank space between each session and also
remain some blank space for the end of copy.
4. ONLY ONE Flash device can be applied per time.
5. This duplicator can copy all kinds of Flash Media (Memory Card and
USB) which support FAT12, 16, 32 le format. It is unable to do Non FAT
Flash media copy.
6. When the system is in process, DO NOT pull out the card.
7. CD can only copy to CD, DVD copy to DVD.
CD DVD DVD DVD CD CD

9
II. Function (MulitMedia Duplicator)
Multimedia Dupe
When you select Disc duplicate, you will enter the
disc to disc menu; if you choose Multimedia Dupe,
you will only access the Flash to disc menu.
Function Sub-function Description
1. Copy To copy Flash to disc
2. Compare To compare Flash source and copied discs
for ensuring data correctness.
3.
Copy+Compare To copy rst and then compare Flash source and copied discs.
4. Information
USB/Card Info. To show Flash device’s used space, total capacity and le quantity.
Disc Info. To show disc’s burning speed, format and capacity.
System Info. To show the duplicator’s model No., rmware version.
Burn Speed To adjust the burning speed of disc.
5. Utility Update BIOS To update the system rmware
6. Setup
Multi Session To enable or disable multi-session mode
Disc Spanning To enable or disable disc spanning mode
MultiDisc To enable or disable multidisc mode
Advanced setup
1. CD Spare Size
To set spare size to preserve the outside
space of discs not to be written.
2. DVD Spare
Size
3. BD Spare Size

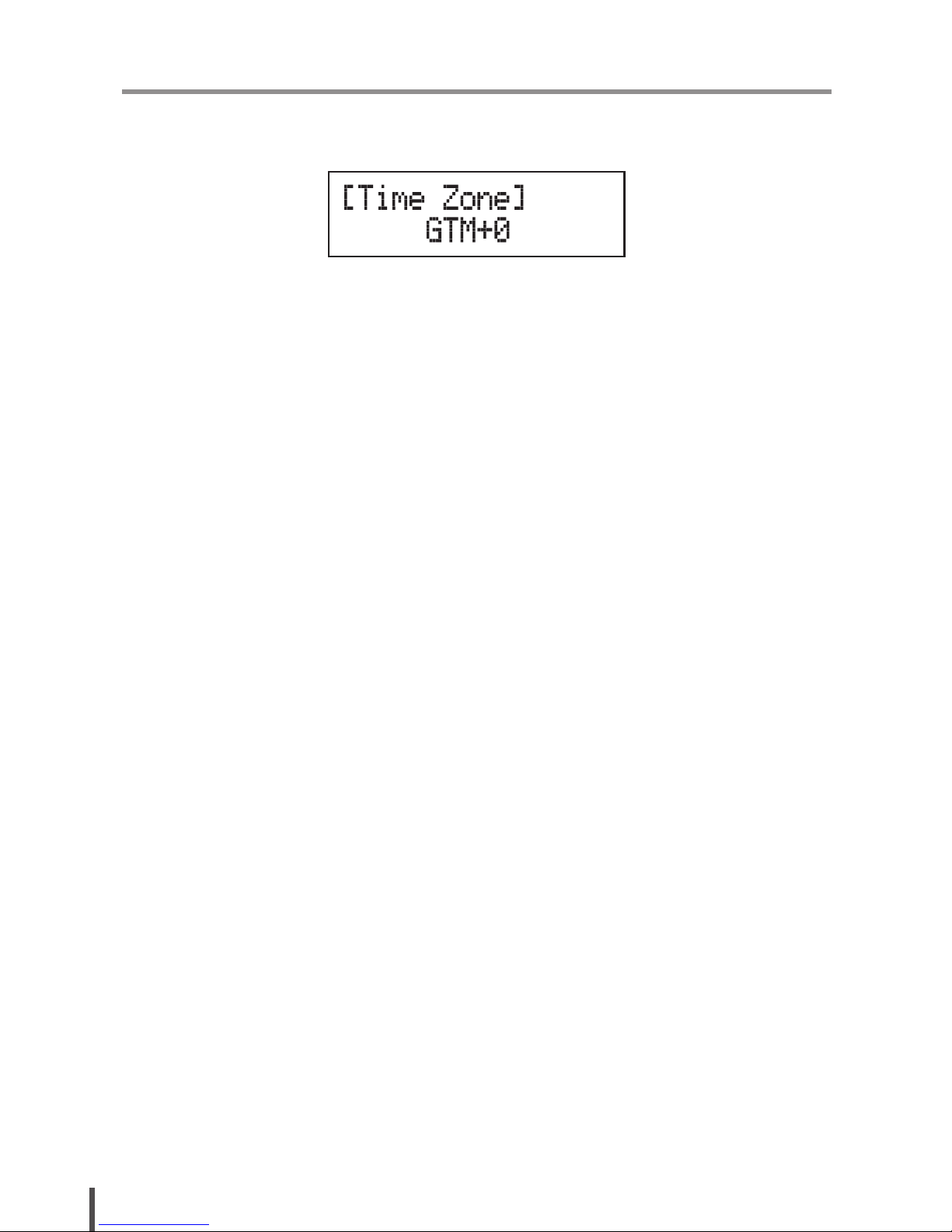

4. Time Zone To setup the proper time
zone of working place.
5. Language To set the language you prefer
to use during operation.
6. Factory Default To reset all the setting to
manufacturer default setting
Function Table-Multimedia Duplication

10
II. Function (MulitMedia Duplicator)
Chapter 1. MultiMedia Duplication

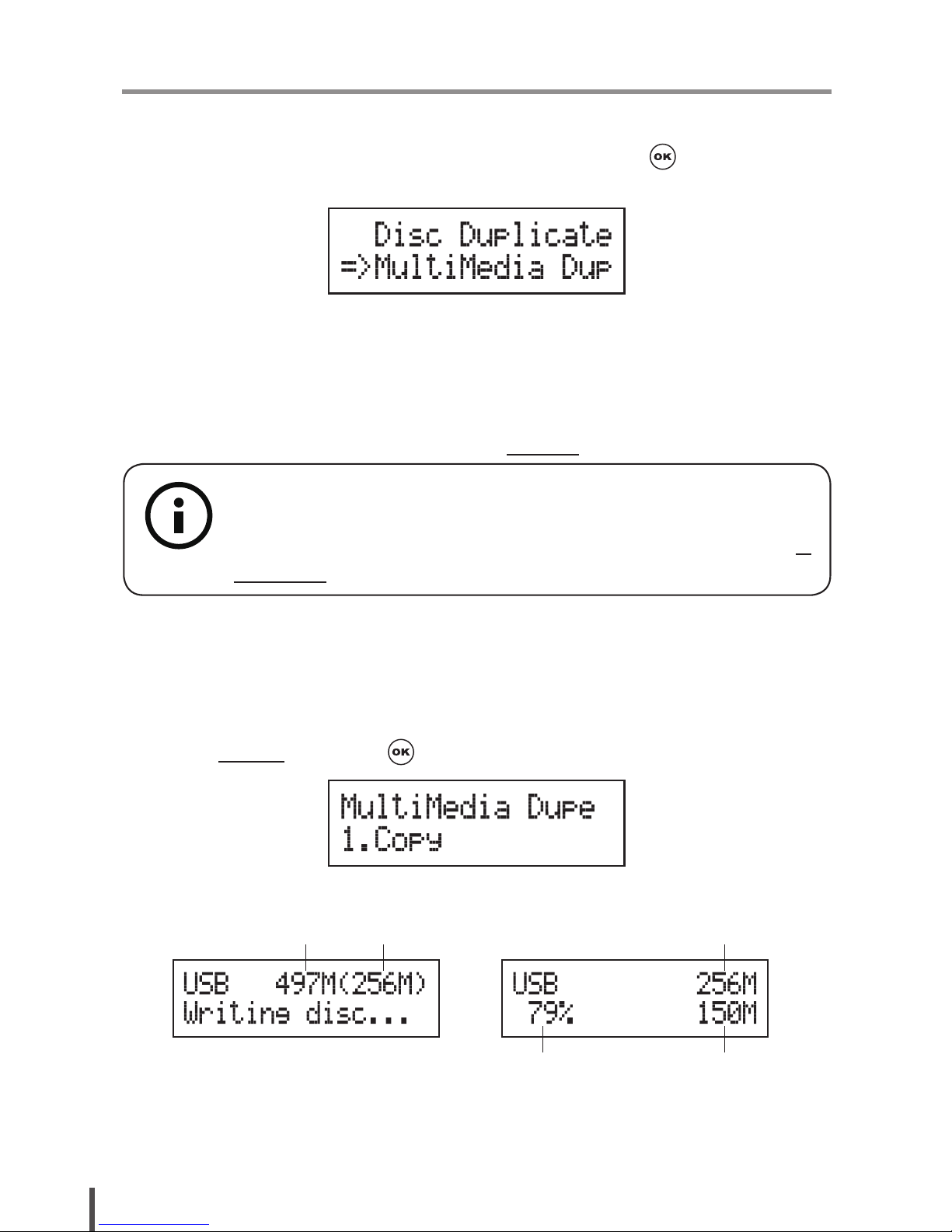

Select Multimedia Dupe from the main menu and press to start Flash to
disc copy operation.
1. Copy
The copy function in Multimedia duplication part has three main options:
Multi-Session, Disc Spanning and MultiDisc. Each mode can be enable or
disable in Setup function. (please refer to 6.Setup, page 17)
1. Plug a Flash device (ex: USB, SD, MMS…) into the proper slot as source
and place a disc into burner as target for duplication. If you like to copy
many discs at the same time, you can place more than one blank disc
into the RW drives.
2. Select 1.Copy and press to start copying.
3. The system will detect the source and the target disc automatically.
**Note:
Before copying, it is recommended to check each memory card, USB
or CD/DVD’s content information. The check function please refer to 4.
Information, page 14.
Total capacity Data size Data size
Copy process% Copied data size

11
II. Function (MulitMedia Duplicator)
4. When the copy task has nished, the system will close the session.
5. The disc will be ejected, and you can continue to copy another memory
card or USB, or you can keep it for next copy task.
In Disc Spanning Mode:
1. Plug a Flash device (ex: USB, SD, MMS…) into the proper slot as source
and place a disc into burner as target for duplication.
2. Select 1. Copy and press to start copying.
**Note:
1As long as the disc was a multi-session disc, it will not support
disc spanning copy.
2If the data size is larger than the disc’s capacity, the system
will require you to put more than one disc. Please make sure

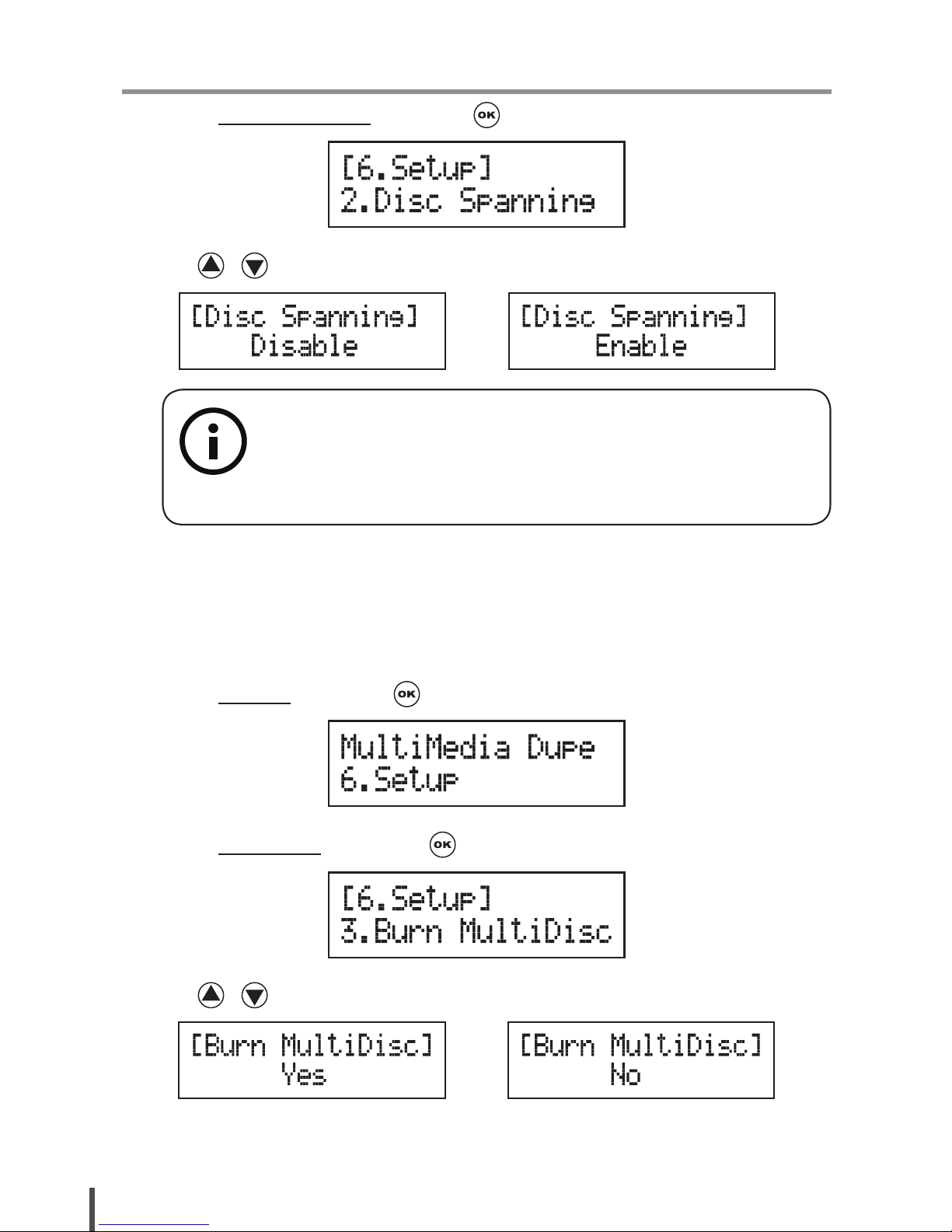

the disc spanning function is enabled, you can set it up in 6-2.
Disc spnning, page 17.
3 Rewritablediscdoesnotsupportmulti-sessioncopy.Due to
the feature of CD±RW and DVD±RW rewritable format, the
rst session can be copied successfully, but when you want to
build up the second one, the system will erase the rst session
of +RW format disc, and an error message “Not Blank Disc”
for –RW format disc.

12
II. Function (MulitMedia Duplicator)
3. The system will detect the source and calculate how many discs will
need.
4. After detecting, the system will start to copy.
5. When the rst disc has nished copy, the disc will be ejected, and wait for
next disc.
2. Compare
The compare function has two different displays for the disc copied by Multi-
Session and Disc Spanning.
1. Plug a Flash device (ex: USB, SD, MMS…) into the proper slot as source
and place a disc into burner as target for duplication.
2. Select 2.Compare and press to start comparison.
** Note:
1Disc spanning can not execute with Multidisc mode at the
same time, when both modes are enable, the system will
execute disc spanning rst.
Disc 1 Total discs needed
The data size
for disc 1
Copied data size

13
II. Function (MulitMedia Duplicator)
3. The system will detect the source and the target disc automatically.
4. After detecting, the system will start to compare.
5. When the comparison has nished, press to go back to the previous
menu.
Disc Spanning Compare
1. Plug a Flash device (ex: USB, SD, MMS…) into the proper slot as source
and place a disc into burner as target for comparison.
2. Select 2. Compare and press to start comparison.
3. The system will detect the source and the target disc automatically.
4. After detecting, the system will start to compare.
**Note:
1The compare function is to do file by file and bit by bit
comparison. Therefore, compare speed will be affected by le
quantity, total content size and Flash device’s reading speed.
2While doing multi-session disc comparison, it is allowed only
one disc to compare with the source.

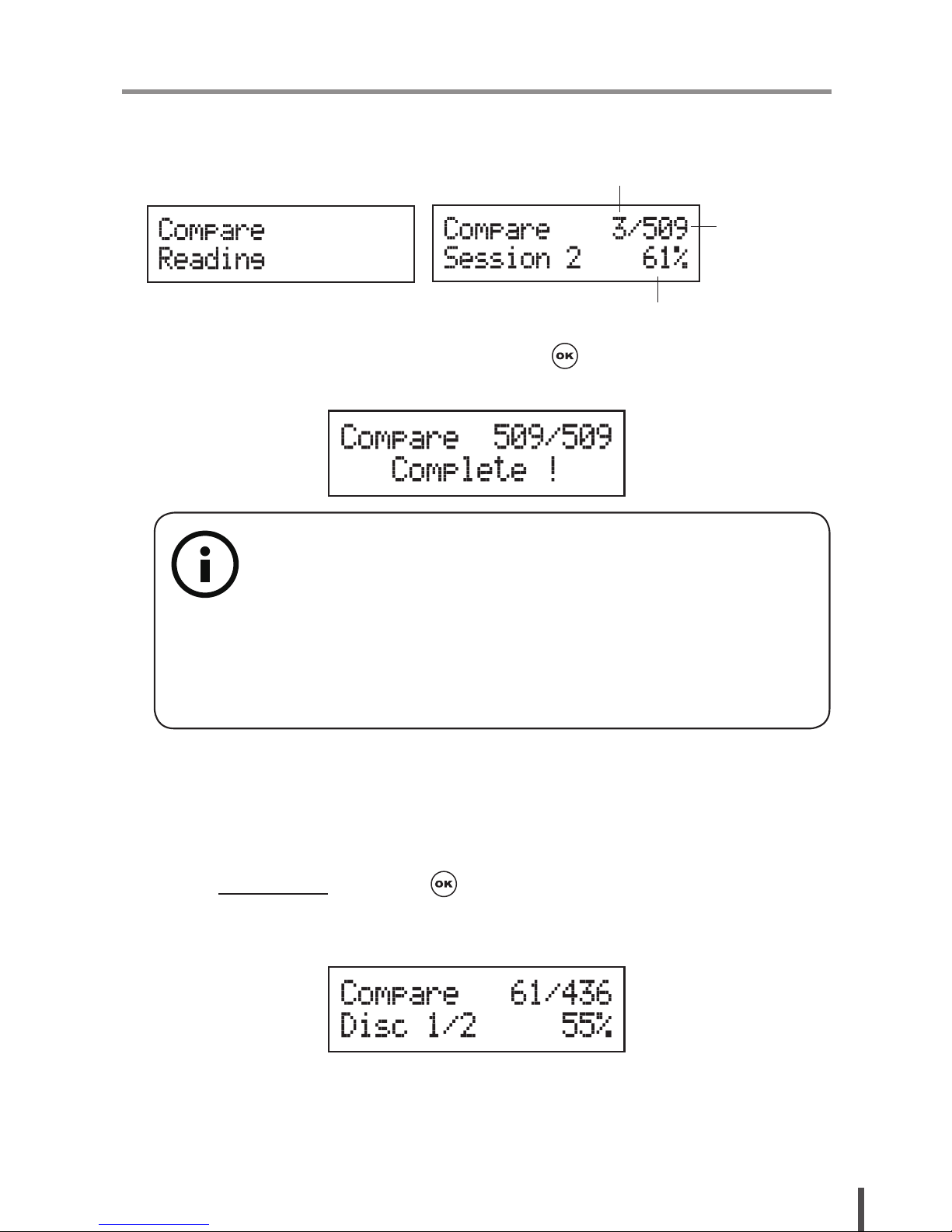

Compare process %
The le compared
Total le wait
for compare

14
II. Function (MulitMedia Duplicator)
5. When the comparison has nished, press to go back to the previous
menu.
3. Copy + Compare
This function is to make a copy rst and then compare the copied discs with
source immediately once the copy task has nished.

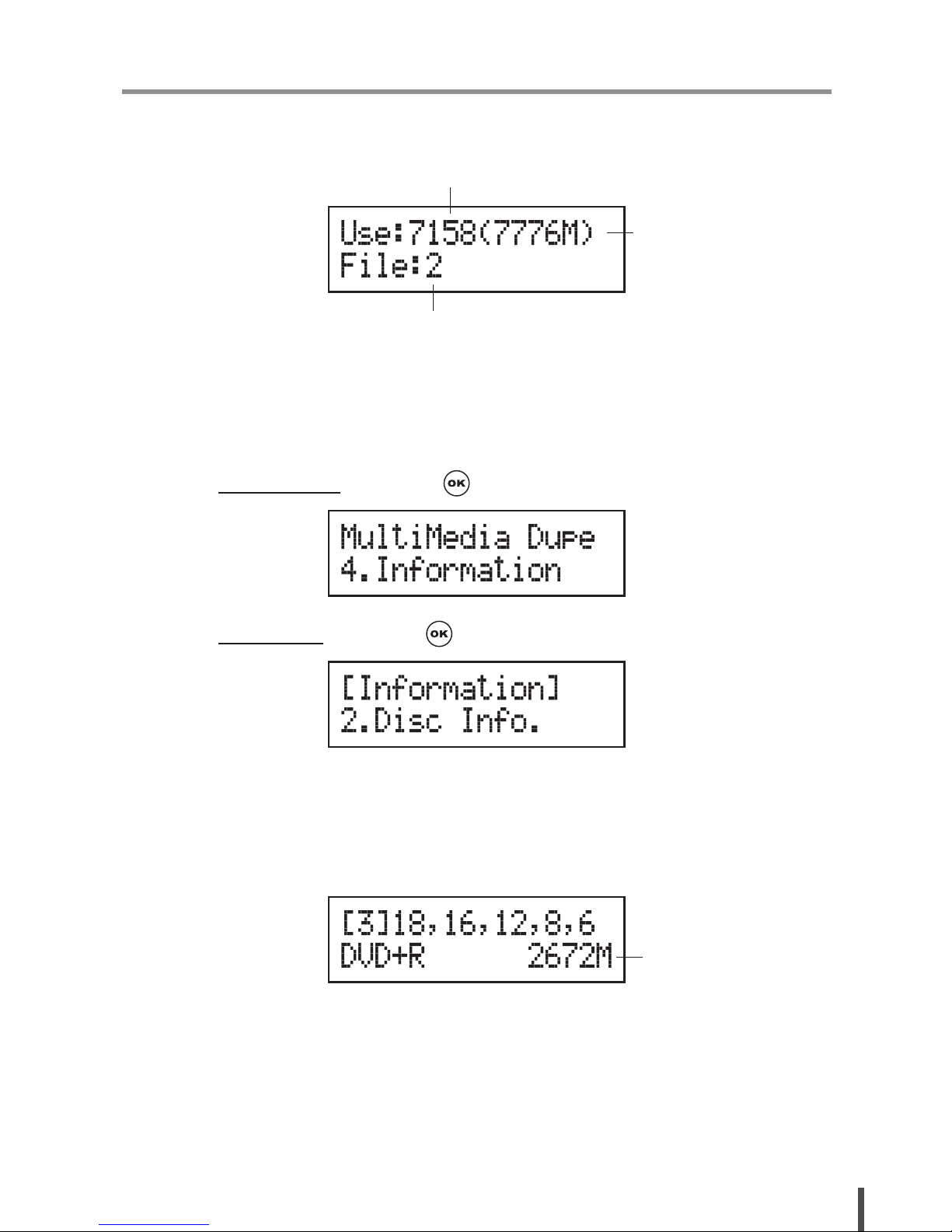

4. Information
Before copying, it is recommended to use this function to check each
memory card, USB or CD/DVD’s content information. You can check Flash
device’s information (ex: used space, file quantity..) and disc’s information
(ex: burn speed supported, total capacity and content size..) in this function.
4-1. Flash Device Information
1. Plug a Flash device (ex: USB, SD, MMS…) into the proper slot.
2. Select 4.Information and press .
3. Select 1.USB/Card Info. and press to check the device’s information.
4. The system will detect the device automatically.

15
II. Function (MulitMedia Duplicator)
5. After detecting, the information of the device will show up. The
information includes used space, total capacity and le quantity.
4-2. Disc Information
1. Place a disc into a drive.
2. Select 4.Information and press .
3. Select 2.Disc Info. and press to check the disc's information.
4. The system will detect the disc automatically.
5. After detecting, the information of the disc will show up. The information
includes the burning speed supported, disc format and content size.
4-3. System Information
This function show the system’s information which includes the model No.,
and rmware version.
File Q'ty
Content size
Total capacity
Content size

16
II. Function (MulitMedia Duplicator)
1. Select 4.Information and press .
2. Select 3.System Info. and press to check the system’s information.
3. The system information will show on the LCD.
5. Utility
This function will update the rmware of this system by using certied update
rmware which released by manufacturer.
1. Apply for the rmware from your local distributor.
2. Unzip the rmware and save it in a USB drive.
3. Select 5.Utility and press .
4. The system will start to execute updating task.
**Note
DO NOT save the rmware in a folder. The system can not detect
the rmware if you save it in a folder.

17
II. Function (MulitMedia Duplicator)
5. When updating has nished, the system will ask you to reboot it.
6. Setup
This section allows you to setup the multi-session, disc spanning, multidisc,
disc burning speed and advanced setup.
6-1. Multi-Session
1. Select 6.Setup and press .
2. Select 1.Multi-session and press
3. Use / to enable or disable the copy function.
6-2. Disc Spanning
1. Select 6.Setup and press .

18
II. Function (MulitMedia Duplicator)
2. Select 2.Disc Spanning and press .
3. Use / to enable or disable the copy function.
6-3. MultiDisc
The MultiDisc copy mode allows you to duplicate discs from one Flash
device. You can enable or disable this mode here.
1. Select 6.Setup and press .
2. Select 3.MultiDisc and press .
3 Use / to enable or disable the copy function.
** Note:
Disc spanning can not execute with Multidisc mode at the same
time, when both modes are enable, the system will primary execute
disc spanning.

19
II. Function (MulitMedia Duplicator)
6-4. Burn Speed
In this section, you can adjust CD, DVD and Blu-ray proper burning speed
for duplication.
1. Select 6.Setup and press .
2. Select 4.Burn Speed and press .
3. Select 1.CD Disc and press .
4. Use / to adjust the proper speed of the disc duplication. The
burning speed of CD is from 1 to MAX. The default setting of burning
speed of CD is 40X, DVD is 8X and Blu-ray is 4X.
6-5. Advanced Setup
CD/DVD/BD Spare Size
Due to the outside space of discs is not as easy to write as the inside space.
Therefore, to keep a good quality of duplication, you can set spare size to
preserve the outside space of discs not to be written.

20
II. Function (MulitMedia Duplicator)
Time Zone
This setting allows you to setup the proper time zone of working place.
Language
You can set the language you prefer to use during operation.
Factory Default
You can reset all the setting to manufacturer default setting by this function.
