Ubiquiti UniFi G3 Flex User manual

UniFi Video Camera G3 Flex
Ceiling Mount Accessory
Model: UVC-G3-F-C

Package Contents
Ceiling Mount
Bracket
Ceiling Backing
Plate
Mounting
Cover
Installation Screw Screws
(Qty. 3)
Screw Anchors
(Qty. 3)
Installation Requirements
• UVC G3 Flex (sold separately)
• Refer to the UVC-G3-FLEX Quick Start Guide for camera
installation instructions
• Phillips screwdriver
• Drill and bit (6 mm for drywall anchors or 3 mm for screws)
• Category 5 (or higher) cable for indoor installations

Hardware Overview
Ceiling Mount
Cover
Ceiling Backing
Plate
Ceiling Mount
Bracket
Note: Use of the Ceiling Backing Plate is optional
depending on the installation type.

Before You Begin
1. Disassemble the separate pieces of the ceiling accessory:
a. Push in the two side clips of the Ceiling Backing
Plate to release the backing plate from the Ceiling
MountBracket.
b. Pull the Mounting Cover off of the Ceiling Mount Bracket.

Hardware Installation
The ceiling accessory can be installed in one of the following
ceiling materials:
• Soft Ceiling Use for installation on removable ceiling tiles
where you have rear access to the Ceiling Mount Bracket.
• Hard Ceiling Use for installation on hard lid ceilings where
there is no rear access to the Ceiling Mount Bracket.
• Drywall Use for installation on drywall surfaces where
Screw Anchors are required.
Proceed to the appropriate section for your installation.
Note: We recommend using the Ceiling Backing Plate in
any installation where you have rear access to the Ceiling
Mount Bracket once the camera has been installed.
Note: To change the viewing angle of the camera at
any time:
• Tilt the lens up or down for vertical adjustment.
• Turn the base left or right for horizontal adjustment.

Soft Ceiling Installation
1. Remove the ceiling tile.
2. Cut a 2 ¼-inch (57 mm) opening in the ceiling tile.

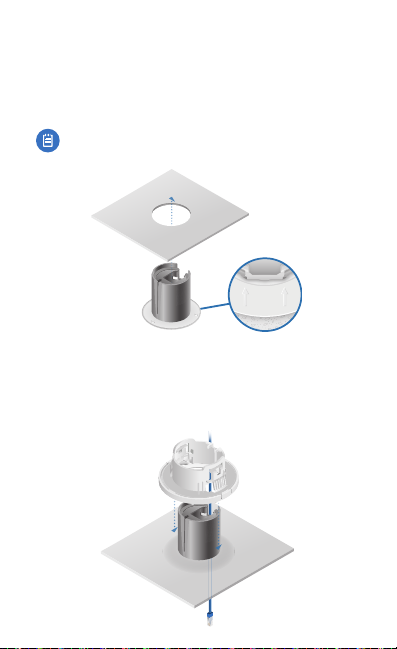

3. Place the Ceiling Mount Bracket through the opening in
the ceiling.
Note: Ensure that the arrows on the Ceiling Mount
Bracket point in the direction the camera will face.
4. Align the notches of the Ceiling Backing Plate with the tabs
on the Ceiling Mount Bracket. Slide the Ceiling Backing Plate
onto the Ceiling Mount Bracket. Then feed an Ethernet cable
through the Ceiling Backing Plate, Ceiling Mount Bracket,
and ceiling tile.

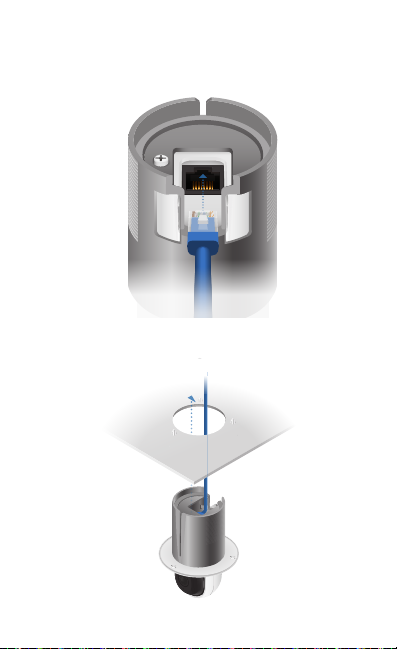

5. Connect one end of the Ethernet cable to the Ethernet
port on the camera and the other end to a PoE
802.3af-compliant switch or compatible PoE adapter.
6. Align the notches on the camera with the tabs on the
Ceiling Mount Bracket. Slide the camera up into the Ceiling
Mount Bracket, locking into place.

7. Use a Phillips screwdriver to install the included Installation
Screw through the Ceiling Mount Bracket and into the base
of the camera.
8. Proceed to the Mounting Cover Installation section.

Hard Ceiling Installation
1. Align the notches on the camera with the tabs on the
Ceiling Mount Bracket. Slide the camera into the Ceiling
Mount Bracket, locking into place.
2. Use a Phillips screwdriver to install the included Installation
Screw through the Ceiling Mount Bracket and into the base
of the camera.

3. Cut a 2 ¼-inch (57 mm) opening in the ceiling and pull an
Ethernet cable though the opening.
4. Connect one end of the Ethernet cable to the Ethernet
port on the camera and the other end to a PoE
802.3af-compliant switch or compatible PoE adapter.

5. Place the Ceiling Mounting Bracket through the opening in
the ceiling.
Note: Ensure that the arrows on the Ceiling Mount
Bracket point in the direction the camera will face.

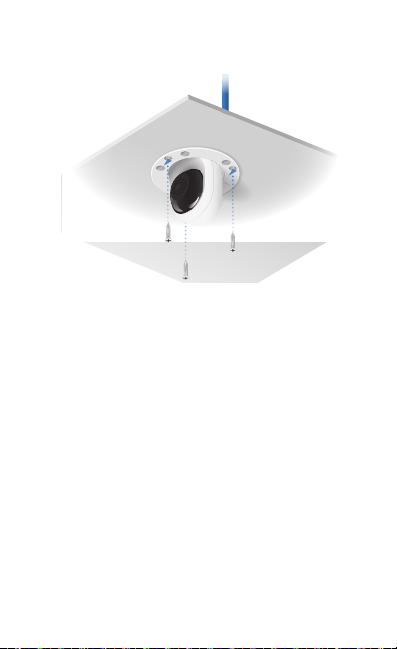

6. Use the three Screws to secure the Ceiling Mount Bracket
to the ceiling.
7. Proceed to the Mounting Cover Installation section.

Drywall Ceiling Installation
1. Cut a 2 ¼-inch (57 mm) opening in the ceiling.

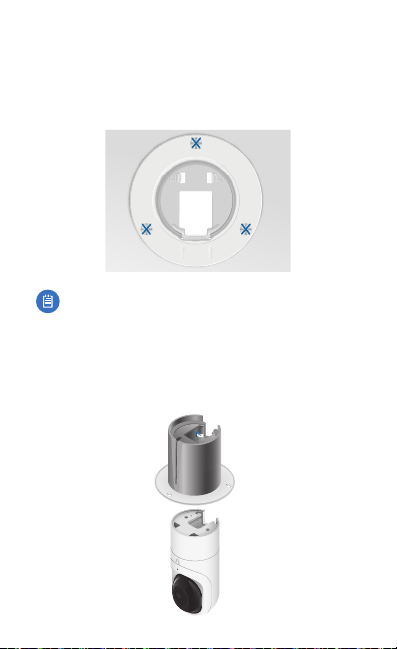

2. Place the Ceiling Mount Bracket through the opening in the
ceiling. Using the Ceiling Mount Bracket as a template, mark
the three screw holes.
Note: Ensure that the arrows on the Ceiling Mount
Bracket point in the direction the camera will face.
3. Remove the Ceiling Mount Bracket from the ceiling opening
and pre-drill the screw holes, using a 6 mm drill bit.
4. Align the notches on the camera with the tabs on the
Ceiling Mount Bracket. Slide the camera into the Ceiling
Mount Bracket, locking into place.

5. Use a Phillips screwdriver to install the included Installation
Screw through the Ceiling Mount Bracket and into the base
of the camera.
6. Insert the three Screw Anchors into the three screw holes
and then feed an Ethernet cable through the ceiling.

7. Connect one end of the Ethernet cable to the Ethernet
port on the camera and the other end to a PoE
802.3af-compliant switch or compatible PoE adapter.
8. Align the Ceiling Mount Bracket with the Screw Anchors.

9. To secure the Ceiling Mount Bracket to the ceiling, insert the
three Screws into the three screw holes and Screw Anchors.

Mounting Cover Installation
Once the ceiling accessory and camera have been
installed in the ceiling, follow the steps below to install the
MountingCover:

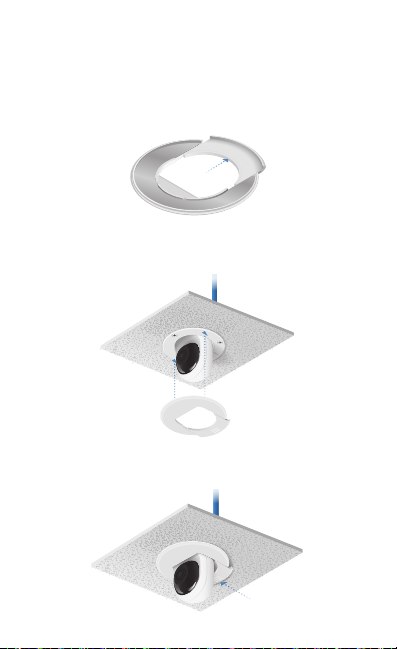

1. Unlock the Mounting Cover by sliding the tab out.
2. Place the open Mounting Cover over the camera and Ceiling
Mount Bracket.
3. Lock the Mounting Cover into place by sliding the tab
closed.

Limited Warranty
www.ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.
