Ubiquiti UVP-Executive User manual

Enterprise VoIP Phone with
7"Touchscreen, Bluetooth,
WiFi, and Built-In Camera
Model: UVP-Executive

Introduction
Thank you for purchasing the UniFi®VoIP Phone Executive,
model UVP-Executive. Designed to integrate easily into a
UniFi network, the interface is based on the popular Android™
platform for ease of use. This Quick Start Guide is designed
to guide you through the installation, provide an overview of
the interface, important 911 emergency call information, and
includes the warrantyterms.
Package Contents
Enterprise VoIP Phone with
7"Touchscreen,Bluetooth,
WiFi, and Built-In Camera
Model: UVP-Executive
UniFi VoIP Phone
Executive Micro Cloth Quick Start Guide
Installation Requirements
• UniFi Switch or PoE+ (802.3at-compliant) switch
• UniFi Controller
• Third-Party SIP/PBX Provider
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations and indoor cabling requirements.
Before You Begin
Remove the protective
covering from the handset.
Remove the protective film
from the touchscreen.

Hardware Overview

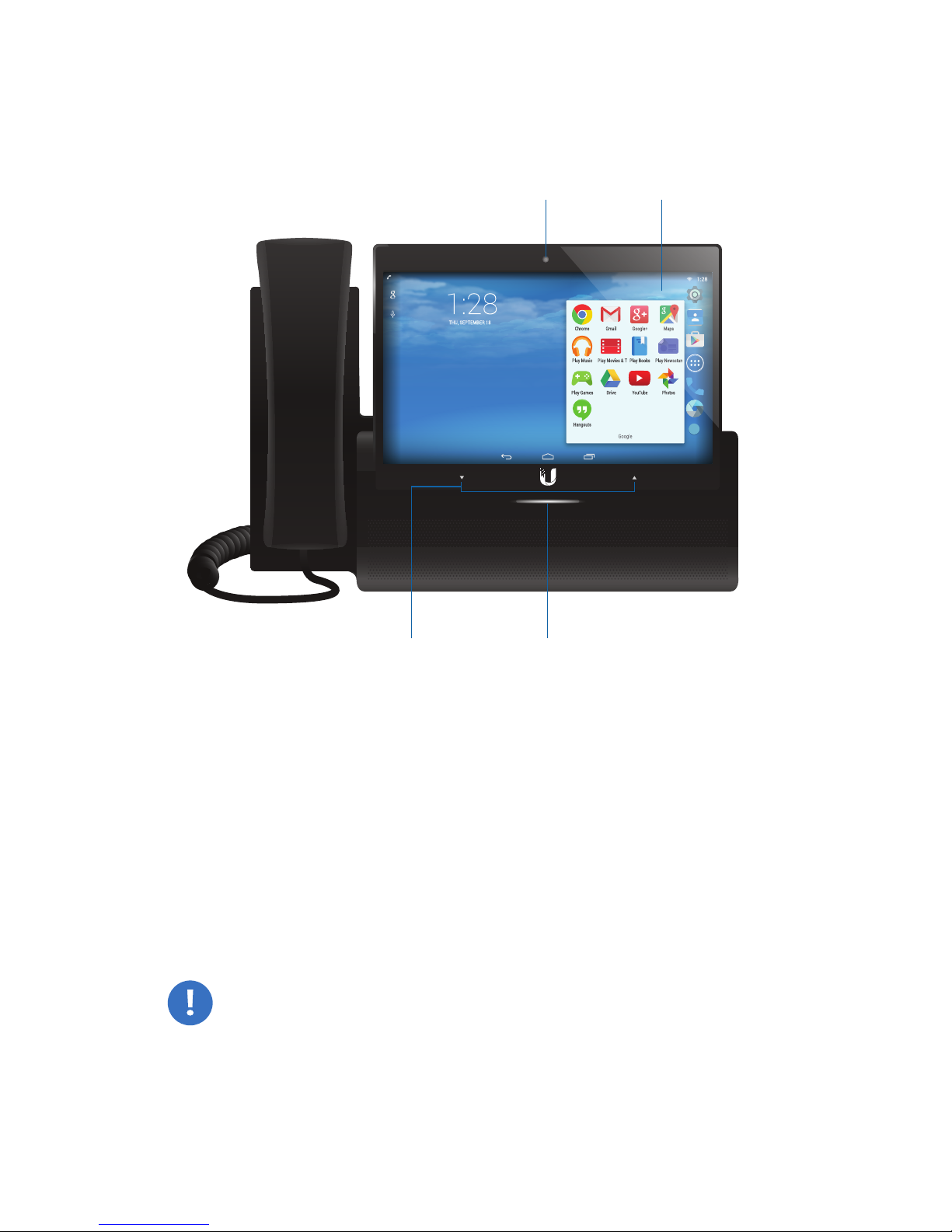

Front
Volume
Camera
LED
Touchscreen
Camera Built-in camera can be used for snapping photos for
avatars or videoconferencing applications.
Touchscreen The 7" (diagonal) touchscreen display is used for
all interface navigation and dialing.
Volume Use the volume arrows to adjust audio levels.
LED The LED will illuminate when the device is first connected
to a 48V power source. Once the phone has started up, the
LED will turn off.
IMPORTANT: The LED will flash when a firmware update
is occurring. Do not disconnect power/Ethernet from the
device during this time.

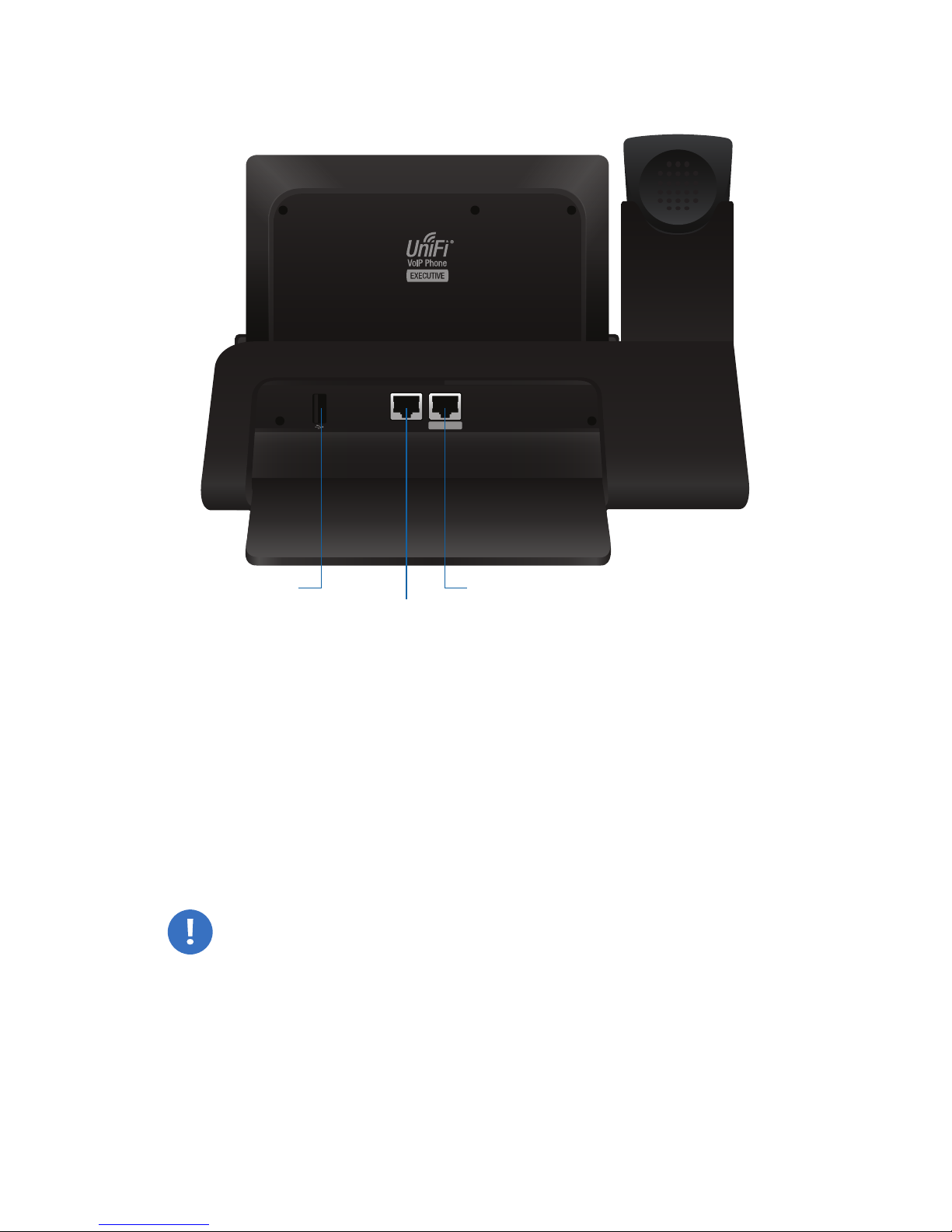

Back Ports
PC PoE/LAN
PoE/LAN
PC
USB
USB The USB port can connect to an external speaker or a
mass storage device.
PoE/LAN The PoE/LAN Ethernet port is 802.3at-compliant
and is used to connect data and power to the phone. Connect
this port to the same network as the UniFi Security Gateway
VOIP port.
PC The Ethernet port labeled PC is used for bridging.
WARNING: Do not connect a powered Ethernet
connection to the port labeled PC.

Side Ports
Micro-USB Port The Micro-USB port is only
intended for advanced users connecting the phone
to a computer.
Headset Jack 3.5 mm jack for optional wired stereo
and microphone headsets.

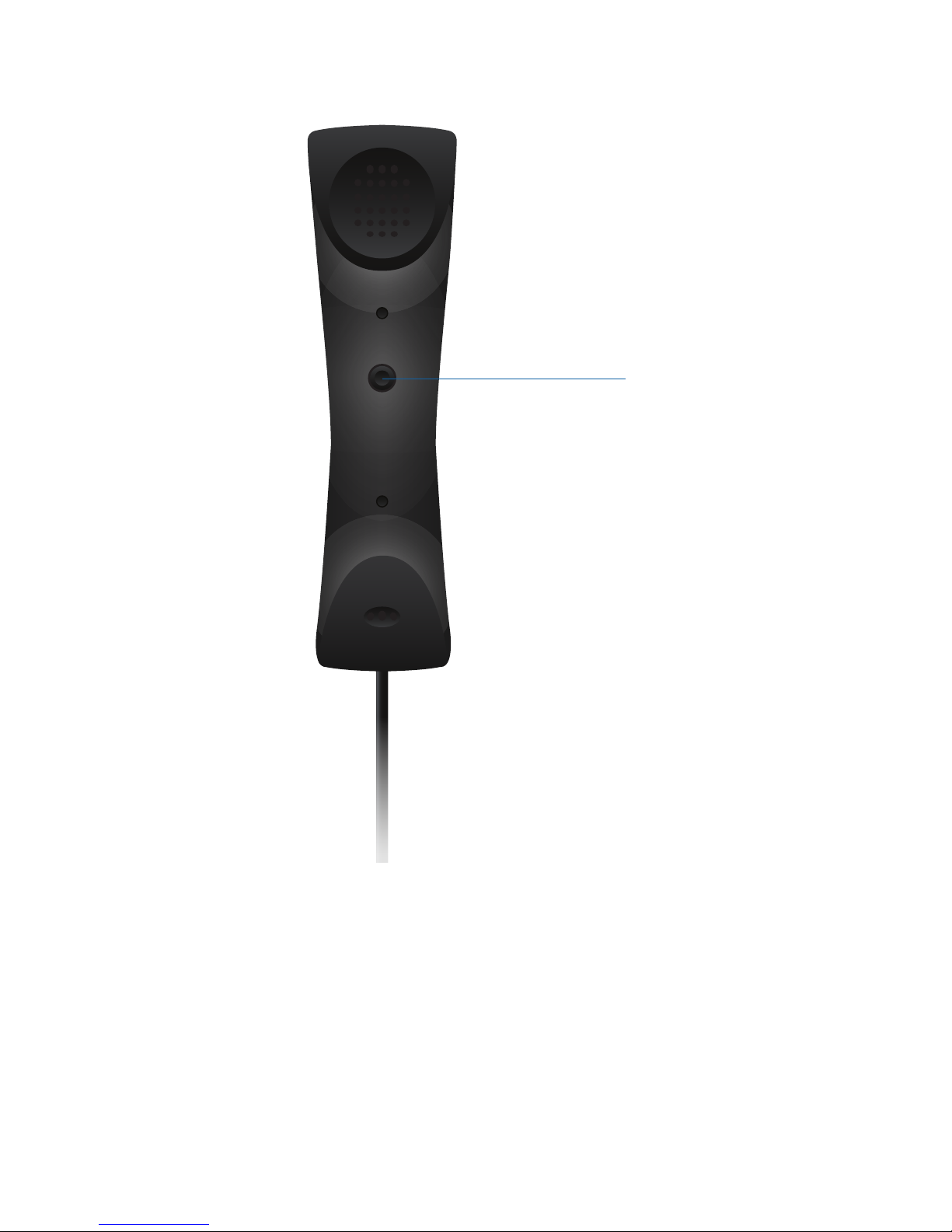

Handset
Mute button
Mute Press the Mute button to mute the microphone on the
handset.
*640-00144-10*
640-00144-10

Hardware Installation
The UniFi VoIP Phone Executive is designed for desktop
placement. To connect the phone, perform the following steps:

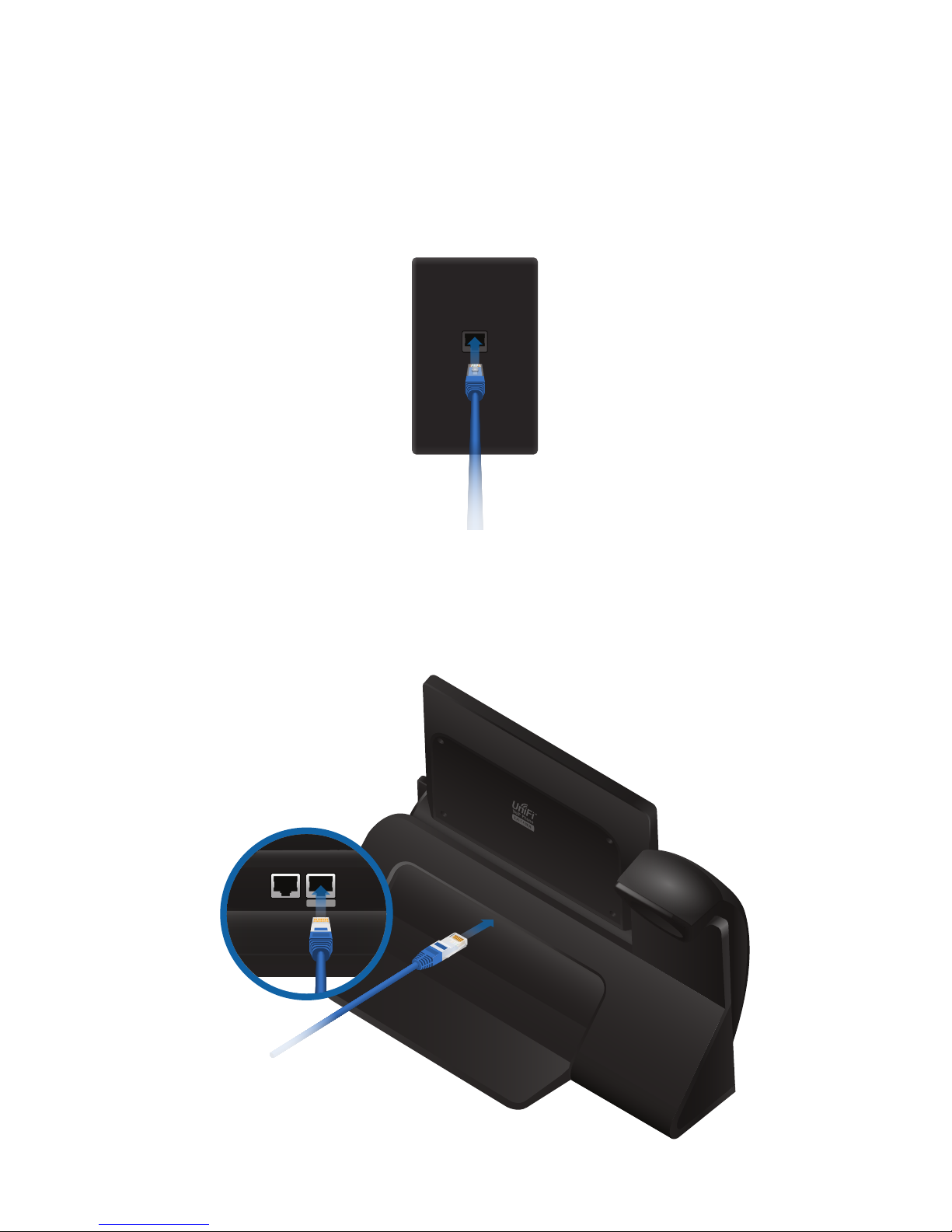

1. Connect one end of an Ethernet cable to the wall jack that
is connected to your 48V, 802.3at-compliant switch.
2. Connect the other end of the Ethernet cable to the port
labeled PoE/LAN on the UniFi VoIP Phone Executive.
PC PoE/LAN

Software Configuration
The UniFi VoIP Phone Executive is automatically detected by
the UniFi Controller (4.6.x or above).
Installing the UniFi Controller
If you haven’t already installed the UniFi Controller software,
you can download it at downloads.ubnt.com/unifi
Adopting the Phone in the UniFi Controller

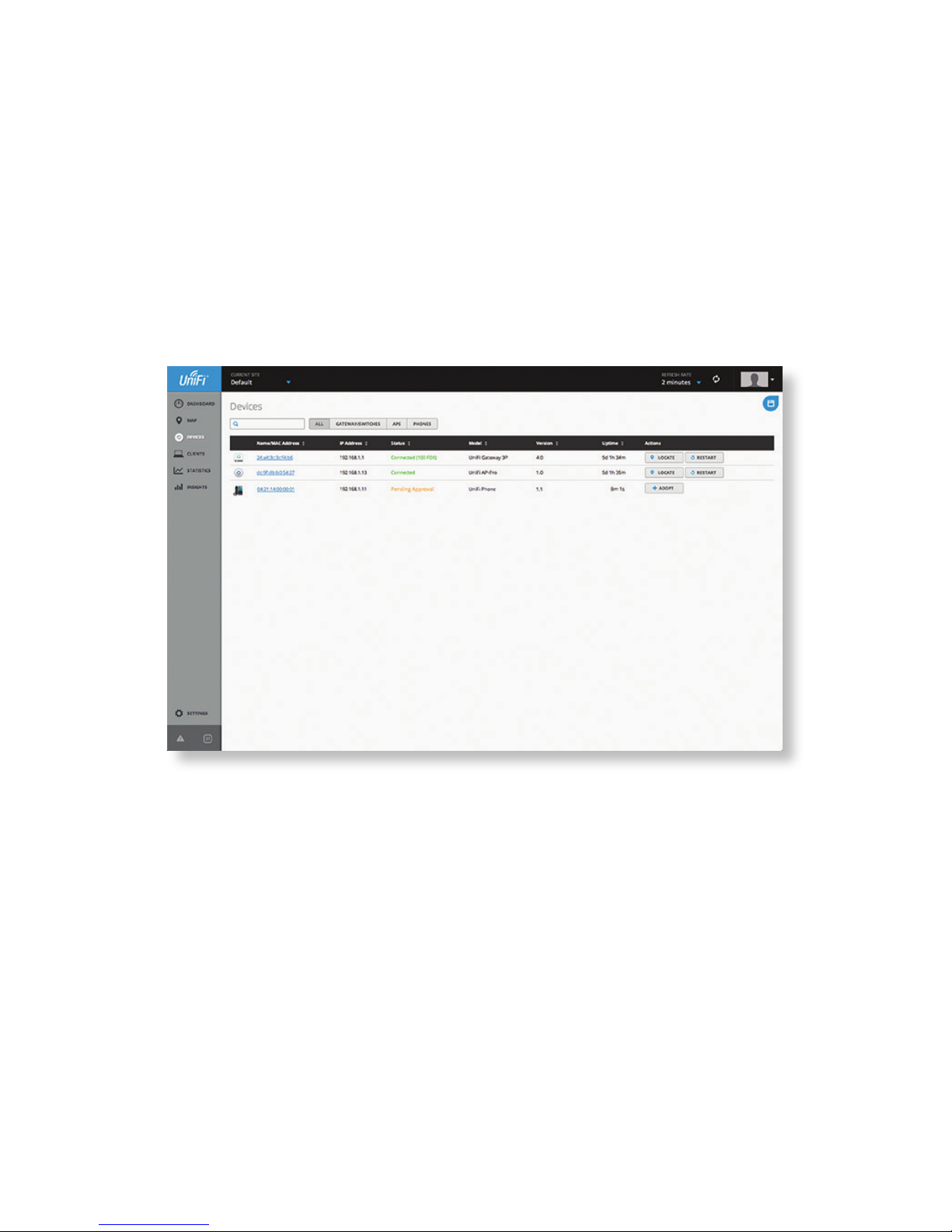

1. Launch the UniFi Controller and go to the Devices tab.
2. Click Adopt.

Navigating the Interface
Google™Search Widget
Use the Google search widget to type or speak
voice commands. Touch the g logo to bring up
a virtual keyboard, or touch the microphone
icon to say a voice command.
Default Home Screen Icons
Icon Description
Settings Display and configure the network,
device, accounts, and system settings.
People Press to view a list of contacts.
Google Play™Store Press to open the Google
Play store. Download apps, music, movies,
books, games, and other media. A new or
existing account is required for access.
Phone Displays the keypad to make a call.
Recent calls, contacts, and voicemail are also
accessible from here.
Camera Press to access the camera.
Apps Press to access the Apps screen. This
default icon is the only one that cannot be
removed from the Home screen.
Google Apps Folder Contains the Google
suite of apps including Gmail™, YouTube™,
Chrome™, Hangouts™, Google Drive™,
GoogleMaps™, and more.

Action Bar Icons
Icon Description
Back Opens the previous screen you were
working in, even if it was in a different app.
Once you return to the Home screen, you can’t
go back any further.
Home Returns to the Home screen.
Recent Apps Displays a list of recently used
apps. Press an app to open it. To close an app
and remove it from the list, swipe it left or right.
Customizing the Home Screen
Widgets and shortcuts to favorite apps can be placed on the
Home screen. Multiple app shortcuts can also be grouped into
one folder.
Adding App Shortcuts to the Home Screen

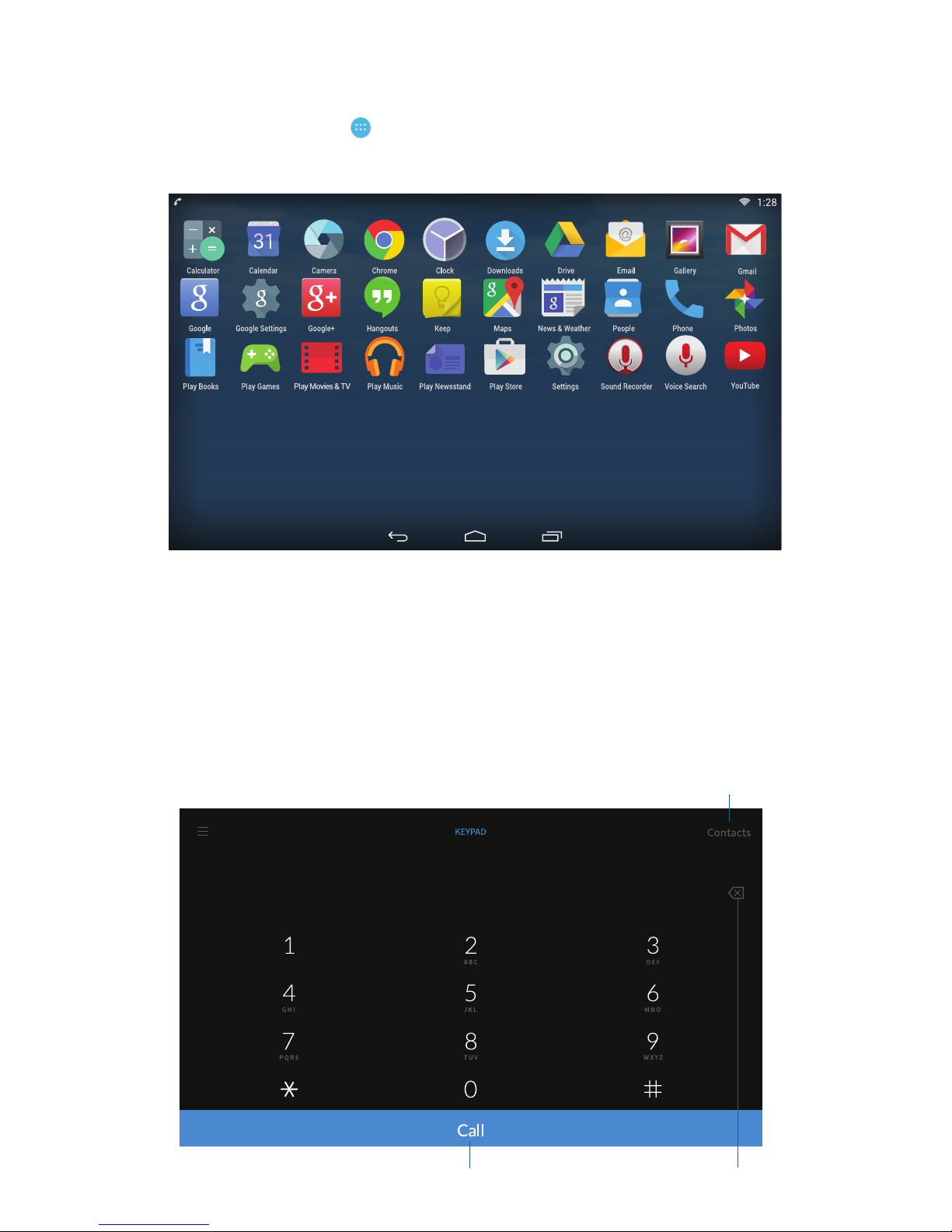

To place an app on the Home screen, press the Apps icon on
the Home screen. The Apps screen will be displayed. Press and
hold the icon until it appears on the Home screen. Drag the
icon to the desired location and release it.
Creating Folders on the Home Screen
To create a folder containing multiple app shortcuts, drag an
app shortcut over another app shortcut on the Home screen.
Removing Items from the Home Screen
To remove a widget or app shortcut from the Home screen,
press and hold the item until the Remove text appears at the
top of the screen. Drag the item to the Remove text.
