Ubiquiti M900 User manual

Carrier Class
airMAX™BaseStation
Models:
M900/M2/M3/M365/M5/M6

Introduction
Thank you for purchasing a Ubiquiti Networks™Rocket™M
series product. This Quick Start Guide is designed to guide you
through installation and show you how to access the airOS™
Configuration Interface. This Quick Start Guide also includes
the warranty terms and is for use with the RocketM models
without GPS.

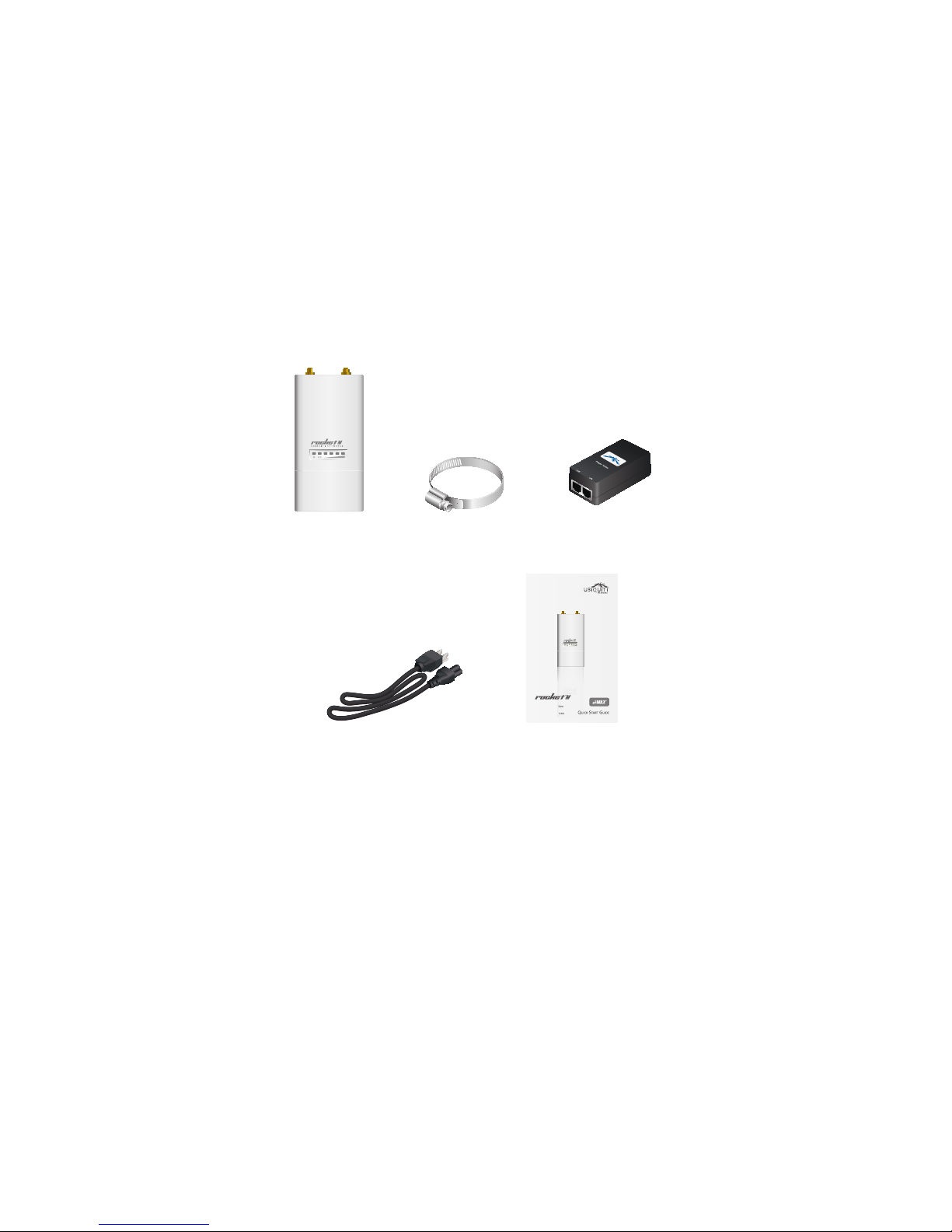

Package Contents
RocketM Metal Strap 24V PoE Adapter
Carrier Class
airMAX™BaseStation
Models:
M900/M2/M3/M365/M5/M6
Power Cord Quick Start Guide
Installation Requirements
• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
www.ubnt.com/toughcable
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable is
designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.

Hardware Overview
Antenna
Connectors
Port Cover
LAN
Ethernet
Port
Reset
Button
Note: U.S. product versions are locked to the U.S. Country
Code to ensure compliance with FCC regulations.

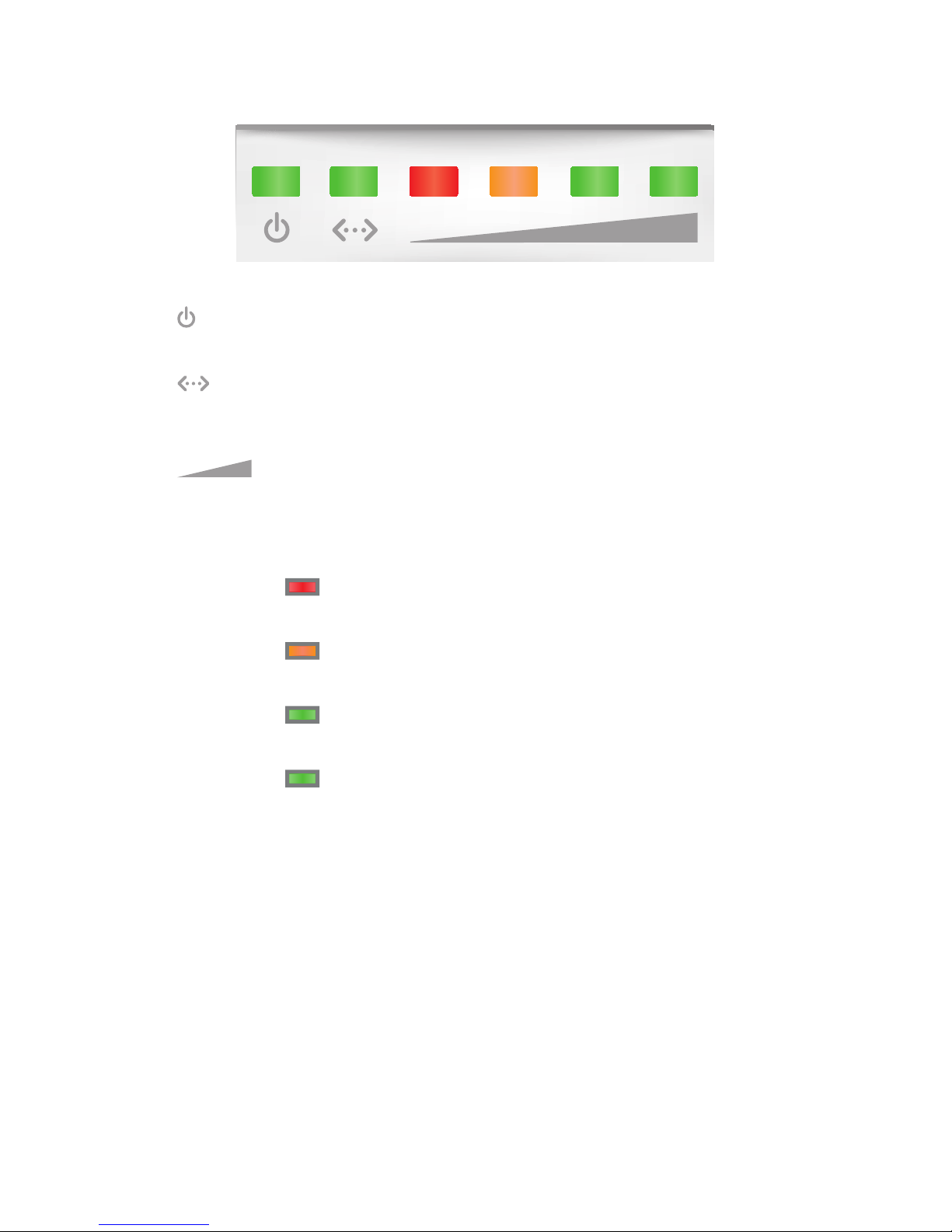

LEDs
Power The Power LED will light green when the
device is connected to a power source.
Ethernet The Ethernet LED will light steady
green when an active Ethernet connection is
made and flash when there is activity.
Signal In airOS, you can modify the wireless
signal strength threshold values for each LED on
the Advanced tab under Signal LED Thresholds.
The default values are shown below:
LED will light red when the wireless signal
strength is above -94 dBm.
LED will light amber when the wireless
signal strength is above -80 dBm.
LED will light green when the wireless
signal strength is above -73 dBm.
LED will light green when the wireless
signal strength is above -65 dBm.

Hardware Installation
1. Remove the Port Cover by lifting the release latch on the
bottom of the RocketM and sliding the Port Cover off.
2. Connect an Ethernet cable to the LAN port.
3. Replace the Port Cover.

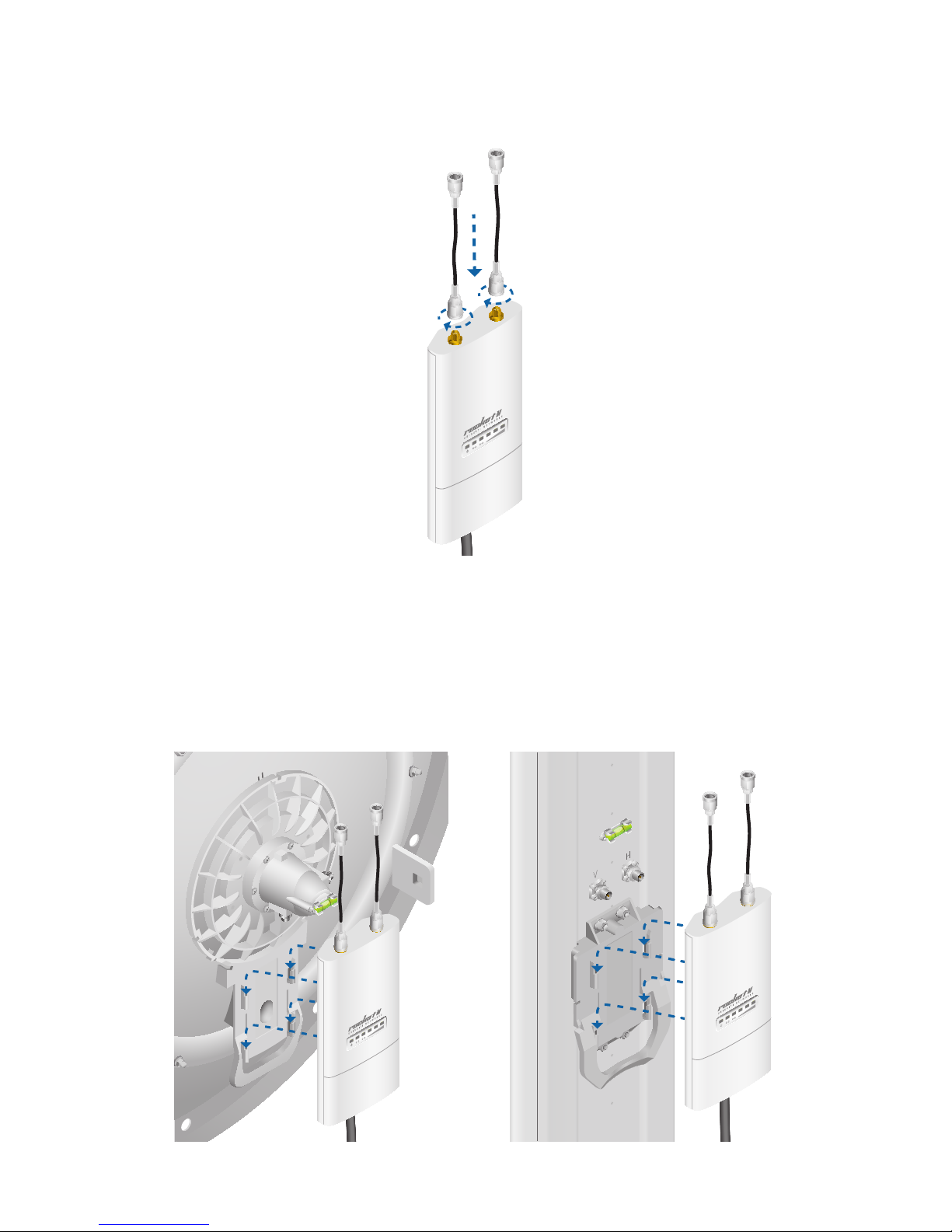

4. Attach the RF Cables to the connectors labeled Chain 0 and
Chain 1 on the RocketM.
5. Attach the RocketM to an antenna. Align the mounting
tabs on the back of the RocketM with the mounting
bracket on the antenna. Slide the RocketM down until it
locks into place. (If you are mounting the RocketM on a
pole, refer to the Pole‑Mounting section.)
Mounting on a Dish Antenna Mounting on a Sector Antenna

6. Attach the RF Cables from the RocketM to the connectors
on the antenna.
Connecting to a Dish Antenna Connecting to a Sector Antenna
7. Attach the Protective Shroud.
Align the arrow on the top of the
shroud with the short hash mark on
the Dish Antenna, and then rotate
the shroud clockwise until it aligns
with the long hash mark to lock it
into place.
Slide the Protective Shroud
down over the RocketM until it
locks into place on the Sector
Antenna.

Pole-Mounting
To mount the RocketM on a pole, use the included Metal Strap
and perform the following steps:

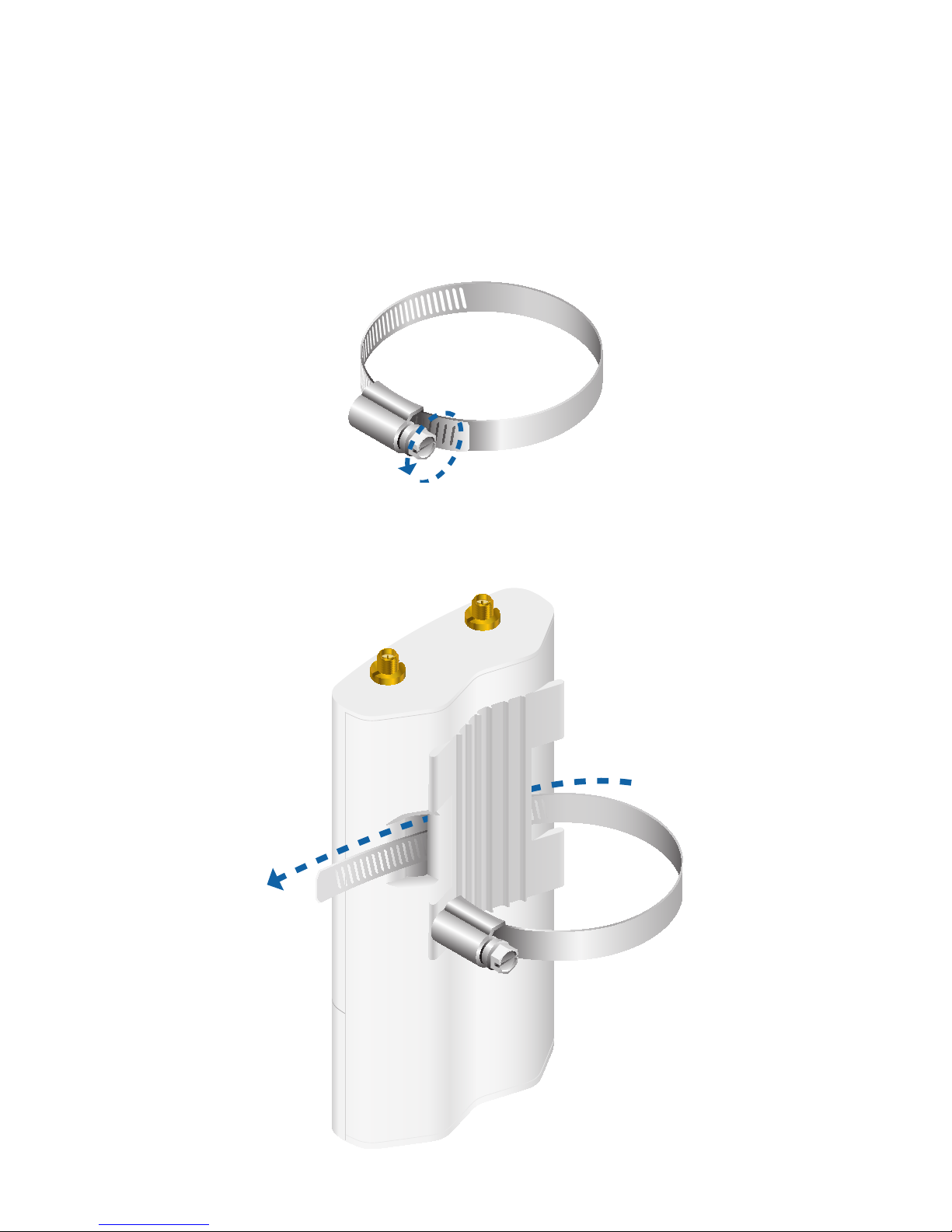

1. Open the Metal Strap by turning the screw
counter-clockwise. You can loosen it by hand or use a
flathead screwdriver.
2. Straighten out the end of the Metal Strap and slide it
through the back of the RocketM.

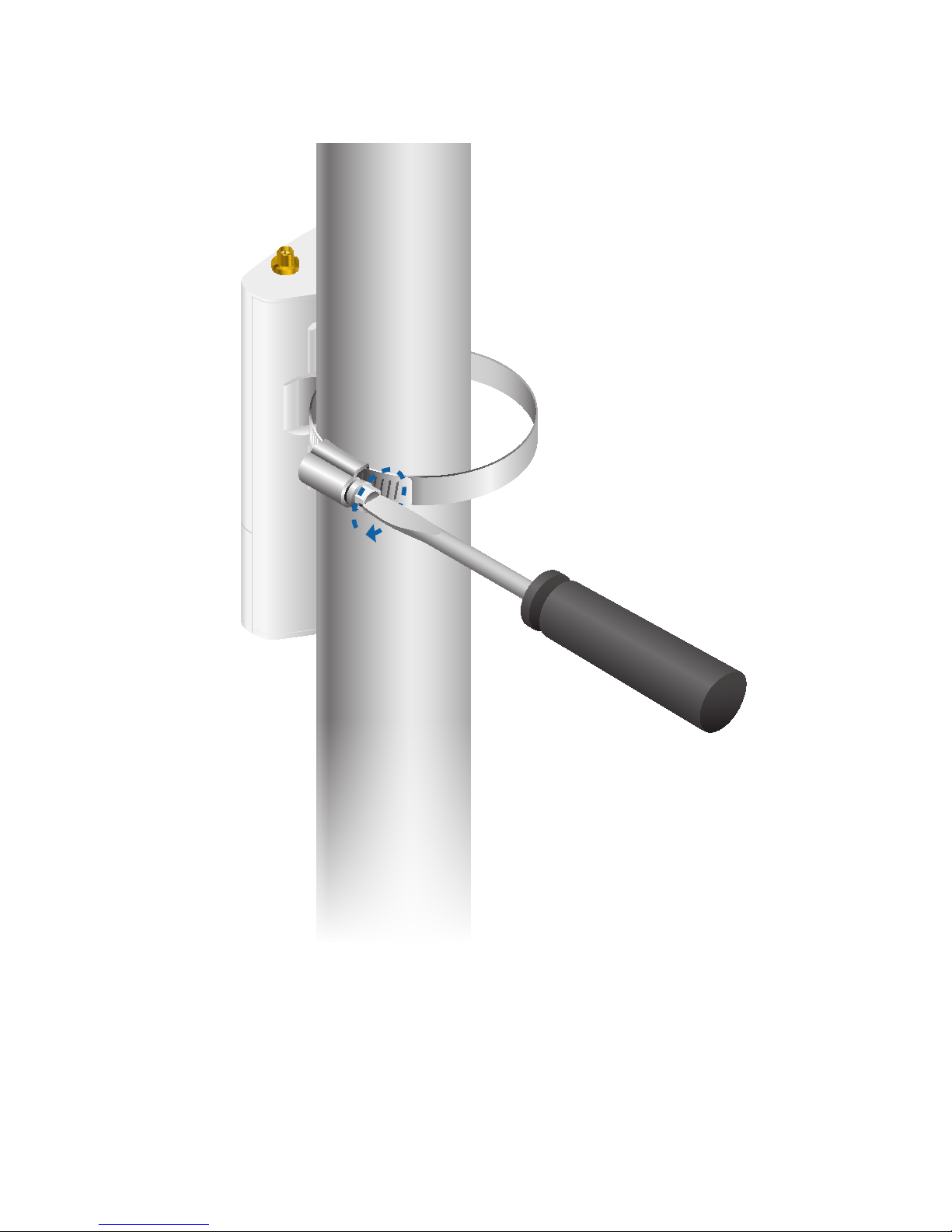

3. Wrap the Metal Strap around the pole. To tighten the strap,
turn the screw clockwise using a flathead screwdriver.

Connecting Power over Ethernet
1. Connect the other end of the Ethernet cable from the
RocketM to the Ethernet port labeled POE on the PoE
Adapter.
2. Connect an Ethernet cable from your LAN to the Ethernet
port labeled LAN on the PoE Adapter.
3. Connect the Power Cord to the power port on the PoE
Adapter. Connect the other end of the Power Cord to a
power outlet.

Accessing airOS
Verify connectivity in the airOS Configuration Interface.
1. Make sure that your host machine is connected via
Ethernet to the RocketM.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type https://192.168.1.20 in
the address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Select your Country and Language.
You must agree to the Terms of Use to use the product.
Click Login.
Note: U.S. product versions are locked to the
U.S. Country Code to ensure compliance with
FCC regulations.
The airOS Configuration Interface will appear, allowing you to
customize your settings as needed.
For additional details on the airOS Configuration Interface,
refer to the User Guide available at
documentation.ubnt.com/airmax

Installer Compliance Responsibility
Devices must be professionally installed and it is the
professional installer's responsibility to make sure the device is
operated within local country regulatory requirements.
Since Ubiquiti Networks equipment can be paired with a
variety of antennas and cables, the Antenna Gain, Cable Loss,
and Output Power fields are provided to the professional
installer to assist in meeting regulatory requirements.

Specifications
RocketM
Dimensions 16 x 8 x 3 cm
Weight 0.5 kg
Operating Frequency
RocketM900
RocketM2
RocketM3
RocketM365
RocketM5
RocketM6
902 - 928 MHz
2402 - 2462 MHz
3370 - 3730 MHz1
3650 - 3675 MHz
5170 - 5875 MHz2
5955 - 6400 MHz
Ports (1) 10/100 Ethernet Port
RF Connectors (2) RP-SMA (Waterproof)
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption
RocketM900/2/3/365
RocketM5/M6
6.5 W
8 W
Power Supply 24V, 1A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7,8 Return)
Operating Temperature -30 to 75° C
Operating Humidity 5 to 95% Condensing
Shock and Vibrations ETSI300-019-1.4
¹ RocketM3 not supported in the USA
² Only 5725 - 5850 MHz supported in the USA
(US units with FCC ID: SWX-RM5 are allowed 5250-5850 MHz.)

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal
physical, electromagnetic or electrical stress, including lightning
strikes, or accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty.

Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.

Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
For MPE and antenna usage details, please visit our website at
www.ubnt.com/products

Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Users should also be advised that high-power radars are allocated
as primary users (i.e. priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause interference and/or
damage to LE-LAN devices.
This radio transmitter (IC: 6545A-RM5) has been approved by Industry
Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
• 7 dBi omni (50 ohm) • 30 dBi grid (50 ohm)
• 20 dBi sector (50 ohm) • 30 dBi dish (50 ohm)
• 24 dBi panel (50 ohm)

Cet appareil numérique de la classe A est confrome à la norme NMB-003
Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type
d’antenne et son gain doivent être choisies de façon que la puissance
isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de
licence norme(s). Son fonctionnement est soumis aux deux conditions
suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement du
dispositif.
Les utilisateurs devraient également noter que radars haute puissants
sont alloués comme principaux utilisateurs (c’est-à-dire les utilisateurs de
priorité) des bandes 5250-5350 MHz et 5650 à 5850 MHz et que ces radars
pourraient causer des interférences ou dommages aux dispositifs LAN.
Cet émetteur radio (IC: 6545A-RM5) a été approuvée par Industrie Canada
pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain
maximal admissible et requis l’impédance de l’antenne pour chaque type
d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un
gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil. Immédiatement suite à la
remarque, le fabricant doit fournir une liste de tous les types d’antenne
approuvé pour une utilisation avec l’émetteur, ce qui indique le gain
maximal d’antenne permis (en dBi) et requis d’impédance pour chacun.
• 7 dBi omnidirectionnelle (50 ohm) • 30 dBi grille (50 ohm)
• 20 dBi secteur (50 ohm) • 30 dBi parabolique (50 ohm)
• 24 dBi panneau (50 ohm)
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 2.52 m from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
2.52 m et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.

CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
Alert Sign (!) Follows CE Marking
Alert sign must be indicated if a restriction on use applied to the product
and it must follow the CE marking.
RoHS/WEEE Compliance Statement
English
European Directive 2002/96/EC requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
