Ubiquiti LiteBeam M5-23 User manual

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 1/21
Antenna Feed Center Reector Panel S  de Reector Panels (Qty. 2)
Feed Rece  ver Ball Jo  nt Mount Metal Strap
Set Screws (Qty. 2) PoE Adapter (25V, 0.2A) Power Cord
Package Contents
Installat  on Requ  rements
7 mm socket wrench or screwdr  ver
Sh  elded Category 5 (or above) cabl  ng w  th dra  n w  re should be used for all w  red
Ethernet connect  ons and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor env  ronments
and destruct  ve ESD events w  th  ndustr  al-grade, sh  elded Ethernet cable from
Ub  qu  t  . For more deta  ls, v  s  t u  .com/toughcable
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 2/21
Appl  cat  on Examples

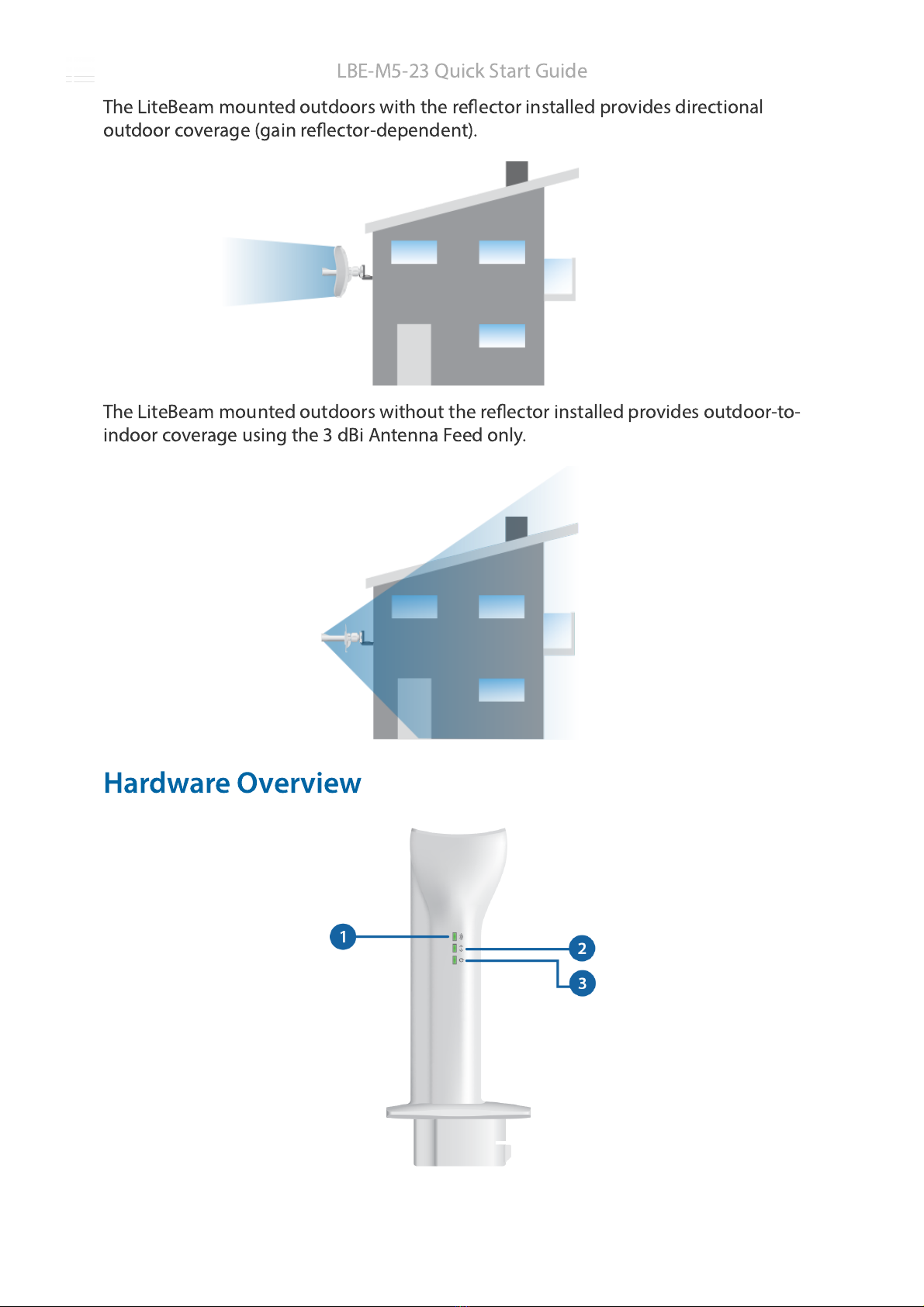

The L  teBeam mounted outdoors w  th the reector  nstalled prov  des d  rect  onal
outdoor coverage (ga  n reector-dependent).
The L  teBeam mounted outdoors w  thout the reector  nstalled prov  des outdoor-to-
 ndoor coverage us  ng the 3 dB  Antenna Feed only.
Hardware Overv  ew
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 3/21
W  reless LED
Ethernet LED
Power LED
Ethernet Port
Reset Button
The LED w  ll l  ght green when a w  reless connect  on  s establ  shed.
The LED w  ll l  ght steady green when an act  ve Ethernet connect  on  s made and
ash when there  s act  v  ty.
The LED w  ll l  ght green when the dev  ce  s connected to a power source.
Supports 10/100 connect  ons and pass  ve PoE. Th  s port should be connected to the
LAN and DHCP server.
To reset to factory defaults, press and hold the Reset button for more than 10
seconds wh  le the L  teBeam  s powered on. The L  teBeam may also be reset
remotely us  ng the aux  l  ary Reset button located on the bottom of the PoE adapter.
Hardware Installat  on
The L  teBeam was des  gned for outdoor use and qu  ck mount  ng on a pole. You may
mount  t on a wall us  ng an opt  onal Wall Mount K  t, model NBE-WMK (sold separately).
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 4/21
1.
2.
3.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 5/21

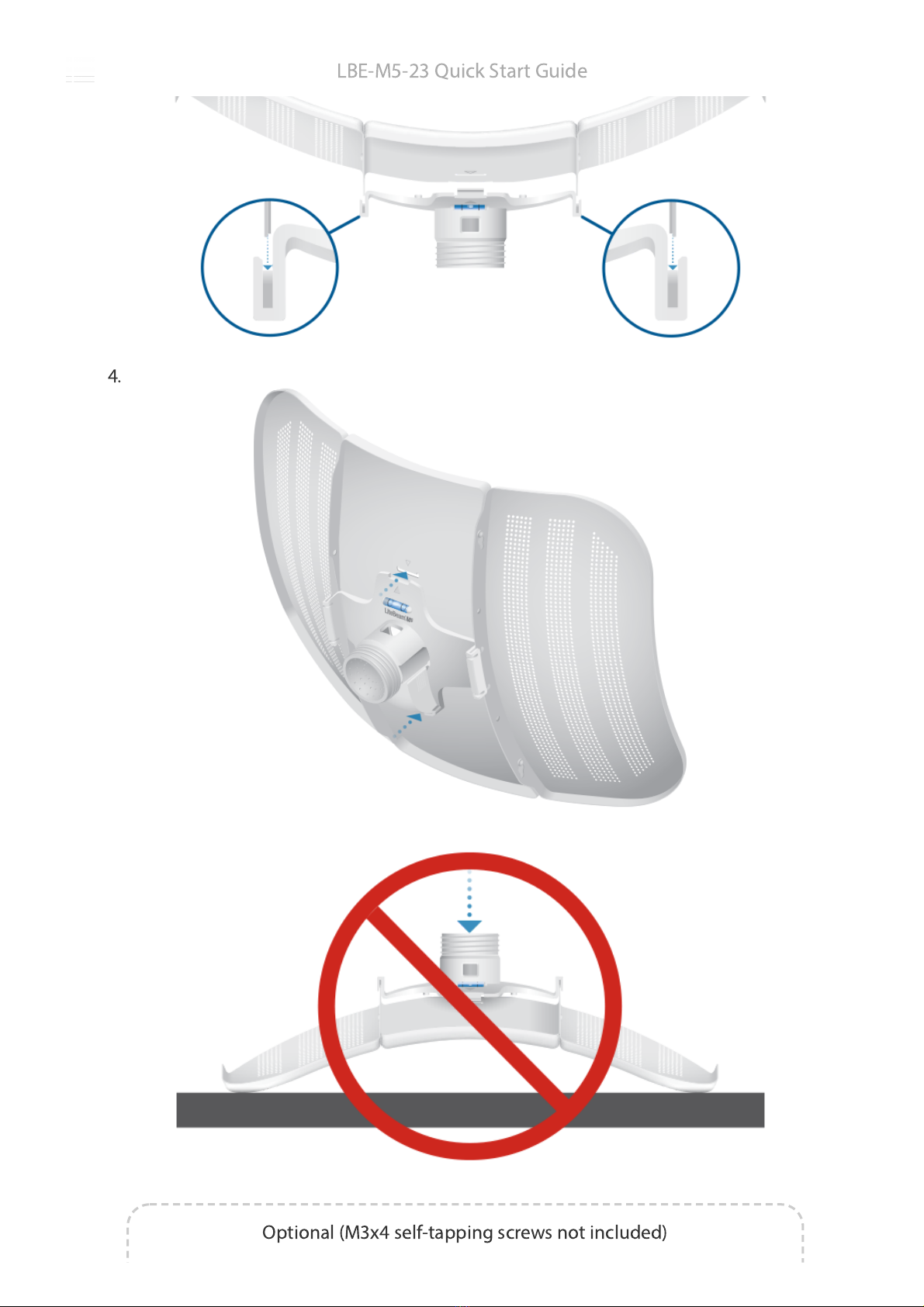

4.
Opt  onal (M3x4 self-tapp  ng screws not  ncluded)
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 6/21

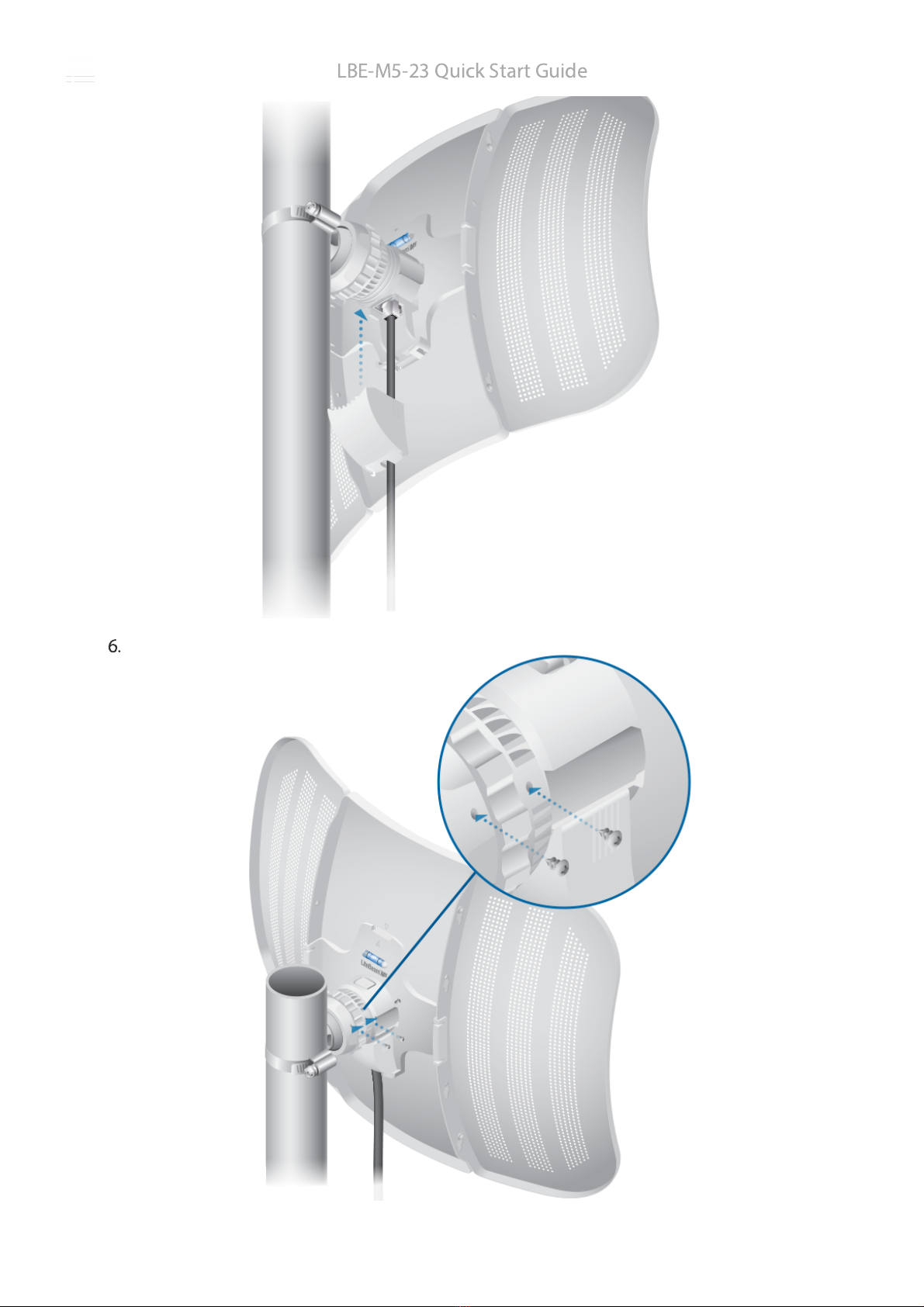

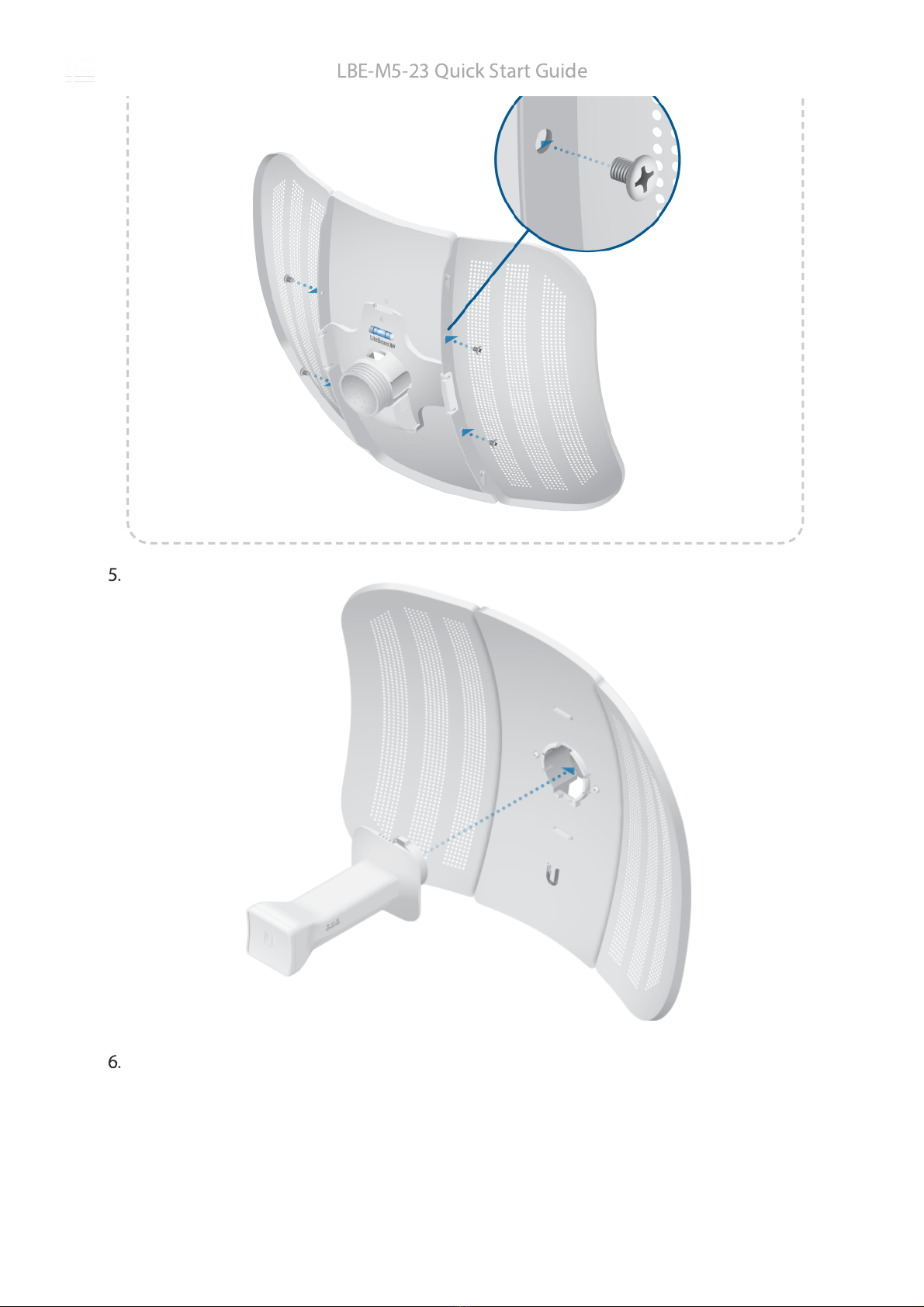

5.
6.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 7/21

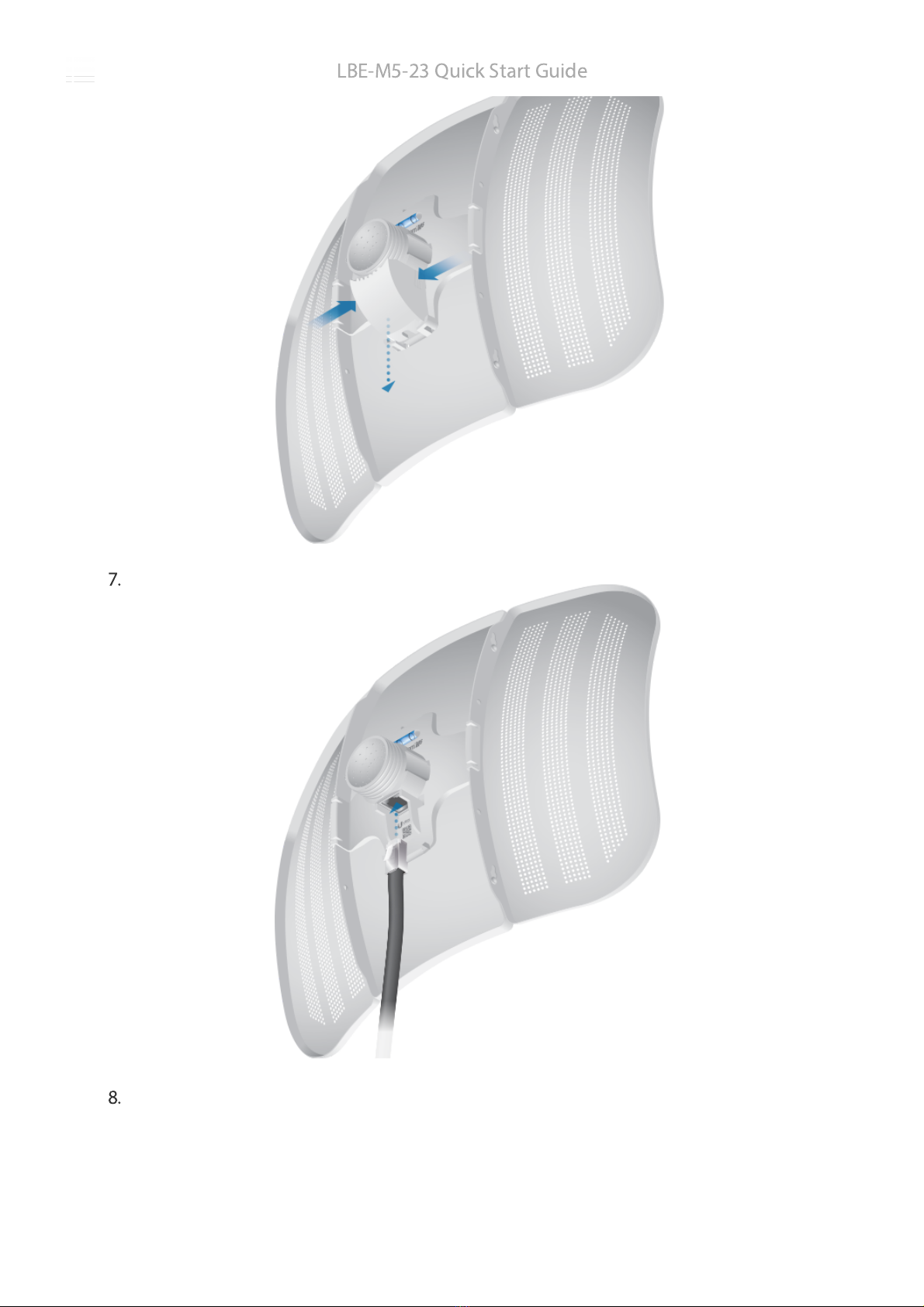

7.
8.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 8/21
Pole Mount  ng
1.
2.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 9/21
3.
Wall Mount  ng
The L  teBeam must be mounted d  rectly to a wood stud or other structurally stable
surface us  ng the Wall Mount K  t, model NBE-WMK (sold separately).
Note: Center screw  ncluded. Two opt  onal screws (not  ncluded) prov  de
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 10/21
add  t  onal stab  l  ty.

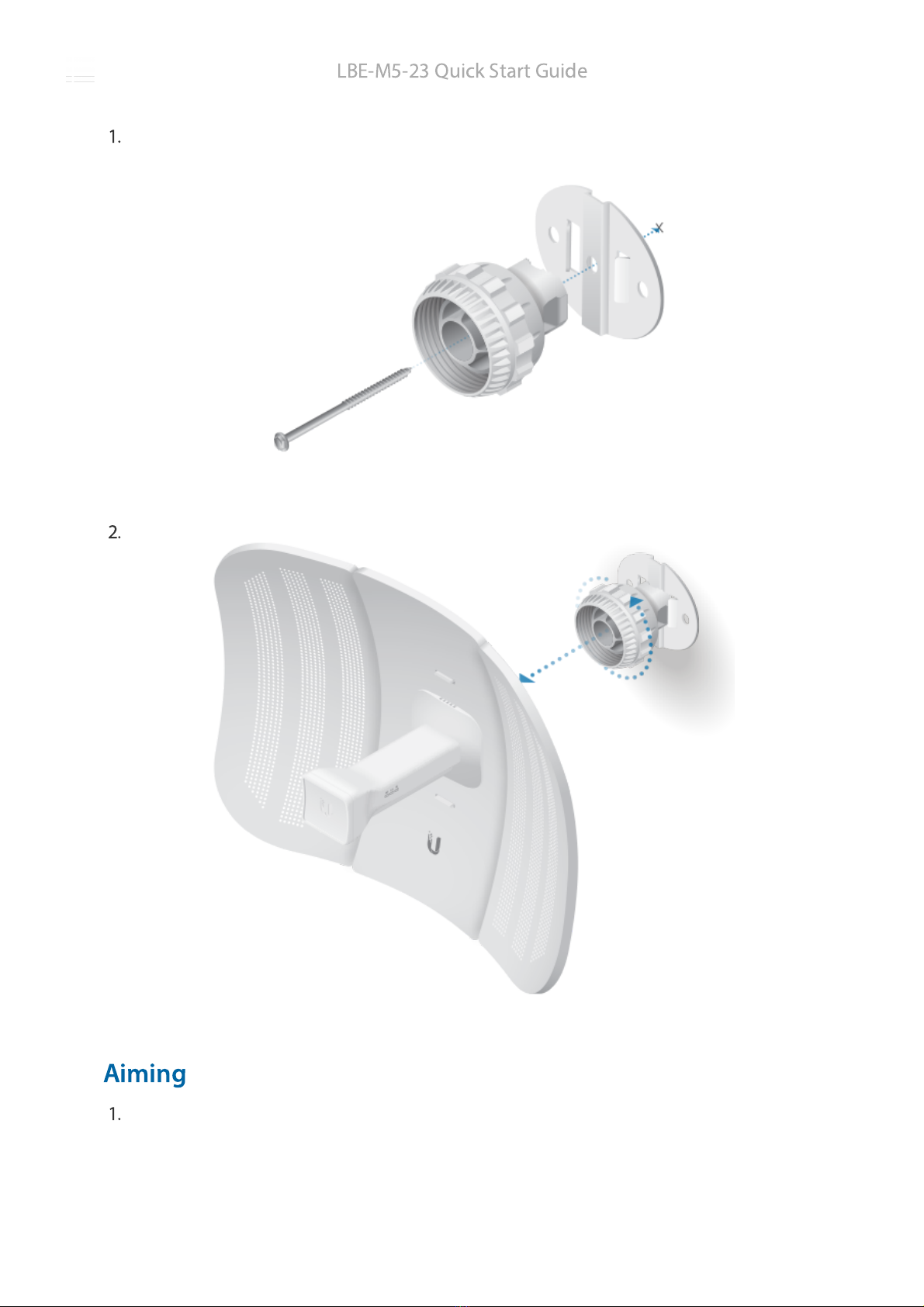

1.
2.

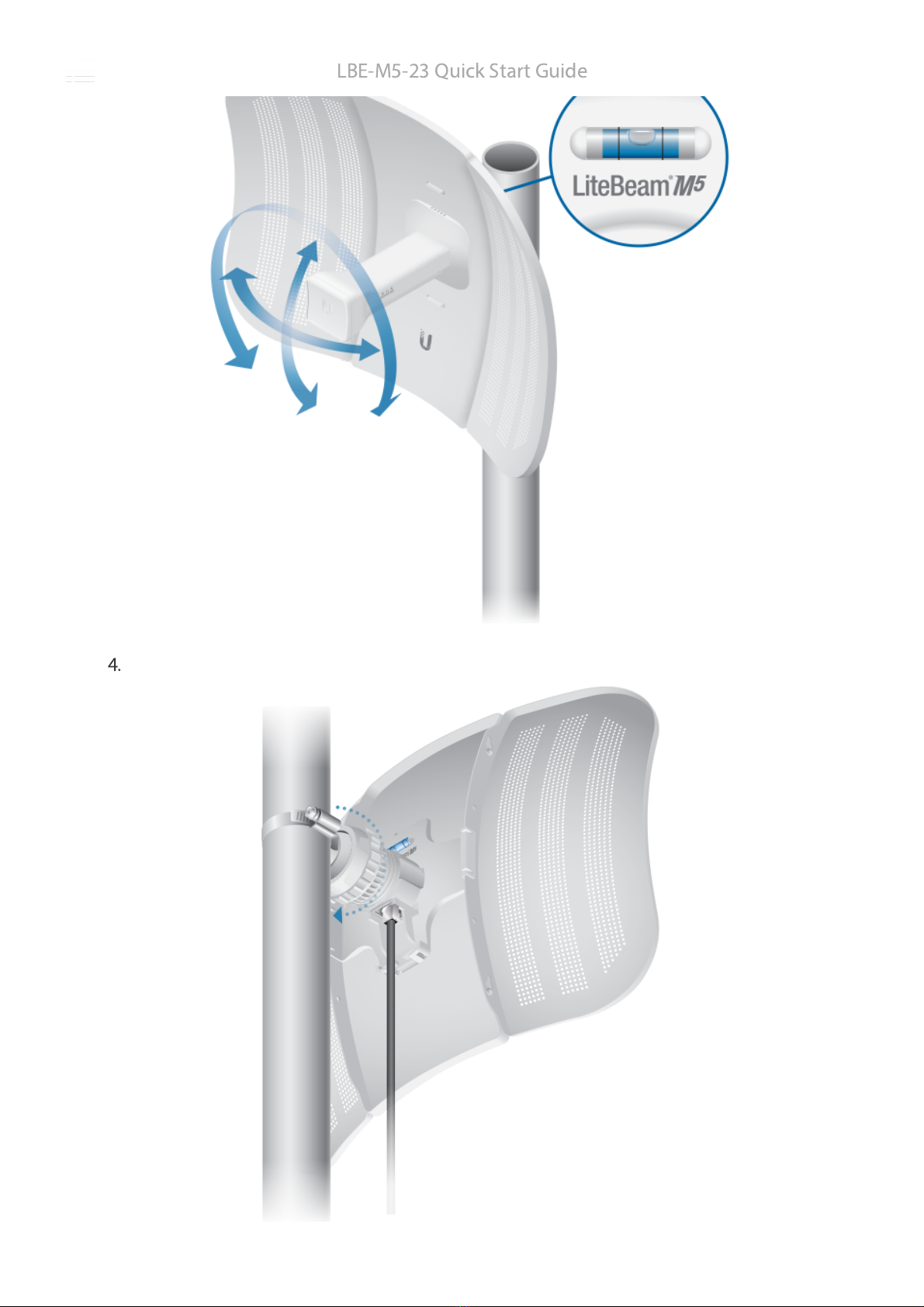

A  m  ng
1.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 11/21
2.
3.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 12/21
4.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 13/21
5.
6.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 14/21
Connect  ng Power
WARNING: The sw  tch port must comply w  th the power spec  f  cat  ons l  sted  n
th  s Qu  ck Start Gu  de.
OR
Access  ng a  rOS
Ver  fy connect  v  ty  n the a  rOS Conf  gurat  on Interface.
1. Make sure that your host system  s connected v  a Ethernet to the dev  ce.
2. Conf  gure the Ethernet adapter on your host system w  th a stat  c IP address on the
192.168.1.x subnet.
3. Launch your web browser and type https://192.168.1.20  n the address f  eld. Press
enter (PC) or return (Mac).
4. Enter ubnt  n the Username and Password f  elds. Select your Country and Language.
You must agree to the Terms of Use to use the product. Cl  ck Log  n.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 15/21
The a  rOS Conf  gurat  on Interface w  ll appear, allow  ng you to custom  ze your sett  ngs
as needed. For deta  ls, refer to the User Gu  de ava  lable at u  .com/download/a  rmax
You can also manage your dev  ce us  ng the Ub  qu  t  ® Network Management System.
Setup us  ng the UNMS™ app requ  res the U-Installer, sold separately.
Installer Compl  ance Respons  b  l  ty
Dev  ces must be profess  onally  nstalled and  t  s the profess  onal  nstaller's
respons  b  l  ty to make sure the dev  ce  s operated w  th  n local country regulatory
requ  rements.
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 16/21

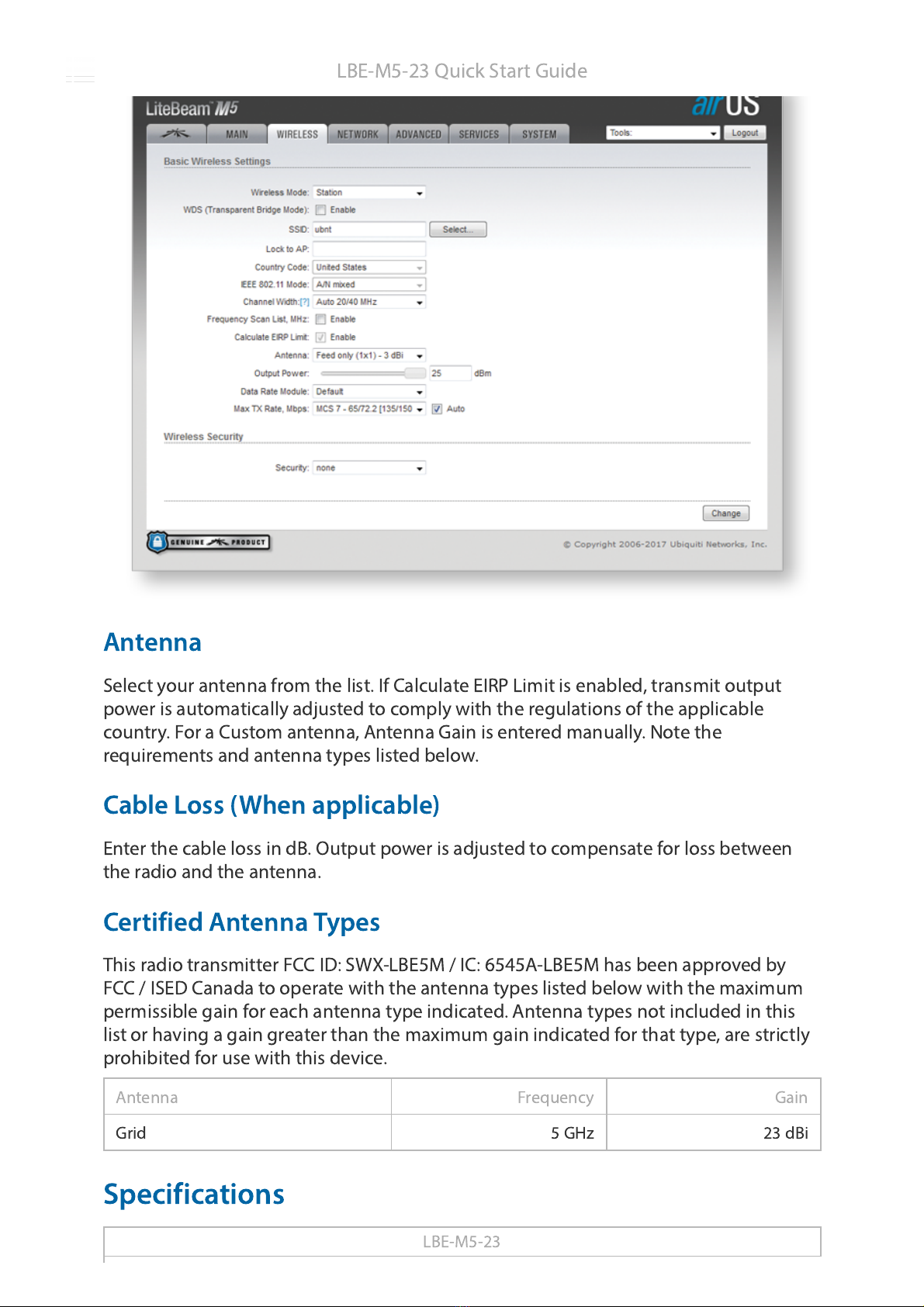

Antenna
Select your antenna from the l  st. If Calculate EIRP L  m  t  s enabled, transm  t output
power  s automat  cally adjusted to comply w  th the regulat  ons of the appl  cable
country. For a Custom antenna, Antenna Ga  n  s entered manually. Note the
requ  rements and antenna types l  sted below.
Cable Loss (When appl  cable)
Enter the cable loss  n dB. Output power  s adjusted to compensate for loss between
the rad  o and the antenna.
Cert  f  ed Antenna Types
Th  s rad  o transm  tter FCC ID: SWX-LBE5M / IC: 6545A-LBE5M has been approved by
FCC / ISED Canada to operate w  th the antenna types l  sted below w  th the max  mum
perm  ss  ble ga  n for each antenna type  nd  cated. Antenna types not  ncluded  n th  s
l  st or hav  ng a ga  n greater than the max  mum ga  n  nd  cated for that type, are str  ctly
proh  b  ted for use w  th th  s dev  ce.
Antenna Frequency Ga  n
Gr  d 5 GHz 23 dB 
Spec  f  cat  ons
LBE-M5-23
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 17/21
LBE-M5-23

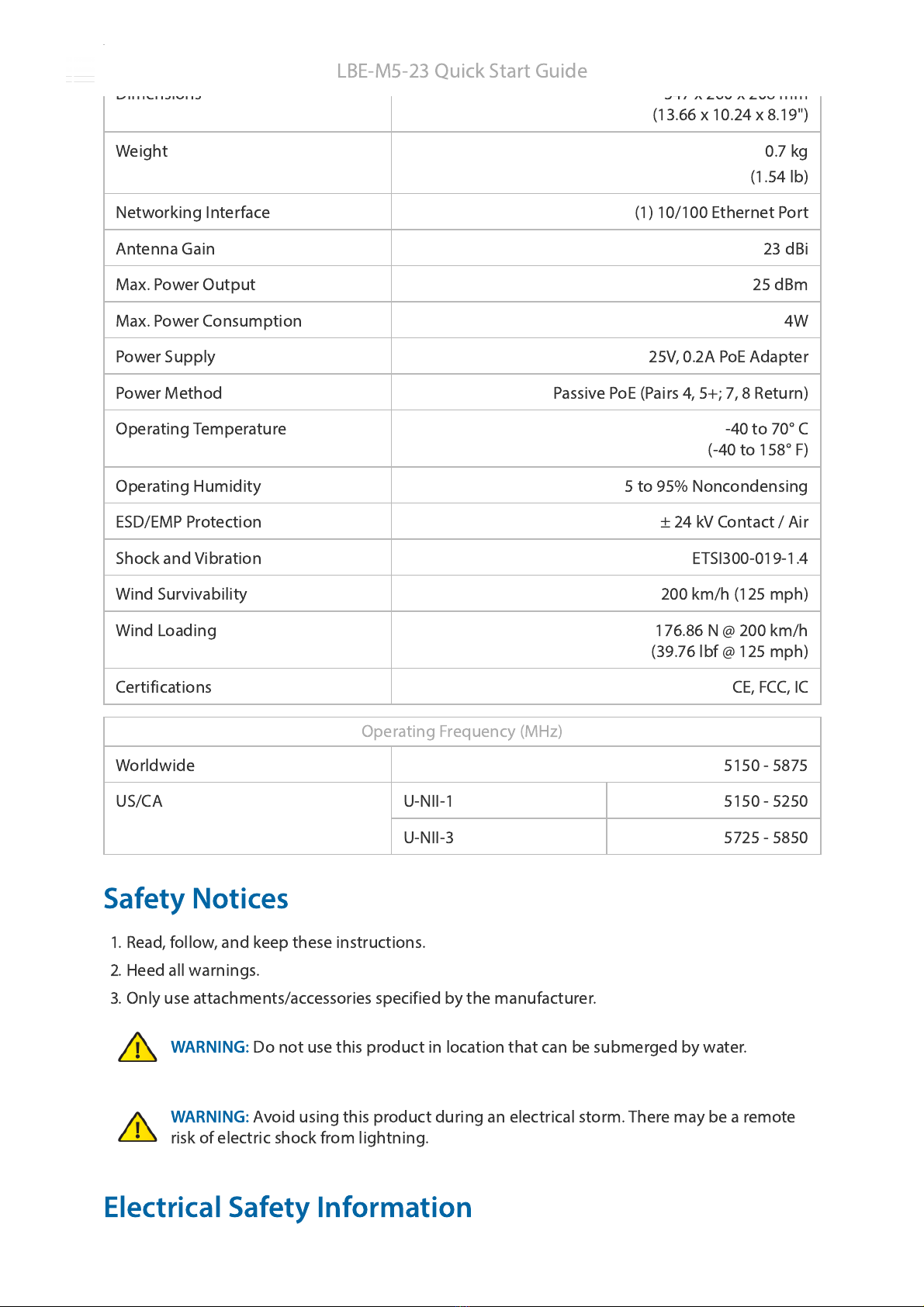

D  mens  ons 347 x 260 x 208 mm
(13.66 x 10.24 x 8.19")
We  ght 0.7 kg
(1.54 lb)
Network  ng Interface (1) 10/100 Ethernet Port
Antenna Ga  n 23 dB 
Max. Power Output 25 dBm
Max. Power Consumpt  on 4W
Power Supply 25V, 0.2A PoE Adapter
Power Method Pass  ve PoE (Pa  rs 4, 5+; 7, 8 Return)
Operat  ng Temperature -40 to 70° C
(-40 to 158° F)
Operat  ng Hum  d  ty 5 to 95% Noncondens  ng
ESD/EMP Protect  on ± 24 kV Contact / A  r
Shock and V  brat  on ETSI300-019-1.4
W  nd Surv  vab  l  ty 200 km/h (125 mph)
W  nd Load  ng 176.86 N @ 200 km/h
(39.76 lbf @ 125 mph)
Cert  f  cat  ons CE, FCC, IC
Operat  ng Frequency (MHz)
Worldw  de 5150 - 5875
US/CA U-NII-1 5150 - 5250
U-NII-3 5725 - 5850
Safety Not  ces
1. Read, follow, and keep these  nstruct  ons.
2. Heed all warn  ngs.
3. Only use attachments/accessor  es spec  f  ed by the manufacturer.
WARNING: Do not use th  s product  n locat  on that can be submerged by water.
WARNING: Avo  d us  ng th  s product dur  ng an electr  cal storm. There may be a remote
r  sk of electr  c shock from l  ghtn  ng.
Electr  cal Safety Informat  on
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 18/21
1. Compl  ance  s requ  red w  th respect to voltage, frequency, and current requ  rements  nd  cated
on the manufacturer’s label. Connect  on to a d  fferent power source than those spec  f  ed may
result  n  mproper operat  on, damage to the equ  pment or pose a f  re hazard  f the l  m  tat  ons
are not followed.
2. There are no operator serv  ceable parts  ns  de th  s equ  pment. Serv  ce should be prov  ded only
by a qual  f  ed serv  ce techn  c  an.
3. Th  s equ  pment  s prov  ded w  th a detachable power cord wh  ch has an  ntegral safety ground
w  re  ntended for connect  on to a grounded safety outlet.
a. Do not subst  tute the power cord w  th one that  s not the prov  ded approved type. Never
use an adapter plug to connect to a 2-w  re outlet as th  s w  ll defeat the cont  nu  ty of the
ground  ng w  re.
b. The equ  pment requ  res the use of the ground w  re as a part of the safety cert  f  cat  on,
mod  f  cat  on or m  suse can prov  de a shock hazard that can result  n ser  ous  njury or death.
c. Contact a qual  f  ed electr  c  an or the manufacturer  f there are quest  ons about the
 nstallat  on pr  or to connect  ng the equ  pment.
d. Protect  ve earth  ng  s prov  ded by L  sted AC adapter. Bu  ld  ng  nstallat  on shall prov  de
appropr  ate short-c  rcu  t backup protect  on.
e. Protect  ve bond  ng must be  nstalled  n accordance w  th local nat  onal w  r  ng rules and
regulat  ons.
L  m  ted Warranty
u  .com/support/warranty
The l  m  ted warranty requ  res the use of arb  trat  on to resolve d  sputes on an  nd  v  dual bas  s, and,
where appl  cable, spec  fy arb  trat  on  nstead of jury tr  als or class act  ons.
Compl  ance
FCC
Changes or mod  f  cat  ons not expressly approved by the party respons  ble for compl  ance could
vo  d the user’s author  ty to operate the equ  pment.
Th  s dev  ce compl  es w  th Part 15 of the FCC Rules. Operat  on  s subject to the follow  ng two
cond  t  ons.
1. Th  s dev  ce may not cause harmful  nterference, and
2. Th  s dev  ce must accept any  nterference rece  ved,  nclud  ng  nterference that may cause
undes  red operat  on.
Th  s equ  pment has been tested and found to comply w  th the l  m  ts for a Class A d  g  tal dev  ce,
pursuant to part 15 of the FCC Rules. These l  m  ts are des  gned to prov  de reasonable protect  on
aga  nst harmful  nterference when the equ  pment  s operated  n a commerc  al env  ronment. Th  s
equ  pment generates, uses, and can rad  ate rad  o frequency energy and,  f not  nstalled and used
 n accordance w  th the  nstruct  on manual, may cause harmful  nterference to rad  o
commun  cat  ons. Operat  ons of th  s equ  pment  n a res  dent  al area  s l  kely to cause harmful
 nterference  n wh  ch case the user w  ll be requ  red to correct the  nterference at h  s own expense.
Th  s rad  o transm  tter has been approved by FCC.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 19/21
Th  s dev  ce compl  es w  th ISED Canada l  cence-exempt RSS standard(s). Operat  on  s subject to the
follow  ng two cond  t  ons:
1. Th  s dev  ce may not cause  nterference, and
2. Th  s dev  ce must accept any  nterference,  nclud  ng  nterference that may cause undes  red
operat  on of the dev  ce.
Th  s rad  o transm  tter has been approved by ISED Canada.
The dev  ce for operat  on  n the band 5150-5250 MHz  s only for  ndoor use to reduce the potent  al
for harmful  nterference to co-channel mob  le satell  te systems.
CAN ICES-3(A)/NMB-3(A)
Le présent appare  l est conforme aux CNR d’ISDE Canada appl  cables aux appare  ls rad  o exempts
de l  cence. L’explo  tat  on est autor  sée aux deux cond  t  ons su  vantes :
1. l’appare  l ne do  t pas produ  re de brou  llage;
2. l’appare  l do  t accepter tout brou  llage rad  oélectr  que sub  , même s  le brou  llage est
suscept  ble d’en compromettre le fonct  onnement.
Le présent émetteur rad  o a été approuvé par ISDE Canada.
Les d  spos  t  fs fonct  onnant dans la bande 5150-5250 MHz sont réservés un  quement pour une
ut  l  sat  on à l’  ntér  eur af  n de rédu  re les r  sques de brou  llage préjud  c  able aux systèmes de
satell  tes mob  les ut  l  sant les mêmes canaux.
IMPORTANT NOTE
Rad  at  on Exposure Statement
Th  s equ  pment compl  es w  th rad  at  on exposure l  m  ts set forth for an uncontrolled
env  ronment.
Th  s equ  pment should be  nstalled and operated w  th m  n  mum d  stance 34 cm between the

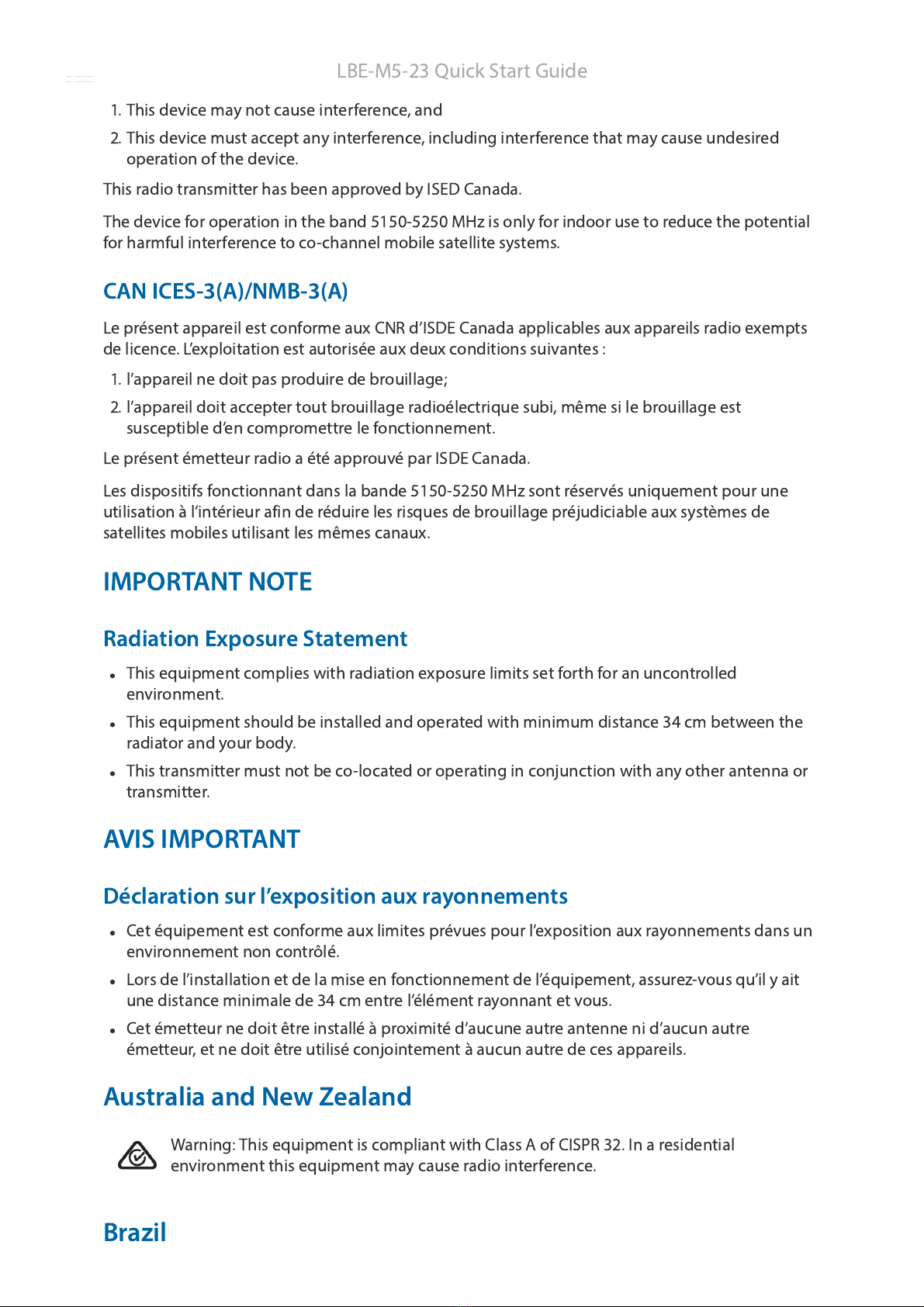

rad  ator and your body.
Th  s transm  tter must not be co-located or operat  ng  n conjunct  on w  th any other antenna or
transm  tter.
AVIS IMPORTANT
Déclarat  on sur l’expos  t  on aux rayonnements
Cet équ  pement est conforme aux l  m  tes prévues pour l’expos  t  on aux rayonnements dans un
env  ronnement non contrôlé.
Lors de l’  nstallat  on et de la m  se en fonct  onnement de l’équ  pement, assurez-vous qu’  l y a  t
une d  stance m  n  male de 34 cm entre l’élément rayonnant et vous.
Cet émetteur ne do  t être  nstallé à prox  m  té d’aucune autre antenne n  d’aucun autre
émetteur, et ne do  t être ut  l  sé conjo  ntement à aucun autre de ces appare  ls.
Austral  a and New Zealand
Warn  ng: Th  s equ  pment  s compl  ant w  th Class A of CISPR 32. In a res  dent  al
env  ronment th  s equ  pment may cause rad  o  nterference.
Braz  l
LBE-M5-23 Qu  ck Start Gu  de

17.02.2020 LBE-M5-23 Quck Start Gude
https://dl.ubnt.com/qsg/LBE-M5-23/LBE-M5-23_EN.html 20/21
Nota: Este equ  pamento não tem d  re  to à proteção contra  nterferênc  a prejud  c  al e não
pode causar  nterferênc  a em s  stemas dev  damente autor  zados.

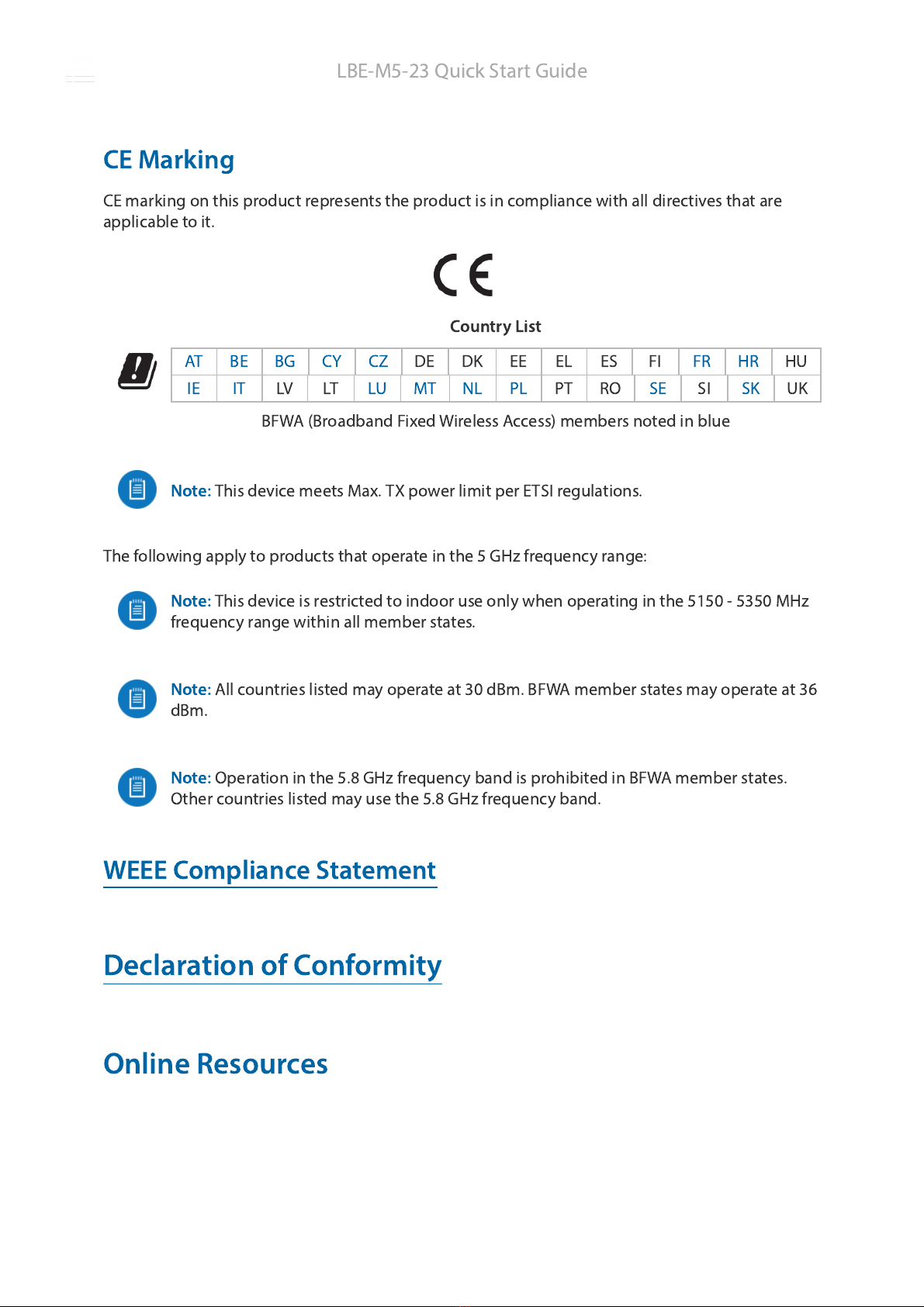

CE Mark  ng
CE mark  ng on th  s product represents the product  s  n compl  ance w  th all d  rect  ves that are
appl  cable to  t.
Country L  st
AT BE BG CY CZ DE DK EE EL ES FI FR HR HU
IE IT LV LT LU MT NL PL PT RO SE SI SK UK
BFWA (Broadband F  xed W  reless Access) members noted  n blue
Note: Th  s dev  ce meets Max. TX power l  m  t per ETSI regulat  ons.
The follow  ng apply to products that operate  n the 5 GHz frequency range:
Note: Th  s dev  ce  s restr  cted to  ndoor use only when operat  ng  n the 5150 - 5350 MHz
frequency range w  th  n all member states.
Note: All countr  es l  sted may operate at 30 dBm. BFWA member states may operate at 36
dBm.
Note: Operat  on  n the 5.8 GHz frequency band  s proh  b  ted  n BFWA member states.
Other countr  es l  sted may use the 5.8 GHz frequency band.
WEEE Compl  ance Statement
Declarat  on of Conform  ty
Onl  ne Resources
LBE-M5-23 Qu  ck Start Gu  de
