Ubiquiti Edge Pro ERPro-8 User manual

8-Port Router
with 2 Combination
SFP/RJ45 Ports
Model: ERPro-8

Introduction
Thank you for purchasing the Ubiquiti Networks®
EdgeRouter™PRO, which is part of the EdgeMAX® platform.
Formore information, visit www.ubnt.com/edgemax
This Quick Start Guide is designed to guide you through
installation and show how to access the EdgeOS™
Configuration Interface. This guide also includes the warranty
terms and is for use with the EdgeRouter PRO, modelERPro-8.

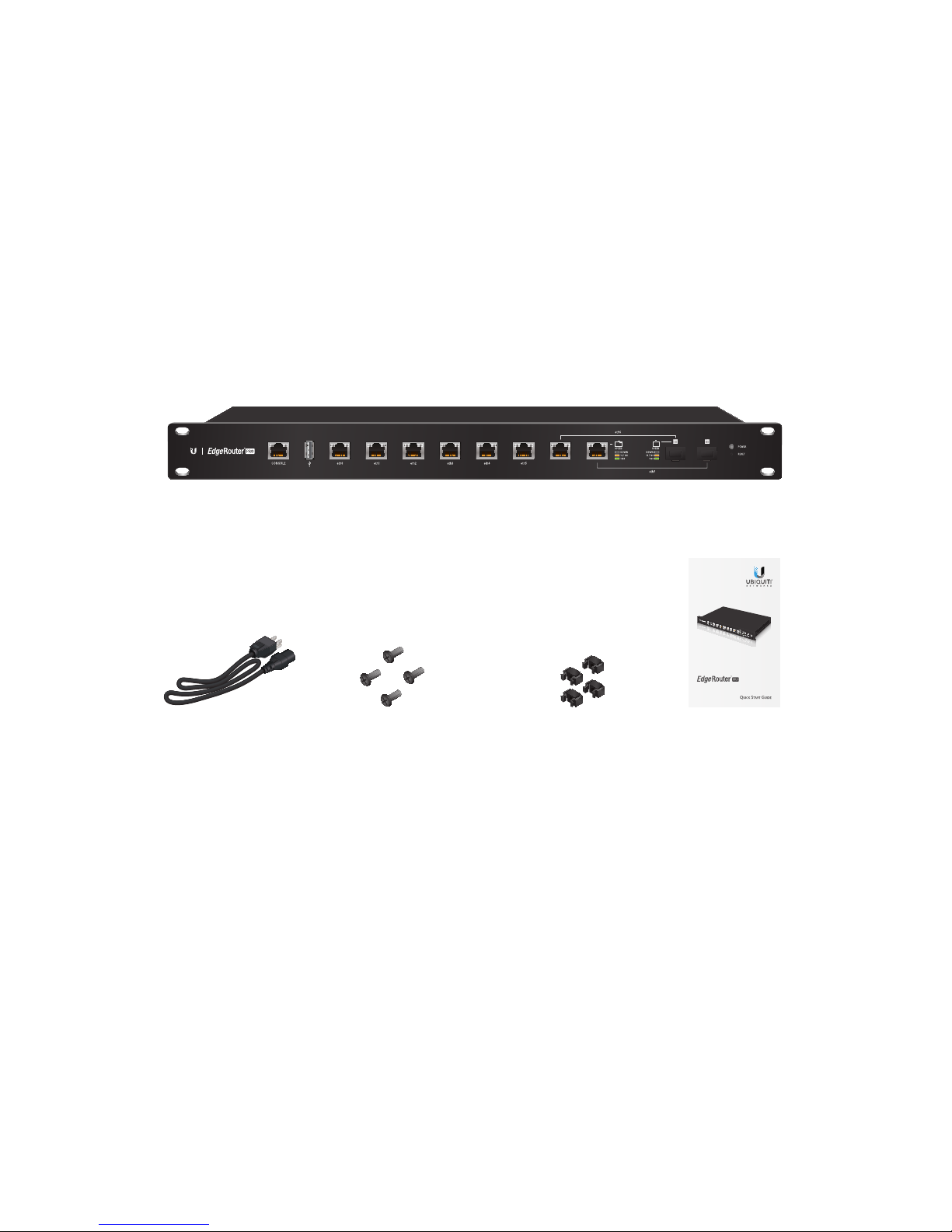

Package Contents
EdgeRouter PRO
8-Port Router
with 2 Combination
SFP/RJ45 Ports
Model: ERPro-8
Power Cord Mounting Screws
(#10-32 x 5/8", Qty. 4)
Cage Nuts
(#10-32 x 5/8", Qty. 4)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.

Hardware Overview
Front Panel Ports
Console RJ45 (eth0-eth7) SFP (eth6-eth7)
USB
Interface Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect the
Console port to your computer. (If your
computer does not have a DB9 port, then
you will also need a DB9 adapter.) Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
USB Reserved for future use.
RJ45
(eth0-eth7)
RJ45 ports support 10/100/1000 Ethernet
connections. RJ45 port eth6 or eth7 is
active only if the corresponding SFP port
is empty.
SFP
(eth6-eth7)
SFP ports are hot-swappable and support
100 Mbps or Gigabit fiber SFP modules. If
an SFP module is plugged in, then the SFP
port is active, and the corresponding RJ45
port is deactivated.

Front Panel Button
Reset
Button Description
Reset
There are two methods to reset the
EdgeRouter PRO to factory defaults:
• Runtime reset (recommended) The
EdgeRouter PRO should be running
after bootup is complete. Press and hold
the Reset button for about 10seconds
until the right LED on RJ45 port eth7
starts flashing and then becomes solidly
lit. After a few seconds, the LED will
turn off, and the EdgeRouter PRO will
automatically reboot.
• Power-on reset Disconnect the Power
Cord from the EdgeRouter PRO. Press and
hold the Reset button while connecting
the Power Cord to the EdgeRouter PRO.
Keep holding the button until the right
LED on RJ45 port eth7 starts flashing and
then stops flashing after a few seconds.

Front Panel LEDs
The LEDs on the left side of the RJ45 ports are not used at this
time. Below is a description of the other LEDs:
PowerSFP: Speed/Link/ActRJ45: Speed/Link/Act
LED State Status
RJ45 (eth0-7)
Speed/
Link/Act
Off No Link
Amber Link Established at
10/100Mbps
Amber Flashing Link Activity at
10/100Mbps
Green Link Established at
1000Mbps
Green Flashing Link Activity at
1000Mbps
SFP (eth6-7)
Speed/
Link/Act
Off No Link
Amber Link Established at
10/100Mbps
Amber Flashing Link Activity at
10/100Mbps
Green Link Established at
1000Mbps
Green Flashing Link Activity at
1000Mbps
Power
White EdgeRouter PRO is
poweredon.

Back Panel
Mounting Holes
Power
Ventilation Holes
Mounting Holes
Fans
Note: There are additional ventilation holes on the sides
of the EdgeRouter PRO.
Installation Requirements
• Phillips screwdriver
• Standard-sized, 19" wide rack with a minimum of 1U height
available
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your outdoor networks
from the most brutal environments and devastating ESD
attacks with industrial-grade shielded Ethernet cable,
TOUGHCable™, from Ubiquiti Networks. For more details,
visit: www.ubnt.com/toughcable
Note: Although the cabling can be located outdoors,
the EdgeRouter PRO itself should be housed inside a
protective enclosure.

Hardware Installation
1. Connect the Power Cord to the Power port of the
EdgeRouter PRO.
2. Attach the EdgeRouter PRO to the rack using the four
Mounting Screws. (If the rack has square slots, then use the
Cage Nuts with the Mounting Screws.)
Note: Keep 20 mm of clearance next to the
ventilation holes for adequate airflow.
3. Connect the other end of the Power Cord to a power outlet.

Using SFP Ports
To use an SFP port:
1. Remove the protective plug covering the SFP port.
2. Plug a fiber SFP module into the SFP port.
1000Mbps SM/SC 20KM DDM
Tx1550nm/Rx1310nm
SN: 130826179
EF -1 0 00 M -2 0 KM - 15
Note: The corresponding RJ45 port will be deactivated.
3. Connect a fiber optic cable to the fiber SFP module. Then
connect the other end of the cable to another fiber device.
50
For information about compatible fiber SFP modules, visit:
community.ubnt.com/edgemax

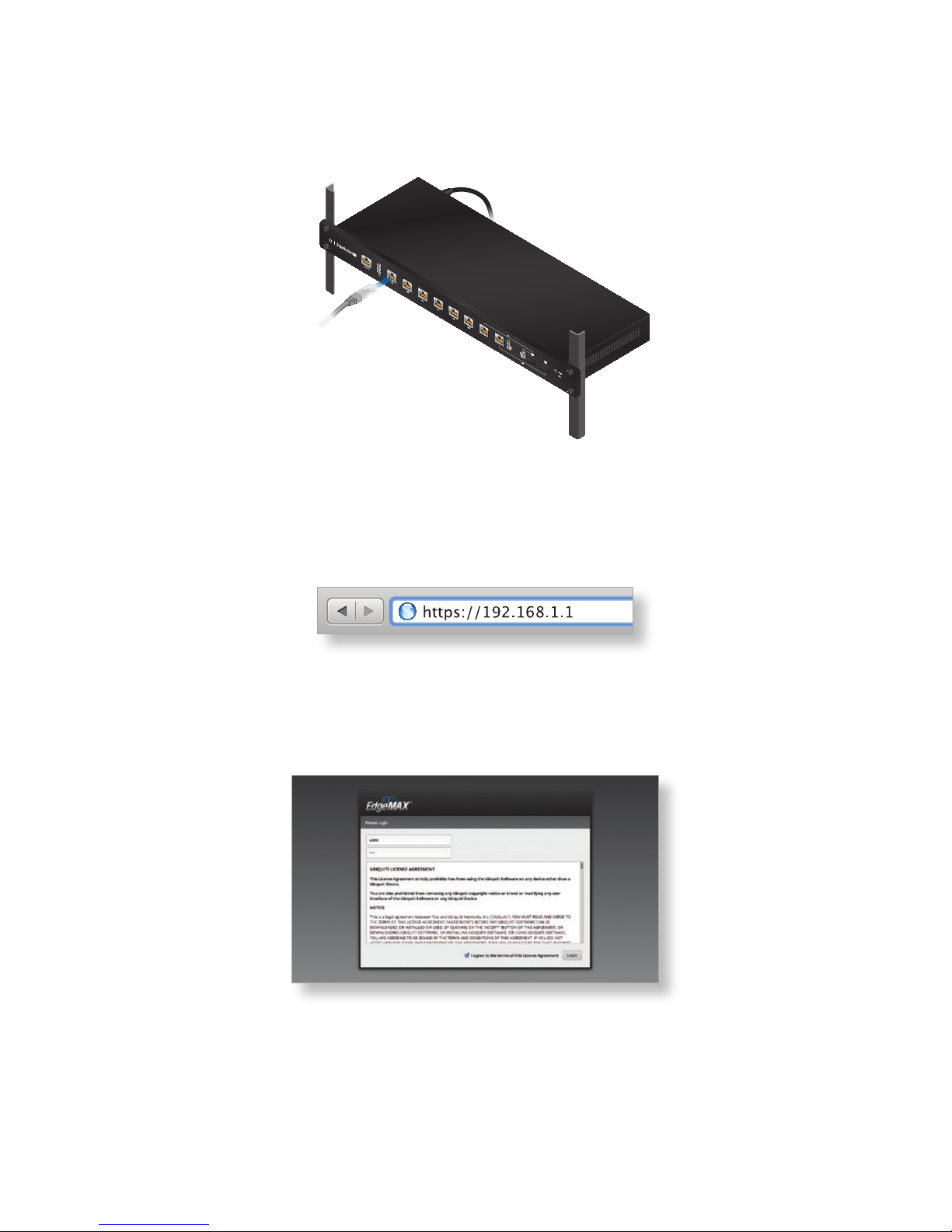

Accessing the EdgeOS Configuration Interface
1. Connect an Ethernet cable from the Ethernet port of your
computer to the port labeled eth0 on the EdgeRouter PRO.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type https://192.168.1.1 in the
address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
The EdgeOS Configuration Interface will appear, allowing
you to customize your settings as needed. You can click the
Wizards tab to access the Setup Wizard.
For more information, refer to the EdgeOS User Guide, which is
available at documentation.ubnt.com/edgemax

Specifications
EdgeRouter PRO
Dimensions 484 x 164 x 44 mm (19.06 x 6.46 x 1.73")
Weight 2.3 kg (5.07 lb)
Max. Power Consumption 40 W
Power Method 110 - 240VAC
Power Supply Internal AC/DC Power Adapter,
60 W (24V, 2.5A)
Button Reset
LED Power
Processor Dual-Core 1 GHz, MIPS64
with Hardware Acceleration
for Packet Processing
System Memory 2 GB DDR3 RAM
Code Storage 4 GB
Certications CE, FCC, IC
Rackmount Yes
ESD/EMP Protection Air: ±24 kV, Contact:± 24 kV
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
LEDs Per Port
Serial Console Port N/A
Data Ports Speed/Link/Activity
Networking Interfaces
Serial Console Port (1) RJ45 Serial Port
Data Ports (6) 10/100/1000 RJ45 Ports
(2) 10/100/1000 RJ45/SFP Combination Ports
