Ubiquiti EdgePoint EP-S16 User manual

EdgePoint Switch Wall-Mount Bracket Metal Straps (Qty. 2)
Cable Sleeve Cable Ties (Qty. 20) S2 Hex Wrench
Wall-Mount Screws (Qty. 4) Wall-Mount Anchors (Qty. 4) Phillips Bolts (Qty. 2)
Gigabit PoE (54V, 1.5A) with
Mounting Bracket Power Cord PoE Screws (Qty. 2)
Package Contents
EP-S16 Quick Start Guide

PoE Anchors (Qty. 2)
Installation Requirements
7 mm socket wrench
S2 hex wrench
Ground wire – min. 10 AWG (5 mm ) and max. length: 1 m. As a safety precaution, ground
the EdgePoint to a grounded mast, pole, tower, or grounding bar.
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and
destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit: ui.com/toughcable
Power Options
Either the VDC or PoE input type is used at any one time. If both are connected, only the input
type with the highest voltage will be used; the other can be used as a backup.
Both PoE inputs can be used at the same time. If there is a voltage difference, the higher-
voltage source will be used rst. The voltage from the initial source will drop as the load
increases. When the voltage drops to the same level as the lower-voltage source, then the
lower-voltage source will also start providing power.
Power Input Options
54VDC, 6A
54V, 1.5A on PoE In/1
54V, 1.5A on PoE In/2
Power Output Options
EdgePoint (required)
Passive 54/24V, 4-Pair PoE on 1-4
PoE+ or Passive 24V, 2-Pair PoE on 5-16
The number of devices that can be powered depends on the power consumption of the
specic devices and the power input option. Example: If you provide 54VDC, 1.5A, then you
have 81W of power. If the EdgePoint uses 40W (Max. Power Consumption), then you have
41W available for passive PoE output. Check product specications for the power
consumption values to use in your calculations.
Hardware Overview
2
EP-S16 Quick Start Guide

Reset Button
Console Port
DC Input
Ports PoE In / 1 - 2 (54/24V PoE Out)
Ports 3 - 4 (54/24V PoE Out)
Ports 5 - 16 (PoE+ or 24V PoE Out)
SFP+ 1 - 2 Ports
Click here to learn how to reset the EdgePoint to factory defaults.
RJ45 serial console port for Command Line Interface (CLI) management.
Note: Remove the protective plug from the Console port before use.
Terminal block connector uses auto-polarity detection and accepts +42 to +56VDC, 6A
input (including the Ubiquiti EdgePower™, model EP-54V-150W) to power the EdgePoint
and passive PoE output. -48V is NOT supported.
RJ45 ports support 10/100/1000 Ethernet connections and have PoE input or output
functionality:
PoE Input Accepts 54V, 1.5A PoE input to power the EdgePoint and PoE output.
PoE Output You can congure the ports for 54/24V 4-pair PoE output.
Do NOT congure port PoE In / 1 or 2 in PoE output mode if you are using it as a PoE input
power source.
RJ45 ports support 10/100/1000 Ethernet connections and passive 54/24V, 4-pair PoE
output for airFiber® devices.
RJ45 ports support 10/100/1000 Ethernet connections and PoE+ (IEEE 802.3af/802.3at) or
passive 24V, 2-pair PoE output for airMAX® or other devices.
SFP+ ports are hot-swappable and support 1/10 Gbps ber SFP/SFP+ modules.
Note: For extreme temperatures, please use industrial-grade ber SFP/SFP+
modules.

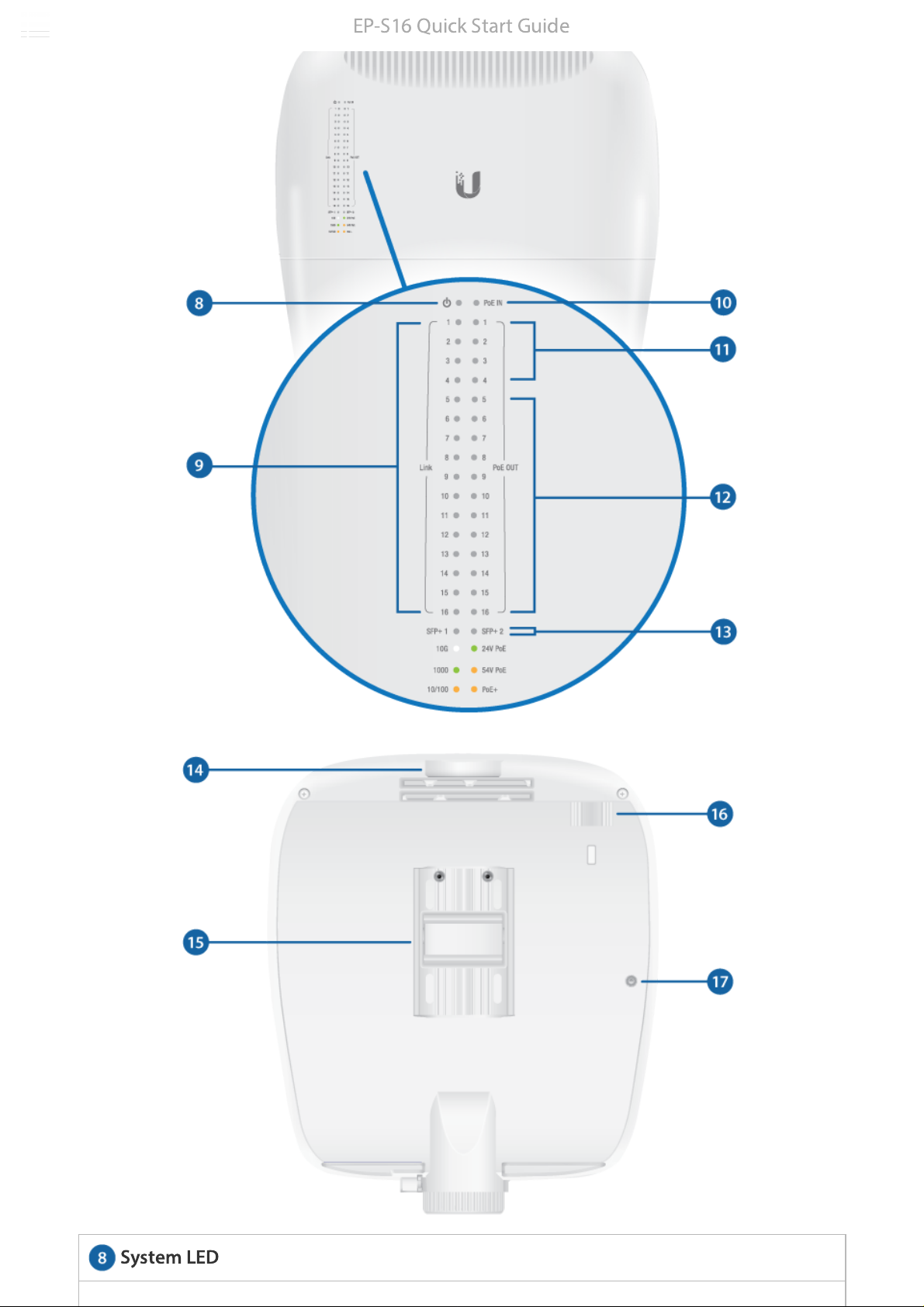

EP-S16 Quick Start Guide

System LED
EP-S16 Quick Start Guide

Speed/Link/Activity LED (Ports 1 - 16)
PoE Input LED (Ports 1 - 2)
PoE Output LED (Ports 1 - 4)
PoE Output LED (Ports 5 - 16)
Speed/Link/Activity (SFP+ 1 - 2 Ports)
Note: The System LED functionality has been updated with rmware v1.8.0. We
recommend that you update the device to the latest rmware.
Flashing White Bootup in progress.
White Ready for use, not connected to Ubiquiti® Network Management System (UNMS™). See "UNMS
Management" .
Blue Ready for use, connected to UNMS.
Steady Blue with Occasional
Flashing Ready for use, unable to connect to UNMS, check connection to UNMS server.
Quickly Flashing Blue Used to locate a device in UNMS.
Alternating Blue/White Firmware upgrade in progress.
Off No Link
Amber 10/100 Mbps Link
Flashing Indicates Activity
Green 1000 Mbps (1 Gbps) Link
Flashing Indicates Activity
Off No PoE
Green 54V Passive
Off No PoE
Amber 54V Passive, 4-Pair
Green 24V Passive, 4-Pair
Off No PoE
Amber PoE+ Auto (IEEE 802.3af/802.3at)
Green 24V Passive, 2-Pair
EP-S16 Quick Start Guide

Lanyard Loop
Pole-Mount Bracket
PicoStation®M2HP Slot
Ground Bonding Point
Off No Link
Green 1000 Mbps (1 Gbps) Link
Flashing Indicates Activity
White 10 Gbps Link
Flashing Indicates Activity
Used for temporary support during installation.
Used for pole-mounting or in combination with the included Wall-Mount Bracket for wall-
mounting.
Used for mounting an optional PicoStationM2HP (not included) to the back of the
EdgePoint. (You can use the PicoStationM2HP for wireless management of the EdgePoint.)
Used to secure a ground wire (not included).

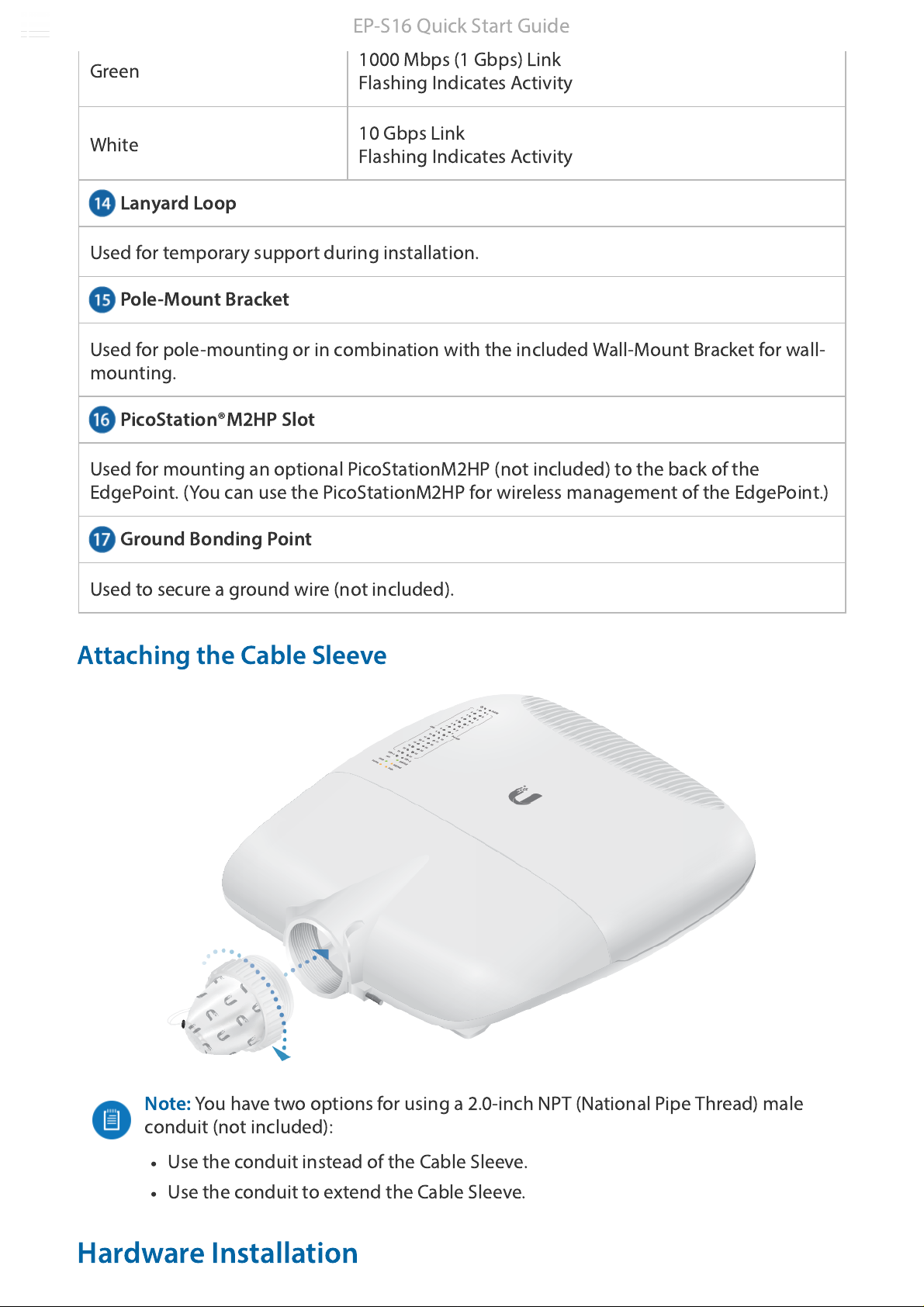

Attaching the Cable Sleeve
Note: You have two options for using a 2.0-inch NPT (National Pipe Thread) male
conduit (not included):
Use the conduit instead of the Cable Sleeve.
Use the conduit to extend the Cable Sleeve.
Hardware Installation
EP-S16 Quick Start Guide

Mount the EdgePoint on a pole or to a wall:
"Pole-Mounting"
"Wall-Mounting"
Pole-Mounting
1.
2.
EP-S16 Quick Start Guide

3. Proceed to "Grounding the EdgePoint" .
Wall-Mounting
Note: The Wall-Mount Bracket must be anchored directly to a stud or other
structurally stable surface.
1.
2.
3.
EP-S16 Quick Start Guide

Grounding the EdgePoint
1.
2.
EP-S16 Quick Start Guide

Connecting Ethernet
1.
2. 
EP-S16 Quick Start Guide

Note: PoE is disabled by default.
3.

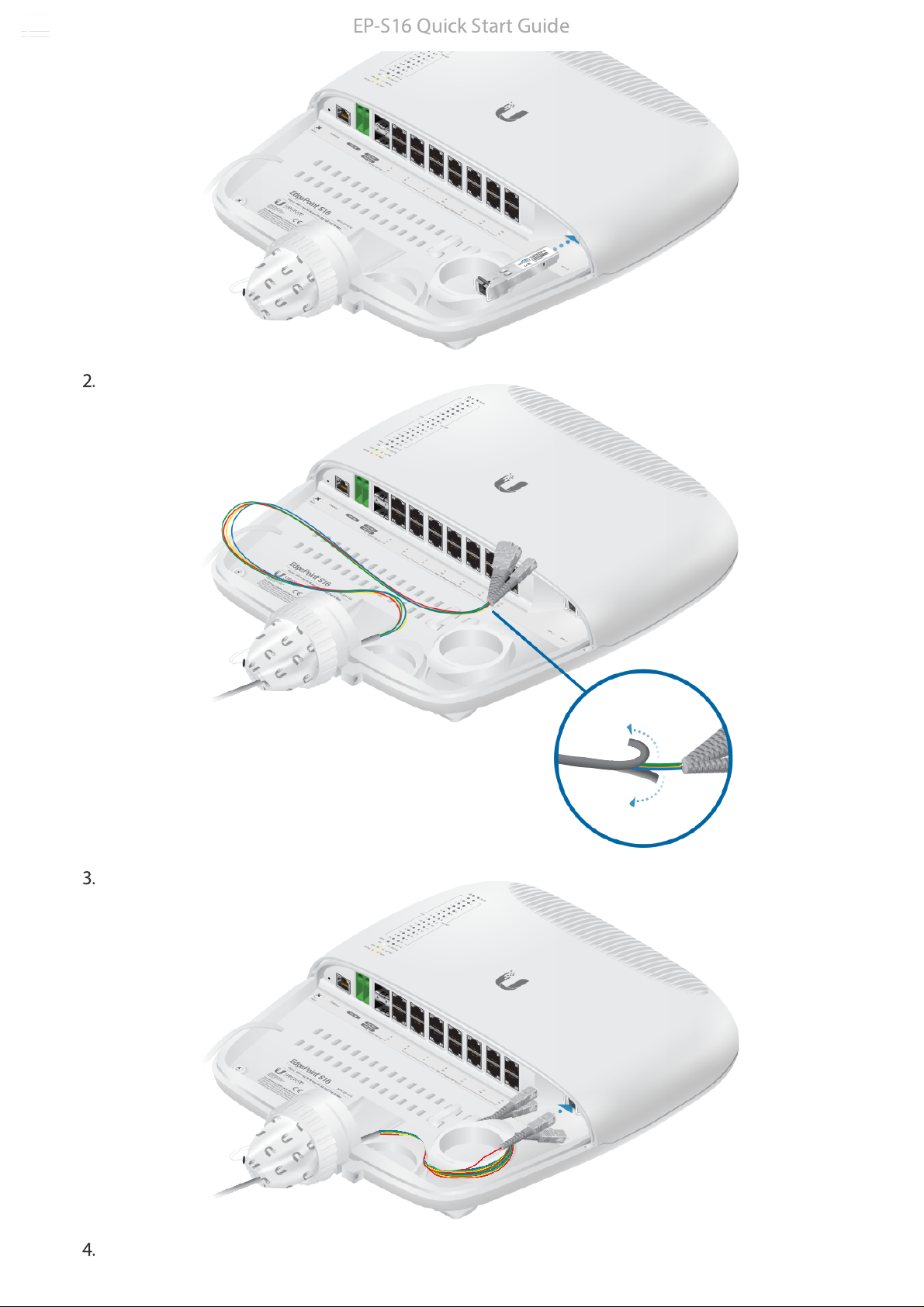

Connecting SFP+/SFP
For information about compatible ber SFP modules, visit:
ubnt.link/SFP_DAC_Compatibility
1.
EP-S16 Quick Start Guide

2.
3.
4.
EP-S16 Quick Start Guide

Connecting Power
Proceed to the appropriate section:
"Connecting to the VDC Input"
"Connecting Power Using PoE"
WARNING: -48V is NOT supported.
Connecting to the VDC Input
1.
2.
EP-S16 Quick Start Guide

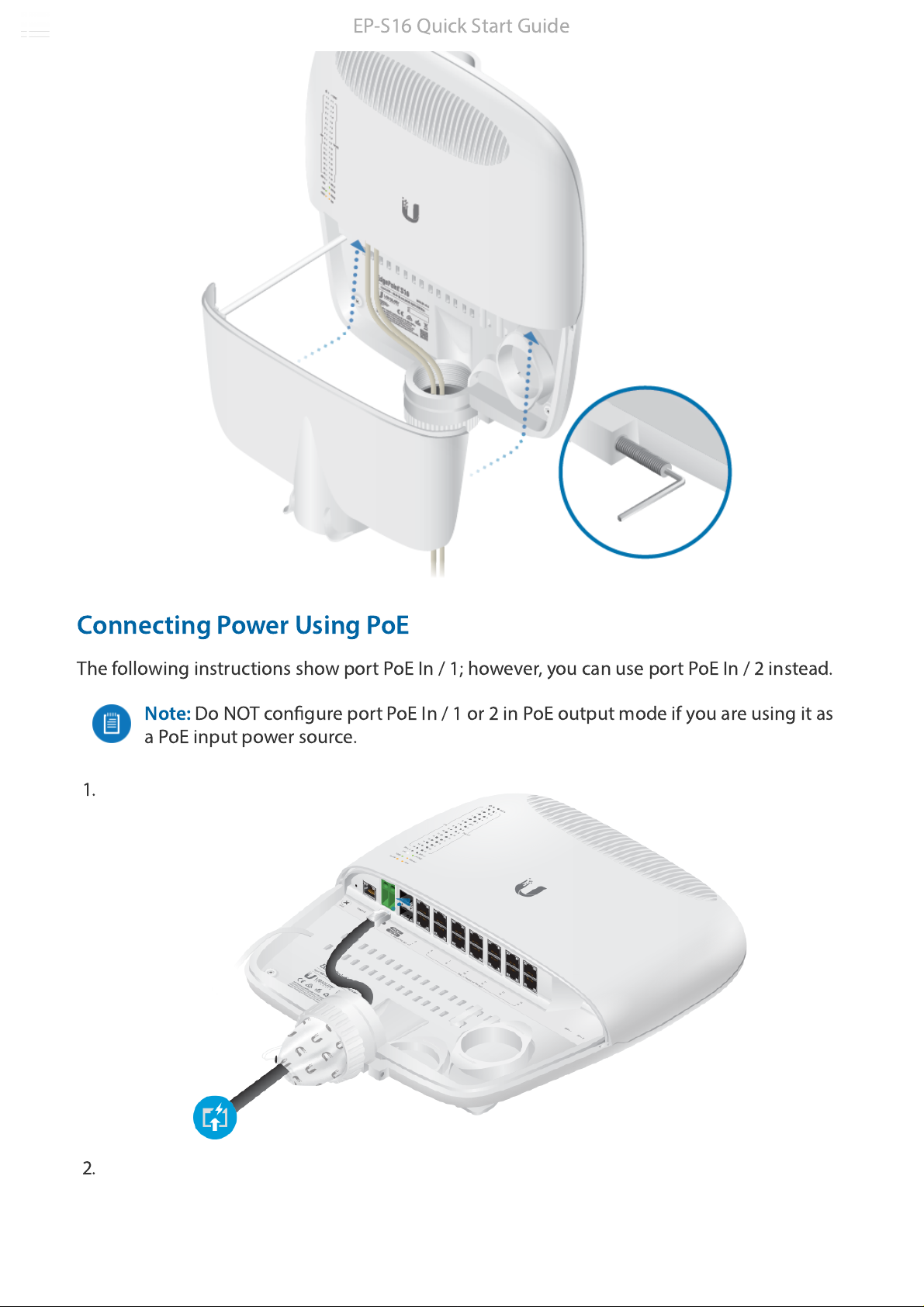

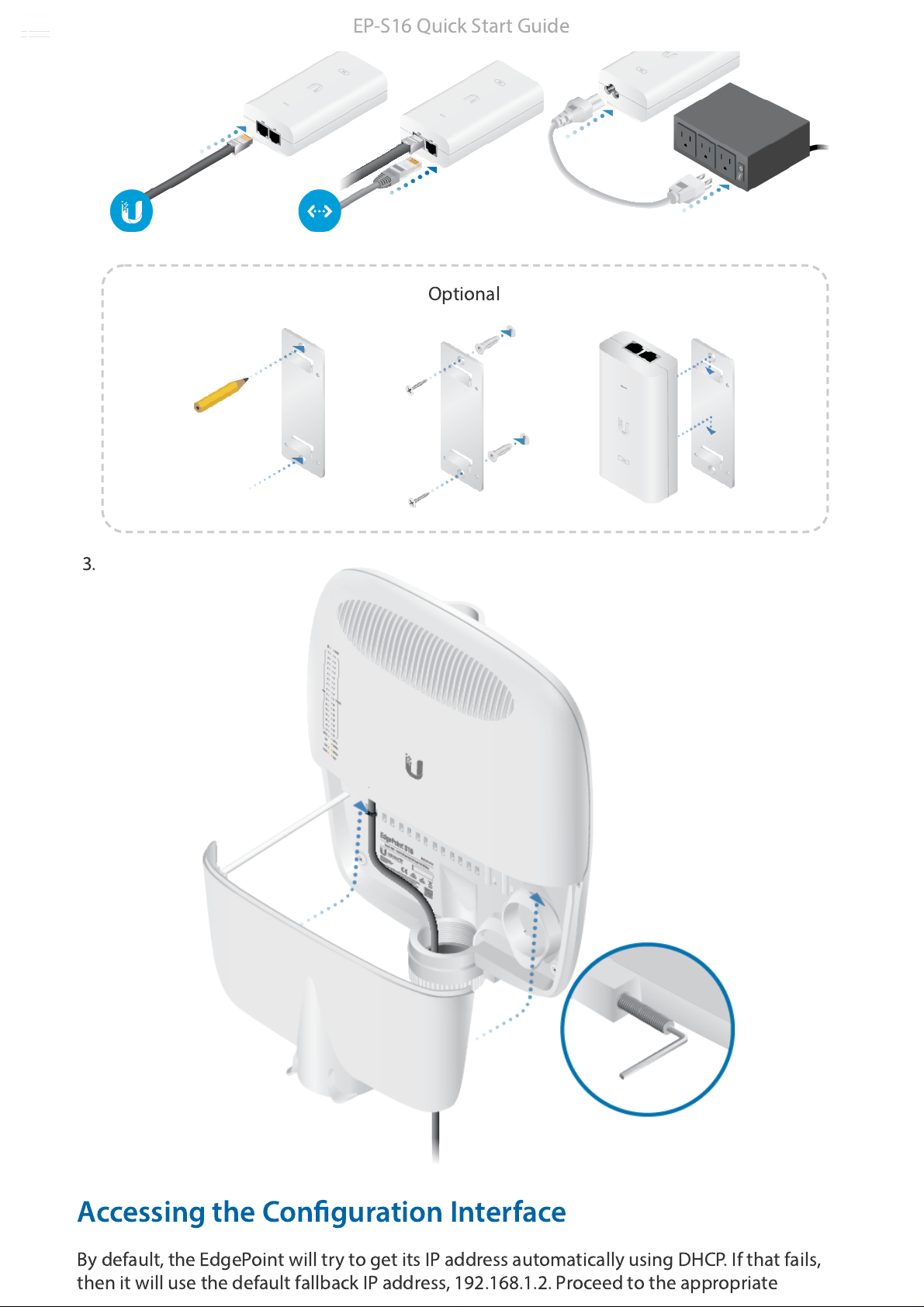

Connecting Power Using PoE
The following instructions show port PoE In / 1; however, you can use port PoE In / 2 instead.
Note: Do NOT congure port PoE In / 1 or 2 in PoE output mode if you are using it as
a PoE input power source.
1.
2.
EP-S16 Quick Start Guide

Optional
3.
Accessing the Conguration Interface
By default, the EdgePoint will try to get its IP address automatically using DHCP. If that fails,
then it will use the default fallback IP address, 192.168.1.2. Proceed to the appropriate
EP-S16 Quick Start Guide

section, DHCP or "Fallback IP Address" :

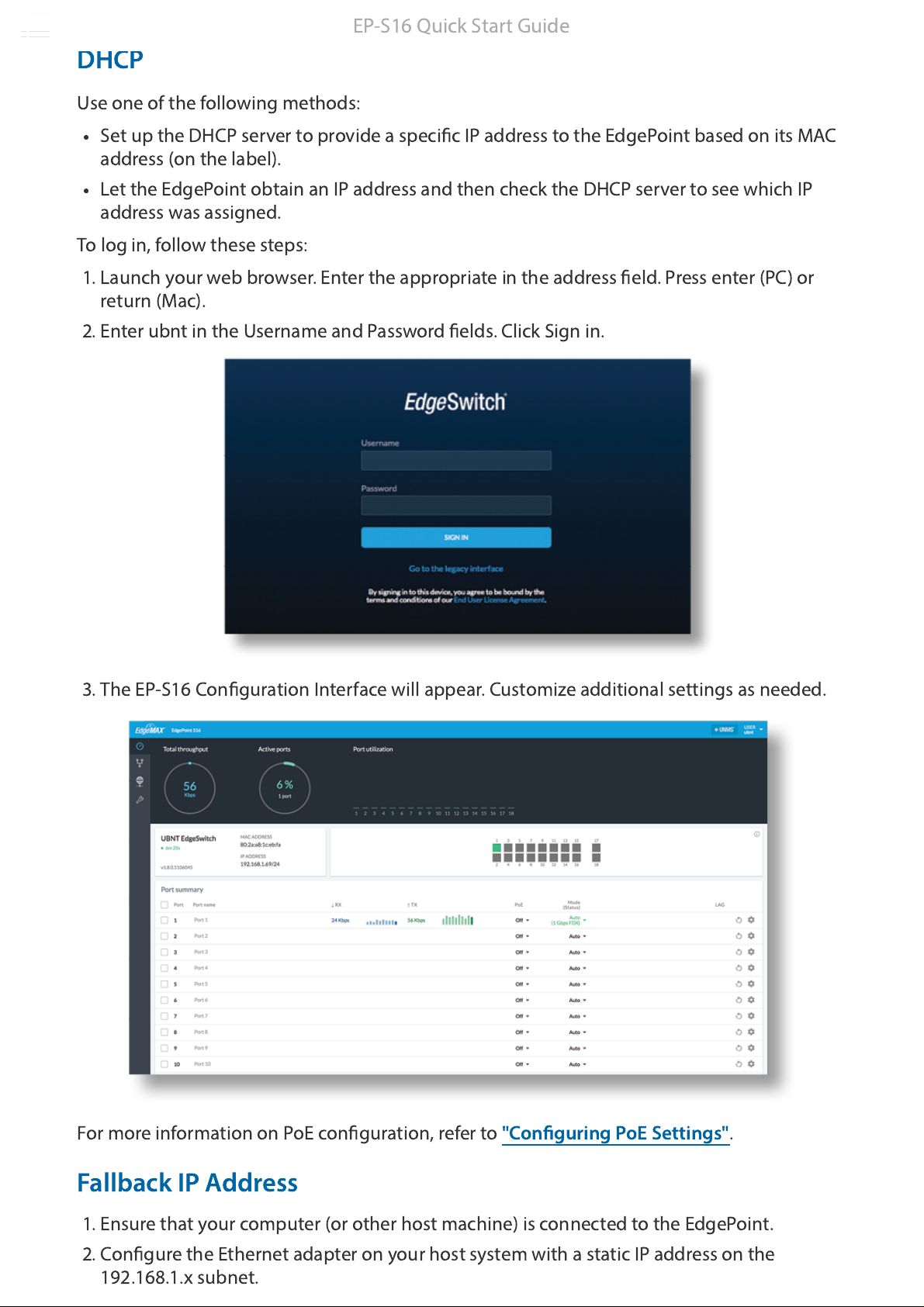

DHCP
Use one of the following methods:
Set up the DHCP server to provide a specic IP address to the EdgePoint based on its MAC
address (on the label).
Let the EdgePoint obtain an IP address and then check the DHCP server to see which IP
address was assigned.
To log in, follow these steps:
1. Launch your web browser. Enter the appropriate in the address eld. Press enter (PC) or
return (Mac).
2. Enter ubnt in the Username and Password elds. Click Sign in.
3. The EP-S16 Conguration Interface will appear. Customize additional settings as needed.
For more information on PoE conguration, refer to "Conguring PoE Settings" .
Fallback IP Address
1. Ensure that your computer (or other host machine) is connected to the EdgePoint.
2. Congure the Ethernet adapter on your host system with a static IP address on the
192.168.1.x subnet.
EP-S16 Quick Start Guide

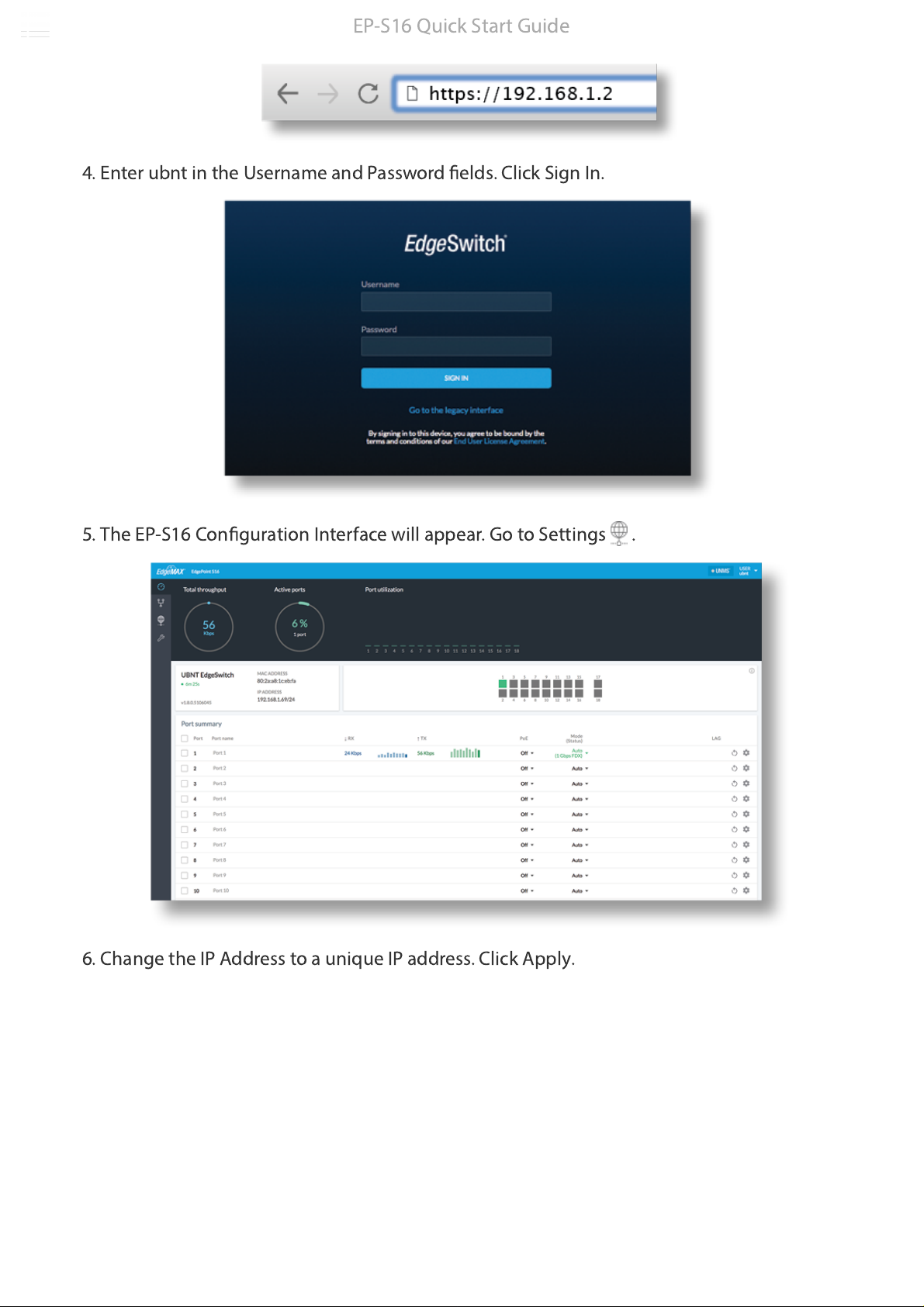

3. Launch your web browser. Enter the appropriate in the address eld (192.168.1.2 is the
default fallback IP address). Press enter (PC) or return (Mac).
4. Enter ubnt in the Username and Password elds. Click Sign In.
5. The EP-S16 Conguration Interface will appear. Go to Settings .
6. Change the IP Address to a unique IP address. Click Apply.
EP-S16 Quick Start Guide

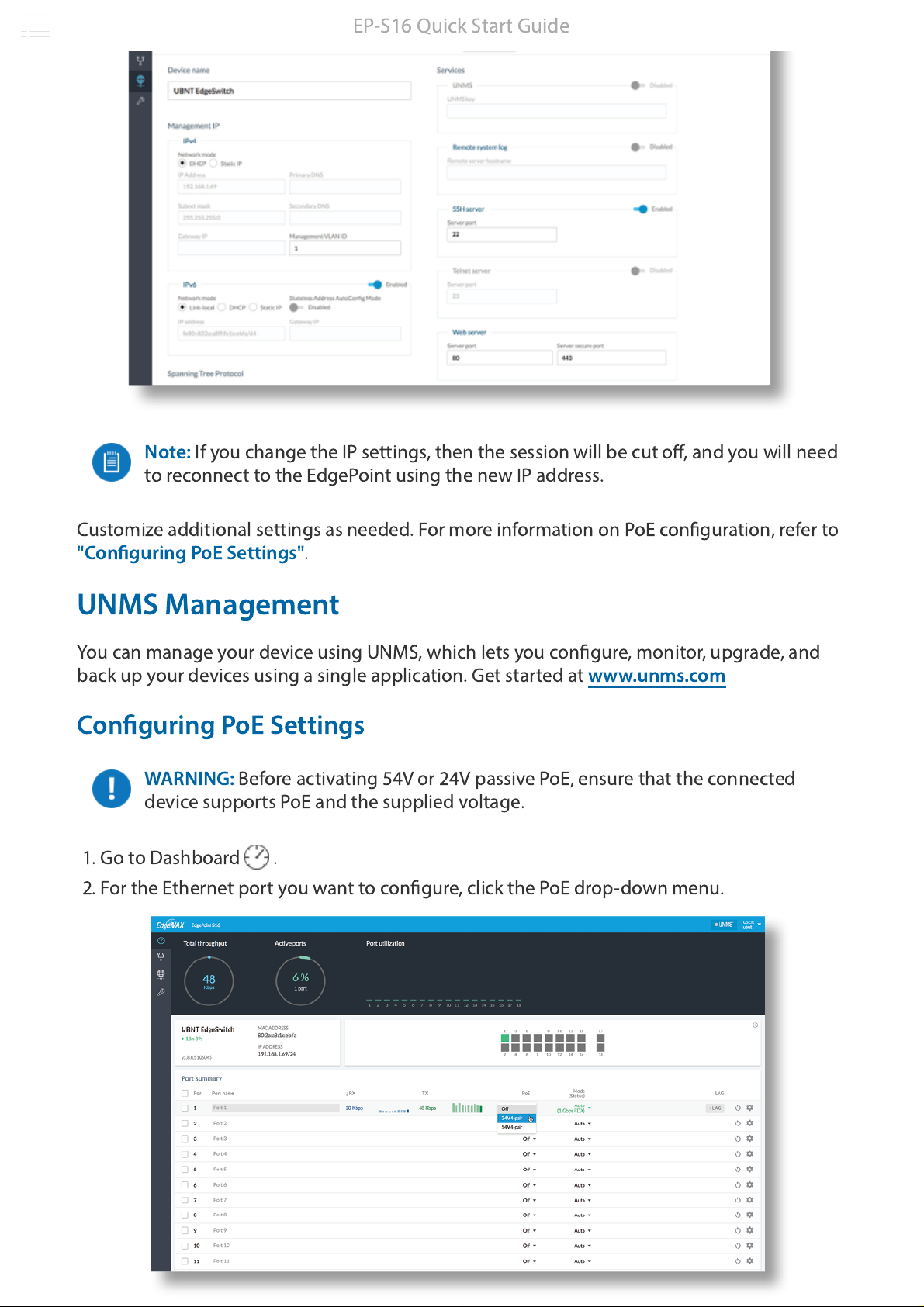

Note: If you change the IP settings, then the session will be cut off, and you will need
to reconnect to the EdgePoint using the new IP address.
Customize additional settings as needed. For more information on PoE conguration, refer to
"Conguring PoE Settings" .
UNMS Management
You can manage your device using UNMS, which lets you congure, monitor, upgrade, and
back up your devices using a single application. Get started at www.unms.com
Conguring PoE Settings
WARNING: Before activating 54V or 24V passive PoE, ensure that the connected
device supports PoE and the supplied voltage.
1. Go to Dashboard .
2. For the Ethernet port you want to congure, click the PoE drop-down menu.
EP-S16 Quick Start Guide

3. Select the appropriate mode:
For ports 1-4, select Off, 54V passive 4-pair, or 24V passive 4-pair.
For ports 5-16, select Off, PoE+ auto, or 24V passive.
WARNING: Do NOT connect 4-pair PoE devices, such as airFiber devices, to ports 5-
16. They support 2-pair PoE only.
Note: If the PoE screen states that PoE is not supported, then there is insufficient
power. You will need to increase the power input to the EdgePoint.
For more information, refer to the EdgeSwitch™ documentation, which is available at
ui.com/download/edgemax
Specications
EP-S16
Dimensions 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
With Wall-Mount 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight 3.4 kg (7.50 lb)
With Wall-Mount 3.8 kg (8.38 lb)
Max. Power Consumption 40W (Excludes PoE Output)
Power Input (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2)
(Self-Correcting Polarity Protection on DC Terminal Block
Only,
Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54V / 6A
Passive PoE Input (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports
1 and 2
(Do NOT Congure Port 1 or 2 in PoE Output Mode if You
Are Using PoE Input Power Sources.)
Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive
PoE, Ports 1 to 4
(12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE,
Ports 5 to 16
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, Ports 1 and 2, PoE Input or Output Power
(14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range +42 to +56VDC
(-48V is NOT Supported)
Button Reset
LEDs
System Power
PoE In PoE
1 to 16 Speed/Link/Activity, PoE
SFP Speed/Link/Activity
EP-S16 Quick Start Guide

EP-S16
Ports
Serial Console Port (1) RJ45 Serial Port
Data Ports (16) 10/100/1000 RJ45 Ports
(2) 1/10 Gbps SFP+ Ports
Pole/Wall Mount Yes
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 - 90% Noncondensing
Certications CE, FCC, IC

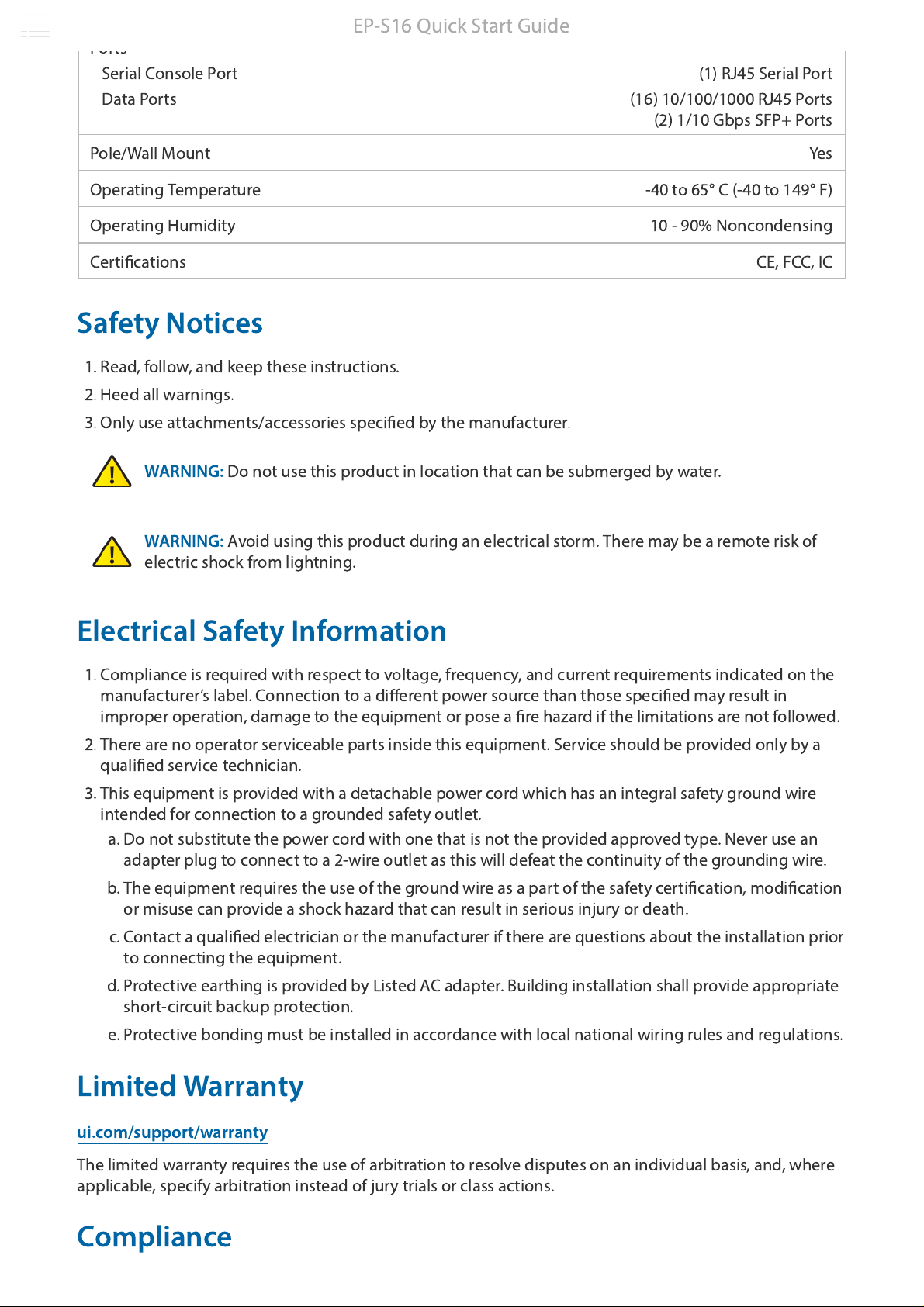

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specied by the manufacturer.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of
electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the
manufacturer’s label. Connection to a different power source than those specied may result in
improper operation, damage to the equipment or pose a re hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a
qualied service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground wire
intended for connection to a grounded safety outlet.
a. Do not substitute the power cord with one that is not the provided approved type. Never use an
adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the safety certication, modication
or misuse can provide a shock hazard that can result in serious injury or death.
c. Contact a qualied electrician or the manufacturer if there are questions about the installation prior
to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate
short-circuit backup protection.
e. Protective bonding must be installed in accordance with local national wiring rules and regulations.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where
applicable, specify arbitration instead of jury trials or class actions.
Compliance
EP-S16 Quick Start Guide
