Ubiquiti EdgeSwitch 8 User manual

AC or DC Powered, Managed
PoE+ Gigabit Switch with SFP
Model: ES-8-150W

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeSwitch™.
This Quick Start Guide is designed to guide you through the
installation and also includes the warranty terms.
Package Contents
EdgeSwitch ES-8-150W
Power Cord Mount Brackets
(Qty. 2)
Bracket Screws
(M4, Qty. 8)
ACor DC Powered, Managed
PoE+Gigabit Switch with SFP
Model:ES-8-150W
Mounting Screws
(M4, Qty. 4)
Screw Anchors
(M4, Qty. 4)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.

System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Web Browser: Mozilla Firefox, Google Chrome, Microsoft
Edge, or Microsoft Internet Explorer 11
Installation Requirements
• Phillips screwdriver (for shelf or wall mounting)
• (Optional) 42 to 56VDC power source, such as the
EdgePower™EP-54V-150W, for stand-alone DC power or
redundant power backup.
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable
WARNING: To reduce the risk of fire or electric shock,
do not expose the switch to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgeSwitch itself should be housed inside a
protective enclosure.

Hardware Overview
LEDs
System
PoE
SFP
Link/Speed/Activity
RJ45
Link/Speed/Activity
RJ45 LEDs
LED State Status
PoE
Off No PoE
Amber IEEE 802.3af/802.3at
Green 24V Passive
Link/
Speed/
Activity
Off No Link
Amber
Link Established at
10/100Mbps
Flashing Indicates Activity
Green
Link Established at
1000Mbps (1 Gbps)
Flashing Indicates Activity

System LED
State Status
Steady Blue Initializing.
Flashing Blue Resetting to factory defaults.
Steady White Ready for use and working properly.
SFP LEDs
LED State Status
Link/
Speed/
Activity
Off No Link
Green Link Established at 1Gbps
Flashing Indicates Activity

Front Panel
RJ45 1-8 SFP 1-2
Reset Button
Port Description
RJ45 1-8
RJ45 ports support 10/100/1000 Ethernet
connections and configurable Power over
Ethernet (auto PoE+ or 24V Passive).
SFP 1-2 Hot-swappable SFP ports support 1 Gbps
connections.
Reset
Button
There are two methods to reset the EdgeSwitch
to factory defaults:
Runtime Reset (Recommended)
The EdgeSwitch should be running after bootup
is complete, and the System LED is white. Press
and hold the Reset button. The EdgeSwitch
will reboot, and the System LED becomesblue
after three seconds. Continue to hold the
Reset button for about 15seconds until the
System LED flashes blue for two seconds. This
indicates that the EdgeSwitch has reset to its
factorydefaults.
Power-on Reset
1. Disconnect power from the EdgeSwitch.
2. Reconnect power while holding the Reset
button for about 15seconds until the System
LED flashes blue for two seconds. This
indicates that the EdgeSwitch has reset to its
factory defaults.

Back Panel
AC Power
DC Input Ground
Console Port
Port Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
AC Power Connect the included Power Cord to the AC
Power port.
DC Input
Optional DC input for connecting a
redundant or stand-alone 42 to 56VDC
power source, such as the EdgePower
EP-54V-150W.
Ground Ground bonding point for an optional
ground wire.
Note: The redundant DC power source may be used
as a hot backup. The DC power source will provide
continuous power in the event of an interruption or
loss of AC power.

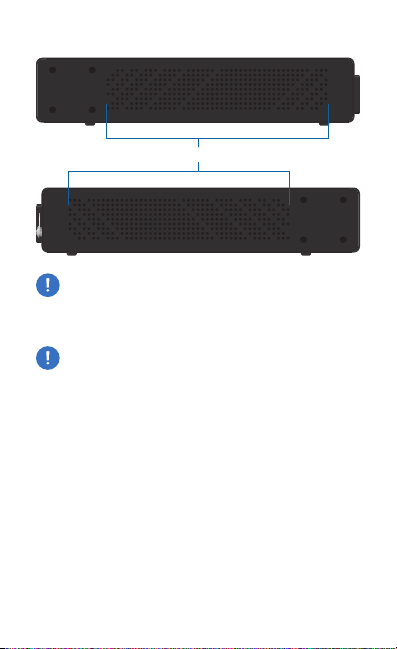

Side Panels
Ventilation Holes
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
WARNING: The ES-8-150W must not be stacked. Do not
place it on top of another switch. Do not place anything
on top of the ES-8-150W.

Hardware Installation
The EdgeSwitch may be placed on a desktop, or mounted on
a shelf or wall.

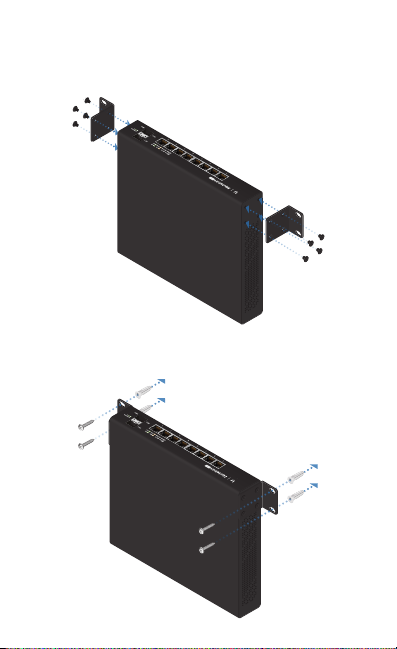

Shelf Mounting
1. Position the two Mount Brackets as shown below, and
attach the brackets using the eight Bracket Screws.
2. Secure the EdgeSwitch to the shelf using the four
MountingScrews.

Wall Mounting
1. Position the two Mount Brackets as shown below, and
attach the brackets using the eight Bracket Screws.
2. Attach the EdgeSwitch to the wall using the four Screw
Anchors and four Mounting Screws.

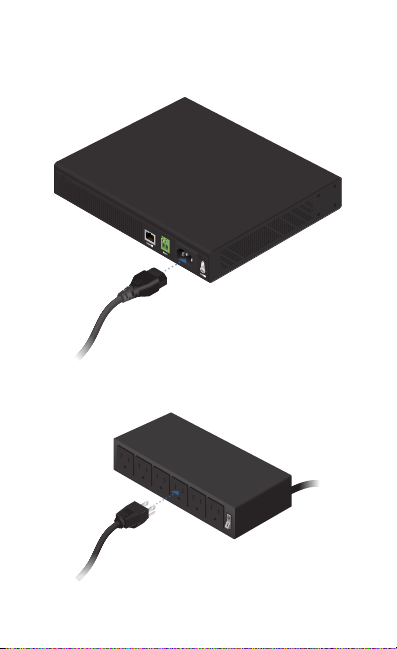

Connecting AC Power
1. Connect the Power Cord to the AC power port on the back
of the EdgeSwitch.
2. Plug the Power Cord into a power outlet.

Connect DC Power (Optional)
For stand-alone DC power or redundant power backup,
connect a 42 to 56VDC power source to the EdgeSwitch:
Note: Only AC power or DC power can be used at any
one time. With both power sources connected, the
input with the highest voltage will be used (output
voltage of the internal AC/DC PSU is 54VDC); the
other power source defaults to backup.
1. Insert the DC power cable wires into the DC Input terminal
block. Polarity is self-correcting.
2. Turn the two terminal block screws clockwise to secure the
wires to the terminal block.

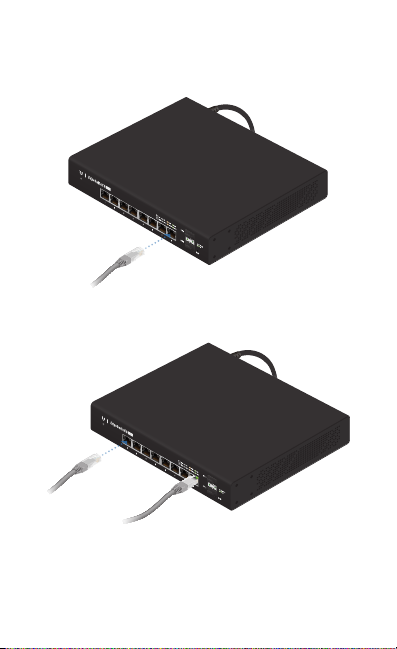

Connecting Ethernet
1. Connect an Ethernet cable from your DHCP server or LAN
to any port on the EdgeSwitch.
2. Connect your computer or host system and other devices
to the other ports on the EdgeSwitch.

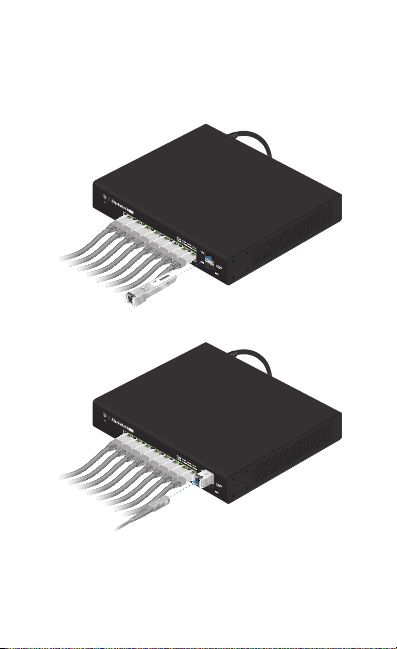

Using SFP Ports
To use an SFP port:
1. Remove the dust plug covering the SFP port.
2. Insert a compatible fiber SFP module into the SFP port.
1000MbpsSM/SC20KM DDM
Tx1550nm/Rx1310nm
3. Connect the fiber optic cable to the fiber SFP module.
For information about compatible fiber SFP modules, visit:
community.ubnt.com/edgemax
*640-00235-04*
640-00235-04

Accessing the Configuration Interface
The EdgeSwitch is set to DHCP by default, so it will try to
automatically obtain an IP address. If that fails, then it will use
the default fallback IP address, 192.168.1.2. Proceed to the
appropriate section, DHCP or Fallback IP Address:
DHCP
Use one of the following methods:
• Set up the DHCP server to provide a specific IP address to
the EdgeSwitch based on its MAC address (on the label).
• Let the EdgeSwitch obtain an IP address and then check the
DHCP server to see which IP address was assigned.
To log in, follow these steps:
1. Launch your web browser. Type the appropriate IP address
in the address field. Press enter (PC) or return (Mac).
2. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
The EdgeSwitch Configuration Interface will appear. Customize
additional settings as needed. For more information, refer
to the EdgeSwitch documentation, which is available at
documentation.ubnt.com/edgemax

Fallback IP Address
1. Ensure that your computer (or other host system) is
connected to the EdgeSwitch.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type the appropriate IP address
in the address field (192.168.1.2 is the default fallback IP
address). Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.

5. The EdgeSwitch Configuration Interface will appear. Go to
System > Connectivity > IPv4.
6. Change the IP Address to a unique IP address or select
DHCP on the IPv4 tab. Click Submit.
Note: If you change the IP settings, then the session
will be cut off, and you will need to reconnect to the
EdgeSwitch using the new IP address.
Customize additional settings as needed. For more
information, refer to the EdgeSwitch documentation, which is
available at documentation.ubnt.com/edgemax

Specifications
EdgeSwitch ES-8-150W
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight
Without Wall Mount
With Wall Mount
1.72 kg (3.79 lb)
1.8 kg (3.96 lb)
Line Rate 10 Gbps, Non-Blocking
LEDs
System
RJ45 Data Ports
SFP Data Ports
Status
PoE; Link/Speed/Activity
Link/Speed/Activity
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface Ethernet In-Band,
UART Console Out-of-Band
PoE Interfaces (8) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6)
(8) 24V/0.7A 2-Pair (+4, 5; -7, 8)
Max. Power Consumption 20W (Excludes PoE Output)
Power Method
AC
DC
AC/DC Integrated PSU, Universal Input
DC External, (Self-Correcting Polarity
Protection) Terminal Block Input
Power Supply Internal AC/DC 150W
Operating Voltage
AC
DC
100 to 240VAC, 50-60 Hz
42 to 56VDC
Operating Temperature
Internal AC/DC @ 150W
Internal AC/DC @ 100W
External DC
-25 to 45° C (-13 to 113° F)
-25 to 55° C (-13 to 131° F)
-25 to 60° C (-13 to 140° F)
Operating Humidity 5 to 95% Noncondensing
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Certications CE, FCC, IC

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may
cause fire hazard. Keep at least 20mm of clearance next
to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
