Ubiquiti EdgeSwitch ES-16-150W User manual

Managed PoE+ Gigabit Switch
with SFP
Model: ES-16-150W

Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeSwitch®.
This Quick Start Guide is designed to guide you through the
installation and also includes the warranty terms.
Package Contents
EdgeSwitch ES-16-150W
Power Cord Mount Brackets
(Qty. 2)
Bracket Screws
(Qty. 8)
Mounting Screws
(Qty. 4)
Cage Nuts
(Qty. 4)
Rubber Feet
(Qty. 4)
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, indoor cabling requirements, and Dynamic Frequency
Selection (DFS) requirements.

Installation Requirements
• Phillips screwdriver (for rack or wall mounting)
• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack mounting)
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable
WARNING: To reduce the risk of fire or electric shock,
do not expose the switch to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgeSwitch itself should be housed inside a
protective enclosure.

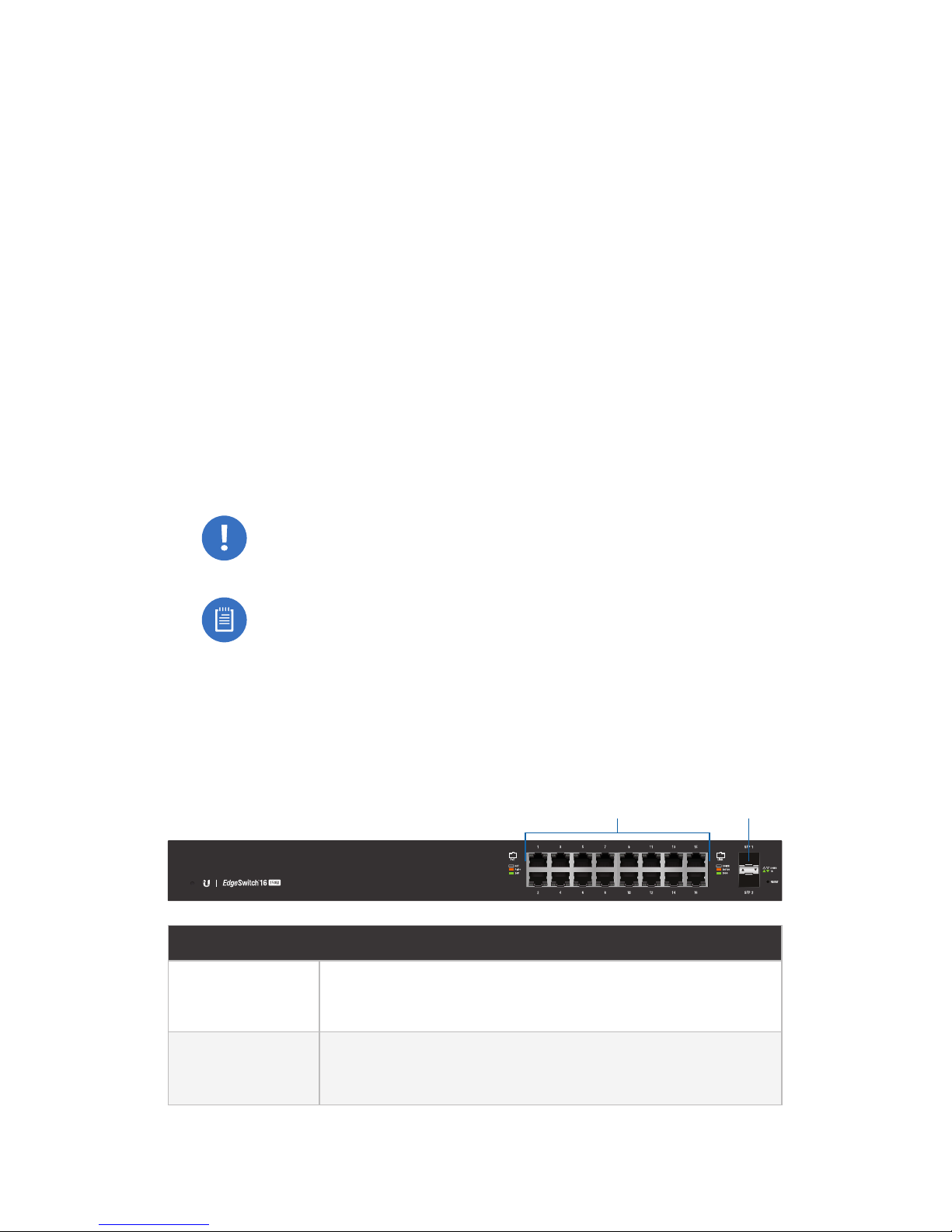

Hardware Overview
Front Panel Ports
RJ45 1-16 SFP 1-2
Port Description
RJ45 1-16 RJ45 ports support 10/100/1000 Ethernet
connections.
SFP 1-2 Hot-swappable SFP ports support 1 Gbps
connections.

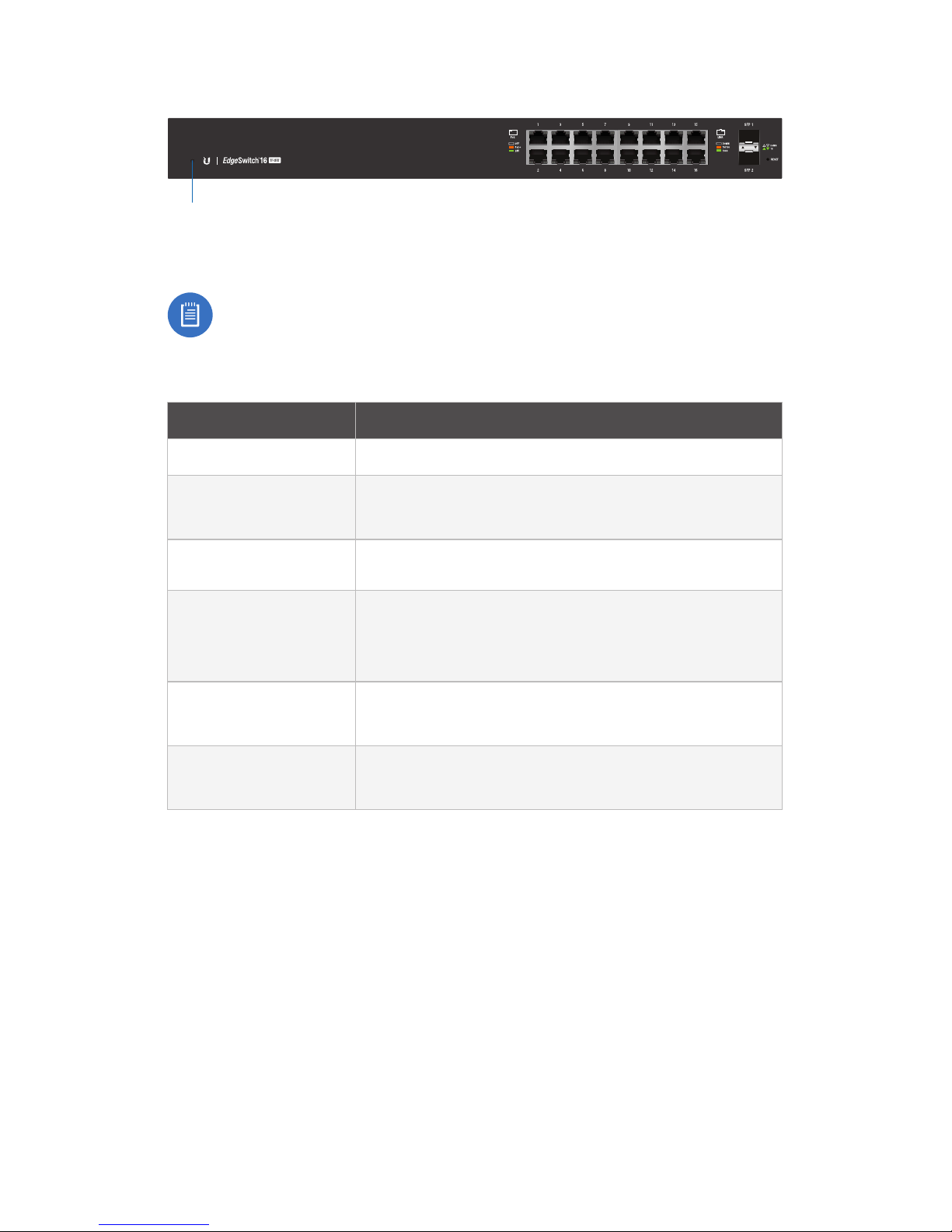

Front Panel LEDs
System
System LED
Note: The System LED functionality has been updated
with firmware v1.8.0. We recommend that you update
the EdgeSwitch to the latest firmware.
State Status
Flashing White Bootup in progress.
White Ready for use, not connected to Ubiquiti®
Network Management System (UNMS™).
Blue Ready for use, connected to UNMS.
Steady Blue
with Occasional
Flashing
Ready for use, unable to connect to
UNMS, check connection to UNMSserver.
Quickly Flashing
Blue Used to locate a device in UNMS.
Alternating
Blue/White Firmware upgrade in progress.
You can use the EdgeSwitch Configuration Interface or UNMS
to manage your device. UNMS lets you configure, monitor,
upgrade, and back up your devices using a singleapplication.
Get started at www.unms.com

RJ45:
PoE
RJ45:
Speed/Link/Activity
SFP:
Speed/Link/Activity
RJ45 LEDs
LED State Status
PoE
Off No PoE
Amber IEEE 802.3af/802.3at
Green 24V Passive
Speed/
Link/
Activity
Off No Link
Amber Link Established at 10/100 Mbps
Amber
Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps (1 Gbps)
Green
Flashing Link Activity at 1000 Mbps (1Gbps)
SFP LEDs
LED State Status
Speed/
Link/
Activity
Off No Link
Green Link Established at 1 Gbps
Green
Flashing Link Activity at 1Gbps

Front Panel Button
Reset
Button Description
Reset
There are two methods to reset the
EdgeSwitch to factory defaults:
Runtime Reset (Recommended)
The EdgeSwitch should be running after
bootup is complete, and the System LED
is white. Press and hold the Reset button.
The EdgeSwitch will reboot, and the System
LED becomesblue after three seconds.
Continue to hold the Reset button for
about 15seconds until the System LED
flashes blue for two seconds. This indicates
that the EdgeSwitch has reset to its
factorydefaults.
Power-on Reset
1. Disconnect the Power Cord from the
EdgeSwitch.
2. While connecting the Power Cord to
the EdgeSwitch, hold the Reset button
for about 15seconds until the System
LED flashes blue for two seconds. This
indicates that the EdgeSwitch has reset
to its factory defaults.

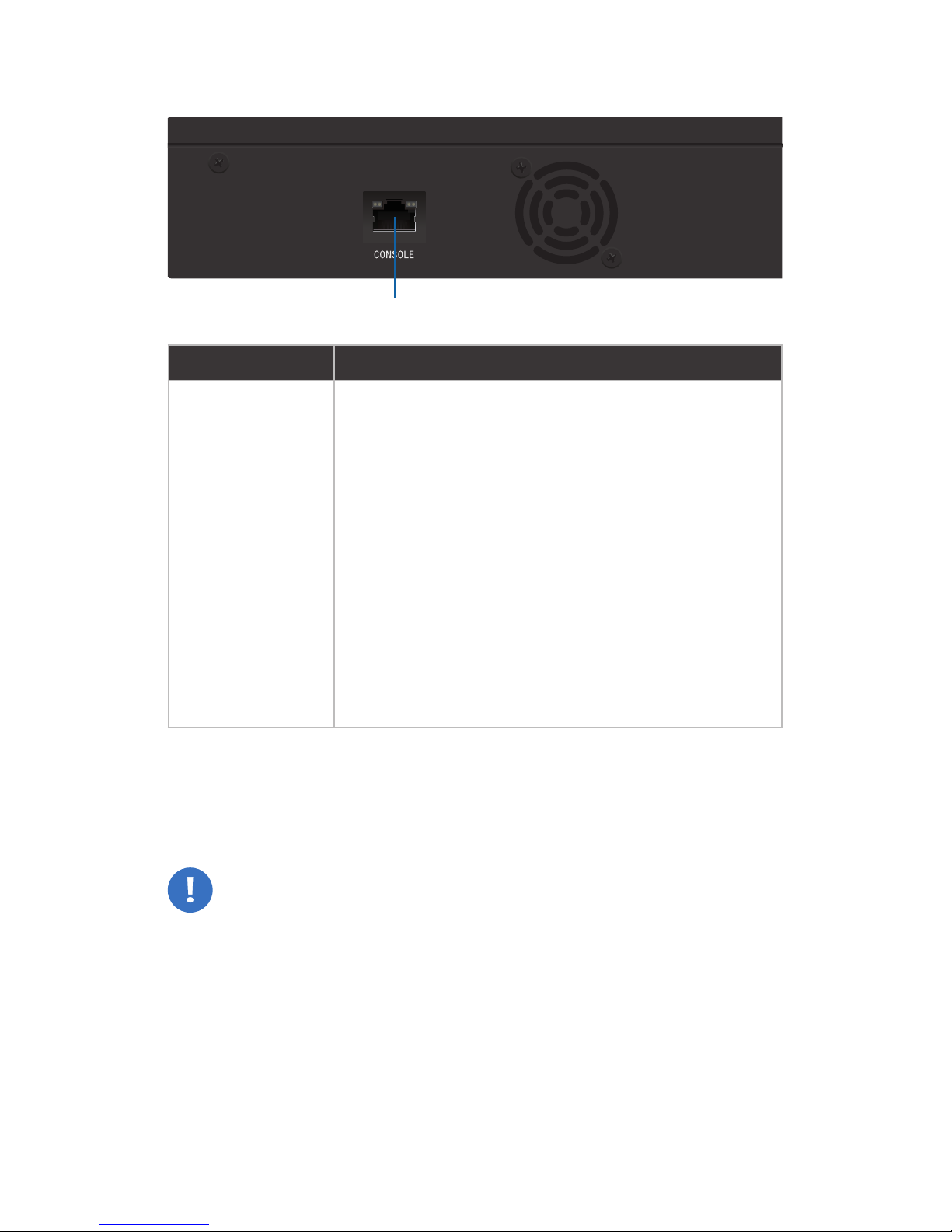

Back Panel Console Port
Console
Port Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
Hardware Installation
The EdgeSwitch can be placed on a horizontal surface,
mounted in a rack, or mounted on a wall.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
Place the Rubber Feet on the bottom of the EdgeSwitch if you
do not plan to mount it. For rack or wall mounting, follow the
appropriate steps:

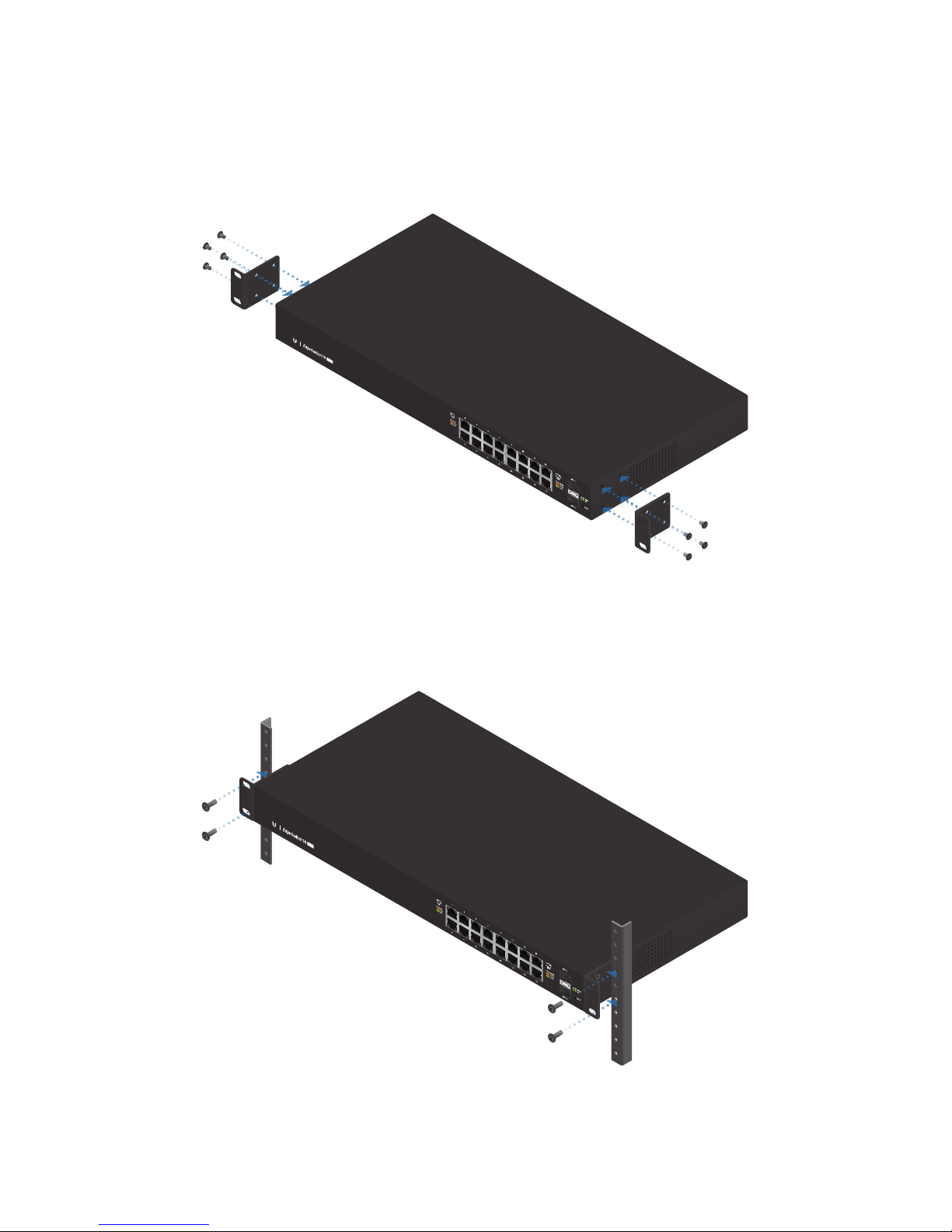

Rack Mounting
1. Attach the Mount Brackets to the EdgeSwitch using the
eight Bracket Screws, positioning the brackets as shown
below.
2. Attach the EdgeSwitch to the rack using the four Mounting
Screws. (If the rack has square slots, then use the Cage Nuts
with the Mounting Screws.)

Wall Mounting
1. Attach the Mount Brackets to the EdgeSwitch using the
eight Bracket Screws, positioning the brackets as shown
below.
2. Secure the EdgePower to the wall using the appropriate
fasteners and anchors (not included) for the wall.

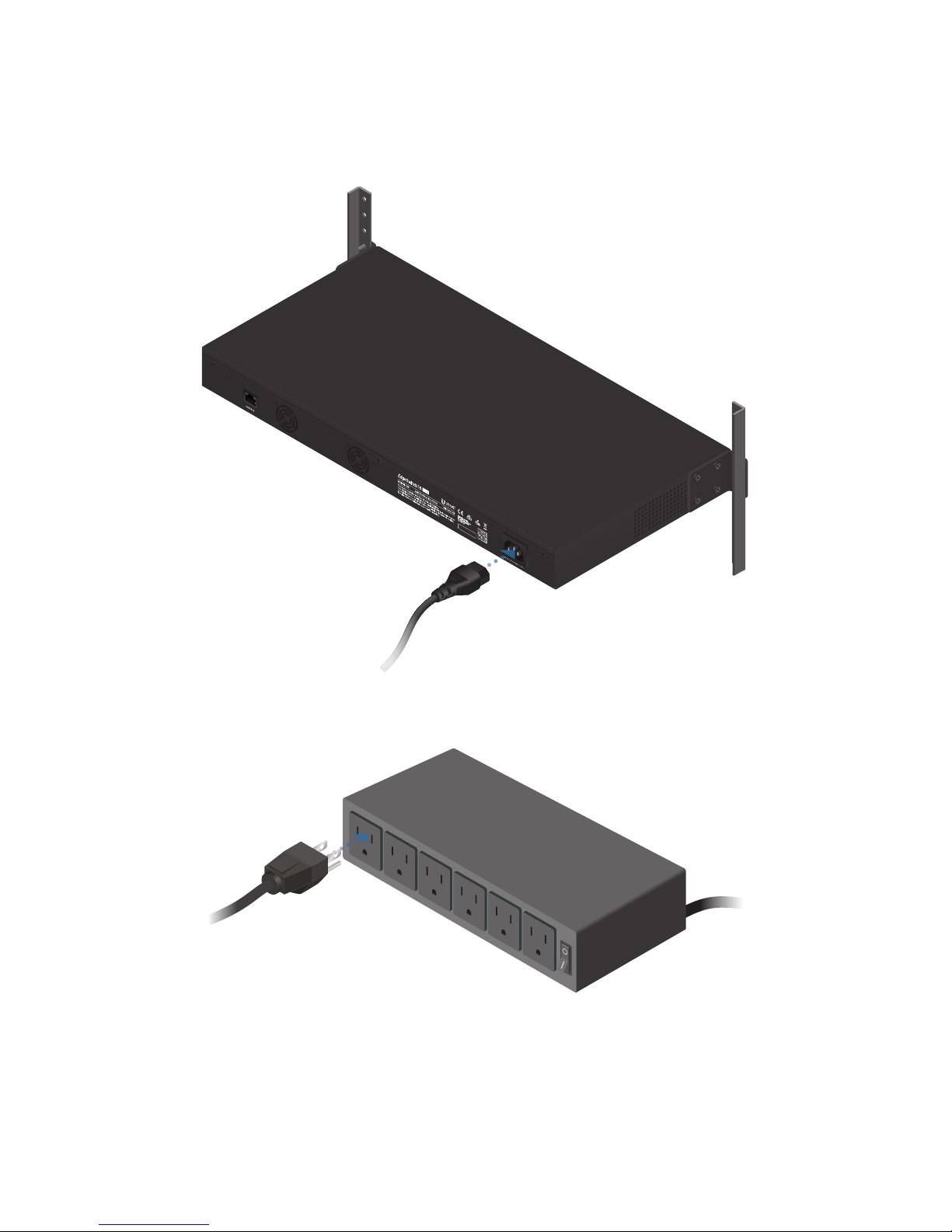

Connecting Power
1. Connect the Power Cord to the Power port of the
EdgeSwitch.
2. Plug the Power Cord into a power outlet.

Connecting Ethernet
1. Connect an Ethernet cable from your computer or host
system to any Ethernet port on the EdgeSwitch.
2. Connect Ethernet cables from your devices to the other
Ethernet ports on the EdgeSwitch.

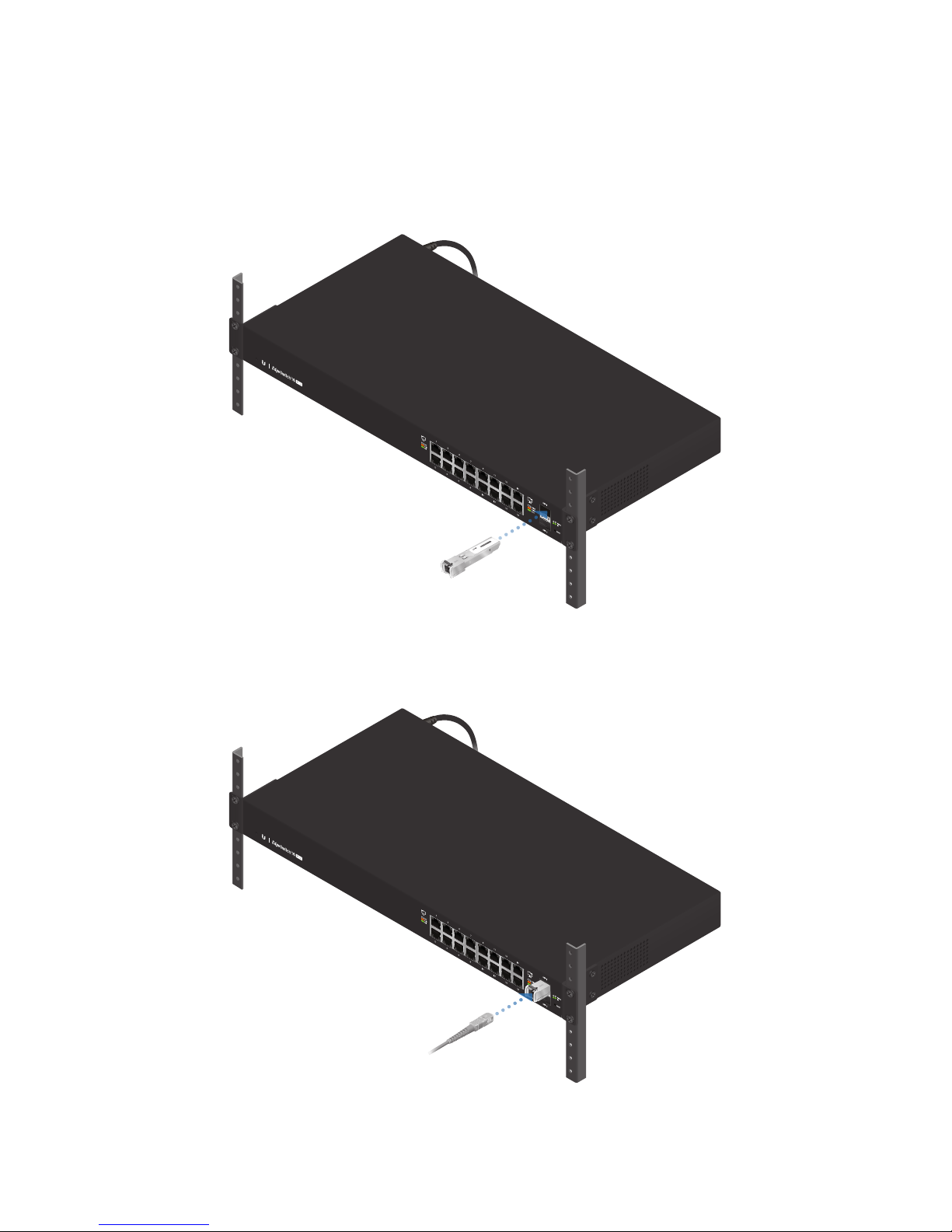

Using SFP Ports
To use an SFP port:
1. Remove the protective plug covering the SFP port.
2. Plug a compatible fiber module into the SFP port.
1000MbpsSM/SC 20KM DDM
Tx1550nm/Rx1310nm
3. Connect the fiber optic cable to the fiber module. Then
connect the other end of the cable to another fiber device.
For information about compatible fiber SFP modules, visit:
www.ubnt.com/download/edgemax

Accessing the Configuration Interface
By default, the EdgeSwitch will try to get its IP address
automatically using DHCP. If that fails, then it will use the
default fallback IP address, 192.168.1.2. Proceed to the
appropriate section, DHCP or “Fallback IP Address”:
DHCP
Use one of the following methods:
• Set up the DHCP server to provide a specific IP address to
the EdgeSwitch based on its MAC address (on the label).
• Let the EdgeSwitch obtain an IP address and then check the
DHCP server to see which IP address was assigned.
To log in, follow these steps:
1. Launch your web browser. Type the appropriate IP address
in the address field. Press enter (PC) or return (Mac).

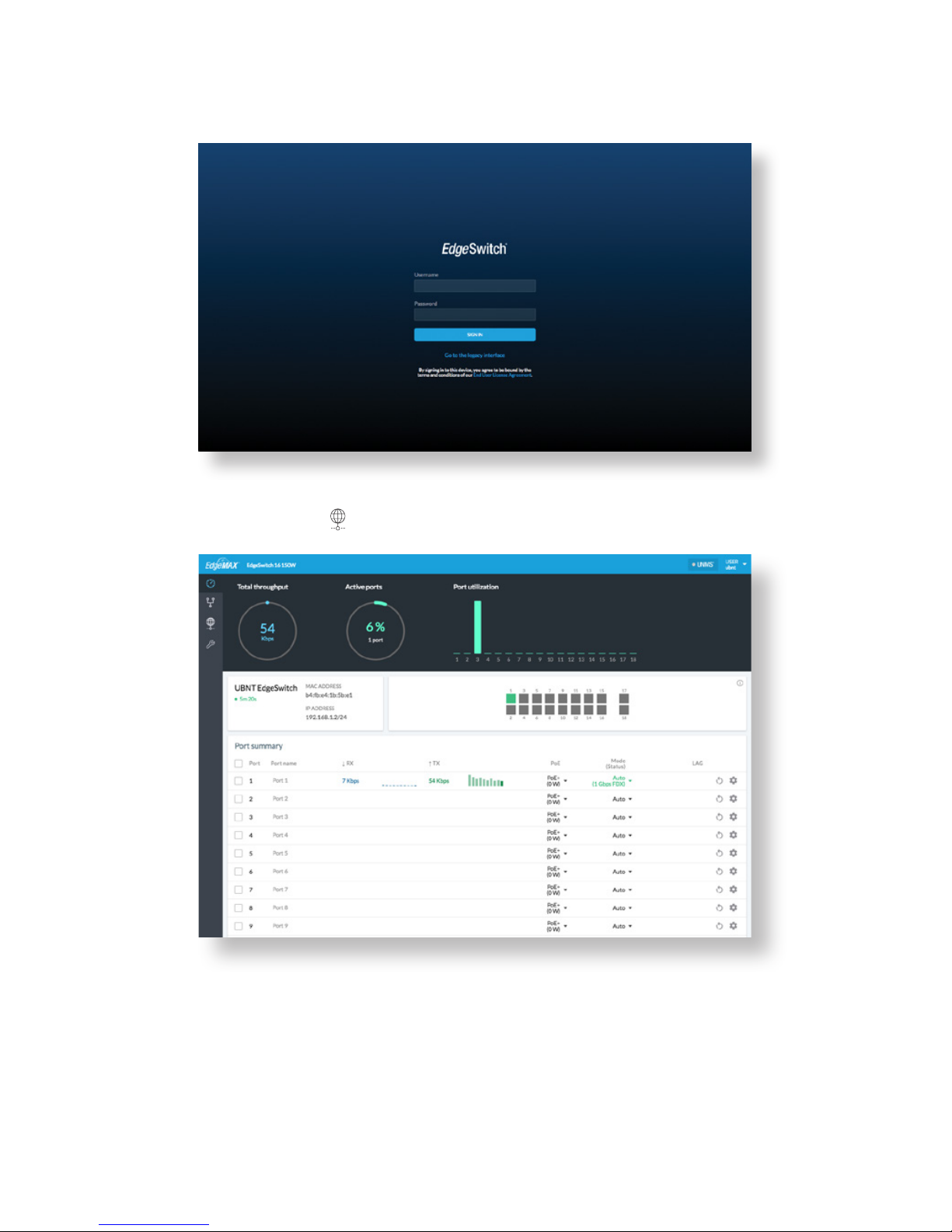

2. The login screen will appear. Enter ubnt in the Username
and Password fields. Click SignIn.

3. The EdgeSwitch Configuration Interface will appear.
Customize additional settings as needed.
For more information, refer to the EdgeSwitch documentation,
which is available at www.ubnt.com/download/edgemax
You can also manage your device using the Ubiquiti Network
Management System. UNMS lets you configure, monitor,
upgrade, and back up your devices using a single application.
Get started at www.unms.com
Fallback IP Address
1. Ensure that your computer (or other host machine) is
connected to the EdgeSwitch.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.

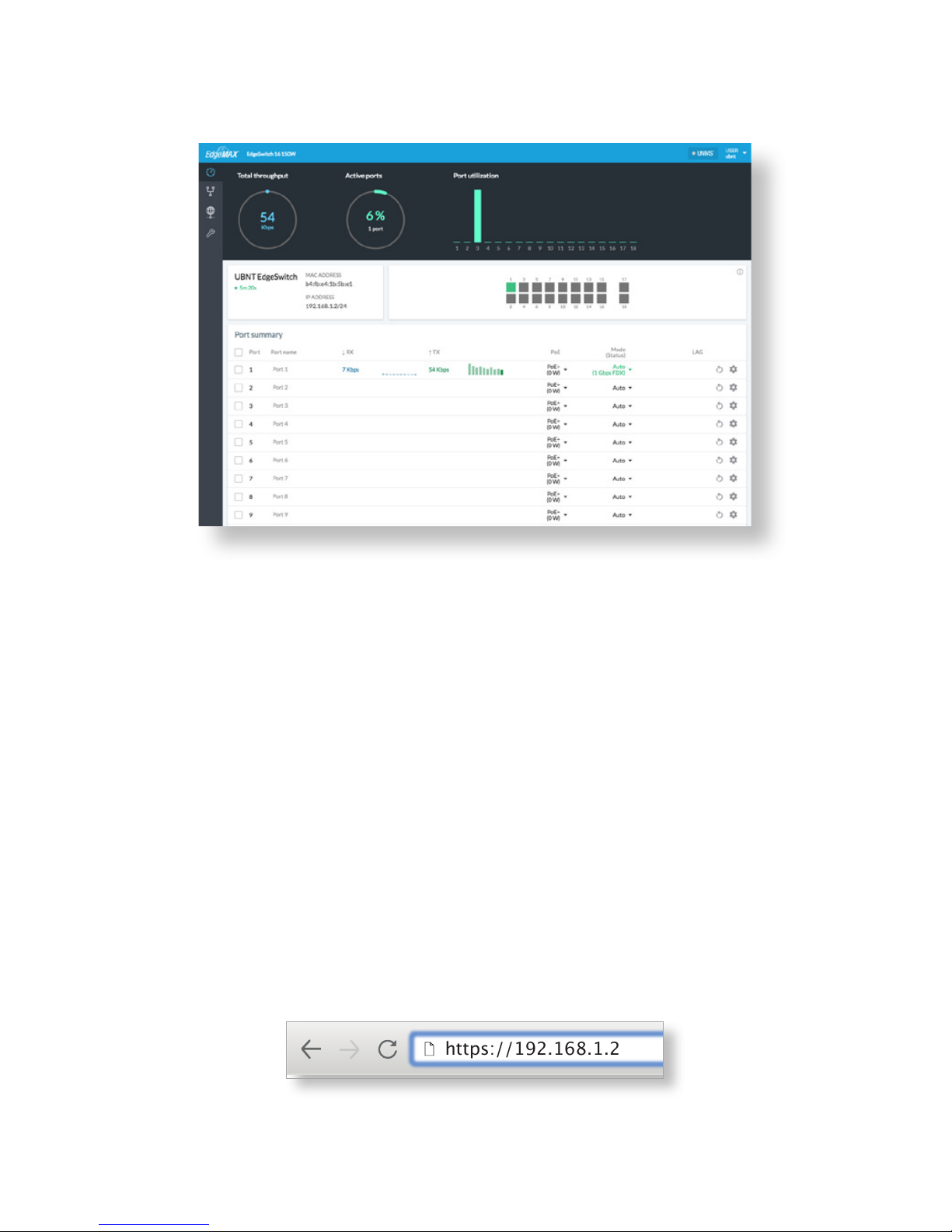

3. Launch your web browser. Type the appropriate IP address
in the address field (192.168.1.2 is the default fallback IP
address). Press enter (PC) or return (Mac).
https://192.168.1.2

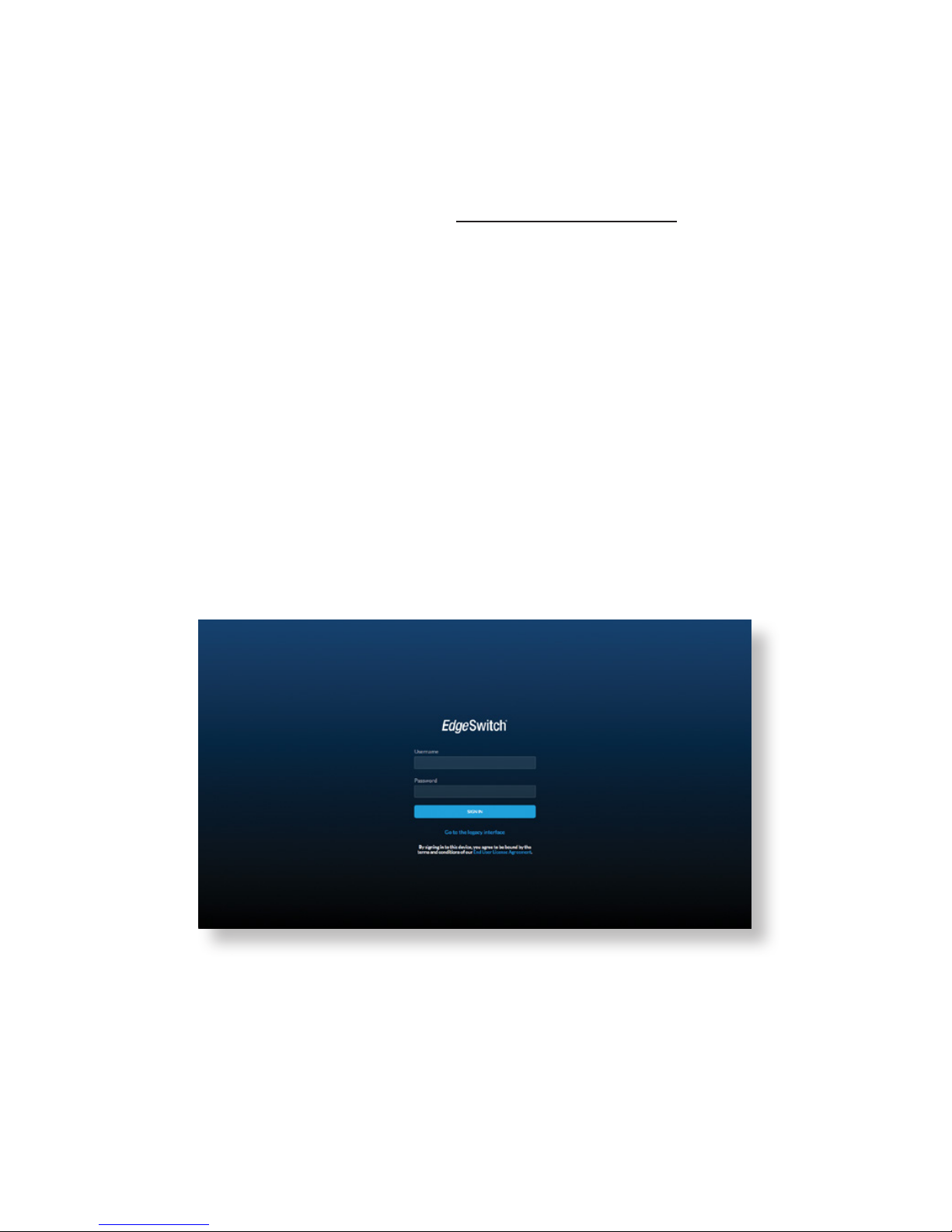

4. The login screen will appear. Enter ubnt in the Username
and Password fields. Click SignIn.
5. The EdgeSwitch Configuration Interface will appear. Click
the Settings icon.

6. Change the IP Address to a unique IP address. Click Apply.
Note: If you change the IP settings, then the session
will be cut off, and you will need to reconnect to the
EdgeSwitch using the new IP address.
Customize additional settings as needed. For more information,
refer to the EdgeSwitch documentation, which is available at:
www.ubnt.com/download/edgemax

Specifications
ES-16-150W
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight
With Mount Brackets
2.80 kg (6.17 lb)
2.89 kg (6.37 lb)
Total Non-Blocking Line Rate 18 Gbps
Max. Power Consumption 150W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Shock and Vibration ETSI300-019-1.4 Standard
LEDs Per Port
RJ45 Data Ports
SFP Data Ports
PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface UART Console Out-of-Band,
Ethernet In-Band
PoE Interfaces PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
24VDC Passive PoE (pins 4, 5+; 7, 8-)
Voltage Range
802.3at Mode
24V Passive PoE
50-57V
20-27V
Max. Wattage per Port
PoE+
Passive PoE
34.2W
17W
Rack-Mount Yes, 1U High
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certications CE, FCC, IC

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may
cause fire hazard. Keep at least 20mm of clearance next
to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
www.ubnt.com/support/warranty/
The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
This Class A digital apparatus complies with Canadian CAN ICES-3(A).
CAN ICES-3(A)/NMB-3(A)
Cet appareil numérique de la classe A est conforme à la norme NMB-3(A)
Canada.
Australia and New Zealand
Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.

CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
