Ubiquiti US-48 User manual

Managed Gigabit Switch
with SFP
Models: US-24, US-48
/
/

Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi®
Switch. This Quick Start Guide is designed to guide you
through the installation and also includes the warranty terms.
Package Contents
or
US-24 US-48
Power Cord Rack-Mount Brackets
(Qty. 2)
Bracket Screws
(Qty. 8)
ManagedGigabit Switch
withSFP
Models:US-24, US-48
/
/
Mounting Screws
(Qty. 4)
Cage Nuts
(Qty. 4)
Rubber Feet
(Qty. 4)
Quick Start
Guide
System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.6 (1.8 or newer recommended)
• Web Browser: Google Chrome (Other browsers may have
limited functionality.)
• UniFi Controller software v4.8.5 or newer (available at:
downloads.ubnt.com/unifi)
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.

Network Topology Requirements
• A DHCP-enabled network for the UniFi Switch to obtain an
IPaddress (connected devices will also obtain IP addresses
after deployment)
• A UniFi Cloud Key or management station running the UniFi
Controller v4.8.5 (or newer) software, located either on-site
and connected to the same Layer2 network, or off-site in the
cloud or NOC
US-24
USG-PRO-4
(DHCP Server)
Internet
UAP-AC-PRO
UAP-AC-Outdoor
UAP-AC-LR
LAN
WAN
UniFi Cloud Key
(UniFi Controller)
Remote Access to
UniFi Controller
Sample Network Diagram
All UniFi devices support off-site management controllers.
For setup details, refer to the User Guide on the website:
documentation.ubnt.com/unifi

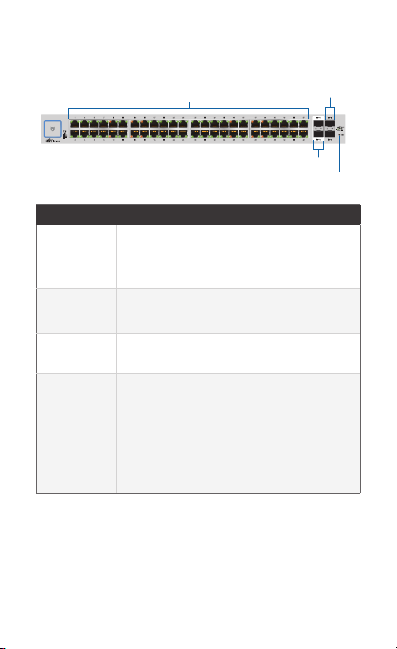

Hardware Overview
Ethernet Ports
SFP 1-2
Reset
Button
RJ45 1-48
Model US-48
SFP+ 1-2
Port Description
RJ45
1-24 (US-24)
1-48 (US-48)
RJ45 ports support 10/100/1000 Ethernet
connections.
SFP+ 1-2
(US-48 only)
Hot-swappable SFP+ ports support 10 Gbps
connections.
SFP 1-2 Hot-swappable SFP ports support 1 Gbps
connections.
Reset
Button
This button serves two functions for the
UniFi Switch:
• Press and release the Reset button to
restart the device.
• Press and hold the Reset button (for at least
five seconds) to restore the device to its
factory default settings.

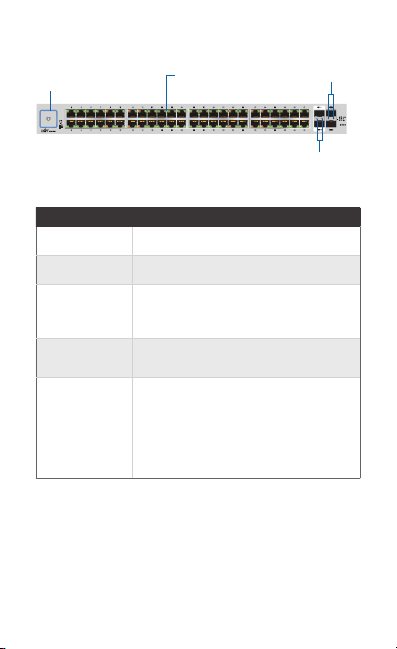

LEDs
Model US-48
System LED
SFP+
Link/Speed/Activity
SFP
Link/Speed/Activity
RJ45
Link/Speed/Activity
System LED
State Status
Flashing White Initializing.
Steady White Factory defaults, waiting for integration.
Alternating
White/Blue
Device is busy; do not touch or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Steady Blue Successfully integrated into a network
and working properly.
Flashing Blue
This is used to locate a device.
When you click Locate in the UniFi
Controller software, the System LED
will flash blue. The software will also
display the location of the UniFi Switch
on themap.

RJ45 LEDs
LED State Status
Link/
Speed/
Activity
Off No Link
Amber
Link Established at
10/100Mbps
Flashing Indicates Activity
Green
Link Established at
1000Mbps (1 Gbps)
Flashing Indicates Activity
SFP+ LEDs (Model US-48)
LED State Status
Link/
Speed/
Activity
Off No Link
Green Link Established at 1Gbps
Flashing Indicates Activity
White Link Established at 10 Gbps
Flashing Indicates Activity
SFP LEDs
LED State Status
Link/
Speed/
Activity
Off No Link
Green Link Established at 1Gbps
Flashing Indicates Activity
*640-00237-04*
640-00237-04

Back Panel Ports
Model US-24
DC Input
Console Power
Model US-48
Console PowerDC Input
Port Description
Console RJ45 serial console port for Command Line
Interface (CLI) management. Use an RJ45-to-DB9,
serial console cable, also known as a rollover
cable, to connect the Console port to your
computer. Then configure the following settings
as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
DC Input The 25VDC input can connect a redundant or
stand-alone DC power source (not included) with
minimum power: 25W (US-24) or 56W (US-48), 25
to 16V, and 2.5 mm DC power inline connector.
Note: You can use the redundant DC
power source as a hot spare; if the internal
AC/DC power supply no longer provides
power, then the EdgeSwitch Lite will
switch to the DC power source without
interrupting its operation.
Power Connect the included Power Cord to the
Powerport.

Hardware Installation
The UniFi Switch should be placed on a horizontal surface.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
WARNING: To reduce the risk of fire or electric shock, do
not expose the UniFi Switch to rain or moisture.
Mounting in a Rack (Optional)

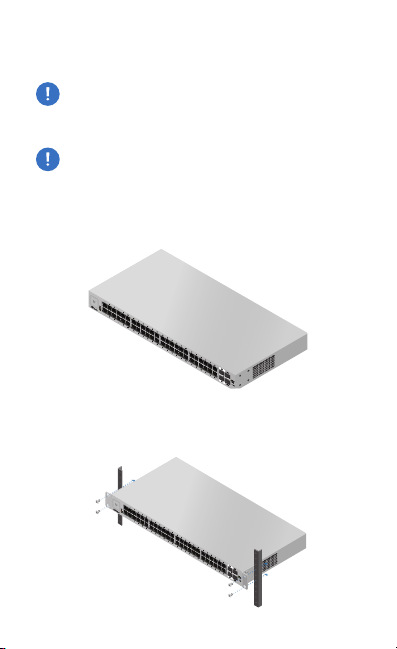

1. Attach the Rack-Mount Brackets to the UniFi Switch using
the eight Bracket Screws.
2. Attach the UniFi Switch to the rack using the four Mounting
Screws. (If the rack has square slots, then use the Cage Nuts
with the Mounting Screws.)

Connecting Power

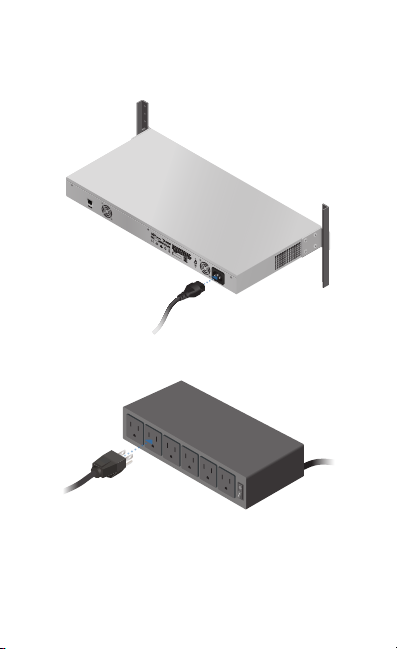

1. Connect the Power Cord to the power port on the back of
the UniFi Switch.
2. Plug the Power Cord into a power outlet.

Connecting Ethernet

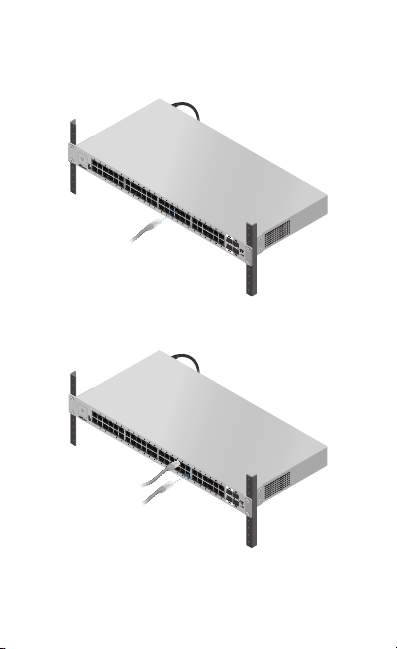

1. Connect an Ethernet cable from your DHCP server or LAN
to any port on the UniFi Switch.
2. Connect your computer or host system and other devices
to the other ports on the UniFi Switch.

Using SFP Ports
To use an SFP port:
1. Remove the dust plug covering the SFP port.
2. Insert a compatible fiber SFP module into the SFP port.
1000MbpsSM/SC20KMDDM
Tx1550nm/Rx1310nm
3. Connect the fiber optic cable to the fiber SFP module.
For information about compatible fiber SFP modules, visit:
community.ubnt.com/unifi

Software Installation
Download and install the latest version of the UniFi Controller
software at downloads.ubnt.com/unifi and follow the
on-screen instructions.
Note: If you already have UniFi Controller v4.8.5 or newer
installed, skip to the section, Adopting the UniFi Switch.
After you have installed the software and run the UniFi
Installation Wizard, a login screen will appear for the UniFi
Controller management interface. Enter the admin name and
password that you created and click Log In.
You can manage your network and view network statistics
using the UniFi Controller management interface.
To adopt the UniFi Switch, proceed to the Adopting the UniFi
Switch section.
For information on configuring and using the UniFi
Controller software, refer to the User Guide on the website:
documentation.ubnt.com/unifi

Adopting the UniFi Switch
1. From the UniFi Controller dashboard, click Devices in the
left menu bar.
2. On the Devices screen, locate the UniFi Switch in the list
of devices under the Model column. To adopt the UniFi
Switch, click Adopt.
3. The System LED on the UniFi Switch will turn blue to
confirm that it has been successfully adopted.
For more information, refer to the User Guide on the website:
documentation.ubnt.com/unifi

Specifications
UniFi Switch US-48
Dimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26")
Weight
Rack-Mount Brackets
Included
Rack-Mount Brackets
Excluded
3.65 kg (8.06 lb)
3.56 kg (7.85 lb)
Enclosure Characteristics SGCC Steel
Max. AC Power
Consumption
56W
Total Non-Blocking
Line Rate
70 Gbps
Power Method
AC
DC
100-240 VAC / 50-60 Hz Universal Input
DC 56W, 25 to 16V, with 2.5 mm
DC Power Inline Connector
Power Supply AC/DC Internal 56W DC
ESD/EMP Protection Air ± 24 kV, Contact ± 24 kV
Operating Temperature -5 to 40° C (23 to 104°F)
Operating Humidity 5 to 95% Non-Condensing
Shock and Vibration ETSI300-019-1.4 Standard
Interfaces
Networking
Management
(48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
(1) RJ45 Serial Out-of-Band,
Ethernet In-Band
LEDs Per Port
RJ45 Data Ports
SFP Data Ports
Speed/Link/Activity
Speed/Link/Activity
Rack Mount Yes, 1U
Certications CE, FCC, IC

Specifications
UniFi Switch US-24
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight
Rack-Mount Brackets
Included
Rack-Mount Brackets
Excluded
2.60 kg (5.70 lb)
2.51 kg (5.53 lb)
Enclosure Characteristics SGCC Steel
Max. Power Consumption 25W
Total Non-Blocking
Line Rate
26 Gbps
Power Method
AC
DC
100-240 VAC / 50-60 Hz Universal Input
DC 25W, 25 to 16V, with 2.5 mm
DC Power Inline Connector
Power Supply AC/DC Internal 20W DC
ESD/EMP Protection Air ± 24 kV, Contact ± 24 kV
Operating Temperature -5 to 40° C (23 to 104°F)
Operating Humidity 5 to 95% Non-Condensing
Shock and Vibration ETSI300-019-1.4 Standard
Interfaces
Networking
Management
(24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
(1) RJ45 Serial Out-of-Band,
Ethernet In-Band
LEDs Per Port
RJ45 Data Ports
SFP Data Ports
Speed/Link/Activity
Speed/Link/Activity
Rack Mount Yes, 1U
Certications CE, FCC, IC

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Failure to provide proper ventilation may
cause fire hazard. Keep at least 20 mm of clearance next
to the ventilation holes for adequate airflow.
WARNING: To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.

Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty.

Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.

Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Industry Canada
CAN ICES-3(A)/NMB-3(A)
This Class A digital apparatus complies with Canadian CAN ICES-3(A).
CAN ICES-3(A)/NMB-3(A)
Cet appareil numérique de la classe A est conforme à la norme NMB-3(A)
Canada.

Australia and New Zealand
Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
