Uflex A95 Manual

Installation and Maintenance manual
(Dr. No. 36010 10/12/2019)
PARTNER
A95
TIE BAR

Dear Customer,
We would like to thank you for choosing an ULTRAFLEX SpA product.
ULTRAFLEX SpA has been a leader in steering systems for pleasure and professional boats for many years.
All ULTRAFLEX SpA products are designed and manufactured to ensure the best performance.
To ensure your safety and to maintain a high quality level, ULTRAFLEX SpA products are guaranteed only if they
are used with original spare parts (see attached document "Application Spare Parts").
The quality management system involves all the company resources and processes starting from the design,
in order to:
- ensure product quality to the customer;
- maintain and improve the quality standards constantly;
- pursue a continuous process improvement to meet the market needs and to increase the customer
satisfaction;
- constantly test the products to verify their conformity with the 2013/53/EU.
"Established in 1989 UFLEX USA is a leader in steering and control systems for the marine industry.
With full manufacturing capabilities in Sarasota, Florida, UFLEX USA can support all sectors of the marine
industry regardless of volume and/or product requirements. And, as an affliate of the ULTRAFLEX Group, UFLEX
USA has tremendous resources to draw upon for new product development in hydraulics, electronics and
many other technologies.
Innovative product design and unparalleled dedication to quality customer service and products continue to
be cornerstone of UFLEX USA's growth. Today our products can be found as originally installed equipment on
many of the most widely known and respected boat brands in the world.
Aftermarket parts can be sourced from trained and experienced distributor network troughout North and
South America.
Our dedication to providing the highest quality products and service is only matched by our commitment to
developing new products employing the lastest materials and technology to enhance our customer's boating
experience. From steering wheels to sophisticated electronic controls, UFLEX USA has everything you need to
make sure that your boat looks and perform it's best for many, many years."
UFLEX USA
Sarasota, FL 34243 - 6442 Parkland Drive

TIE BAR A95 - page 3 of 19
Installation and Maintenance Manual
SECTION 1 - PRODUCT DESCRIPTION
1.1 GENERAL FEATURES�������������������������������������������������������������������������������������������������������������������������� 8
1.2 PACKAGING CONTENTS���������������������������������������������������������������������������������������������������������������������� 8
TABLE OF CONTENTS
SECTION 3 - MAINTENANCE
3.1 ORDINARY MAINTENANCE���������������������������������������������������������������������������������������������������������������� 13
3.2 EXTRAORDINARY MAINTENANCE ����������������������������������������������������������������������������������������������������� 13
SECTION 2 - INSTALLATION
2.1 NECESSARY TOOLS ���������������������������������������������������������������������������������������������������������������������������� 9
2,2 A95 INSTALLATION ���������������������������������������������������������������������������������������������������������������������������� 9
2,3 ADJUSTMENT OF THE DISTANCE BETWEEN CENTERS WITH INSTALLED BAR ���������������������������������� 11
SECTION 4 - DISMANTLING
4.1 DISMANTLING ���������������������������������������������������������������������������������������������������������������������������������� 13
DOCUMENT REVISIONS���������������������������������������������������������������������������������������������������������������������������������� 4
USE OF THE MANUAL AND SYMBOLS USED��������������������������������������������������������������������������������������������������� 5
INFORMATIVE LETTER ����������������������������������������������������������������������������������������������������������������������������������� 6
WARRANTY���������������������������������������������������������������������������������������������������������������������������������������������������� 6

Installation and Maintenance Manual
page 4 of 19 -TIE BAR A95
DOCUMENT REVISIONS
Rev. Date Revision description
0 10/12/2019 First edition

TIE BAR A95 - page 5 of 19
Installation and Maintenance Manual
In this manual the following symbols are used to ensure the user safety and to guarantee the correct operation
of the product:
MANUAL USE AND SYMBOLS USED
THE INSTALLATION AND MAINTENANCE MANUAL is the document accompanying the product from its sale to
its replacement and discharge. The manual is an important part of the product itself.
It is necessary to read carefully the manual, before ANY ACTIVITY involving the product, handling and unloading
included.
STERN
BOW
STARBOARD PORT
The picture aside explains the meaning of some
nautical words contained in this manual.
Immediate hazards which CAUSE severe personal injury or death.
The symbol aside indicates all the operations which must be carried out by
qualified or skilled staff, in order to avoid hazards.
We recommend training the staff in charge of the product installation and
checking their knowledge.
Important information for the correct installation and for maintenance, that
does not cause any damage.
Denotes that a hazard exists which can result in injury or death if proper
precautions are not taken.
Denotes a reminder of safety practices or directs attention to unsafe practices
which could result in personal injury or damage to the craft or components
or to the environment.
LEGEND
m.p.h. = miles per hour
km/h = kilometres per hour
10 m.p.h. = 8,69 knots
10 m.p.h. = 16,1 km/h
10 knots = 11,5 m.p.h.
10 knots = 18,5 km/h
10 km/h = 6,21 m.p.h.
10 km/h = 5,4 knots
CAUTION
WARNING
DANGER
NOTICE

Installation and Maintenance Manual
page 6 of 19 -TIE BAR A95
WARRANTY
1. Two Year Limited Warranty. UFLEX USA, Inc. warrants that all products manufactured by UFLEX USA, Inc. or
UFLEX S.p.A. and sold by UFLEX USA to the retail purchaser ("Purchaser") that for two (2) years after the date
of manufacture to be free from defects due to material or workmanship, subject to the exclusions below.
Improper installation AVOIDS this warranty. Installation should only be attempeted by a trained and qualified
technician.
2. Exclusions. This limited warranty does not cover and does not extend to any of the following:
(a) Failure caused by normal wear and tear, climatic conditions, misure, neglect, lack of proper mainte-
nance, accident, fire or other casualty damage, racing, overloading, negligence, modification, beaching
or grounding of vessel, collision, impact, towing, acts of war or hostilities;
(b) components not manufactured by UFLEX USA, Inc., or its affiliates;
(c) cost of removal or reinstallation of any component (including components manufactured by UFLEX USA,
Inc.) or disassembly or reassembly of the unit containing the component;
(d) components not manufactured by UFLEX USA, Inc. or UFLEX S.p.A., whether or not warranted by the other
manufacturer;
(e) any product which has not been properly installed.
TECHNICAL ASSISTANCE SERVICE
INFORMATIVE LETTER
UFLEX S.r.l.
Via Milite Ignoto,8A
16012 Busalla (GE)-Italy
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.ultraflexgroup.it
North - South - Central America:
UFLEX USA
6442 Parkland Drive
Sarasota, FL 34243
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.uflexusa.com
This installation and maintenance manual represents an important part of the product and must be available to
the people in charge of its use and maintenance.
The user must know the content of this manual.
UFLEX declines all responsibility for possible mistakes in this manual due to printing errors.
Apart from the essential features of the described product, UFLEX reserves the right to make those modifications,
such as descriptions, details and illustrations, that are considered to be suitable for its improvement, or for design
or sales requirements, at any moment and without being obliged to update this publication.
ALL RIGHTS ARE RESERVED. Publishing rights, trademarks, part numbers and photographs of UFLEX products
contained in this manual are UFLEX property.
Great care has been taken in collecting and checking the documentation contained in this manual to
make it as complete and comprehensible as possible. Nothing contained in this manual can be interpreted as
warranty either expressed or implied - including, not in a restricted way, the suitability warranty for any special
purpose. Nothing contained in this manual can be interpreted as a modification or confirmation of the terms of
any purchase contract.
WARNING
To ensure the correct product and component operation, the product must be installed by qualified staff.
In case of part damage or malfunction, please contact the qualified staff or our Technical Assistance Service.

TIE BAR A95 - page 7 of 19
Installation and Maintenance Manual
3. Limitations. THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS SHALL BE PURCHASER'S SOLE AND EX-
CLUSIVE REMEDY AND UFLEX USA, INC,'S SOLE AND EXCLUSIVE LIABILITY UNDER THIS WARRANTY. LABOR
FOR REPLACEMENT IS NOT INCLUDED. UFLEX USA, Inc.'s obligation under this warranty is limited to the repair
or replacement (at UFLEX USA, Inc.'s sole election) of any covered item found to be defective, when delivered by
Purchaser pursuant to written authorization and instructions from UFLEX USA, Inc., shipping prepaid to UFLEX
USA, Inc.'s plant or other designated repair facility. Repaired or replaced items are warranted as provided
herein for the unexpired portion of the applicable warranty period.
THIS WARRANTY, AND THE RIGHTS AND REMEDIES UNDER IT, IS EXCLUSIVE AND IS GIVEN IN PLACE OF
ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, WHETHER ARISING BY LAW, CUSTOM, CONDUCT
OR USAGE OF TRADE, PURCHASER'S REMEDIES SHALL BE LIMITED AS STATED HEREIN AND UFLEX USA,
INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES OR LOSSES
RESULTING FROM DEFECTS. THE RETAIL SELLER IS NOT A CO-WARRANTOR AND IS NOT AUTHORIZED BY
UFLEX USA, INC. TO AMEND OR MODIFY THIS LIMITED WARRANTY IN ANY MANNER.
4. Transferability of Warranty. This limited warranty may not be transferred to subsequent purchasers.
5. Miscellaneous. UFLEX USA, Inc. is an affiliate of UFLEX S.p.A. UFLEX, USA, Inc., reserves the right to make changes in
the design and construction of its products at any time, without notice and without any obligation to incorporate
such changes into products of prior manufacture. This limited warranty applies to new components sold by
UFLEX USA, Inc.. This limited warranty contains the entire agreements between UFLEX USA, Inc. and Purchaser
and suspersedes all prior agreements, discussions, negotiations, commitmentsandrepresentations,whether
oral or written, between them regarding UFLEX USA, Inc's warranty. If any provision of this limited warranty, or
the application of it, is determined to be invalid of unenforceable for any reason, the remainder of this limited
warranty and the application of it shall not be affected.
6. Ultron 3000 and PowerC. The Ultron 3000 and "PowerC - User and Installation Manual" describes activities,
operations, technical specifications which must be followed during the installation and/or usage of the product,
in order to keep a valid warranty. Descriptions and drawings in that manual are suitable to allow installation
and use of the product to skilled persons. In case of doubt and/or for any information, please contact our
Technical Service.
All communications and notices from Purchaser regarding this limited warranty should be sent to: UFLEX USA,
INC., 6442 Parkland Drive, Sarasota, FL 34243; [phone].
Return policy
Any product that is presumed defective should be reported to UFLEX USA within 48 hours of receipt or discovery in
the field. Upon notification UFLEX USA will attempt to troubleshoot the problem with our customer over the phone.
If we are unable to resolve the problem UFLEX will issue a Return Goods Authorization number and we require
that the product in question be returned to UFLEX with all its parts in its original packaging. The product should
be returned freight prepaid to:
UFLEX USA
RGA Department - RGA #
6442 Parkland Drive
Sarasota, Florida 34243
Upon receipt UFLEX will examine the product to determine the cause of the defect. If the product is determined to
have a defect in workmanship or material, it will be repaired at our discretion.
Our warranty does not cover labor, towing or other expenses. Further, it does not cover products that have been
improperly installed, damaged in installation, misapplied, or misused.
Our products are not intended for use in racing applications.

Installation and Maintenance Manual
page 8 of 19 -TIE BAR A95
1 PRODUCT DESCRIPTION
1.1 General features
1.1 Packaging contents
The bar A95 is completely made up of stainless steel and it is already preassembled and ready to be installed. Its
length can be adjusted: the distance between centers varies from 660 (26’’) to 812 mm (32’’) and from 812 (32’’)
to 950 mm (37.5’’) according to the version (A95-32 and A95-37.5).
NOTICE
The distance between the centers is calculated between the centers of the holes located in the engine tiller arms.
WARNING
It can be used in applications with dual outboard engine and dual cylinder type UC130-SVS (or UC128-OBF and
UC128-SVS) for assembly from the front side.
WARNING
Before the installation check the assembly compatibility of tie bar A95 with your application.
WARNING
The A95 bar allows to tilt the engines independently.
CAUTION
In dual cylinder applications it is necessary to order a cylinder with idler arm mounted on the starboard and a
cylinder with idler arm mounted on the port.
A95-32: 660-812mm (26"-32")
A95-37.5: 812-950 (32"-37.5")
1. Preassembled bar
2. Bag with screws

TIE BAR A95 - page 9 of 19
Installation and Maintenance Manual

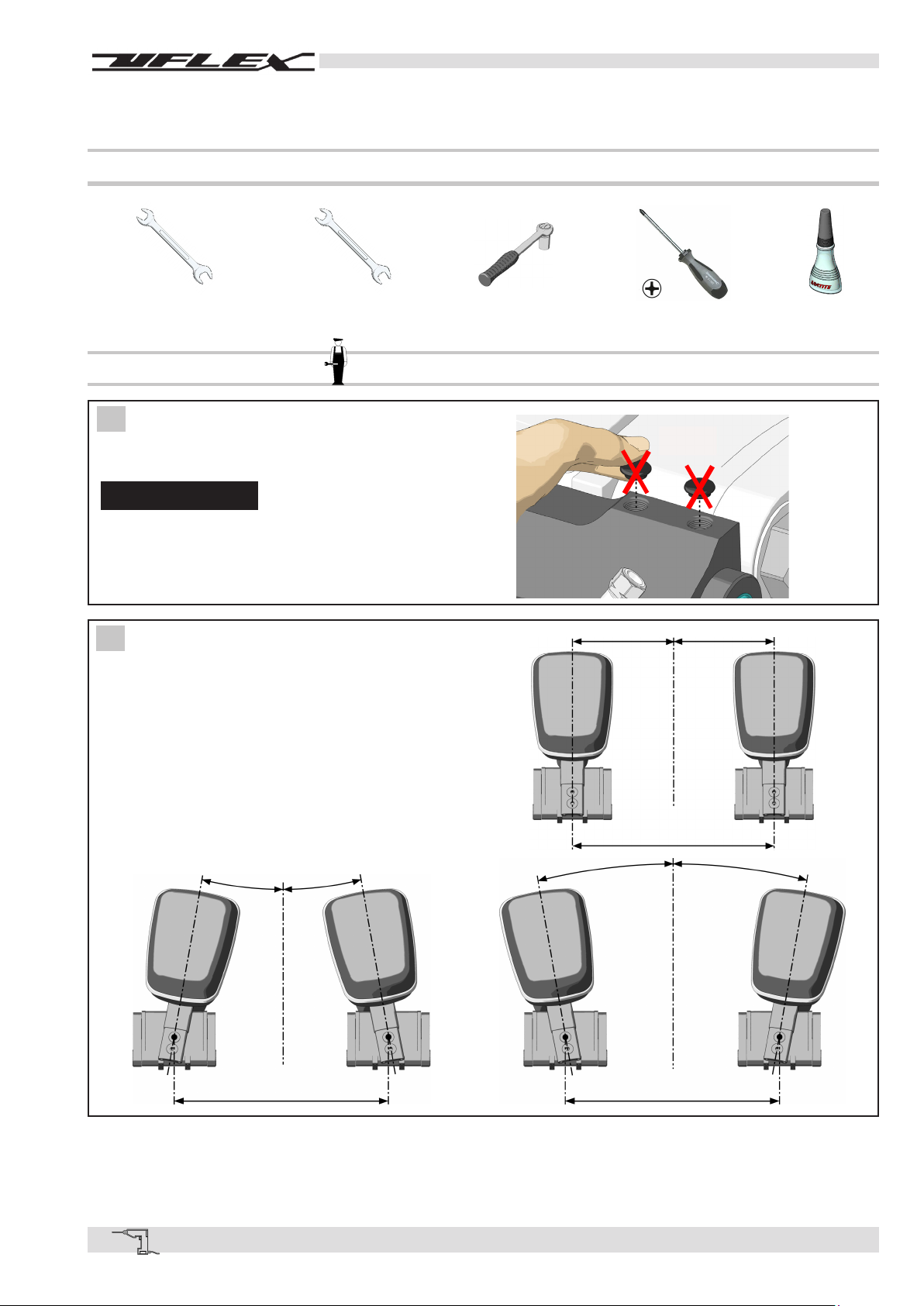

2 INSTALLATION
2.1 Necessary tools
2.2 A95 Installation
1 Install the cylinders by carrying out the instruc-
tions indicated in the manual and positioning the
engines as shown in the pictures indicated in point 2.
NOTICE
Do not assemble the plugs on the cylinder body
(see the picture aside).
If the plugs are already mounted, it is necessary
to remove them.
2 Position the engines in the center of the stroke
observing any convergence or divergence recom-
mended by the engine manufacturers as shown in
the picture aside. (see the pictures below).
i/2 i/2
i2 i3
i
14 mm hexagon wrench 22 mm hexagon wrench Dynamometric wrench Cross slot screwdriver Loctite 270
2x

Installation and Maintenance Manual
page 10 of 19 -TIE BAR A95

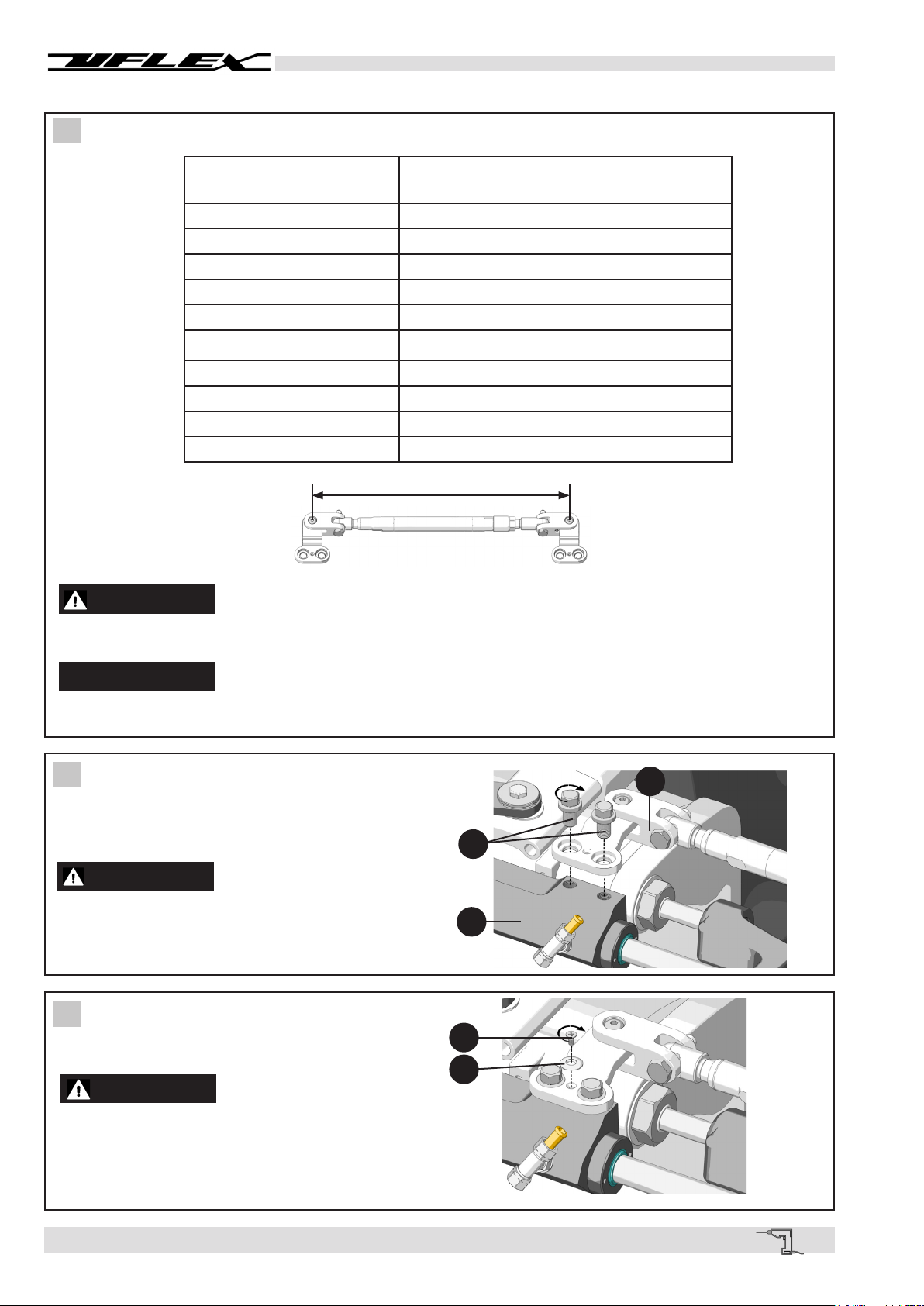

3 Adjust the length of the bar by screwing and unscrewing the two ball joints of the same size.
DISTANCE BETWEEN
CENTERS OF THE ENGINES APPROXIMATE LENGTH OF THE BAR
26’’ 455 mm (18’’)
27’’ 480 mm (19’’)
28’’ 508 mm (20’’)
29’’ 533 mm (21’’)
30’’ 787 mm (22’’)
31’’ 584 mm (23’’)
32’’ 608 mm (24’’)
34 660 mm (26’’)
36 711 mm (28’’)
37.5’’ 747 mm (29.5 ‘’)
4 Assemble extension arm (1) on the cylinder
body (2) by means of the supplied wrenches (3).
Tighten the screws with a 76[Nm] (56 [lb∙ft]) tight-
ening torque by means of a 14mm wrench.
5 Position the safety washer (4) and fasten it with
screw (5) applying some strong Loctite 270 with a
3[Nm] (2 [lb∙ft]) tightening torque.
The non-use of screw (5) and of safety washer (4)
results in dangers to things and injury of people.
DANGER
3
2
1
5
4
WARNING
WHEN MAXIMUM EXTENSION IS REACHED, DO NOT FORCE THE UNSCREWING BECAUSE THIS CAN DAMAGE
THE PRODUCT.
NOTICE
Be careful not to damage the exposed thread: dents on the thread cause seizure.
L
DANGER
Screw loosening causes deterioration and con-
sequent ineffectiveness of the pre-applied thread
locker. If the screws are loosened, they must be
replaced.

TIE BAR A95 - page 11 of 19
Installation and Maintenance Manual
5 Using a 22 mm wrench act on one of the end
elements (6) or (7) and carry out the fine adjust-
ment of the bar length.
6 Once the fine adjustment has been carried out, tighten the
ring nut (8) using a 22 mm wrench with a tightening torque
of 40 [Nm] (29.52 [lb ∙ ft]) by means of a second wrench on
the end element ( 7).
If during the use of the boat it is necessary to vary the distance between centers of the engines (i.e. the angle of
divergence or convergence), proceed as follows.
WARNING
Before carrying out the following operations, it is mandatory to turn off the engines and operate in safe conditions.
WARNING
Check if the engine can also tilt independently and in different
steering positions.
CAUTION
In no event shall the bar and/or its connections constitute a
limitation to the steering allowed by the installed steering
system and to the lifting of the engines.
2.3 Adjustment of the distance between centers with installed bar

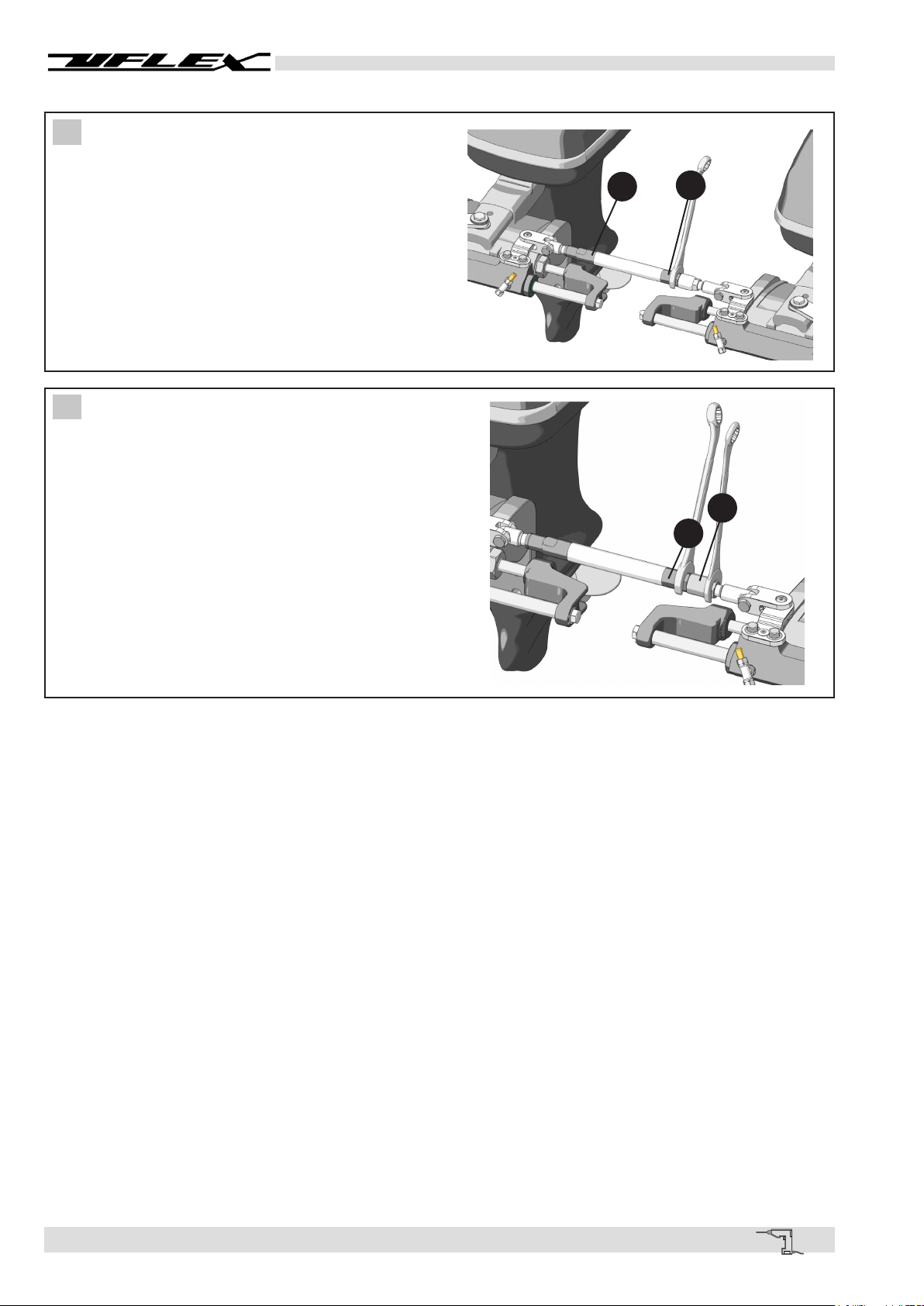

1 Loosen the ring nut (1) by means of a 22 mm
wrench holding it still with a second wrench on the
end element (2).
67
8
1
7
2

Installation and Maintenance Manual
page 12 of 19 -TIE BAR A95
2 Using a 22 mm wrench act on one of the end
elements (2) or (3) and adjust the length (with the
bar installed, without removing it from the arms
and without unscrewing the lock nuts) until reach-
ing the desired position (new distance between
centers).
3 Once this length is reached, tighten the ring
nut (1) again by means of a 22 mm wrench with a
tightening torque of 40 [Nm] (29.52 [lb ∙ ft]) using a
second wrench on the end element (2).
32
1
2

TIE BAR A95 - page 13 of 19
Installation and Maintenance Manual

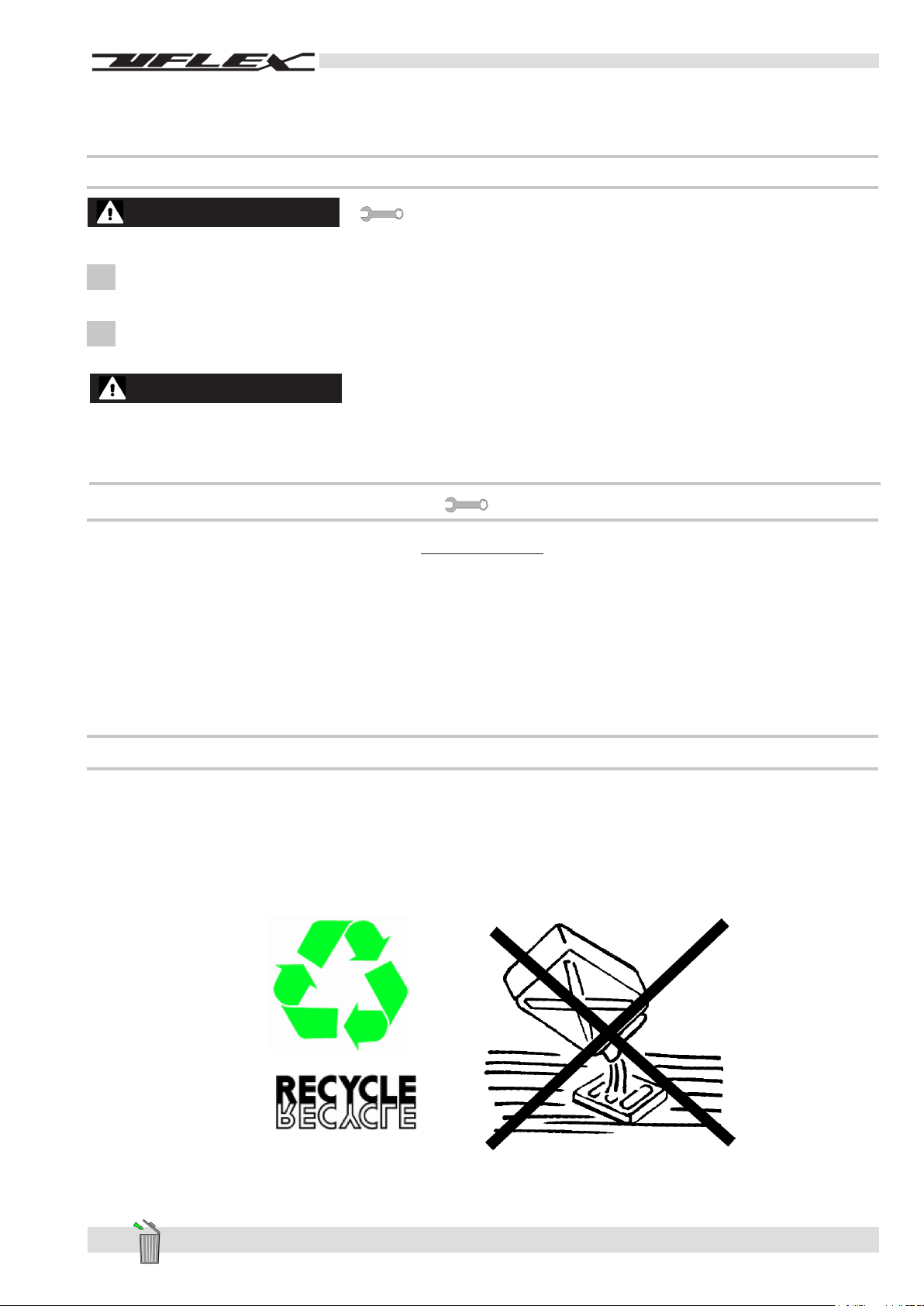

3 MAINTENANCE
3.1 Ordinary maintenance
WARNING
Poor installation and maintenance may result in loss of steering and cause property damage and/or personal injury.
1 After the first 10 working hours and afterwards periodically check that the bar is intact and that the connec-
tions are tightened.
2 Periodically wash the components with fresh water in order to remove any salt deposits.
In case of disassembly of the self-locking nuts, they must be replaced. (please contact our technical service
department).
DANGER
3.2 Extraordinary maintenance
4 DISMANTLING
4.1 Dismantling
When for any reason, the system is put out of service, it is necessary to follow some rules in order to respect the
environment.
Sheaths, pipelines, plastic or non-metallic components must be disassembled and disposed of separately.
Technical service
For any information or for assistance with unusual applications please contact our technical support personnel
(See paragraph "Introduction").

Installation and Maintenance Manual
page 14 of 19 -TIE BAR A95

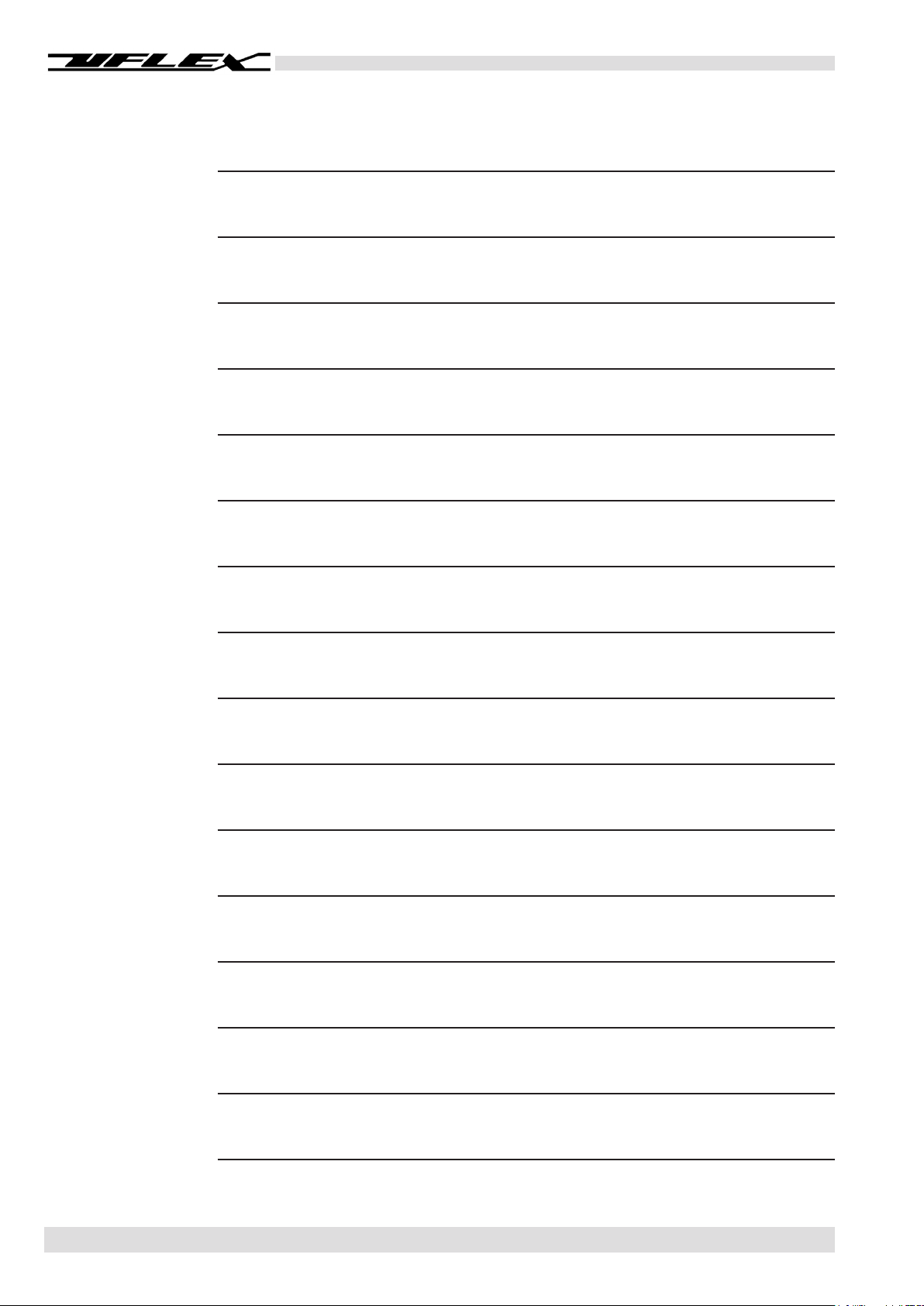

NOTES

TIE BAR A95 - page 15 of 19
Installation and Maintenance Manual
NOTES

UFLEX USA
Sarasota, FL 34243 - 6442 Parkland Drive
