ELECTRIC SCOOTER FS-E20B
USER MANUAL

UFREE SCOOTER www.scooter-manufacturer.com
1
TABLE OF CONTENTS
1) INTRODUCTION..............................................................................2
2) DESCRIPTION OF SYSTEM...........................................................3
3) SAFETY WARNINGS........................................................................4
4) OPERATION AND FEATURES........................................................5
A) ASSEMBLY
B) RIDE AND RANGE
C) SPEED-CHANGING SWITCH AND BRAKE HANDLE
D) POWER SWITCH AND CHARGE SOCKET
E) CHARGE BATTERY AND BATTERY CARE
F) DRIVE BELT ADJUSTMENT AND REPLACEMENT
G) REPLACING OR REPAIRING TYRES
5) IMPORTANT BATTERY INFORMATION.....................................8
6) TROUBLESHOOTING GUIDE.........................................................9
CHARGE BATTERY AFTER EVERY USE

UFREESCOOTER www.scooter-manufacturer.com
2
|INTRODUCTION|
CONGRATULATIONS!
YOU HAVE MADE A GREAT CHOICE IN SELECTING A BAUMAN
ELECTRIC SCOOTER
YOUR SCOOTER WILL PROVIDE YOU WITH HOURS OF FUN AND
ENJOYME?
WHILE HELPING YOU TO GET SOME OF THAT MUCH NEEDED
EXERCISE W
ALL WANT TODAY.
YOUR SCOOTER IS ALSO A PRACTICAL "GREEN" TRANSPORT
VEHICLE, IT
SMALL, WHISPER QUIET, COMPLETELY SMOG FREE AND
ENERGY
EFFICIENT
YOUR ELECTRIC SCOOTER IS EASILY FOLDED TO TAKE IT WITH
YOU IN YOUR CAR OR ON A BUS OR TRAIN. YOUR ELECTRIC
SCOOTER IS PROBABLY THE WORLDS FIRST PORTABLE
PERSONAL ELECTRIC VEHICLE REPRESENTING 21* CENTURY
TECHNOLOGY.
ALTHOUGH YOUR ELECTRIC SCOOTER WILL DELIVER THE BEST
RESULTS ON A SMOOTH
FLAT TERRAIN, YOU SHOULD ALWAYS COMPLEMENT ITS
POWER BY SIMPLY KICKING ALONG IN THE TRADITIONAL WAY.
TO BE SURE THAT YOU USE YOUR ELECTRIC SCOOTER SAFELY
AND PROPERLY, PLEASE REA THIS MANUAL COMPLETELY
BEFORE RIDING. PAY PARTICULAR ATTENTION TO THE SAFETY
PRECAUTIONS AND FOLLOW THEM CAREFULLY FOR HAPPY,
CAREFREE RIDING. LIKE ALL POWERED MOVING VEHICLES,
YOUR SCOOTER REQUIRES CARE AND MAINTENANCE TO
DELIVER DEPENDABLE USE FOR A LONG TIME TO COME.
THANK YOU FOR SELECTING OUR ELECTRIC SCOOTER! WE HOPE
YOU WILL ENJOY HOURS OF SAFE AND EXCITING RIDING!
ALWAYSWEARAHELMETANDSAFETY
GEAR

UFREE SCOOTER www.scooter-manufacturer.com
3

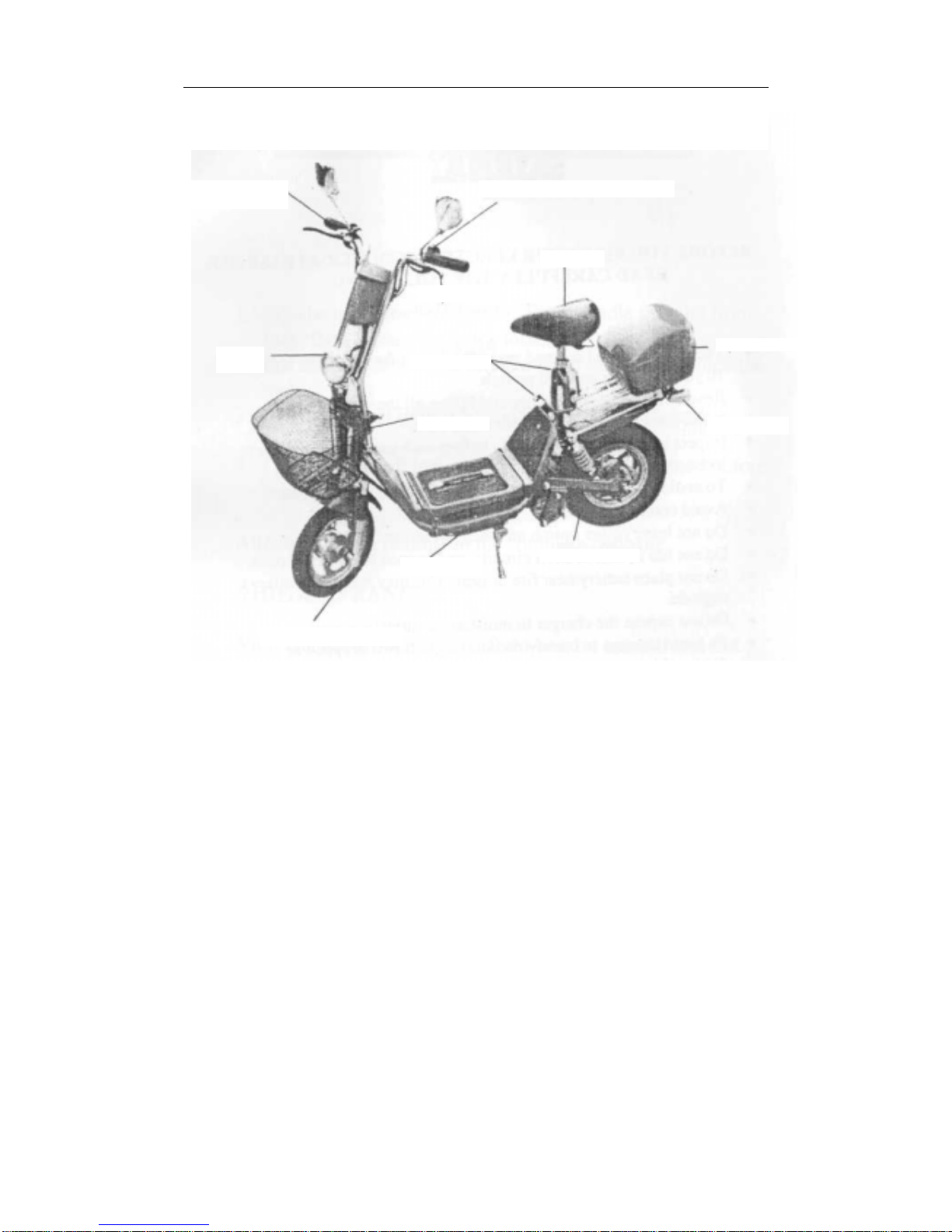

WEIGHT(IncludingBattery):42kgs
LOAD CAPACITY: l00kgs
BRAKE: Hand Brake
FULL CHARGE MILAGE: 35km
SPEED: 35kph
SYSTEM VOLTAGE: 36volts
MOTOR POWER: 350W CHARGE
VOLTAGE: 110-230V BATTERY:
12v 12Ah x3 CHARGE TIME: 4-6
hours WHEELS: Rubber Pneumatic
Tyres
CHARGE BATTERY AFTER EVERY USE
Indicator switch and horn
Brake light
Quick locks
Front fork
Indicators
Chain drive
Speed changing
switc
h
Lamp
Brake leve
r
Saddle
Battery box
Locking tabs & bolts

UFREE SCOOTER www.scooter-manufacturer.com
4
SAFETY
BEFORE YOU RIDE YOUR ELECTRIC SCOOTER, PLEASE
READ CAREFULLY THE FOLLOWING
• The recommended age and maximal weight for riding the scooter
10 years or older and 200 pounds.
• Read this manual thoroughly and follow all the safety and
maintenance recommendations made here.
• Inspect your scooter thoroughly before each use for fear that there
loose or missing parts.
• To avoid damage to the motor and the deck, do not overload.
• Avoid unintentional starts.
• Do not leave power switch on when not in use.
•Do not use in rain as short circuits may happen to electrical parts.
•Do not place battery near fire or heat. This may cause the battery
explode.
•Do not expose the charger to moisture or water.
•To avoid damage to battery do not use charger if dropped or
damaged in any way.
•Keep hands and feet away from moving parts.
•Do not touch the motor or wheels while they are rotating.
•Avoid gravel, sand, grass, mud, water and rough surfaces.
•Never ride with more than one person on scooter.
•Brakes are designed to control speed as well as the vehicle, Practise
braking for slow down and smooth stops.
•Never drink alcohol before operating vehicle.
•Never leave small children unattended with vehicle.
ALWAYS WEAR A HELMET AND SAFETY GEAR

UFREE SCOOTER www.scooter-manufacturer.com
5
OPERATION AND FEATURES
ASSEMBLY
1. Lift the handlebar and put the fixed handle into the front
fork, then tighten the quick lock.
2. Put the pole of the seat into the fixed tube then tighten the
lock.
3. Fit front wheel into forks and tighten bolt with tools
provided.
4. Please ensure all locks and bolts are fully tightened before
use.
Attention: when folding does the complete opposite.
RIDE AND RANGE
Your electric scooter will perform best on smooth and flat terrain. To start your
scooter, give it a kick push and turn the speed control switch. Kicking the
ground with your feet while the motor is activated to increase your speed and
range. With a fully charged battery, your new scooter can cover up to 30
kilometers. Actual speed will depend on a number of variables including load,
tyre pressure, battery power, weather conditions, etc, Try to charge your
scooter after every ride, no matter how short.
CHARGE BATTERY AFTER EVERY USE
OPERATION AND FEATUREASSEMBLY

UFREE SCOOTER www.scooter-manufacturer.com
6
SPEED-CHANGING SWITCH AND BRAKE HANDLE
For safety purposes, your scooter uses a speed-changing switch when
released it will return to the "OFF" position. Turn the speed-changing
switch towards your body to raise the speed of the scooter and away from
your body to lower the speed. The brake handle will momentarily shut off
the power and stop the scooter when you press it. To save energy, the
braking system will be used only when needed.
Always keep brake applied when stationary to avoid accidental activation.
POWER SUPPLY SWITCH AND CHARGE SOCKET
The power key switch is located on the left side of the scooter. Use this
switch to avoid accidental starts. To charge the battery, located next to the
key switch is the charge socket. Your charge has two cords on it, one fits
the mains 240 volts voltage and the other fits the charge socket that has a
lug and will only fit one way.
ALWAYS WEAR A HELMET AND SAFETY GEAR

UFREESCOOTER www.scooter-manufacturer.com
7
DRIVE BELTADJUSTMENT AND REPLACEMENT
Periodic adjustment of the drive belt will be necessary to maintain proper
tension. If the belt is too loose, it will make a "popping" noise while
accelerating, indicating the need for immediate adjustments. Before adjusting
the belt drive, disconnect the battery power to prevent accidental starts or
shocks. Loosen the rear axle nuts until the wheel can easily move backwards
and forwards by hand. Rotate the belt adjuster on the rear axle until the
proper tension is achieved. Tighten the axle nuts and recheck the belts tension.
Belt needs to be tightened after several hours use when new.
If the belt is broken and needs replacement, use the above procedure, but
remove the rear wheel entirely to install new belt.
ALWAYS DEFLATE THE TYRE BEFORE
DISASSEMBLING THE WHEEL
REPLACING OR REPAIRING TYRES
Remove the wheel from the scooter and deflate tyre. Remove
the four hub bolts. Remove the innerand outer wheel and repair
or replace tyre.
Reassemble the hub being careful not to puncture the inner tyre
between the hub halves.
Inflate tyre to proper pressure (28-32psi)
Reinstall the wheel onto the scooter.
CHARGE BATTERYAFTER EVERY USE

UFREE SCOOTER www.scooter-manufacturer.com
8
IMPORTANT BATTERY INFORMATION
BATTERY CARE
1) Store and charge the battery at a temperature between 50f (10c) and
100f (38c), try to keep your battery charged. Keep the battery terminals
clean and the connections tight.
2)Handle your battery and the charger with care and be careful not to dreg
Running the battery all the way down is bad for its overall life. Try to
charge the battery after every use. Always disconnect the power switch
when working on the scooter or for shipping.
NEVER CHARGE MORE THAN 12HOURS AT A TIME
3)Re-charge your battery as soon as you can to ensure long life.
4)To protect your battery and ensure long life, the battery should be
charged at least once a month even if the scooter is not being used. Do not
charge the battery for more than 12 hours. Do not charge your battery in
temperatures below 50f (10c). Bring your battery indoors to charge when
the weather is cold.
CHARGE THE BATTERY
Plug the charge socket into the scooter. Plug the power socket into the wall
socket (110-240v). Charge battery according to input voltage of the charge Do
not charge for more than 12 hours. When charging is complete, remove plug from
wall FIRST! Then remove the connector from scooter. Charge the battery for
6-8 hours before first using.
ALWAYS CONNECT CHARGER TO SCOOTER BEFORE MAIN
POWER IS SWITCHED ON.
BATTERY PACK REPLACEMENT
Even with proper care, recharging batteries will not last forever. When the battery
needs to be replaced, please contact your nearest authorized dealer This product
contains a sealed lead-acid battery and it can be recycled. To preserve natural
resources, please recycle the battery properly. Law prohibits disposal of
lead-acid batteries in ordinary trash. Consult your local waste authority for
information regarding available recycling option
ALWAYS WEAR HELMET AND SAFETY GEAR

UFREE SCOOTER www.scooter-manufacturer.com
9
TROUBLE SHOOTING GUIDE
PROBLEM POSSIBLE CAUSES ACTION
A. Motor does not start 1 .Battery not connected 1. Connect battery
2.Powerswitchisoff 2.Switchon
3. Broken drive belt 3. Replace belt
4.Battery is drained 4. Charge battery
5.Electrical fault 5. Check connections
B. Rear Wheel doesn't turn 1. Brake too tight 1. Adjust brake
2. Motor trouble 2. Call Technician
C. Motor shuts of during use 1. Circuit breaker tripped 1. Wait 5 seconds
2. Pull brake firmly 2. Restore brake
D. Insufficient Range 1. Battery not charged 1. Charge battery
2.Low tyre pressure 2. Inflate tyre
3.Hilly terrain 3. Kick more
4.Popping sound 4. Tighten belt
5.Damaged battery 5. Replace battery
NOTE:
DO NOT RIDE ON PUBLIC STREETS. ALWAYS WEAR HELMET AND
SAFETY GEAR. THE ELECTRIC SCOOTER IS DESIGNED FOR AGES
10 AND UP. THE MANUFACTURER WILL TAKE NO
RESPONSIBILITY FOR DAMAGE OR INJURIES, WHICH MAY
OCCUR WHEN USING THIS SCOOTER.
