UFREE SCOOTER FS-E20C User manual

UFREE SCOOTER www.scooter-manufacturer.com
ELECTRIC SCOOTER FS-E20C
USER MANUAL

UFREESCOOTER www.scooter-manufacturer.com
1
PRODUCT INTRODUCTION
Congratulations!!
You have just acquired an advanced Scooter for
years for Scooter fun and to keep your Scooter
working well please read the following information
BEFORE use and retain for future reference.
MAIN SPECIFICATION
Dimensions: 1320mm (L) x 1050mm (H)
Weight: 30kgs.
Engine: 2-Stroke, l-Cylinder, Air-cooled
Piston Displacement: 40cc
Horse Power: 1.0hp
Maximum Speed: 35km/hr
Starter System: Recoil/Throttle
Ignition Method: CDI
Load Capacity: 100kgs-120kgs
Fuel Type: Unleaded Petrol/Oil mix
(Ratio: 25:1)
Fuel Tank Volume: 0.80 litres-1.00 liters Distance on full Tank:
25km
Wheels: Pneumatic Tyres
Brakes: Hub

UFREE SCOOTER www.scooter-manufacturer.com
2
OIL AND FUEL INFORMATION
Be sure to read these instructions carefully before attempting to start or operate this
product.
Improper oil and fuel mixture will result in engine damage, which will make the
engine warranty invalid.
The Scooter has a 2-stroke engine that requires oil to be mixed with the petrol.
Please use high quality 2-stroke oil.
OIL AND FUEL MIXTURE INSTRUCTIONS
For proper engine operation and maximum reliability, pay strict attention to the oil
and fuel mixing instructions. Fuel/oil ratio should be at 25: l ， and by not using this
ratio correctly damage can be caused to the engine.
The following method will ensure complete mixing:
(I) put a little fresh petrol into a clean 2.5 liter fuel can;
(II) add 0.1 liter of 2-stroke oil;
(III) fill the remainder of the fuel can with petrol;
(IV) screw the fuel cap tightly and SHAKE the can for 30 seconds to
mix the solution.
FUELLING AND PRE-OPERATIONAL PROCESS
(a) Petrol is extremely flammable and its vapours can explode so be
sure to stop the engine and make it cool before fuelling. Do not
smoke whilst fuelling.
(b) Choose a clean, well ventilated area to fuel. Avoid spillage when mixing
the oil and wipe up any spilled fuel immediately. Allow any spillage
to dry completely before starting the engine.
(c) Move the unit at least 3m (1 0f t) from the fuelling point before starting
the engine.
(d) Loosen the fuel tank cap slowly to relieve the pressure in the tank.
(e) Store petrol and oil in specially designed containers.

UFREE SCOOTER www.scooter-manufacturer.com
3
WARNING
This vehicle should not be operated on pubic streets, roads or highways and
serious injuries occur from the unsafe operation of such a vehicle, but the operator
can reduce these assumed risks by wearing safety equipment such as helmet,
goggles, gloves, elbow pads, knee pads, and appropriate shoes with sufficient ankle
support.
When using this product do not drive amongst traffic or on wet, frozen unpaved, or
oil covered surfaces.
When using this product avoid uneven surfaces, chuck-holes, surface cracks and
obstacles. This product is not suitable for anyone under 14 years of age, and adult
supervision is strongly recommended.
This product should only be used by persons with excellent vision, balance, and
muscle/bone strength as well as the ability to make
instant safety decisions.
This product should only be used by persons willing to take full responsibility of
their own actions.
FOLDING FEATURE
Before riding the Scooter, be certain that the handle bar locking tube is on the
bottom position, locking the handle bar upright. The latch fastener on the rear fender
locks the handle in the folded position for carrying or saturate.
CONTROLS
BEFORE riding be sure to know how your Scooter works.

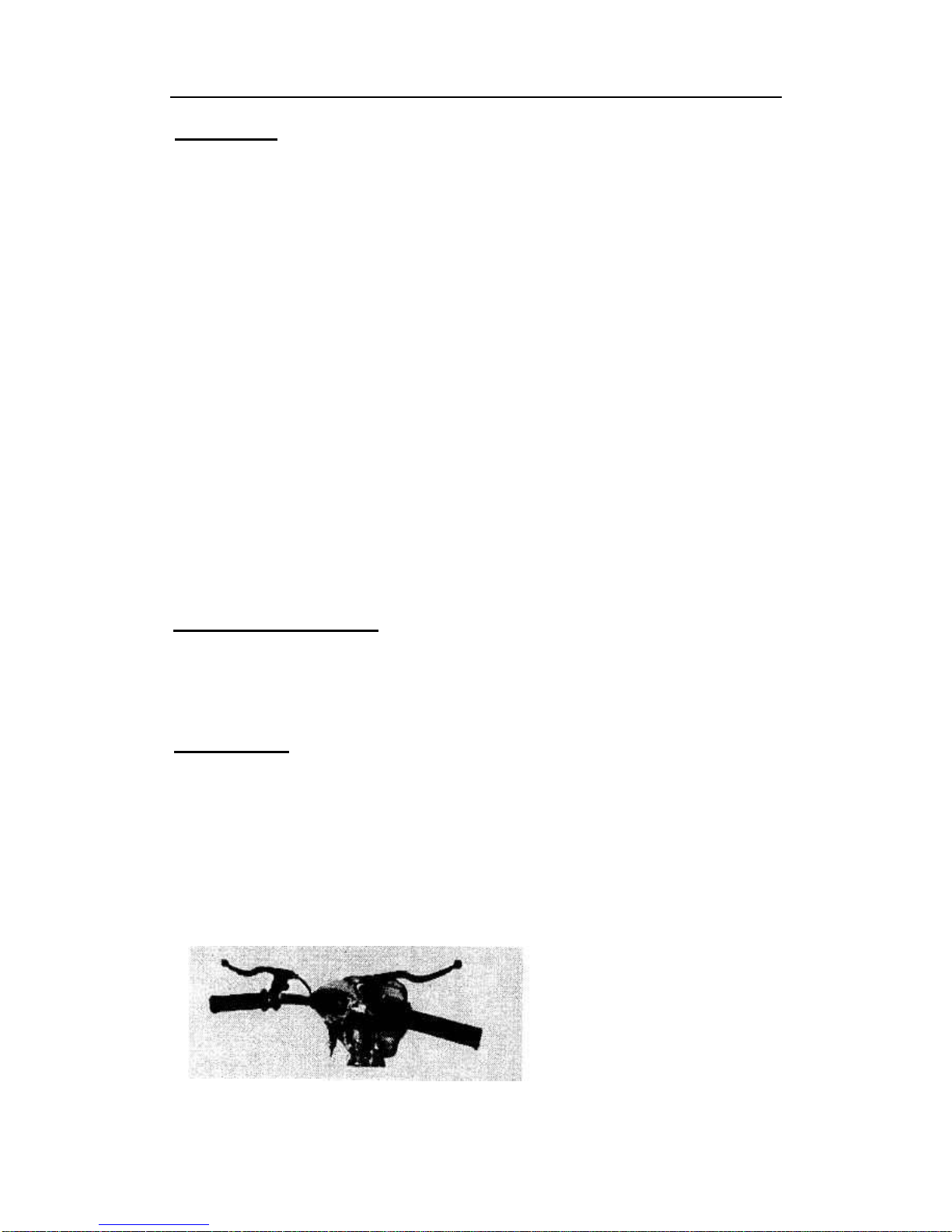

1. The left hand lever controls the rear wheel brake.
2. The right hand lever controls the engine throttle.
3. The red button can shut down the engine.
4. Moving the handle with both hands, you steer the Scooter just
like a bicycle.

UFREE SCOOTER www.scooter-manufacturer.com
4
NOTES
BEFORE you ride, thoroughly inspect the machine to ensure that no parts are
loose or damaged. Do not use it until adjustments or repairs have been made.
New engine break-in period is a couple of hours and avoid full throttle operation
during this period.
Position your feet in a comfortable location and balance your body with the left
leg slightly behind the right leg and bearing most of your weight, lean back
slightly and your Scooter will move like the smoothness of water skiing! When you
accelerate or climb hills you will need to lean forward to keep the front wheel on
the ground. When sudden brakes occur you will need to lean to keep the rear wheel
on the ground. Do not touch the muffler or cylinder. These parts are extremely hot
after operation and remain hot for a short time after the equipment is turned off.
PLEASE INJECT LUBRICATING OIL INTO THE OIL HOLE LOCATED IN
THE TOP OF THE PLASTIC CHAIN COVER TO PROTECT THE CHAIN
BEFORE YOU RUN THE ENGINE.
SAFETY DRIVING
Although the engine noise has been reduced, it is difficult to hear approaching
vehicles so you must take care before turning. The rider has been designed to
operate on any dry, hard and smooth surfaces. Wet, oily and uneven surfaces
should be avoided at all times.
STARTING
BEFORE riding, you should start the engine firstly by pulling the "pull start" lead,
with one foot placed on the deck. This may require a few "pulls" to get the engine
started. When the engine has started you may accelerate slightly and at the same time
place your other foot onto the deck. This process may need practice at first until you
have mastered your balance.

UFREE SCOOTER www.scooter-manufacturer.com
5
OPTIONAL SEAT
The seat can be used on the Scooter once the rod has been put through the frame
and through the seat column. The locking pin must then be clipped into position
before riding.
MAINTENANCE AND PARTS
Only use the manufacture's original parts when repairing this unit. All frame parts
are available through the distributors.
The use of non-standard parts, or other accessories and attachments not designed
for this unit could result in serious injury to the user and damage to the product.
HOW TO ADJUST THE CHAIN
The chain may become loose because of frazzle and elongation after some time, so
it needs to be adjusted. Simply loosen the nut of the rear wheel shaft, pull the rear
wheel backwards, and then lock the adjustment nuts as well as the nut of the rear
wheel shaft. Do not tighten the nuts too much-of you will hear increased noise.

UFREE SCOOTER www.scooter-manufacturer.com

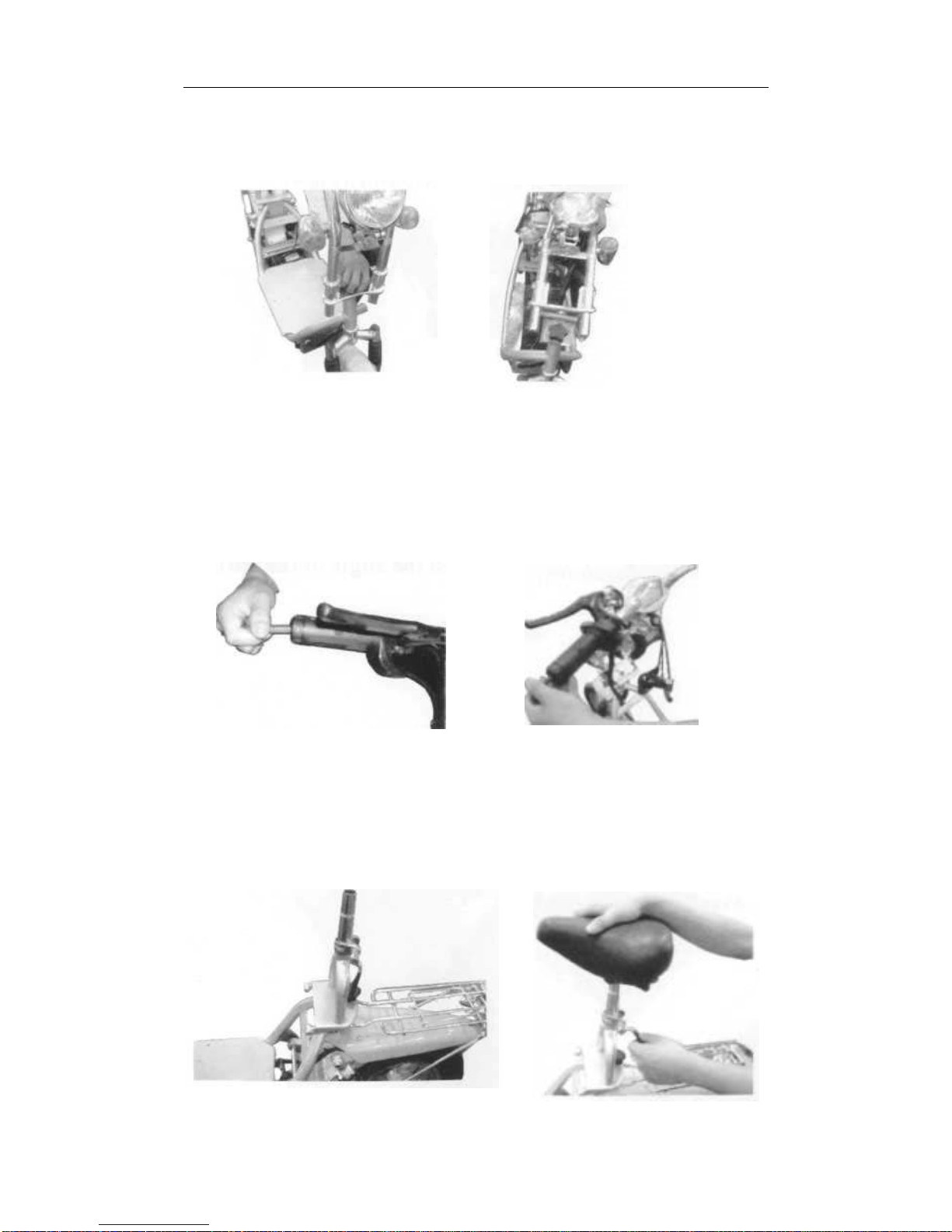

l. Put the fork in right position and use the screw to fix the handle
tightly. (Fig 1)
2. Lift the handle bar, and put it on the proper position on the front fork,
then use the hexagon to fixed the handle bar.(the screw is in the inner side
of handle, you need to put the hexagon(the larger one) inside the handle bar
as the picture shown(Fig 2)to fixed it.
3. Put the pole of the seat into the fixed tube then tighten the lock. Put the
seat saddle and adjust and position, the tight the screw under the
saddle. (Fig 3)

UFREE SCOOTER www.scooter-manufacturer.com
4. To finish the assembly, you need to put the fuse into the fuse socket.
Remove the cover of the fuse socket and put the fuse on the cover, the
re-close the cover. WARNING: when putting on the fuse, please make
sure the power key switch turns to OFF. (Fig 4)
5. The mirror can be installed easily. Find the proper position, put the
screw on and the tight the screw tightly. Adjust the mirror in right angle.
(Fig 5)
Install of the mirror: put the socket on the proper position of the
handle bar. Use the screw at the end of the handle mirror to tight up
and fixed the mirror position. Adjust the angle of the mirror.
6. The basket can be installed as following, .fix the screws on the fork tube.
Make sure the height is correct. (the bottom of the basket is just over the
plastic cover. (Fig 6)
