Liquid Nitrogen Generator
Instruction Manual
UMP-40W

ULVAC CRYOGENICS INCORPORATED I
INTRODUCTION
Thank you for choosing our products. This instruction manual provides information and
precautions on handling, installation, operation, and maintenance of the product.
This product is intended for use by qualified personnel who recognize shock hazards and are
familiar with the safety precautions required to avoid possible injury. To ensure proper use
of this product, read this instruction manual carefully and keep this manual close at hand so
that you can use for reference during operation. If you purchased our other products and/or
optional devices with this product, read relevant instruction manuals carefully.
Note that the UMP-40W is designed for the use outside of Japan and cannot be installed nor
used in Japan.
<General Precautions>
(1) The information included in this manual cannot be used for redistribution or
reproduction, nor be disclosed or transferred to a third party without written
permission from ULVAC CRYOGENICS.
(2) Information provided within this document is subject to change without notice,
due to the change of specifications or product update.
(3) Although the information in this document is believed to be accurate, we would
welcome feedback from our customers. Please contact us.

II ULVAC CRYOGENICS INCORPORATED
Safety Conventions
Our products have been designed to provide extremely safe and dependable operation
when properly used. Following safety precautions must be observed during normal
operation and when servicing them.
Caution low temperature.
There is a risk of low temperature burn injury.
CAUTION
WARNING
A warning describes safety hazards or unsafe practices which
could result in severe injury or loss of life.
A caution describes safety hazards or unsafe practices which
could result in personal injury or equipment damage.
Toxic gas or chemicals used.
There is a risk of severe injury upon contact.
Corrosive chemicals used.
There is a risk of severe injury upon contact.
Flammable gas used.
There is a danger of fire or burn injury.
Explosive gas used.
There is a risk of fire or explosion.
Electrical hazard.
High voltage can cause severe injury or death.
Hot heating part present.
There is a risk of burn injury.

ULVAC CRYOGENICS INCORPORATED III
Table of Contents
Safety Instructions··················································································1
Disposal Considerations··········································································2
Safety Instructions ··········································································1
Disposal Considerations····································································3
General Description of the System······················································5
Liquid nitrogen generator (UMP-40W) ·············································5
Helium gas compressor (C30PMVRT)···············································5
PSA (Pressure Swing Adsorption) Nitrogen Generator (type GN-30i) ···· 5
Component Description ····································································6
Front view of UMP-40W (Figure 4-1)················································6
Inside view of UMP-40W front door and lower panel (Figure 4-3
Electrical circuit)···················································································8
UMP-40W Electrical circuit（Figure 4-3）········································9
Flow Diagram ··············································································· 10
Specifications·················································································11
Liquid nitrogen generator ······························································11
PSA (Pressure Swing Adsorption) nitrogen gas generator···················11
Power source (for UMP-40W) ·························································11
Cooling water (for UMP-40W) ······················································· 12
Power source for GN-30i (when using GN-30i) ································· 14
Installation··················································································· 15
Environmental Requirements ······················································· 15
GN-30i power connection ······························································ 16
UMP-40W utility connection ························································· 16
Electric Wiring ·············································································· 19

IV ULVAC CRYOGENICS INCORPORATED
Touchscreen Operation ··································································· 20
MAIN screen··············································································· 20
DEWER TANK············································································ 21
ALARM MENU ··········································································· 22
SUPPLY DESTN ALARM ····························································· 25
MENU ······················································································· 26
Operation····················································································· 31
Checks prior to operation······························································ 31
Operation preparation·································································· 31
Shutdown ··················································································· 32
When suspending for long time (for 1 to 2 weeks) and
resuming UMP-40W ··································································· 32
Dispense Liquid Nitrogen Manually·················································· 33
Connecting liquid nitrogen supply flexible hose ······························· 33
Dispense liquid nitrogen······························································· 33
Disconnection of flexible hose ························································ 34
Maintenance and Inspection···························································· 35
Daily inspection ·········································································· 35
Periodical maintenance/inspection ················································· 35
Troubleshooting············································································· 37
Accessories ··················································································· 39
Warranty······················································································ 40

ULVAC CRYOGENICS INCORPORATED 1
Safety Instructions
To this unit, voltage that would cause electrocution or serious injuries is applied. It is extremely
dangerous to touch the live part inside the unit. Make sure to turn OFF the main power source before
performing installation, maintenance or repair. Contacting the internal parts that are not insulated
may damage human body or equipment.
Connect the earth wire to D type grounding.
Nitrogen gas itself is not toxic to human bodies but it reduces the oxygen level in the atmosphere (the
oxygen concentration of 18% or below is defined as an oxygen-depleted state). Install the equipment
on a well-ventilated place, and add a ventilating fan with a capacity of at least 2000 m3/hr airflow.
Do not stay together with a dewar containing liquid nitrogen in a sealed space, such as an elevator or a
car.
The volume of nitrogen gas is 700 times of liquid nitrogen. Sealing liquid nitrogen in an airtight
space produces high-pressure gas of 700 atm and may result in explosion. Use liquid nitrogen in the
condition constantly open to the air.
2. Danger of oxygen deficiency: Ventilate well.
1. Danger of electric shock: Do not touch the live part.
3. Danger of explosion: Do not seal LN
2
.

2 ULVAC CRYOGENICS INCORPORATED
Liquid nitrogen provides temperature as low as -196°C. If liquid nitrogen is directly handled,
frostbites, loss of sight, and others are foreseen. Always wear leather gloves, goggles, trousers
without turnips, etc. to handle liquid nitrogen. In addition, use cautions to liquid nitrogen transport
lines, too. In this unit, there is a part with danger of burns if touched directly. Perform work such as
maintenance or repair at least 30 minutes after the unit is shutdown.
High-pressure helium gas is filled in this unit. When disassembling or disposing of the unit or parts, be
sure to discharge helium (no need to discharge helium for regular maintenance). In addition, never
attempt to install the apparatus under the atmosphere of hydrochloric acid-based, chlorine gas-based,
and other corrosive gases.
4. Danger of burns or frostbites: Never touch high
or ultra-low temperature parts.
5. Danger of explosion: Do not expose to corrosive
gases.

ULVAC CRYOGENICS INCORPORATED 3
Disposal Considerations
Disposal of industrial waste is regulated by national or local governments. Follow all applicable
local or national laws, regulations or guidelines when disposing our products.
We provide Safety Data Sheet (SDS) of our products upon your request.
Please contact us when necessary.
When the refrigerator unit may have pumped toxic or dangerous gases, you must contact
your safety supervisor at the time of disposal, and follow the instructions to remove
hazardous substances before disposing.
WARNING

4 ULVAC CRYOGENICS INCORPORATED
This page intentionally left blank.

ULVAC CRYOGENICS INCORPORATED 5
General Description of the System
Liquid nitrogen generator (UMP-40W)
UMP-40W Liquid Nitrogen Generator provides liquid nitrogen by cooling down, condensing and
liquefying nitrogen gas with the cold head (RMS150T).
Liquid nitrogen is stored inside dewar, and can be transferred to another container with easy
operation. With the optional automatic transfer system, liquid nitrogen can be automatically
transferred to the dewars of the customer’s system.
Nitrogen gas source can be selected from PSA nitrogen generator, and membrane nitrogen
generator.
Liquid nitrogen generator is hereafter referred to as “UMP-40W” in this book.
Helium gas compressor (C30PMVRT)
This unit is in the right side of UMP-40W, compress Helium gas to supply to the cold head to
provide cryogenic temperatures. It is automatically turned on and off by the control circuit of
UMP-40W.
Helium gas compressor is hereafter referred to as “C30PMVRT” in this manual.
For details of this equipment, please refer to the operation manual for “C30PMVRT”.
PSA (Pressure Swing Adsorption) Nitrogen Generator (type GN-30i)
PSA Nitrogen Generator GN-30i generates highly concentrated nitrogen from the air using
adsorber and supply the gas to UMP-40W. The nitrogen generated here is used as the material
for liquid nitrogen and is also used to take out liquid nitrogen.
PSA nitrogen generator is hereafter called “GN-30i” in this book. When we describe things that
are in common with membrane nitrogen generators, they are collectively referred to as “nitrogen
generators”.
Please refer to the operation manual of GN-30i for details.

6 ULVAC CRYOGENICS INCORPORATED
Component Description
Ｌｉｑｕｉｄ Ｎｉｔｒｏｇｅｎ Ｇｅｎｅｒａｔｏｒ
Ｍｏｄｅｌ：ＵＭＰ－４０Ｗ
Touchscreen(HMI)
Ｙ
Ｎ
Ｃ
Ｅ
Ｇ
Ｅ
Ｒ
Ｍ
Ｅ
Ｓ
Ｔ
Ｏ
Ｐ
%
MANUAL
START
AUTO
READY
RUN/
STOP
GN ON/
OFF
AUTO
SUPPLY
MANUAL
STOP
A11：MAIN
ALARM
DEWER LN2
0
Emergency Stop Button (EMS)
LN2 Manual
Dispense Port

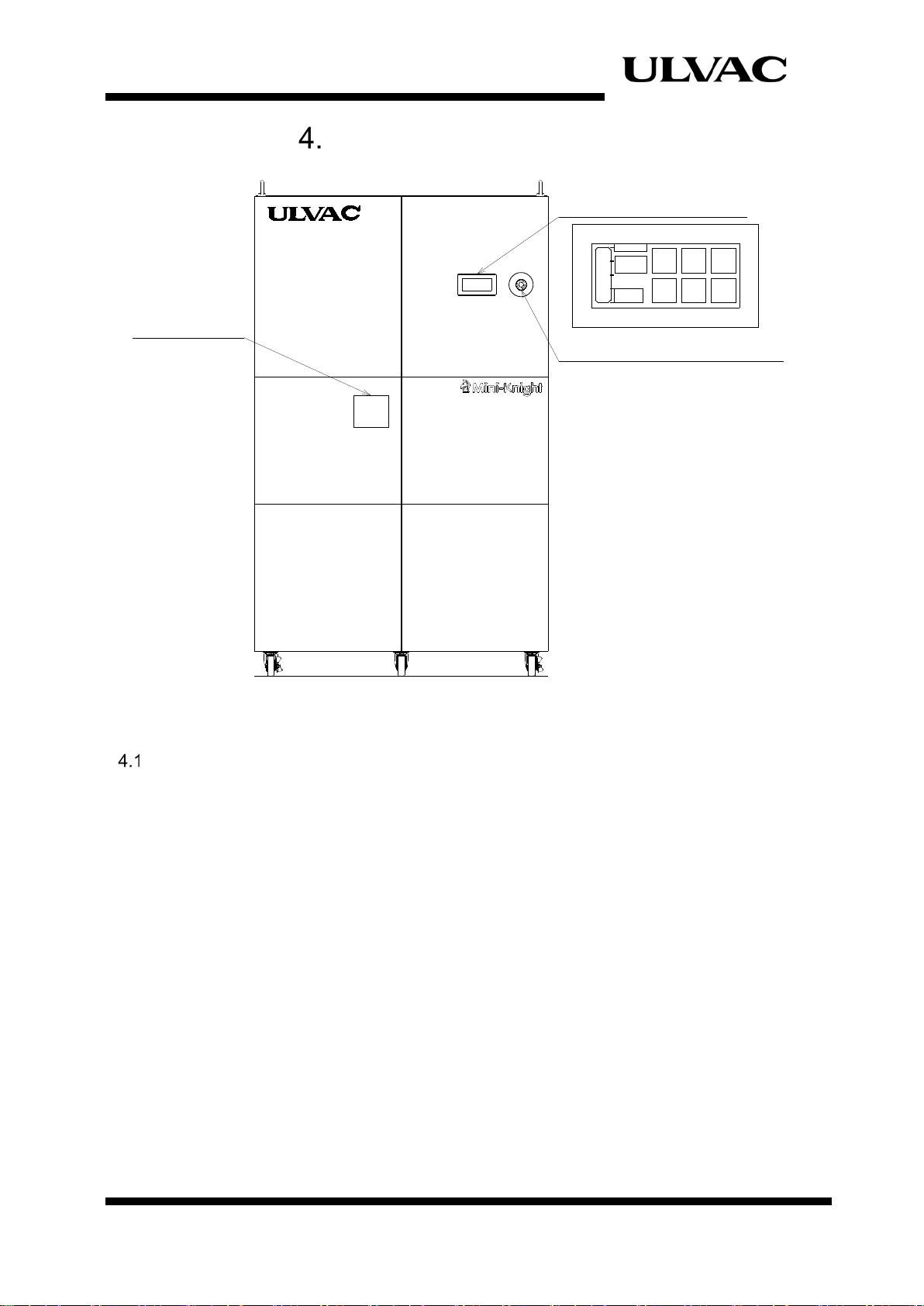

Figure 4-1 Front view of UMP-40W
Front view of UMP-40W (Figure 4-1)
Emergency stop button(EMS) :Press this button to shut down the control circuit to stop as
dispensing liquid nitrogen or liquefaction. Do not use the
emergency stop button except for emergency.
Front left door :Remove two screws to open this door. Inside the door, there is a
liquid nitrogen dewar, a cold head or open this door only for
periodic inspection, maintenance and repair services.
Front right door :Remove two screws to open the front right door. Inside the door,
there are C30PMVRT and electric circuits. Open this door when
you adjust helium gas pressure.
※Ensure that main power is disconnected before opening this
door.

ULVAC CRYOGENICS INCORPORATED 7
LN2manual dispense port :Press the panel to open. Inside the panel, there is a coupling to
connect liquid nitrogen supply flexible hose. Since the port may
reach extremely low temperature, do not touch it with bare hands
during or right after dispensing liquid nitrogen.
RMS150T REFRIGERATOR
ＲｅｖｅｒｓｅＰｈａｓｅ，ＬｏｗＶｏｌｔ
Ｃｏｎｔｒｏｌｌｅｒ Ｆａｕｌｔ
ＯＬ１Ｃｏｍｐ．Ｏｖｅｒ Ｃｕｒｒｅｎｔ
ＣＰ２Ｃｏｌｄ ＨｅａｄＴｒｉｐ
ＬＰＳＬｏｗＨｅｌｉｕｍＰｒｅｓｓｕｒｅ
ＴＳ３Ｏｖｅｒ Ｔｅｍｐｅｒａｔｕｒｅ
ＴＳ１Ｏｖｅｒ Ｔｅｍｐｅｒａｔｕｒｅ
ＴＳ２Ｏｖｅｒ Ｔｅｍｐｅｒａｔｕｒｅ
８
７
６
５
４
３
２
１
ＤｅｓｃｒｉｐｔｉｏｎＤｅｓｃｒｉｐｔｉｏｎ
ＳＴＳＳＴＳ
ＡＬＡＲＭＳＴＡＴＵＳＴＡＢＬＥ
Tel.[phone]
.
INQUIRY:
RECORD SHEET OF THE
ADSORBER REPLACEM ENT
Hr.
Person
Replaced
Date
ReplacedElapsed-Time
Hours
Replace the adsorber after a maximum operation of
24,000 hours. Write the elapsed-time of the meter
(ETM) on this sheet.
・ ・
・ ・
・ ・
・ ・
・ ・
the pressure,puta checkmark on the list above.
fromt heh eliumfill fitting. After adjusting
Removet hispanel to adjust helium pressure
Refer tot heinstruction manual for the detail.
ヘリウム圧力の調整は このパネルを外して
ヘリウム充てん口より 行ってください。
圧力調整後は、上記表 にチェックしてください 。
詳細は取扱説明書を参 照してください。
CRYO PUMP(50/60Hz Area) ：1.4MPa(G)
Ｈｅｌｉｕｍ Ｐｒｅｓｓｕｒｅ ａｔ ２０℃
SUPER TRAP(60Hz Area) ：1.3MPa(G)
SUPER TRAP(50Hz Area) ：1.4MPa(G)
MADEIN JAPAN
MODEL
COMPRESSOR UNIT
No.
SERIAL No.
Ｃ３０Ｐ MＶRＴ
ＣＨ３
ＣＨ２
ＲＵＮ
ＣＨ１
ＲＤＹ
ＰＷＲ ＳＴＳ
ＣＯＭ ＲＳＴ
８
７
６
５
４
３
２
１
ＰＲＥＳＳＵＲＥ
ＳＵＰＰＬＹ
SUPPLY
Control panel
(RMS150T)
(C30PMVRT)
2-Slopes
Pressure gauge
High pressure helium
gas pressure gauge
Compressor status display
and reset button
Compressor power light
Elapsed time meter
Compressor
Liquid nitrogen dewar
Cold head
Helium gas charge fitting
(inside the panel)
Figure 4-2 Inside view of UMP-40W front door and lower panel

8 ULVAC CRYOGENICS INCORPORATED
ON ON
L1 L2 L3 PE
ELB MC1PWSPLC A/D1 A/D2
CP1 RL1
CP2 A11 A12
Electromagnetic contactor
Gas flow rate sensor
Liquid level indicator
2-Circuit protectors
3-Sequencers
Terminal blocks
Terminal blocks
DC Power supply
Earth bar
(Power supply connection)
Terminal blocks
Circuit breaker
Figure 4-3 Electrical circuit
Inside view of UMP-40W front door and lower panel (Figure 4-2)
Liquid nitrogen dewar : Container that stores liquid nitrogen up to 100 litters.
Cold head (RMS150T) :The cold head works in conjunction with the compressor to
generate ultra-low temperature and produce liquid nitrogen.
The cold head needs maintenance services according to the
time in operation.
Pressure gauge :Displays the pressure inside the dewar.
He Pressure Meter :Displays the pressure of Helium gas filled in C30PMVRT.
When suspended: 1.26 – 1.34 MPa
When in operation: 1.70 – 2.20 MPa
He gas charge fitting :This port is inside the front panel of C30PMVRT. Connect
the charging hose to this port to charge Helium gas. Do not
touch this port except when needed, as it may result in helium
leakage.

ULVAC CRYOGENICS INCORPORATED 9
Compressor status display and RESET button
:Refer to the instruction manual of the compressor unit.
POWER light The POWER light button lights when C30PMVRT is in
operation.
Elapsed time meter :The elapsed time meter displays the total operation time of
C30PMVRT. Use this information to conduct maintenance
work properly.
UMP-40W Electrical circuit（Figure 4-3）
Circuit breaker :The Circuit Breaker is the protective breaker for control
circuit of the UMP-40W. It is tripped when an electric leak or
short-circuit occurs.
Sequencer :The Sequencer is a controller used to control the operation of
UMP-40W system. This functions to operate necessary units
upon reception of signal from the sensors. In the event of an
error, please inform us of the status of input or output lights of
the sequencer when contacting us.
Level sensor converter :The level sensor converter is the electric component for
detecting liquid nitrogen level in the UMP-40W. Since it is
adjusted precisely, please do not touch any button.
Terminal blocks :The Terminal blocks connect the wiring of signal reception of
the electric appliances and containers of automatic supply
destination.

10 ULVAC CRYOGENICS INCORPORATED
Flow Diagram
Cooling water hose
Nitrogen gas tube
Top Flange
Gas release tube
Dewer tank
Liquid level indicator
Helium gas tube
P
GN-30i
RMS150T
Nitrogen gas
generator
Control circuit
Flowmeter
Power cable
AC200/220V(50/60Hz)
Remote cable
Flowmeter
Pressure
relief valve
Pressure
gauge
Cryogenic solenoid
LN2 supply
flexible hose
Ambient
temperature
solenoid
valve
C30PMVRT
Helium gas
compressor
Compressor power cable
Coldhead cable
valve
Touch screen
Manual dispense tube
Pressure regulrator
Figure 5-1 UMP-40W Flow Diagram

ULVAC CRYOGENICS INCORPORATED 11
Specifications
Liquid nitrogen generator
Type : UMP-40W
Liquid nitrogen production : 40L/day (60Hz)
Dimensions : 1095[W] x 750 [D] x 1793 [H]
Weight : Approx. 430 kg
Cold head type : RMS150T
Compressor type : C30PMVRT
Cooling method : Water-cooled
Ambient conditions : Ambient temperature: 10 – 35°C
Relative humidity: 80% or less
(Non-condensation other than LN2dispense port)
UMP-40W must be installed indoors.
UMP-40W must not be used in the atmosphere with organic solvents or corrosive gases.
PSA (Pressure Swing Adsorption) nitrogen gas generator
Type : GN-30i
Dimensions : 600[W] × 650[D] × 1200[H]
Weight : Approx.120kg
Cooling method : Air-cooled (Intake from front, exhaust from back)
GN-30i must be installed indoors.
GN-30i must not be used in the atmosphere with organic solvents or corrosive gases.
Air inhaled from the front is discharged to the backside. Do not block these areas.
Power source (for UMP-40W)
Rated working voltage : 50Hz 190 - 220VAC, 60Hz 200 - 230VAC
three-phase
Power capacity : 30 A or above
Power consumption : 7.5kW
Connection : Round type crimping terminal for M5
Use D-type earth ground for safety.
CAUTION

12 ULVAC CRYOGENICS INCORPORATED
Cooling water (for UMP-40W)
Flow rate : 300 – 900L/hour (recommended: 330L/h)
Pressure : 0.02 – 0.17 MPa (recommended: 0.1MPa)
Temperature : 10 – 32°C (recommended: 20°C)
Water quality : Tap water equivalent
* Check the water quality on a regular basis.
The flow rate of cooling water should be within the following allowable range. When the
flow rate or pressure is too low, it may result in abnormal suspension, failure, or damaging
cooling water pipes due to the temperature rise.
CAUTION

ULVAC CRYOGENICS INCORPORATED 13

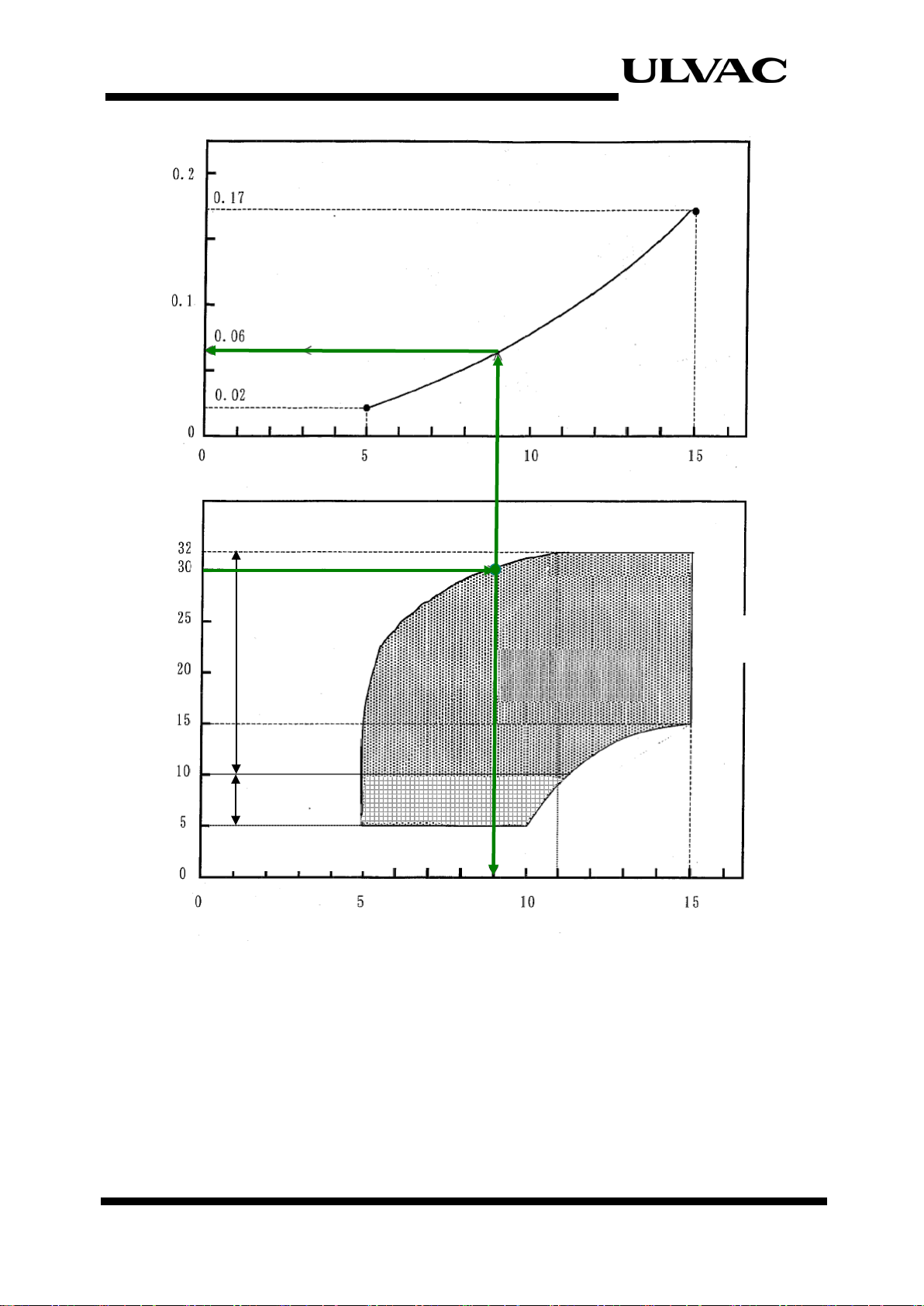

Figure 6-1 Allowable range of cooling water for UMP-40W
Water Pressure Loss
[MPa]
Water flow rate
Upper limit
Water Flow Rate [L/min]
Acceptable
operating
range
Allowable
*See CAUTION
on next page
(3) 0.06MPa
(1) 30
℃
(2) > 9L/min
Water Inlet Temperature [°C]
Water flow rate
lower
limit
Temperature
Upper limit
Temperature Lower limit
Water Flow Rate [L/min]

14 ULVAC CRYOGENICS INCORPORATED
Power source for GN-30i (when using GN-30i)
Voltage : 200 VAC±10% (50/60Hz) , single-phase
Power capacity : 15 A or above
Power consumption : 1.2 kW (50/60Hz)
Connection : Round type crimping terminal for M4
Use D-type earth ground for safety.
If cooling water temperature is lower than 10°C, stop the water flow when the compressor is
suspended. If cooling water of below 10°C is kept flowing, it may raise viscosity of lubricant oil
and the compressor may fail to startup when turned on.
CAUTION
CAUTION
