Uni-Fi UVP-TouchMax User manual

VoIP Phone with 7"HD
LCD Display and Touch
Model: UVP-TouchMax

• Package Contents
• Hardware Overview
• Software
• Specifications
• Safety Notices
• Electrical Safety Information
• Limited Warranty
• Compliance
• Declaration of Conformity
• Online Resources

Package Contents
UVP Touch Max
Installation Requirements
• UniFi Switch or PoE+ (802.3at-compliant) switch
• Recommended: UniFi Talk Controller installed on UCK-G2-
Plus or UDM Pro.
Alternate Option: Use a third-party SIP/PBX provider

Hardware Overview
1
2
4 5
3
128
PM
TUE,MAY 20
6

1
Camera
Built-in camera can be used for snapping photos for avatars or
videoconferencing applications.
2Touchscreen
The touchscreen display is used for all interface navigation and dialing.
3Keypad
Touch to display the numeric keypad.
4LED
The LED will illuminate when the device is rst connected to a 48V power
source. Once the phone has started up, the LED will turn off.
IMPORTANT: The LED will flash when a firmware update
is occurring. Do not disconnect power/Ethernet from the
device during this time.
5Volume
Press this soft button to display the volume adjustment screen.
6Mute Button
Press this button to mute the phone’s audio output.

8
7
109
7Headset Jack
3.5 mm jack for optional wired stereo and microphone headsets.
8USB C Port
The USB C port can be used to charge a device.
9
PC
This Ethernet port is used for bridging.
WARNING: Do not connect a powered Ethernet connection to the
port labeled PC.
10 PoE/LAN
The PoE/LAN Ethernet port is 802.3af-compliant and used to connect
data and power to the phone. Connect this to the same network where
the UniFiTalk controller is running on the UCK-G2+ or UDM Pro.

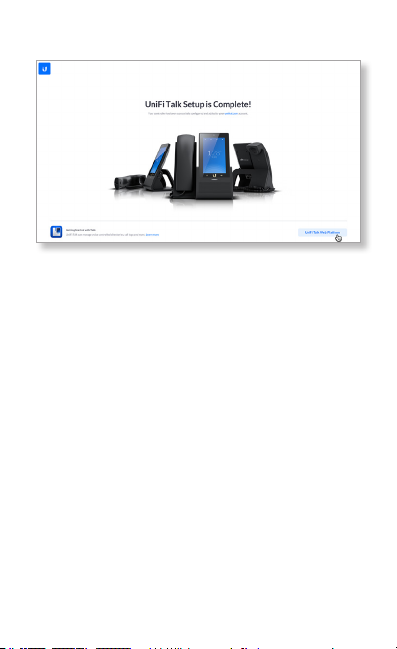

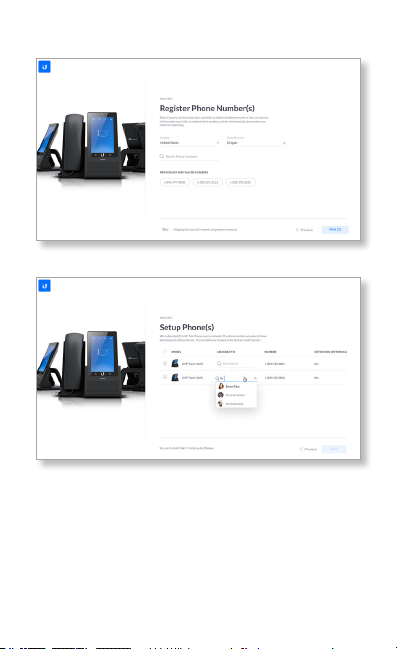

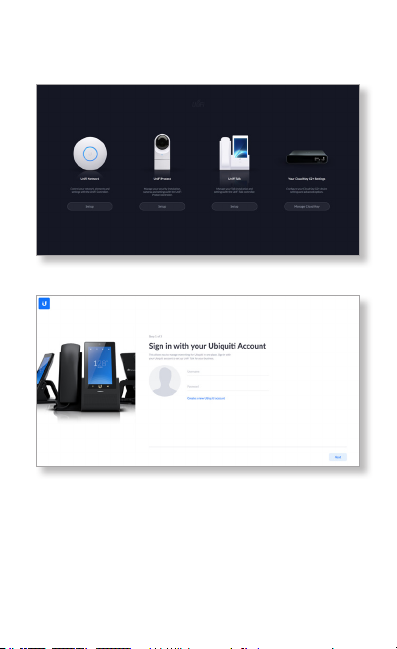

Software
1.
2.

3.
4.

5.

Specifications
UVP-TouchMax
Dimensions 254.6 x 135 x 182.5 mm (10.02 x 5.31 x 7.19")
Weight 1.52 kg (53.6 oz)
Display 7" (Diagonal), 800 x 120 HD, GFF Multi-Touch
Camera 5M Pixel
LED Power Status: White, Glowing
Handset
Dynamic Receiver 16 ohm/SPL 116dB @1KHz,
30mW, 0m
Omnidirectional Electret Microphone/SNR 70 dB/
Sensitivity -38 ± 3 dB
Audio Codec WCD9326: Standalone Hi-Fi audio codec IC
WSA8815: Smart Speaker Amplier
Power Input PoE+ 802.3.at
Hands-Free Speaker 4 ohm, Pnom 3W, Pmax 5W,
SPL 79 dB @ 1W, 0.5m
Hands-Free
Microphone
Dual Omnidirectional MEMS Microphones
SNR 64 dB
Sensitivity -26 dBFS
Digital Microphone
Ports (2) 10/100/1000 Ethernet Ports
(1) Type-C Port (charging only, 5V/1A)
Connectivity Bluetooth 4.2
Wi-Fi 2.4G b/g/n, BW 20/40
Wi-Fi 5G a/n/ac, BW 20/40/80, Slave DFS
Headset Support 3.5mm Audio Jack
Processor Octa-core CPU, 8x ARM Cortex A53, 1.8 GHz
Memory Storage 32 GB +RAM 2 GB
Operating Temp. 0 to 40° C (32 to 104° F)
Software
OS Android 9 / PJSIP v2.4
Audio DSP
Algorithms
Active Echo Cancellation, Noise Suppression,
Blind Source Separation
Protocols SIP, SDP, RTP, RTCP, VLAN, DHCP

Important Warning Regarding Emergency Calls
NOTE THAT THE LIMITATIONS SET FORTH BELOW ARE APPLICABLE TO
ALL EMERGENCY CALLS, FUNCTIONS AND SERVICES, INCLUDING 911,
ENHANCED 911 AND 112 CALLS (COLLECTIVELY, “EMERGENCY SERVICES”).
1. You should be aware that:
a. Emergency Services may not connect to the Public Service
Answering Point (“PSAP”), or may ring to the administrative line
of the PSAP, which may not be staffed after hours, or by trained
emergency operators.
b. VoIP customers may need to provide location or other information
to their VoIP providers, and update this information if they change
locations, for their Emergency Services to function properly.
c. VoIP service may not work during a power outage, or when
the Internet connection fails or becomes overloaded. Consider
installing a backup power supply, maintaining a traditional phone
line or having a wireless phone as a backup.
d. VoIP service will not function if the telephone equipment or other
equipment necessary to place calls is not correctly configured.
e. Emergency Services may correctly connect to the PSAP, but may
not transmit the user’s phone number and/or location information.
f. VoIP calls may not be capable of being received and/or processed
by an emergency call center due to the center’s technical
limitations.
g. VoIP calls may be affected by other factors or force majeure events,
such as the quality of the broadband connection and network
congestion.
2. You should:
a. Provide your accurate physical address to your interconnected
VoIP service provider to ensure that emergency services can
quickly be dispatched to your location.
b. Be familiar with your VoIP service provider’s procedures for
updating your address, and promptly update address information
in the event of a change.
c. Have a clear understanding of any limitations of your Emergency
Services.
d. Inform children, babysitters and visitors about your VoIP service
and its Emergency Services limitations.
3. By installing the phone, you are affirmatively acknowledging that (i)
you have read and understood this Warning, (ii) you understand that
you may not be able to contact emergency services by dialing or using
any Emergency Service, and (iii) you understand that you must inform
users of the phone that they may not be able to contact emergency
services by dialing or using any Emergency Service.
4. IN NO EVENT SHALL UBIQUITI, ITS AFFILIATES, OFFICERS,
DIRECTORS, EMPLOYEES, REPRESENTATIVES, AGENTS OR ANY
OTHER THIRD‑PARTY PROVIDER OR VENDOR WHO MAY FURNISH
SERVICES OR PRODUCTS TO YOU IN CONNECTION WITH THE VOIP
SERVICES OR THE EQUIPMENT BE HELD LIABLE FOR ANY CLAIM,
DAMAGE, OR LOSS WHATSOEVER ARISING FROM OR RELATING TO
EMERGENCY SERVICES, AND YOU HEREBY WAIVE ANY AND ALL
SUCH CLAIMS OR CAUSES OF ACTION ARISING THEREFROM OR
RELATING THERETO.

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in a location that can be
submerged by water.
WARNING: Avoid using this product during an electrical storm. There
may be a remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
Limited Warranty
www.ubnt.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.

Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operations of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
This radio transmitter has been approved by FCC.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
This device complies with ISED Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter has been approved by ISED Canada.
The device for operation in the band 5150-5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel mobile
satellite systems.

CAN ICES-3(A)/NMB-3(A)
Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
1. l’appareil ne doit pas produire de brouillage;
2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Le présent émetteur radio a été approuvé par ISDE Canada.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
IMPORTANT NOTE:
Radiation Exposure Statement:
• This equipment complies with radiation exposure limits set forth for an
uncontrolled environment.
• This equipment should be installed and operated with minimum
distance 20 cm between the radiator and your body.
• This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
AVIS IMPORTANT :
Déclaration sur l’exposition aux rayonnements :
Cet équipement est conforme aux limites prévues pour l’exposition aux
rayonnements dans un environnement non contrôlé.
Lors de l’installation et de la mise en fonctionnement de l’équipement,
assurez-vous qu’il y ait une distance minimale de 20 cm entre l’élément
rayonnant et vous.
Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni
d’aucun autre émetteur, et ne doit être utilisé conjointement à aucun autre
de ces appareils.
Australia and New Zealand
Warning: This equipment is compliant with Class A of CISPR 32.
In a residential environment this equipment may cause radio
interference.

Brazil
Nota: Este equipamento não tem direito à proteção contra
interferência prejudicial e não pode causar interferência em
sistemas devidamente autorizados.
CE Marking
CE marking on this product represents the product is in compliance with
all directives that are applicable to it.
Country List
AT BE BG CY CZ DE DK EE EL ES FI FR HR HU
IE IT LV LT LU MT NL PL PT RO SE SI SK UK
BFWA (Broadband Fixed Wireless Access) members noted in blue
Note: This device meets Max. TX power limit per ETSI regulations.
The following apply to products that operate in the 5 GHz frequency range:
Note: This device is restricted to indoor use only when operating
in the 5150 - 5350 MHz frequency range within all member states.
Note: All countries listed may operate at 30 dBm. BFWA member
states may operate at 36 dBm.
Note: Operation in the 5.8 GHz frequency band is prohibited in
BFWA member states. Other countries listed may use the 5.8 GHz
frequency band.
RoHS/WEEE Compliance Statement

English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.

Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.

Declaration of Conformity
български [Bulgarian] С настоящото UBIQUITI декларира, че това устройство UVP-TouchMax е
в съответствие със съществените изисквания и други приложими разпоредби на Директиви
2014/53/EC, 2014/30/ЕС, 2014/35/ЕС. Цялостният текст на ЕС декларацията за съответствие
може да се намери на следния интернет адрес: ui.com/compliance
Hrvatski [Croatian] UBIQUITI ovim putem izjavljuje da je ovaj uređaj UVP-TouchMax sukladan
osnovnim zahtjevima i ostalim bitnim odredbama Direktiva 2014/53/EU, 2014/30/EU,
2014/35/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi:
ui.com/compliance
Čeština [Czech] UBIQUITI tímto prohlašuje, že toto UVP-TouchMax zařízení, je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/53/EU, 2014/30/EU,
2014/35/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese:
ui.com/compliance
Dansk [Danish] Hermed, UBIQUITI, erklærer at denne UVP-TouchMax enhed, er
i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiver
2014/53/EU, 2014/30/EU, 2014/35/EU. EU-overensstemmelseserklæringens fulde tekst kan findes
på følgende internetadresse: ui.com/compliance
Nederlands [Dutch] Hierbij verklaart UBIQUITI, dat deze UVP-TouchMax apparaat, in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijnen
2014/53/EU, 2014/30/EU, 2014/35/EU. De volledige tekst van de EU-conformiteitsverklaring kan
worden geraadpleegd op het volgende internetadres: ui.com/compliance
English Hereby, UBIQUITI, declares that this UVP-TouchMax device, is in compliance with the
essential requirements and other relevant provisions of Directives 2014/53/EU, 2014/30/EU,
2014/35/EU . The full text of the EU declaration of conformity is available at the following internet
address: ui.com/compliance
Eesti keel [Estonian] Käesolevaga UBIQUITI kinnitab, et antud UVP-TouchMax seade, on
vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivide 2014/53/EL, 2014/30/EL,
2014/35/EL. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil:
ui.com/compliance
Suomi [Finnish] Täten UBIQUITI vakuuttaa, että tämä UVP-TouchMax laite, on yhdenmukainen
olennaisten vaatimusten ja muiden sitä koskevien direktiivien 2014/53/EU, 2014/30/EU,
2014/35/EU. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla
seuraavassa internetosoitteessa: ui.com/compliance
Français [French] Par la présente UBIQUITI déclare que l’appareil UVP-TouchMax, est
conforme aux exigences essentielles et aux autres dispositions pertinentes des directives
2014/53/UE, 2014/30/UE, 2014/35/UE. Le texte complet de la déclaration UE de conformité est
disponible à l’adresse internet suivante: ui.com/compliance
Deutsch [German] Hiermit erklärt UBIQUITI, dass sich dieses UVP-TouchMax Gerät, in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinien 2014/53/EU, 2014/30/EU, 2014/35/EU befindet. Der vollständige
Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
ui.com/compliance
Ελληνικά [Greek] Δια του παρόντος, UBIQUITI, δηλώνει ότι αυτή η συσκευή UVP-TouchMax,
είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις των οδηγιών
2014/53/EE, 2014/30/EE, 2014/35/EE.Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ
διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: ui.com/compliance
Magyar [Hungarian] Ezennel UBIQUITI kijelenti, hogy ez a UVP-TouchMax készülék megfelel az
alapvető követelményeknek és más vonatkozó 2014/53/EU, 2014/30/EU, 2014/35/EU irányelvek
rendelkezéseit. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes
címen: ui.com/compliance

Íslenska [Icelandic] Hér, UBIQUITI, því yfir að þetta UVP-TouchMax tæki er í samræmi við
grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/53/ESB, 2014/30/ESB, 2014/35/ESB. Fullur
texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: ui.com/compliance
Italiano [Italian] Con la presente, UBIQUITI, dichiara che questo dispositivo UVP-TouchMax,
è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle direttive
2014/53/UE, 2014/30/UE, 2014/35/UE. Il testo completo della dichiarazione di conformità UE è
disponibile al seguente indirizzo Internet: ui.com/compliance
Latviešu valoda [Latvian] Ar šo, UBIQUITI, deklarē, ka UVP-TouchMax ierīce, ir
saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās
2014/53/ES, 2014/30/ES, 2014/35/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā
interneta vietnē: ui.com/compliance
Lietuvių kalba [Lithuanian] UBIQUITI deklaruoja, kad šis UVP-TouchMax įrenginys atitinka
esminius reikalavimus ir kitas 2014/53/ES, 2014/30/ES, 2014/35/ES Direktyvų nuostatas. Visas ES
atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: ui.com/compliance
Malti [Maltese] Hawnhekk, UBIQUITI, tiddikjara li dan il-mezz UVP-TouchMax huwa konformi
mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta‘Direttivi 2014/53/UE, 2014/30/UE,
2014/35/UE. Id-dikjarazzjoni tal-konformità tista’tiġi kkonsultata minn ui.com/compliance
Norsk [Norwegian] Herved UBIQUITI, erklærer at denne UVP-TouchMax enheten, er i
samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene
2014/53/EU, 2014/30/EU, 2014/35/EU. Den fulle teksten til EU-samsvarserklæringen er
tilgjengelig på følgende internettadresse: ui.com/compliance
Polski [Polish] Niniejszym, UBIQUITI, oświadcza, że urządzenie UVP-TouchMax, jest zgodny
z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektyw
2014/53/UE, 2014/30/UE, 2014/35/UE . Pełny tekst deklaracji zgodności UE jest dostępny pod
następującym adresem internetowym: ui.com/compliance
Português [Portuguese] UBIQUITI declara que este dispositivo UVP-TouchMax, está conforme
com os requisitos essenciais e outras disposições das Directivas 2014/53/UE, 2014/30/UE,
2014/35/UE . O texto integral da declaração de conformidade está disponível no seguinte
endereço de Internet: ui.com/compliance
Română [Romanian] Prin prezenta, UBIQUITI declară că acest dispozitiv UVP-TouchMax
este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivelor
2014/53/UE, 2014/30/UE, 2014/35/UE . Textul integral al declarației UE de conformitate este
disponibil la următoarea adresă internet: ui.com/compliance
Slovenčina [Slovak] Týmto UBIQUITI, prehlasuje, že toto UVP-TouchMax zariadenie, je
v súlade so základnými požiadavkami a ďalšími relevantnými ustanoveniami smernice
2014/53/ EÚ , 2014/30/EÚ, 2014/35/EÚ . Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto
internetovej adrese: ui.com/compliance
Slovenščina [Slovenian] Družba UBIQUITI izjavlja, da je naprava UVP-TouchMax v skladu z
obveznimi zahtevami in drugimi ustreznimi določbami direktiv 2014/53/EU, 2014/30/EU in
2014/35/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu:
ui.com/compliance
Español [Spanish] Por medio de la presente UBIQUITI declara que este dispositivo UVP-TouchMax,
cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
las Directivas 2014/53/UE, 2014/30/UE, 2014/35/UE . El texto completo de la declaración UE de
conformidad está disponible en la dirección Internet siguiente: ui.com/compliance
Svenska [Swedish] Härmed UBIQUITI, intygar att denna UVP-TouchMax enhet är i
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser
som framgår av direktiven 2014/53/EU, 2014/30/EU, 2014/35/EU . Den fullständiga texten till
EU-försäkran om överensstämmelse finns på följande webbadress: ui.com/compliance

Online Resources
Support help.ui.com
Community community.ui.com
Downloads downloads.ui.com
