Uniden MC 1010 User manual

1010
VHF Marine Radio
MC
GUIDE
OPERATING
Channel Scan
Dual Watch

CONTENTS
OF YOUR USER’S MANUAL
Specifications
The Uniden MC1010 VHF marine radio transceiver has been designed to give you a
rugged, reliable instrument that will provide you with years of trouble-free service.
You need to read this Operating Guide thoroughly to acquaint yourself with the characteristics
and operation of your transceiver.
Be sure to complete the Product Registration Card.
Keep your receipt as proof-of-purchase in case warranty service is required.
Optional Accessories
Flush mounting bracket for ‘in dash’ installation. Extension speaker.
Please contact your local Uniden supplier for information
INTRODUCTION
1
Included with your package
1 x Mounting Bracket and Screws 1 x Mic. hang up Bracket and Screws
2 x Bracket thumb screws 1 x DC Power lead
Introduction
Installation
Controls and
Indicators
Features, Specifications and availability of Optional Accessories are all subject to change without notice.
Operation
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Included with your package. . . . . . . . . . . . . . . . . . . . . . . . .
4
4
3
2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the MC1010 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Noise Suppression . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
3
4
3
2
1
Multi Function Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
8
6
10
Chanel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instant Channel 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MEM (Entering or removing Memory Scan Channels) . . . . .
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
6
7
7
7
Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmit Time Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
6
6
Convenient Features of the MC1010 . . . . . . . . . . . . . . . . . .
2
CONTENTS

Convenience features of the MC1010
Universal mounting bracket - this allows you to install the MC1010 horizontally on top
or to the underside of a shelf, on a bulkhead or overhead.
Remote speaker jack - for use with an optional extension speaker.
Plug-in type connections - for easy removal of the MC1010.
Internal speaker - positioned for convenient in-dashboard mounting using the optional
flush mount bracket.
Choosing a location
When deciding on the most suitable location for your MC1010 you need to take into account
electrical, mechanical and environmental elements that may effect its performance.
Antenna - The antenna needs to be located as high as possible and clear of metal objects.
The performance range of the MC1010 is directly related to the antenna height. The cable
to the antenna should be as short as possible. Long antenna leads can cause substantial
loss of performance for both receiving and transmitting.
Moisture/Sunlight - Select a location that is sheltered from moisture and out of direct
sunlight.
Battery leads - Try to mount the MC1010 close to the battery (within the range of the
supplied power leads). If this is not possible, any extension needs to be made with #10
AWG wire. For long extensions a larger wire gauge should be used.
Compass - Due to possible electromagnetic interference the MC1010 and any extension
speakers should not be mounted close to a compass.
Cooling - The location of the MC1010 should permit clear air flow to the heat sink at the
rear of the radio.
Engine Noise Suppression
Interference generated from the electrical systems of engines is sometimes a problem with
radios. The MC1010 has been designed to be essentially impervious to ignition impulse
noise and alternator noise. However, in some installations it may be necessary to take
measures to further reduce the effect of noise interference. All DC battery wires, antenna
lead, and accessory cables should be routed away from power cabling carrying particularly
high currents.
In severe cases of noise interference, it may be necessary to install a noise supression kit.
INSTALLATION
The MC1010 will only
operate with 12 volt
negative ground batteries.
NOTE
2
The MC1010 is NOT
waterproof. Select a
mounting location that is
protected from water.
NOTE

NOTE
Antenna Considerations
A variety of antenna is available from a number of quality suppliers. It is recommended
you draw upon the advice of your retailer when choosing a suitable antenna to suit your
vessel and range requirements. In general, the communication range is increased by using
a high-gain antenna placed as high as possible above the water line. Antennas should be
located away from metal objects and not have excessively long coaxial feed cables.
Installing the MC1010
After you have considered the various factors affecting your choice of location, position the
radio (with the bracket, microphone, power cord, antenna and any auxiliary cables installed)
into the selected location and operate it to ensure there is no interference with surrounding
fittings.
Mark the location of the mounting bracket, remove it from the radio and use the bracket
as a template to position the fixing holes for drilling.
Screw fix the mounting bracket using the screws compatible with the mounting surface.
Connect the red wire of the supplied power cord to the positive (+) battery terminal.
Connect the black wire to (-) battery terminal.
Connect the power cord to the keyed connector on the DC power lead (see page 4)
Install the radio in the mounting bracket and connect all cables and accessories to the
appropriate jacks and connectors.
The power cord is
equipped with a fuse to
protect the radio. Use
only a 6 Amp fast blow
fuse when replacing.
NOTE
Always mount the
MC1010 horizontally -
never facing upwards, as
it will collect water.
3
CARE AND MAINTENANCE
Your MC1010 is a precision piece of electronic equipment and needs to be treated accordingly.
Due to the rugged design, very little maintenance is required, however a few precautions
should be observed.
If your radio has been accidentally subjected to moisture, you should immediately wipe
it down with a soft cloth dampened with fresh water - then dry it off.
If the antenna has been damaged, you should not transmit except in case of emergency.
A defective antenna may cause damage to your radio.
You are responsible for the continued AS/NZS 4415 technical compliance of your radio.
You are urged to arrange for periodic performance checks with your local Uniden marine
dealer.

LCD Indicators appear
when selected by
pressing the
corresponding button.
NOTE
LCD Panel
Rear Panel
12
13 14 15 16
10
11
98
7
VOLUME (On/Off/Volume) -
Turns the MC 1010 On or Off and varies
the audio volume.
SQUELCH - Eliminates background
noise when no signal is being received.
1
2
Antenna Connector - Connect the antenna
here using a type PL259 plug.
9
LCD Numerical Channel Display -
Indicates Channel Number in use.
(Dual Watch) - Indicates Dual
Watch has been selected.
SCAN - Indicates that you are scanning
the channels in memory.
TX (Transmit) - Indicates when
transmitting.
HI (High) - Indicates transmitted output
power is 25 Watts.
LO (Low) - Indicates transmitted output
power is 1 Watt.
MEM (Memory) - Indicates if the
displayed channel is in memory for
scanning.
10
CHAN - Used to manually select
the desired Communication Channel
6
LCD Panel
5
DC Power - Connect to the supplied
Power Cord.
Remote Speaker Jack -Anexternal, 4 Ohm,
4 Watt speaker may be connected to this
jack. The connecting wire must have a
miniature plug.
7
8
5
1
3
4
4
TX HI LO
SCAN MEM
VOLUME
SCAN MEM
TX HI LO
11
12
13
14
15
16
LITE
CHAN
MEM
16
H/L
STEP
SCAN
CONTROLS AND INDICATORS
2
PTT - Microphone - ‘Push To Talk’ button.
‘Multi Function Buttons’ see page 5.
3
4
6
DUAL
Front Panel
MC1010
SQUELCH
0123

STEP - SCAN
This key is used to step through the channels that are stored in memory- or - when
pressed and held, this key also starts and stops the Memory SCAN mode.
Press STEP to step through the channels that are stored in memory.
Press and hold STEP to begin scanning the channels in memory.
H/L - (High / Low)
This key allows you to switch between high transmit power (25 watts) or low transmit
power (1 watt).
MEM - (Memory)
This key enters the displayed channel into scan memory.
16 - Dual Watch
This key allows rapid access to Emergency Channel 16 - or - when pressed and held
Dual Watch will be switched On/Off.
Press 16 to instantly access Channel 16 communications.
Press and hold 16 to turn Dual Watch On/Off.
LITE - (Light)
This key is used to turn the LCD back light on and off.
21 2019 18 17
17
18
19
20
21
5
LITE MEM
16
H/L
STEP
SCAN
DUAL
SQUELCH
MULTI FUNCTION BUTTONS
MC1010
0123

On/Off
Turn the unit on by rotating the VOLUME control clockwise.
Squelch
Adjust the 4 position SQUELCH rotary switch to eliminate background noise and select the
signals you wish to receive.
Position 0 - (all signals) - squelch off.
Position 1 - (weak signals) squelch threshold
Position 2 - (medium signals) squelch medium
Position 3 - (strong signals only!) squelch maximum.
Dual Watch
Dual Watch monitors channel 16 for activity every two seconds while scanning or monitoring.
To activate Dual Watch, press and hold button 16 until two short beeps occur. The
indicator appears on the LCD panel, indicating Dual Watch mode is in effect. If the
signal is received on channel 16, the radio remains on channel 16 until the signal ends.
Press and hold button 16 until the tone sounds to cancel Dual Watch mode.
Channel Selection
To select a channel manually, press the CHAN selector buttons ( / ) to select the
desired channel. Communication channels are located on Channels 01 - 28, 60 - 69
and 71 - 88.

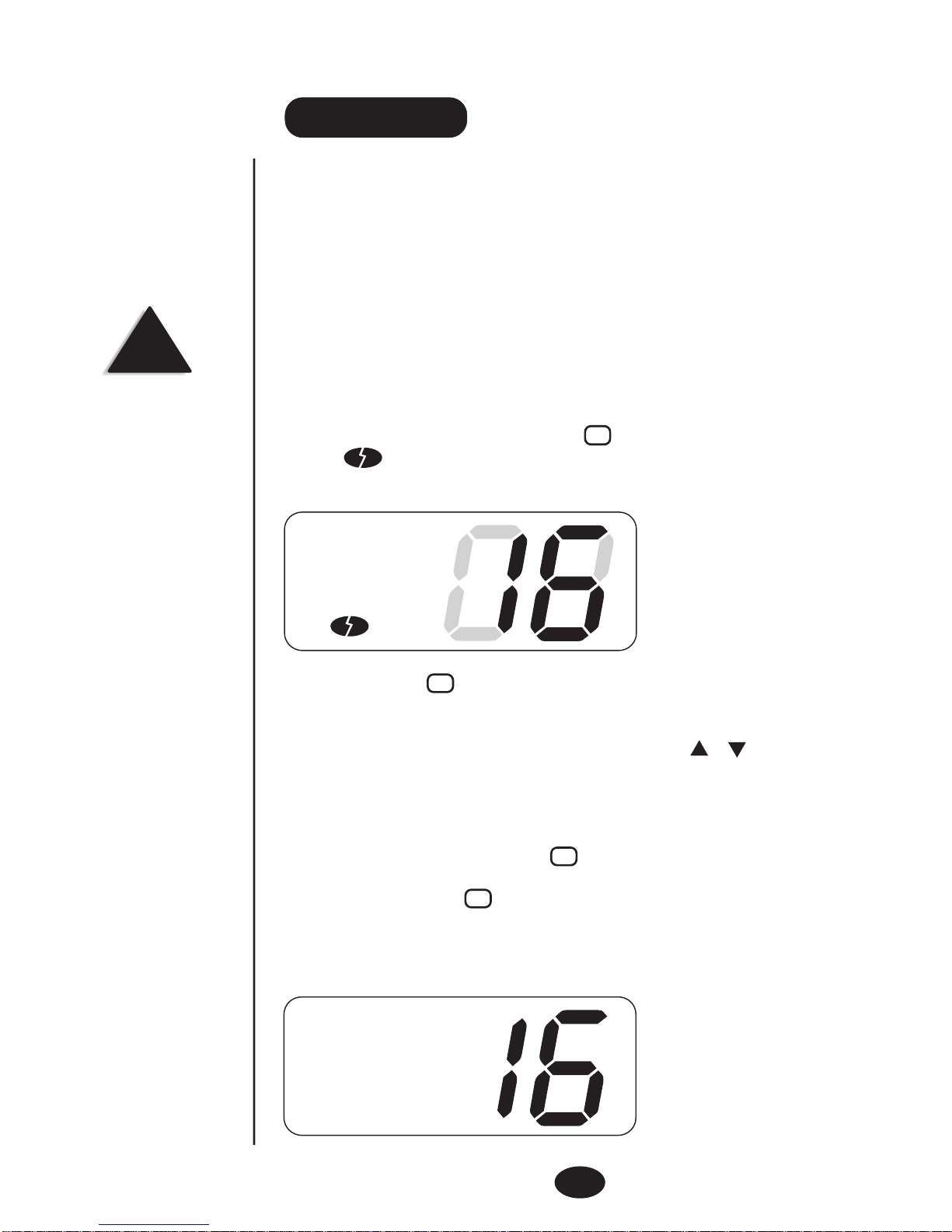

Instant Channel 16
To access instant Channel 16, press button 16 . This overrides the channel selected with the
CHAN selector buttons or any scanning activity. The Channel Display indicates the unit is
on Channel 16. Press button 16 again. The transceiver will return to the channel selected.
prior to accessing instant Channel 16 communications. The Channel display will indicate
the selected channel.
Dual Watch is
automatically activated
when scanning begins.
NOTE
OPERATION
6
HI

MEM (Entering or removing Memory Scan channels)
You can enter channels into memory for instant scanning at any time. When a channel is
selected for Memory Scan, the MEM indicator will appear on the LCD display.
To enter a channel number into memory, select the channel number you want stored by
pressing the CHAN Selector button, then press . To remove a channel from
memory, select the channel you want to remove by pressing the channel selector button, then
press the button. MEM will be removed from the display.
7
At least two channel
numbers must be entered
into the memory before
the scan function will
operate.
NOTE
Scan
To scan channels stored in Memory, press and hold the STEP button. In the Memory
Scan Mode, the MC1010 scans only those channel numbers previously entered into Memory.
If no channel has been
entered into Memory
Scan, the error tone
sounds and the LCD panel
does not change.
NOTE
Transmitting
One watt transmit power (LO) should be selected for most commuunications. This prevents
your signal from interfering with other vessels communications, and will work fine unless
maximum range is required. Press the H/L button until LO is shown in the display.
Twenty-five watt transmit power (HI) provides a great range. It will allow your signal to be
heard over weaker signals. It should be used only when necessary.
To activate the transmitter, press the ‘Push to Talk’ switch on the microphone. TX will be
displayed, indicating a signal is being transmitted. Release the switch to receive. When
transmitting hold the microphone approximately 5cm from your mouth and speak clearly
in a normal voice.
MEM
SCAN
Transmit Time Out
If you transmit continuously for more than 5 minutes, TX flashes and transmit will be
cancelled. The Time Out tone will sound until the PTT button is released.
LO
MEM
MEM
MEM

CHANNEL AND FUNCTIONS
8
No
No
No
No
01 156.050 160.650 Public Corresp,Duplex
02 156.100 160.700 Public Corresp,Duplex
03 156.150 160.750 Public Corresp,Duplex
04 156.200 160.800 Public Corresp,Duplex
05 156.250 160.850 Public Corresp,Duplex
06 156.300 156.300 Com’l, SAR Ops
07 156.350 160.950 Public Corresp,Duplex
08 156.400 156.400 Com’l, Port Ops
09 156.450 156.450 Port Ops
10 156.500 156.500 Port Ops
11 156.550 156.550 Port Ops
12 156.600 156.600 Port Ops
13 156.650 156.650 Port Ops
14 156.700 156.700 Port Ops
15 156.750 156.750 Simplex
16 156.800 156.800 Safety Calling
17 156.850 156.850 Simplex
18 156.900 161.500 Duplex
19 156.950 161.550 Duplex
20 157.000 161.600 Port Ops,Duplex
21 157.050 161.650 Duplex
22 157.100 161.700 Duplex
23 157.150 161.750 Public Corresp,Duplex
24 157.200 161.800 Public Corresp,Duplex
25 157.250 161.850 Public Corresp,Duplex
26 157.300 161.900 Public Corresp,Duplex
27 157.350 161.950 Public Corresp,Duplex
28 157.400 162.000 Public Corresp,Duplex
60 156.025 160.625 Public Corresp,Duplex
61 156.075 160.675 Public Corresp,Duplex
62 156.125 160.725 Public Corresp,Duplex
63 156.175 160.775 Public Corresp,Duplex
64 156.225 160.825 Duplex
65 156.275 160.875 Duplex
66 156.325 160.925 Public Corresp,Duplex
67 156.375 156.375 Safety Calling
68 156.425 156.425 Port Ops
69 156.475 156.475 Simplex
71 156.575 156.575 Fishing
72 156.625 156.625 Port,Non Com’l/Com'l
73 156.675 156.675 Non Com’l
74 156.725 156.725 Com’l
77 156.875 156.875 Non Com’l,Fishing
78 156.925 161.525 Com’l
79 156.975 161.575 Port Ops
80 157.025 161.625 Duplex
81 157.075 161.675 Duplex
82 157.125 161.725 Duplex
83 157.175 161.775 Public Corresp,Duplex
84 157.225 161.825 Public Corresp,Duplex
85 157.275 161.875 Public Corresp,Duplex
86 157.325 161.925 Public Corresp,Duplex
87 157.375 161.975 Public Corresp,Duplex
88 157.425 162.025 Public Corresp,Duplex
No
No
No
No
No
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes
No
Yes
No
No
No
No
No
No
No
No
Yes
No
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
CHANNEL
DESIG FREQUENCY (MHz)
TRANSMIT RECEIVE TYPE
OF TRAFFIC SHIP
TO SHIP SHIP TO SHORE
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes

SPECIFICATIONS
General
Channels: Transmit: 54
Receive: 54
Controls: On/Off, Volume, Squelch
Status Indicators: TX, SCAN, , HI, LO, and
MEM,on LCD Panel
Channel Display: LCD (Dual 7 segment)
Selector Switch: Channel Selector switch
Buttons: LITE, 16, MEM, H/L, and STEP
Connectors: Antenna, remote speaker, and DC power
Size: 2 1/5"H x 6 2/5"W x 8"L
Weight: 2.4 lbs
Supply Voltage: 13.8V DC negative ground
Standard Accessories: Mounting bracket and hardware, DC power cord,
microphone hanger, spare fuse,remote speaker plug.
Antenna Impedance: 50Ωnominal
Microphone: Rugged 1kΩcondenser mic element with
coiled cord
Speaker: 1.82 inch, 8Ω
Operating Temperature Range: –10°C~+55°C
Regulations: Type accepted underAS/NZS 4415:1996
Transmitter
Power Output: 1 watt or 25 watt (switch selectable)
Power Requirement: Not rated on LO;
25 watts output: [email protected] DC
Modulation: FM ±5 kHz deviation Max.
Hum and Noise Signal-to-Noise: 42 dB@300 HZ, 3kHz (nominal)
Audio Distortion: Less than 3% with 3 kHz deviation with 1000 Hz
modulating frequency (nominal)
Spurious Emmission: - 36dBm @ 25 Watts Max.
Output Power Stabilization: Built-in automatic level control (ALC)
Frequency Range: 156.025 to 157.425 MHz
Frequency Stability: ±1.58 kHz @ – 10°C to +55°C
Receiver
Frequency Range: 156.300 to 162.025 MHz
Sensitivity: 0.28µV for 20 dB SINAD
Circuit: Dual Conversion Super Heterodyne PLL
Squelch Sensitivity:
0.4µV Threshold
Spurious Response: 75 dB
Adjacent Channel Selectivity: 73dB @ 25KHz
Audio Output Power: 2.7watts (10% Distortion)
Power Requirement: 210mA @ 13.8V DC squelched
520mA @ 13.8V DC at maximum audio output
IF Frequencies: 1st -21.4 MHz
2nd - 455 kHz
±
9

MC1010
MC1010
www.uniden.com.au www.uniden.co.nz
10
Mic,

© 2001
Uniden Australia Pty Limited
Uniden New Zealand Limited
FOR PURCHASING A UNIDEN PRODUCT
THANK YOU
Printed in the Philippines
UTZZ 01883ZZ
