Unimac Lxg3000 User manual

Cordless 34° Gas Powered Framing

Nail Gun

User Manual

[Revision 3.0 February 2019]

READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO

MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual

may vary in appearance, assembly, inclusions, specifications, description and packaging.

Cordless 34° Gas Powered Framing Nail Gun

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered

or combustion engine powered.

•Before Use - If you are not familiar with

the safe operation/handling of the

equipment or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical handling and

safety.

•Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

•Keep clear of moving parts.

•Equipment may be a potential source of

electric shock or injury if misused.

•Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

•Keep packaging away from children -

risk of suffocation! Operators must use

the equipment correctly. When using

the equipment, consider conditions and

pay due care to persons and property.

General Work Area Safety

•Work areas should be clean and well it.

•Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

•If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

•Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

•Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

•Do not use the equipment if tired or

under the influence of drugs, alcohol or

medication.

•This equipment is not intended for use

by persons with reduced physical,

sensory or mental capabilities.

General Fuel Safety

•Petrol/fuel/gasoline is extremely

flammable – keep clear of naked flames

or other ignition sources.

•Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

•Do NOT smoke near fuel or when

refuelling.

•Always shut off the engine before

refuelling.

•Do NOT refuel a hot engine.

•Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

•Always refuel in well ventilated areas.

•Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

•Use combustion engines OUTSIDE

only, and far away from windows, doors

and vents.

General Equipment Use and Care

•The equipment is designed for

domestic use only.

•Handle the equipment safely and

carefully.

•Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

•Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

•Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

•Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

•Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where

applicable, properly lubricated.

•Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases or liquids etc.

•The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

•Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

•For specific equipment safety use and

care, see Equipment Safety.

Cordless 34° Gas Powered Framing Nail Gun

General Electrical Safety

•Inspect electrical equipment, extension

cords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

•Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

•When wiring electrically powered

equipment, follow all electrical and

safety codes.

•Wherever possible, use a residual

current device (RCD).

•High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

•Electrically grounded equipment must

have an approved cord and plug and be

connected to a grounded electrical

outlet.

•Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

•Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

•Do NOT use electrical equipment in wet

conditions or in damp locations.

•Do NOT use electrical cords to lift,

move or carry equipment.

•Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

•The equipment must be serviced or

repaired at authorised service centres

by qualified personnel only.

•Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

•Do NOT attempt any maintenance or

repair work not described in this

manual.

•After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect

spark plugs and/or electrical power

sources and/or batteries from it before

making adjustments, changing

accessories or performing repair or

maintenance.

•Do NOT make adjustments while the

equipment is running.

•Perform service related activities in

suitable conditions, such as a

workshop.

•Replace worn, damaged or missing

warning/safety labels immediately.

Cordless 34° Gas Powered Framing Nail Gun

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on

your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Use Hand Protection

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Electrocution / Electrical

Shock Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling

electrical products, cables,

plugs and leads. Electrical

shock can be fatal.

Toxic Fumes / Dust Hazard

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices

that can cause severe cut

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Crush Hazard

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Single Operator Only

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Use Foot Protection

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Use Eye / Ear / Head

Protection

Wear appropriate eye and / or

ear and / or head protection

and take due care as the

product or use of the product

may present eye, hearing and

head hazards.

Running Hazard

Do not run on or near the

product as doing so may

present a fall hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or

objects that can cause severe

injury to fingers, limbs, blood

etc. Take due care when

handling and using the

product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Flying Debris Hazard

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

Cordless 34° Gas Powered Framing Nail Gun

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Slope / Fall Injury Hazard

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling,

product breakage or collapse

etc.

Electrocution / Electrical

Shock Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Electrocution / Electrical

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Power Line Electrocution

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

"Kick-Back" Hazard

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Winch Lift Hazard

Do NOT LIFT load vertically.

Use machine to PULL only.

Cable Hazard

Ensure that load bearing cable

is not kinked or knotted.

Winch Cable Hazard

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Cordless 34° Gas Powered Framing Nail Gun

Equipment Safety

Nail guns are high-speed equipment that can cause serious or fatal injury if not used correctly or

without taking proper safety precautions. ENSURE THAT NO PART OF ANY HUMAN, ANIMAL

OR CLOTHING IS PLACED IN/NEAR THE AREA WHERE NAILS ARE FIRED OUT OF THE GUN,

REGARDLESS OF WHETHER YOU THINK THE GUN IS EMPTY OR LOADED WITH NAILS.It is

extremely important that you read and fully understand the information in this section and all other

safety warnings / recommendations and usage instructions before using the equipment.

Operator

•The equipment is designed for domestic use only.

•If you are untrained in the use of a nail gun, it is highly recommended that you be trained/instructed by a

suitably qualified or experienced user before using the tool.

•Fully understand how to safely operate the tool and the various attachments. See Operation.

•NEVER operate the tool when tired, or under the influence of any substance (medication, alcohol, drugs

etc) that may impair your judgement, alertness, physical strength, vision or dexterity.

•Maintain sure-footing and balance always when using or handling the tool and have full awareness of

your surroundings and any possible hazards.

•Be aware that some parts of the tool may become hot during use and remain hot for a period after use.

Clothing and Protective Equipment – All Operators and Assistants

•Wear approved safety goggles, or safety glasses with adequate top and side protection.

•Wear suitable hearing protection.

•Wear approved heavy-duty safety boots, with steel toe-caps and non-slip soles.

Work Area Safety

•NEVER point the tool at any person, animal etc. Always assume the tool is loaded with fasteners.

•Fuel cells contain highly flammable chemicals, at high pressure. Do NOT use in environments where

sparks, flames or other sources of ignition may be present. Do NOT smoke when using the tool or

handling fuel cells.

•Fuel cell gas and tool emissions are toxic – ALWAYS use the tool in well-ventilated areas.

•Be aware of wiring, plumbing etc that may be pierced or contacted by nails. Before commencing work,

ensure that there is no possibility of contacting live electrical wiring, gas or water plumbing etc.

Operational Safety

•Do NOT use the tool if the trigger or any safety guard or mechanism is not installed or is not operating

correctly – have the tool inspected and repaired at an authorised service centre before using it again.

•Fully understand how to safely operate the tool and the various attachments. See Operation.

•ALWAYS remove the battery and fuel cell cartridge from the tool before performing any maintenance

activities, loading nails, clearing nails jams etc.

•Always hold the tool firmly during operation, while allowing it to recoil away from the work surface as the

fastener is driven. If the firing tip is allowed to contact the work surface again before the trigger is

released, an unwanted fastener may be fired.

•Do NOT drive fasteners on top of other fasteners, or with the tool at a steep angle – the fastener may

ricochet and cause injury.

•Do NOT drive fasteners close to the edge of the work piece. The work piece may split and allow the

fastener to fly free or ricochet and cause injury.

•Do NOT use the equipment for purposes it is not designed for.

•ALWAYS use accessories (nails, fuel cell cartridges etc) that are directly compatible with the tool.

Cordless 34° Gas Powered Framing Nail Gun

•If a nail jam occurs, clear the jam before using the tool again.

•Check operation of the firing tip before each use.

•Do NOT allow your hands, feet or face within 200mm (8") of the firing tip when using the tool.

•Follow all safety precautions recommended by fuel cell manufacturers.

Transportation / Storage Safety

•When transporting or storing the tool, ensure that the battery, fuel cell and nails are removed from the

tool, and that all safety devices or mechanisms are engaged. Transport the tool in its case (if applicable).

•Do NOT store fuel cells or batteries in direct sunlight, enclosed vehicles etc. Always keep them below

50°C (120°F).

Cordless 34° Gas Powered Framing Nail Gun

Table of Contents

Safety...................................................................................................................................................2

Safety Symbols ..........................................................................................................................................4

Equipment Safety...............................................................................................................................6

Parts Identification.............................................................................................................................9

Batteries and Battery Charging......................................................................................................10

Charging ..................................................................................................................................................10

Inserting and Removing the Battery.........................................................................................................10

Operation ..........................................................................................................................................11

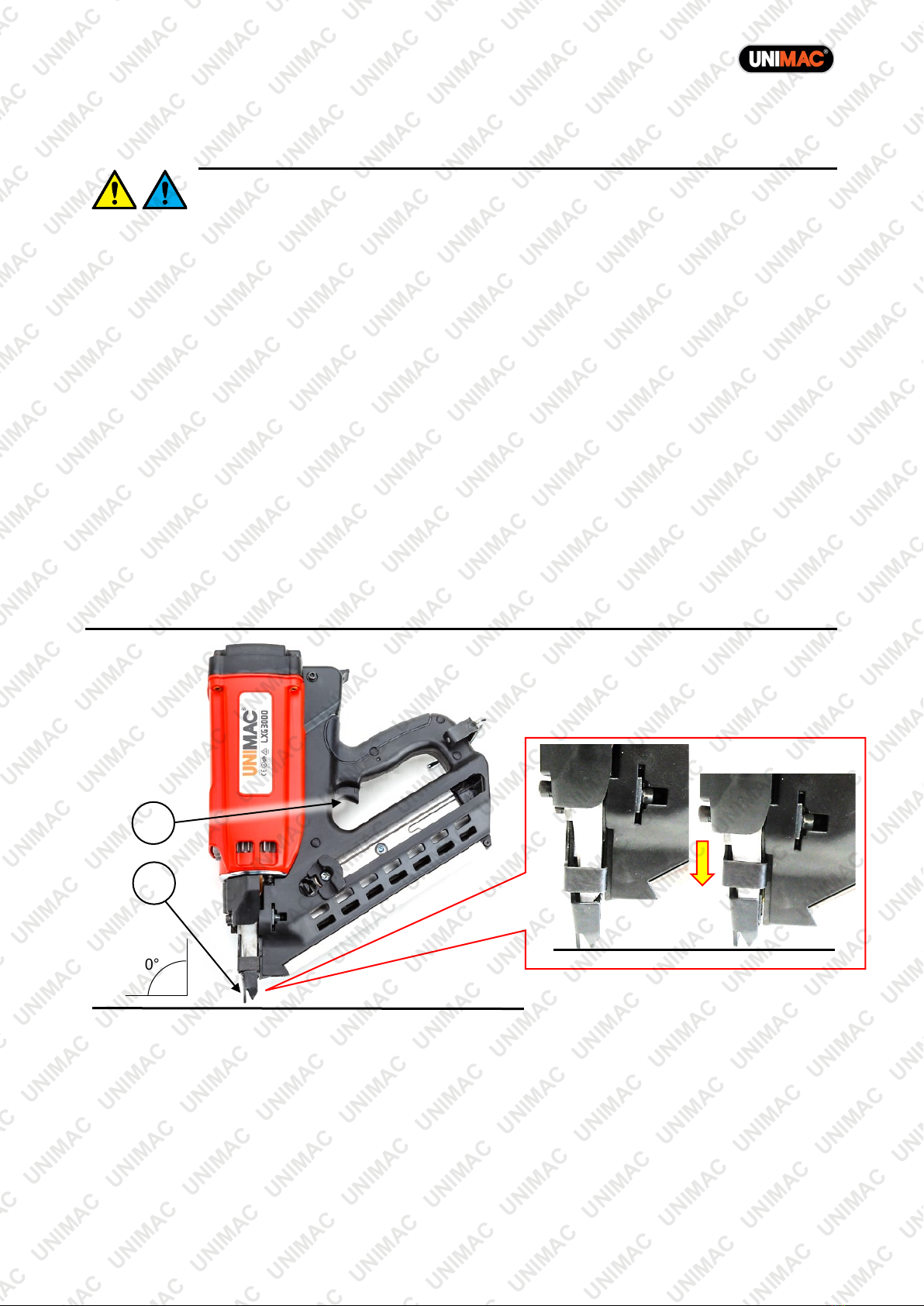

Before Use - Check the Contact Safety Pin and Trigger Mechanism.......................................................11

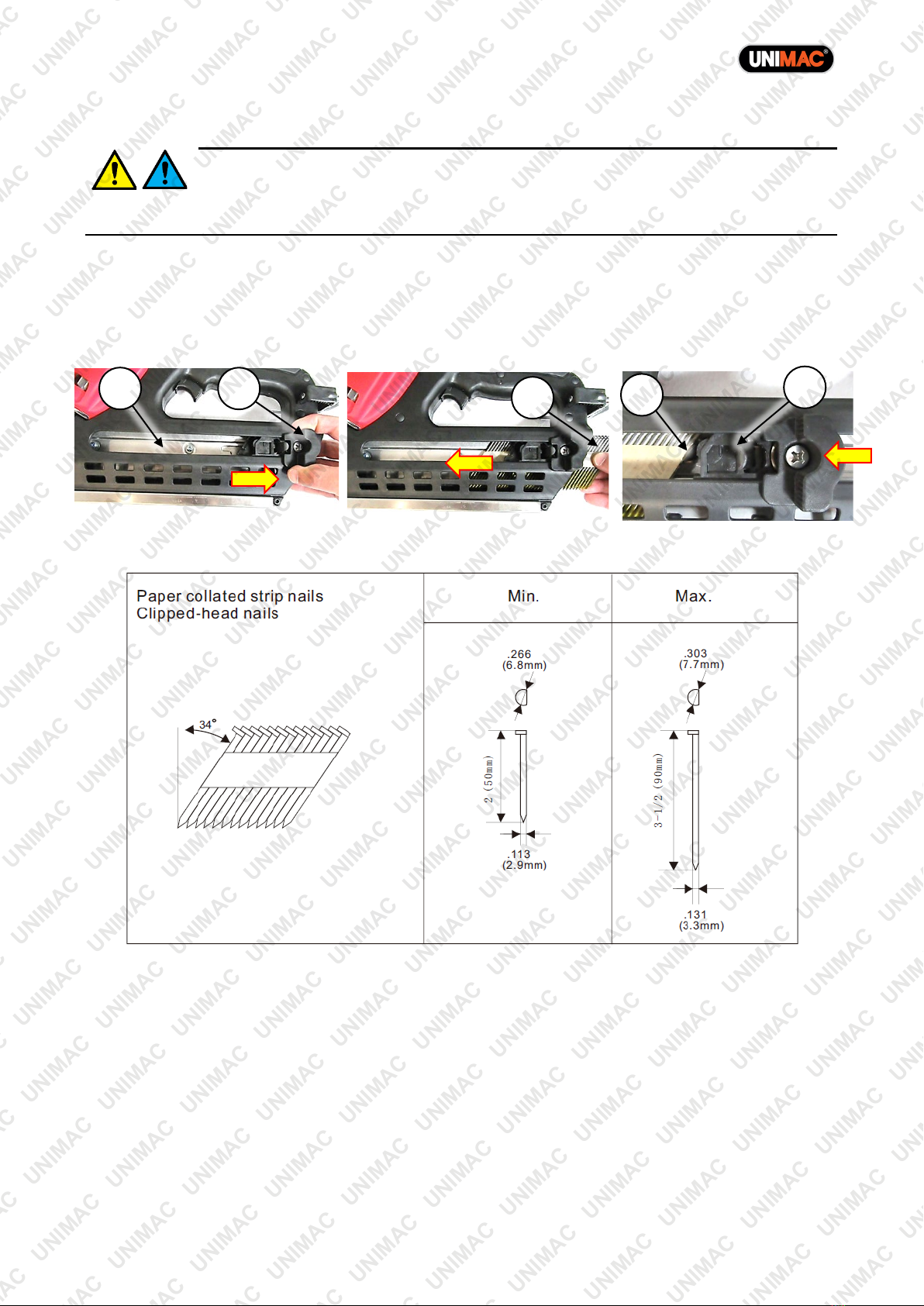

Loading Fasteners ...................................................................................................................................12

Compatible Fastener Size .................................................................................................................12

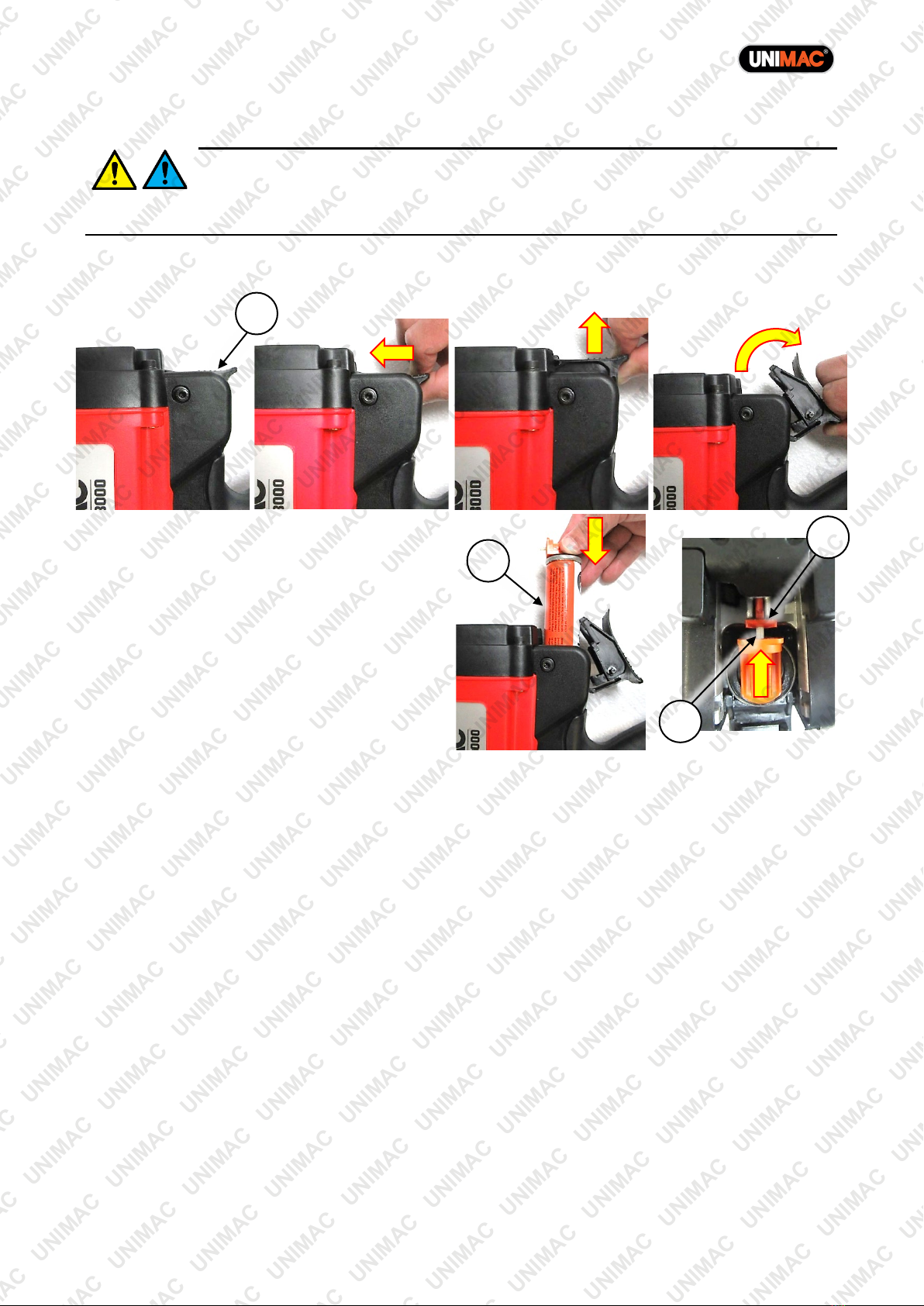

Loading Fuel Cells ...................................................................................................................................13

Nailing ...............................................................................................................................................14

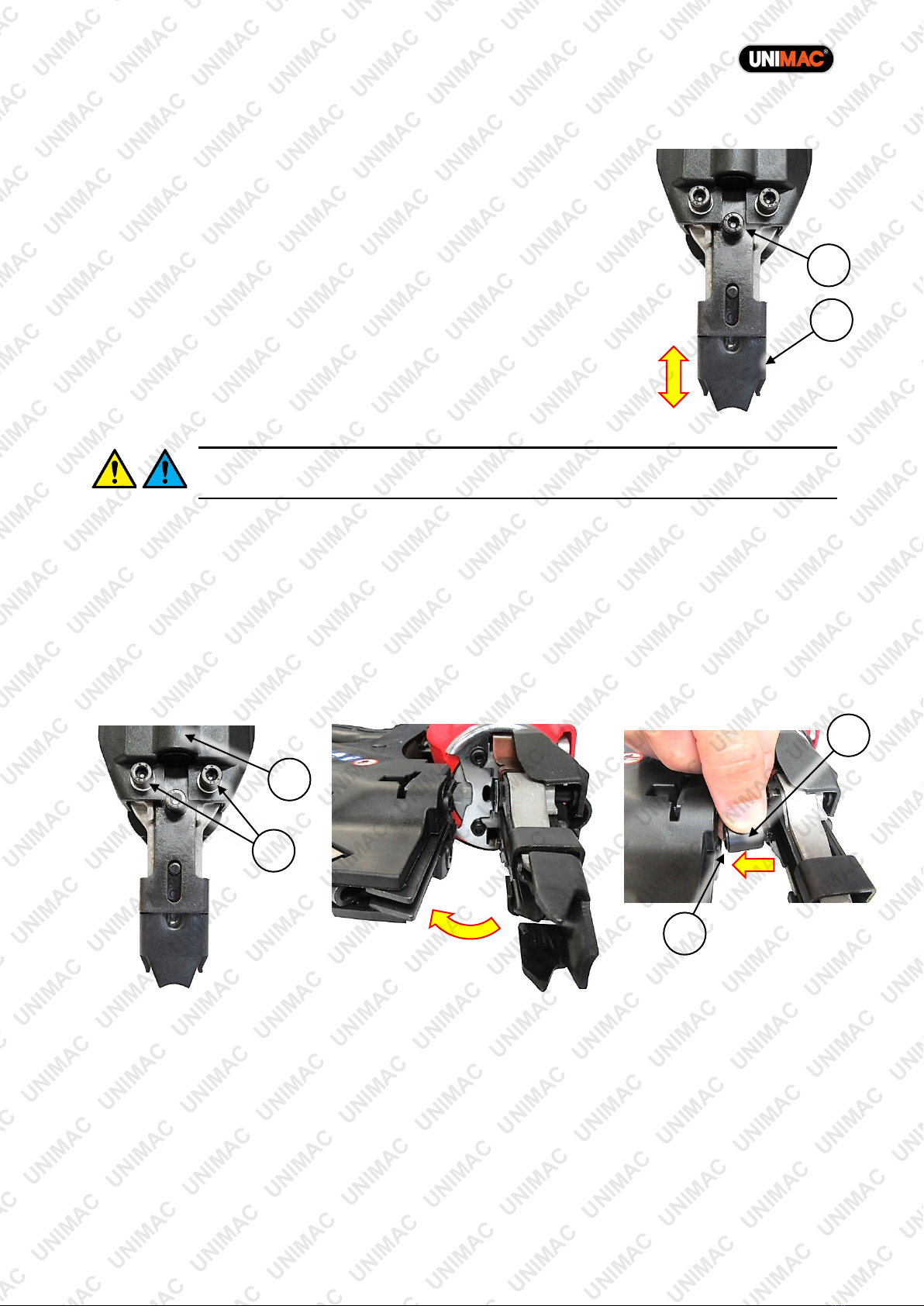

Depth Adjustment.....................................................................................................................................15

Removing Jammed Fasteners .................................................................................................................15

Maintenance .....................................................................................................................................16

Troubleshooting .......................................................................................................................................16

Specifications...................................................................................................................................17

Cordless 34° Gas Powered Framing Nail Gun

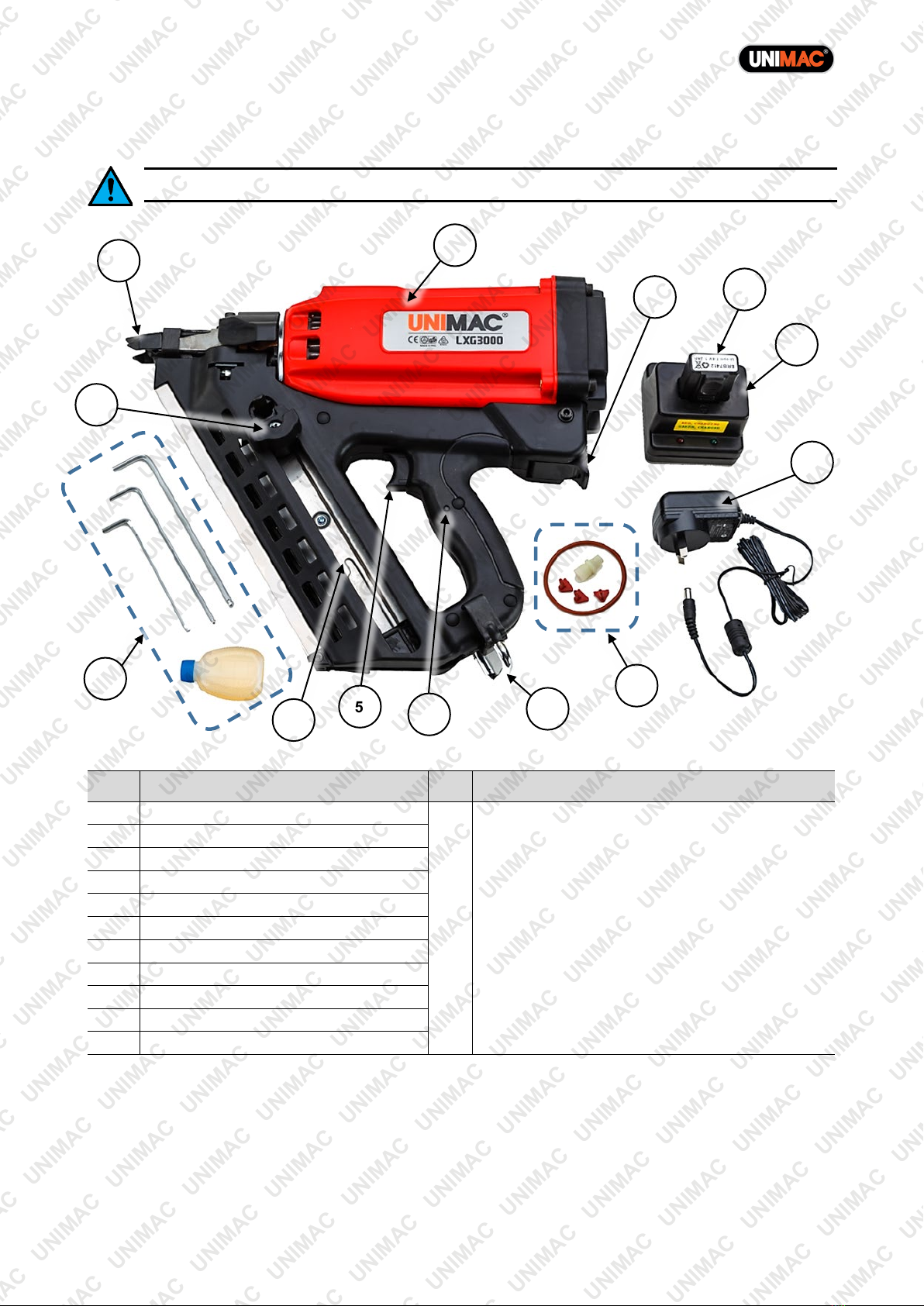

Parts Identification

Accessories, such as additional batteries, lubricant, nails etc may be supplied.

No. Name No. Name

1 Tool Body 12 Fasteners / Accessories:

3 / 4 / 5mm Allen Key

Lubricant

Fuel Cell Adaptor (includes spares)

Piston O-Ring (technician use only)

Spark Plug (technician use only)

2 Nail Magazine

3 Nail Feeder / Clip

4 Firing Tip

5

Trigger

6

Battery Status Indicator

7

Gas Cartridge Cover

8 Hook

9 Battery Charging Dock

10 Battery

11 Battery Charger Power Supply

7

3

4

1

11

12

5

2

8

6

12

10

9

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Batteries and Battery Charging

Charge batteries before use. • A battery that is new or has not been used for a long period

does not charge to full capacity until after approximately 5 charge/discharge cycles. • Do not

recharge batteries after using them if they are not to be used for an extended period. • Recharge batteries

only as and when required. • If the battery is warm after use, allow it to cool before charging, otherwise it

may not fully charge. • Use only with the batteries and battery charger specified by the manufacturer. •

Batteries can explode in the presence of an ignition source, such as a pilot light. Never use any cordless

product in the presence of open ﬂame. Exploding batteries can propel debris and chemicals. • Do not use the

charger in wet areas or expose it to rain or water. • Ensure that the battery charger electrical cord is not

subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.

• Do not open the battery – danger of short-circuiting and/or explosion. • Do not touch the battery terminals

with metal objects and/or body parts as short-circuit and/or personal injury may result. • For best results,

charge batteries in temperatures between 7°C (45°F) and 40°C (104°F). • Dispose of non-serviceable

batteries in an environmentally responsible manner and according to local regulations. Charging time varies

for different battery types depending on battery capacity and charger output etc. • To prolong battery life,

avoid leaving the battery pack on charge for extended periods (over 30 days without use). • During charging,

the battery may become warm and some noise may be emitted – this is normal.

Charging

Generally, if the tool stops during use, or the tool fan slows considerably, it indicates

that the battery needs charging. The tool includes a battery status indicator (A) on the

handle (battery must be inserted into the tool for the indicator to function):

•Green Flash – The battery has sufficient charge for normal use.

•Green ON – Tool in use.

•Red Flash – Battery requires charging.

•Red Fast Flash – Tool fault detected.

The battery charger has charge status LED indicators:

•Red ON – Charging.

•Green ON – Battery charged.

1. Insert the battery into the charging dock.

2. Connect the charging dock to the transformer.

3. Plug the battery charger power supply into an electrical outlet

and switch on. The battery charger indicator LEDs will indicate

battery charge status. Charging takes approximately 2 hours

from fully discharged.

4. When the battery is fully charged, unplug the charger from

power supply and remove the battery from the charging dock.

Inserting and Removing the Battery

Insert the battery (A) into the back of the magazine until it "clicks"

into place.

To remove the battery, press and hold the lock button (B) down

and simultaneously pull the battery from of the tool.

A

B

A

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Operation

Nail guns are high-speed equipment that can cause serious or fatal injury if not used

correctly or without taking proper safety precautions. ENSURE THAT NO PART OF ANY

HUMAN, ANIMAL OR CLOTHING IS PLACED IN/NEAR THE AREA WHERE NAILS ARE FIRED OUT OF

THE GUN, REGARDLESS OF WHETHER YOU THINK THE GUN IS EMPTY OR LOADED WITH NAILS.It

is extremely important that you read and fully understand the information in this section and all other

safety warnings / recommendations and usage instructions before using the equipment. • Always

wear suitable protective clothing and equipment when using the tool. • Inspect the tool before each use and

check for wear or damage. If the tool is damaged, have it inspected and repaired at an authorised service

centre before using it again. • If you experience abnormal behaviour from the tool during operation, this is an

indication of wear or damage. It is recommended to have it inspected and repaired at an authorised service

centre before using it again. • Before use, ensure the battery is adequately charged. • Only framing gas

cartridges should be used in this nail gun. Finishing gas cartridges are not suitable.

Before Use - Check the Contact Safety Pin and Trigger

Mechanism

Before loading nails and using the tool, perform the following procedure to ensure that the

contact firing safety mechanism is operating correctly. If it is not, do NOT use the tool –

have it inspected and repaired by an authorized service centre or technician.

1. Remove the battery from the tool.

2. Remove all nails from the magazine.

3. Attempt to operate the trigger – it should

remain in the locked position.

4. While holding the nail feeder (A) near

the centre of the magazine (to simulate

loaded nails), press the safety contact

tip (B) against an object (wood ideally)

until it is fully retracted and hold in this

position.

5. Pull the trigger (C), then release it – it

should immediately return to the un-

pulled position.

6. Remove the safety contact tip from the object – it should immediately return to the fully extended

position.

7. Install the battery and fuel cell.

8. While holding the nail feeder (A) near the centre of the magazine (to simulate loaded nails), press the

safety contact tip (B) against an object (wood ideally) until it is fully retracted (do NOT pull the trigger) –

the tool MUST NOT fire.

9. Remove the safety contact tip from the object while holding the nail feeder (A) near the centre of the

magazine (to simulate loaded nails) – it should immediately return to the fully extended position. Pull the

trigger and hold for at least 5 seconds – the tool MUST NOT fire.

10. While holding the nail feeder (A) near the centre of the magazine (to simulate loaded nails), place the

safety contact pin on the work piece and press the machine down to push the safety contact pin in, then

pull the trigger, the machine MUST fire.

B

A

C

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Loading Fasteners

ALWAYS remove the battery and fuel cell before loading / unloading fasteners. • Do NOT

have the safety contact tip against any surface or activate the trigger at any time when

loading / unloading fasteners. • Do NOT load fasteners of different lengths. • Use 34° nail strips only. • When

the number of remaining fasteners is under 10, the tool may stop operating until further fasteners are loaded.

1. Pull the nail feeder (A) back to the rear of the magazine (B) until it remains in the locked position.

2. Insert the nail strip (C) fully into the magazine from the rear of the tool.

3. Pull the lever (D) on the nail feeder to release it from the locked position, then release the lever to allow

the "shoe" (E) to lower. Gently move the nail feeder forward in the magazine so the shoe is pushing

against the last nail in the nail strip.

Compatible Fastener Size

B

A

C

D

E

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Loading Fuel Cells

ALWAYS remove the battery before loading / unloading a fuel cell. • Do NOT have the

safety contact tip against any surface or activate the trigger at any time when loading /

unloading a fuel cell. • Prepare the fuel cell for use and follow all safety warnings according to the

manufacturer's instructions.

1. Open the fuel cell compartment cover (A) by pushing it forward, then lifting – once the locking pins are

free of the guide grooves in the tool, the cover can be pivoted to the fully open position.

2. Gently insert the fuel cell (B) fully into the fuel

cell compartment.

3. Carefully insert the valve stem (C) of the fuel

cell into the fuel cell adaptor (D).

4. Close the fuel cell compartment cover by

pivoting it around so the pins in the cover enter

the guide grooves, then pushing it forward then

down so it is firmly locked in position.

A

C

D

B

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Nailing

Do NOT keep the trigger pulled when the machine is not in use or modify the trigger to

remain pulled after it is released. • Before use, check that the fasteners are loaded correctly

in the magazine, ensure the battery is charged, and that the fuel cell is not empty. • Always hold the tool

firmly and parallel to the work piece so that the fasteners are driven in at 90° to the work surface. • Always

take care to avoid damage to the safety contact tip – do NOT apply force to it when the tool is not ready for

normal operation (nails loaded, battery and fuel cell installed). • NEVER point the tool at any person, animal

etc. Always assume the tool is loaded with fasteners. • Fuel cells contain highly flammable chemicals, at high

pressure. Do NOT use in environments where sparks, flames or other sources of ignition may be present. Do

NOT smoke when using the tool or handling fuel cells. • Fuel cell gas and tool emissions are toxic –

ALWAYS use the tool in well-ventilated areas. • Be aware of wiring, plumbing etc that may be pierced or

contacted by nails. Before commencing work, ensure that there is no possibility of contacting live electrical

wiring, gas or water plumbing etc. • Do NOT use the tool if the trigger or any safety guard or mechanism is

not installed or is not operating correctly – have the tool inspected and repaired at an authorised service

centre before using it again. • Fully understand how to safely operate the tool and the various attachments. •

ALWAYS remove the battery and fuel cell cartridge from the tool before performing any maintenance

activities, loading nails, clearing nails jams etc. • Always hold the tool firmly during operation, while allowing it

to recoil away from the work surface as the fastener is driven. If the firing tip is allowed to contact the work

surface again before the trigger is released, an unwanted fastener may be fired. • Do NOT drive fasteners on

top of other fasteners, or with the tool at a steep angle – the fastener may ricochet and cause injury. • Do

NOT drive fasteners close to the edge of the work piece. The work piece may split and allow the fastener to

fly free or ricochet and cause injury. • Do NOT use the equipment for purposes it is not designed for. •

ALWAYS use accessories (nails, fuel cell cartridges etc) that are directly compatible with the tool. • If a nail

jam occurs, clear the jam before using the tool again. • Check operation of the firing tip before each use. • Do

NOT allow your hands, feet or face within 200mm (8") of the firing tip when using the tool. • Follow all safety

precautions recommended by fuel cell manufacturers.

1. Press the safety contact pin (A) against the work piece so the safety contact pin is pushed in.

2. Pull the trigger (B) to fire the fastener.

3. Release the trigger and lift the tool from the work piece so the safety contact pin extends.

4. Repeat 1 to 3 for each fastener.

90°

Work Piece

A

B

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Depth Adjustment

Depth adjustment helps protect work surface and allows proper setting of nail

heads – set the depth so the nail head sits just beneath the work surface.

Always hold the tool firmly against the work-piece to ensure consistent nailing

depth. To adjust nailing depth:

1. Remove the battery, fuel cell and nails from the tool.

2. Loosen (do not remove) the safety contact tip (A) locking bolt (B) using a

4mm Allen key.

3. Move the safety contact tip UP to INCREASE nailing depth or DOWN to

DECREASE nailing depth, as required.

4. Firmly tighten the locking bolt.

5. Test the tool to ensure correct depth adjustment. Re-adjust as required.

Removing Jammed Fasteners

You must remove jammed fasteners before using the tool any further, otherwise personal

injury and/or damage to the tool may result.

A fastener jam will prevent the tool from operating normally. To remove jammed fasteners:

1. Remove the battery, fuel cell and nails from the tool.

2. Unscrew and remove the nailing head (A) bolts (B) using a 4mm Allen key. Note that the bolts have a

lock washer and flat washer under the bolt head.

3. Swing the magazine away from the nailing head to access the jammed fastener(s).

4. For the jammed fasteners, attempt to remove them with pliers or similar, however, do not use excessive

force.

5. Re-install the nailing head bolts and washers. Note that if the collets (C) fall from the magazine, re-install

them with the collar-end (D) facing into the magazine.

A

B

A

C

D

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Maintenance

Remove the battery and fuel cell from the tool before performing any maintenance. • The

tool should be cool enough to touch before performing maintenance activities. • Some

maintenance activities described may be beyond the scope of some users. Do NOT attempt procedures that

you are not comfortable with, or do not have the necessary tools, experience or knowledge for – take the unit

to an authorised service centre or qualified technician for servicing. • Failure to follow the maintenance

recommendations, using incorrect or non-compatible accessories or replacement parts, or general

negligence may result in making the product warranty void.

•Clean the tool after EVERY use with a soft cloth – do NOT use water, solvents, abrasives etc. Remove

any debris from the magazine, safety contact pin, nailing head and tool ventilation slots using a soft

brush.

•Regularly lubricate the nail feeder slide, magazine backing plate and all moving parts / pivots using a

light machine oil (may be supplied). Do not over-lubricate. Ensure that the nail feeder slides smoothly

and travels the length of the magazine fully.

•When transporting or storing the tool, ensure that the battery, fuel cell and nails are removed from the

tool, and that all safety devices or mechanisms are engaged. Transport the tool in its case (if applicable).

•Do NOT store fuel cells or batteries in direct sunlight, enclosed vehicles etc. Always keep them below

50°C (120°F).

Troubleshooting

The following information may assist in identifying a problem and rectifying it.

Tool will not operate.

Possible Fault Action

No voltage

Ensure the battery is charged and is correctly inserted.

Indicator flashing red / motor fault

Have tool inspected and repaired at an authorised service centre.

Tool operates, but not driving nails.

Possible Fault

Action

Empty fuel cell

Ensure that a fuel cell is loaded and that it is not empty.

No nails, or incompatible nails

Load nails. Ensure nails are compatible in size and head type.

Nail feeder jam or nail jam.

Clean and lubricate nail feeder and magazine. Remove jammed nails if applicable.

Other tool fault

Have tool inspected and repaired at an authorised service centre.

Skipping nails / intermittent feed.

Possible Fault

Action

Incompatible nails

Ensure nails are compatible in size and head type.

Nail feeder jam or nail jam.

Clean and lubricate nail feeder and magazine. Remove jammed nails if applicable.

Low fuel cell

Use new fuel cell.

Other tool fault

Have tool inspected and repaired at an authorised service centre.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Nails driven too deep or not deep enough.

Possible Fault

Action

Incorrect depth setting

Adjust nailing depth.

Nails jamming often or not being driven straight.

Possible Fault

Action

Incompatible nails

Ensure nails are compatible in size and head type.

Nail feeder dirty.

Clean and lubricate nail feeder and magazine.

Nail hammer fault

Have tool inspected and repaired at an authorised service centre.

Other tool fault

Have tool inspected and repaired at an authorised service centre.

Gun jamming and not firing.

Possible Fault

Action

It’s possible that if a clip with fewer

than 10 nails were inserted to start

with, the nail may jam at an angle and

not being detected.

Try removing the short clip and insert a full clip of nails, this should rectify the issue. The

short clip of nails can then be added to the magazine.

Specifications

Battery Charger Electrical Requirements 240VAC / 50Hz

Battery Type 7.4V 1.2Ah Lithium-Ion

Nail Size Range 50mm (2") to 90mm (3.5") length / 2.9mm (0.113") to 3.3mm (0.131")

diameter

Nail Type 48 nail paper collated strip, 34° clipped head

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

Cordless 34° Gas Powered Framing Nail Gun

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety

Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.

Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.

Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.

Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.

The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.

This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.

If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or
