Unitec Portal TI+ User manual

Portal TI+®
Owners Manual
Unitec
443-561-1200• www.StartwithUnitec.com

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
PORTAL TI+ OWNERS MANUAL
This manual describes the functions of the Portal Ti entry system running the Sierra software platform. If
further assistance is needed, please contact the distributor from which the Portal was purchased.
When calling for assistance, you must have the following information available:
Portal Serial Number:
Distributor Name:
D E C L A R A T I O N O F C O M P L I A N C E
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
C O P Y R I G H T
© 2014 Unitec, Incorporated. All rights reserved. No part of this book, including text, screen examples,
diagrams, or icons, may be reproduced or transmitted in any form, by any means (electronic,
photocopying, recording, or otherwise) without prior written permission of Unitec, Incorporated.
T R A D E M A R K S
Portal, Unitec, and the Unitec Logo are trademarks, service marks, or registered trademarks of Unitec,
Incorporated.
All other products, services, and company names are trademarks or registered trademarks of their
respective owners.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Document Revision History
Software
Version
Rev
Release Date
Changes Made
4.43 Portal
1.73 Sierra
9/2014
Changed OS from Windows NT to Windows 7 POS Ready. Added support
for card redemption for discounts, added accounting report for console
printer, added support for barcode redemption for fleet and prepaid
accounts, added Site Lynx code service, added batch management
functions for credit modems, added multi-site account (shared payment)
features, added POS code interface in external server mode, added
automatic reboots to device profiles, and added prize promos to
promotions.
3.22/4.33 Portal
1.63 Sierra
1/2014
Added following credit processors: Priority Payment Systems, Tran-
Heartland (for 7-11), XML Credit (for Verifone), changed “Internet” credit
to Mercury, and changed “Dial-up” to Tran. Added password security.
Added code expiration of 00 to ensure codes don’t expire. Added Account
Transaction Report. Removed Price and Discount Columns from Fleet
Report. Added date range to Summary page.
3.50/4.22 Portal
1.52 Sierra
12/2012
Added Dresser Wayne interface, Loyalty accounts, Account Listing Report,
added ability to add taxes to credit sales, added hidden wash for fleet
customers, added ability to drop more than one type of token, and revised
the Site Revenue report.
3.41/4.12 Portal
1.42 Sierra
1/2012
Added Remote POS4000 support, Enhanced Added Services, Multi-Wash
Sales, Account Reloading, Canadian Currency support, Operations Screen
themes, Fleet reports, Console/Sales Screen Enhancements, Daylight Savings
Time support, and Credit Modem diagnostics.
3.33 Portal
1.34 Sierra
6/2011
Added new report information and diagnostic screens for Maintenance.
3.23 Portal
1.24 Sierra
3/2010
Added Out of Service Scheduling, Wash Package Upgrades, Wash Types
Dispensed and additional Wash Packages, Mars Coupon Support, Bilingual
Support for User Interface, Report Formatting, Automated Database Backup
functionality
3.12 Portal
1.12 Sierra
9/2009
Initial Release

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
[ T H I S P A G E I N T E N T I O N A L L Y L E F T B L A N K ]

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Tableof Contents
1Introduction ............................................................................................................. 10
2Login ........................................................................................................................ 10
3Set-up Functions....................................................................................................... 14
3.1 General Site Information ........................................................................................ 14
3.2 Product Programming............................................................................................. 14
3.3 Portal Programming................................................................................................ 14
3.3.1 General Information ......................................................................................... 14
3.3.2 Operating Schedule........................................................................................... 15
3.3.3 Wash Dispensing............................................................................................... 15
3.3.4 Added Services Dispensing ............................................................................... 15
3.3.5 Wash Interface.................................................................................................. 15
3.3.6 Programming Hardware Devices ...................................................................... 15
3.3.7 User Interface Set-up........................................................................................ 16
3.4 User Management .................................................................................................. 16
3.5 POS Interface .......................................................................................................... 17
3.6 Sales Screen ............................................................................................................ 17
4Promotions............................................................................................................... 18
4.1 Discounts................................................................................................................. 18
4.2 Complimentary Washes.......................................................................................... 18
4.3 Fundraisers.............................................................................................................. 19
4.4 Scheduled Specials.................................................................................................. 19
4.5 Prize Promos ........................................................................................................... 19
4.6 Promotions Setup ................................................................................................... 20
4.6.1 Prize Promo Setup............................................................................................. 21
4.6.2 Promotions Setup ............................................................................................. 22
4.7 Promotions Reports ................................................................................................ 24
4.7.1 Status Report .................................................................................................... 24
4.7.2 Usage Report..................................................................................................... 24
5House Accounts ........................................................................................................ 25
5.1 Prepaid Accounts .................................................................................................... 25
5.2 Subscription Accounts............................................................................................. 26
5.3 Loyalty Accounts ..................................................................................................... 26
5.4 Fleet Accounts......................................................................................................... 27
5.5 Account Programs................................................................................................... 27
5.5.1 Pre-Paid Account Program Setup ..................................................................... 28
5.5.2 Subscription Account Program Setup............................................................... 29

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
5.6 Accounts.................................................................................................................. 30
5.6.1 Prepaid and Subscription Accounts .................................................................. 30
5.6.2 Loyalty Accounts ............................................................................................... 31
5.6.3 Fleet Accounts................................................................................................... 32
5.7 Account Reports...................................................................................................... 34
5.7.1 Status Report .................................................................................................... 34
5.7.2 Listing Report .................................................................................................... 35
5.7.3 Loyalty Report................................................................................................... 36
5.7.4 Fleet Report ...................................................................................................... 36
5.7.5 Sales Report ...................................................................................................... 39
5.7.6 Account Transaction Report ............................................................................. 40
6Reports..................................................................................................................... 41
6.1 Site Revenue Report ............................................................................................... 42
6.2 Sales Report ............................................................................................................ 44
6.3 Cash Report............................................................................................................. 46
6.4 Transaction Report.................................................................................................. 47
6.5 Code Listing Report................................................................................................. 49
7Sales......................................................................................................................... 50
8Utilities..................................................................................................................... 56
8.1 Enable Support Mode ............................................................................................. 57
8.2 Database Management........................................................................................... 58
8.2.1 Compact and Cleanup Database......................................................................... 58
8.2.2 Delete Old Codes .............................................................................................. 59
8.2.3 Automatic Backups Schedule for Server........................................................... 59
8.2.4 Restore Factory Defaults................................................................................... 60
8.3 Files ......................................................................................................................... 61
9Maintenance Functions ............................................................................................ 62
9.1 Cash Functions ........................................................................................................ 63
9.2 Shutdown ................................................................................................................ 65
10 Component Operation and Maintenance .................................................................. 66
10.1 Component Layout............................................................................................... 66
10.1.1 Portal TI Door Assembly............................................................................ 66
10.1.2 Inside the Portal TI Door Assembly........................................................... 67
10.1.3 Inside the Portal TI Unit Case.................................................................... 68
10.1.4 Inside the Portal TI Cash Vault .................................................................. 69
10.1.5 System Cabling .......................................................................................... 70
10.2 Cleaning and General Maintenance..................................................................... 70
10.3 Security Devices.................................................................................................... 71

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
10.3.1 Setting the Alarm ...................................................................................... 71
10.3.2 Shock Sensor ............................................................................................. 72
10.4 Bill Dispenser ........................................................................................................ 72
10.4.1 Bill Dispenser Location.............................................................................. 72
10.4.2 Bill Dispenser Security............................................................................... 72
10.4.3 Bill Dispenser Operations Components .................................................... 73
10.4.4 Clearing Bill Dispenser Jams...................................................................... 73
10.4.5 Loading the Bill Dispenser......................................................................... 75
10.4.6 Maintaining the Bill Dispenser.................................................................. 78
10.5 Bill Validator ......................................................................................................... 80
10.5.1 Mars Bill Validator..................................................................................... 80
10.6 Card Reader.......................................................................................................... 86
10.6.1 Cleaning the Card Reader ......................................................................... 86
10.6.2 Troubleshooting the Card Reader............................................................. 86
10.7 Coin Acceptor ....................................................................................................... 87
10.7.1 Coin Acceptor Cleaning and Maintenance................................................ 87
10.7.2 Programming the IDX Acceptor ................................................................ 87
10.7.3 Programming the IDX to Accept $1 Coins................................................. 88
10.7.4 Programming the IDX to Accept Quarters ................................................ 89
10.7.5 Site-Specific Tokens .................................................................................. 89
10.7.6 Erasing IDX Programming ......................................................................... 90
10.8 Coin Hopper.......................................................................................................... 90
10.8.1 Removing the Hopper ............................................................................... 91
10.8.2 Filling the Hopper...................................................................................... 91
10.8.3 Changing the Dispense Value.................................................................... 92
10.9 Credit Modem ...................................................................................................... 96
10.10 Proximity Sensor................................................................................................ 96
10.10.1 Proximity Sensor ....................................................................................... 96
10.11 Sound System .................................................................................................... 97
10.11.1 Troubleshooting:....................................................................................... 97
10.12 Testing Door Switches ....................................................................................... 97
10.13 Thermal Printer.................................................................................................. 99
10.13.1 Replacing the Printer Paper .................................................................... 100
10.13.2 Clearing a Paper Jam............................................................................... 100
10.13.3 Manually Printing a Self Test .................................................................. 100
10.14 The Token Bucket ............................................................................................ 100
Appendix A: Themes .................................................................................................... 100

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Table of Figures
Figure 1. Portal TI Login Screen............................................................................................................. 10
Figure 2. Password Change Screen ....................................................................................................... 11
Figure 3. Site Summary Screen ............................................................................................................. 13
Figure 4. Promotions - Main Screen ..................................................................................................... 18
Figure 5. Promotions Main Screen........................................................................................................ 20
Figure 6. Prize Discount Setup Screen .................................................................................................. 21
Figure 7. Prize Voucher Setup Screen................................................................................................... 22
Figure 8. Edit Discount Screen .............................................................................................................. 23
Figure 9. Promotions Washes ............................................................................................................... 23
Figure 10. Sample Promotions Status Report....................................................................................... 24
Figure 11. Sample Promotions Usage Report ....................................................................................... 25
Figure 12. Account Program Screen ..................................................................................................... 28
Figure 13. Pre-paid Account Program Edit Screen................................................................................ 28
Figure 14. Subscription Account Program Edit Screen ......................................................................... 29
Figure 15. Prepaid Account Edit Screen................................................................................................ 31
Figure 16. Loyalty Account Setup Screen.............................................................................................. 32
Figure 17. Edit Fleet Account ................................................................................................................ 33
Figure 18. Edit Account User................................................................................................................. 34
Figure 19. Sample House Account Status Report ................................................................................. 35
Figure 20. Sample Account Loyalty Report........................................................................................... 36
Figure 21. Sample House Account Fleet Report ................................................................................... 37
Figure 22. Account Sales Report ........................................................................................................... 39
Figure 23. Account Transaction Report ................................................................................................ 40
Figure 24. Sample Site Revenue Report................................................................................................ 43
Figure 25. Sample Sales Report ............................................................................................................ 44
Figure 26. Sample Cash Report ............................................................................................................. 46
Figure 27. Sample Transaction Report.................................................................................................. 48
Figure 28. Sample Transaction Details.................................................................................................. 48
Figure 29. Sample Code Listing Report ................................................................................................. 49
Figure 30. Sales Screen ......................................................................................................................... 50
Figure 31. Purchase Wash Package Screen........................................................................................... 51
Figure 32. Wash Purchased Screen....................................................................................................... 51
Figure 33. Account Purchase................................................................................................................. 52
Figure 34. Reload Account Screen ........................................................................................................ 53
Figure 35. Reloaded Account Screen .................................................................................................... 53
Figure 36. Rewash Selection Screen ..................................................................................................... 54
Figure 37. Rewash Code Issued Screen................................................................................................. 54
Figure 38. Report Date Selection Screen .............................................................................................. 55

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Figure 39. System Utilities Screen......................................................................................................... 56
Figure 40. Enable Support Mode Screen .............................................................................................. 57
Figure 41. Database Utility Screen........................................................................................................ 58
Figure 42. Database Compact and Clean Screen .................................................................................. 58
Figure 43. Delete Old Codes Screen...................................................................................................... 59
Figure 44. Automatic Backup Settings Screen ...................................................................................... 59
Figure 45. Files Screen .......................................................................................................................... 61
Figure 46. Portal Maintenance Screen.................................................................................................. 62
Figure 47. Cash Deposit Screen............................................................................................................. 63
Figure 48. Cash Removal Screen ........................................................................................................... 64
Figure 49. Shutdown Screen ................................................................................................................. 65
Figure 50. Portal TI Front View Visible Components ............................................................................ 67
Figure 51.Components Inside the Portal TI Door ................................................................................. 68
Figure 52. Block Diagram of Components Inside the Portal TI Case .................................................... 69
Figure 53. Block Diagram of Components Inside the Cash Vault ......................................................... 70
Figure 54. Bill Dispenser Location ......................................................................................................... 72
Figure 55. Bill Dispenser Parts .............................................................................................................. 73
Figure 56. Manual Knob and Transportation Area ............................................................................... 74
Figure 57. Removing a Jammed Bill ...................................................................................................... 75
Figure 58. Loading Instructions............................................................................................................. 76
Figure 59. Loading the Bill Dispenser.................................................................................................... 77
Figure 60. Bill Dispenser Pick Roller Cleaning ....................................................................................... 78
Figure 61. Bill Dispenser Sensor Cleaning............................................................................................. 79
Figure 62. Mars Bill Validator/Stacker .................................................................................................. 80
Figure 63. Mars Bill Validator—Top View ............................................................................................. 81
Figure 64. Mars Bill Stacker Replacement ............................................................................................ 82
Figure 65. Mars Flash Code LED............................................................................................................ 83
Figure 66. Mars with Lower Housing .................................................................................................... 85
Figure 67. Mars with Lower Housing Removed.................................................................................... 85
Figure 68. Outside/ Inside of the IDX.................................................................................................... 88
Figure 69. Block diagram of the Hopper Cage ...................................................................................... 91
Figure 70. Remove Hopper Coin Bucket ............................................................................................... 93
Figure 71. Hopper View - Removing the Hopper - Cube Top ............................................................... 93
Figure 72. Hopper View - Top Removed ............................................................................................... 94
Figure 73. Dispensing Wheel Removed ................................................................................................ 94
Figure 74. Guide Arm Cover Removed.................................................................................................. 95
Figure 75. Hopper View - Coin Exit Opening and Chute ....................................................................... 96
Figure 76. Hecon Printer ....................................................................................................................... 99

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
1Introduction
The Portal is car wash payment system that is designed to work at any in-bay automatic or conveyor and
works well for the express exterior car wash. This Owner’s Manual describes the programming features
and provides information on daily operations and recommended maintenance.
For detailed information on how to install the Portal and for networking information, please see the Portal
Installation Manual. For detailed information on how to program the Portal, please see the Sierra
Management Application Operations Manual. All of these manuals are available on the manufacturer’s
website:
www.StartwithUnitec.com
2Login
The Sierra Management Application is used for programming the system operating parameters, viewing
and printing reports, and managing house accounts and car wash promotions. A PC with a standard WEB
browser is required to use the management functions. The PC can be located either on-site or off-site. The
Portal Installation Manual provides guidelines for connecting a PC to the local site network.
To access the management application, type the following into the address bar:
http://XXX.XXX.XXX.XXX:9810/web (where XXX equals your site IP address).
When a connection to the Portal is established, the log-in page should appear (as shown below). At initial
startup, you will use the administrative (ADMIN) user account (user ID 00, password 00). (Note: The
factory default passwords for all User Accounts should be changed to secure access to sensitive functions.
Instructions for changing passwords is provided in the Sierra Management Application Operations
Manual).
Figure 1. Portal TI Login Screen

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Due to PCI compliance, once you login the first time using an administrative password , you will
immediately be prompted to change your password to a more secure password that is at least 7
characters long and contains both letters and numbers, as shown below.
NOTE: An administrative password is a user that has either “User Management” or “Utilities” access
privileges under Setup>Users. For more information on Users, see Section 3.5.
NOTE: To setup a non-administrative user to verify and sell codes or sell accounts, “Accounts and
Promotions” and “Code and Account Sales” must be checked on the user account.

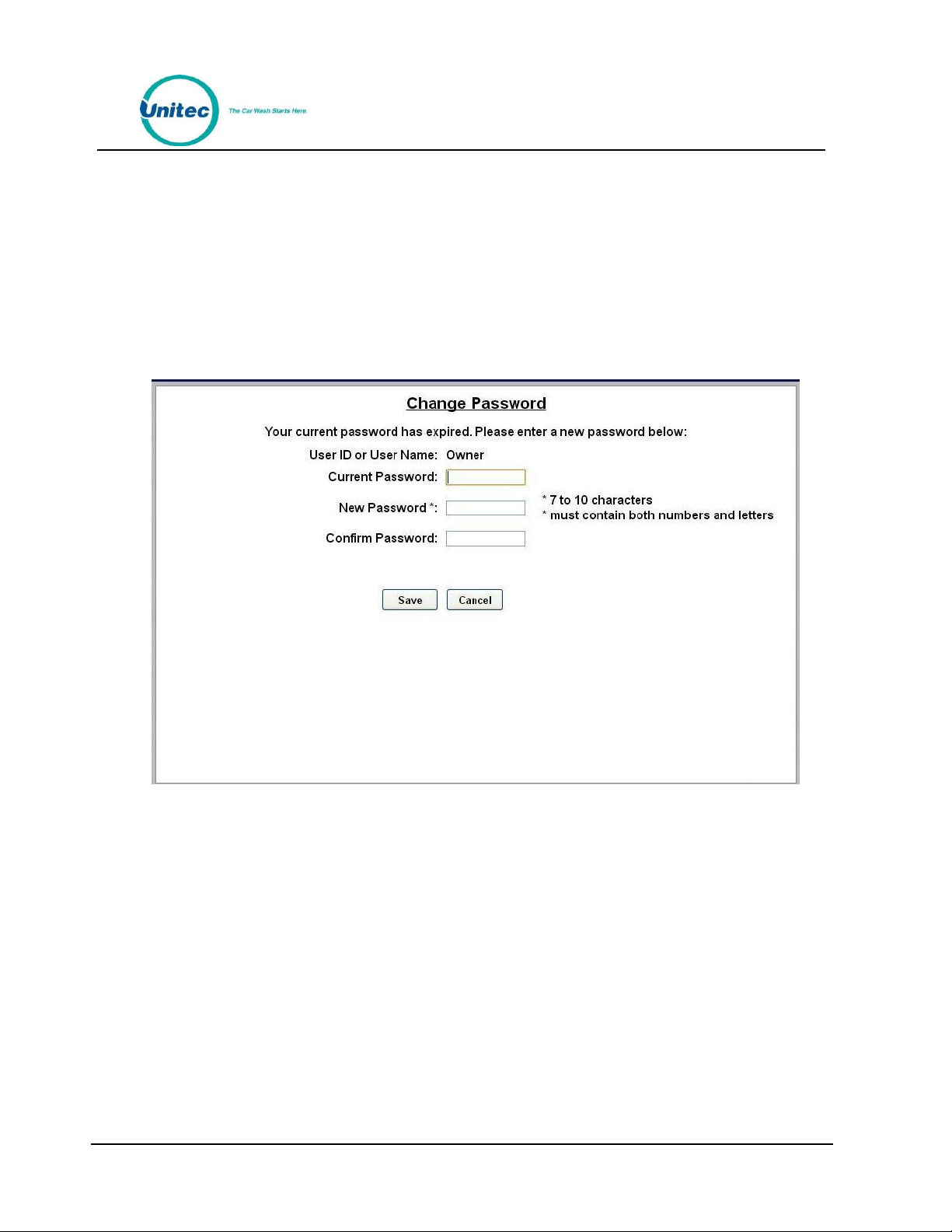

Figure 2. Password Change Screen
To change the password, enter your old password, then enter your new password. Enter your new
password again, then click Save.
You will be required to create a new password every 3 months. Please make note of the password and
keep it in a secure location. You may not use the last 5 passwords.
After setting up your password, you may login to Sierra normally. If you forget your password, you may
click on the Forgot Password? link on the top right of the login page (see Figure 1). Your password will be
emailed to you. Please note that your email address must have been entered into the User profile in order
for the password to be emailed to you. For more information, please see Section 3.5.
NOTE: If you enter your password incorrectly 6 times, you will be locked out of the system for half an
hour.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
NOTE: The new password will also be required to login to the Maintenance screens on the Portal, Sentinel
and C-Start units. A keyboard will appear at units that have a touchscreen. For Portals that have a keypad,
you either must use a keyboard to login, or you must scroll through the keys on the side of the display to
enter your password.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Upon successful login, the Summary page of the management application will appear. This screen displays
a list of devices present on the local network with a count of washes provided and associated revenue for
the current day. Car counts and revenue results from previous days can be viewed by selecting the
desired date in the calendar or by entering the start and end dates in the summary data fields. The
current day data can be updated by selecting the Refresh button. The management functions are shown
in a menu bar across the top of the screen. As each function is selected, a secondary menu of related
options will appear on the left side of the screen.
Figure 3. Site Summary Screen

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
3Set-up Functions
The Set-up function are used to program the Portal’s operational settings and for managing system users.
Portal programming should be performed during installation by your Unitec distributor, but there are
some settings that an equipment owner may wish to change, periodically. This section of the manual
describes the programmable features that are available. For specific details on using these features, see
the Sierra Management Application Operations Manual on the manufacturer’s website:
www.StartwithUnitec.com.
3.1 General Site Information
Site information should be set during installation and would not typically need to be changed. The
programmable features under site information include the site name and ID (as shown on reports and
notifications), accounting close time, and credit card account set-up.
3.2 Product Programming
Products are Wash Packages or Added Services that can be purchased by a customer. The products will
need to be set up by the installing distributor, but the equipment owner may need to access this feature
to change prices or change the Added Services that will be offered with the wash packages.
3.3 Portal Programming
The Portal’s configuration is programmed by creating a ‘device profile’ and downloading the profile to the
Portal. Whenever a change is made to the device profile, the associated devices will need to be
downloaded with the revised profile to implement the changes. The device profile configuration file
includes a series of set-up pages, which are described in the following sections.
3.3.1 General Information
The Edit Profile Information page is used to program some general operational settings of the Portal
including:
Offline Mode –When 2 or more Portals are installed at a site, one will serve as a Master
unit while the others will be secondary units. If the Master unit becomes inoperable, the
secondary units will go to an off-line state. The Portal can be configured so a secondary
unit will go ‘out of service’ if off line or operate in a ‘cash only’ mode (the default).
Exact Change Mode –When enabled (the default setting), the Portal will display ‘Exact
Change Only’ when it detects that the change dispensers are empty or have failed.
Upgrades –When upgrades are enabled, a customer using a prepaid wash code or
account will be offered to upgrade to a better wash by adding more payment. Upgrades
are disabled by default, but can be enabled for wash codes (bought at the pump or in the
C-store), pre-paid house accounts and/or, subscription house accounts.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
3.3.2 Operating Schedule
The Operating schedule allows you to automatically set an opening and closing time for your car wash.
The message that is displayed when the site is closed can be programmed on the User Interface Set-up
Page (described in section 3.3.7). Operating schedules can be configured to vary by day of the week. The
operating schedule is disabled by default.
3.3.3 Wash Dispensing
The wash dispensing page is used to assign and configure the wash packages that will be offered at the
Portal. Wash packages must be set-up through the Products page (section 3.2) before they can be
assigned to a Portal device profile. This feature will typically not be changed after installation, but there
are some features of a wash package that an owner may want to adjust including:
Added Services Offered –Allows one or more additional services to be offered to the
purchaser of the wash package. The Added Services to be offered can vary by package. An
added service must be added to the device profile (per section 3.3.4) before it can be
assigned to a wash package.
Token Dispensing –When enabled, one or more tokens will be dispensed with each
purchase (of the wash package).
Wash Details Text –The wash details text is displayed under the Wash name inside the
wash selection button. Up to 7 lines of text (18 characters per line) can be added. The
wash selection button will be sized to fit the amount of text entered so the buttons can be
made larger by entering more lines of text.
3.3.4 Added Services Dispensing
The Added Services Dispensing page is used to select and configure the added services that will be offered
with one or more of the wash packages. Added services must be set-up through the Products page
(section 3.2) before they can be assigned to a Portal device profile. An added service can be configured to
dispense one or more tokens when purchased. This feature allows an operator to sell token packages as
an added option to the wash purchase.
3.3.5 Wash Interface
The Wash Interface Set-up page is used to configure the hardware interface between the Portal and the
wash controller. These settings should only be changed by your distributor.
3.3.6 Programming Hardware Devices
The Peripherals page is used to configure the various hardware devices in the Portal such as cash
acceptors and dispensers. These settings would typically not be changed after installation.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
3.3.7 User Interface Set-up
The User Interface set-up page is used to change messages displayed to customers and adjust ‘time-out’
values for certain user screens. There are several features on this page that an operator may wish to
adjust including:
Greeting Message Delay –The delay from when a vehicle is detected (at the Portal) until
the greeting message is played.
Added Services Screen Timeout –The amount of time the Added Services offer screen will
be shown. If no selection is made within this time, the Portal will assume no added
services are desired and transition to the next screen.
Wash Options Screen timeout and text –Wash options are enabled (through the Wash
Dispensing page) to ask the consumer to select one of 2 options after their wash purchase.
A typical use of this feature is to ask the customer of a hybrid wash to choose either
‘Touchless or Soft Touch’. The screen timeout allows the Portal to move to the next screen
if the customer does not make their selection within the allotted amount of time set by
the timeout value.
Force Receipt –When enabled, a receipt will automatically be provided to each customer.
When disabled, customers will be prompted for a receipt and one will be provided if they
press the receipt button.
Wash Closed Text –The message that is displayed when the Portal closes, as programmed
by the Out of Service schedule.
Post Sale Text –A programmable message that will be displayed after a customer’s
purchase if the wash is busy.
Receipt Text –Used to program up to 3 lines of text in the receipt header and 7 lines in the
receipt footer.
3.4 User Management
Unique User IDs and passwords should be set up for employees, service personnel or others that may
need access to the Portal. The User Set-up pages are used to create new user accounts and to edit or
delete an existing account. User privileges that can be assigned are arranged in groups as follows:
User Management –Allows the user to set-up and manage other user accounts.
Device Access –Allows a user to open the Portal (without activating the alarm) and
accessing the maintenance mode of the Portal.
Device Set Up –Allows access to the device (profile) programming functions.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
Cash Adjustments –Allows the user to access the cash deposit and removal functions im
Maintenance mode. These functions are used to adjust calculated cash balances as change
is restocked or cash is removed from the Portal.
Accounts and Promotions –Allows the user to set up and manage promotional programs
and house accounts.
Code and Account Sales –Allows the user to Access the optional console pages (for
prepaid wash code sales).
Reports –Allows the user to access the Portal’s accounting reports
Utilities –Allows the user to access system utilities including data logging and database
back-up functions.
NOTE: An administrative password is a user that has either “User Management” or “Utilities” access
privileges under Setup>Users.
NOTE: To setup a non-administrative user to verify and sell codes or sell accounts, “Accounts and
Promotions” and “Code and Account Sales” must be checked on the user account.
3.5 POS Interface
The POS Interface function is used to configure the interface to a Point of Sale register in use at a C-store.
These settings would typically not be changed after installation and should only be changed by your
Unitec distributor.
3.6 Sales Screen
The Sales screen set-up is used to configure the user buttons screen of the console screen. A button can
be configured to issue a code for a specific wash package, check status of a code, or void a previously
issued code. Buttons can also be used to print revenue or sales reports if a report printer is connected to
the optional print server.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
4Promotions
The promotions feature is used to set up and manage various marketing programs. The types of programs
that are available include discounts, complimentary washes, fundraisers, and scheduled specials. Reports
for tracking and managing these programs are accessed through the menu options on the left side of the
promotions management pages (as shown below). The value of promotions used in a time period is
shown in the ‘discounts’ field of the summary section at the top of the site revenue report.
NOTE: Coupons are not supported for Canadian sites.
Figure 4. Promotions - Main Screen
4.1 Discounts
Discounts can be configured so the value varies by wash package. The methods for redeeming a discount
include code entry, card, coupon (inserted at the Bill Acceptor) or token. Other programmable features
include:
Usage Limit –total number of uses allowed and number of uses allowed in a single transaction
Scheduling –Limit use of the discount to a specific date range, specific days of the week
and/or, specific hours of the day
4.2 Complimentary Washes
The complimentary wash promotion provides a free wash when redeemed. Like the discount, this
promotion can be configured for redemption by a code, paper coupon or token. The complimentary
wash can also be set with a schedule to limit the days and/or hours when it can be used.
When a complimentary wash promotion is redeemed, the customer need not select a wash, as the
associated wash will be automatically activated. If added services are enabled, customers will be
allowed to purchase these services by adding payment.

P O R T A L
Document Number: PTL1028
Document Title: Portal 3 Owners Manual
4.3 Fundraisers
The fundraiser is a code-activated promotion intended to encourage supporters of an organization
to use the car wash. No discount or other benefit is provided to the user at the wash but usage of
the fundraiser ‘code’ is tracked and reported. The operator will typically donate a set amount to the
organization for each wash purchase where the fundraiser code was entered. Fundraisers can be
configured to apply to any of the available washes and usage can be controlled by a schedule and a
limit for the total number of redemptions allowed.
When a fundraiser code is entered and validated, a thank you message will be displayed and washes
that are not associated with the fundraiser will be removed from the product selection screen.
4.4 Scheduled Specials
Scheduled specials are discounts that are scheduled to automatically be applied at certain times and on
specific days. The special can be configured to apply to any and all of the available washes and the amount
of the discount can be set to vary for each wash package. When a scheduled special is active, the price
posted for the associated wash will be reduced (on the wash section screen). The car wash operator can
set up scheduled specials so an additional discount can, or cannot, be applied when the special is active.
4.5 Prize Promos
The prize promotion is a slot machine style promotion that allows for customers to play a game and
win either discounts or vouchers. The prize promo screen is presented to the user after payment is
complete but before the wash is dispensed. A maximum of three prize promotions can be
configured at one time. Customer participation is optional.
Any active prize can be awarded when the prize promo is presented (in accordance with the
configured prize limits)
The award frequency can be configured independently for each prize promo.
Any three of a kind wins one of the (up to) three prizes.
The redemption method is always a code printed on a receipt.
