Uponor Smatrix Wave User manual

03 | 2015
Uponor Smatrix
Wave/Wave PLUS
UK INSTALLATION AND OPERATION
MANUAL

Table of contents
1 Copyright and disclaimer .....................................4
2 Preface ..................................................................5
2.1 Safety instructions....................................................5
2.2 Limitations for radio transmission .............................5
2.3 Correct disposal of this product (Waste Electrical
and Electronic Equipment) .......................................5
3 Uponor Smatrix Wave/Wave PLUS ......................6
3.1 System overview.......................................................6

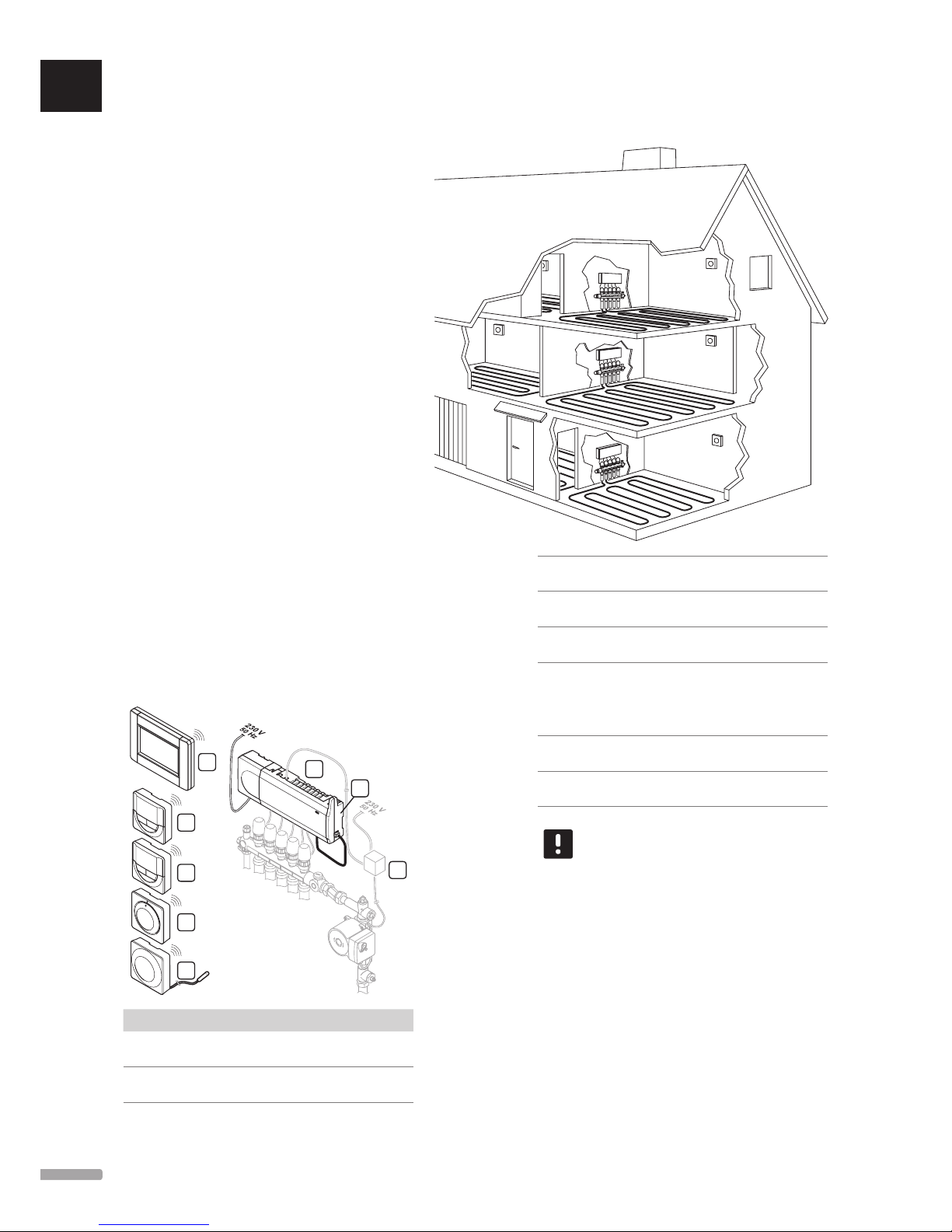

3.2 Example of a system.................................................6
3.3 Uponor Smatrix Wave/Wave PLUS components.......7
3.4 Accessories .............................................................15
3.5 Functions................................................................15
4 Install Uponor Smatrix Wave/Wave PLUS .........18
4.1 Installation procedure .............................................18
4.2 Prepare for installation ...........................................18
4.3 Installation example................................................19
5 Install Uponor Smatrix Wave/Wave PLUS
controller ............................................................22
5.1 Placement of controller ..........................................22
5.2 Install controller antenna ........................................23
5.3 Attach controller to the wall ...................................24
5.4 Connect the slave module (optional)......................24
5.5 Connect components to controller..........................25
5.6 Connect the controller to AC power........................34
5.7 Test actuators .........................................................34
5.8 Register relay module M-161 .................................35
6 Install Uponor Smatrix Wave/Wave PLUS
thermostats and sensors ....................................36
6.1 Placement of thermostats.......................................36
6.2 Label thermostats...................................................36
6.3 Insert batteries .......................................................36
6.4 Connect external sensor to thermostat (optional) ..37
6.5 Attach a thermostat to the wall ..............................38
6.6 Attach to table stand..............................................39
6.7 First startup of digital thermostats .........................39
6.8 First setup of digital thermostats............................40
6.9 Register thermostats in controller...........................40
6.10 Register system devices ..........................................42
7 Install Uponor Smatrix Wave timer ....................44
7.1 Placement of timer .................................................44
7.2 Label timer .............................................................44
7.3 Insert batteries .......................................................44
7.4 Attach a timer to the wall .......................................44
7.5 Attach to table stand..............................................45
7.6 First startup of the timer ........................................45
7.7 Register timer in controller .....................................46
8 Install Uponor Smatrix Wave PLUS interface ....47
8.1 Placement of interface ...........................................47
8.2 Attach the interface to the wall ..............................47
8.3 Attach to table stand..............................................47
8.4 Charger cable..........................................................48
8.5 First startup guide ..................................................48
9 Finishing installation .........................................51
10 Operate Uponor Smatrix Wave/Wave PLUS
controller ............................................................52
10.1 Principle of operation.............................................52
10.2 Normal operation without optional scheduling
programs ................................................................52
10.3 Operation with scheduling programs ......................52
10.4 Run mode...............................................................52
10.5 Reset the controller................................................... 53
10.6 Unregister channels in the controller ......................53
10.7 Update controller software (Wave PLUS only)........54
11 Operate Uponor Smatrix Wave/Wave PLUS
analogue thermostats ........................................55
11.1 Thermostat layout ..................................................55
11.2 Adjust temperature.................................................56
11.3 Disable timer function ............................................56
11.4 Replace batteries ....................................................56
11.5 Factory reset...........................................................57
12 Operate Uponor Smatrix Wave/Wave PLUS
digital thermostats .............................................58
12.1 Thermostat layout ..................................................58
12.2 Display layout.........................................................58
12.3 Operating buttons ..................................................59
12.4 Start up ..................................................................59
12.5 Adjust temperature.................................................60
12.6 Run mode...............................................................60
12.7 Control mode..........................................................61
12.8 Change control mode .............................................61
12.9 Settings ..................................................................61
12.10 Replace batteries ....................................................65
12.11 Factory reset...........................................................65
13 Operate Uponor Smatrix Wave timer .................66
13.1 Timer layout ...........................................................66
13.2 Screen layout..........................................................66
13.3 Operating buttons ..................................................67
13.4 Start up ..................................................................67
13.5 Run mode...............................................................68
13.6 Forced Comfort/ECO mode ....................................68
13.7 Settings ..................................................................68
13.8 Replace batteries ....................................................71
13.9 Factory reset...........................................................71
14 Operate Uponor Smatrix Wave PLUS interface .72
14.1 Touch screen...........................................................72
14.2 Home screen...........................................................72
14.3 Navigating the menu system ..................................73
14.4 Adjust temperature.................................................74
14.5 Room information...................................................75
14.6 Main menu .............................................................77
14.7 System settings ......................................................77
14.8 Holiday...................................................................78
14.9 Heating/Cooling.....................................................79
14.10 Integration..............................................................79
14.11 Trends.....................................................................80
14.12 System info.............................................................80
14.13 Preferences.............................................................80
14.14 Alarms ....................................................................81
14.15 ECO profiles (scheduling) .......................................81
14.16 MicroSD card..........................................................82
14.17 Factory reset of the interface..................................83
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
2
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

15 Maintenance .......................................................84
15.1 Manual preventive maintenance .............................84
15.2 Automatic preventive maintenance ........................84
15.3 Corrective maintenance ..........................................84
15.4 Controller LEDs.......................................................84
15.5 Restore from backup (Wave PLUS only) .................85
16 Troubleshooting .................................................86
16.1 Troubleshooting after installation...........................87
16.2 Digital thermostats T-166, T-167 and T-168
alarms/problems.....................................................88
16.3 Analogue thermostats T-163 and T-165
alarms/problems.....................................................88
16.4 Controller alarms/problems ....................................89
16.5 Contact the installer ...............................................89
16.6 Installer instructions ...............................................89
17 Technical data .....................................................90
17.1 Technical data.........................................................90
17.2 Technical specifications ..........................................91
17.3 Controller layout.....................................................92
17.4 Wiring diagrams......................................................93
17.5 Dimensions.............................................................94
18 Installation report ..............................................96
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
3
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

1 Copyright and disclaimer
Uponor has prepared this installation and operation
manual and all the content included solely for
information purposes. The contents of the manual
(including graphics, logos, icons, text, and images)
are copyrighted and protected by worldwide copyright
laws and treaty provisions. You agree to comply with
all copyright laws worldwide in your use of the manual.
Modification or use of any of the contents of the
manual for any other purpose is a violation of Uponor’s
copyright, trademark and other proprietary rights.
The presumption for the manual is that the safety
measures have been fully complied with and, further,
that Uponor Smatrix Wave/Wave PLUS, including any
components that are part of such system, covered by
the manual:
• is selected, planned and installed and put into
operation by a licensed and competent planner and
installer in compliance with current (at the time
of installation) installation instructions provided
by Uponor as well as in compliance with all
applicable building and plumbing codes and other
requirements and guidelines;
• has not been (temporarily or continuously) exposed
to temperatures, pressure and/or voltages that
exceed the limits printed on the products or stated
in any instructions supplied by Uponor;
• remain in its originally installed location and is not
repaired, replaced or interfered with, without prior
written consent of Uponor;
• is connected to potable water supplies or
compatible plumbing, heating and/or cooling
products approved or specified by Uponor;
• is not connected to or used with non-Uponor
products, parts or components except for those
approved or specified by Uponor; and
• does not show evidence of tampering, mishandling,
insufficient maintenance, improper storage, neglect
or accidental damage before installation and being
put into operation.
While Uponor has made efforts to ensure that the
manual is accurate, Uponor does not guarantee or
warrant the accuracy of the information contained
herein. Uponor reserves the right to modify the
specifications and features described herein, or
discontinue manufacture of Uponor Smatrix Wave/
Wave PLUS described at any time without prior notice
or obligation. The manual is provided “as is” without
warranties of any kind, either expressed or implied. The
information should be independently verified before
using it in any manner.
To the fullest extent permissible, Uponor disclaims
all warranties, expressed or implied, including,
but not limited to, the implied warranties of
merchantability, fitness for particular purpose and
non-infringement.
This disclaimer applies to, but is not limited to, the
accuracy, reliability or correctness of the manual.
Under no circumstances shall Uponor be liable for
any indirect, special, incidental or consequential
damages or loss that result from the use of or
the inability to use the materials or information
in the manual, or any claim attributable to errors,
omission or other inaccuracies in the manual, even
if Uponor has been advised of the possibility of
such damages.
This disclaimer and any provisions in the manual
do not limit any statutory rights of consumers.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
4
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

This installation and operation manual describes how to
install and operate the components of the system.
2.1 Safety instructions
Warnings used in this manual
The following symbols are used in the manual to
indicate special precautions when installing and
operating any Uponor equipment:
Warning!
Risk of injury. Ignoring warnings can cause
injury or damage components.
Caution!
Ignoring cautions can cause malfunctions.
Safety measures
Conform to the following measures when installing and
operating any Uponor equipment:
• Read and follow the instructions in the installation
and operation manual.
• Installation must be performed by a competent
person in accordance with local regulations.
• It is prohibited to make changes or modifications
not specified in this manual.
• All power supplies must be switched off before
starting any wiring work.
• Do not use water to clean Uponor components.
• Do not expose the Uponor components to
flammable vapours or gases.
Uponor cannot accept any responsibility for damage
or breakdown that can result from ignoring these
instructions.
Power
Warning!
The Uponor system uses 50 Hz, 230 V AC
power. In case of emergency, immediately
disconnect the power.
Technical constraints
Caution!
To avoid interference, keep installation/data
cables away from power cables of more than
50 V.
2.2 Limitations for radio transmission
The Uponor system uses radio transmission. The
frequency used is reserved for similar applications, and
the chances of interference from other radio sources are
very low.
However, in some rare cases, it might not be possible
to establish perfect radio communication. The
transmission range is sufficient for most applications,
but each building has different obstacles affecting radio
communication and maximum transmission distance. If
communication difficulties exist, Uponor recommends
relocating the antenna to a more optimal position, and
not installing Uponor radio sources to close to each
other, for solving exceptional problems.
2.3 Correct disposal of this product
(Waste Electrical and Electronic
Equipment)
NOTE!
Applicable in the European Union and other
European countries with separate collection
systems
This marking shown on the product or its
literature indicates that it should not be
disposed with other household wasted at the
end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer
where they purchased this product, or their local
government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check
the terms and conditions of the purchase contract. This
product should not be mixed with other commercial
wastes of disposal.
2 Preface
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
5
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

3 Uponor Smatrix Wave/Wave PLUS
Uponor Smatrix Wave/Wave PLUS is a management
system for underfloor heating and cooling installations.
Comfort, user friendliness and temperature control
for each individual room of a home can be combined
through the various components.
3.1 System overview
Uponor Smatrix Wave/Wave PLUS consists of a
controller, an interface (Wave PLUS only), thermostats,
actuators and an optional timer (Wave only). The
controller manages the operation of the actuators when
the thermostats detect a demand for heating or cooling.
The interface facilitates system optimization and
settings for up to four controllers. The system can
function without the interface, but with reduced
functionality.
Uponor Smatrix Wave/Wave PLUS is controlled by
different types of thermostats. Designed for maximum
comfort, the thermostats communicate with the
controller by radio link. It is possible to mix the different
types of Uponor Smatrix Wave thermostats in the same
installation.
3.2 Example of a system
The illustration below shows Uponor Smatrix Wave
PLUS with several installation options and thermostats.
G
H
F
A
B
C
D
E
Item Description
A Uponor Smatrix Wave PLUS Interface I-167
(interface I-167)
B Uponor Smatrix Wave Thermostat Prog.+RH T-168
(digital thermostat T-168)
C Uponor Smatrix Wave Thermostat Dig T-166 (digital
thermostat T-166)
D Uponor Smatrix Wave Thermostat Standard T-165
(standard thermostat T-165)
E Uponor Smatrix Wave Thermostat Public T-163
(public thermostat T-163) with floor sensor
F Uponor Smatrix Wave PLUS Controller X-165
(controller X-165)
Uponor Smatrix Wave Controller X-163 (controller
X-163)
G Uponor Smatrix Wave Antenna A-165 (antenna
A-165)
H External connection box for pumps (third-party
product, just schematic example in illustration)
NOTE!
The floor sensor can be connected to
thermostats T-163, T-166, T-167 and T-168.
Floor temperature limitation together with a
thermostat T-163 can only be done in a Wave
PLUS system using an interface.
For example, the maximum limitation can
protect a sensitive floor covering from
exposure of too high temperature when there
is a high heating demand. The minimum
limitation can keep a tiled floor warm even
when there is a no general demand for heat
supply to the room.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
6
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Pos. Uponor designation Description
AUponor Smatrix
Transformer A-1XX
(transformer A-1XX)
Transformer module
BUponor Smatrix Wave
PLUS Controller X-165
Uponor Smatrix Wave
Controller X-163
Controller
CUponor Smatrix Wave
Slave Module M-160
(slave module M-160)
Slave module
DUponor Smatrix Wave
Antenna A-165 (antenna
A-165)
Antenna
EUponor Smatrix Wave
PLUS Interface I-167
Interface
FUponor Smatrix Wave
Thermostat Prog.+RH
T-168
Programmable digital
thermostat with
relative humidity sensor
GUponor Smatrix Wave
PLUS Thermostat D+RH
T-167 (digital thermostat
T-167)
Digital thermostat with
relative humidity sensor
HUponor Smatrix Wave
Thermostat Dig T-166
Digital thermostat
IUponor Smatrix Wave
Timer I-163 (timer I-163)
Timer
JUponor Smatrix Wave
Thermostat Standard
T-165/T-165 POD
Standard thermostat
with or without print
on dial
KUponor Smatrix Wave
Thermostat Public T-163
Public thermostat
LUponor Smatrix Wave
Relay Module M-161
(relay module M-161)
Relay module
Controller
The controller operates the actuators, which in turn
affect the flow of the supply water, to change the
indoor temperature using information transmitted from
registered thermostats and system parameters.
Up to six channels and eight actuators can be operated
by the controller, which is typically located near the
hydraulic system manifolds.
The illustration below shows the controller with the
transformer module, antenna and actuators.
24 V
24 V
24 V
Caution!
Only 24 V Uponor actuators are compatible
with the controller.
Uponor Smatrix Wave PLUS Controller X-165
Main characteristics:
• Integrated Dynamic Energy Management functions
such as autobalancing, comfort setting, room
bypass, and supply temperature monitoring
(requires an interface).
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room
thermostats.
• Heating/cooling function (advanced), and/or
Comfort/ECO mode switched by dry contact, public
thermostat or touch panel interface.
• Separate relays for control of pump and boiler.
• Integrated heat pump module (only available in
selected countries, contact a local Uponor office for
more information).
3.3 Uponor Smatrix Wave/Wave PLUS components
B
C D
E
F G H
L
I J K
A
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
7
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

• U@home connectivity via touch screen.
See separate documentation.
• Valve and pump exercise.
• Logging, back up and updates via microSD card.
• Relative humidity control (requires an interface).
• Control of combined underfloor heating/cooling
and ceiling cooling (requires an interface).
• Lower indoor temperature with night set back (for
all rooms using an interface, for a single room using
the digital thermostat T-168).
Options:
• The controller can be expanded with a slave module
which adds an extra six channels and six actuator
outputs.
• Connect up to four controllers into one system
(requires an interface).
• Modular placement (detachable transformer and
antenna).
• Cabinet or wall mounted (DIN rail or supplied
screws).
• Free placement and orientation when installing
the controller (except the antenna which must be
installed vertically).
Uponor Smatrix Wave Controller X-163
Main characteristics:
• Integrated Dynamic Energy Management functions
such as autobalancing.
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room
thermostats (channels).
• Heating/cooling function (basic) switched by dry
contact or public thermostat.
• Separate relays for control of pump and boiler.
• Valve and pump exercise.
• Basic relative humidity control.
• Lower indoor temperature with night set back (for
all rooms using a timer, public thermostat T-163, or
standard thermostat T-165, for a single room using
the digital thermostat T-168).
Options:
• The controller can be expanded with a slave module
which adds an extra six channels and six actuator
outputs.
• Modular placement (detachable transformer and
antenna).
• Cabinet or wall mounted (DIN rail or supplied
screws).
• Free placement and orientation when installing
the controller (except the antenna which must be
installed vertically).

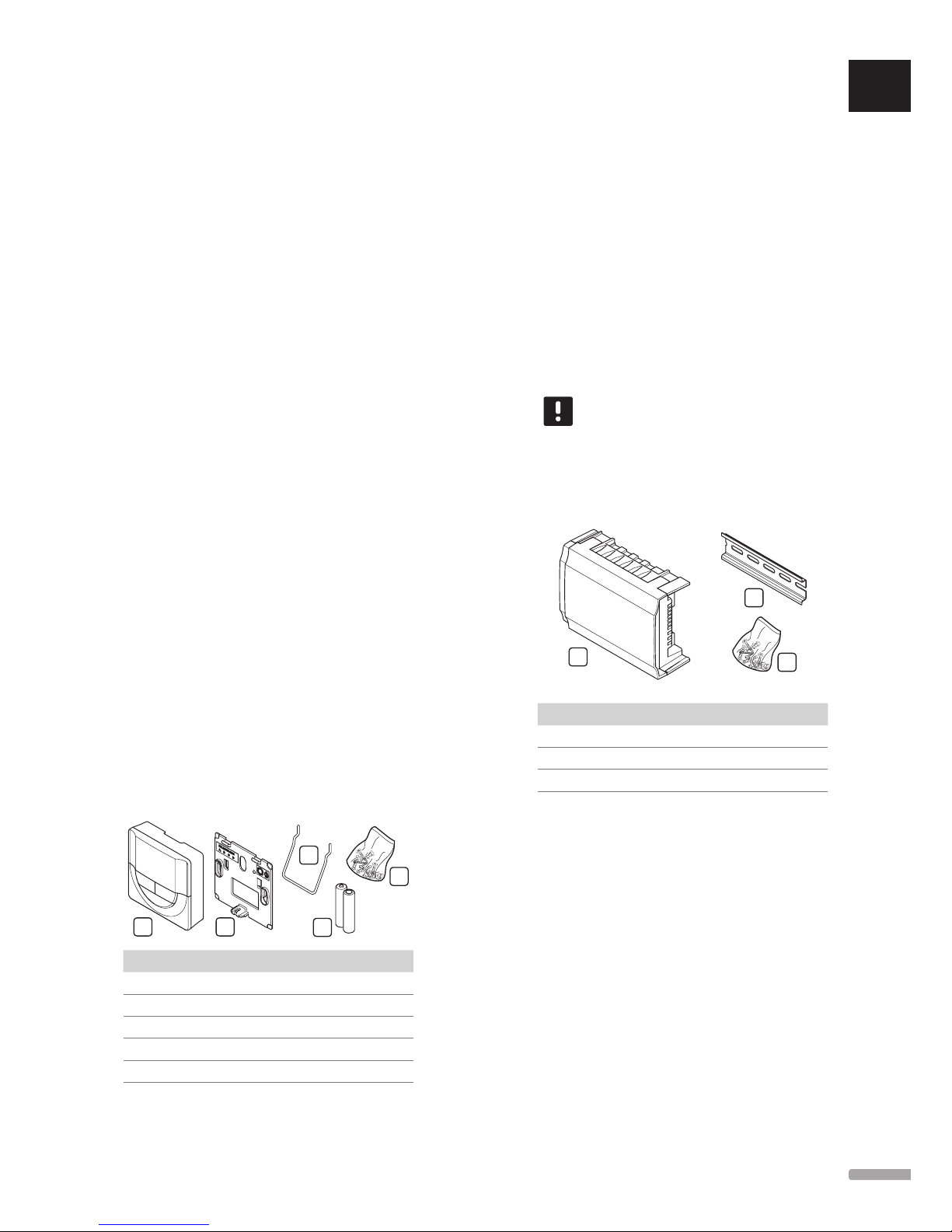

Components of the controller
The illustration below shows the controller and its
components.
A
C
E
B
D
G
F
Item Description
A Uponor Smatrix Wave PLUS Controller X-165
Uponor Smatrix Wave Controller X-163
B Antenna
C Transformer
D Antenna connection cable
E MicroSD card
F DIN rail
G Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
8
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Interface (Wave PLUS only)
Uponor Smatrix Wave PLUS Interface I-167 is a touch
screen interface that can be connected through radio
transmission to controller X-165.
The interface acts as a link between the user and
the controller(s) running in the system, displaying
information and enabling simplified programming of
all relevant system settings. It can also be detached
from the wall for easy use on other locations more
comfortable (e.g. couch).
The Uponor Smatrix Wave PLUS system can be operated
without the interface, but with reduced functionality (in
example: many of the main characteristics listed below
cannot be used).
NOTE!
Uponor Smatrix Wave PLUS systems without
an interface can only operate with reduced
functionality.
Uponor Smatrix Wave PLUS Interface I-167
Main characteristics:
• Touch screen interface.
• Display information and change settings of up to
four controllers running within one system.
• Adjust temperature setpoints of registered
thermostats within the system.
• Installation setup wizard when installed for the first
time or after a factory reset.
• User friendly menu system available in several
different languages.
• Backlit display.
• Temperature setback programs for each connected
thermostat.
• Limitations of maximum/minimum temperature.
• Schedule temporary lowering of temperature during
holiday.
• Automatic change between summer- and winter
time.
• Diagnostic function detecting if a room thermostat
is installed in the right room (room check).
• Possibility to automatically open up to two rooms
per controller when other rooms are closed to
maintain a minimum flow (room bypass).
• System diagnostic (alarms etc).
• Visualize trends by e.g. comparing setpoint with
room temperature etc.
• Advanced cooling settings.
• Change language and/or update the software with
microSD card.
• U@home connectivity (requires a remote module).
• Control of accessories (outputs etc).
Components of the interface
The illustration below shows the interface and its
components.
A
C
B
DE
Item Description
A Uponor Smatrix Wave PLUS Interface I-167
B Wall bracket with power supply
C Table stand
D Mounting material
E MicroSD card
Thermostats
The thermostats communicate with the controller
through radio transmissions and are used either
individually or in combination with each other. They all
use the same type of battery.
The following Uponor Smatrix thermostats can be used
in the system:
Thermostat Wave PLUS Wave
Standard T-165 X X
Digital T-166 X* X*
D+RH T-167 X* X*
Prog.+RH T-168 X* X*
Public T-163 X X
* With reduced functionality
NOTE!
The thermostat is affected by the
temperature of the surrounding surfaces as
well as the ambient air temperature.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
9
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Uponor Smatrix Wave Thermostat Standard T-165
The thermostat temperature settings are adjusted using
the dial. Maximum/minimum temperatures can only
be set using an interface (Wave PLUS only). The 21 °C
position is marked on the dial.
The standard thermostat is also available with a printed
dial (T-165 POD).
Main characteristics:
• Adjust temperature setpoint with large dial.
• LED ring indication when twisting the dial
(changing temperature setpoint).
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• LED in lower right corner indicating, for about
60 seconds, whether a heating or cooling demand
exists.
• Enable or disable Comfort/ECO scheduling for the
room with a dip switch on the back.
• Can be placed up to 30 meters away from the
controller.

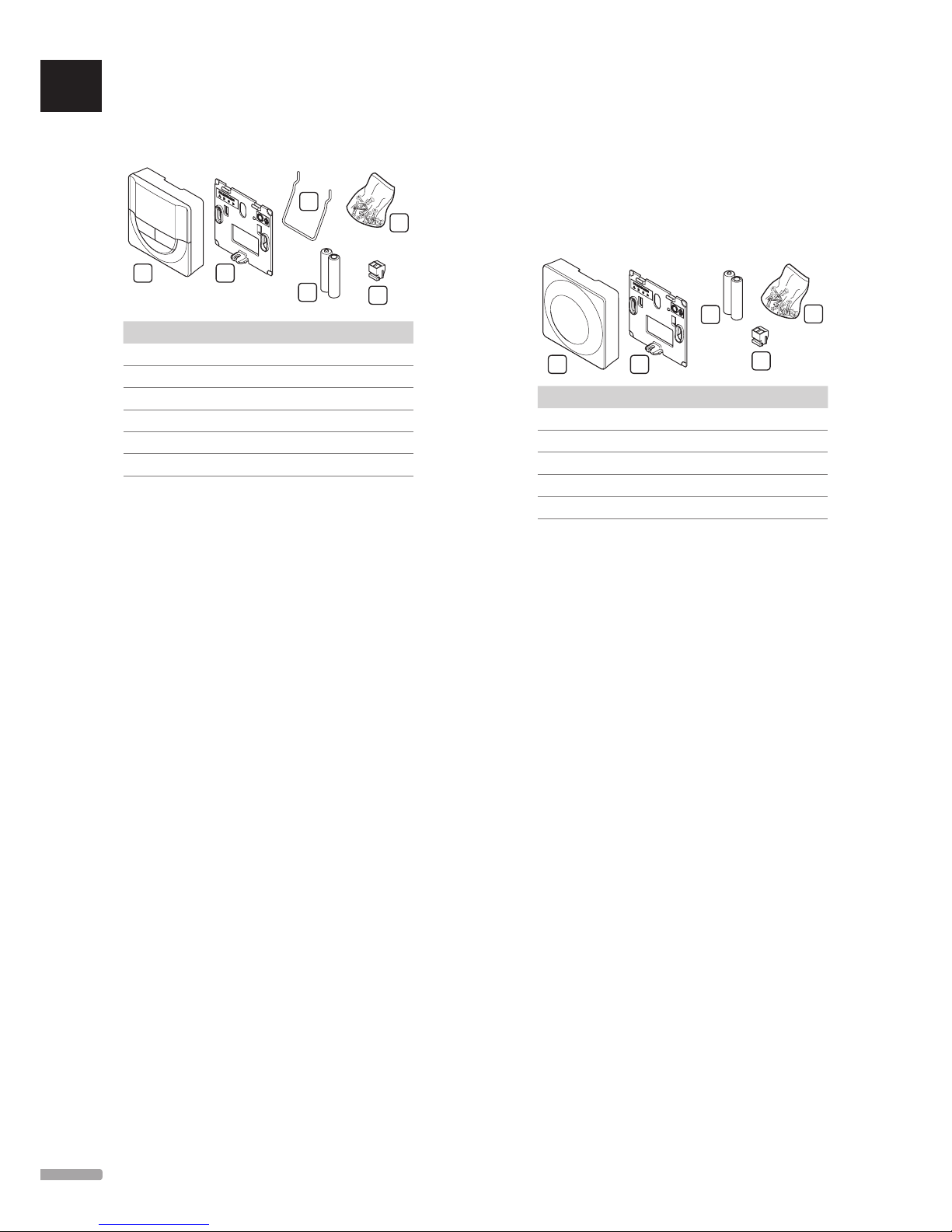

Components of the thermostat:
The illustration below shows the thermostat and its
components.
AD BC
Item Description
A Uponor Smatrix Wave Thermostat Standard T-165
B Wall bracket
C Batteries (AAA 1.5 V)
D Mounting material
Uponor Smatrix Wave Thermostat Dig T-166
The thermostat shows the ambient or set temperature
on the display. Temperature settings are adjusted using
the +/- buttons on the front.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Heating/cooling demand as well as low battery
indication in display.
• Displays software version during power up
sequence.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Room temperature regulation with use of optional
external temperature sensors.
• Displays optional temperature sensor values
if sensors are connected and relevant room
temperature regulation is activated.
• Switch between Comfort and ECO mode with
optional timer.
• Adjust ECO setback value.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:
The illustration below shows the thermostat and its
components.
A
E
C
BDF
Item Description
A Uponor Smatrix Wave Thermostat Dig T-166
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
F Connection terminal
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
10
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Uponor Smatrix Wave PLUS Thermostat D+RH
T-167
The thermostat shows the ambient, set temperature or
relative humidity on the display. Temperature settings
are adjusted using the +/- buttons on the front.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Heating/cooling demand as well as low battery
indication in display.
• Displays software version during power up
sequence.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Room temperature regulation with use of optional
external temperature sensors.
• Displays optional temperature sensor values
if sensors are connected and relevant room
temperature regulation is activated.
• Switch between Comfort and ECO mode with
optional timer.
• Adjust ECO setback value.
• Relative humidity limit indicated in display.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:
The illustration below shows the thermostat and its
components.
A
E
C
BDF
Item Description
A Uponor Smatrix Wave PLUS Thermostat D+RH T-167
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
F Connection terminal
Uponor Smatrix Wave Thermostat Prog.+RH T-168
The thermostat shows the ambient, set temperature
or relative humidity, and time on the display. Settings
are adjusted using the +/- buttons on the front. Other
programmable settings are scheduling and individual
night set back (on a room by room basis) etc.
Uponor recommends only using this thermostat in
systems without a timer (Wave only) or an interface
(Wave PLUS only). In systems with a timer scheduling
and priority issues might occur, and in systems with an
interface the scheduling function in the thermostat is
switched off.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Heating/cooling demand as well as low battery
indication in display.
• Displays software version during power up
sequence.
• Setup wizard to set time and date when installed for
the first time or after a factory reset.
• Option to set the clock.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Room temperature regulation with use of optional
external temperature sensors.
• Displays optional temperature sensor values
if sensors are connected and relevant room
temperature regulation is activated.
• Programmable to switch between Comfort and ECO
modes with adjustable ECO setback value in the
room.
• Cannot be overridden by other thermostats or
timers (Wave only), when it is set to a program.
• Relative humidity limit indicated in display.
• Scheduling, pre-programmed and customizable
schedules.
• Lower indoor temperature on a room by room basis
with night set back.
• Can be placed up to 30 meters away from the
controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
11

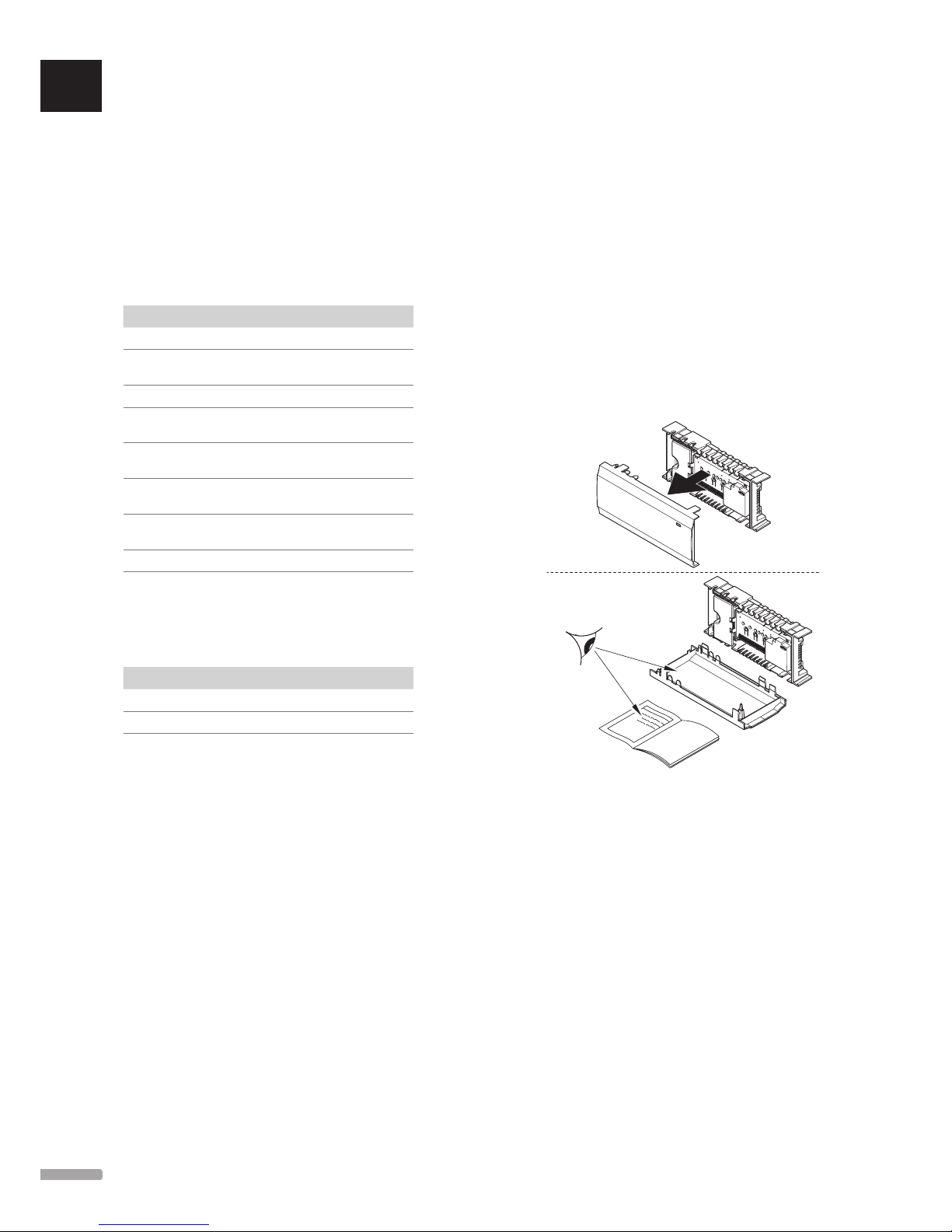

UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Components of the thermostat:
The illustration below shows the thermostat and its
components.
A
E
C
BDF
Item Description
A Uponor Smatrix Wave Thermostat Prog.+RH T-168
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
F Connection terminal
Uponor Smatrix Wave Thermostat Public T-163
The thermostat is designed for public locations which
means that the dial is hidden. It must be removed from
the wall to set the temperature. When it is removed, an
alarm is triggered.
The thermostat can be registered as a system device,
enabling extra functions. When functioning as a system
device, the internal room sensor is disabled.
Main characteristics:
• Adjust setpoint temperature with a potentiometer
on the back of the thermostat.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Alarm is indicated on the controller if removed from
wall for tamper detection. If an interface is installed,
it will display the alarm as well (Wave PLUS only).
• Dry contact input for switching operation modes
between heating and cooling, if registered as a
system device.
• Dry contact input for forced ECO mode of
operation, if registered as a system device.
• Optional external temperature sensor can be
connected to the thermostat. Floor temperature
limitation (maximum and minimum) is only available
in a Wave PLUS system.
• Optional outdoor temperature sensor can be
registered as either standard thermostat or system
device.
• Dip switch for selecting between function or sensor
mode of operation.
• Enable or disable Comfort/ECO scheduling for the
room with a dip switch on the back.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:
The illustration below shows the thermostat and its
components.
A
D
B
C
E
Item Description
A Uponor Smatrix Wave Thermostat Public T-163
B Wall bracket
C Batteries (AAA 1.5 V)
D Mounting material
E Connection terminal
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
12
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Timer
Uponor Smatrix Wave Timer I-163 (Wave only)
The timer enables control of the system with
scheduling, Comfort/ECO settings, and Holiday mode
etc. Settings are adjusted using the +/- buttons on the
front.
The timer only shows time, date and current scheduling
program.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Timer symbol on the front to differentiate it from
thermostats.
• Displays Celsius or Fahrenheit in the settings.
• Comfort/ECO mode and low battery indication in
display.
• Displays software version during power up
sequence.
• Setup wizard to set time and date when installed for
the first time or after a factory reset.
• Option to set the clock.
• ECO mode setback for analogue thermostats. Digital
thermostats use their own setback temperatures.
Thermostat T-168 required to set its program to Off.
• Scheduling, pre-programmed and customizable
schedules.
• Enable holiday mode.
• Enable autobalancing in the system.
• Can be placed up to 30 meters away from the
controller.
Components of the timer:
The illustration below shows the timer and its
components.
A
E
C
BD
Item Description
A Uponor Smatrix Wave Timer I-163
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
Slave module
Uponor Smatrix Wave Slave Module M-160
The slave module adds six channels and actuator
outputs to an existing Uponor Smatrix Wave/Wave
PLUS controller.
Main characteristics:
• Easy plug in installation on existing controller, no
additional wiring needed.
• Register up to six extra thermostats to the system.
• Connect up to six extra actuators (24 V).
• Electronic control of actuators.
• Valve exercise.
NOTE!
Only one slave module extension is supported
per controller.
Components of the slave module:
The illustration below shows the slave module and its
components.
A
B
C
Item Description
A Uponor Smatrix Wave Slave Module M-160
B DIN rail
C Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
13
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Relay module
Uponor Smatrix Wave Relay Module M-161
The relay module adds two extra output relays to the
system.
Main characteristics:
• Potential free contacts (230 V AC, 5 A).
• Requires an Uponor Smatrix Wave/Wave PLUS
controller.
• Pump control and heating/cooling output function.
• Pump and dehumidifier control function (Wave
PLUS with interface only).
• Boiler and chiller control function (Wave PLUS with
interface only).
• Can be placed up to 30 meters away from the
controller.

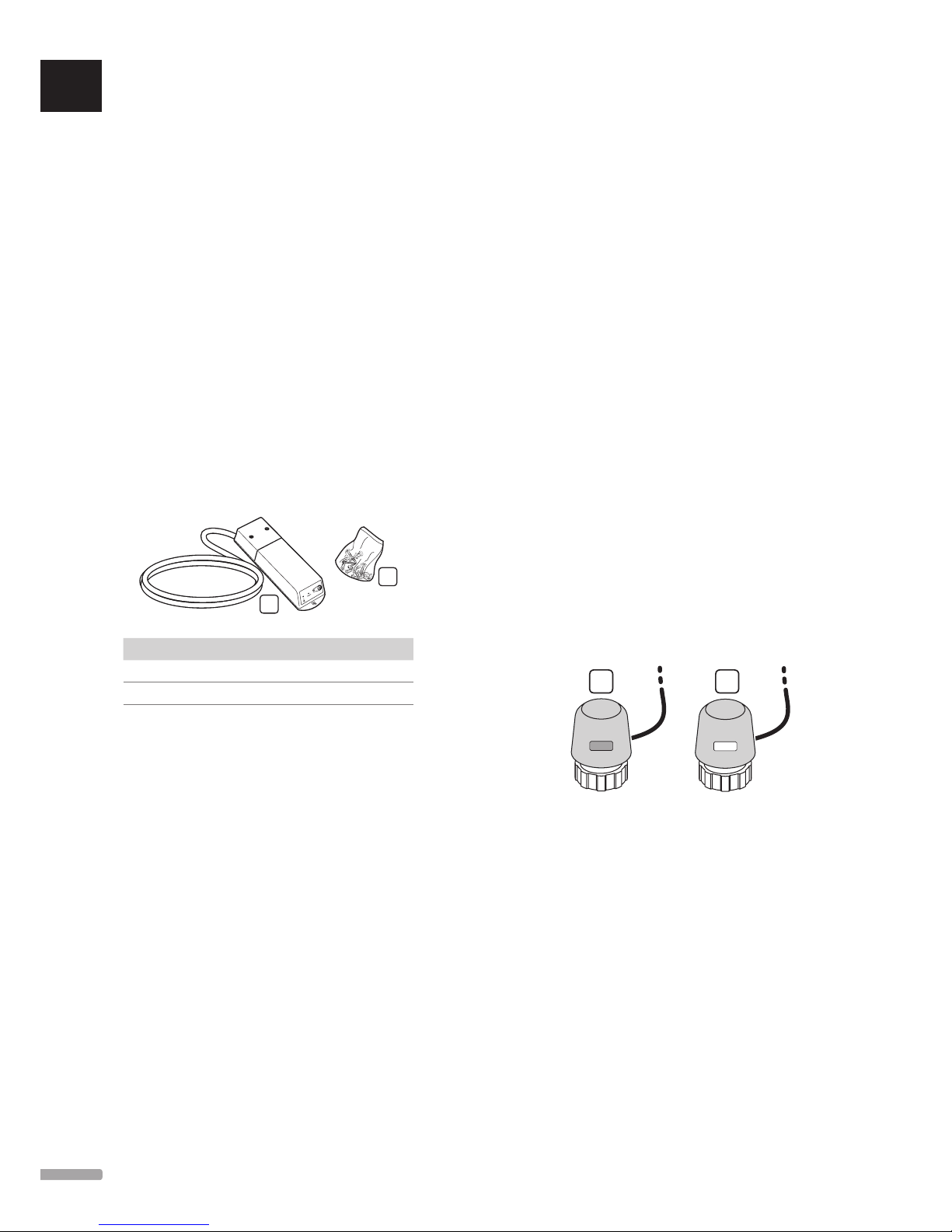

Components of the relay module:
The illustration below shows the relay module and its
components.
B
A
Item Description
A Uponor Smatrix Wave Relay Module M-161
B Mounting material
Uponor actuators
Uponor actuators are mounted on top of the manifold
valves and is operated using either on/off signals or
pulse width modulation (PWM) signals.
On/off control
When installing a system with on/off control, manual
balancing of the system is required.
As soon as the temperature measured at a thermostat
is lower (heating mode) or higher (cooling mode) than
the setpoint temperature, a demand to change the
room temperature is created and sent to the controller.
The controller will open the actuators according to
current operating mode and other settings. Once the
set temperature is reached, this information is sent
and the actuators are closed. The indicator window on
the actuator shows, with a white bar, how much it is
opened. If the window is completely filled with white
it is fully opened, no white bar shown means that the
actuator is closed.
Time to open and close an actuator is 1 minute.
PWM control
PWM control is used when the Autobalancing function
is active.
When installing a system with PWM control, the system
is balanced automatically.
See section 3.5 Functions > Autobalancing for more
information.
A B
A Actuator has closed the valve – empty indicator
B Actuator has opened the valve – white indicator
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
14
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

3.4 Accessories
Uponor offers a wide variety of accessories for use with
the standard portfolio.
G
B
A
FE
CD
H
NOTE!
Some of these accessories may be included in
the system.
Item Component Description
A Attachment
options for
thermostats
T-163, T-165,
T-166, T-167,
T-168 and timer
I-163
Table stand
B Screws
C Uponor Smatrix
Wallframe T-X
A-1XX
(wallframe T-X
A-1)
Wall frame for covering larger
area of the wall than original
back plate. Used at installation of
thermostats T-163, T-165, T-166,
T-167, T-168 and timer I-163
D Uponor Smatrix
Sensor Outdoor
S-113
(outdoor sensor
S-113)
Outdoor sensor for use with
thermostats T-163, T-167 and
T-168
E Uponor Smatrix
Sensor Floor/
Remote S-114
(floor/remote
sensor S-114)
Floor/remote sensor for use with
thermostats T-163, T-166, T-167
and T-168
F Uponor Heating/
Cooling relay
Relay for connecting external
voltage signal from a heating/
cooling source, such as a heat
pump, to a controller input.
G DIN rail DIN rail for use with Uponor
Smatrix Wave/Wave PLUS
controllers
H Table stand for
interface I-167
Table stand for use with interface
I-167
3.5 Functions
Uponor Smatrix Wave/Wave PLUS is used to control an
underfloor heating and/or cooling system in a house.
The thermostats registered to the controller is used to
control the actuators mounted on top of the manifold
valves.
As soon as the temperature measured at a thermostat
is lower (heating mode) or higher (cooling mode) than
the setpoint temperature, a demand to change the
room temperature is created and sent to the controller.
The controller will operate the actuators according to
current control mode and settings. This will manage the
flow to the floor loops in the room and adjust the room
temperature. Once the set temperature is reached, this
information is sent to the controller and the demand is
met.

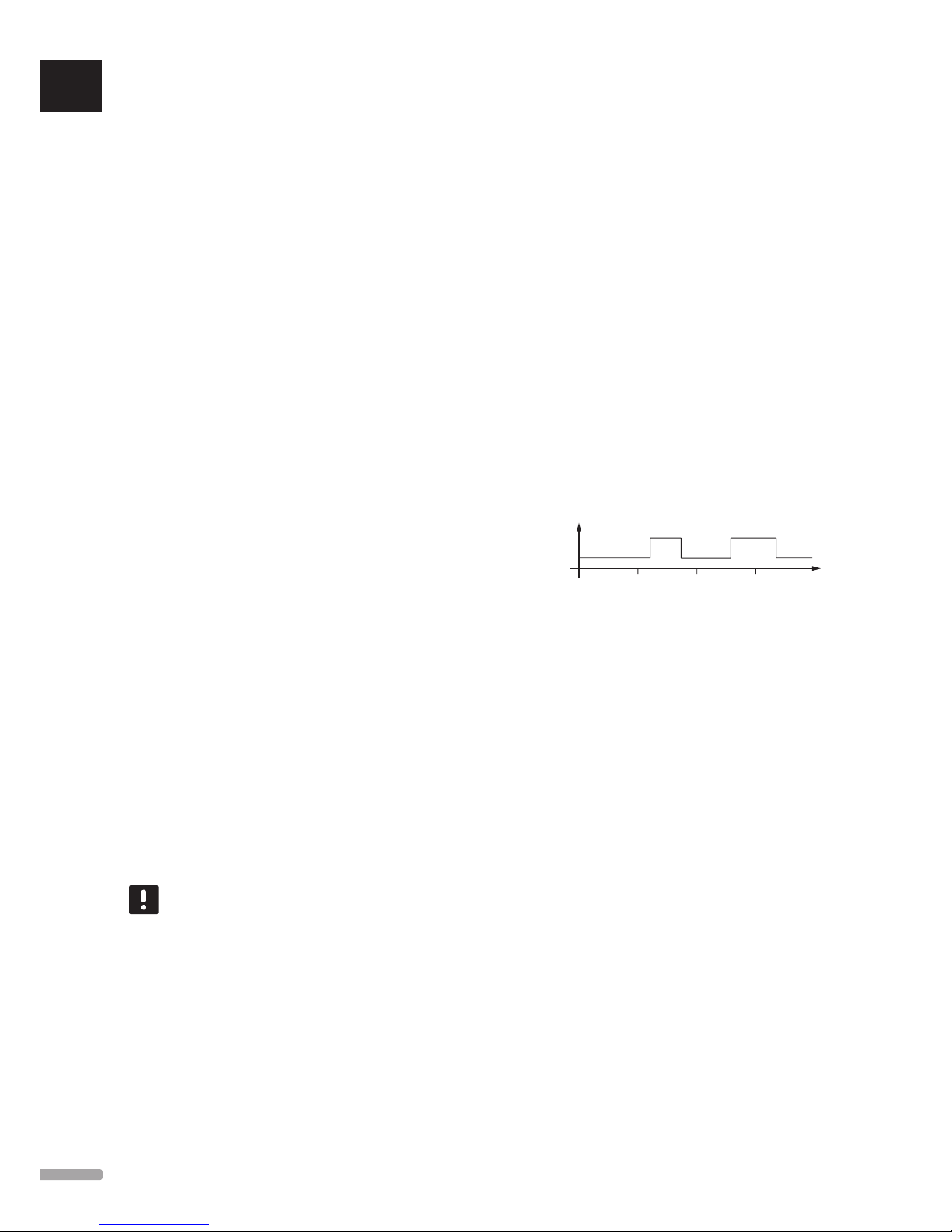

Comfort and ECO modes
If a timer is connected to the controller, it is possible to
regulate the temperature setpoint modes between three
different temperatures. Available modes is Comfort,
ECO (economy), and Holiday. See example of Comfort
and ECO mode below.
0 h 00 24 h 0018 h 0012 h 006 h 00
Comfort
ECO
Heating timer 1
night morning afternoon night
The diagram shows that the system delivers heating in
comfort mode in the morning and afternoon, but the
system enters ECO mode during night and in the middle
of the day, when the house normally is empty.
Autobalancing
The Uponor Smatrix Wave/Wave PLUS controller can
operate the actuator outputs by either on/off signals or
by Autobalancing, using pulse width modulation (PWM)
signals.
Autobalancing is a function where the system calculates
the actual energy need of single rooms and adapts the
output power of each loop to its length. This means a
short loop might get 20% on time while a long loop
might get about 60%.
The automatic balancing continues through the seasons
and throughout the household’s changing lifestyle and
usage patterns, removing the need of manual balancing.
This gives more even floor temperatures and faster
system reaction times with lower energy consumption
than any standard on/off system.
