Upright AB60JRT User manual

Operator Manual
Betriebsanleitung
Manual del Usuario
Manuale d’Uso
Bedieningshandleiding
Manual part number 508321-001(EN)
Bestellnummer 508321-001(DE)
El número de referencia para el manual es el 508321-001(ES)
Manuale Ricambi Numero 508321-001(IT)
Handboek onderdeelnummer 508321-001(NL)
AB60JRT
September 08

Table of Contents
AB60JRT1
Table of Contents
Declaration of Conformity...........................................2
Safety Rules...............................................................3
Introduction.................................................................4
Component Identification............................................4
Special Limitations......................................................5
Platform Capacity....................................................5
Manual Force..........................................................5
Platform Overload Sensing System........................5
Beaufort Scale.........................................................5
Controls and Indicators...............................................6
Battery Disconnect Switch ......................................6
Lower Controls and Indicators ................................6
Upper Controls and Indicators ................................6
Pre-Operation Safety Inspection ................................7
System Function Inspection .......................................8
Operation....................................................................9
Cold Weather Start-Up............................................9
Hydraulic System Cold Weather Warm-Up ............9
Hydraulic System Warm-up Switch.........................9
Manually Warming The Hydraulic System ..............9
Preparing for Operation.........................................10
Lower Controls......................................................10
Upper Controls......................................................10
Boom Operation....................................................10
Driving and Steering..............................................10
Drive Speeds.........................................................11
Motion Warning Alarm...........................................11
AC Generator........................................................11
Air Line..................................................................12
Driving Lights ........................................................12
Platform Work Lights.............................................12
Emergency Lowering ............................................12
Riser Boom ...........................................................12
Main Boom............................................................13
After Use Each Day...............................................13
Transporting the Machine.........................................14
Preparing for Transportation .................................14
By Crane...............................................................14
By Truck................................................................14
Maintenance.............................................................15
Hydraulic Fluid ......................................................15
Check Hydraulic Fluid...........................................15
Engine...................................................................15
Oil Level................................................................15
Battery Maintenance.............................................15
Inspection and Maintenance Schedule.....................16
Daily Preventative Maintenance Checklist ...............17
Preventative Maintenance Report.........................17
Decal Location..........................................................18
Specifications ...........................................................20
Aerial Platform.......................................................20
Platform.................................................................20
Function Speed.....................................................20
Drive System.........................................................20
Tires ......................................................................20
Electrical System...................................................20
Hydraulic System..................................................20
Engine...................................................................20
Fuel Tank Capacity................................................20
Ambient Air Temperature Operating Range ..........20
Maximum Wind Speed..........................................20
Vibration................................................................20
Sound Threshold...................................................20
Working Envelope.................................................20

2AB60JRT
EC DECLARATION OF CONFORMITY
FOR MACHINERY
MACHINERY:
Powered Aerial Platform known as:
Type: SNORKELAB60J (Upright AB60JRT)
Serial Number:
The machine specified above conforms to the following provisions:
Machinery directive 98/37/EC (using document EC Community Legislation on Machinery and taking
guidance from EN280:2001 + Amendment A1:2004)
Council Directive 89/336/EEC on Electromagnetic Compatibility as amended by 93/68/EEC and 92/31/EC
Council Directive 73/23/EEC on Low Voltage Equipment Safety as amended by 93/68/EE
Council Directive 2000/14/EC on Noise Emission in the Environment by Equipment for use Outdoors
E. C. Type Examination Certificate No:
Note: Modification of the specified unit renders this declaration invalid
As performed in accordance with EN 3744:1995
Measured sound power level 91 dB Min
100dB Max
Guaranteed sound power level 100dB

AB60JRT3
AWarning
All personnel shall carefully read, understand and follow all safety rules and operating instructions
before operating or performing maintenance on any UpRight aerial work platform.
Electrocution Hazard Tip Over Hazard Collision Hazard Fall Hazard
UpRightAB38
THIS MACHINE IS
NOT INSULATED!
NEVER elevatetheplatform
or drive the machine while
elevatedunlessthemachine
is on a firm, level surface
NEVER positiontheplatform
without first checking for
overhead obstructions or
other hazards.
NEVER climb, stand, or sit
on platform guardrails or
midrail.
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift persons and his tools as well as the
material used for the job. It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings,
cranes, roof structures, buildings etc.). Uses or alterations to the aerial work platform must be approved by UpRight.
THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe distance from live
parts of electrical equipment!
Exceeding the specified permissible maximum load is prohibited! See “Platform Capacity” on page 5 for details.
The use and operation of the aerial work platform as a lifting tool or a crane is prohibited!
NEVER exceed the manual force allowed for this machine. See “Manual Force” on page 5 for details.
DISTRIBUTE all platform loads evenly on the platform.
NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps, curbs,
or debris; and avoiding them.
OPERATE machine only on surfaces capable of supporting wheel loads.
NEVER operate the machine when wind speeds exceed this machine’s wind rating. See “Beaufort Scale” on page 5 for details.
Do not operate the aerial platform in windy or gusty conditions. Do not add anything to the aerial platform that will increase the
wind loading such as billboards, banners, flags, etc.
IN CASE OF EMERGENCY push EMERGENCY STOP switch to deactivate all powered functions.
IF ALARM SOUNDS while platform is elevated, STOP, carefully lower platform. Move machine to a firm, level surface.
Climbing up the railing of the platform, standing on or stepping from the platform onto buildings, steel or prefab concrete
structures, etc., is prohibited!
Dismantling the entry gate or other railing components is prohibited! Always make certain that the entry gate is closed!
It is prohibited to keep the entry gate in an open position when the platform is raised!
To extend the height or the range by placing of ladders, scaffolds or similar devices on the platform is prohibited!
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections, and
damaged cables or hoses before using.
VERIFY that all labels are in place and legible before using.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
To bypass any safety equipment is prohibited and presents a danger for the persons on the aerial work platform and in its
working range.
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas.
Modifications to the aerial work platform are prohibited or permissible only at the approval by UpRight.
AFTER USE, secure the work platform from unauthorized use by turning the keyswitch off and removing key.
The driving of MEWP’s on the public highway is subject to national traffic regulations.
Certain inherent risks remain in the operation of this machine despite utilizing proper design practices and safeguarding.
Harness attachment points are provided in the platform and the manufacturer recommends the usage of a fall restraint
harness, especially where required by national safety regulations.
Care must be taken to ensure that the machines meets the requirements of stability during use, transportation, assembly,
dismantling when out of service, testing, or foreseeable breakdowns.
In the event of an accident or breakdown see “Emergency Lowering” on page 12, do not operate the aerial platform if it is
damaged or not functioning properly. Qualified maintenance personnel must correct the problem before putting the aerial
platform back into service.
SAFETY RULES

Introduction
4AB60JRT
Introduction
This manual covers the AB60JRTAerial Work Platform.
This manual must be stored on the machine at all
times.
Read, Understand and follow all safety rules and op-
erating instructions before attempting to operate the
machine.
WhencontactingUpRightforserviceorpartsinformation,
be sure to include the MODEL and SERIAL NUMBERS
from the equipment nameplate. Should the nameplate
be missing, the SERIAL NUMBER is also stamped next
to the right hand Rear Drive Motor Cover.
Right Side
Chassis
Emergency
Lowering Valve
Upper Controls
Hydraulic Fluid
Tank
Steer Wheels
Left Side
Platform
Main Boom Tip Boom
Lower
Controls
Battery Disconnect Switch
Engine
Riser
Boom
Steer Wheels Platform
Foot Switch
Floating
Turret
Jib
Boom
Fuel Tank
Emergency
Lowering Valve
Hydraulic Fluid
Filter
Battery
Operator’s
Manual
Nameplate
Location
Component Identification

Special Limitations
AB60JRT5
Special Limitations
Travel with the platform raised is limited to creep speed
range. Elevating the platform is limited to firm, level
surfaces only.
ADanger
The elevating function shall ONLY be used when the
work platform is level and on a firm surface.
The work platform is NOT intended to be driven over
uneven, rough, or soft terrain.
Platform Capacity
Twopeopleand toolsmayoccupytheplatform.The maxi-
mum platform capacity for the aerial platform is stated in
the “Specifications” on page 20.
ADanger
DO NOT exceed the maximum platform capacity or
the platform occupancy limits for this machine.
Manual Force
Manual force is the force applied by the occupants to
objects such as walls or other structures outside the
work platform.
The maximum allowable manual force is limited to 200N
(45 lbs) of force per occupant, with a maximum of 400 N
(90 lbs) for two occupants.
ADanger
DO NOT exceed the maximum amount of manual
force for this machine.
Platform Overload Sensing System
All functions are stopped from the upper and lower con-
trols, when the platform overload limit is exceeded. The
horn will sound intermittently and the platform overload
light will blink until the excess load is removed from the
platform. At that time, the machine functions are again
operational.
If the platform becomes significantly overloaded, or if an
upwardforceontheplatformexceedsapproximately2225
N(500lbs),the systemwillenterintoerrormode,stopping
all functions from the upper and lower controls. The horn
will then sound constantly and the overload light will stay
illuminated at the upper and lower controls.
The system will remain in error mode until the excess
load is removed from the platform and the emergency
stop button or start switch is cycled off and back on,
resetting the system.At that time, the machine functions
are operational.
ACaution
The emergency power system is for emergency low-
ering and stowing only. The length of time the pump
can be operated depends on the capacity of the bat-
tery. Do not use this system for normal operation.
If the platform overload sensing system is tripped while
operating the machine or if the system is in error mode
and can not be reset, the emergency power system may
still be used for emergency machine operation.
ADanger
The aerial platform can tip over if it becomes unstable.
Death or serious injury will result from a tip-over ac-
cident. Do not exceed the capacity values indicated
on the platform rating placard.
The overload sensing system is not active when the
machine is being driven with the booms in the stowed
position. This allows the machine to be driven without
the system sensing an overload due to rough ground
conditions.
To eliminate repeated tripping of the system during ma-
chine operation, there is a five second delay in machine
functions following:
starting the engine.
placing the drive/boom selector switch in the boom
position when the main boom is below horizontal and
fully retracted.
removing excess load from the platform.
Beaufort Scale
Never operate the machine when wind speeds exceed
12.5 m/s (28mph) [Beaufort scale 6]. Refer to Figure 1.
•
•
•
BEAUFORT
RATING WIND SPEED GROUND CONDITIONS
m/s km/h ft/s mph
3 3,4~5,4 12,25~19,4 11.5~17.75 7.5~12.0 Papers and thin branches move, flags wave.
4 5,4~8,0 19,4~28,8 17.75~26.25 12.0~18 Dust is raised, paper whirls up, and small branches sway.
5 8,0~10,8 28,8~38,9 26.25~35.5 18~24.25 Shrubs with leaves start swaying. Wave crests are apparent in ponds
or swamps.
6 10,8~13,9 38,9~50,0 35.5~45.5 24.5~31 Tree branches move. Power lines whistle. It is difficult to open an
umbrella.
7 13,9~17,2 50,0~61,9 45.5~56.5 31.~38.5 Whole trees sway. It is difficult to walk against the wind.
Figure 1 – Beaufort Scale

Controls and Indicators
6AB60JRT
14. Engine/emergency power switch
15. Throttle switch
16. Hydraulic warm-up switch (option)
17. Circuit breaker reset buttons
18. Platform overload light
19. Hour meter
Figure 4 – Upper Controls and Indicators
20. Emergency stop button
21. Start switch
22. Drive/boom selector switch
23. Boom joystick
24. Riser boom elevation switch
25. Boom extension switch
26. Jib articulation switch
27. Boom speed knob
28. Drive joystick
29. Drive range switch
30. Platform level switch
31. Platform rotate switch
32. Engine/emergency power switch
33. Throttle switch
34. Platform overload light
35. Machine/generator switch
Controls and Indicators
The operator shall know the location of each control and
indicator and have a thorough knowledge of the function
and operation of each before attempting to operate the
machine.
Figure 2 – Battery Disconnect Switch
1. Battery Disconnect Switch
Figure 3 – Lower Controls and Indicators
2. Emergency stop button
3. Control selector switch
4. Start switch
5. Ground operation switch
6. Rotation switch
7. Riser boom elevation switch
8. Main boom elevation switch
9. Boom extension switch
10. Jib articulation switch
11. Boom speed knob
12. Platform level switch
13. Platform rotate switch
4
2
5
8
12 13
14
15
1
6
911
19
10 3
30
31
32
33
35
21
25 27
26
24
36
20
29
7
16
18
17
23
34 22
28

Pre-Operation Safety Inspection
AB60JRT7
Pre-Operation Safety Inspection
Note
Carefully read, understand and follow all safety rules,
operating instructions, labels and National Safety Instruc-
tions/Requirements. Perform the following steps each
day before use.
1. Open the turntable covers and inspect for damage,
fluid leaks or missing parts.
2. Check the level of the hydraulic fluid with the plat-
form fully lowered. The fluid level must be between
the full and add marks as viewed on the sight glass.
Add recommended hydraulic fluid if necessary. See
“Specifications” on page 20.
3. Check that the fluid level in the batteries is correct.
See “Battery Maintenance” on page 15.
4. Checkthatallguardrailsare inplaceandallfasteners
are properly tightened.
5. Inspect the machine thoroughly for cracked welds
and structural damage, loose or missing hardware,
hydraulic leaks, damaged control cable and loose
wire connections.

System Function Inspection
8AB60JRT
System Function Inspection
Refer to “Controls and Indicators” on page 6 for the loca-
tions of various controls and indicators.
AWarning
STAND CLEAR of the work platform while performing
the following checks.
Before operating the machine, survey the work area
for surface hazards such as holes, drop-offs, bumps
and debris.
Check in ALL directions, including above the work
platform, for obstructions and electrical conduc-
tors.
1. Move the machine, if necessary, to an unobstructed
area to allow for full elevation.
2. PulltheLowerControlEmergencyStopSwitchto the
ON position.
3. PulltheUpperControlEmergencyStopSwitchto the
ON position.
4. Visually inspect the elevating assembly, lift cylinder,
cables, and hoses for cracked welds and structural
damage,loosehardware, hydraulicleaks,loose wire
connections,anderraticoperation.Checkformissing
or loose parts.
5. Test each machine function (Lift, Slew, Telescope)
from the lower control station by holding the ground
operationswitchupwhileoperatingthecontroltoggle
switches (ref: Figure 3 on page 6).
6. Test the engine/emergency power switch for proper
operation.
7. Push the Lower Control Emergency Stop Button to
check for proper operation. All machine functions
should be disabled. Pull the Lower Control Emer-
gency Stop Button outward to resume.
8. Enter the platform and close the gate.
9. Check that the route is clear of obstacles (persons,
obstructions, debris), is level, and is capable of sup-
porting the wheel loads.
10. Test each machine function (Drive, Lift, Slew, Tele-
scope, Platform Rotate, Platform Level) from the
uppercontrolstation bysteppingontheplatformfoot
switchandoperatingthefunctioncontrols(ref:Figure
4 on page 6).
11. Push the Upper Control Emergency Stop Button to
check for proper operation. All machine functions
should be disabled. Pull the Upper Control Emer-
gency Stop Button outward to resume.

Operation
AB60JRT9
Operation
Theaerialplatformmaybe operatedfromeitherthelower
or upper controls.
ADanger
The aerial platform is not electrically insulated. Death
or serious injury will result from contact with, or in-
adequate clearance from, an energized conductor.
Do not go closer than the minimum safe approach
distance as defined by national safety regulations.
Pinch points may exist between moving components.
Death or serious injury will result from becoming
trapped between components, buildings, structures
or other obstacles. Make sure there is sufficient clear-
ance around the machine before moving the chassis,
booms, or platform. Allow sufficient room and time
to stop movement to avoid contact with structures
or other hazards.
The aerial platform can tip over if it becomes unstable.
Death or serious injury will result from a tip-over ac-
cident. Operate the aerial platform on a firm, flat, level
surface. Avoid travel speeds and/or rough terrain that
could cause sudden changes in platform position. Do
not drive or position the aerial platform for elevated
use near any drop-off, hole, slope, soft or uneven
ground, or other tip-over hazard.
Theplatformratedworkloadisthetotalweightoftheper-
sonnel and equipment that may be lifted in the platform.
The work loads are stated on the platform rating placard
mounted at the rear of the platform.
ADanger
The aerial platform can tip over if it becomes unstable.
Death or serious injury will result from a tip-over ac-
cident. Do not exceed the capacity values indicated
on the platform rating placard.
Capacity values indicate the rated lifting capacity and do
not indicate aerial platform stability.
The operator bears ultimate responsibility for ensuring
thattheaerial platformisproperlyset upfortheparticular
conditions encountered.
Cold Weather Start-Up
If the ambient temperature is 0°C (32°F) or below, the
engine and hydraulic system oil may need to be warmed
beforeoperation.Do notoperatethe engineatmorethan
a fast idle until the engine and hydraulic oil has had a
chance to warm. The engine may be equipped with an
optional cold weather start kit.
Cold,thickhydraulicoildoesnotflowwellandmaycause
delayinresponsetocontrolmovementand impropervolt-
age output of theAC generator. Cold oil may also cause
cavitationandpump damage.Thehydraulic systemmay
be equipped with an optional cold weather warm-up kit.
Theengine maybeequippedwithablockheater.Plugthe
heatercordin eighthoursbeforestarting theengine.The
heater will warm the engine block to make cold weather
starting easier.
Unplug the power cord before starting the engine.
Hydraulic System Cold Weather Warm-Up
Some engines may have a hydraulic fluid warm-up sys-
tem that will automatically warm the fluid upon activating
the warm-up switch. The hydraulic fluid may also be
warmed manually ifthe machine is not equippedwith the
optional warm-up system.
ACaution
Not all hydraulic fluid is suitable to use in the hy-
draulic system. Some have poor lubricating charac-
teristics and can increase component wear. Only use
hydraulic fluid as recommended.
Use cold weather hydraulic oil as recommended in the
machineGeneralSpecificationsintemperatures of-12°C
(10°F) or below.
Hydraulic System Warm-up Switch
Thissystemmaybeusedtowarmthehydraulicfluidwhen
the ambient temperature is below 0°C (32°F) and boom
movement is sluggish because of cold fluid.
There may be a toggle switch for the warm-up system
on the lower control panel and/or one on the left side of
the upper control panel.
The engine must be running and the switch used to turn
the system on must be at the same location that the en-
gine was started. For example, if the engine was started
from the lower controls, the warm-up switch at the lower
controls must be used for the system to operate.
To operate the warm-up system:
1. Start the engine and place the engine throttle in the
low position.
2. From the same control station that the engine was
started, place the warm-up switch in the on position.
3. After the hydraulic fluid reaches 10°C (50°F) as indi-
catedonthe thermometer,place thewarm-upswitch
in the off position.
Manually Warming The Hydraulic System
The hydraulic oil may be warmed by bottoming out the
boom extension cylinder. Raise the main boom so it is
horizontalandoperatetheboomretractfunctionwhilethe
machineisstowed. Withthecylinderbottomed outtheoil
flow will produce heat to warm the hydraulic oil.
ACaution
Not all hydraulic fluid is suitable to use in the hy-
draulic system. Some have poor lubricating charac-
teristics and can increase component wear. Only use
hydraulic fluid as recommended.

Operation
10 AB60JRT
Use cold weather hydraulic oil as recommended in the
machineGeneralSpecificationsintemperatures of-12°C
(10°F) or below.
Preparing for Operation
Usethefollowingproceduretopreparetheaerialplatform
for operation.
1. Perform a prestart inspection as described in the
“Daily Preventative Maintenance Checklist” on page
17.
2. Place the battery disconnect switch in the on posi-
tion.
3. Close and latch the doors.
4. Beforepaintingor sandblasting makesurethesand-
blastprotectionkit and theplatformcontrolcover are
properlyinstalled.Theseoptions,whenusedproperly
willprotectthecontrolplacardsandcylinderrodsfrom
paint overspray and abrasion while sandblasting.
Lower Controls
The lower controls override the upper controls. This
means that the lower controls can always be used to
operate the platform regardless of the position of the
upper control emergency stop button.
Boom,turntable,andplatformfunctionsmaybeoperated
from the lower controls. The lower controls may be used
for initial set up of the aerial platform, and for testing and
inspection.
Use the following procedure to operate boom, turntable,
or platform functions using the lower controls (ref: Figure
3 on page 6).
1. Pull the emergency stop button outward. Insert the
key in the control selector and turn the switch to the
lower control position.
2. Press the start button until the engine starts, then
release. The engine will not start if the control selec-
tor switch is left in the lower control position for 30
seconds or longer before starting the engine. The
control selector switch must be turned back to off
before the engine will start.
3. Let the engine warm to operating temperature.
4. Turn the boom speed knob to slow.
5. Hold the ground operation switch up while operating
the control toggle switches.
6. Hold the appropriate toggle switch in the desired
direction.
7. Release the function toggle switch to stop move-
ment.
8. Place the ground operation switch in the off position
when no functions are being operated.
Upper Controls
The upper controls may be used for driving the aerial
platform and positioning the booms and platform while
on the job.
Usethe followingproceduretooperatemachinefunctions
using the upper controls.
1. Atthelower controls,pulltheemergency stopbutton
outward.Insertthekeyinthecontrolselectorandturn
the switch to the upper control position.
2. Enter the platform and securely close the gate.
3. Attach the fall restraint lanyard to one of the anchor
points.
4. Pull the emergency stop outward.
5. Turn the anti-restart master switch to on and pause
a few secondswhile the alarm sounds toalert others
that the machine is about to start. Turn the switch to
start, then release it to on. The engine will not start if
the switch is left in the on position for 30 seconds or
longer before turning it to start. The switch must be
turned back to off before the engine will start.
6. Let the engine warm to operating temperature.
Boom Operation
Use the following procedure to operate the turntable,
boom, or platform functions.
1. Turn the boom speed knob to slow.
2. Place the drive/boom selector switch in the boom
position.
3. Step down on the platform foot switch. This switch
must be held down to operate the upper controls.
4. Hold the appropriate control in the desired direction.
Always look in the direction of movement.
5. Gradually turn the boom speed knob to control
the boom extend, jib and platform rotate function
speed.
6. Releasingthecontroltoitsneutralposition,or releas-
ing the foot switch will stop movement.
Driving and Steering
ADanger
The aerial platform can tip over if it becomes unstable.
Death or serious injury will result from a tip-over ac-
cident. Do not drive an elevated aerial platform on
soft, uneven, or sloping surfaces. Do not drive the
machine on grades that exceed 20 percent.

Operation
AB60JRT11
For operation on grades up to 20 percent, it is recom-
mended that the riser and main booms be fully lowered
and the jib elevated just enough to provide adequate
ground clearance. A 20 percent grade is a 61 cm (24″)
vertical rise in 3.05 m (10′) horizontal length.
Avoid driving with the platform over the front (steer) end
of the chassis. In this position the machine is difficult to
control because:
driveandsteer controlmovementsand theirresult-
ing machine movements are reversed.
when driving fast, sudden turns or stops produce
more severe reactions to platform occupants.
more turning space is required to prevent the
platform from colliding with obstacles several feet
beyond the path of the tires.
AWarning
Death or serious injury can result from improperly
driving or steering the aerial platform. Read and un-
derstand the information in this manual and on the
placards and decals on the machine before operating
the aerial platform on the job.
The blue and yellow arrows on the chassis indicate the
direction the chassis will move when the drive or steer
control is moved toward the corresponding color.
When the machine is in the stowed position, with the
booms centered between the rear wheels, the direction
of drive and steer control movement corresponds with
the direction of chassis movement.
When the turntable is rotated from the stowed position,
with the booms to either side of or in front of the chassis,
the direction of control movement does not correspond
with the direction of chassis movement.
To avoid confusion, always drive to the work area or
move between work areas with the turntable and booms
in the stowedposition.After arriving at theworkarea,the
booms may be positioned to the side or the front of the
chassis for final positioning. Always look in the direction
of movement as indicated by the directional arrows on
the chassis.
Use the following procedure to operate the drive and
steer functions.
1. Determine the desired drive range for the specific
driving conditions.
Use high range when traveling across firm, flat,
level surfaces. High range can only be activated
whentheboomsare stowed.Highrangeis for high
speed, low torque operation.
Use low range for driving on loading ramps or
othersteepgradesandwhen safetyconsiderations
•
•
•
•
•
demand slow deliberate machine movement. Low
range is for low speed, high torque operation.
2. Place the drive/boom selector switch in the drive
position.
3. Step down on the platform foot switch.
4. Push the drive joystick forward to move the chas-
sis forward, the direction of the blue arrow. Pull the
joystick backward to move the chassis backward,
the direction of the yellow arrow. The drive speed is
proportional to the joystick position.
5. To stop drive motion, return the joystick to neutral.
6. Pushthedrivejoysticktotherightto steertothe right,
the direction of the yellow arrow. Push the joystick
to the left to steer to the left, the direction of the blue
arrow.
Note
The steering wheels are not self-centering. Set the steer-
ing wheels straight ahead after completing a turn.
7. After driving to the desired location, release the foot
switch, or push the emergency stop button to apply
the parking brakes.
Drive Speeds
The drive speed is proportional to the joystick position.
The farther the joystick is moved, the faster the travel
speed.
Always slow down and shift the drive system to low
range before traveling over rough terrain or any sloped
surface.
Drivespeedranges areinterlockedthrougha limitswitch
that senses the main boom position. When the boom is
elevated, only the slowest drive speed will work regard-
less of the drive range switch position.
AWarning
The potential for an accident increases when safety
devices do not function properly. Death or serious
injury can result from such accidents. Do not alter,
disable or override any safety device.
Do not use the aerial platform if it drives faster than 1.1
km/h (0.7 mile per hour) [9.7 m (32 feet) in 30 seconds]
when the booms are elevated from the stowed position.
Motion Warning Alarm
The optional motion warning alarm sounds loud intermit-
tent beeps when the drive joystick is in the forward or
reverse position.
AC Generator
The generator suppliespower to the electrical outletonly
whentheengineisrunningandthemachine isstationary.
Themachinefunctionswillnotoperatewhenthemachine/
generator selector switch is in the generator position.

Operation
12 AB60JRT
ACaution
Cold hydraulic oil does not flow well and may produce
improper generator output voltage. Improper outlet
voltage can damage some electrical power tools and
equipment. Warm the hydraulic oil before operating
the generator.
Donotoperatethegenerator unlessthehydraulicoiltem-
perature is at least 38°C (100°F). Refer to Cold Weather
Start-Up for a hydraulic oil warm-up procedure.
Start the engine and place the machine/generator se-
lector switch in the generator position (ref: Figure 4 on
page 6).
The engine will run at high idle while the generator is
operating. The generator will continue to operate as long
as the engine is running and the switch is in the genera-
tor position.
Air Line
The optional air line may be used to conduct air for tool
operation at the platform. The input connector is at the
rear of the chassis and the output connector is at the
platform on the rotator guard. The maximum working
pressure of the line is 1,723 kPa (250 psi).
The air line may be used to conduct fluids such as water
or antifreeze. Contact your local distriburor or UpRight
for compatibility information before using the air line to
conduct other fluids.
ACaution
Fluid in the air line can damage some air tools or
freeze and damage the line. Drain and blow out the
air line after using it to conduct fluids.
Use the following procedure to drain the air line.
1. Close the input connector on the chassis.
2. Open the output connector at the platform.
3. Raise the boom slightly above horizontal.
4. Open the input connector on the chassis.
5. Allow the fluid to drain from the line.
6. Lower the boom and close both connections.
Driving Lights
The optional driving lights are for use in dimly lit areas
and are not intended for driving on public roadways.
There are two headlights at the front of the chassis and
two blinking taillightsat the rear of thechassis. The lights
are operational when the battery disconnect switch and
the master switch are turned on.
Note
Working with the driving or platform work lights on, while
the engine is off, can discharge the batteries enough that
the engine will not start or the emergency power system
will not operate. If the engine cannot be left running while
the lights are on, start and run the engine for at least 15
minutes each hour.
Platform Work Lights
The optional platform work lights are located on the top
rail of the platform. The direction a light points can be
adjusted by using two 1/2″wrenches to loosen the clamp
below the light.
Thelightsare operationalwhentheupper controlsemer-
gencystopbutton ispulledupand theanti-restartmaster
switch is turned on. The engine speed increases to high
idle when the platform work lights are turned on.
Emergency Lowering
AWarning
If the platform should fail to lower, NEVER climb down
the elevating assembly.
Stand clear of the elevating assembly while operating
the Emergency Lowering Valve Knob.
The riser and main booms can be lowered in an emer-
gency using their respective emergency lowering knobs.
The emergency lowering knobs are at the base of the
lift cylinders. The emergency lowering knobs allow the
booms to be lowered only. Only use this method if the
engine will not start and the emergency power system
will not work.
ADanger
Pinch points exist between boom components and
between the booms and turntable. Death or serious
injury will result if the booms or platform lowers onto
personnel. Make sure all personnel stand clear while
lowering the booms.
Riser Boom
Use the following procedure to manually lower the riser
boom.
1. Slowly turn the knob (refer to Figure 5) to open the
bleed down valve. Control the rate of descent by
turning the knob.
AWarning
The potential for an accident increases when safety
devices do not function properly. Death or serious
injury can result from such accidents. Fully close
the emergency lowering knob before operating the
aerial platform.
2. Turn the knob to close the cylinder bleed down
valve.

Operation
AB60JRT13
Figure 5 – Riser Boom Emergency Lowering Knob
Main Boom
Use the following procedure to manually lower the main
boom.
1. Slowlyturntheknobtoopenthebleed downvalveon
themainboom liftcylinder(refertoFigure6).Control
the rate of descent by turning the knob.
Figure 6 – Main Boom Emergency Lowering Knob
AWarning
The potential for an accident increases when safety
devices do not function properly. Death or serious
injury can result from such accidents. Fully close
the emergency lowering knob before operating the
aerial platform.
2. Turn the knob to close the cylinder bleed down
valve.
After Use Each Day
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm level surface, preferably
under cover, secure against vandals, children and
unauthorized operation.
3. TurntheChassis KeySwitchtoOFFandremovethe
key to prevent unauthorized operation.

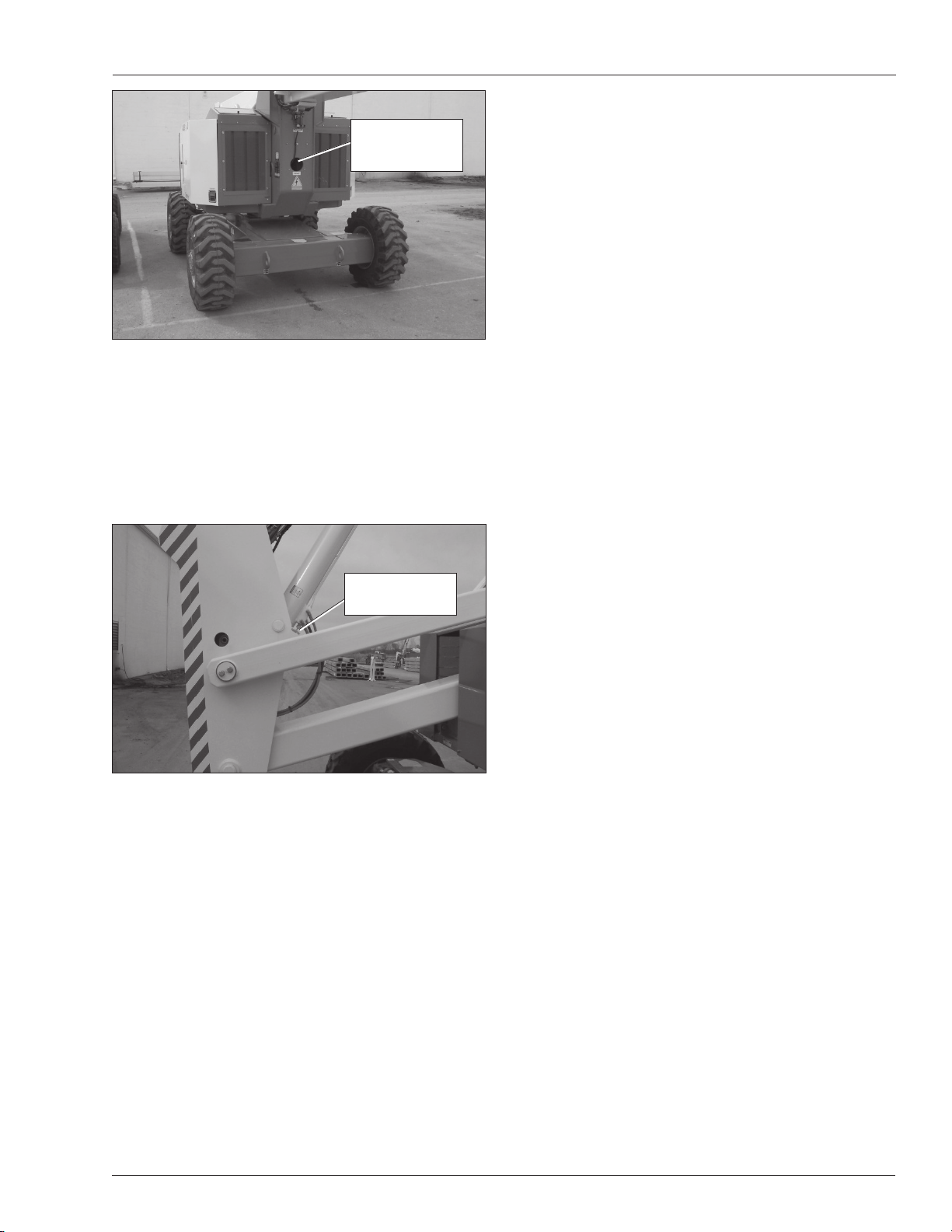

Emergency
Lowering Knob
Inside Turntable
Emergency
Lowering Knob

Transporting the Machine
14 AB60JRT
Transporting the Machine
Preparing for Transportation
Usethefollowingproceduretopreparetheaerialplatform
for transportation.
1. Remove any unnecessary tools, materials, or other
loose objects from the platform.
2. Close and latch all cowling doors.
By Crane
Secure the straps to chassis lifting/lugs only.
Know the approximate location of the center of gravity
before lifting the machine off the ground. Refer to Figure
7.
ADanger
Lifting by Crane is for transport purposes only.
See Specifications for weight of machine and be
certain that the crane is of adequate capacity to lift
the machine.
By Truck
1. Maneuver the machine into transport position and
chock wheels.
2. Place a wood block under the tip end of the jib foot.
Lower the platform so the foot rests on the wood
block.
ACaution
Ratchets, winches, and come-alongs can produce
enough force to damage machine components. Do
not over tighten the straps or chains when securing
the aerial platform to the transport vehicle.
3. Use a nylon strap to securely fasten the platform
against the wood block. Thread the strap over the
toeboard. Refer to Figure 8.
Figure 8 – Platform
4. Secure the machine to the transport vehicle with
chains or straps of adequate load capacity attached
to the chassis lifting/tie down points.
0181889
Tie-Down/Lifting Lug
0083427
1.4m
(55 )
approximate
"
Center of Gravity
in Stowed Position
Figure 7 – Center of Gravity

Maintenance
AB60JRT15
Maintenance
AWarning
Never perform service while the platform is el-
evated.
Hydraulic Fluid
Thehydraulicfluidreservoirislocatedinthechassisdoor.
Refer to Figure 9.
Figure 9 – Hydraulic Fluid Reservoir
Note
Never add fluid if the platform is elevated.
Check Hydraulic Fluid
1. Make sure that the platform is fully lowered.
2. Open the left front cowling door.
3. Check the fluid level on the gauge on the end of the
reservior.
4. AddtheappropriatefluidtobringtheleveltotheFULL
mark. See “Specifications” on page 20.
Engine
Opentheengine compartmentdoorson bothsidesof the
machine and visually inspect the engine and its compo-
nents with the engine off.
Oil Level
Check the engine oil level before starting the engine
so the oil has drained to the pan. The proper oil level is
between the add and full marks on the dipstick.
The distance betweenthe top and bottom dipstickmarks
corresponds to about 1 l (1 quart US). Add oil, if neces-
sary, before starting the engine.
Battery Maintenance
AWarning
Hazard of explosive gas mixture. Keep sparks, flame,
and smoking material away from batteries.
Always wear safety glasses when working near bat-
teries.
Battery fluid is highly corrosive. Thoroughly rinse
away any spilled fluid with clean water.
Always replace batteries with Snorkel batteries or
manufacturer approved replacements weighing 26,3
kg (58 lbs) each.
Check the battery fluid level daily, especially if the
machine is being used in a warm, dry climate.
If electrolyte level is lower than 10 mm (3/8″) above the
platesadddistilledwateronly.DONOTuse tapwaterwith
high mineral content, as it will shorten battery life.
Keep the terminals and tops of the batteries clean.
Refer to theService Manual to extend batterylifeand
for complete service instructions.
•
•
•

Inspection and Maintenance Schedule
16 AB60JRT
Inspection and Maintenance Schedule
The Complete Inspection consists of periodic visual and
operationalchecks,alongwithperiodicminoradjustments
thatassureproperperformance.Dailyinspectionwillpre-
vent abnormal wear and prolong the life of all systems.
The inspection and maintenance schedule should be
performed at the specified intervals and after prolonged
periods of storage before returning the machine to ser-
vice. Inspection and maintenance shall be performed by
personnel who are trained and familiar with mechanical
and electrical procedures.
AWarning
Before performing preventative maintenance, famil-
iarize yourself with the operation of the machine.
Always block the elevating assembly whenever it is
necessary to perform maintenance while the platform
is elevated.
The daily preventative maintenance checklist has been
designed for machine service and maintenance. Please
photocopytheDaily PreventativeMaintenanceChecklist
and use the checklist when inspecting the machine.

Daily Preventative Maintenance Checklist
AB60JRT17
Maintenance Table Key: Y = Yes/Acceptable, N = No/Not Accetable, R = Repaired/Acceptable
Daily Preventative Maintenance Checklist
Preventative Maintenance Report
Date:
Owner:
Model No:
Serial No:
Serviced By:
ITEM INSPECTION OR SERVICES Y N R
Operator’s Manual In place, all pages readable and intact
Engine
Oil level Between full and add marks
Coolant Liquid cooled engines – proper fluid level
Radiator Cap tight, good condition and clean
Air cooled engines Air intake and fan free of obstructions, belt in good condition
Fuel tank and line Tank full, cap in place and tight/ no leaks
Air filter Clear indicator
Charging system Proper operation
Cold weather start kit No damage or deformation
Electrical System
Emergency power battery Condition and charged for proper operation
Battery fluid level and terminals Proper level/clean, connectors tight
Cables and wiring harness No wear or physical damage
Hydraulic System
Fluid level Between full and add marks
Fluid filter Verify operation in the green zone
Hose, tubes and fittings No leaks
Cold weather warm-up kit Proper operation
Foam Filled Tyres and Wheels Good condition
Lower Control Station
Operating controls Proper operation
Emergency stop and emergency power Shuts off lower controls/proper operation
Emergency Lowering Proper operation
Level Sensor Sounds tilt alarm
Flashing Lights Proper operation
Sandblast Protection Kit In place and proper operation
Airline to Platform In place and proper operation
Structures
Weldments Welds intact, no damage or deformation
Slide pads In place, no damage or deformation
Fasteners In place and tight.
Upper Control Station
Guardrail system and lanyard anchors Welds intact, no damage or deformation
Operating controls Proper operation
Emergency stop and emergency power Shuts off upper controls/proper operation
Horn Sounds when activated.
Electrical power outlet Proper operation of outlet
Drive motion alarm Sounds when aerial platform moves
Driving and work lights Proper operation
Platform control cover In place and proper operation
Tow Kit In place, no damage or deformation
Placards and Decals In place and readable

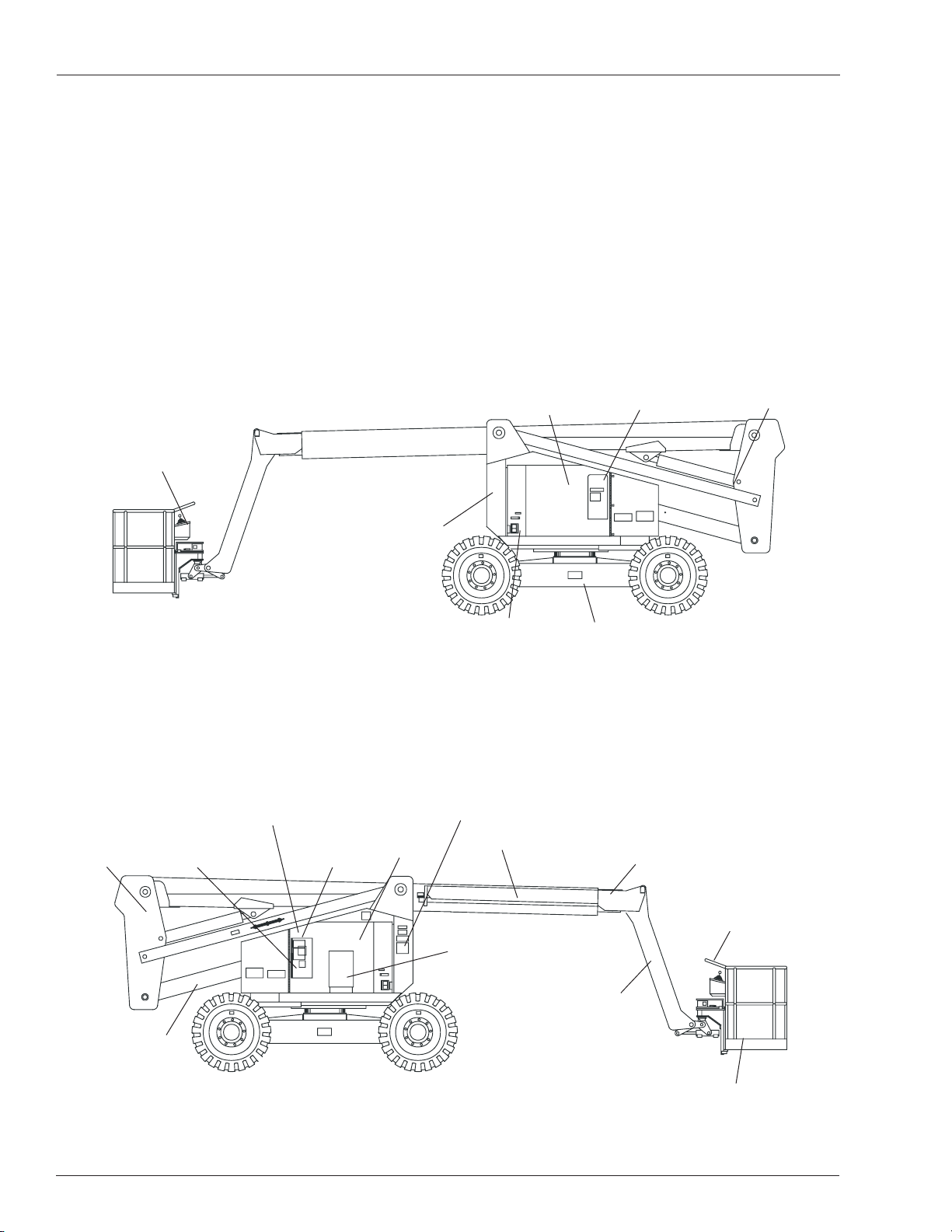

Decal Location
18 AB60JRT – 0182264

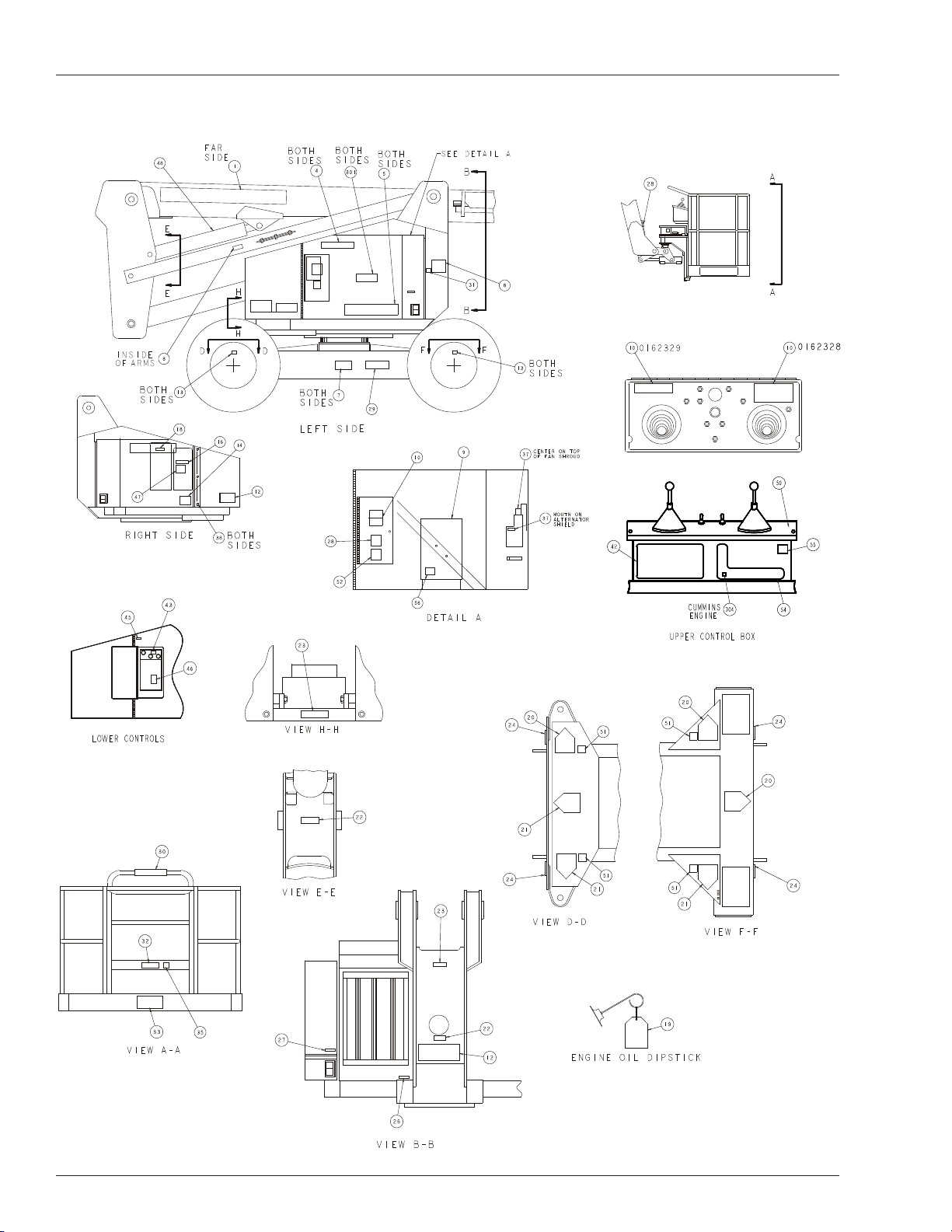

Decal Location
A18043K
