S
ERVICE & PARTS MANUAL
POWERED ACCESS
WORK PLATFORM
TL50

Page iTL50 Service & Parts
FOREWORD
HOW TO USE THIS MANUAL
This manual is divided into six sections.
SECTION 1 INTRODUCTION
General description and machine specifications.
SECTION 2 OPERATION AND SPECIFICATION
Information on how to operate the work platform and how to prepare it for operation.
SECTION 3 MAINTENANCE
Preventative maintenance and service information.
SECTION 4 TROUBLESHOOTING
Causes and solutions to typical problems.
SECTION 5 SCHEMATICS
Schematics and valve block diagram with description and location of components.
SECTION 6 ILLUSTRATED PARTS BREAKDOWN
Complete parts lists with illustrations.
SPECIAL INFORMATION
NOTE: Gives helpful information.
DANGER
! !
Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
!!
Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
!!
Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
PART NUMBER : 503502-000
SERIALNUMBER: 2001-current

Page ii
Foreword -
TL50 Service & Parts
WORKSHOP PROCEDURES
All information contained in this manual is based on the latest product information available at
the time of printing. We reserve the right to make changes at any time without notice. No part of
this publication may be reproduced, stored in retrieval system, or transmitted, in any form by any
means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written
permission of the publisher. This includes text, figures and tables.
CAUTION
!!
Detailed descriptions of standardworkshop procedures, safety principles
and serviceoperations are not included. Pleasenote that thismanual does
contain warnings and cautions against some specificservicemethods which
could cause personal injuryor coulddamage a machine or make it unsafe.
Pleaseunderstand that these warnings cannot cover all conceivable ways in
which service, whetheror notrecommendedbyUpRight, might be done, orof
the possible hazardous consequences of each conceivable way,nor could
UpRight investigate allsuchways.Anyone using service procedures or tools,
whether ornot recommended by UpRight, mustsatisfy themselves thoroughly
that neitherpersonal safety nor machine safetywill be jeopardized.

Page 1-1TL50 Service & Parts
Section 1
INTRODUCTION
1.1 INTRODUCTION
PURPOSE
The purpose of this service and parts manual is to provide instructions and illustrations for the
operation and maintenance of thisworkplatformmanufactured by UpRight.
SCOPE
The manual includes procedures for proper operation, maintenance, adjustment, and repair of
this product as well as recommended maintenance schedules and troubleshooting.
1.2 GENERAL DESCRIPTION
The work platform consists of the platform, controller, elevating assembly, power & control mod-
ule, and chassis.
Figure 1-1: TL50 Work Platform
PLATFORM
The platform has a reinforced steel
floor, 1.1m (43.5 inch) high guardrails
with midrail, 152 mm (6 inch ) toe-
boards, and an entry gravity drop bar at
the side of the platform.
PLATFORM CONTROLLER
The platform controller contains the
controls to operate the machine. It is
located at the front of the platform cage.
A complete explanation of control func-
tions can be found in Section 2.
ELEVATING ASSEMBLY
The platform is raised and lowered by
the elevating assembly. The hydraulic
pump, driven by batteries powers the
cylinders. Solenoid operated valves
control raising and lowering.
CHASSIS
The chassis is a structural frame that supports all the components of the TL50 work platform.
WARNING
!!
DO NOT use the work platform without gravity drop bar in position.
1.Platform
2.PlatformController
3.Chassis Controls
4.Chassis
5.Elevating Assembly
6.Outriggers
12
3
4
5
6
(on module cover)

Page 1-2
Introduction 1.2 - General Description
TL50 Service & Parts
PURPOSE OF EQUIPMENT
The objective of the work platform is to provide a quickly deployable, variable height work plat-
form to elevate personnel and materials to overhead work areas.
SPECIAL LIMITATIONS
Elevating of the work platform is limited to firm, level surfaces only. Any degree of slope greater
than 3° will sound a warning alarm when the machine is elevated.
DANGER
! !
The elevating function shall ONLY be used when the work platform is level
and on a firm surface. The work platform is NOT intended to be used on
uneven, rough, or soft terrain when elevated.

Page 1
OPERATION MANUAL
WARNING
All personnel shall carefully read, understand and follow all safety rules and operating
instructions beforeoperating or performing maintenanceon anyUpRight aerialwork platform.
Safety Rules
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift persons and his tools as well as the material
used for the job. It is designed for repair and assembly jobs and assignments at overhead workplaces (ceilings, cranes, roof structures,
buildings etc.). All other uses of the aerial work platform are prohibited!
THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe distance from live parts of elec-
trical equipment!
Exceeding the specified permissible maximum load is prohibited! See “Special Limitations” on page 4 for details.
The use and operation of the aerial work platform as a lifting tool or a crane (lifting of loads from below upwards or from up high on
down) is prohibited!
NEVER exceed the manual force allowed for this machine. See “Special Limitations” on page 4 for details.
DISTRIBUTE all platform loads evenly on the platform.
NEVER operate the machine without first surveying the work area for surface hazards such as holes, drop-offs, bumps, curbs, or debris;
and avoiding them.
OPERATE machine only on surfaces capable of supporting stabiliser/outrigger loads.
NEVER operate the machine when wind speeds exceed this machine’s wind rating. See “Beaufort Scale” on page 4 for details.
IN CASE OF EMERGENCY push EMERGENCY STOP switch to deactivate all powered functions.
IF ALARM SOUNDS while platform is elevated, STOP, carefully lower platform and check all outriggers are secure and the chassis is
levelbefore resuming operation.
Climbing up the railing of the platform, standing on or stepping from the platform onto buildings, steel or prefab concrete structures, etc.,
is prohibited!
Dismantling the gravity drop bar or other railing components is prohibited! Always make certain that the gravity drop bar is closed and
securely locked!
It is prohibited to keep the gravity drop bar in an open position (held open with tie-straps) when the platform is raised!
To extend the height or the range by placing of ladders, scaffolds or similar devices on the platform is prohibited!
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections, and damaged
cables or hoses before using.
VERIFY that all labels are in place and legible before using.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
To bypass any safety equipment is prohibited and presents a danger for the persons on the aerial work platform and in its working
range.
NEVER charge batteries near sparks or open flame. Charging batteries emit explosive hydrogen gas.
Modifications to the aerialworkplatformare prohibitedor permissible onlyat the approval byUpRight.
AFTER USE, secure the work platform from unauthorized use by turning both keyswitches off and removing key.

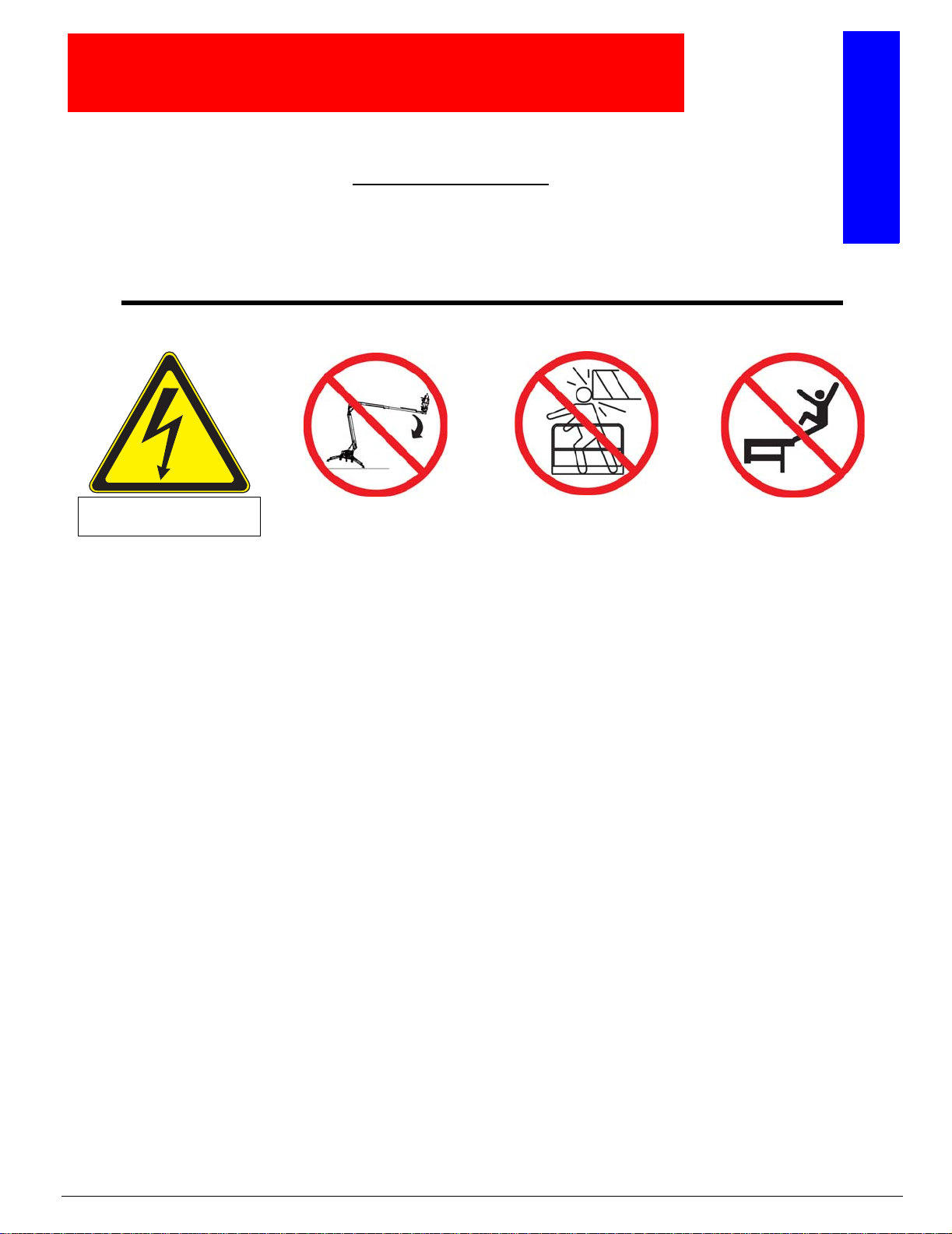

NEVER elevate the platform or drive
the machine while elevated unless the
machine is on a firm, level surface.
NEVER climb, stand, or sit on
platform guardrails or midrail.
NEVER position the platform
without first checking for overhead
obstructions or other hazards.
Electrocution Hazard Tip Over Hazard Collision Hazard
THIS MACHINE IS NOT
INSULATED!
Fall Hazard
Section 2

Page 2 TL50 Service & Parts
C ONTENTS
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Special Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Platform Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Manual Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Beaufort Scale. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Lift Overload Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Pre-Operation Safety Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
System Function Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Boom Elevate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Boom Lower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rotate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Telescopic Boom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cage Rotate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Emergency Lowering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Transporting the Work Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Inspection and Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Daily Preventative Maintenance Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Introduction
TL50 Service & Parts Page 3
I NTRODUCTION
This manual covers operation of the TL50 Work Platforms. This manual must be stored on the machine
at all times.
G ENERAL D ESCRIPTION
Figure 1: TL 50
1. Platform
WARNING
!!
DO NOT use the maintenance platform
without guardrails properly assembled
and in place
2. Elevating Assembly
3. Chassis
4. Power Module
5. Control Module
6. Platform Controls
7. Manual Case
8. Chassis Controls
9. Hydraulic Fluid Reservoir
10. Batteries
1
2
3
4
5
6
7
8
9
10

Page 4 TL50 Service & Parts
Special Limitations
S PECIAL L IMITATIONS
Elevating the Work Platform is limited to firm, level surfaces only.
DANGER ! !
The elevating function shall ONLY be used when the work platform is level and on a firm surface.
P LATFORM C APACITY
The maximum capacity for the MACHINE, including occupants is determined by model and options, and
is listed in “Specifications” on page 15.
DANGER ! !
DO NOT exceed the maximum platform capacity or the platform occupancy limits for this machine.
M ANUAL F ORCE
Manual force is the force applied by the occupants to objects such as walls or other structures outside the
work platform.
The maximum allowable manual force is limited to 200 N (45 lbs.) of force per occupant, with a maximum
of 400 N (90 lbs.) for two or more occupants.
DANGER
! !
DO NOT exceed the maximum amount of manual force for this machine.
B EAUFORT S CALE
Never operate the machine when wind speeds exceed 25 km/h (15 mph) [Beaufort scale 4].
L IFT O VERLOAD A LARM
The TL50 is fitted with a load sensing system designed to comply with the requirements os BS EN 280 : 2001
If a load equivelent to 90% of safe working load is lifted a fault code “03” will be displayed on the digital
display on the platform control box. If a load which is greater than the safe working load is present in the
basket all machine functions will cease to operate and an acoustic warning will sound. In order to return to
normal operation a load equal to or less than the safe working load must be present in the basket and the
power must be re-cycled, power can be re-cycled by pushing the emergency stop button and releasing it
again.
DANGER
! !
Never operate the machine with a platform load greater than the rated capacity.
BEAUFORT
RATING
WIND SPEED GROUND CONDITIONS
m/s km/h ft/s mph
3 3,4~5,4 12,25~19,4 11.5~17.75 7.5~12.0 Papers and thin branches move, flags wave.
4 5,4~8,0 19,4~28,8 17.75~26.25 12.0~18 Dust is raised, paper whirls up, and small branches sway.
5 8,0~10,8 28,8~38,9 26.25~35.5 18~24.25 Shrubs with leaves start swaying. Wave crests are apparent in ponds or swamps.
6 10,8~13,9 38,9~50,0 35.5~45.5 24.5~31 Tree branches move. Power lines whistle. It is difficult to open an umbrella.
7 13,9~17,2 50,0~61,9 45.5~56.5 31.~38.5 Whole trees sway. It is difficult to walk against the wind.

Controls and Indicators
TL50 Service & Parts Page 5
C ONTROLS AND I NDICATORS
Figure 2: Controls and Indicators
Platform Controls
Chassis Controls
1
2
3
4
5678
9
{
1
2
3456
7
1.Emergency stop
2.Telescope
3.Upper Boom
4.Lower Boom
5.Rotate
6.Cage Rotate
7.Cage Level
8.Display
9.Joystick
1.Emergency stop
2.Drive Assist Socket
3.Machine Controls
4.Outrigger Controls
5.Auto Level
6.Analog Rocker
7.Key Switch
{

Page 6 TL50 Service & Parts
Pre-Operation Safety Inspection
P RE -O PERATION S AFETY I NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Open module and inspect for damage, fluid leaks or missing parts.

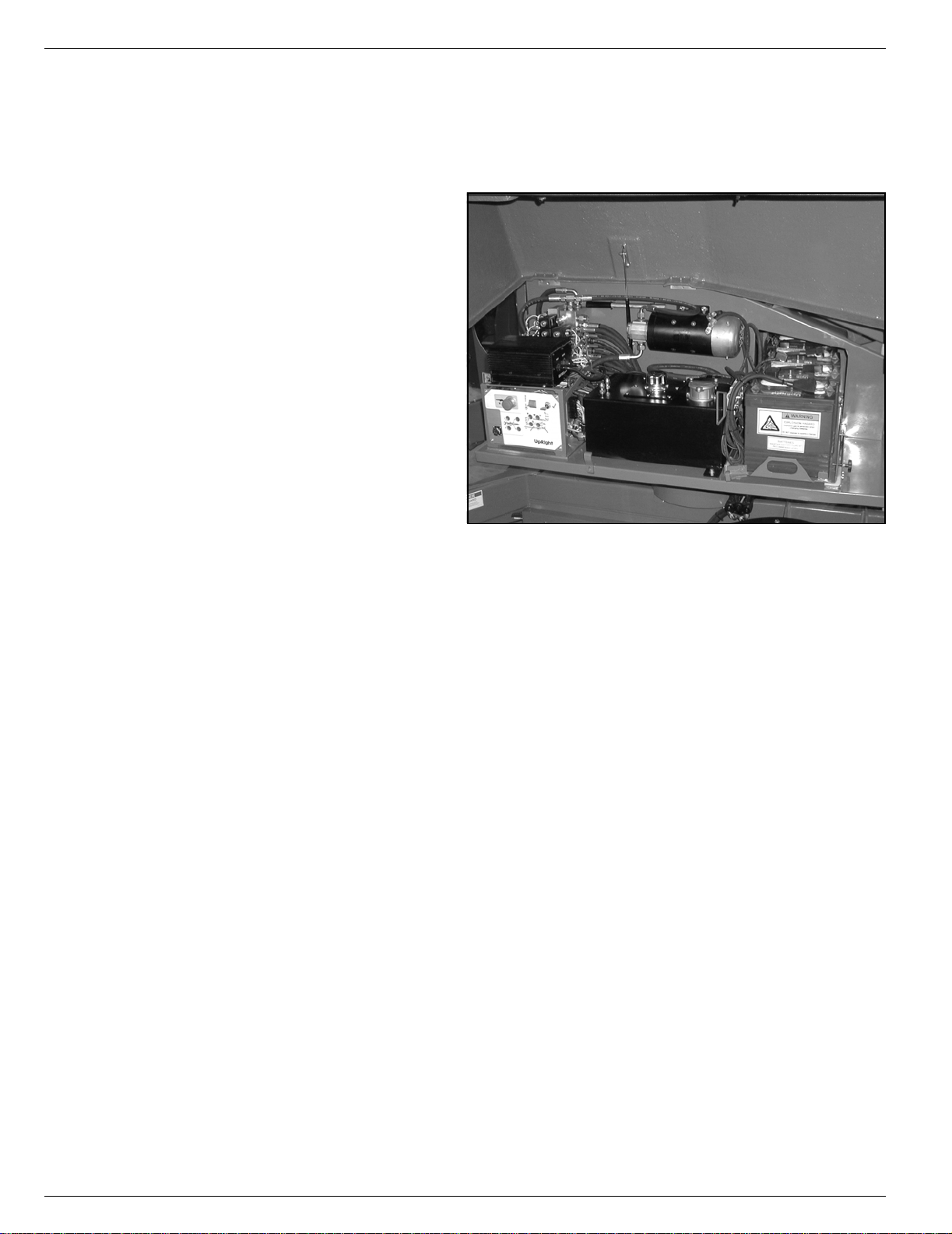

Figure 3: Hydraulic Tank
2. Check the level of the hydraulic fluid with
the platform fully lowered. The hydraulic
reservoir is located in the Control Mod-
ule. The fluid level must be between the
MIN and MAX lines. Add hydraulic fluid if
necessary.
3. Check that fluid level in the batteries is
correct.
4. Verify that batteries are charged.
5. Check that A.C. extension cord has
been disconnected from the charger
plug.
6. Check that all guardrails are in place
and all fasteners are properly tightened.
7. Inspect the machine thoroughly for
cracked welds and structural damage,
loose or missing hardware, hydraulic
leaks, damaged control cable, loose wire connections and wheel bolts.

System Function Inspection
TL50 Service & Parts Page 7
S YSTEM F UNCTION I NSPECTION
Refer to Figure 2 for the locations of various controls and indicators.
WARNING
!!
STAND CLEAR of the work platform while performing the following checks.
Before operating the work platform, survey the work area for surface hazards such as holes, drop-offs,
bumps and debris.
Check in ALL directions, including above the work platform, for obstructions and electrical conductors.
1. Move the machine, if necessary, to an unobstructed area to allow for full elevation.
2. Pull Chassis Emergency Stop Switch to the ON position.
3. Pull Platform Emergency Stop Switch to the ON position.
4. Deploy the Outriggers, this is done from the lower control panel, use the “auto level” button along with
the analog rocker to lower all four outriggers at the same time, an audible warning will sound until the
outriggers are fully deployed and the machine is level, ensure that all four individual outrigger lights are
illuminated. Fine tuning of the chassis inclination can be achieved by holding each individual outrigger
button and using the analog rocker. (ref: chassis controls illustration on page 5)
5. Visually inspect the elevating assembly, lift cylinder, cables, and hoses for cracked welds and structural
damage, loose hardware, hydraulic leaks, loose wire connections, and erratic operation. Check for miss-
ing or loose parts.
6. Test each machine function (Lift, Slew, Telescope) from the lower control station by pressing and holding
the desired function button then moving the Analog Rocker to the Up or Down position (ref: chassis con-
trols illustration on page 5)
7. Open the Emergency Lowering Valve (see Figure 4) by pulling the knob out to check for proper opera-
tion. When the platform is lowered, release the knob.
8. Push the Chassis Emergency Stop Switch to check for proper operation. All machine functions should
be disabled. Twist the Chassis Emergency Stop Switch to resume.
9. Climb onto the cage.
10. Check that the route is clear of obstacles (persons, obstructions, debris), is level, and is capable of sup-
porting the outrigger loads.
11. Mount the platform and properly close the drop bar.
12. Test each machine function (Lift, Slew, Telescope, Platform Rotate, Cage Level) from the upper control
station by pressing the desired function button then moving the Joystick to the Forward or Back position
(ref: platform controls illustration on page 5)
13. Push the Platform Emergency Stop Switch to check for proper operation. All machine functions should
be disabled. Pull out the Platform Emergency Stop Switch to resume.
O PERATION
Before operating the work platform, ensure that the Pre-Operation Safety Inspection has been completed
and that any deficiencies have been corrected. Never operate a damaged or malfunctioning machine.
The operator must be thoroughly trained on this machine.
E LEVATING THE P LATFORM
1. Ensure the outriggers are deployed and the machine is level.
2. Select either the lower or upper boom lift function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, push the Control Handle forward.
4. If the machine is not level the tilt alarm will sound and the machine will not lift.

Page 8 TL50 Service & Parts
Operation
L OWERING THE P LATFORM
1. Ensure the outriggers are deployed and the machine is level.
2. Select either the lower or upper boom lift function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, pull the Control Handle backwards.
4. If the machine is not level the tilt alarm will sound and the machine will not descend.
R OTATING THE P LATFORM
1. Ensure the outriggers are deployed and the machine is level.
2. Select the rotate function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, move the Control Handle forwards or backwards to achieve clock-
wise or counterclockwise rotation.
4. If the machine is not level the tilt alarm will sound and the machine will not rotate.
O PERATING THE T ELESCOPE
1. Ensure the outriggers are deployed and the machine is level.
2. Select telescope function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, move the Control Handle forwards or backwards to extend or
retract the telescopic boom.
4. If the machine is not level the tilt alarm will sound and the machine will not telescope.
R OTATING THE CAGE
1. Ensure the outriggers are deployed and the machine is level.
2. Select platform rotate function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, move the Control Handle forwards or backwards to achieve clock-
wise or counterclockwise rotation.
4. If the machine is not level the tilt alarm will sound and the machine will not operate.

Operation
TL50 Service & Parts Page 9
E MERGENCY L OWERING
Figure 4: Emergency Lowering Valve
WARNING
!!
If the platform should fail to lower, NEVER climb
down the elevating assembly.
Stand clear ofthe elevating assembly while operating
the Emergency Lowering Valve Knob.
TL50
The Emergency Lowering Valve for the TL50 is
located on the valve block of each lift cylinder.
1. Open the Emergency Lowering Valve by pushing
and holding the knob.
2. To close, release the knob. The platform will not
elevate if the Emergency Lowering Valve is open.
Emergency Lowering Knob
Emergency Lowering Knob
Lower Boom
Upper Boom

Page 10 TL50 Service & Parts
Transportation
T RANSPORTATION
CAUTION
The TL50 is not designed to be forklifted, and does not have provision on the Chassis to allow this
method of lifting. Ui recommends the procedure below for handling the machine.
WARNING
!!
See specifications at rear of manual for the weight of the work platform and be certain that lifting
apparatus is of adequate capacity to lift the platform.
B Y C RANE
The TL50 may be lifted by an overhead hoist/crane in the following manner :
Four lifting straps capable of safely supporting the total weight of the TL50 (2000kg) and being 2.4m long
for the axle straps and 3.4m long for the tow hitch straps and required. The strap length is important to
ensure the correct lifting angle is achieved (see diagram below)
The four lifting straps should be positioned as shown, care should be taken to ensure that they do not inter-
fere with any other parts of the TL50 and that they are secure before lifting.
B Y R OAD
It is important that before commencing transport to ensure the vehicle used is capable of towing 2000kg.
The TL50 is a road approved vehicle and therefore may be transported behind a motor vehicle of suitable
towing capacity. It is recommended that the vehicle used should have a tow bar where the top of the ball is
at a height of between 1.42 ft (435 mm) and 1.64 ft (500 mm) above surface level. These dimensions are
important for the following reasons;
1. The bottom of the Platform may be in danger of hitting the surface while driving if the tow hitch is above
the upper limit.
2. The towing vehicle will support too much weight if the Towhitch is too low.
2.4m Lifting Strap
3.4m Lifting Strap
2 required
2 required

Transportation
TL50 Service & Parts Page 11
Care should always be taken while towing the TL50 on an uneven or sloped surface. It is recommended
that the set of procedures that follow should be incorporated into a normal working practice for towing the
TL50 Work Platform. The Procedures which should be followed when transporting the TL50 are
1.The Platform is to be fully lowered, retracted and slewed in the correct position.
2.The Platform is to be securely stowed by closing the boom lockdown.
3.The Jockey Wheel that is fitted to the Towhitch is to be extended until the Receiver is close to the height
of the vehicle’s tow bar.
4.The Hand Brake is pulled to engage the brakes (important if the machine is not on a level surface).
5.The Outriggers are to be fully retracted and secured in position.
6.The key is turned to the off position.
7.Move the vehicle as close as possible to the Receiver.
8.Lift the Towhitch on to the tow bar and make sure the Receiver is properly secured.
9.Release the Hand Brake and retract the Jockey Wheel.
It is important that the Jockey Wheel is retracted as fully as possible so that the wheel will not slew (turn)
while being transported. Failure to do so could result in damage to the Jockey Wheel.
10.The tailboard harness is connected to the vehicle’s braking system by means of a 7 Pin Plug.
11.Attach the Breakaway Safety Cable to the towing vehicle.
The TL50 may then be towed.
If the TL50 is to be transported by other means then it must be securely tied down to the transporting unit
at several points.
Recommended securing points are the four outrigger support members on the Chassis and the Tow Bar-
weldment. Further securing points should be used if the terrain on which the unit is travelling is rough or
uneven. Care should be taken when using tie downs that sensitive parts of the TL50 (i.e. hosing, cabling
etc.) are not affected.
ALWAYS ensure that the Hand Brake is fully applied, that all the booms are FULLY stowed and that the
Boom Lock Down Pin is in place.

Page 12 TL50 Service & Parts
Transportation
B ATTERY M AINTENANCE
WARNING
!!
Hazard of explosive gas mixture. Keep sparks, flame, and smoking material away from batteries.
Always wear safety glasses when working near batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any spilled fluid with clean water.
Always replace batteries with Ui batteries or manufacturer approved replacements weighing 26,3 kg
(58 lbs.) each.
• Check the battery fluid level daily, especially if the work platform is being used in a warm, dry climate.
• If electrolyte level is lower than 10 mm (3/8in.) above the plates add distilled water only. DO NOT use
tap water with high mineral content, as it will shorten battery life.
• Keep the terminals and tops of the batteries clean.
• Refer to the Service Manual to extend battery life and for complete service instructions.
B ATTERY C HARGING
Figure 5: Battery Charger
Charge the batteries at the end of each work
shift or sooner if the batteries have been dis-
charged.
WARNING
!!
Charge the batteries in a well ventilated area.
Do not charge the batteries when the work
platform is near a source of sparks or flames.
Permanent damage to the batteries will result if
the batteries are not immediately recharged
after discharging.
Never leave the battery charger operating for more than two days.
Never disconnect the cables from the batteries when the charger is operating.
Keep the charger dry.
1. Check the battery fluid level. If the battery fluid level is lower than 10 mm (3/8in.) above the plates add
distilled water only.
2. Connect an appropriate extension cord to charger outlet plug in Left Module Door. Plug the extension
cord into a properly grounded outlet of proper voltage and frequency.
3. The charger turns on automatically after a short delay. The LED charge indicator will illuminate. After
completion of the charge cycle the LED will blink, indicating that the charger is in a continuing mainte-
nance mode. DO NOT leave the charger plugged in for more than 48 hours, as permanent damage to
the batteries may occur.
NOTE: The battery charger circuit must be used with a GFI (Ground Fault Interrupt) outlet.
NOTE: DO NOT operate the machine while the charger is plugged in.
Charger

Inspection and Maintenance Schedule
TL50 Service & Parts Page 13
I NSPECTION AND M AINTENANCE S CHEDULE
The Complete Inspection consists of periodic visual and operational checks, along with periodic minor
adjustments that assure proper performance. Daily inspection will prevent abnormal wear and prolong the
life of all systems. The inspection and maintenance schedule should be performed at the specified inter-
vals. Inspection and maintenance shall be performed by personnel who are trained and familiar with
mechanical and electrical procedures.
WARNING
!!
Before performing preventative maintenance, familiarize yourself with the operation of the machine.
Always block the elevating assembly whenever it is necessary to perform maintenance while the
platform is elevated.
The daily preventative maintenance checklist has been designed for machine service and maintenance.
Please photocopy this page and use the checklist when inspecting the machine.
D AILY P REVENTATIVE M AINTENANCE C HECKLIST
M AINTENANCE T ABLE K EY
Y= Yes/Acceptable
N= No/Not Acceptable
R= Repaired/Acceptable
P REVENTATIVE M AINTENANCE R EPORT
Date:_______________________________________
Owner: _____________________________________
Model No:___________________________________
Serial No: ___________________________________
Serviced By:_________________________________
COMPONENT INSPECTION OR SERVICES Y N R
Battery Check electrolyte level.
Check battery cable condition.
Chassis Check hoses for pinch or rubbing points.
Check welds for cracks.
Control Cable Check the exterior of the cable for pinching,
binding or wear.
Controller Check switch operation.
Drive Motors Check for operation and leaks.
Elevating
Assembly Inspect for structural cracks.
Emergency
Lowering System
Operate the emergency lowering valve and check
for serviceability.
Entire Unit Check for and repair collision damage.
Hydraulic Fluid Check fluid level.
Hydraulic Pump Check for hose fitting leaks.
Hydraulic System Check for leaks.
Labels Check for peeling, missing, or unreadable labels
& replace.
Platform Deck
and Rails Check welds for cracks.
Platform Deck
and Rails Check condition of deck.
Tires and Wheels Check for damage.
COMPONENT INSPECTION OR SERVICES Y N R

Page 14 TL50 Service & Parts
Labels
L ABELS
These labels shall be present and in good condition before operating the work platform. Be sure to read,
understand and follow these labels when operating the work platform.
14
1
22
25
8
7
6
ON CYLINDER (BESIDE VALVE)
813
24
1
3058016-000 MACHINE GENERAL INSTRUCTIONS
QTY
1 2
TIP OVER HAZARD
ITEM
2 1
057420-000 057421-000
PART No
ELECTROCUTION HAZARDS
ENGLISH (EUROPEAN) DECAL OPTION
DESCRIPTION
1 1 2 - -
8
2 1 2 1
S.W.L. LARGE
5 6 4
058800-000 057392-000 057418-000
- -
11 10 13 12
- -
8 9
057385-000 057382-000 503291-000 503177-000
BEFORE TOWING
057416-000
7
UPPER CONTROL BOX EMERGENCY LOWERING HAZARD TAPE (900mm LONG) "UPRIGHT TL50" LOGO NAME PLATE (EURO)
6
5
25
20
12
23
27
ITEM 18 TO PLACED ON UNDERSIDE OF CHASSIS FRAME IN SLEW RING "WELL" AREA
1
24 057429-000 BATTERY FLUID LEVEL
1 1 -
- - 1
1
1
1
-
V.I.N. PLATE
-
- -
-
14 15 16 -
19 - 20 22
23
21 -
18
17 -
058186-000
057430-001 058700-010
057430-000 057457-000
503288-000 LOWER CONTROL BOX
EM. DOWN / OFF / ON
HAND PUMP OPERATION
SECURITY V.I.N. LABEL EXPLOSION HAZARD
1
4 4 1
BOOM LOCK PIN
27
25 26
058017-000 058992-000 057417-010
501017-000
OUTRIGGER LOWERED OUTRIGGER LOWERED
OUTRIGGER OPERATION DECAL
13
12
4
VIEW INSIDE CAGE FACING MAN ON LADDER
26
25
25

Specifications
TL50 Service & Parts Page 15
S PECIFICATIONS
*Specifications are subject to change without notice. Hot weather or heavy use may affect performance.
Refer to the Service Manual for complete parts and service information.
This machine meets or exceeds all applicable CE and GS machinery directive requirements.
ITEM TL50 SPECIFICATIONS
Platform Size 0.6m x 1.2m (24in x 48in)
Max. Platform Capacity
Standard 215kg (475lbs)
Max. No. of occupants
Standard (total) 2 persons
Height
Working Height 17.2m (56ft 5in)
Max. Platform Height 15.2m (49ft 10in)
Dimensions
Weight 1900kg (4189lbs)
Overall Width 1.69m (5ft 7in)
Overall Height 2.0m (6ft 6in)
Drive Speed (Drive Assist)
Energy Source 24 Volt Battery Pack (4 x 6V 220Ah Batteries)
System Voltage 24v DV
Battery Charger 25A, 110/220V AC
Maximum Hydraulic Pressure 210 Bar
Hydraulic Fluid ISO # 46
Control System One hand proportional control joystick operating an energy efficient motor control system
Tires 185R 13C, 6ply radials, 195 R14 tyres
Noise Level
