UPRtek MK350D Dimensions and installation guide

The information contained herein is the exclusive property and confidential document of United Power
Research Technology Corporation, and shall not be distributed, reproduced，or disclosed in whole or in
part without prior written permission of United Power Research Technology Corporation.
LED Meter ・ LED 光譜計 ・ LEDメーター

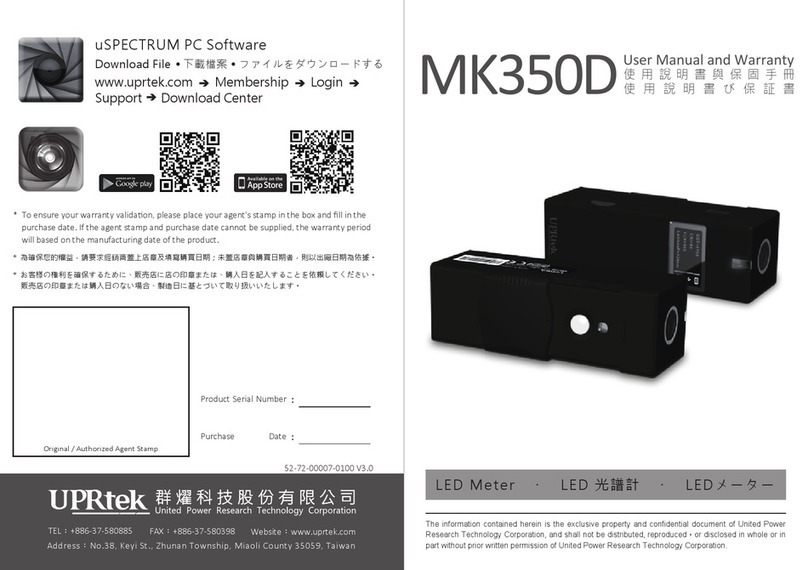

User Manual and Warranty
使用說明書與保固手冊
使用說明書び保証書
MK350D
Register online to extend your warranty an addional 12 months and to
receive one free calibraon aer your 1st year of use. (freight excluded)
上網登錄主機序號可延長主機保固12個月並享有第一年免費一次校正服務
(不含運費)
Webサイトに登録後、ホストのシリアル番号がある場合、１２ヶ月保証
延長になります。初年度内に一回無料校正サービス（運賃を除く）をご
利用いただけます。
Registration Web Page ：
登錄註冊網址：
登録Ｗｅｂサイト：
www.uprtek.com/english/Register_00.asp
www.uprtek.com/big5/Register_00.asp
www.uprtek.com/english/RegisterJP_00.asp
* To ensure your warranty validaon, please place your agent's stamp in the box and fill in the
purchase date. If the agent stamp and purchase date cannot be supplied, the warranty period
will based on the manufacturing date of the product.
* 為確保您的權益，請要求經銷商蓋上店章及填寫購買日期；未蓋店章與購買日期者，則以出廠日期為依據。
* お客様の権利を確保するために、販売店に店の印章または、購入日を記入することを依頼してください。
販売店の印章または購入日のない場合、製造日に基とづいて取り扱いいたします。
Original / Authorized Agent Stamp
Product Serial Number
Purchase Date
：
：
52-72-00005-0100
TEL：[phone] FAX：[phone] Website：www.uprtek.com
Address：No.38, Keyi St., Zhunan Township, Miaoli County 35059, Taiwan

Miscellaneous
4.1 Tripod Attachment
4.2 System Reset
4.3 uSPECTRUM PC / Smart Device APPs
.........................................
..............................................
................
..................................19
Specification
Warranty
....................................
........................................
23
27
20
21
22
Introduction
1.1 Features
1.2 Package Contents
1.3 Product Description
1.4 Annual Product Calibration
1.5 Product Notes and Precautions
1
Getting Started
2.1 Product Setup
2.2 Taking a Measurement
2.3 Product Registration
2
Additional Setup and Notes
4.1 MicroSD Card
4.2 Setting the Date / Time
4.3 More about Dark Calibration
3
Warning Statement
7.1 NCC Warning Statement
7.2 FCC Warning Statement
7
....................................................
.........................................
.......................................
..............................
.........................
.....................................
..............................................
...................................
.............................
.................................
..................................
.............................................
...................................
......................................
...................
............................
.................................
1
7
15
32
2
3
4
5
6
8
10
14
16
17
18
33
34
Contents
- 1 -
1
Introduction
1.1 Features
1.2 Package Contents
1.3 Product Description
1.4 Annual Product Calibration
1.5 Product Notes and Precautions

- 2 -
1.1 Features
The MK350D is a lightweight, portable, easy-to-operate LED
meter with Micro SDCard data storage. This product has
basic features for fast, easy Light Measurements.
Records over 27 light unit-of-measures; Basic List items
(CCT, RA, CIE1976 , CIE1931, LUX, FC, LambdaP, R9,
Flicker); uSPECTRUM PC link items (LambdaPV, R1-R15,
Wavelength Spectrum Intensies).
All-in-one LED meter – no other equipment necessary (e.g.
PC, power supply etc.)
Supports Micro SD card data storage for measurement
data
Pocket-sized portability
Flicker measurement
Can be used with the uSPECTRUM PC soware to interface
with PCs, providing for full screen Spectrum and
Chromacity analysis (explained in uSPECTRUM Manual)
Can be remote controlled by uSPECTRUM App throuth
Buletooth.
■
■
■
■
■
■
■
- 3 -
1.2 Package Contentsns
Neck Strap
USB Cable
Protection Bag
Case
User Manual
and Warranty
MK350D LED Meter
uSPECTRUM PC Soware
Serial Number Register Card
Power Adaptor
Neck Strap Screw

- 4 -
1.3 Product Description
micro SD card slot
screen
tripod aachment
lanyard aachment
reset hole
on / off buon
indicator light
measurement buon
USB port
sensor
sensor cover
- 5 -
1.4 Annual Product Calibration
This product is a high-precision measurement device with
sensive components – please handle with care. To ensure
the accuracy of measurements, it is recommended to have
the unit calibrated once a year. Please contact your agent or
our customer service department for calibraon service.

1.5 Product Notes and Precautions
- 6 -
The MK350D LED Meter contains sensive components.
Please unpack with care, as any trauma to the unit may
damage the equipment. Contact your agent if the unit
appears not to be operang normally. Do not aempt any
repairs – all repairs must be performed by qualified service
agents.
Precauons / Warnings
Please read the following precauons to avoid fire, excessive heat, chemical
leakage and explosion.
Do not disassemble or modify the baery.
Do not expose the baery to heat (fire) or water/moisture.
When disposing used/old baeries, wrap with insulaon tape to shield the
baery from electrical contact with metallic objects, which might ignite a
fire or explosion.
If the unit is plugged into the power adapter and the baery seems to be
overheang, or if there is smoke or peculiar odors emanang from the unit,
unplug immediately to avoid the possibility of fire.
However, do not touch the cables if there is heat emanang from near the
cables as melted or deformed cables could expose wiring and result in burns
or electric shock.
Do not use cloth or anything to wrap or cover the equipment while charging
– this could cause the unit to overheat, melng the casing or causing fire.
If the unit is accidently immersed in water, or if moisture has seeped inside,
or metal objects have dropped into the casing, immediately remove the
baery to avoid fire or electric shock.
Do not operate or store the baery in high-temperature environments - it
will cause baery leakage and/or shorten the life of the baery .
Do not use paint thinner, benzene or other organic solvents to clean the
equipment– this may damage the exterior finish or touch screen, and may
even ignite fire.
■
■
■
■
■
■
■
■
■
- 7 -
2
Getting Started
2.1 Product Setup
2.2 Taking a Measurement
2.3 Product Registration

2.1 Product Setup
- 8 -
This secon describes how to get started by charging the
internal baery in the MK350D and then taking a quick
measurement. Note that some of the references to buons
and lights are described in the Product Descripon secon.
1. Charging the internal baery
The indicator light will light up in orange,
and the light becomes green aer fully charged.
charging
charged.
- 9 -
2.1 Product Setup
Remove the MK350D unit and the USB Charger supplied in
the packaging and connect one end of the Charger cable to
the MK350D and the other end into a wall socket with the
appropriate voltage. The indicator light will illuminate orange
indicang that it is charging. The light will turn green when
fully charged. For first me use, charge the baery for at
least 6 hours.
2. Lanyard strap
You can aach a lanyard (neck strap)
onto the ring at the boom of the
MK350D.

2.2 Taking a Measurement
- 10 -
Aer the splash screen, a Dark
Calibraon label will display
indicang that a Dark
Calibraon is in progress.
Then turn on the MK350D by
pressing the On/Off buon on
the side of the unit. The
indicator light will illuminate
green and a UPRtek splash
screen will display.
Note : If you use a USB Charger, the
MK350D will automacally turn itself
on.
Slide the “Sensor Cover” over
the sensor lens.
- 11 -
2.2 Taking a Measurement
The first screen will display
the Date & Time, Opc
Number and Version Number.
The baery level indicator is
on the right.
Slide the Sensor Cover so that
the Sensor is visible again.
When Dark Calibraon is
complete, the screen will
indicate so – Dark Calibraon
usually takes about 10-11
seconds.

2.2 Taking a Measurement
- 12 -
Press the On/Off buon once
to go to the next screen. The
next screen shows the
Wavelength Spectrum.
Aer which it will respond
with a beep to indicate
compleon.
The screen will display CCT,
CRI, LUX and LambdaP.
Note : you may get a message that the
SD Card is not installed – disregard this
message for now.
Hold the MK350D as shown
with the Sensor facing toward
the front, in the direcon of a
light source and press the
“Measure” buon at the top
of MK350D. It will take about
3 seconds to measure the
light source.
- 13 -
2.2 Taking a Measurement
Press the On/Off buon once
to go to the next screen. The
next screen shows the CIE
1931 x,y coordinates and the
CIE 1976 u’,v’ coordinates.
Press the On/Off buon once
to go to the next screen. This
next screen shows the R9
value, LUX value, FC (foot
candle) value and the Flicker
Percentage.
1. While your unit is charging, you can start taking measurements with the
power adaptor plugged in or you can wait unl the unit is fully charged.
2. To turn off the MK350D, press the On / Off buon and keep it depressed
for at least 3 seconds.

2.3 Product Registration
- 14 -
At this point, please register your product at our website to
ensure maximum warranty and service benefits.
When you inially turn on the MK350D, it will display the
Opc number (OPT:).
Write down the Opc number and, using a PC, access
hp://www.uprtek.com/english/RegisterPL_PC_00.asp ,
and go to “Contact Us Product Register”.
Follow the direcons on the screen to complete the
registraon – a successful registraon will provide you
with a license file, which you can place on a MicroSD card.
Aer the card is inserted into your MK350D, the license
will be auto-applied to the MK350D and the Version
Number (below the Opt number) will show “-CCS”.
1.
2.
3.
4.
1 2
3 4
- 15 -
3
Additional Setup and Notes
3.1 MicroSD Card
3.2 Setting the Date / Time
3.3 More about Dark Calibration

3.1 Micro SD Card
- 16 -
This unit can write LED measurement
data onto a MicroSD Card (only
support for above 1 GB). Simply insert
the card into the card reader slot. All
data that is captured is wrien to excel
files (.xls).
Even without a MicroSD Card, the
MK350D is able to capture data and keep the current
measurement in memory.
You can review the SD Card data by accessing it through a PC
by using the USB cable provided in the packaging. Aer cable
connecon, the SD Card will display on your PC as a new
drive leer.
You can find the data on the SD
Card under the “Data” directory.
There will be subdirectories
marked with a sequenal number
“e.g. 0001”. Each directory can
hold up to 100 capture files, aer
which the next sequenal
subdirectory will be created (e.g.
0002).
Each capture will be contained in its own Excel file with a
naming convenon of ESPD_XXXX, where XXXX is a
sequenal number (e.g. 0001, 0002). Addional data such as
Integraon Time, R1-R15, LambdaPV and all of the intensity
data for each wavelength in the Wavelength Spectrum are all
available in the file. - 17 -
3.2 Setting the Date / Time
By plugging your MK350D connecon to uSPECTRUM PC
soware using the USB cable supplied, the MK350D will
automacally sync up its Date / Time to the PC.
connecon to uSPECTRUM

3.3 More about Dark Calibration
- 18 -
If the Sensor Cover is covering the Sensor while you power
on, a Dark Calibraon is performed – otherwise Dark
Calibraon is not performed.
It is good pracce to perform a dark calibraon every me
you turn on the MK350D, when you move to a different
temperature environment (hot to cold or cold to hot), or
when you move to a different light intensity environment
(light to dark or dark to light).
You also can use PC soware or smart device APPs to do dark
calibraon.
use uSPECTRUM use MK350D APPs
- 19 -
4
Miscellaneous
4.1 Tripod Attachment
4.2 System Reset
4.3 uSPECTRUM PC / Smart Device APPs

4.1 Tripod Attachment
- 20 -
If you detach the lanyard screw on the boom of the
MK350D, it will expose a screw hole where you can aach a
tripod for hands-free LED measurements.
- 21 -
4.2 System Reset
If for any reason you need to perform a system reset, you can
use a pointer to press into the Reset Hole as shown right.

4.3 uSPECTRUM PC/Smart Device APPs
- 22 -
The MK350D can also interface with a PC using the
uSPECTRUM PC Soware, which allows for a much richer
funconal and visual environment.
To obtain the uSPECTRUM soware, you must go to
www.uprtek.com.
The MK350D can also be remote controlled by an Apple IOS
or Android smart device, using a Bluetooth connecon.
connecon to uSPECTRUM
connecon to Smart Device APPs
- 23 -
5
Specifications

- 24 -
Sensor
Spectral Bandwidth
Receptor Size
Cosine Correction
Measurement Range
Wavelength Range
Integration Time Range
Operation Mode
Capture Function
Integration Mode
Measuring in
Standalone Mode
Measuring Capabilities
Digital Resolution
Dark Calibration
Stray Light
CMOS linear image sensor
Approximately 12 nm（half bandwidth）
Ø 6.6 ± 0.1 mm
refer Figure 1.
70 ~ 70000 Lux
380 ~ 780 nm
6 ~ 1000 ms
Standalone Mode / Bluetooth Mode / USB Mode
One time / Continuous
( Standalone mode only support One time )
Auto / Manual
( Standalone mode only support Auto )
1. CCT, CRI, LUX, λP
2. Spectrum Graphics
3. CIE 1931 / CIE 1976 U.C.S Chromaticity Value
4. R9, LUX, FC, Pflicker
1. CCT
2. CRI ( R1~R15 )
3. LUX
4. λP
5. C.I.E. Chromaticity Coordinates
(1) CIE 1931 x,y Coordinates
(2) CIE 1976 U.C.S u',v' Coordinates
6. Percentage Flicker
16 bits
Yes
-25 dB max.
*1
- 25 -
Wavelength Data Increment
Wavelength Reproducibility
Illuminance Accuracy
Color Accuracy
Color Repeatability
CCT Accuracy
CRI Accuracy @ Ra
Percentage Flicker
Flicker Frequency
Flicker Accuracy
Display
Bluetooth
Max. Files
Battery Operation Time
Battery
Data Output Interface
Data Format
Dimensions
Weight ( with Battery )
Operating Temperature
Storage Temperature
Language Selection
1 nm
± 1 nm
( Input source must be a stable light source. )
± 5%
± 0.0025 in CIE 1931 x,y
± 0.0005 in CIE 1931 x,y
± 2%
± 1.5%
1 ~ 100 %
10 ~ 165 Hz
± 5%
0.96" 128x64 mono OLED Panel
3.0 / 4.0 compatible with iOS and Android
≒ 2000 Files @ 2GB SD Card
≦3 hours / Fully Charged
700 mAh / Rechargeable Li-ion Battery
Micro SD Card / Mini USB Port ( USB 2.0 )
Compatible MicroSoft Office Excel
33 x 33 x 90 mm ( H x W x D )
70 g ± 5 g
0 ~ 35 ℃
-10 ~ 40 ℃
English / Traditional Chinese / Simplified Chinese
/ Japanese / French / Russian
*1 : Use the input of 550nm single-frequency and measurement the range of
optical ± 40nm.
*2 : Input source must be a stable light source.
The company reserves the right to change product specifications, if it has any changes will
not give any notice.
Illuminant A @ 2856K
at 20000 Lux
*2

- 26 -
Figure 1：Cosine Correction
9
0
8
5
8
0
7
5
7
0
6
5
6
0
5
5
5
0
4
5
4
0
3
5
3
0
2
5
2
0
1
5
1
0
5
0
5
1
0
1
5
2
0
2
5
3
0
3
5
4
0
4
5
5
0
5
5
6
0
6
5
7
0
7
5
8
0
8
5
9
0
MK350S Ideal Value
- 27 -
6
Warranty

- 28 -
Warranty Policy
UPRtek provides replacement or repair services to our customers for defecve
products within the applicable warranty period.
1. DOA (Dead on Arrival) Returns：
■
■
2. RMA (Return Merchandise Authorizaon)：
■
■
■
In the event that you receive a product that is not working properly or is
defecve, you should nofy our service staff upon receipt of the products.
If defects in the product are discovered within 7 days aer receiving the
product (except those due to willful damage or customer misuse), you
should nofy us by email, facsimile, or phone immediately upon nocing
the defect, so we can process the return as a DOA product. You will be
issued a DOA number accordingly.
DOA products must be returned within 30 days of purchase and in original
condion. For products considered as “Dead on Arrival”, we will replace it
with a new product (in whole package) at no charge and pay return and
re-delivery shipping costs. Internaonal customers should allow for
addional transit me due to internaonal customs clearance.
For merchandise sent for repair or replacement with or without warranty,
you must first obtain an RMA number by contacng our service staff by
mail. The following informaon is required in order to complete your RMA
request: company name, contact person, phone number and e-mail,
customer ship-to address, product model number, serial number, and a
brief descripon of the problem you are experiencing with the product you
wish to return.
All returned products will be tested by our professional technicians to
verify the complaint / defect in queson. However, if the defect in queson
cannot be found by our technicians, you are responsible for paying a
tesng fee plus shipping fee for NDF(No-Defect Found) products.
Claims for loss or damage during shipment must be made to the courier by
the customer. For your protecon, we strongly recommend that you fully
- 29 -
Limitaon of Warranty
Please note that UPRtek is not responsible for providing repairs under
warranty if the product defect is caused by any of the following factors：
1.
2.
3.
4.
Disclaimer
■
■
Customers Eligible for Warranty Service
UPRtek warranty policy applies to all customers who purchased from either
UPRtek or through authorized agents of UPRtek.
Duraon of Warranty
1. MK350 HOST：
The MK350 LED METER series all come with a 1-year product warranty. We
also provide an extended warranty service when customers visit our official
insure your return shipment for damages. Please use a courier that is able
to provide you with proof of delivery.
Damage caused by natural calamity or any inappropriate usage.
Product has been repaired or taken apart by unauthorized technicians.
The warranty label is altered, damaged or missing.
Product serial number does not conform to our original system or the label
has beendamaged.
UPRtek shall in no event be liable for any defect, damage or data loss that
has occurred during the delivery of in-warranty products. Prior to claiming
warranty service, UPRtek recommends that you make a backup of your
data and remove your data from in-warranty products.
Under the maximum allowable range of applicable laws and regulaons,
any business loss, expected cost loss, data disappearance, or any other
indirect, accidental, or derived loss or damages due to the ulizaon of or
related to the company product, shall not be the responsibility of UPRtek
for any compensaon.

- 30 -
website and register their product within 120 days aer receiving the goods.
This extended warranty also includes one free calibraon service by UPRtek
aer the product has been in use for 1 year (shipping costs will be incurred by
the consumer).
2. Accessories：
UPRtek RMA policy is only for LED Meter repair and does not cover
maintenance or calibraon services (aside from one me free calibraon on
extended warranty). The policy also does not cover accessories like tripods
and straps, nor does it cover consumable items like baeries.
Authorized Distributor/Dealer Services
■
■
■
Addional Remarks
Product parts and components are not always manufactured by UPRtek. On
occasion, these 3rd party components may need to be replaced but are
already disconnued by the supplier. In this case, UPRtek assures customers
that it will fulfill it’s repair and replacement responsibilies by using substute
parts or components of equal level and quality.
Delivery Methods
Consumers can choose either of the two methods indicated below to return
the product to the factory for RMA Service：
Product-based funconal tesng - Performed by distributors and dealers
to determine whether the product needs to be returned to the factory for
further calibraon services or technical repairs (All UPRtek authorized
distributors/dealers have a right to perform “Product-based funconal
tesng” for a reasonable charge).
RMA product delivery to and from factory - Distributors/dealers can assist
customers in sending/receiving RMA products to/from the UPRtek factory.
Authorized distributors/dealers are listed on our website :
www.uprtek.com
- 31 -
■
■
Rules on Product Repairs Aer The Warranty Period
UPRtek provides product services aer warranty expiraon at reasonable
charges. In case of product defects, the customers are sll able to send
products back to the UPRtek factory for service. The repair charges will be
based on the type of defect, and in some cases, maintenance fees will be
charged.
However, purchasing a new product is advised under these condions:
■
■
■
■
■
Customers can send the products through UPRtek global distribuon
channels that will send and return the products to and from the factory for
repair and warranty service.
Customers can return the product directly to the UPRtek factory for
servicing.
If the MK350 series or its accessories are no longer available.
If the product funconality is almost certain to be impossible to recover
from (e.g. total immersion in water, undergoing extreme electrical shock,
severe contaminaon or corrosion damage).
If the product was dropped or sustained such a traumac impact causing
major structural damage, or if our technicians determine that normal
funconality cannot be recovered even aer major component
replacement.
If mulple parts simultaneously fail due to normal wear and tear, or poor
handling.
Even if the product is within the service period of the warranty, yet parts
are no longer available.

- 32 -
7
Warning Statement
7.1 NCC Warning Statement
7.2 FCC Warning Statement
- 33 -
7.1 NCC Warning Statement
Arcle 12
Without permission, any company, firm or user shall not alter the
frequency, increase the power, or change the characteriscs and
funcons of the original design of the cerfied lower power
frequency electric machinery.
Arcle 14
The applicaon of low power frequency electric machineries shall
not affect the navigaon safety nor interfere a legal communicaon,
if an interference is found, the service will be suspended unl
improvement is made and the interference no longer exists.

- 34 -
7.2 FCC Warning Statement
a. for FCC 15b devices (15.105)
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protecon against
harmful interference in a residenal installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instrucons, may cause
harmful interference to radio communicaons. However, there is no
guarantee that interference will not occur in a parcular installaon.
If this equipment does cause harmful interference to radio or
television recepon, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separaon between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
b. FCC Part 15.21 informaon for user
You are cauoned that changes or modificaons not expressly
approved by the party responsible for compliance could void your
authority to operate the equipment.
c. FCC Part 15.19
This device complies with Part 15 of the FCC Rules. Operaon is
subject to the following two condions:
- 35 -
7.2 FCC Warning Statement
(1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference
that may cause undesired operaon.
FCC RF Radiaon Exposure Statement :
1. This Transmier must not be co-located or operang in
conjuncon with any other antenna or transmier.
2. This equipment complies with FCC RF radiaon exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 cenmeters
between the radiator and your body.
