UREVO STROL LITE UR9TM0011 User manual

USER MANUAL
MAKING FITNESS FUN
UR9TM0011
UREVO STROL LITE 2-IN-1
UNDER DESK TREADMILL

CONTENT
SERVICE
IMPORTANT SAFETY GUIDELINES
PACKING LIST
TECHNICAL PARAMETERS
PRODUCT STRUCTURE
ASSEMBLY
CONSOLE
REMOTE CONTROL GUIDELINES
BATTERY REPLACEMENT
ADJUSTMENT OF RUNNING BELT
LUBRICATING
TROUBLESHOOTING
WARRANTY
02
03
06
08
12
09
04
04
05
13
15
16
17

IMPORTANT: FOR UREVO ONLY
For damaged or defective products, questions, replacement parts or any other service
support, please contact our customer service department as follows:
Response Time: 24-48 hours
Emailing us with the Order ID will be the best method to receive a response during peak
business hours.
Website: www.urevosports.com
PLEASE DO NOT RETURN THIS PRODUCT WITHOUT ASKING OUR
CUSTOMER SERVICE FIRST.
SERVICE
02
Scan this QR Code to get the Product Installation Guide
Youtube Video

• This product is home fitness equipment. Do not modify it for other purposes or outdoor use.
The walking machine should be placed on clean and flat ground rather than thick carpet or near
water with a 3 -6 ft safe area free from any obstacles behind it.
• This product is intended for adults. Minors should be accompanied by adults when using it.
Persons who are indisposed, mentally disabled or lack common sense are not allowed to use
it. They can use it under the supervision and guidance of persons responsible for their safety.
• Damaged power cord must be replaced by the manufacturer or professional maintenance
personnel to avoid danger.
• This product only works under 100V-120VAC voltage. Be sure to use a power socket with safety
ground. The grounding plug must be installed and grounded according to the parameters
specified locally. If the plug does not match the socket, ask qualified electricians or after-sales
staff to handle it.
• Check all parts before use to ensure the screws and nuts are tightened.
• Wear tight fitting clothes to prevent clothes from being caught by the machine when using it.
Keep children or pets away from the machine to avoid accidents.
• Avoid touching any moving parts with hands. Do not place your hands and feet in the space
under the running belt.
• This product is suitable for home use rather than professional training and testing, nor medical
purposes.
• The indication of heart rates on the product does not serve as data for clinical medicine.
• Only one person can use this product when it is in operation.
• Power off and unplug before cleaning and maintenance.
• Power off and unplug when you leave.
• Please use the original accessories. Do not make any replacements without permission.
• The maximum weight capacity for this product is 265 lbs / 120 kg.
DO NOT EXCEED MAXIMUM WEIGHT CAPACITY.
• Please make sure to add 10ml of lubricant to the lubrication port when using the
product for the first time. Add lubricating oil every 3 months or after 100 miles of
working.
Please carefully read this manual before use to ensure your safety and avoid accidents.
IMPORTANT SAFETY GUIDELINES
03

Product configuration
Input voltage
Packaging size
Folding size
Assembly size
Running area
Rated power
Range of speed
Maximum load bearing
Net / Gross weight
Technical parameter
100 ~ 120VAC
57.1 x 28.9 x 5.9 inch
54.7 x 26.4 x 5.1 inch
52.6 x 26.4 x 39.7 inch
17 x 42.5 inch
550 W
0.6 - 7.6 MPH
265 LBS
57.3 / 68.4 LBS
Manual & Warranty card × 1Remote control × 1Walking machine × 1
Lubricating oil × 1
Power Cord × 1
Allen wrench × 1
PACKING LIST
TECHNICAL PARAMETERS
04

PRODUCT STRUCTURE
Instrument & Buttons
Column tube
Display panel
Motor lower cover
Lubricating port
Locking switch
Rear shield (left)
Foot edge strip
Running belt
Motor upper cover
Emergency stop button
Safety lock switch
Rear shield (right)
PRODUCT STRUCTURE
05
Power Switch

1. Open the packaging box and take out the related accessories and the machine from the box.
Place the machine on the flat ground.
2.Lift and push the column tube upwards until it stops moving.
3. Hold the column tube with one hand and turn the locking switch to the OFF position with
the other hand (same operation on both sides).
4. The column tubes are fixed. Then the assembly of the machine is completed.
Tighten
ASSEMBLY STEPS
5. Connect the Power cord to the machine.
ASSEMBLY
06

6. Plug in the power cord and turn on the Power.
1. Hold the column tube with one hand and turn the locking switch to the ON position with the
other hand (same operation on both sides).
2.Hold and lower the column tube until it is placed flat.
3. The folding of the machine is completed.
FOLDING STEPS
NOTE: Make sure the power is turned off and the power plug is removed from the socket.
ASSEMBLY
07
Power Switch

SCREEN
Speed
Calories
Time
Distance
Lubricating LED
Rreceiver
CONSOLE
1. Start/Stop and Increase/Decrease keys on the remote control or keyboard.
2.Emergency stop switch (STOP).
3. Pause in operation.
4. Speed: 0.6-7.6 mph;
Calories: 0001-9999KCAL;
Time: 01-99 minutes;
Distance: 00.00-99.99miles.
5. Sleep time in standby: 5 minutes. The screen turns off after sleep.
6. Lubricating prompt: every 100 miles.
OPERATION INSTRUCTIONS
CONSOLE
08

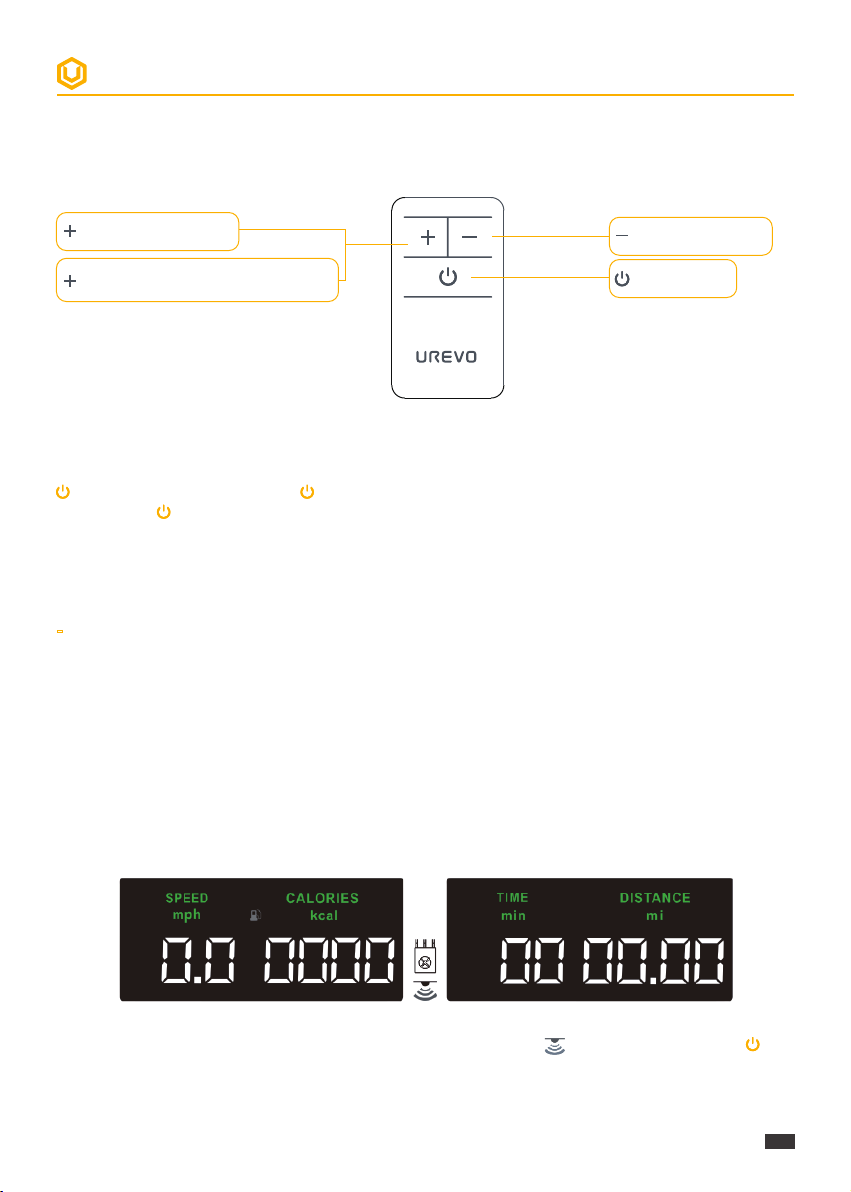

REMOTE CONTROL PANEL
Speed increase
Long press under standby state
to remove lubricating prompt Start/stop
OPERATION OF REMOTE CONTROL
key: In standby mode, press key and the machine runs at the speed of 0.6 mph.
Press key again and the machine stops. (i.e. another start/stop cycle begins)
+key: Each time when you press the “+” key during operation, the speed per hour will be
increased by 0.2 miles; long press the “+” key to continuously increase the speed by 0.2
miles. Additional function: Press the “+” key for 10 seconds to clear the lubricating icon
when the machine is in standby mode.
-key: Each time when you press the “-” key during operation, the speed per hour will be decreased
by 0.2 miles; long press the “-” key to continuously decrease the speed by 0.2 miles.
Note: The speed can only be increased up to 3.8 mph via the remote control. To increase to
7.6 mph, you need to press “+” key on the keyboard.
Note: Make sure that the safety lock switch of the instrument is magnetically on before use,
otherwise the machine cannot be started.
1. After power-on, the digital tube lights on both sides flash from outside to inside and bottom
to top, then the machine enters the standby state.
2. Aim the remote control at the signal receiver of the display screen, and press the
key on the remote control. The digital tube lights on the display show three bars from bottom
to top. The machine starts running at the speed of 0.6 mph.
Speed decrease
REMOTE CONTROL GUIDELINES
09

SPEED CONTROL
Each time when you press the “+” key on the remote control (or the instrument) during operation,
the speed per hour will be increased by 0.2 miles; long press the “+” key to continuously increase
the speed by 0.2 miles.
Each time when you press the “-” key on the remote control (or the instrument) during operation,
the speed per hour will be decreased by 0.2 miles; long press the “-” key to continuously decrease
the speed by 0.2 miles.
During operation, press the 3 shortcut key on the instrument, and the machine runs at the speed
of 3 mph; press the 6 shortcut key on the instrument, and the machine runs at the speed of 6 mph.
STOP
1. During operation, press the key on the remote control (or key on the instrument), and
the machine stops running.
2. After continuously running for 99 minutes, the machine stops automatically.
REMOTE CONTROL GUIDELINES
10
STOP

OPERATION OF INSTRUMENT
Function description of keys
Note: You can start the machine only after turning on the safety lock switch; when the safety
lock switch is not on, the STOP word keeps flashing.
START
6
STOP
S T O P
Mobile phone placement slot
Emergency stop key (STOP)
Safety lock switch
Reduce key
3 mph
Start/Pause
Stop
6 mph
Add key
FUNCTIONS/OPERATION INSTRUCTIONS
key: In standby mode, press key and the machine runs at the speed of 0.6 mph.
Press key again the machine pauses. During pause, the key light keeps flashing.
(i.e. another Start/Pause cycle begins, and current data can be saved during pause).
key: In operation mode, press the key and the machine slowly stops running.
Key: In operation mode, press the key, the STOP word flashes, all key lights are off,
and a bar appears on the display panel. The machine stops within 6 seconds.
shortcut keys: In operation mode, press the “3” key and the machine runs at the speed of
3 mph by slow increase (or decrease) from the current speed. The operation on reaching
the speed of 6 mph is the same as that of reaching the speed of 3 mph.
keys: In operation mode, press the keys to increase or decrease the speed.
START
START
START
START
STOP STOP
STOP
STOP
REMOTE CONTROL GUIDELINES
11

1. Removing insulating paper from the remote control before use:
Prepare to remove the insulating paper. Pull out the insulating paper. Available status.
2. Replacement of button battery of the remote control:
If the remote control would present less sensitivity or cannot be operated due to low battery after
having been used for a long time, the battery of the remote control needs to be replaced.
Removing the battery:
Push the battery cover backward and lift it. Remove the battery with a slotted screwdriver.
Take out the battery.
Installing the battery
Battery installation
completed
Close the battery cover
and push it forward,
then press it down.
Battery specifications
Battery installation
CR2450 3V
with (+) pole facing up
BATTERY REPLACEMENT
BATTERY REPLACEMENT
12

STOP
Moving to the left
Adjustment: Turn off the power. Clockwise rotate the bolt of the left rear roller by 1/4 turn
with the 5mm Allen wrench to tighten the running belt. Then power on the machine and test
whether the running belt is centered. Adjust the running belt with this method until it is
centered.
Moving to the right
Adjustment: Turn off the power. Clockwise rotate the bolt of the right rear roller by 1/4 turn with
the 5mm Allen wrench to tighten the running belt. Then power on the machine and test whether
the running belt is centered. Adjust the running belt with this method until it is centered.
Tighten
Tighten
Tighten
Tighten
The running belt will be loose after being used for a period of time. Loose running
belt will slip during use.
ADJUSTMENT OF RUNNING BELT
13

Adjustment: Turn off the power. Clockwise rotate the bolts of the left and right rear rollers by
1/4 turn simultaneously with the 5mm Allen wrench to tighten the running belt. Then power on
the machine and test the tightness of the running belt. Adjust the running belt with this method
until its tightness is appropriate.
Note: When you are running on the walking machine, the pressure on the running belt is imbalanced
as the force applied by your feet on the belt is different, which will deviate the running belt from
the center. Such deviation is normal and the running belt will return to the center if no one runs
on it.
The running belt cannot be tightened too much. Failure to do so may damage the running belt,
the roller bearings, etc., increase the pressure on the front/rear rollers, and cause abnormal
noise or other problems.
ADJUSTMENT OF RUNNING BELT
14
BATTERY REPLACEMENT
ADJUSTMENT OF RUNNING BELT

Note: Be careful during lubricating operation. Do not touch the moving parts.
Oil filler plug
Lubricating oil
• Cut off the seal inside the oil bottle, and cut a small opening on the oil bottle cap (for easy
squeezing out oil);
• Turn up the oil filler plug;
• Adjust the machine speed to 0.6 mph. Align the bottle opening to the lubricating guide hole
and properly squeeze oil by about 10ml each time;
• After adding silicone oil, run the machine for about 3 minutes. When the silicone oil covers
the running belt evenly, press the key on the remote control (or the key on the instrument)
to stop it. Then press the “+” key on the remote control for 10 seconds (or press the “+” and
6 keys on the keyboard simultaneously for 10 seconds) to remove the lubricating LED icon.
The lubricating is completed.
The walking machine has been lubricated before shipment. However, the rubbing between the
running belt and the running board greatly affects the service life and performance of the product,
so you must add lubricating oil according to the instructions of the machine. When the walking
machine has run a distance of 100 miles, a red indicator will appear on the display for lubricating.
Lubricating LED
STOP
Note: Use special lubricant of walking machine or contact our company directly.
LUBRICATING OPERATION
Please make sure to add 10ml of lubricant to the lubrication port when using the product
for the first time. Add lubricating oil every 3 months or after 100 miles of working.
Oil filler plug
Silicone oil
15
LUBRICATING

TROUBLESHOOTING
16
ADJUSTMENT OF RUNNING BELT
BATTERY REPLACEMENT
TROUBLESHOOTING
Causes ResolutionsCode
E01 Communication error
1. Check whether the electric display is properly
connected to the controller.
2. Reinsert the main IC of the controller as it is
in poor contact.
3. Replace the controller as its power supply is
abnormal.
1. Replace the motor or check the connection
terminal as motor open circuit or contact
fails.
2. Replace the power tube or controller as
power tube is damaged.
1. Overload
2. Add lubricating oil as the resistance on
the running belt is high.
3. Replace damaged motor.
1. Check whether the electric display is properly
connected to the controller.
2. Reinsert the plug of the controller as it is in
poor contact.
3. Replace the controller as its power supply is
abnormal.
E02
Explosion protection
E05
Overcurrent protection
Overload protection
E06
Failure in communication
between keyboard and
control panel.
E10

MANUFACTURER’S LIMITED WARRANTY
UREVO warrants to the original purchaser that this product is free from defects in material
and workmanship when used for the purpose intended, under the premise that it has been
installed and operated in accordance with UREVO Owner’s Manual. UREVO ’s obligation under
this warranty applies to the following:
COMPONENT LENGTH OF WARRANTY
Structural Frame 1 year For Home Use Only
All Other Components 90 days For Home Use Only
Exclusions from Warranty Coverage:
UREVO does not warrant against and is not responsible for, and no implied warranty shall be
deemed to cover, any product failure, product malfunction, or damages attributable to:
1. Improper installation and/or failure to abide by UREVO ’s installation guidelines;
2. Use of this product beyond normal home use, or in an application for which it was not
designed;
3. Cosmetic items such as scratches, dents or discolorations;
4. Damage caused by normal wear and tear, vandalism, accidents or by animals;
5. Any act of Nature (such as fire, flooding, snow, ice, hurricanes, earthquakes, lightnings or
other natural disasters), environmental conditions (such as air pollution, mold, mildew, etc.),
or staining from foreign substances (such as dirt, grease, oil, etc.);
6. Normal weathering due to exposure to sunlight, weather and atmosphere which can cause
colored surfaces to among other things, flake, chalk, accumulate dirt or stains.
7. Improper operation, alteration, handling, storage, abuse or neglect of the products.
UREVO , using its sole discretion, will either repair or replace free of charge any part(s)
proven to be defective under normal home use. Any repair or replacement shall provide
no new warranty coverage, but shall retain only the remaining portion of the original
product’s warranty. This warranty is offered only to the original purchaser and is not
transferable. Proof of original purchase is required.
Replacement parts can be ordered by emailing our customer service department:
WALMART: service_walmar[email protected]
Open Monday thru Friday 8:00 AM - 5:00 PM (PST).
When ordering replacement parts please have the following information ready:
1. Order Number
2. Description of Parts (Adding photos or videos would be helpful)
3. Part Number
4. Date of Purchase
17
WARRANTY


Manufacturer:Shanghai Runmi Technology Co., Ltd.
Address:15th Floor, Building 21B, No.1158, Zhongxin Rd, Songjiang
district, Shanghai, P.R.China
Vesion: 5.0 MADE IN CHINA
IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change without notice.
Table of contents
Other UREVO Treadmill manuals
