Welcome
Thank you for choosing Ursalink UR32 industrial cellular router.
This guide describes how to install the UR32 and how to log in the Web GUI to configure the device. Once
you complete the installation, refer to the Ursalink UR32 User Guide for instructions on how to perform
configurations on the device.
Related Documents
This Start Guide only explains the installation of Ursalink UR32 router. For more functionality and advanced
settings, please refer to the relevant documents as below.
Document
Description
Ursalink UR32 Datasheet
Datasheet for the Ursalink UR32 industrial cellular router.
Ursalink UR32 User Guide
Users could refer to the guide for instruction on how to log in the
web GUI, and how to configure all the settings.
The related documents are available on Ursalink website: http://www.ursalink.com.
Declaration of Conformity
UR32 are in conformity with the essential requirements and other relevant provisions of the CE, FCC, and
RoHS.
For assistance, please contact
Ursalink technical support:
Email: [e-mail]
Tel: [phone]
Fax: [phone]

Ursalink UR32 Quick Start Guide
www.ursalink.com
2
Before you begin to install the UR32 router, please check the package contents to verify that you have
received the items below.
1.1 Package Contents
1 × UR32
1 × Ethernet Cable
1 × Power Adapter
2 × Stubby Cellular
Antennas
2 × Magnetic Cellular
Antennas (Optional)
1 × Stubby Wi-Fi
Antenna (Optional)
1 × GPS Antenna
(Optional)
If any of the above items is missing or damaged, please contact your Ursalink sales
representative.
1 × 6-Pin Pluggable
Terminal
1 × DIN Rail Kit
4 × Setscrews
1 × Warranty Card
1. Packing List

Ursalink UR32 Quick Start Guide
www.ursalink.com
3
2.1 Overview
A. Front Panel
UR32 Front Panel
2.2 Dimensions (mm)
2. Hardware Introduction
1Main Cellular Antenna Connector
2GPS/WIFI Antenna Connector
3AUX Cellular Antenna
4LED Indicator Area
POWER: Power Indicator
SYSTEM: Status Indicator
SIM : Status Indicator
: Signal Strength Indicator
5Serial Port & I/O
6Ethernet LAN1/WAN Port
7Ethernet LAN2 Port
8Power Connector
9SIM and Reset Button Holder

Ursalink UR32 Quick Start Guide
www.ursalink.com
4
2.3 Pinouts
2.4 LED Indicators
LED
Indication
Status
Description
POWER
Power Status
Off
The power is switched off
On
The power is switched on
SYSTEM
System Status
Green Light
Static: Start-up
Blinking slowly: the system is running properly
Red Light
The system goes wrong
SIM
SIM Card Status
Off
SIM1 or SIM2 is registering or fails to register (or there
are no SIM cards inserted)
Green Light
Blinking slowly: SIM1 has been registered and is ready for
dial-up
Blinking rapidly: SIM1 has been registered and is dialing
up now
Static: SIM1 has been registered and dialed up
successfully
Orange Light
Blinking slowly: SIM2 has been registered and is ready for
dial-up
Blinking rapidly: SIM2 has been registered and is dialing
up now
Static: SIM2 has been registered and dialed up
successfully
Signal
Strength
Signal 1/2/3
Off
No signal
Green Light
Static/Off/Off: weak signals with 1-10 ASU (please check
if the antenna is installed correctly, or move the antenna
to a suitable location to get better signal)
Static/Static/Off: normal signals with 11-20 ASU (average
signal strength)
Static/Static/Static: strong signals with 21-31 ASU (signal
is good)
PIN
RS232
DI
DO
Description
1
---
---
OUT
Digital Output
2
---
IN
---
Digital Input
3
GND
---
---
Ground
4
---
COM
COM
Common Ground
5
RXD
---
---
Receive Data
6
TXD
---
---
Transmit Data
PIN
Description
7
Positive
8
Negative

Ursalink UR32 Quick Start Guide
www.ursalink.com
5
2.5 Reset Button
Function
Description
SYSTEM LED
Action
Reboot
Blinking
Press and hold the reset button for about 5-15 seconds.
Static Green
Release the button and wait for system to reboot.
Reset
Blinking
Press and hold the reset button for more than 15 seconds.
Static Green →
Rapidly Blinking
Release the button and wait.
Off → Blinking
The router is now reset to factory defaults.
2.6 Ethernet Port Indicator
Indicator
Status
Description
Link Indicator (Orange)
On
Connected
Blinking
Transmitting data
Off
Disconnected

Ursalink UR32 Quick Start Guide
www.ursalink.com
6
Environmental Requirements
- Power Input: 9-48 VDC
- Power Consumption: Typical 1.6W (Max 3.0 W)
- Operating Temperature: -40°C to 70°C (-40°F -158°F)
- Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F
3.1 SIM Card/Micro SD Card Installation
3.1.1 SIM Card Installation
A. Unscrew the cover of the SIM card then B. Put SIM card into the slot and screw it up.
take it off.
3.2 Antenna Installation
Rotate the antenna into the antenna connector accordingly.
The external antenna should be installed vertically always on a site with a good cellular signal.
3. Hardware Installation

Ursalink UR32 Quick Start Guide
www.ursalink.com
7
3.3 Connect the Router to a Computer
Please connect PC to any port among LAN port of UR32 router.
3.4 Mount the Router
The router can be placed on a desktop or mounted to a wall or a DIN rail.
3.4.1 Wall Mounting (Measured in mm)
Use 4 pcs of M3 × 6 flat head Phillips screws to fix the router on the wall.
Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.
3.4.2 DIN Rail Mounting (Measured in mm)
Use 2 pcs of M3 × 6 flat head Phillips screws to fix the DIN rail to the router, and then hang the DIN rail on
the mounting bracket. It is necessary to choose a standard bracket.
Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.

Ursalink UR32 Quick Start Guide
www.ursalink.com
8
3.5 Power Supply Installation
A. Take out the terminal from the router and unscrew the bolt on the terminal.
B. Screw down the bolt after inserting power cable into the terminal.
Connecting the Power Cable
If you insert wires into the reverse holes, the router will not start and you must switch the wires
into the correct holes.
Color
Polarity
Red
+
Yellow
-

Ursalink UR32 Quick Start Guide
www.ursalink.com
9
Getting Started
Please connect PC to LAN port of UR32 router. PC can obtain an IP address, or you can configure a static IP
address manually. The following steps are based on Windows 10 operating system for your reference.
(Note: As remote access is disabled by default, you can't access to the router's Web GUI if you connect PC to
WAN port of the router. But it will function properly if you enable it on Web GUI.)

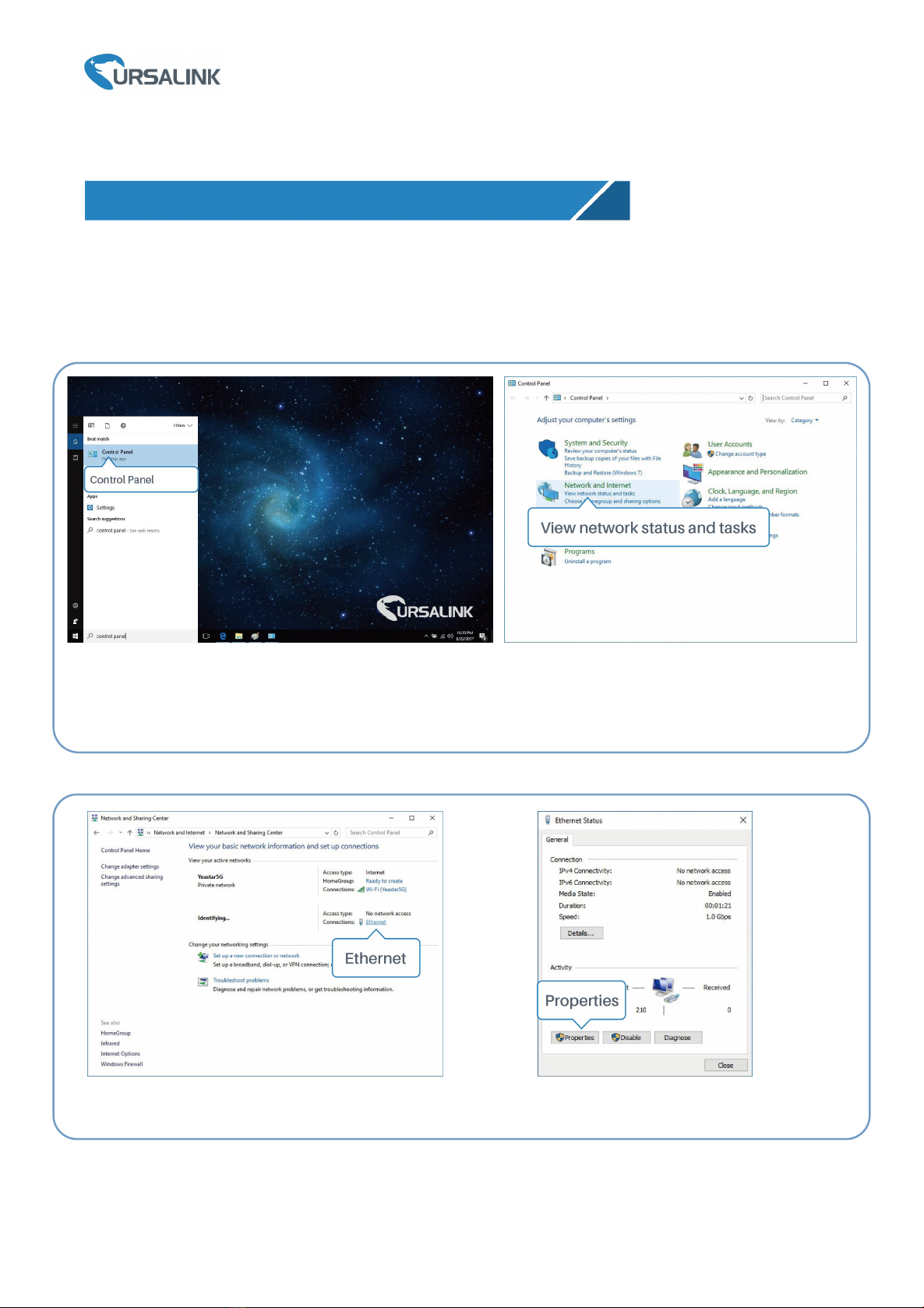

③Click “Ethernet” (May have different names). ④Click “Properties”.
4. PC Configuration for Web GUI Accessing to Router
①Click “Search Box” to search “Control Panel” on the
Windows 10 taskbar.
②Click “Control Panel” to open it, and then click

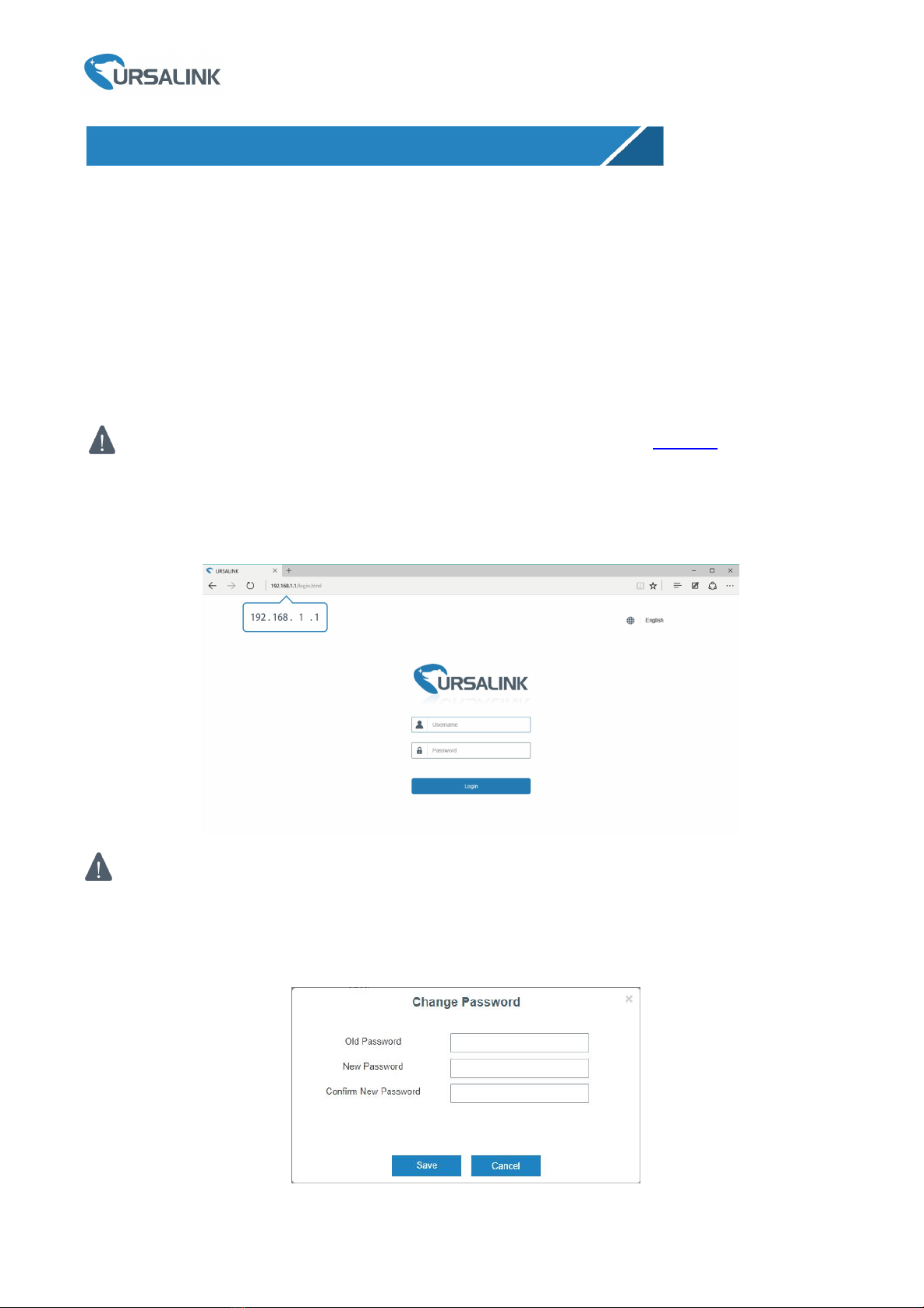

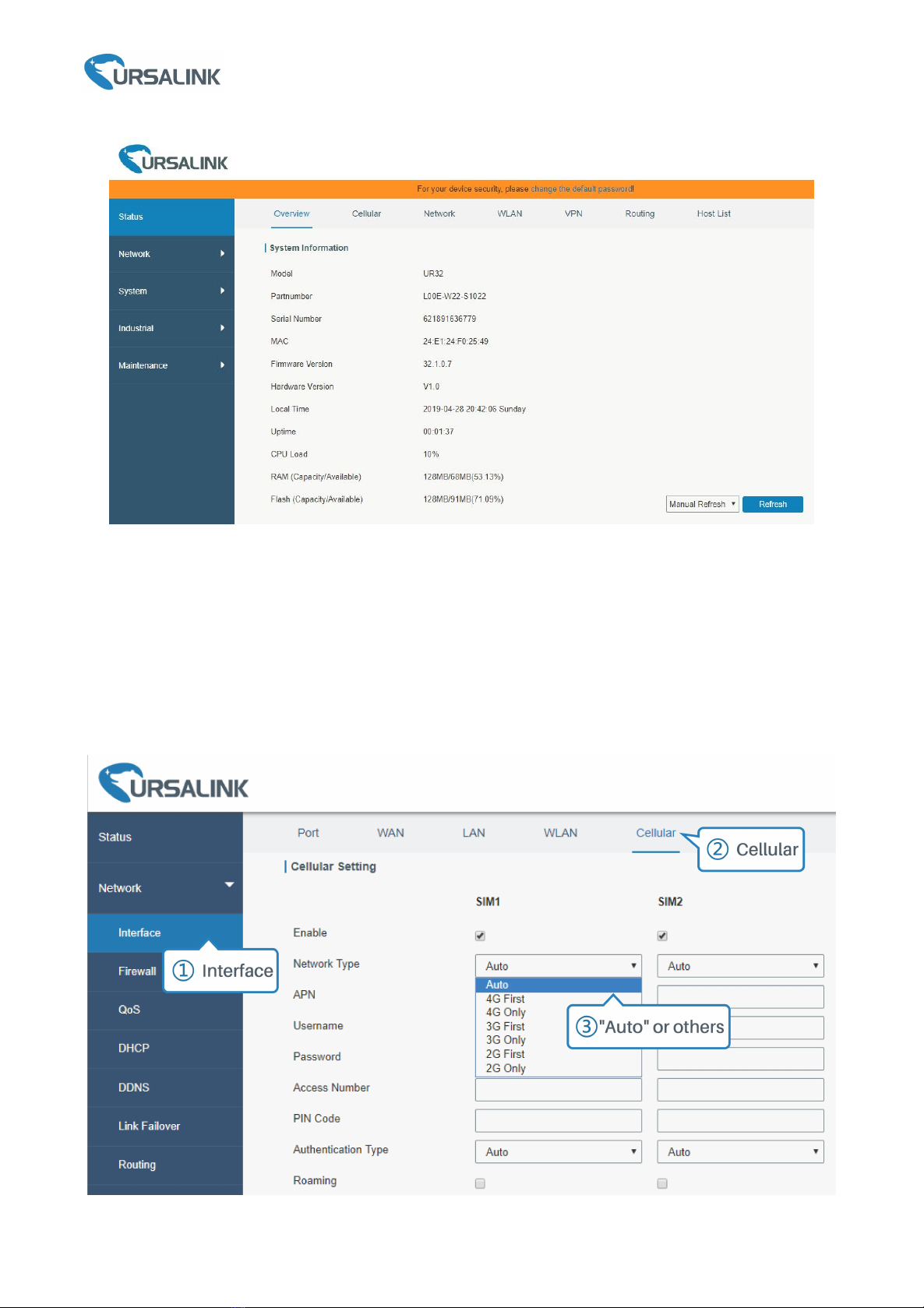

“View network status and tasks”.
