US Water Systems Fusion Oxi-Gen 089-FSF OG Series User manual

US Water Systems, Inc.
1209 Country Club Road
Indianapolis, IN 46234
1-800-608-8792
[e-mail]
www.uswatersystems.com
REVISION 1.5, 10-31-14
Owners Manual
Models:
089-FSF-XXX-OG
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
[e-mail]
www.uswatersystems.com
1-800-608-8792
Visit us online at
www.uswatersystems.com
REVISION # 1.7
REVISION DATE March 22, 2017
US Water Fusion Oxi-Gen Professional
Grade Iron & Sulfur Removal System

2
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Table of Contents
Unpacking/Inspection ................................................................................... 2
Safety Guide………………………………………………………………………..2
Proper Installation………………………………………………………………….3
Introduction…………………………………………………………………………3
Component Checklists…………………………………………………………….4
System Overview and Specifications………………………………………….…5
How The Fusion Oxi-Gen Treatment System Works…………………….….…6
Fusion Installation Instructions and Specifications…..……………………..…7
Tank and Control Valve Preparation…………………………………..…….….7

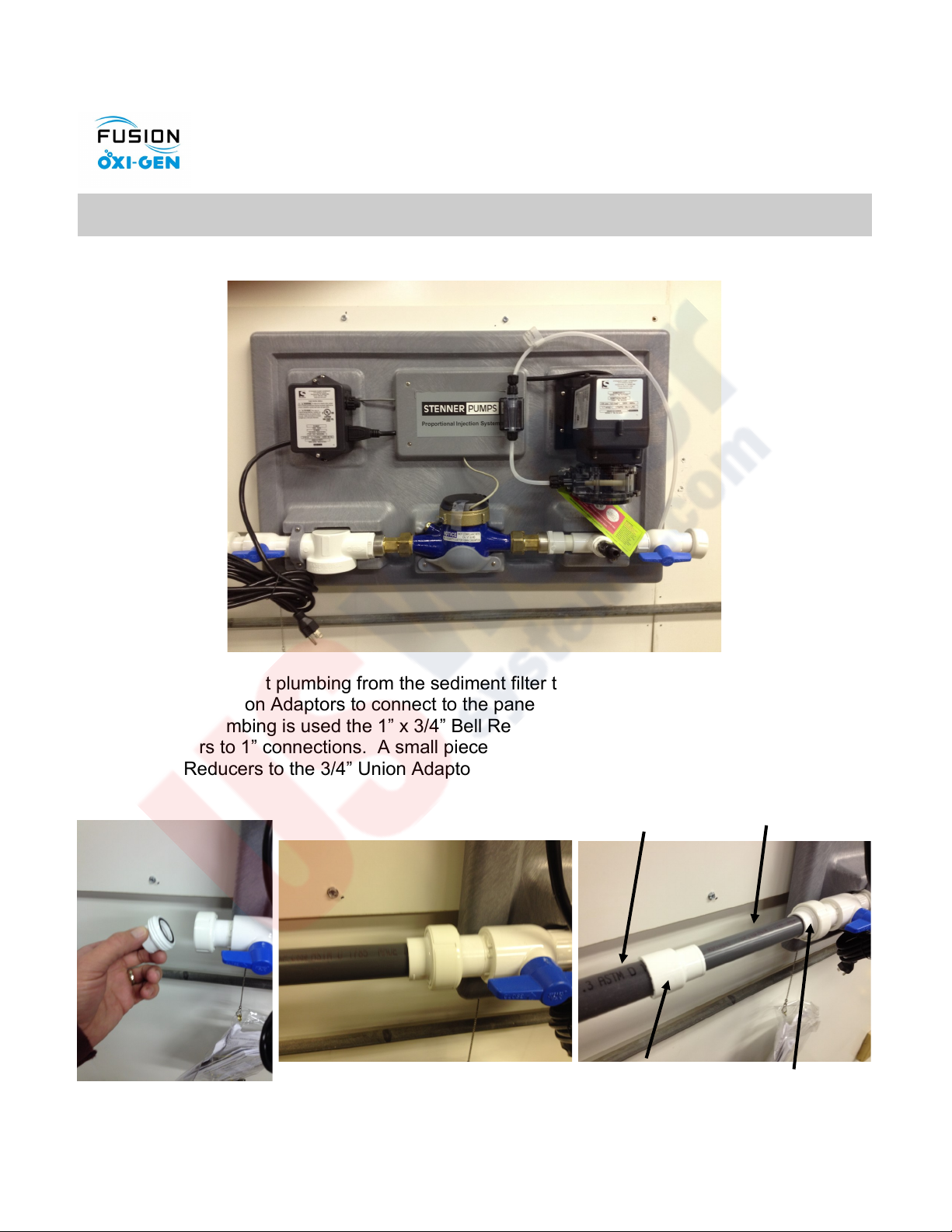

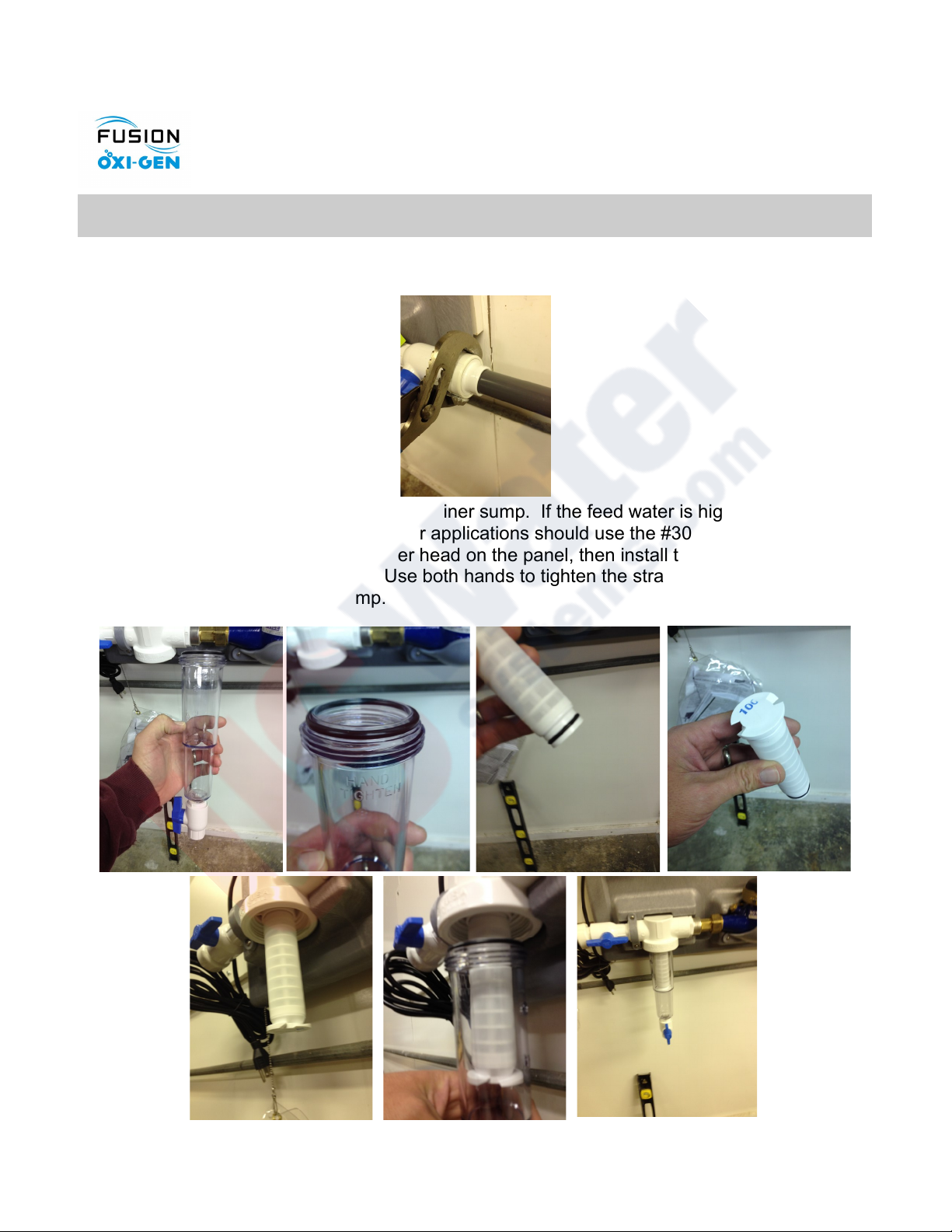

Injection Panel Installation Instructions………………………………….……...9
Carbon Tank Installation Instructions...………………..…...………………....13

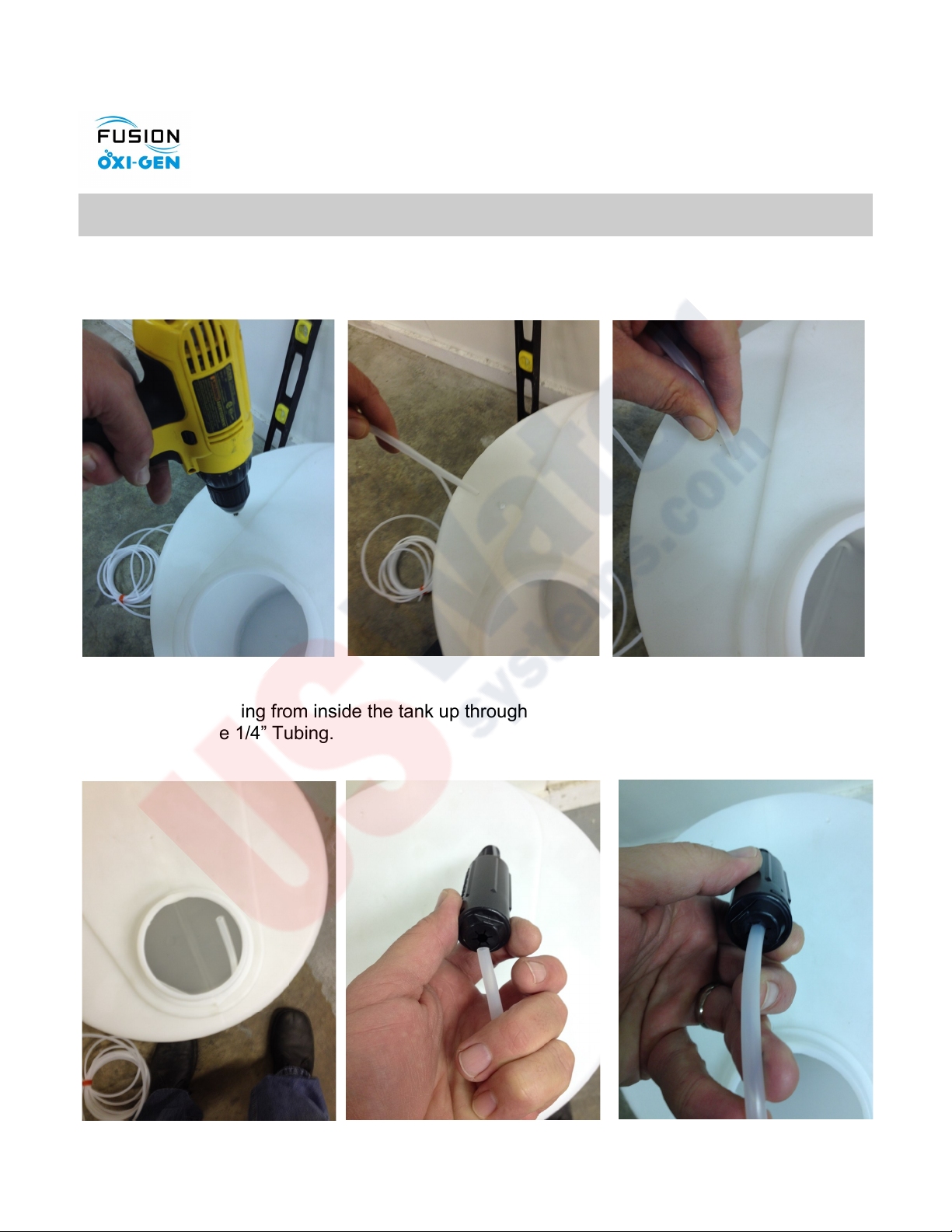

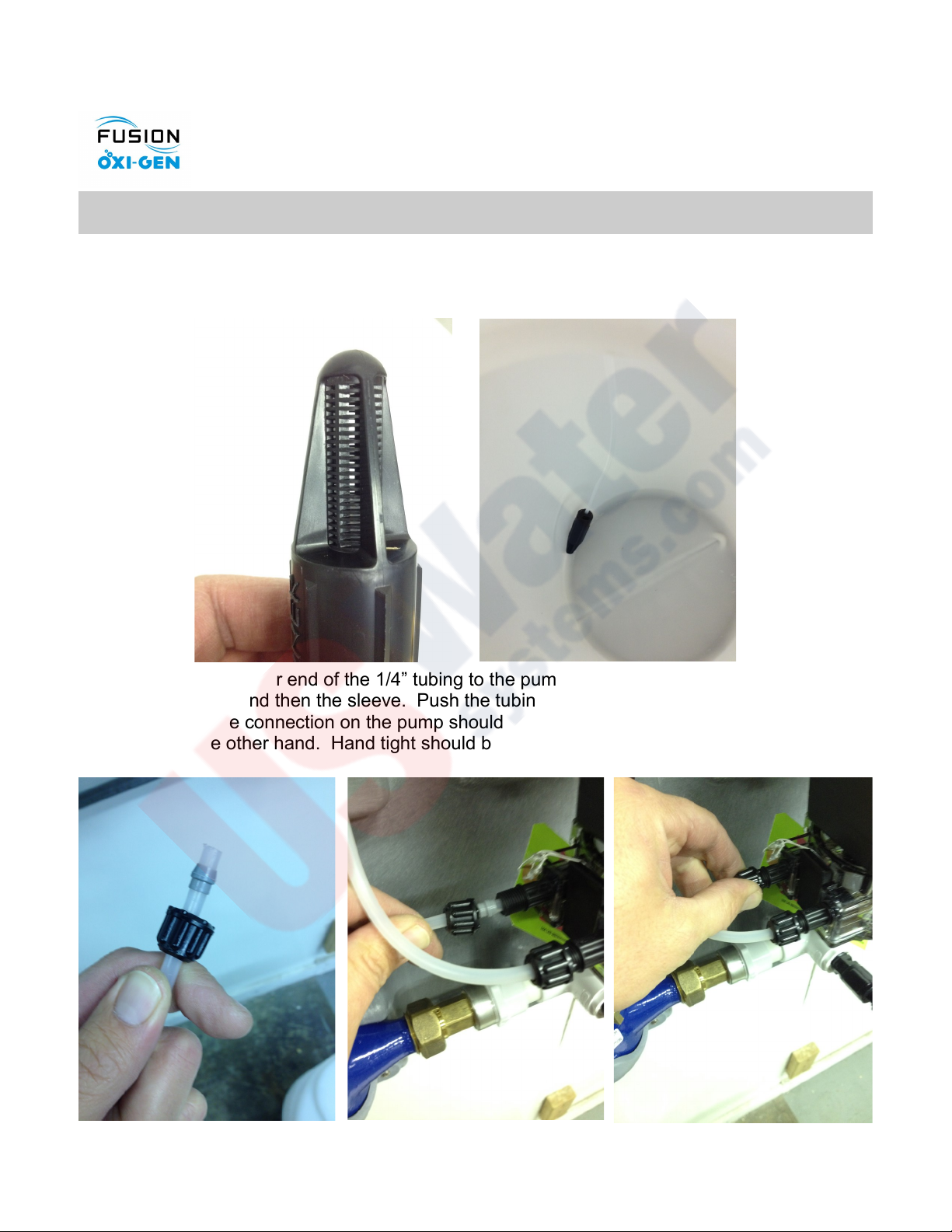

Injection Panel Chemical Solution Tank Installation Instructions…………....15

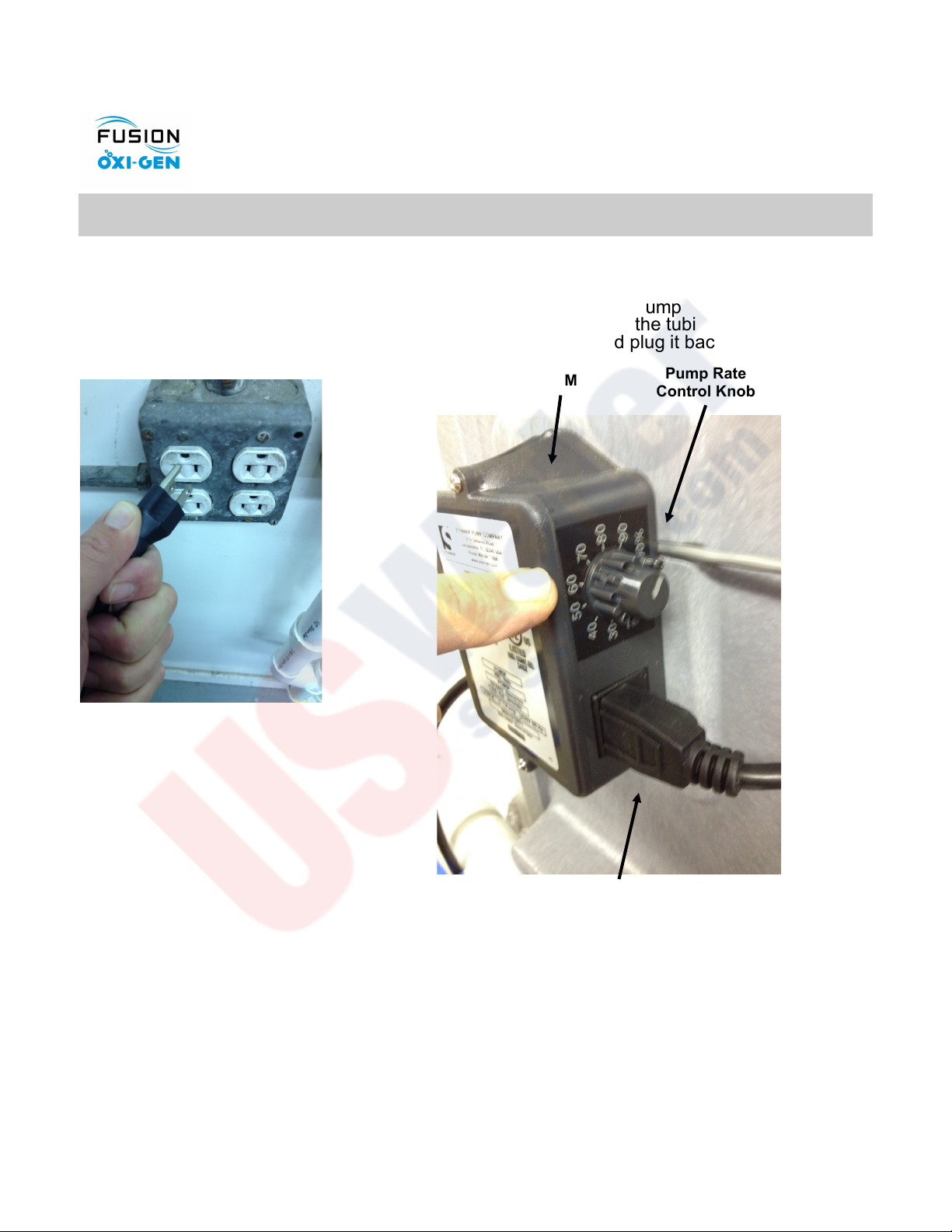

Chemical Injection Panel Start-up Instructions……………………….………..17
Control Valve Keypad Functions …………………………….…………......…..18
Control Valve Programming……………………………………………..…….…19
System Start-up Instructions……………………………………………………..20
H2O2 Injection Rate Adjustment Instructions (Bubble Method)………..........21
What To Expect and Routine Maintenance……………………………............22
Maintenance Schedule……………………………………………………...........23
Limited Lifetime Warranty………………………………………………..…….…24
Safety Guide
Be sure to check the entire system for any shipping damage or parts loss. Also note damage to the shipping
cartons. Contact US Water Systems at 1-800-608-8792 to report any shipping damage within 24 hours of de-
livery. Claims made after 24 hours may not be honored.
Small parts needed to install the system are in a parts bag. To avoid loss of the small parts, keep them in the
parts bag until they are used.
Unpacking / Inspection
 Check and comply with provincial / state and local
codes and follow these guidelines.
 Use care when handling the iron removal system.
Do not turn upside down, drop, drag or set on
sharp protrusions.
 The backwashing carbon filter uses 12 volt-60 Hz
electrical power only. Be sure to use only the in-
cluded transformer.
 Transformer must be plugged into an indoor 120
volt, grounded outlet only.
 WARNING: This system is not intended for
treating water that is microbiologically unsafe or of
unknown quality without adequate disinfection be-
fore or after the system. Contact US Water Sys-
tems for disinfection treatment equipment.

3
Proper Installation
This water filtering system must be properly installed and located in accordance with the
Installation Instructions before it is used or the warranty will be void.
 Do not install or store where it will be
exposed to temperatures below freezing or
exposed to any type of weather. Water
freezing in the system will break it. Do not
attempt to treat water over 100°F.
 Do not install in direct sunlight. Exces-
sive sun or heat may cause distortion or
other damage to non-metallic parts.
 Properly ground to conform with all govern-
ing codes and ordinances.
 Use only lead-free solder and flux for all
sweat-solder connections, as required by
state and federal codes.
 Maximum allowable inlet water pressure is
125 psi. If daytime pressure is over 80 psi,
night time pressure may exceed the maxi-
mum. Use a pressure reducing valve to re-
duce the pressure.
 WARNING: Discard all unused parts and
packaging material after installation. Small
parts remaining after the installation could
be a choke hazard.
The Fusion Oxi-Gen system provides iron and sulfur removal throughout the home. The Fusion
Oxi-Gen system should be installed at the point of entry to treat the entire home, both hot and
cold water.
The Fusion Oxi-Gen system’s backwashing tank removes iron and sulfur using oxidation.
When water is used in the home, hydrogen peroxide is injected in the Fusion Oxi-Gen feed to
create super oxidation during operation. The Catalytic Carbon media in the Fusion Oxi-Gen
system tank provides filtration when the system is in service to collect contaminants oxidized
by the hydrogen peroxide. These contaminants are backwashed from the media surface when
the system regenerates.
Fusion Benefits
 Iron & Sulfur Removal
 Virtually maintenance free.
 Improves the efficiency of water-using appliances
 Simple installation
 Safe for landscaping and lawn watering.
 Compatible with all on-site and community wastewater treatment systems
Introduction
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG

4

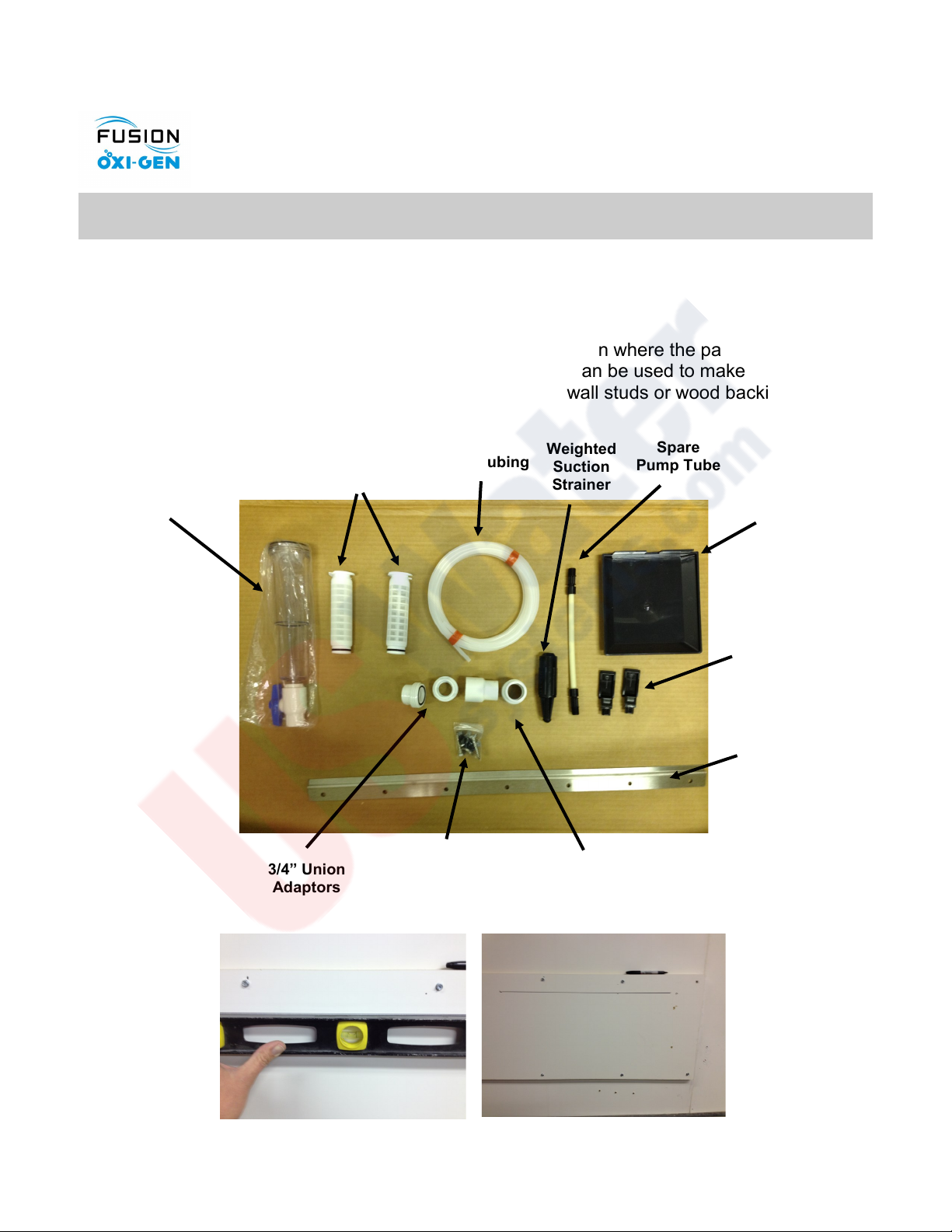

Component Checklists
 Backwashing Catalytic Carbon Filter
 Control Valve
 Tank
 Funnel
 Manual
 Carbon (may be multiple boxes)
 Gravel (Separate Box)
 Distributor Tube
 Upper Basket
 Control Valve Parts Box
 Solution Tank
 (8) 2.5 Gallons of Peroxide (4 Boxes)
 Stenner Proportional Injection System Panel
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG

5
US Water has pioneered the use of hydrogen peroxide in water treatment for the eradication of
iron (rust) and sulfur (hydrogen sulfide odor) for nearly 20 years. It can truly be called an
"Eradication System" because it TOTALLY removes iron and sulfur. Properly sized, a Fusion
Oxi-Gen Hydrogen Peroxide System from US WATER is THE MOST EFFECTIVE METHOD
for removing iron, rust, sulfur and hydrogen sulfide (the rotten-egg odor) from the water supply.
The Fusion Oxi-Gen system uses Catalytic Carbon media in the backwashing filter to collect
the contaminants removed by the hydrogen peroxide. Hydrogen Peroxide is not a hazardous
chemical - to the contrary, hydrogen peroxide (H2O2) is composed of the elements of water:
Hydrogen and Oxygen. There is nothing foreign or chemically added to the water supply.
Unlike chlorine, hydrogen peroxide requires no contact time and the reaction (oxidation of iron,
rust, sulfur and hydrogen sulfide) is immediate. The Fusion Oxi-Gen Hydrogen Peroxide
System is the answer to practically any iron, rust, sulfur or hydrogen sulfide problem, and is
backed with our 90-Day 100% Satisfaction Guarantee. US Water Systems guarantees 100%
iron and sulfur removal with its Fusion Oxi-Gen System which utilizes Hydrogen Peroxide or
H2O2.
Hydrogen peroxide or H2O2 is a powerful, yet
versatile oxidant that is both safe and effective.
Considering the H2O2 advantages, it’s easy to
see why this is the ONLY sure way to eradicate
iron and sulfur.
Powerful - H2O2 is one of the most powerful
oxidizers known and is much stronger than
chlorine, chlorine dioxide, and potassium permanganate.
Safe - H2O2 is formed by the action of sunlight on water and is a natural purification system for
our environment. Consequently, H2O2 has none of the problems of gaseous release or
chemical byproducts that are associated with other chemical oxidants. And since H2O2 is
totally miscible with water, it reverts back to hydrogen and oxygen after the reaction is
complete.
Versatile - Hydrogen Peroxide is lethal to iron and sulfur. PERIOD!
Selective - In itself, H2O2 is a fantastic oxidizer, much better than chlorine and potassium
permanganate. It poses no health hazard and ERADICATES 100% OF THE IRON AND
SULFUR – ALL THE TIME – GUARANTEED!
Consult one of water specialists for higher flow rates. US Water offers Fuison Oxi-Gen systems
up to 100 GPM and can custom design them at no extra charge. Call us at 800-608-8792 or e-
mail us at [e-mail] .
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
System Overview and Specifications

6
The Fusion Oxi-Gen iron and sulfur eradication system uses Hydrogen Peroxide (H2O2) to
oxidize contaminants in the water source. The chemical name for hydrogen peroxide is H2O2.
It is very similar to water (H2O) but with one additional oxygen molecule. Hydrogen peroxide is
injected into the water stream proportionally. The water meter will engage the chemical
injection pump based on the flow rate of the feed source water and the settings on the pump
control.
When water is being used the water meter sends a pulse to engage the pump. So when large
amounts of water are being used the pump will run more frequently during the usage period
than in times when a small amount of water is being used. The standard programming is set to
a 5 second control. At 100% the pump will stay engaged for 5 seconds. At 50% the pump will
stay engaged for 2.5 seconds. In some applications with high flow rates or high contaminant
levels, this setting may need to be changed if a residual H2O2 cannot be achieved. There are
internal settings that can be changed to adjust the output rate. The pump settings can be
changed to 10 seconds at 0-100% or 20 seconds at 0-100% if need be. 80% of the
applications will use the standard setting (5 seconds).
When hydrogen peroxide is injected into the water stream, it oxidizes the iron and sulfur
precipitating it from solution. This reaction is immediate. When these contaminants are
oxidized with hydrogen peroxide (H2O2) the extra oxygen molecule oxidizes the contaminants
and the by product is H2O (water). This is much safer than using chlorine in that chlorine can
cause other problems in the water stream such as chloramines and trihalomethanes (THM’s).
Once the hydrogen peroxide has been injected in the water it passes through the backwashing
Catalytic Carbon filter. The backwashing Catalytic Carbon filter uses Catalytic Carbon media
to act as a “catalysis” to remove the oxidized contaminants. As the water passes through
Catalytic Carbon filter, the oxidized contaminants are removed from the water and collected on
the Catalytic Carbon media. Once the water has passed through the Catalytic Carbon filter,
the water is iron and sulfur free! Some manganese can be removed with the Fusion Oxi-Gen
system buy extreme levels of manganese may require a water softener in addition to the
Fusion Oxi-Gen system to polish the remaining manganese.
The Catalytic Carbon filter will need to be backwashed at a specified/determined frequency. In
some applications this can be extended to 4-5 days. The typical frequency is 1-3 days.
Contact US Water Systems and a Certified Water Specialist will be able to determine the
frequency that can be used when considering the feed water contaminant levels. The factory
default will be 3 days.
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
How The Fusion Oxi-Gen Water Treatment System Works

7
WATER PRESSURE: A minimum of 20 pounds of water pressure is required for re-
generation valve to operate effectively.
ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is
required. Note: Other voltages are available. Please make sure the voltage supply is
compatible with the unit before installation.
EXISTING PLUMBING: Condition of existing plumbing should be free from lime
and iron buildup. Piping that is built up heavily with lime and/or iron should be replaced.
LOCATION OF FUSION TANK AND DRAIN: The Fusion tank should be located
close to a drain to prevent air breaks and back flow.
BY-PASS VALVES: Always provide for the installation of a by-pass valve if unit is not
equipped with one. The Catalytic Carbon is equipped with a bypass valve.
CAUTION: Water pressure is not to exceed 80 psi, water temperature is not to exceed
110°F (43°C), and the unit cannot be subjected to freezing conditions or direct sunlight.

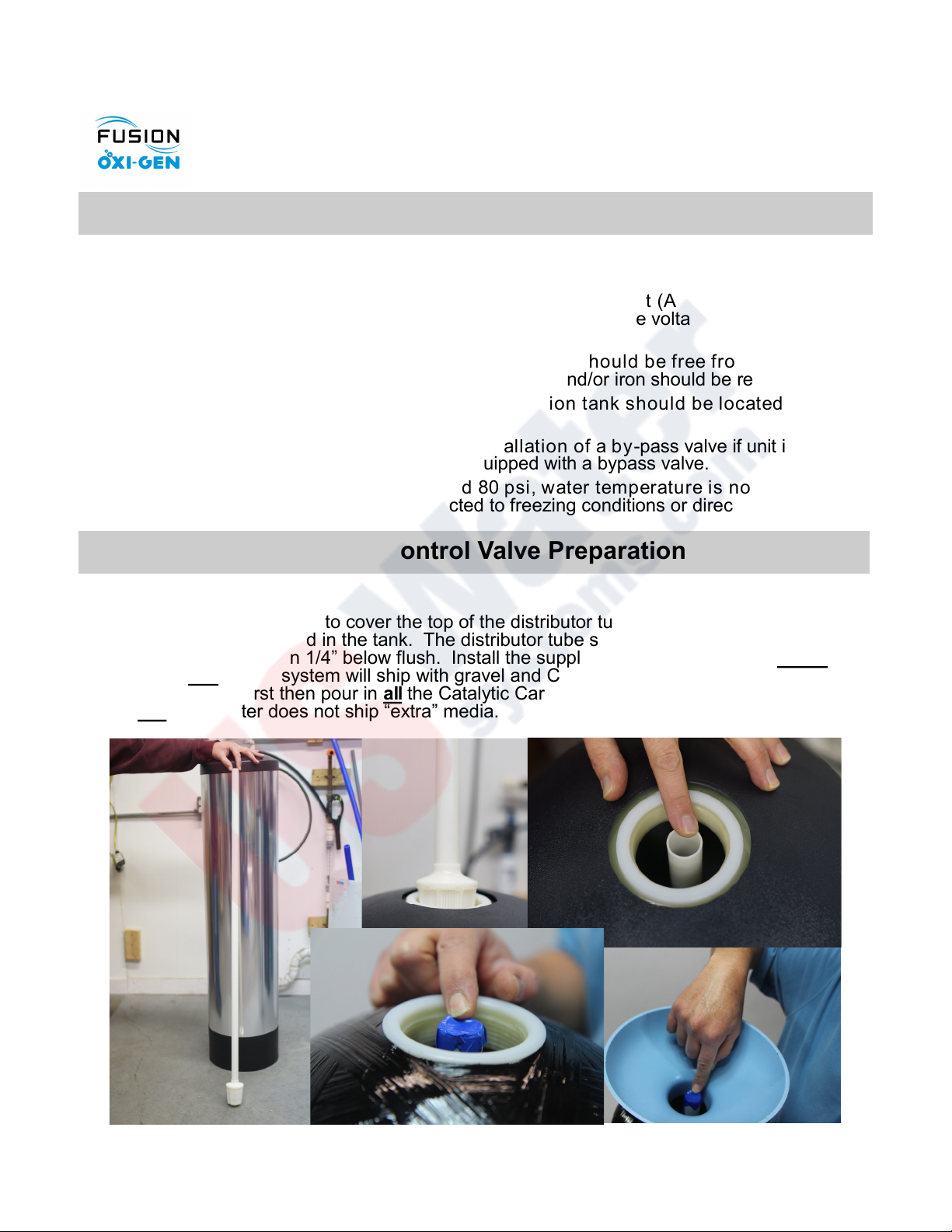

1) Use a piece of duct tape to cover the top of the distributor tube in the tank. Be sure the
distributor tube is centered in the tank. The distributor tube should be flush with the top of
the tank or no more than 1/4” below flush. Install the supplied funnel and pour the gravel
in the tank first. Each system will ship with gravel and Catalytic Carbon media. Pour the
gravel in the tank first then pour in all the Catalytic Carbon media that was shipped in the
tank last. US Water does not ship “extra” media.
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Fusion Installation Instructions and Specifications
Tank and Control Valve Preparation

8
2) Lubricate the distributor O-ring and the tank O-ring. Then install the upper basket (the ac-
tual upper basket may look different than the one pictured below) on the bottom of the valve
by lining up the tabs then turning the basket clockwise to lock it in place. Place the upper
basket over the distributor tube and push the valve on the tank. Thread the valve on the tank
by turning it clockwise. Be sure not to cross-thread the valve on the tank. Tighten the valve
hand tight, then snug it further by tapping it with the palm of the hand. DO NOT use tools to
tighten the valve or damage could occur.
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Tank and Control Valve Preparation

9
Injection Panel Installation Instructions
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
1. Layout the parts for the injection panel, then find the location where the panel will be in-
stalled. Install the stainless steel mounting bar. A level can be used to make sure the bar
is installed properly. This bar should be secured to the wall studs or wood backing plate
that is secured to the wall studs.
Strainer Filter
Sump
#30 and #100
Mesh Strainers
1/4” Tubing
Spare
Pump Tube
Weighted
Suction
Strainer
Injection
Pump Rain
Roof
Spare Injection
Pump Head Clips
Stainless Steel
Mounting Bar
3/4” Union
Adaptors
1” x 3/4” Bell
Reducers
Mounting Screws,
Nuts and Sleeves
for 1/4” Tubing
Connections

10
Injection Panel Installation Instructions
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
2. Hang the injection panel on the mounting bar.
3. Now install the inlet plumbing from the sediment filter to the left side of the injection panel.
Use the 3/4” Union Adaptors to connect to the panel. These adaptors are designed for 3/4”
PVC. If 1” plumbing is used the 1” x 3/4” Bell Reducers can be used to adapt the 3/4” Un-
ion Adaptors to 1” connections. A small piece of 3/4” pipe is needed to connect the 1” x
3/4” Bell Reducers to the 3/4” Union Adaptors.
1” x 3/4’” Bell
Reducer
3/4’” Union
Adaptor
1” Pipe 3/4” Pipe

11
Injection Panel Installation Instructions
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
4. Now install the outlet plumbing using the Union Adaptor and tighten the union collars with
channel locks. Do not over tighten these unions.
5. Now install the strainer filter and the strainer sump. If the feed water is high in turbidity, use
the #100 mesh strainer filter. All other applications should use the #30 mesh strainer filter.
Insert the strainer filter in the strainer head on the panel, then install the strainer sump and
turn it clockwise until hand tight. Use both hands to tighten the strainer sump. Do not use
tools to tighten the strainer sump.

12
Injection Panel Installation Instructions
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
1. There is a ball valve on the bottom of the strainer filter sump. This ball valve should be
closed during operation. This ball valve and be used to flush the strainer filter sump period-
ically. This can be done by placing a bucket under the ball valve and opening the valve un-
til the sump strainer is clear.
OPEN CLOSED

13
Any solder joints being soldered near the valve must be done before connecting any piping
to the valves. Always leave at least 6" (152 mm) between the control valve and joints being
soldered when soldering pipes that are connected to the valves. Failure to do this could
cause damage to the valves.
The Fusion Backwashing Filter is equipped with 1” removable connectors. It is recommend-
ed that these connectors are installed in the plumbing fitting using Teflon tape then lubricate
the o-ring on the connector. Remove the red clips and push the connectors into the bypass
valve once they are tight in the plumbing fitting. The red clips can then be re-installed to se-
cure the connectors in the bypass valve.
The inlet and outlet can be identified on the bypass valve. There are arrows stamped in the
bypass valve showing flow direction. The arrow pointing toward the valve is the inlet and the
arrow pointing away from the valve is the outlet
1. Apply Teflon tape to the inlet and outlet connectors and install the inlet and outlet con-
nectors in the control valve. Connect the plumbing.
All piping should be secured to prevent stress on the bypass valve and connectors.
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Carbon Tank Installation Instructions

14
5. Lubricate the O-rings on the connectors. Remove the red clips from the bypass on the
valve and install both connectors. Be sure the Tee fitting in on the inlet port.
6. Attach the inlet and outlet plumbing to the control valve. Be sure to check the stamped ar-
rows on the valve and bypass for inlet/outlet orientation.
All piping should be secured to prevent stress on the bypass valve and connectors.
7. Install the drain line on the control valve. Be sure to use a hose clamp to secure the
drain line to the barbed fitting on the control valve.
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Carbon Tank Installation Instructions

15
1. Place the chemical solution tank close to the injection panel. Drill a 1/4” hole in the top of
the chemical tank. Push the 1/4” tubing in the hole in the tank.
2. Pull the 1/4” tubing from inside the tank up through the fill hole. Then push on the weighted
strainer on the 1/4” Tubing.
Injection Panel Chemical Solution Tank Installation Instructions
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG

16
3. Be sure the weighted strainer on the 1/4” tubing until it can be seen in the slots in the
weighted strainer. Then drop the strainer in the tank and push the 1/4” tubing through the
hole in the tank until the weighted strainer is about 1” off the bottom of the tank.
4. Now attach the other end of the 1/4” tubing to the pump on the injection panel. Put the nut
over the tubing and then the sleeve. Push the tubing in the pump fitting and tighten the nut
hand tight. The connection on the pump should be held with one hand while the nut is tight-
ened with the other hand. Hand tight should be sufficient.
Injection Panel Chemical Solution Tank Installation Instructions
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG

17
1. Plug the chemical injection panel in the wall. Pour the supplied Hydrogen Peroxide
into the chemical solution tank. Unplug the pump power cord from the PCM on the
injection panel and attach it to an extension cord that is energized. Turn the switch
on the injection pump to the on position and allow the chemical pump to prime with
peroxide. Typically the peroxide can be seen traveling through the tubing. Once the
pump is primed, unplug the pump from the extension cord and plug it back into the
PCM on the injection panel.
1. Set the knob on the PCM to 50%
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Chemical Injection Panel Start-up Instructions
PCM
Injection Pump
Plug
Pump Rate
Control Knob

18
The “Gallons” function is not used in the system and the data shown on the valve
parameters is not actual. This valve regenerates on a timed frequency and does
not use water usage.
SETTINGS This function is to enter the basic set up infor-
mation required at the time of installation.
MANUAL
REGEN
This function is to initiate an immediate or
delayed manual regeneration.
DOWN /
UP
Increase or decrease the value of the set-
tings while in the programming mode.
DELAYED REGENERATION
Press and release the MANUAL REGEN.
Button to set a delayed regeneration that will
occur at the regeneration time. The main dis-
play page will show DELAYED REGEN ON.
To cancel press and release the MANUAL
REGEN. Button. The main display page will
show DELAYED REGEN OFF.
IMMEDIATE REGENERATION
To start an immediate regeneration (or step
valve through each position), press and hold
the MANUAL REGEN. Button for 3 seconds
(until beeps). The valve will start an immedi-
ate regeneration. Press any key to skip to
the next cycle.
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Key Pad Configuration
Manual Regeneration Initiation

19
1) Plug in the control valve and press and hold the “Settings” button on the control
valve to enter the programming mode. If the control valve is locked, press and hold
the “Settings” button to unlock the valve, then press the “Settings” button again to
enter the programming mode.
2) When in the programming mode there will be a black cursor that appears over the
value. The “UP” and “DOWN” arrows can be used to change the value. Once the
value is set, the “Settings” button can be pushed to save the setting and move to the
next parameter.
3) Set the “Time of Day” and the “Date”.
4) Set the “Regen Days” to the desired value (contact US Water Systems for help with
the proper frequency. Typically 3 days will work for most applications).
5) The “Gallons” parameter should be set to “Off”.
6) The “Regeneration Time” should be set to around 2-3 hours after bedtime to ensure
the system is not regenerating during usage hours. If there is other backwashing/
regenerating equipment be sure to offset the regeneration/backwash times of each
of those units so each unit can backwash/regenerate independently.
TIME OF DAY, YEAR, MONTH, DAY,
Time of day is for normal operation of system and the scheduling of the
regeneration time. The date is used in a diagnostic function to track the
last time the system regenerated.
REGEN DAYS
This value is the number of days between regenerations or back washes to
clean the filters.
GALLONS
Default value is OFF. This should not be changed.
REGEN TIME
This setting determines the time of day to perform a scheduled regenera-
tion. The normal regen time for a filter is 12:00 AM.
Settings
Press SETINGS key (3 SECONDS / BEEP)
VALVE MODE
B.W. FILTER
TIME OF DAY
12:01 PM
YEAR
2012
MONTH
AUGUST
DAY
21
REGEN DAYS
3 DAYS
GALLONS
OFF
REGEN TIME
12:00 AM
PROGRAMMING
COMPLETE
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
Control Valve Programming Instructions

20
Installation, Operation and Maintenance Manual
FSF-200-OG, FSF-250-OG, FSF-300-OG,
FSF-500-OG
System Start-up Instructions
1. Once all the plumbing has been connected, open the main water shutoff valve. If the in-
jection panel is used, open both ball valves on the panel.
2. Plug the valve into an approved power source that is constantly energized.
3. When power is supplied to the control valve, the screen will display “INITIALIZING WAIT
PLEASE” while it finds the service position.
4. Once the valve has settled on the time of day, start an Immediate Manual Regeneration
(See page 18). The valve will immediately start moving to the BACKWASH position.
5. Open the inlet on the bypass valve slowly and allow water to enter the unit. Allow all air to
escape from the unit before turning the water on fully then allow water to run to drain for
the entire backwash cycle or until all media fines are washed out of the filter indicated by
clear water coming from the drain hose. The peroxide should be injecting during this pro-
cedure.
6. Press any button to advance to the RINSE position. Check the drain line flow. Allow the
water to run for the entire RINSE cycle until the water is clear.
7. The valve will automatically advance to the SERVICE position after the RINSE cycle is
complete. Open the outlet valve on the control valve bypass, then open the nearest treat-
ed water faucet and allow the water to run until clear, close the tap and replace the faucet
screen.
8. Program time, date, and number of days between regenerations into controller using Pro-
gramming Instructions.
