US Water Systems Aquapurion 5 Manual

Aquapurion 5 Stage Standard, Plus, And Permeate Pump
RO Systems Installation And Maintenance Manual

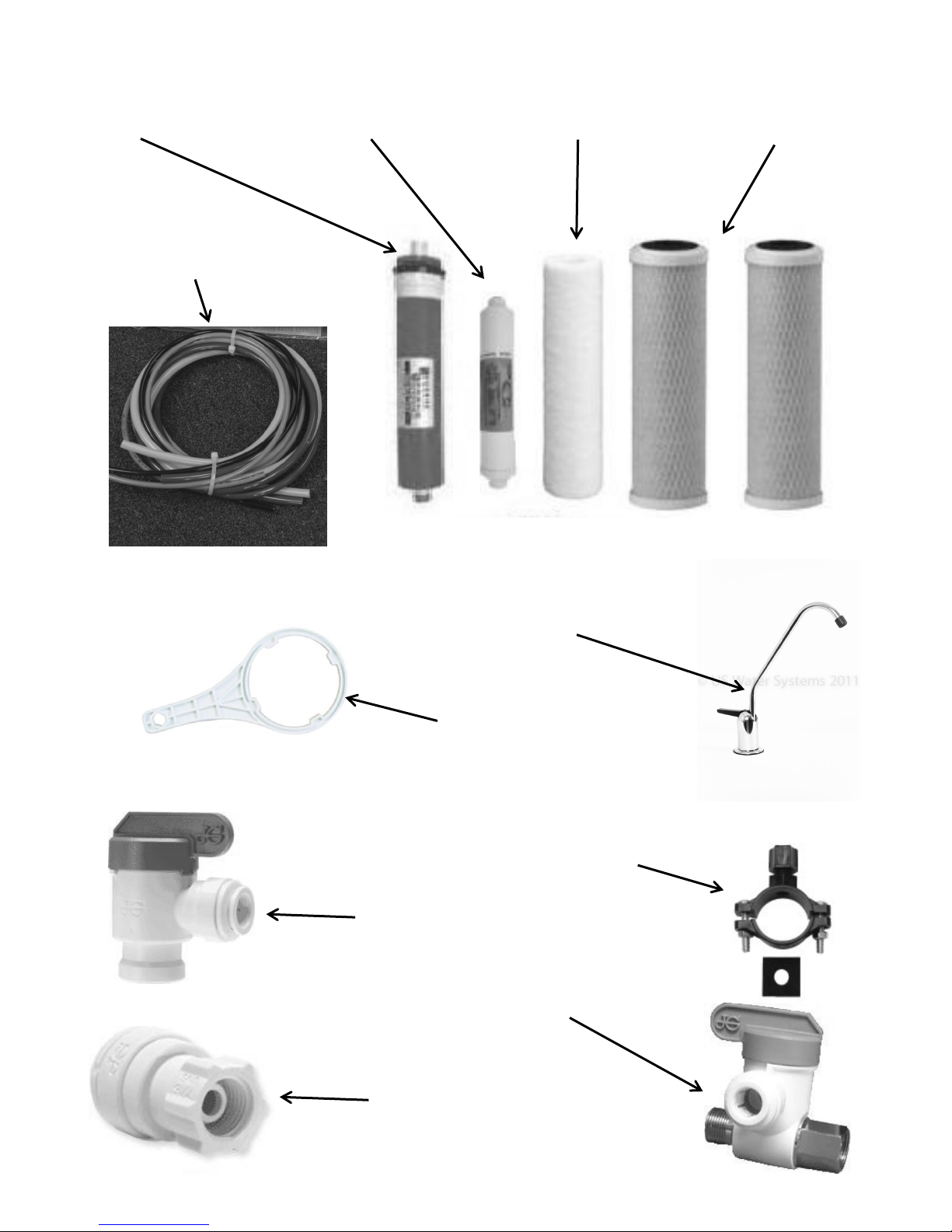

MEMBRANE POST CARBON PRE SEDIMENT PRE CARBON
FAUCET AND
MOUNTING KIT
FILTER WRENCH
DRAIN SADDLE
FEED WATER ANGLE
STOP
TANK VALVE
FAUCET CONNECTOR
TUBING

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 3

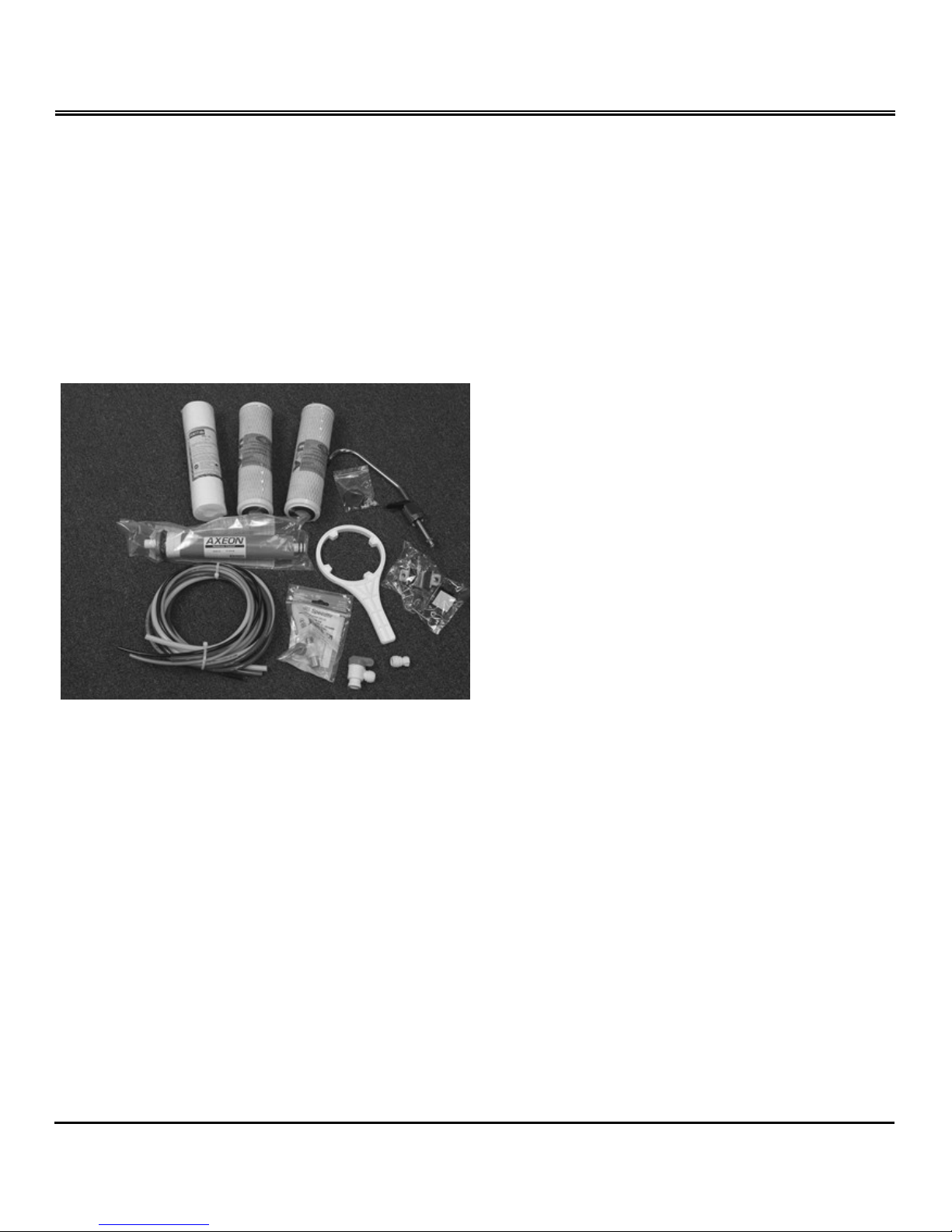

Parts Check List
 RO Module
 Tubing Bundle
 Filter Wrench
 Drain Saddle
 Tank Valve
 Angle Stop Feed Valve
 Tank and Side Mount Tank Stand
 Faucet and Mounting Kit
 Faucet Connector
 Pre and Post Filters
 Membrane
 Installation Instructions
COMPONENTS
The following components make up your Reverse
Osmosis Drinking Water System:
PRE-FILTER (sediment filter) removes larger particles
such as sand, silt, rust and scale, (activated carbon filters)
remove chlorine in the feed water to protect the reverse
osmosis membrane.
REVERSE OSMOSIS MEMBRANE reduces
dissolved minerals, metals and salts. During the process,
harmful compounds are separated by the membrane and
the reject water goes to waste (drain).
An activated carbon POST-FILTER is provided for a final
“polish” and to remove foul tastes, odors and to provide
great tasting drinking water.
FILTER HOUSINGS and R/O MODULE hold pre-filters
and membranes. A BRACKET is provided so they may
be mounted, typically below sink.
STORAGE TANK holds filtered water, ready for use.
AUTOMATIC SHUT-OFF VALVE (ASO) senses
when the storage tank is full and closes the water supply
to conserve water. (not used in permeate pump system)

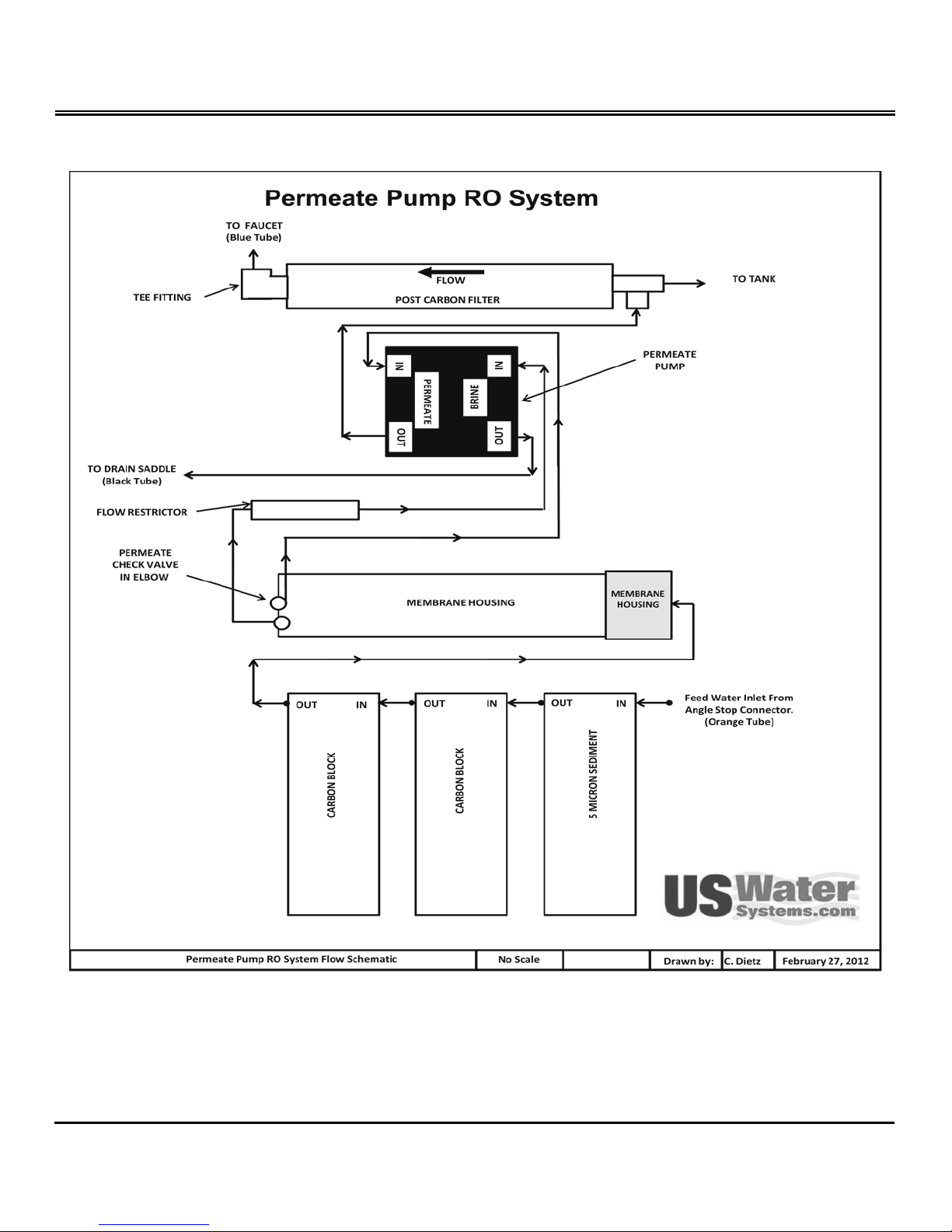

PERMEATE PUMP is used to pressurize the tank and
distribution system. This pump is operated by the drain
water. The permeate pump will dramatically increase the
faucet pressure. A permeate pump system will not have
an ASO valve.
The dedicated FAUCET is used to dispense RO
produced water when needed.
FEED WATER ANGLE STOP VALVE is connected to
the cold water line to supply water to the R/O system.
WASTE WATER SADDLE VALVE is connected to the
drain to remove reject water from the R/O system.
TUBING supplies feed and reject water.
FITTINGS are used for necessary hose connections.
Tools
The following tools may be necessary, depending on
each particular installation:
3/8” Drill and ¼” drill bit and Faucet Drill bit (Standard
Faucet use a 7/16” drill bit)
Phillips head and flat blade screwdrivers
Adjustable wrench
Crescent wrench
Teflon tape
Plastic tube cutter
System location
Your R/O system may be installed under a sink, in a
basement or other location, depending on available space.
Do not install unit where temperatures fall below freezing;

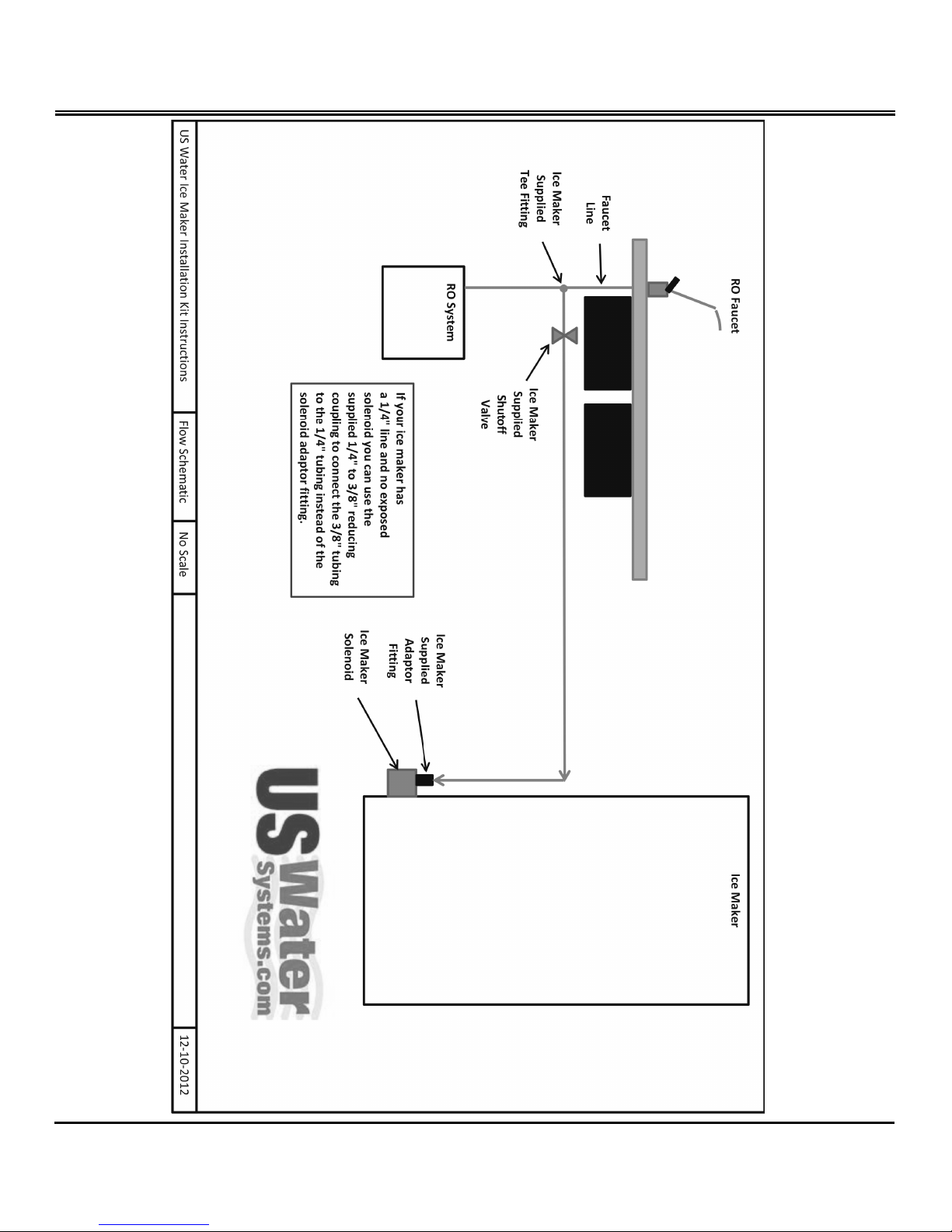

otherwise, damage will result. Connection to an icemaker
should also be considered for optimum performance.
Guidelines for component placement are as
follows:
FAUCET should be placed near the sink where drinking/
cooking water is normally required. A 2” flat surface is
required to mount the faucet if an existing hole for a second
faucet is not available. The thickness of the mounting
surface should not exceed 1-1/4”.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 4
STORAGE TANK may be placed where it is convenient,
within ten feet of the faucet. Under the sink or in a nearby
cabinet are excellent choices. Full tanks may weigh more
than thirty pounds, so a sturdy shelf is required.
R/O UNIT may be mounted on either side of the sink, in a
cabinet or heated basement, with nearby access to a
potable, cold water line.
FEED WATER CONNECTION is accomplished with an
angle stop feed water valve. This valve will be installed in
the cold water line between the sink cold water shutoff
valve and the sink faucet tubing. Connect to a potable,
cold water supply line only.
NOTE: Softened water is preferred since it will extend
the life of your R/O membrane.
DRAIN CONNECTION is accomplished using a waste
water saddle valve which is designed to fit around a
standard 1-1/2” OD drain pipe. The drain saddle valve
should always be installed above (before) the trap and on
the vertical or horizontal tailpiece.
Do not install the drain saddle valve near a garbage disposal;
otherwise, plugging of the waste water line may occur. If
discharging into a utility sink or standpipe, an air gap may be
needed. (Air gaps must be 1” or greater above the floor rim.)
NOTE: Plumbing codes may require the use air gaps.
Please check with your local municipality.
Do not connect the R/O system drain line to the
dishwasher drain line due to the fact back pressures may
cause the air gap to overflow.
SITE PREPARATION
Make sure there is adequate space for the unit and tank. The
tank can be installed vertically or horizontally. There will be
residual water spilled during the installation. Make sure you
have a pan and paper towels to catch and dry the area.
UNIT PREPARATION
Open shipping carton, remove components and check that
all parts are present. Check empty storage tank to be sure
air pressure is approximately 7 PSI. Adjust if necessary.
This is typically factory set but it is a good idea to check it.
The tank must be empty (no water coming out) when the
air bladder is checked. There is a blue cap that covers a
Schrader valve (tire valve). This is where the tank
pressure is checked.
Permeate Pump Systems
Install the permeate pump in the supplied mounting clip.
Use the pump sticker and the tubing labels to install the
tubing in their respective ports (Brine In, Permeate In and
Permeate Out. Brine Out will be attached later). Rotate
the pump in the bracket so the “Brine Out “ port is higher
than the “Brine In”. This will help eliminate air pockets in
the pump and system manifold.
INSTALLATION STEPS
NOTE: All plumbing must be completed in accordance with
state and local plumbing codes. Some municipalities may
require the installation be performed by a licensed
plumber. Check your local authority prior to installation.
A. Faucet installation
If the sink has a sprayer it may be disconnected for faucet
installation. A pipe cap or plug will be necessary to seal the
sprayer connection. To make the faucet mounting hole (if
sprayer or second hole is not used), check below to make sure
the drill does not interfere with anything below. Drill a 7/16” hole
for standard faucet installations and 1 ¼” hole for air gap faucet
installations. Be sure to use a bit compatible with your surface.
Clean up sharp edges. The faucet should be positioned so
it empties into the sink and the spout swivels freely for
convenience. If sink has a hole that can accommodate the
RO faucet, no drilling is required. Proceed with mounting
the faucet.

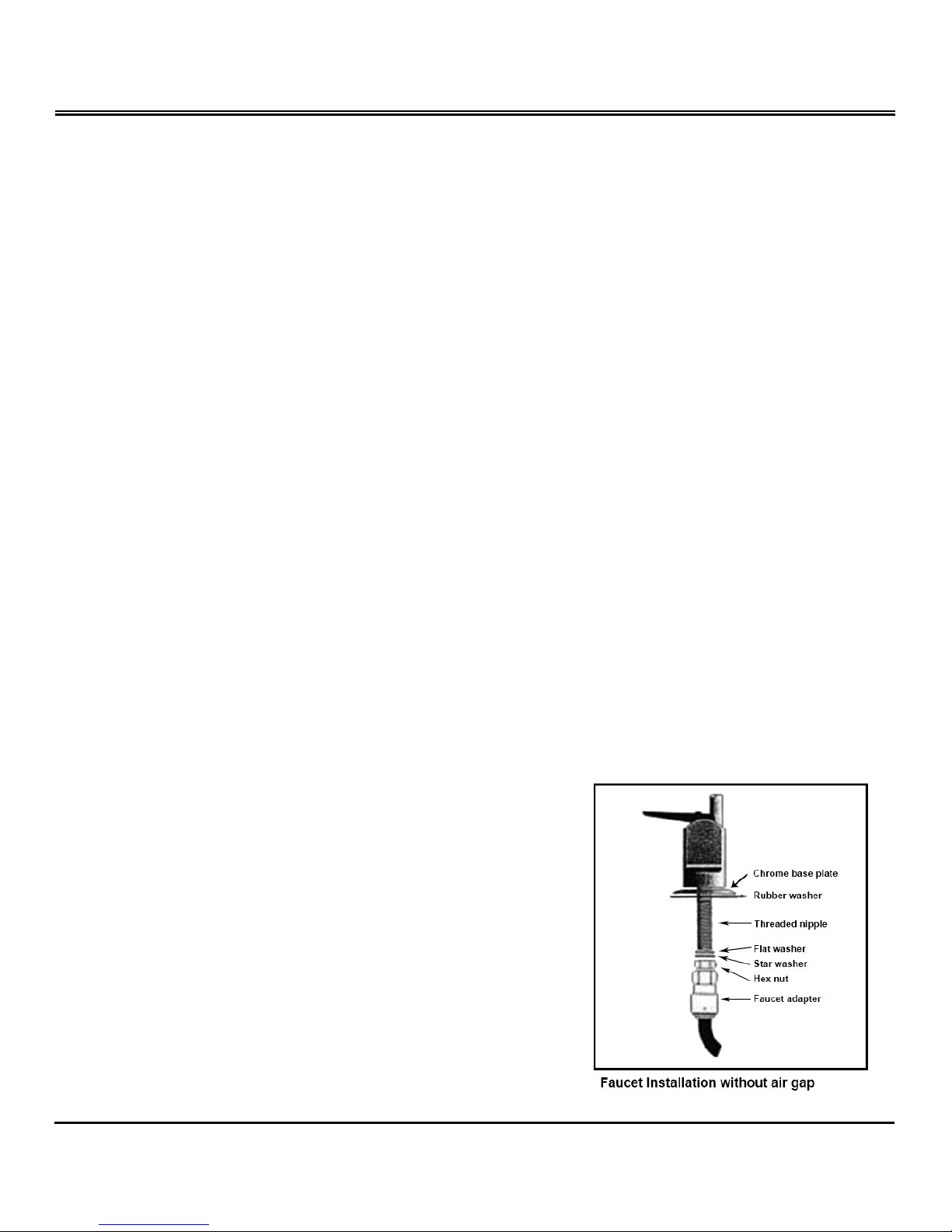

Fig. 1

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 5
B. Mounting the faucet
Install the faucet as shown in Fig. 1. Assistance may be
needed to hold the faucet in place while the nut is tightened.
Once the faucet is secure, install the 7/16” UNS x 3/8” QC
faucet connector on the threaded nipple. This fitting doesn’t
require sealant. This fitting will seal at the beveled surface.
Tighten the fitting hand tight then an additional ½ turn with a
wrench or pliers.
Now push the blue tube into the faucet connector. Leave the
other end of the blue tube unconnected for now, it will be
connected later in the installation.
C. Feed Water Angle Stop Valve and Tubing
Installation
To install the John Guest angle stop valve, turn off the cold
water supply valve for the sink faucet. Open the sink faucet
cold water and relieve the pressure. Remove the sink faucet
“whip hose” or tubing from the shutoff valve. There will be
residual water spilled when this tube is removed. Be sure to
have a towel to dry the water that is spilled. Now install the
angle stop valve on the sink faucet shutoff valve and tighten it .
Don’t worry about the angle stop valve position because it will
swivel and can be positioned later.
Now install the whip hose or tubing on the angle stop valve
and tighten.
Be sure the blue handle on the angle stop valve is in the
closed position (as pictured). Now open the sink shutoff valve
and check the angle stop connections for leaks. If there are
leaks repair them now. If there are no leaks connect the
orange tubing to the angle stop valve. Leave the other end of
this tubing unconnected for now, it will be connected later in
the installation.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 6
D. Drain Saddle Installation
Prior to drain saddle installation it is important to inspect the
condition of drain pipes to make sure they are not thin and frail.
Drain saddle valves are designed to be installed on standard 1
-1/2” OD drain pipe. Install the drain saddle valve above the
trap (between the sink and trap) and on the vertical or
horizontal tailpiece. Never install a drain saddle valve close to
the outlet of a garbage disposal or plugging of the RO drain
line may result.
Procedures
1. Position the port side of the drain saddle valve at selected
location and mark for the opening. Never position the
opening at the bottom. A side or top position is
recommended. Install rubber gasket on this half of the
drain saddle. Be sure the gasket hole is lined up with the
port hole.
2. Drill 1/4” hole at mark through one side of pipe.
3. Position both halves of drain saddle on drain pipe so
threaded opening lines with hole. A screwdriver may be
used to keep the holes oriented during the tightening
process.
4. Secure drain saddle clamp on valve with bolts and nuts
provided. (Do not over tighten and make sure there is equal
space between saddle halves on each side.)
5. Install the black drain line to the port on the drain saddle.
Leave the other end of this line loose to be connected later.

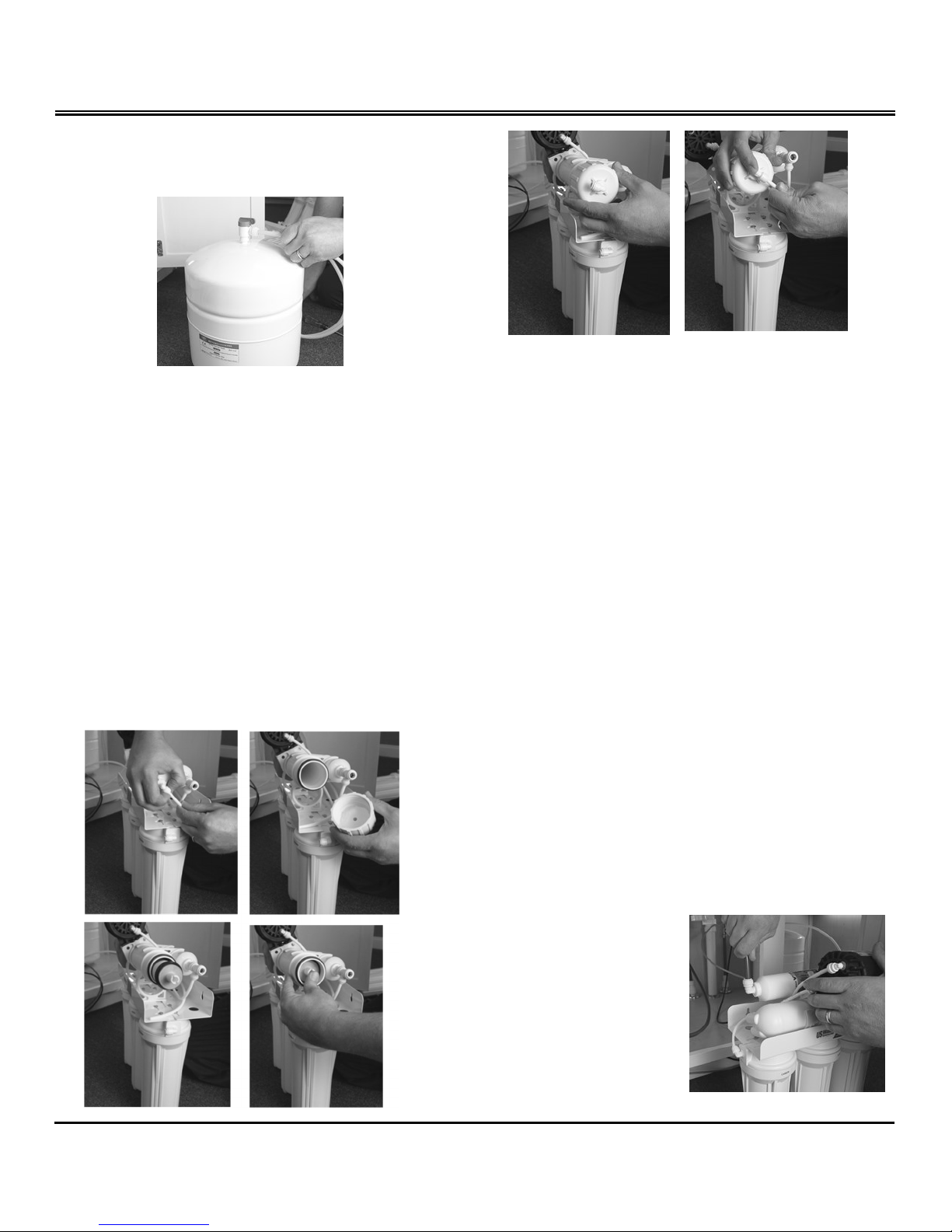

E. Tank Installation
1. Apply Teflon tape to the Tank outlet threads. About 3-4
wraps will be sufficient.
2. Install the tank valve by turning it clockwise. Tightening it
hand tight is usually adequate but additional tightening may be
required.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 7
3. Once the valve is installed, connect the green 3/8” tubing to
the tank valve. Leave the other end of the tubing loose for
now, it will be connected later in the installation.
NOTE: Tanks are pre-pressurized at 7 psi. Prior to installation,
check, add or release as required.
F. Initial tubing connections
You may want to leave the access tubing and not cut it. This
will allow space to pull the unit out of the cabinet for filter
changes without disconnecting all the tubing. If you want to
secure the system and cut the tubing to fit that is fine, but this
may require that the system be removed for filter changes or
the filters will have to be changed in the cabinet which is
sometimes difficult.

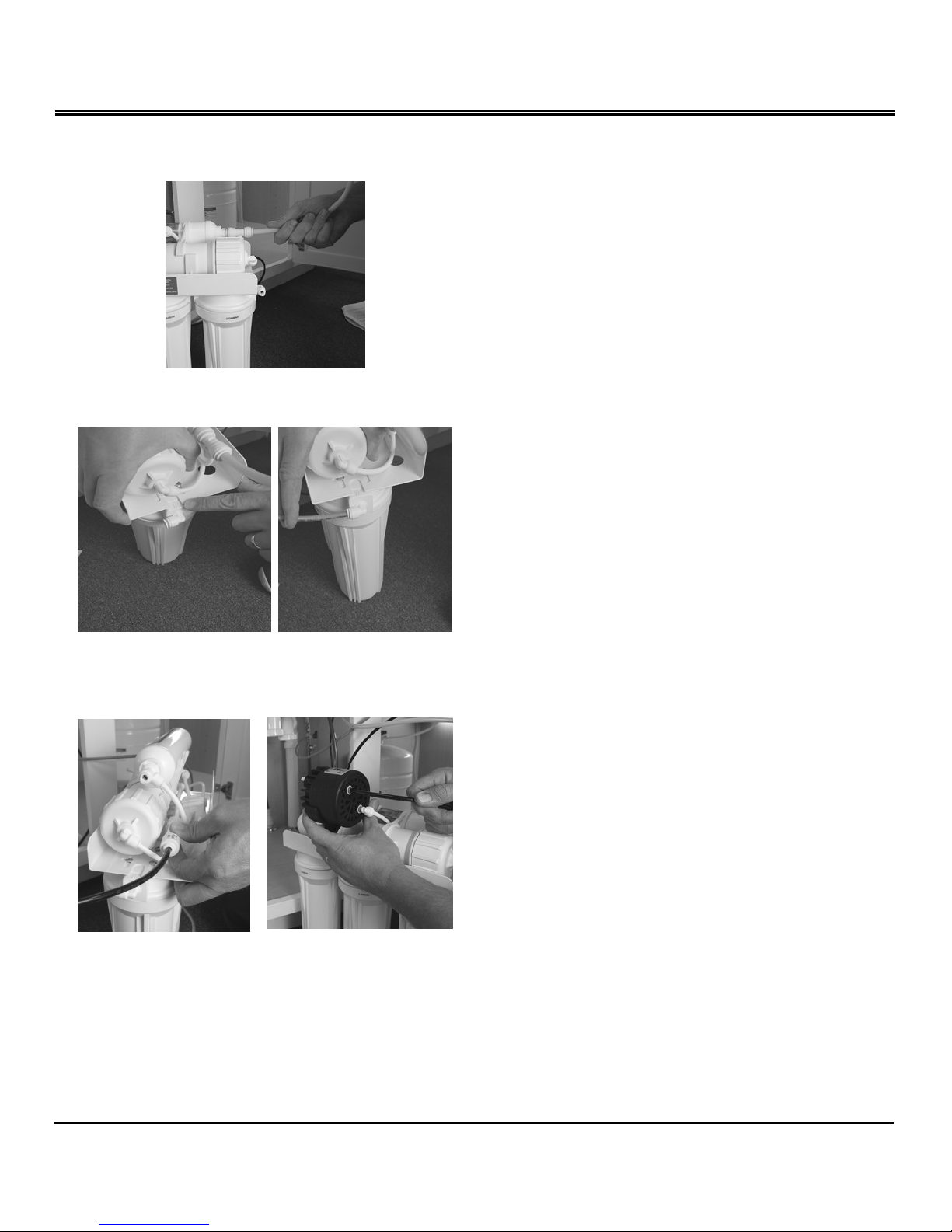

G. RO component installation
Install RO membrane, carbon pre-filter and sediment pre-filter

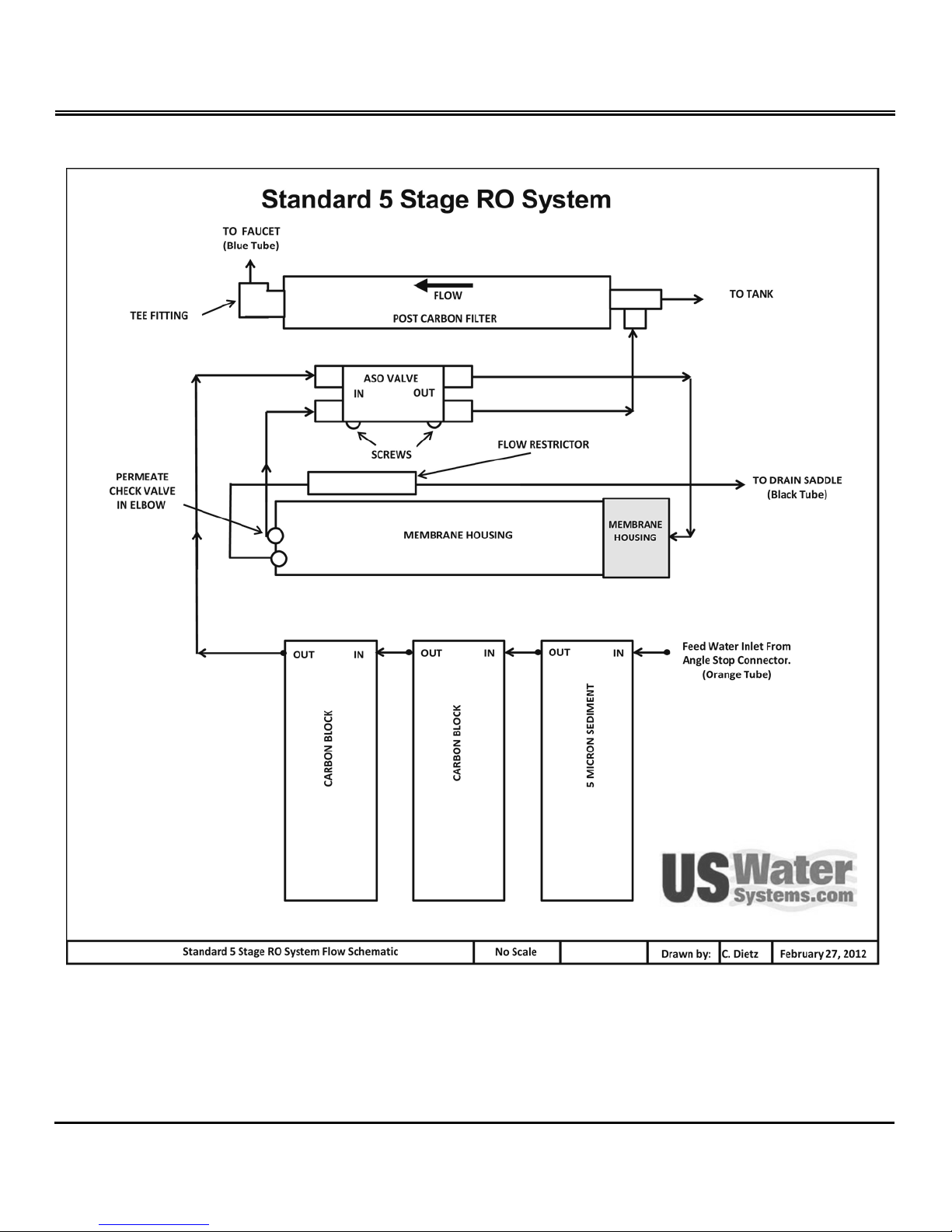

in modules of RO unit. (Refer to RO installation diagram). Be
sure that the gaskets and O-rings are in place. When installing
the membrane be sure that it is fully seated in the membrane
housing.
H. RO unit installation
The RO unit is normally mounted to the sink cabinet sidewall,
depending on where supply tank is to be located. Generally
the unit is installed at the front of the cabinet and the tank at
the rear.
To mount the unit, elevate it at least 2” off the floor, level it and
mark the location of mounting holes needed. Drill holes for
mounting screws and install screws, allowing the mounting
bracket slots to slip over them.
NOTE: If the cabinet sidewalls are not solid, unit may sit
on the floor with screws to keep it against the cabinet in a
vertical position. The system doesn’t have to be secured
to the wall but it is a good practice.
I. Final tubing connections
With all components in place, complete final tubing
connections using these guidelines:
 Tubing should follow contour of the cabinets.
 Cut tubing to desired length using square cuts or a proper
cutting devise.
 Make no sharp bends
Under sink installations following installation diagram and the
following procedures:
1. Connect the blue tubing from faucet to RO unit at the post
carbon filter outlet fitting.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 8
2. Connect the green tubing from tank to RO unit at the post
carbon filter inlet tee fitting.
3. Connect orange tubing from the angle stop supply valve to
RO unit at the sediment filter inlet fitting.
4. Connect the black tubing from the drain saddle to the RO
unit at the flow restrictor on the membrane or on the “Brine
Out” port on a permeate pump system.
Icemaker hookup (optional)
The RO drinking water device can be connected to any
standard refrigerator ice maker or ice maker/water dispenser.
3/8” tubing must be used for ice maker connections. If your
system is using 1/4” tubing for the tank and faucet it will need
to be changed to 3/8” tubing. (Do not connect to a commercial
type bar ice maker.)
To complete this operation, connect a tee with shutoff valve
into the faucet tubing and route tubing to the refrigerator.
(Hooking up to an existing copper line is not recommended).
Shut off ice maker prior to turning off the existing tap water
supply line to the refrigerator. Connect the RO system tubing
to the ice maker inlet. Turn on ice maker after the RO system
has been drained several times and the tank has a full supply
of water.
NOTE: Before any service is performed on the RO system, turn
off ice maker valve and ice maker unit. Turn back on only after
RO tank is full.
System start-up
Prior to start-up
1. Check all connections to be sure they are secure.
2. Turn on feed water valve and check for leaks. (Turn off
and correct leaks if leaks occur.)
3. Open valve on storage tank and open faucet until a steady
stream of water flows.
4. Close faucet and wait five minutes to see if leaks result. If
there are no leaks, allow the system to fill. Most systems
will be full within 2 hours. The system is full when the
water to the drain stops. Check for leaks with the system
full and repair them accordingly.
NOTE: When the system is first turned on, water may
intermittently “spurt” from the air gap opening on the side of air
gap faucets. This is common and should correct itself after an
initial period of time.
Flushing system and checking operation
To make sure RO system is operating correctly, follow these
simple procedures:
1. Open faucet handle and allow tank to completely drain.
2. Close faucet and re-fill the system.
3. Allow system to process water for approximately 2-3
hours, at which point tank will be practically full.
4. Open faucet again and allow tank to empty for a second
time. Do not use this water.
5. Wait another 2-3 hours to allow tank to re-fill. NOTE: If no
objectionable tastes are noticed after second tank draining,
RO processed water is ready for use. Otherwise, drain tank
and re-fill for a third time.
6. At this point supply line to ice maker connection (optional)
may be opened.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 9
Maintenance
Your RO system contains filters and membranes which must
be replaced periodically for proper operation.
NOTE: Change-out procedures may be amended, depending
on source water conditions.
Your Reverse Osmosis System has been tested to ensure it
will operate correctly. The following periodic maintenance is
recommended so your system will provide years of trouble-
free service:
NOTE: Filter change frequencies may be amended, depending
on source water conditions.
To change filters and membranes follow these procedures:
1. Close feed water valve by turning it clockwise.
2. Open faucet to allow holding tank to drain.
3. Loosen and remove filter housings using wrench provided
and discard cartridges and or membrane.
4. Wash the inside of the housings using mild detergent and
soft cloth. Thoroughly rinse all soap before reassembly.
5. Replace filter cartridges and membrane before sanitizing
system.
NOTE: The system should be sanitized before installing the
activated carbon post filter cartridge.
Sanitizing instructions
To sanitize system follow these procedures with the feed
water valve closed:
1. Remove pre-filters and membrane from housings.
2. Use 5-1/4% unscented bleach such as Clorox.
3. Add one cap full (2 tsp. or 10 ml) of bleach to each pre
-filter housing and membrane module.
4. Carefully re-fill housings with tap water and
temporarily replace WITHOUT carbon cartridge,
sediment cartridge or membrane installed.
5. Slowly open the feed water line at faucet.
6. Close faucet as soon as water begins to drip out of
spout.
7. Let system stand for approximately 15 minutes.
8. After fifteen minutes do the following in order:
9. Close feed water valve.
10. Close holding tank valve while faucet is open to release
pressure.
11. Remove housings and empty them.
12. Remove any protective wrap from pre-filters and
membrane and install them in the appropriate filter
housings. NOTE: Be sure to check O-rings are in
place when installing cartridges in filter housings.
Tighten with wrench.
13. Replace post carbon filter if necessary. Disconnect
product water tubing from the holding tank and put 50
drops of bleach into the tubing. Reconnect tubing.
14. Slowly open feed water valve. When water begins to
drip from faucet, close faucet and open holding tank
valve. Do not open faucet for at least eight (8) hours.
15. Discard the first two tanks of water produced, as they
contain chlorine. Do not use this water.
16. When faucet is first opened, air and black carbon
powder may be noticed. This is normal.
Water quality
Water quality from an RO system is normally determined with
a TDS Meter, which measures total dissolved solids in water,
measuring conductivity. The results are normally measured in
parts per million or milligrams per liter. Fewer dissolved solids
results in higher quality water.
RO membranes are rated by the amount of dissolved solids
they reject expressed as “rejection percentage”.
For example:
If feed water contains 100 ppm of dissolved solids and the
product water after the membrane has 10 ppm of dissolved
solids the rejection rate is 90%.
The formula is as follows:
RO membranes should operate between an 80-97% rejection
rate. Once the rejection falls below 80%, the membrane must
be replaced.
Replacement part Frequency
Pre-filter (sediment) Every 6-12 months.
Pre-filters (activated carbon) Every 6-12 months.
R/O membrane Every 3-5 years
Post filter (carbon) Every 6-12 months.
Percent Rejection
=
(Feed H2O TDS - Product H2O TDS) x 100%
Feed H2O

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 10
Water production
PRODUCT WATER RATE
Usable water production from an RO system is designated
product water rate, produced on a daily basis. The rate is
normally described in gallons per day (gpd) or milliliters
per minute (ml/min).
REJECT WATER RATE
The flow of water to drain is designated as reject water
rate, as measured in gallons per day (gpd) or milliliters per
minute (ml/min).
Using a graduated cylinder the formulas are:
REJECT RATIO
The reject ratio is the amount of water produced
compared to the amount of water flowing to drain.
The formula is as follows:
PERCENT RECOVERY
The percent recovery is another way to measure the amount
of water produced compared to the amount of water which is
actually used.
The formula to determine percent recovery is as
follows:
NOTE: Product water rate is the sum of the feed water
flow rate and reject water flow rate.
For example:
Water pressure and temperature
Product water quality and production of RO systems is
dependent on pressure and temperature. Typically, RO
membranes are treated at standard conditions of 77°F (25°C)
and 60 psi (4 bar) discharging to atmosphere. In general, the
higher the pressure differential and temperature, the greater
the quality and quantity of water produced. These factors
should be considered when sizing RO systems for a particular
application.
Quick connect fittings
Many RO systems utilize Quick Connect fittings. These user-
friendly fittings provide superior performance and may be
provided with this system. Proper use of these push-in fittings
is shown below. Along with these fittings, all tubing selected
must be of high quality and must be cut with a plastic tube
cutter or sharp razor with a clean, square cut.
How to make a connection:
1. Cut the tube square
Cut the tube square. It is essential that the outside diameter
be free from score marks and that burrs and sharp edges
be removed before inserting into fitting. For soft thin walled
tubing we recommend the use of tube inserts.
2. Insert tube
Fitting grips before it seals. Ensure tube is pushed fully into
the tube stop.
Milliliters per minute x 0.38 = gallons per day
Ounces per minute x 11.2 = gallons per day
Product water rate =10 gpd
Reject water rate = 40 gpd
Feed water = (10 gpd + 40 gpd) or 50 gpd
Percent Recovery = 20%
Reject Ratio =
Reject Rate
Product Rate
Percent Recovery
=
Product H2O Rate x 100%
Feed H2O Rate

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 11

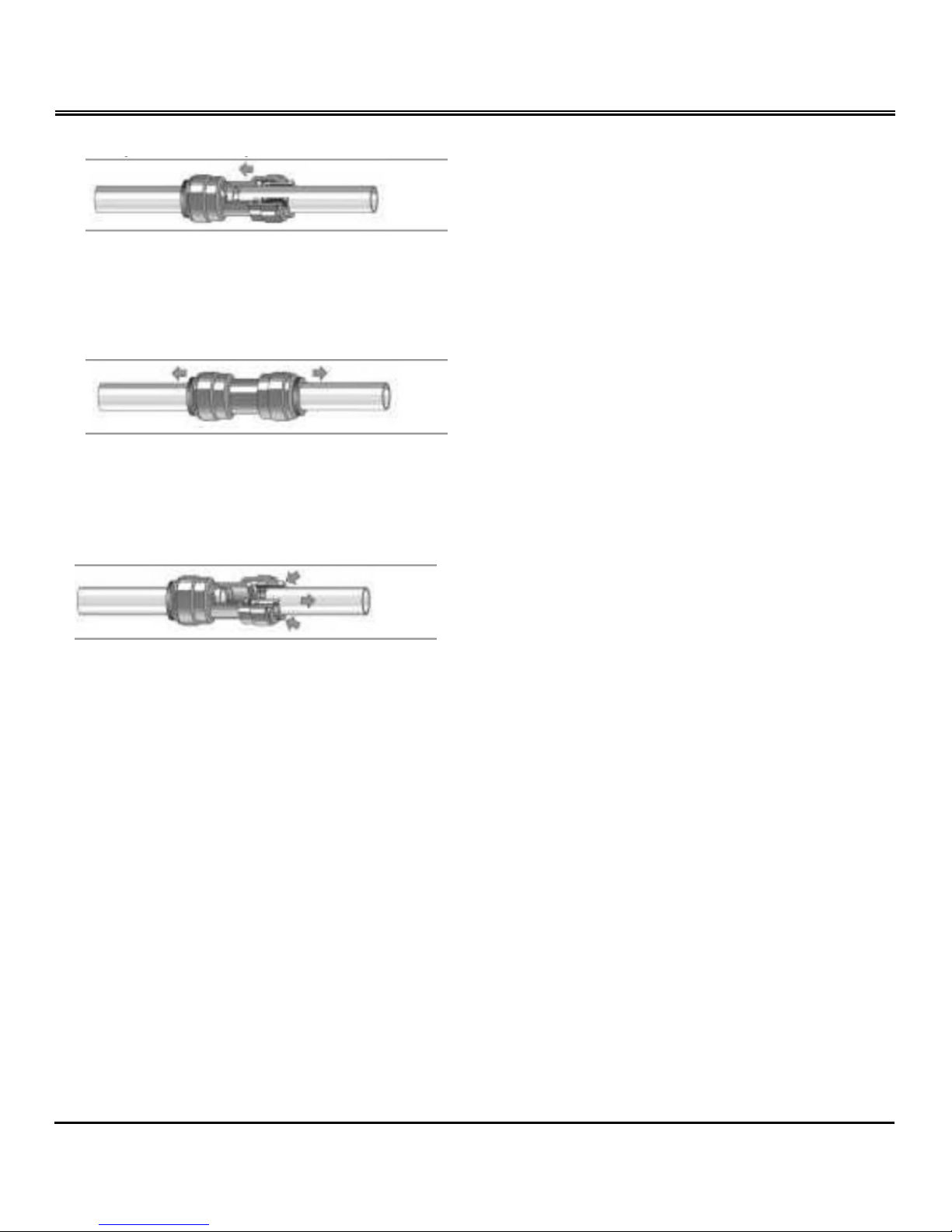

3. Push up to the tube stop
Push the tube into the fitting to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
firmly in position while the O-ring provides a permanent
leak proof seal.
4. Pull to check secure
Pull on the tube to check that it is secure. It is a good
practice to test the system prior to leaving the site and/or
before use.
Disconnecting
Push in Collet and remove tube
To disconnect, ensure the system is depressurized before
removing the tube. Push in collet squarely against face of
fitting. With the collet held in this position, the tube can be
removed. The fitting can be re-used.
Should a leak occur at a fitting, the cause is generally defective
tubing. To fix a leak, relieve pressure, release tubing, cut off at
least 1/4” from the end (square cut), reattach the tubing and
confirm the connection is leak free. Each time a new
connection is made, it is advisable to cut off 1/4” from the end
of the tubing using these fittings.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 12
(Green Tube)

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 13
(Green Tube)

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 14
Ice Maker Kit Installation Instructions
1. Cut the 3/8" line that goes to the faucet and insert the 3/8" tee fitting.
2. Attach the 3/8" tubing that came with the kit to the open port on the tee.
3. Cut this tube about 2" after the 3/8" tee. Insert the shut off valve.
4. Attach the remaining 3/8" tubing to the other end of the valve.
5. Now run the 3/8" tubing to the refrigerator/ice maker close to the water inlet solenoid.
6. Once the tubing is routed to the refrigerator/ice maker, use the 3/8" to 1/4" adaptor to the existing 1/4" tubing on
the refrigerator/ice maker or use the 7/16" x 3/8" water inlet solenoid adaptor. If the solenoid adaptor is used,
remove the 1/4" existing line nut and sleeve, then screw the adaptor to the water inlet solenoid. No sealant or
teflon tape is required for solenoid adaptor. It is a compression fitting. Tighten the fitting and insert the 3/8" tub-
ing. Leave the ice maker off until the RO system is flushed and full.
7. When the RO system is full, turn on the ice maker shutoff valve and the ice maker shutoff lever or switch.
8. Disregard the first two batches of ice. This will flush the internal tubing in the ice maker or refrigerator.
9. If there is a filter in the refrigerator or ice maker be sure to bypass it or make sure it is change annually with the
RO system filter.
Flow Schematic is on the next page.

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 15

Installation Instructions
Residential Reverse Osmosis Drinking Water System
Page 16
1. Turn off water supply to filter.
2. Turn off tank Valve and open the faucet to relieve the
pressure in the system.
3. Unscrew housing using filter wrench.
NOTE: When opening filter housing to change cartridge, it is
common for O-ring/Gasket to lift out of housing and stick to
cap.
4. Remove used cartridge and discard. Rinse out housing
and fill about 1/3 full with water. Add about 2 to 3
tablespoons of bleach and scrub thoroughly with brush or
sponge. Rinse thoroughly.
5. Remove O-ring/Gasket from sump and wipe groove and
O-ring/Gasket clean. Lubricate O-ring/Gasket with a
coating of clean silicone grease. Place O-ring/Gasket back
in place and press O-ring down into the groove.
NOTE: This step is important to ensure proper filter seal. Make
sure the O-ring is seated level in the groove (or gasket is on
rim of sump).
CAUTION: If O-ring/Gasket appears damaged or crimped it
should be replaced at this time. See your local dealer for
replacements parts.
6. Insert a new cartridge into the sump making sure that it
slips down over the sump standpipe.
7. Screw the sump onto the cap and hand tighten. DO NOT
OVER-TIGHTEN. Make sure cartridge slips over the cap
standpipe.
8. Repeat these steps for all 3 pre-filters.
9. Remove the fittings from the post carbon filter and discard
old filter. Wrap the fittings with Teflon tape (about 3
wraps). Install the fittings in the new filter and attach the
tubing.
10. Turn on the water supply slowly to allow housing to fill with
water.
11. Check for leaks before leaving installation.
WARNING: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection
before or after the unit.
NOTE: Activated carbon cartridges and carbon block
cartridges may contain a small amount of carbon fines (very
fine black powder) and a new cartridge, after installation,
should be flushed with sufficient water to remove the fines
before using the water. Each time you use water from your
filtered water tap for drinking or cooking purpose, it is
recommended that you run (flush) the tap at least 10 seconds
prior to using water. This is particularly important if the water
tap is not used daily.
NOTE: Replacement cartridges have a limited service life.
Changes in taste, color and flow of the water being filtered are
signals that replacement of the cartridge is or soon may be
necessary.
CAUTION: Filter housing must be protected against freezing
and extreme temperatures. Filter housings should not be in
direct contact with sunlight for a prolonged period of time since
UV rays can make housings brittle. Pressure should always be
measured before installation and water pressure regulators
should be installed in the main line or in front of the housing if
water pressure exceeds manufacturers’ maximum water
pressure: 75 PSI. Installers should make sure filters and
replacement filters are the correct length and are not too long
so as to not cause undo strain and stress on the housing.
CAUTION: All filtration systems contain other parts that have a
limited service life.
Exhaustion of the service life of those parts often cannot be
easily detected. Commonly, it is only after leakage has been
observed or water damage has occurred that one is made
aware that the service life has been exhausted
Filter Change Instructions • Housing Care • Installation Instructions & Guidelines

AQUAPURION 5 STAGE
For three (3) years to the original purchaser, at the original residential
place of installation of this Aquapurion 5 Stage Series Reverse Osmosis
Drinking Water Purification System, US WATER SYSTEMS, INC.
warrants the following:
THREE YEAR COVERAGE
Storage Tank
Filter Housings
Membrane Housing
Free of all costs to you except transportation and labor charges, we
warrant that we will replace or repair the storage tank, filter housings,
and membrane housing, if for any reason it is found to be defective,
because of faulty materials or workmanship.
ONE YEAR COVERAGE
All Other Parts
We warrant that for one (1) year from the date of installation, we will
replace any part not listed above at no charge to you except for
transportation and standard labor charges, except the following items:
Pre filters
Post filters
Reverse Osmosis Membrane
AQUAPURION PLUS OR
PERMEATE PUMP SYSTEM
For five (5) years to the original purchaser, at the original residential
place of installation of this Aquapurion 5 Stage Series Permeate Pump
Reverse Osmosis Drinking Water Purification System, US WATER
SYSTEMS, INC. warrants the following:
FIVE YEAR COVERAGE
Storage Tank
Filter Housings
Membrane Housing
Free of all costs to you except transportation and labor charges, we
warrant that we will replace or repair the storage tank, filter housings,
and membrane housing, if for any reason it is found to be defective,
because of faulty materials or workmanship.
ONE YEAR COVERAGE
All Other Parts
We warrant that for one (1) year from the date of installation, we will
replace any part not listed above at no charge to you except for
transportation and standard labor charges, except the following items:
Pre filters
Post filters
Reverse Osmosis Membrane
GENERAL PROVISIONS
This warranty does not apply to any commercial or industrial
installations or to any part of the reverse osmosis system which has been
subjected to misuse, neglect, alteration or accident; or to any damage
caused by fire, flood, freezing, Acts of God, or any other casualty, or if
said system is damaged by anyone, or if the original serial numbers have
been removed. Fouling or damage to the membrane or filters caused by
iron, sulfur, bacterial iron, silt, sand, tannins, organics, bacteria, hot
water or chlorine voids the warranty on the membrane..
These warranties are in lieu of all other warranties expressed or implied,
and we do not authorize any person to assume for us any other
obligation on the sale of this water conditioner. No responsibility is
assumed for delays or failure to meet these warranties caused by strike,
government regulations or other circumstances beyond the control of US
WATER SYSTEMS, INC.
TO OBTAIN WARRANTY SERVICE, CALL OR WRITE: US WATER
SYSTEMS, INC. 1209 COUNTRY CLUB ROAD INDIANAPOLIS,
IN 46234 [phone] OR 800-608-8792.
ANY IMPLIED WARRANTIES OF FITNESS OR
MERCHANTABILITY ARE LIMITED TO THE TERMS OF THIS
EXPRESSED WARRANTY AND THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THOSE HEREIN. US WATER
SYSTEMS, INC. SHALL NOT BE LIABLE WHATSOEVER FOR
ANY INCIDENTIAL AND/OR CONSEQUENTIAL DAMAGES.
SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
THIS WARRANTY MAY BE TRANSFRRED TO A SUBSEQUENT
OWNER WITH WRITTEN APPROVAL OF US WATER SYSTEMS,
INC. AND PAYMENT OF STANDARD TRANSFER FEE.
FOR YOUR RECORDS:
Model__________________________________________
Serial __________________________________________
Date Installed ___________________________________
