Greenwave Plus Salt-Free Water Conditioner
Owners Manual
Models:
385--GWP-1000-UV, 385-GWP-1500-UV, 385-GWP-2000-UV
REVISION # 1.3
REVISION DATE May 5, 2015
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
Visit us online at
www.uswatersystems.com

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
2 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
Table of Contents
Introduction 3
Notes to the Installer 4-5
System Specification 6
System Overview 7-8
Filter Housing Installation 9-12
Carbon Tank Installation 13
Greenwave Tank Installation 14
UV Installation 15-17
Start Up 18
Note to the Homeowner 19
Warranty 20-22
Unpacking / Inspection
Be sure to check the entire system for any shipping damage or parts loss. Also note damage
to the shipping cartons. Contact US Water Systems at 1-800-608-8792 or visit
www.uswatersystems.com/returns to report any shipping damage within 24 hours of deliv-
ery. Claims made after 24 hours may not be honored.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
3 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP

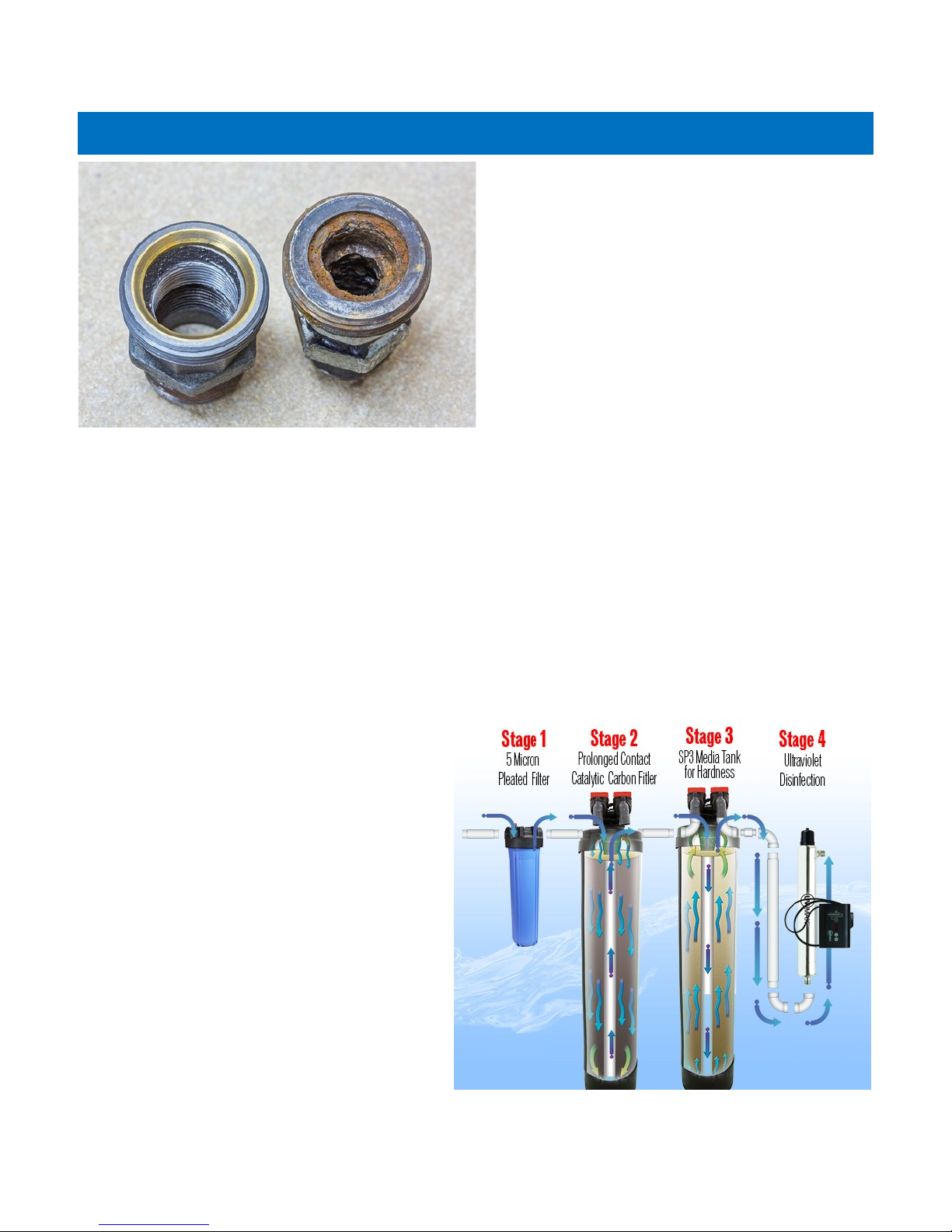

The GreenWave system provides protection
from scale formation throughout the home.
The GreenWave system can be installed at
the point-of-entry to treat your entire home,
both hot and cold water, or it can be located
directly before a water heater or other device
(e.g. sauna, etc) that requires protection from
hard water.
GreenWave reduces or eliminates scale
formation on internal and external plumbing
surfaces as well as reducing spotting and
streaking normally associated with hard
water.
GreenWave prevents scale by transforming the normal dissolved hardness minerals into
undissolved crystal micro-particles. These crystals stay suspended in the water and have a
greatly reduced ability to react and attach to surfaces like dissolved hardness does. Therefore
the problem of internal build¬up of scale in pipes, water heaters and on fixtures and glass is
greatly reduced.
GreenWave is not a water softener – Low or phosphate-free cleaning products are
recommended to achieve optimum results. Modern surfactant or detergent based, liquid soaps
are preferred over old-fashioned fashioned caustic solid soaps. Unlike softened water,
GreenWave treated water maintains the beneficial essential mineral content of your water and
is safe to drink.
GreenWave Benefits
 Chemical Free Scale Prevention. Cost
savings and environmental benefits
 Virtually Maintenance Free. No salt bags
or other chemicals to buy, transport and
store
 Beneficial minerals retained for more
healthful drinking water
 Improves the efficiency of water-using
appliances
 Simple installation – no electrical and
drain hookup
 Safe for landscaping and lawn watering.
No need for costly plumbing bypasses
 Compatible with all on-site and
community wastewater treatment
systems
 Not subject to water softener restrictions
and "bans"
Introduction

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
4 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
Proper Installation
This water conditioning system must be properly installed and located in accordance with the
Installation Instructions before it is used or the warranty will be void.
Do not install or store where it will be ex-
posed to temperatures below freezing or ex-
posed to any type of weather. Water freezing
in the system will break it. Do not attempt to
treat water over 100°F.
Do not install in direct sunlight. Excessive
sun or heat may cause distortion or other
damage to non-metallic parts.
Iron levels must be less than 0.3 mg/L
Manganese levels must be less tha 0.05 mg/L
Copper levels must be less than 1.3 mg/L
WARNING: Discard all unused parts and
packaging material after installation. Small
parts remaining after the installation could be
a choke hazard.
32° - 100° F
No Direct Sunlight
Discard All
Unused Material
Fe
Mn
Cu
Less than 0.3 mg/L
Less than 0.05 mg/L
Less than 1.3 mg/L

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
5 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
Iron and Manganese
Just as with conventional water softening media, GreenWave needs to be
protected from excess levels of certain metals that can easily coat the active
surface, reducing its effectiveness over time. Public water supplies rarely,
present a problem, but if the water supply is from a private well confirm that
the levels of iron (Fe) and manganese (Mn) are less than 0.3 mg/L and 0.05
mg/L respectively. Copper should be less than 1.3 mg/L.
Copper
Copper usually originates from new copper plumbing upstream of the
GreenWave system. If this condition exists, we recommend waiting 3-4 weeks
before placing the system in operation. This will allow the copper surfaces to
be fully flushed and develop a natural protective surface. To further minimize
any problem with excess copper the installers should be advised to avoid
applying excess flux on the inner surfaces of the pipe and to use a low-
corrosivity water soluble flux listed under the ASTM 8813 standard. Once the
plumbing connections are complete, place the GreenWave system in bypass
prior to following the startup procedure and flush the plumbing for at least 10
minutes.
Cautions!
 Do not let the system freeze. Damage to the tank and pre-filter may result.
 System must be operated in a vertical position. Do not lay it down during operation. The system
may be placed in any position for shipping and installation but must be operated in the vertical
position.
 Place the system on a smooth, level surface. Because the system operates in an UP-Flow,
fluidized bed mode, having a level surface is more important than with a softener or media filter.
 A bypass valve should be installed on every system to facilitate installation and service.
 Observe all local plumbing and building codes when installing the system.
The GreenWave system differs from a conventional softener or media filter in a number of key
respects:
 The system is light and only partially filled with media. This is normal. The UP-flow operation of
the system requires a lot of freeboard to allow the bed to fully fluidize.
 The system has no underbed so you can tip the system over without any fear of upsetting the
media. This makes transportation and installation much easier than conventional systems.
 Because the GreenWave system operates in the UP-Flow mode, the tank connections are
opposite of what you're used to.
 Please see the "important note about iron, manganese and copper" above.
 Please see the note about "Using GreenWave with other water treatment equipment" on page
9.
An Important Note about Iron, Manganese & Copper
Notes to the Installer

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
6 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
GreenWave systems are complete, self-contained, loaded with media and ready to use. A
simple inlet and outlet connection is all that is required for installation. Please review operating
pressures, temperatures and water chemistry limitations to ensure compatibility.
Specicaons
Inlet/Outlet Connection 3/4” - 1” PVC
Temperature 40° - 110°F
pH 6.5 - 8.5
Ferrous Iron, Max* 0.3 mg/L
Manganese, Max* 0.05 mg/L
Copper, Max* 1.3 mg/L
Water Pressure 15 min, 100 max (PSI)
*See note about iron, manganese and copper on page 5.
Mechanical Specicaons
1000 1500 2000
Max Service Flow (gpm) 10 15 20
Dry Weight (lbs) 22 29 35
Service Weight (lbs) 80 129 168
Dimensions (nominal - inches)
A52.5 58.5 56.5
B50 56 54
C910 12
D2.5 2.5 2.5
E3.0 3.0 3.0
Using GreenWave with other water treatment equipment.
Due to the unique properties of GreenWave, there are some specific requirements for using
GreenWave in conjunction with filtration or other forms of water treatment.
1. Do not install any filters after GreenWave or before any devices for which scale prevention
is required. POU filters, e.g. carbon or RO are exempt from this requirement.
2. Do not apply phosphate or any other anti-scalant either before or after GreenWave.
Equipment Specifications

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
7 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
UV Light Equipment Specifications
This point-of-use system allows for simple installation and operation due to its high output
lamp and compact reactor. The reactor is an axial flow design with superior hydraulics, com-
pact design and 1” NPT connections. The controller is a simple plug in device connecting to
the lamp with a safety cap.
Water Quality Guidelines
Iron < 0.3 ppm (0.3 mg/L)
Hardness < 7 gpg (120 mg/L)
Turbidity < 1 NTU
Manganese < 0.05 ppm (0.05 mg/L)
Tannins < 0.1 ppm (0.1 mg/L)
UV Transmittance > 85%
The UV light system uses ultraviolet let to kill bacteria and other organics in the water source.
The light from the UV bulb passes through the water and destroys the organic contaminants.
The UV bulb is utilizes a quartz sleeve on the outer portion to isolate the water from the UV
bulb element.
WARNING!
If this quartz sleeve becomes coated or stained it will reduce the light that can pass
through the water in the chamber, thus inhibiting the bacteria removal by the UV light.
It is crucial that the iron, manganese and any tannins in the water are removed prior to
the UV to ensure the light is penetrating the quartz sleeve and its’ full intensity.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
8 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
UV Light Equipment Specifications
Operation
The US Water Systems UV comes with a feature laden controller that incorporates both the lamp driver
(ballast) and control features in one water-tight case. CAUTION: Prior to performing any
maintenance on your UV system, you must always disconnect the power.

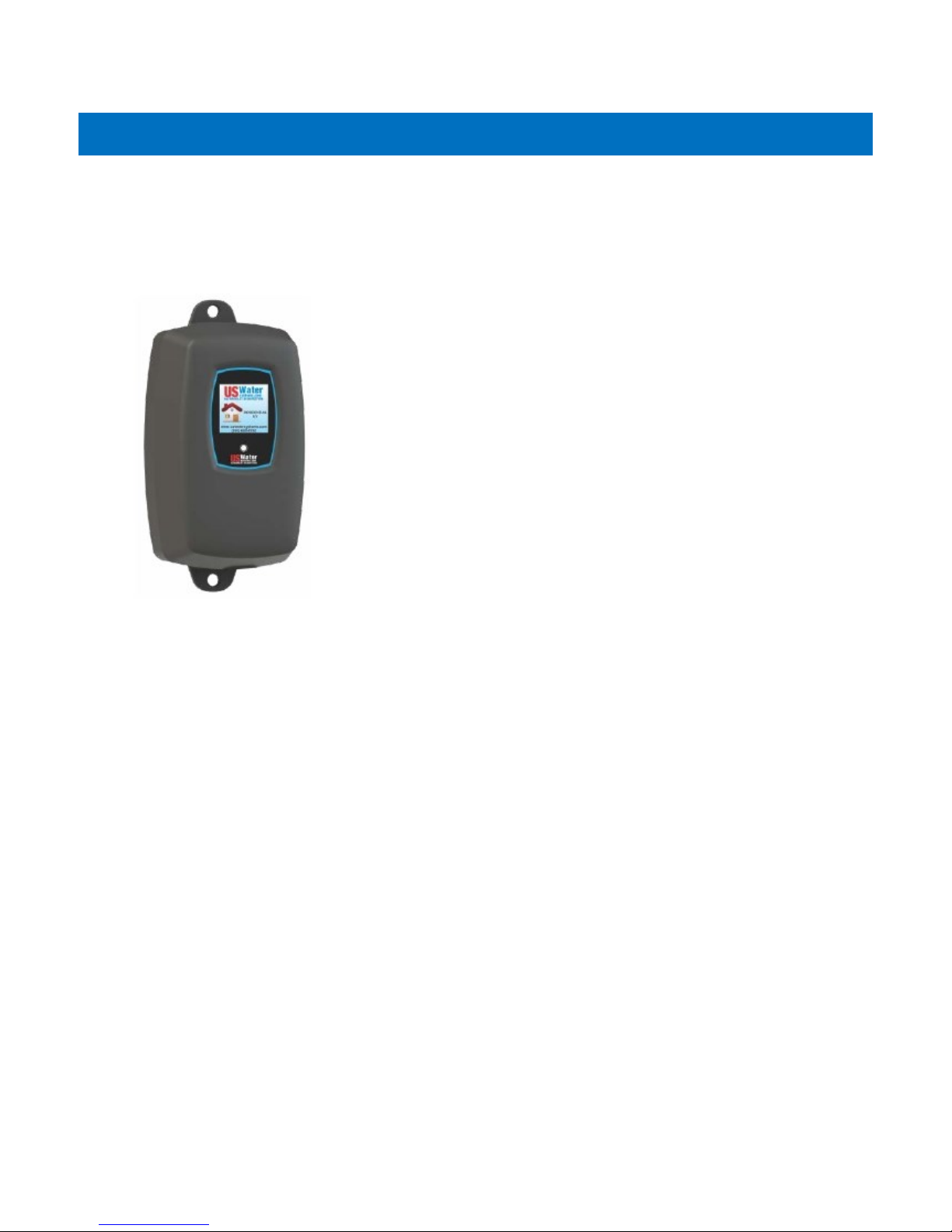

USWATER 5.0 & USWATER 6.0 Controller
This controller features a power factor corrected, constant current lamp
driver with a universal power input. A full color LCD screen provides
the user with a detailed description of the system's performance in
addition to providing any applicable fault messages and system
diagnostics. The controllers used in both the USWATER5.0 and USWATER6.0
are identical. The difference is that the USWATER 6.0 series of products
includes a UV intensity monitor. All USWATER 5.0 and USWATER 6.0 controllers
include an "infinite expandability port" located on the right side of the
controller. Simply plug in an optional UV sensor module into the
expandability port of a USWATER 5.0 controller and the system will now
monitor the UV intensity of the system!

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
9 US Water GreenWave Plus Salt-Free Water Conditioner | 385-GWP
UV Light Equipment Specifications
USWATER 5.0 & USWATER 6.0 Power-up Sequence
Upon start up, the 5.0 & 6.0 controller will run through a diagnostic start-up and the sequence will
be displayed as follows on the color LCD:
Next, the controller checks for the installation of any optional modules that may be installed on the
system. It first checks to see if a module is installed and then either initializes the module to
function with the controller or returns a "not detected" screen and moves on to the next module.

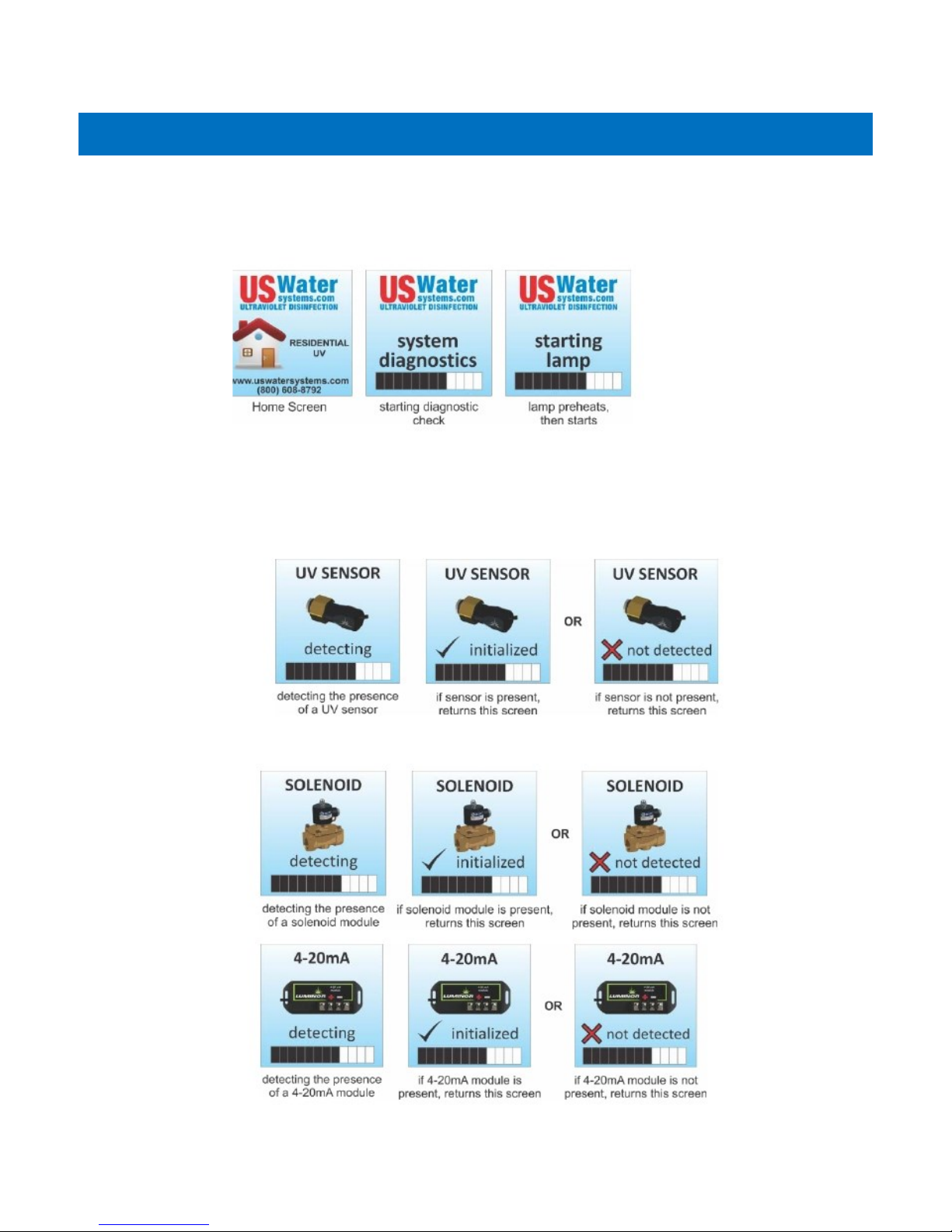

The screens will appear as follows:
UV Sensor
Module Check
Solenoid
Module Check
4-20 mA
Module Check

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
10 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
UV Light Equipment Specifications
Ethernet
Module Check
Remote Alarm
Module Check
Once the controller has finished checking for the installation of all available modules a single screen is dis-
played showing which specific modules are installed and activated on this particular system. Please Note:
If the corresponding module icon is not displayed on this screen, then that module is not installed on this
system. If you believe this module is installed correctly, recheck the applicable connections to ensure a
solid connection point and then restart the controller. The controller then continues to optimize the lamp
efficiency by waiting 60 seconds to allow the lamp to reach its optimum output. Finally, a final "start-up
complete" screen is displayed. These screens will appear as follows:
USWATER 5.0 Operational Screens
On USWATER5.0 systems (without the UV monitor), the default screen shows the US Water Systems Home
Screen. At any po int du rin g operatio n th e user is ab le to s cr oll t hro ug h t he US Water Systems
Home Screen, Lamp life remaining and QR Code/Contact Info screens by simply pressing the button
located on the front of the controller.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
11 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
UV Light Equipment Specifications
USWATER 6.0 Operational Screens
On systems that have the UV module installed (and on all USWATER6.0 systems), the default screen
shows the % UV Intensity. At any point during operation the user is able to scroll through the % UV
Intensity, Lamp life remaining and QR Code sc r een s by si m pl y pr es si n g th e bu tto n lo c at ed
on the
front of the controller.
USWATER 6.0 % UV Intensity
If your system is equipped with a UV sensor the % UV Output screens will indicate the level of UV intensi-
ty that is being detected within the reactor by the sensor. This will always be visible on the Home Screen
of the controller. Things that can affect the % UV Output are poor water quality, scaling of the quartz
sleeve and/or sensor, lamp failure, expired lamp life and sensor failure. The following screens show the
% UV Output dropping on a monitored system.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
12 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
UV Light Equipment Specifications

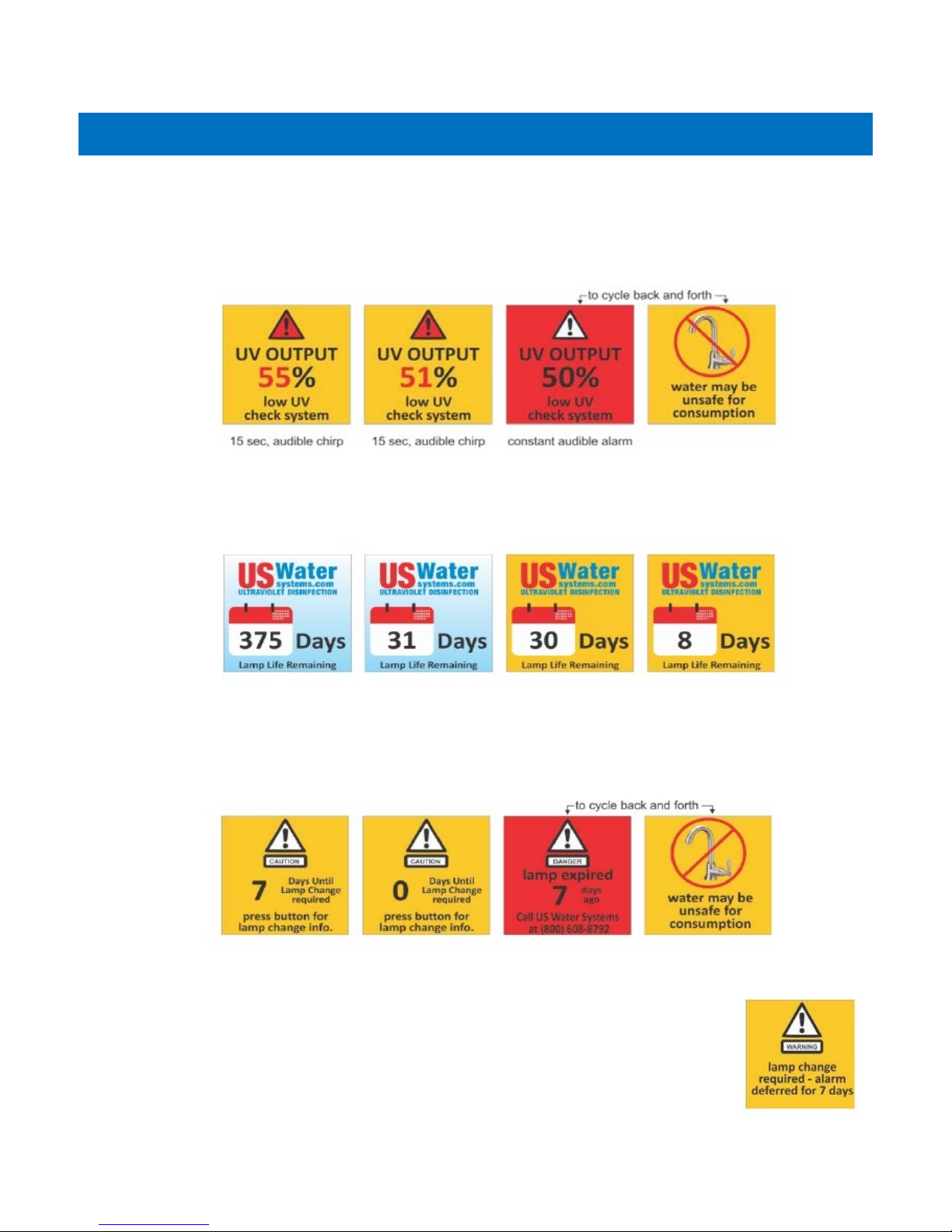

Once the UV output drops below 56%, the numbers and warning sign switch to red and a 15 second intermit-
tent audible chirp is given off by the ballast. When the output drops below 51%, the display switches to a
solid red and a constant audible signal is provided. The screens alternate between this solid red
screen and another screen indicating "water may be unsafe for consumption". At this point, the controller
also provides a signal to de-activate the solenoid valve, shutting off the flow of water if a solenoid valve is
installed on the system.
USWATER5.0 & USWATER6.0 Lamp Countdown Sequence
The USWATER5.0 & USWATER6.0 counts down the number of days until a lamp change is required. The
operation is as follows:
Once the lamp has seven days remaining until a lamp change is required, the screen changes to a yellow
caution screen. At this point, an audible chirp is given off by the ballast to draw your attention to the
pending lamp change condition. When the controller passes the zero day threshold, the screen chang-
es to solid red and cycles between a red "lamp expired" screen and a "water may be unsafe for consump-
tion" screen. The same intermittent audible chirp is heard throughout this lamp expired sequence.
At any point during this sequence, the audible chirp can be deferred by holding the controller button
down for a period of five seconds. The screen shown below will appear for five seconds indicating that
the audible deferral has been activated and then the system switches back to the cur-
rent lamp change or lamp expired screen. This audible deferral will last for seven
days after which then the alarm will sound once again. This audible deferral feature can
be activated as many times as you wish. PLEASE NOTE: During the condition of lamp
expiration and audible deferral, the water may be unsafe for consumption and should
not be consumed without another form of disinfection.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
13 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
UV Light Equipment Specifications
USWATER5.0 & USWATER6.0 Lamp Countdown Reset Sequence
After changing the lamp on the USWATER5.0 & USWATER.0 systems, the controller must be reset in
order for the system to begin its countdown function on the newly installed lamp. To perform this
reset, you must firmly depress the button on the front of the controller and then manually plug the
power cord back into the wall outlet initiating power to the unit. Keep holding down the button for five sec-
onds until you hear an audible chirp indicating the controller has reset the internal timer.
Release the switch and the lamp countdown feature has now been reset. The following two screens will be
displayed during this process.
USWATER5.0 & USWATER6.0 Failure Modes
The US Water Systems controller continuously monitors your UV system and if there is a problem with the
system the controller will provide both a visual and audible signal indicating the specific fault that may be
adversely affecting the operation of your system. The fault conditions are listed in a priority sequence as
follows:
LAMP FAILURE: If at any ti me du ring th e operat ion of th e
system, the UV lamp fails to be illuminated, the controller will
return both an audible and visual signal indicating lamp failure. In
addition, a constant audible buzzer will sound during lamp failure.
UV SENSOR FAILURE: Assuming the system has a UV Sensor
installed, if at any time during the operation of the system, a UV
sensor fails, the controller will return both an audible and visual
signal indicating sensor failure. For sensor failure, the controller
will cycle between "sensor failure" and "water may be unsafe for con-
sumption" screens as an added precaution. In addition, a con-
stant audible buzzer will sound during sensor failure.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
14 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
UV Light Equipment Specifications
SOLENOID MODULE FAILURE: Assuming the system has an o p t io n al So le-
noid Module installed, if at any time during the operation of the system, a
solenoid valve fails to operate, the controller will return both an audible and
visual signal indicating solenoid failure. In addition, an intermittent (15 sec)
audible buzzer will sound during solenoid failure.
4-20 mA MODULE FAILURE: Assuming the system has an opt ion al 4-20 mA
Module installed, if at any time during the operation of the system, a 4-20
mA module fails, the controller will return both an audible and visual signal
indicating a 4-20 mA failure. In addition, an intermittent (15 sec) audible
buzzer will sound during a 4-20 mA failure.
REMOTE ALARM MODULE FAILURE: Assuming the system h as an op -
tional Remote Alarm Module installed, if at any time during the operation of
the system, a remote alarm module fails, the controller will return both an
audible and visual signal indicating remote alarm failure. In addition, an in-
termittent (15 sec) audible buzzer will sound during remote alarm failure.
ETHERNET MODULE FAILURE: Assuming the system has an optional Ethernet
Alarm Module installed, if at any time during the operation of the system, an
Ethernet module fails, the controller will return both an audible and visual
signal indicating Ethernet failure. In addition, an intermittent (15 sec) audi-
ble buzzer will sound during Ethernet failure.
USWATER 5.0 & USWATER 6.0 QR Codes
A QR code (abbreviated from Quick Response code) is a type of matrix barcode (or two -dimensional
code) first designed for the automotive industry. US Water Systems uses the QR code to store a link to a
specific page on our website. Users with a camera phone equipped with the correct reader application
can scan the image of the QR code and over a wireless network connect to a US Water Systems web page
in the phone's browser. US Water Systems' QR webpage has information on how to purchase replacement
components as well as a helpful video directory on system servicing
(i.e. How to change a UV lamp or quartz sleeve). To access the QR code on the USWATER5.0 or
USWATER6.0 controller simply press the control button twice and the QR code screen will appear as
follows:

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
15 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
GreenWave
Carbon GreenWave NAC
Filter Housing US Water UV
Media Tanks
The Carbon Tank will be
about 75-90% full of car-
bon.
The NAC Tank will have
just a few inches of me-
dia in the bottom of the
tank.
Tank
Heads
System Overview

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
16 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
System Overview (Configuration)
US Water UV
UV Ballast

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
17 US Water GreenWave Plus Salt-Free Water Conditioner | 385-

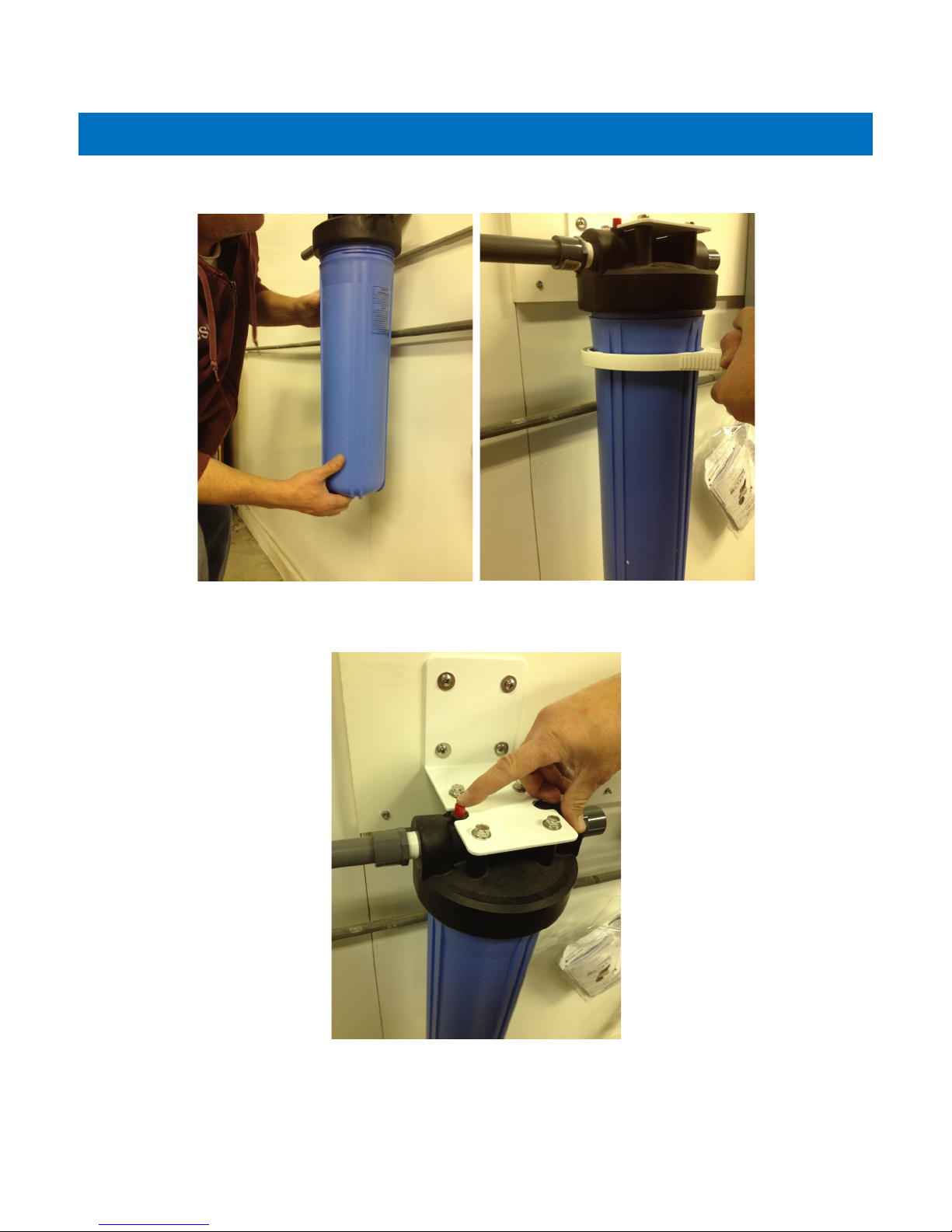

1. Install the 5 Micron sediment filter first. This filter should be installed at the point of entry of
the home. The sediment filter is marked “IN” and “OUT” on the top of the housing.
2. Mount the housing to the bracket using the supplied screws. Be sure the filter is mounted so
the inlet is on the correct side for the application flow direction.
5 Micron Sediment Filter Installation Instructions
Filter Housing Installation

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
18 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
3. Now mount the filter housing to the wall using the appropriate fasteners for your wall materi-
al. It is preferred that this is mounted on a secured board or wall stud as it will be heavy
when full of water.
4. The water source of the application should be plumbed to the “IN” port on the filter housing.
The outlet plumbing from the sediment filter housing will be connected to the GreenWave
Carbon Tank to the “DOWNFLOW” inlet.
Filter Housing Installation

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
19 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
Sediment Filter Installation

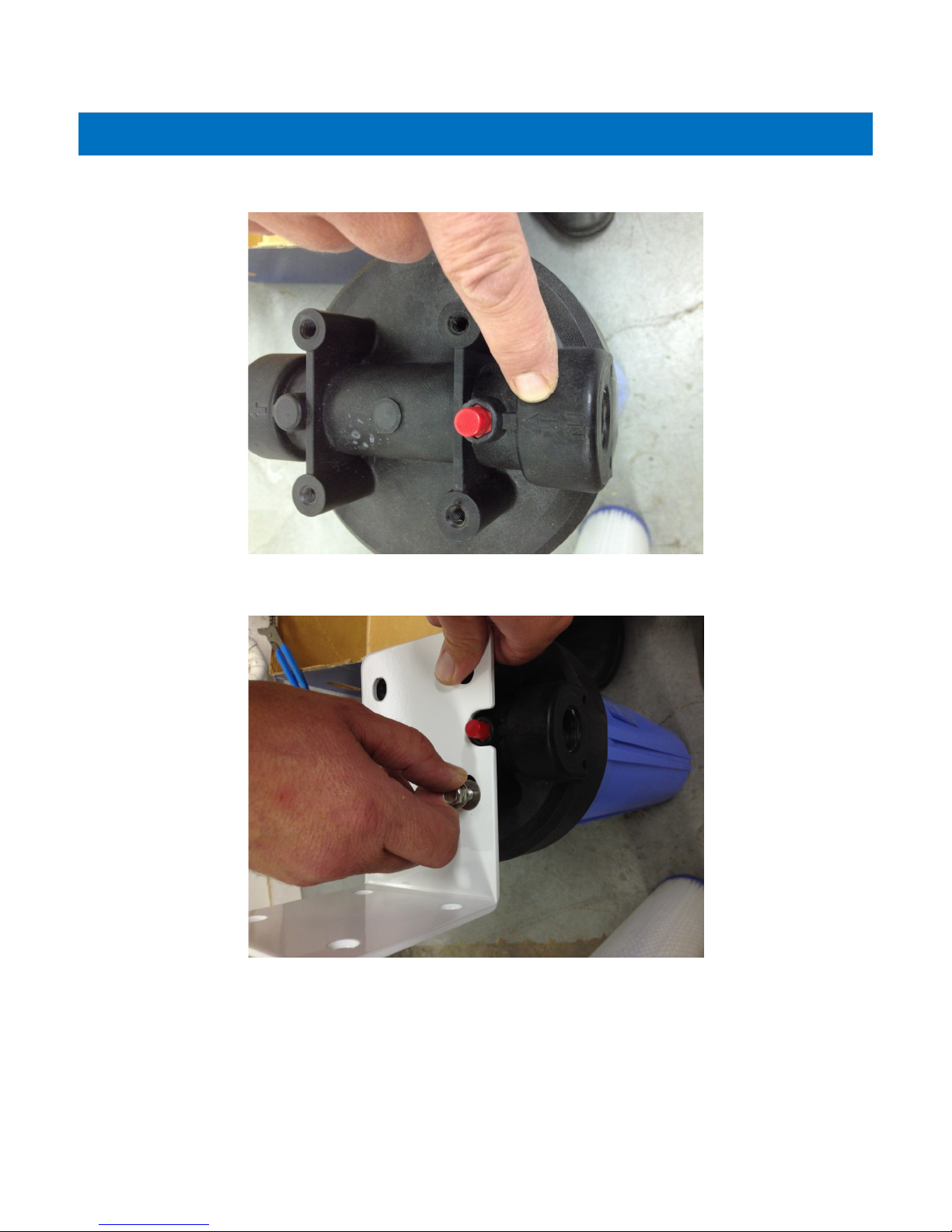

1. Now install the filter in the filter housing by removing the sump from the housing.
2. There is a notch in the bottom of the sump that will center the filter in the housing. Unwrap
the filter (5 Micron) and install it in the sump.
3. Coat the O-ring and threads on the sump with food grade silicone grease and install the O-
ring in the filter sump.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
20 US Water GreenWave Plus Salt-Free Water Conditioner | 385-
Sediment Filter Installation
4. Now install the sump in the filter cap and turn it clockwise to tighten the filter. Once it is
hand tight, use the supplied wrench to tighten it an additional 1/4-1/2 turn.
5. Once the filter is installed the red button on the top of the filter can be used bleed the air out
of the chamber when the water is turned on to the system (this step will be discussed during
the startup procedure).
