UTV Stereo UTVS-BCM2 User manual

UTV Dual Bank Battery Charger 6V/12V 2 X 2AMP
1.
SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and all
electrical connections for wear and damage.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance
Test) tested.
Electrical safety information. It is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2.
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and the plug is fitted with the correct fuse
–see fuse rating in these instructions
DO NOT pull or carry the appliance by the power cable.
DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a firm grip on the plug.
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a qualified
electrician.
1.2. GENERAL SAFETY
DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION.
FOR THIS REASON, IT VERY IMPORTANT TO READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY, EACH TIME YOU USE
THE CHARGING EQUIPMENT.

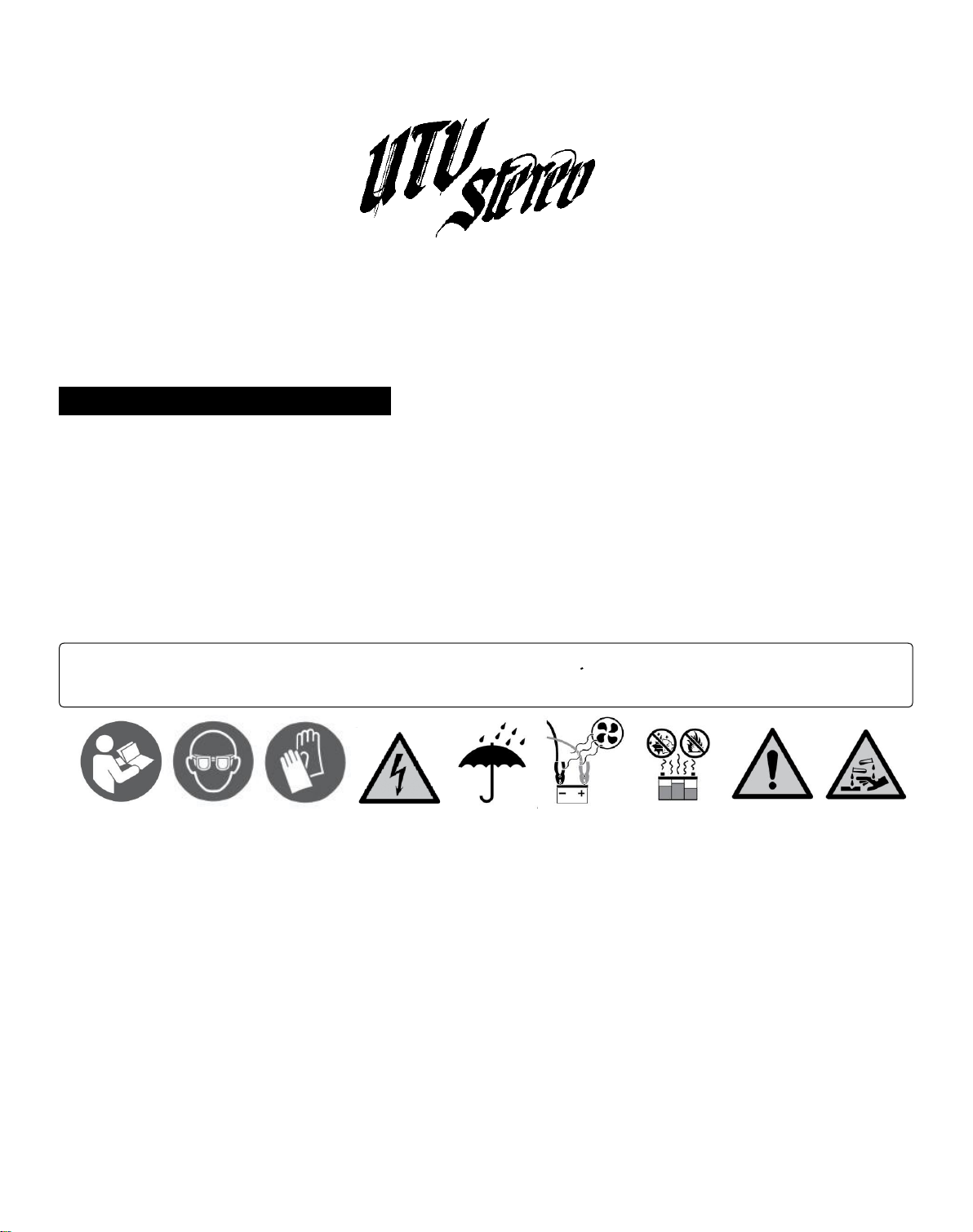

Refer to
instruction
manual
Wear eye
protection
Wear
protective
gloves
Warning!
electricity
Protect
from rain
Use in
well
ventilated
areas
Keep away
from sources of
ignition:
battery could
explode
Warning!
explosive
material
Warning!
corrosive
substance
IMPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Follow these instructions and those published by the battery and vehicle manufacturers, and the maker of any equipment you intend to use
in the vicinity of the battery. Remember to review warning marks on all products and on engines.
WARNING! Modern vehicles contain extensive electronic systems. You are required to check with the vehicle manufacturer, for any
specific instructions regarding the use of this type of equipment on each vehicle. No liability will be accepted for damage / injury, where
this product is not used in accordance with all instructions.
1.3. PERSONAL PRECAUTIONS
Ensure there is another person within hearing range of your voice and close enough to come to your aid, should a problem arise when
working near a lead-acid battery.
Wear safety eye protection and protective clothing. Avoid touching eyes while working near battery.
Have fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
Wash immediately with soap and water if battery acid contacts skin or clothing. If acid enters eye, flush eye immediately with cool, clean
running water for at least 15 minutes and seek immediate medical attention.
Remove personal metallic items such as rings, bracelets, necklaces, and watches. A lead-acid battery can produce a short-circuit current
which is high enough to weld a ring or the like to metal, which would cause severe burns.
Ensure hands, clothing (especially belts) is clear of fan blades and other moving or hot parts of engine, remove ties and contain long hair.
DO NOT smoke or allow a spark or flame in the vicinity of battery or engine.
1.4. CHARGING SAFETY INSTRUCTIONS
Familiarize yourself with the application and limitations of the charger as well as the potential hazards. Also refer to the vehicle manufacturer’s
handbook. IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
Ensure the charger is in good order and condition before use. If in any doubt DO NOT use the unit, contact your UTV Stereo.
Use the starter/charger in the upright position only and ensure it is placed on a stable surface which will adequately support its weight.
Ensure the charger is disconnected from the mains supply before attaching/detaching the power clamps to/from the battery.
Keep tools and other items away from the engine and ensure you can see the battery and working parts of engine clearly.
Ensure the output of the charger is the same voltage as the battery.
If battery has caps to access the battery fluid, remove the caps and check the fluid level before connecting the power clamps. If
necessary, top-up the battery with distilled water by referring to the battery manufacturer’s instructions (Apply the personal safety
precautions described in part 1.3).
If the charger receives a sharp knock or blow the unit must be checked by a qualified service agent before using.
If the battery terminals are corroded or dirty clean them before attaching the power clamps.
Keep children and unauthorized persons away from the working area.
DO NOT dis-assemble the charger for any reason. The charger must only be checked by qualified service personnel.
DO NOT try to charge a non-rechargeable battery.
DO NOT try to charge battery if battery fluid is frozen.
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area or allow
them to touch the battery terminals.
DO NOT allow power clamps to touch each other or to make contact with any metallic part of the vehicle.
DO NOT cross connect power leads from charger to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to
negative.
DO NOT pull the cables or clamps from the battery terminals.
DO NOT use the charger outdoors, or in damp, or wet locations and DO NOT operate within the vicinity of flammable liquids or gases.
DO NOT use charger inside vehicle or inside engine compartment.
Ensure there is effective ventilation to prevent a build-up of explosive gases, and DO NOT cover or obstruct charger ventilation louvres.
DO NOT use the charger for a task for which it is not designed.
WARNING! DO NOT simultaneously charge batteries of different capacities or discharge levels.
WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating. Use only Sealey genuine parts.
When not in use, store the charger carefully in a safe, dry, childproof location.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2.
i INTRODUCTION
Compact 6/12V 2-bank battery charger is perfect for powersports, automobile, motorcycle, and marine vehicles. Suitable for charging a variety of
batteries, charger reacts continuously to battery condition and delivers whatever charge rate is required. Two bank charger outputting 2 x 2A

depending on the condition and the charge rate of each battery. constantly regulated voltage patterns allow the battery to be recharged fully and
safely without fear of overcharging. Compatible with all AGM, Gel and VRLA flooded batteries commonly found in everything from automotive and
farm equipment to motorcycles, ATV’s, powersports, and personal watercraft.
3.
SPECIFICATION
MODEL NO.
UTVS-BCM2
INPUT
200-240V AC, 50Hz
OUTPUT VOLTAGE
6V & 12V
CHARGE CURRENT
2A
BATTERY TYPES
6V & 12V lead acid
batteries (WET, MF, AGM
and GEL)
CHARGING VOLTAGE
14.4V ± 0.25V (for 12V
battery) or 7.2V ± 0.25V
(for 6V battery)
AMBIENT
TEMPERATURE
-10°C to +40°C
HOUSING
PROTECTION
IP65
4.
i OPERATION
4.1. PREPARATION
It is important to correctly prepare for charging, ensuring that you follow Section 1 safety regulations carefully. Check that the capacity
of the battery is compatible with the charger output.
4.1.1. Follow any vehicle manufacturer’s instructions regarding battery charging. Note special instructions for in-vehicle charging.
4.1.2. Check polarity of battery posts. A positive (pos, p, +) battery post may have a larger diameter than a negative (neg, n, -) post.

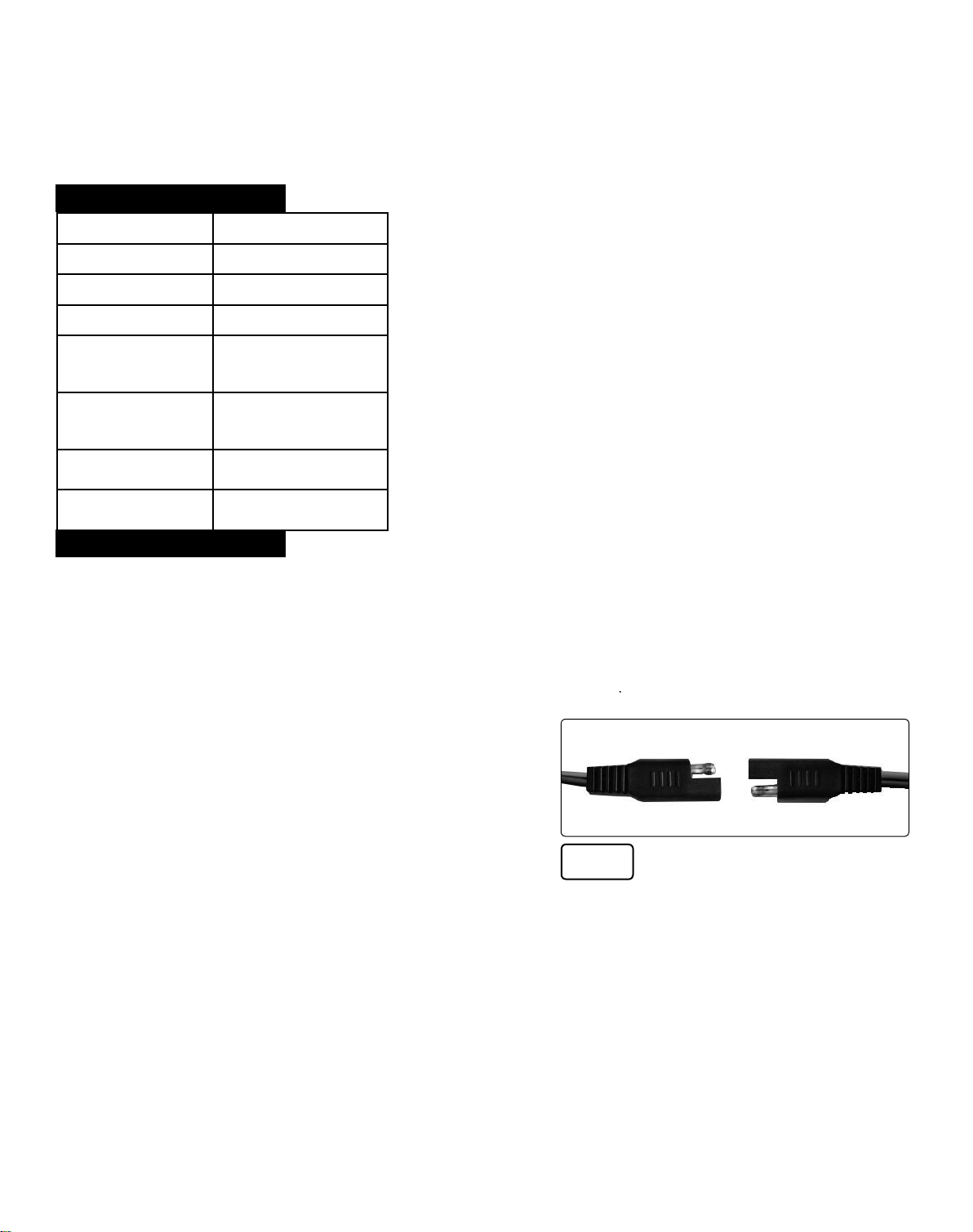

Connect the battery lead plastic plug to the charger / maintainer plastic plug, see figure 1.
4.2. BATTERY CHARGING
4.2.1. Follow the battery manufacturer’s recommendations for battery cell caps
during charging. Loosen cell caps if applicable.
4.2.2. Open all battery compartments and ventilate for at least 15 minutes before
plugging into the mains supply.
4.2.3. Connect the battery lead terminal rings or alligator clips directly to the
corresponding battery posts.
4.2.4. Position the RED terminal ring or alligator clip on the POSITIVE post
connector.
4.2.5. Position the BLACK terminal ring or alligator clip on the NEGATIVE post
connector. Make sure all battery connections are tight and clean.
4.2.6. Plug into the mains supply, using a suitably rated heavy duty extension cord.
4.2.7. Short Circuit/Reverse Polarity Protection

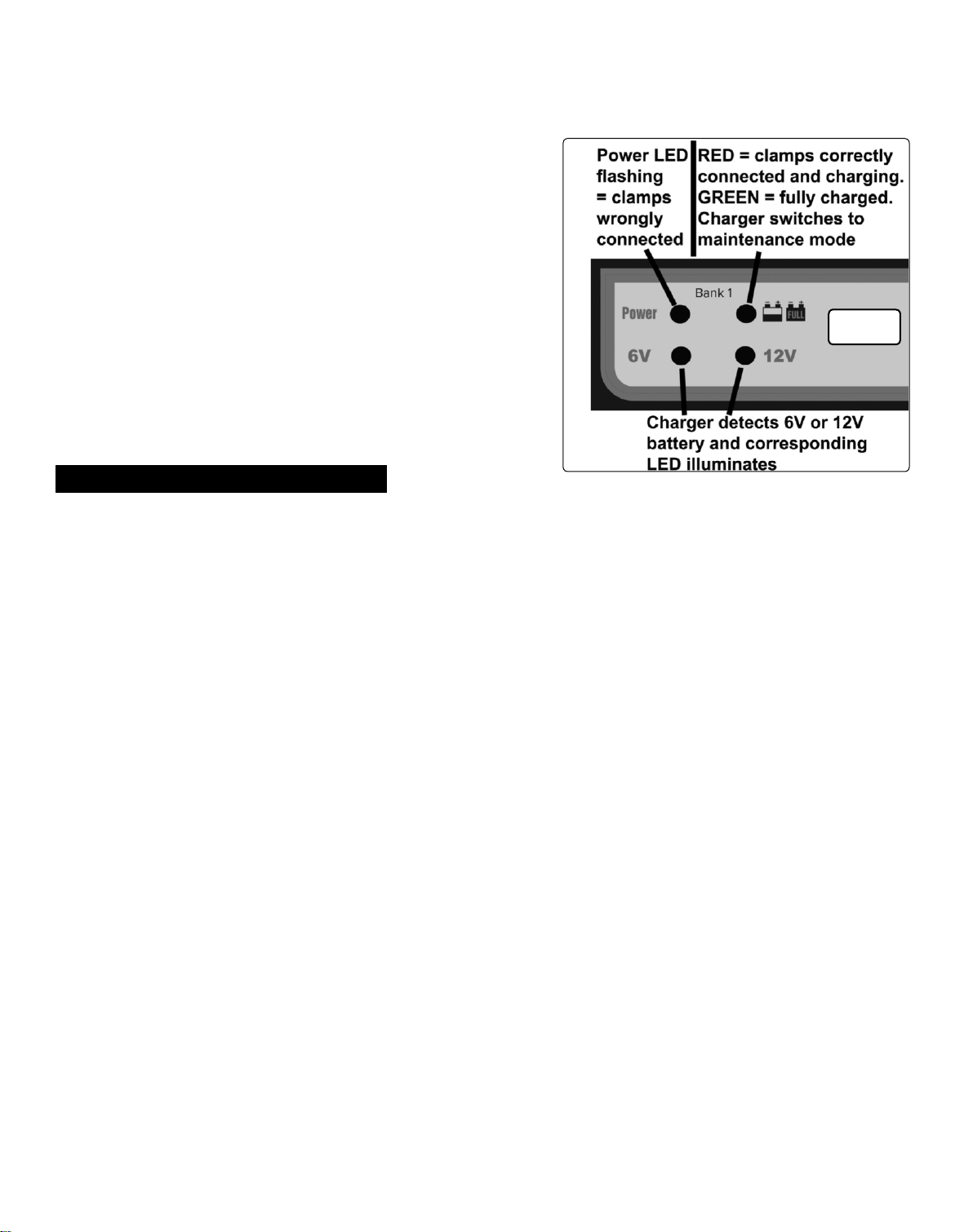

If the charger leads are wrongly connected the POWER ON light will flash, see figure 2.
4.2.8. The POWER ON indicator will turn off.
4.2.9. If the battery voltage is more than 7.5V, the charger will charge the batteries according to 12V mode, the 12V LED LIGHT will turn
RED. If the battery voltage is less than 7.5V, the charger will charge the batteries according to 6V mode, the 6V LED LIGHT will turn
RED, see figure 2.
4.2.10. The charger begins charging with 0.8A low current to maintain the batteries automatically if the batteries are not full.
4.2.11. LED LIGHTS:
fig.1

When the red light is on it indicates that the battery is correctly connected, and the charger is charging it. The charger will deliver its full
rated current until this light turns from red to green (charged). When the battery is
fully charged, the LED will turn to green and the charger will switch to a storage /
maintenance charge mode, see figure 2. The charger will automatically monitor and
maintain the battery with 0.8A charging current.
4.2.12. When you are ready to use your vehicle, unplug from the mains supply,
followed by unplugging your battery terminal lead from the charger.
4.2.13. The battery lead with terminals may be left attached to the battery.
Use care to safely stow the battery lead away from heat sources, sharp
edges and avoid pinching or crushing. The battery lead with alligator clips
should be removed before installing or using the battery.
IMPORTANT -- If the battery is totally dead (below 4 volts) the Bank
charger will not start. This is due to its internal safety circuit. The charger safety
circuit must sense more than 4 volts before it will allow the charger to turn on. If the
battery voltage is below 4 volts, the charger will not operate, and the lights will not
turn on. Have the battery checked by a dealer if the battery voltage is very low.
Most 12-volt lead acid batteries are likely to be defective if their voltage
is below 9 volts
5.1. Cleaning and user maintenance should be carried out by competent persons.
5.2. After use and before performing maintenance, unplug and disconnect the battery charger.
5.3. Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery connectors, cords, and the charger case.
5.4. Ensure that all the charger components are in place and in good working condition, for example, the plastic boots on the battery clips.
5.5. Servicing does not require opening the unit, as there are no serviceable parts.
5.6. All other servicing should be performed by qualified service personnel.
5.7. If the mains cable is damaged, do not use until repaired.
5.8. Store the charger unplugged, in an upright position. The cord will still conduct electricity until it is unplugged from the mains.
5.9. Store inside, in a cool, dry place.
DO NOT store the connectors clipped together, on or around metal, or clipped to cables. If the charger is moved around the shop or
transported to another location, take care to avoid/prevent damage to the cables, connectors, and charger. Failure to do so could result
in personal injury or property damage.
5.
MAINTENANCE
fig.2
