V-TAC VT-948 User manual

SOLAR GARDEN LIGHT
1. Installation must be performed by a qualified electrician
2. Keep away from the fire.
3. Don't immerse in the water
4. This is a solar powered lamp, please install it in a location where can get efficient sunlight.
5. Please note the lighting time depends on sunshine duration & weather & working mode.
6. Built-in intelligent system is with over-charge, over-discharge and over-voltage protection, safe
and durable.
7. When the lamp is turned off, it can still get solar charging.
8. The lamp is equipped with an internal battery pack, which is replaceable. If any need, please
contact the seller for correct new battery pack.
9. Non-professionals please do not disassemble the lamp.
10. Please do not dispose the battery with household garbage to avoid explosion.
This marking indicates that this
product should not be disposed
of with other household wastes.
TECHNICAL DATA:
INTRODUCTION & WARRANTY
WARNING
INSTALLATION INSTRUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid for
3 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. This product is warranted for manu-
facturing defects only.
3
YEARS
WARRANTY
*
IP65
RATING
Model VT-948
Solar Panel 4W, DC5.5V, Mono-crystalline
silicon with tempered glass
 8W
Lumens 500LM
LED Chip Type SMD 2835
Li-ion Battery 18650/2000mAh/7.4V/
14.8Wh, replaceable
Woking Modes 
Charging Time 4-5 hrs strong sunshine
 3 Nights

FEATURES
PARTS INCLUDED
Cordless to InstallZero Electricity Bill
Two Lighting Modes
360° Soft Lighting Long Lighting Time
Expansion Screws (4Pcs)Solar Light (1Pc) User Manual (1Pc)
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in
multiple languages.

2
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

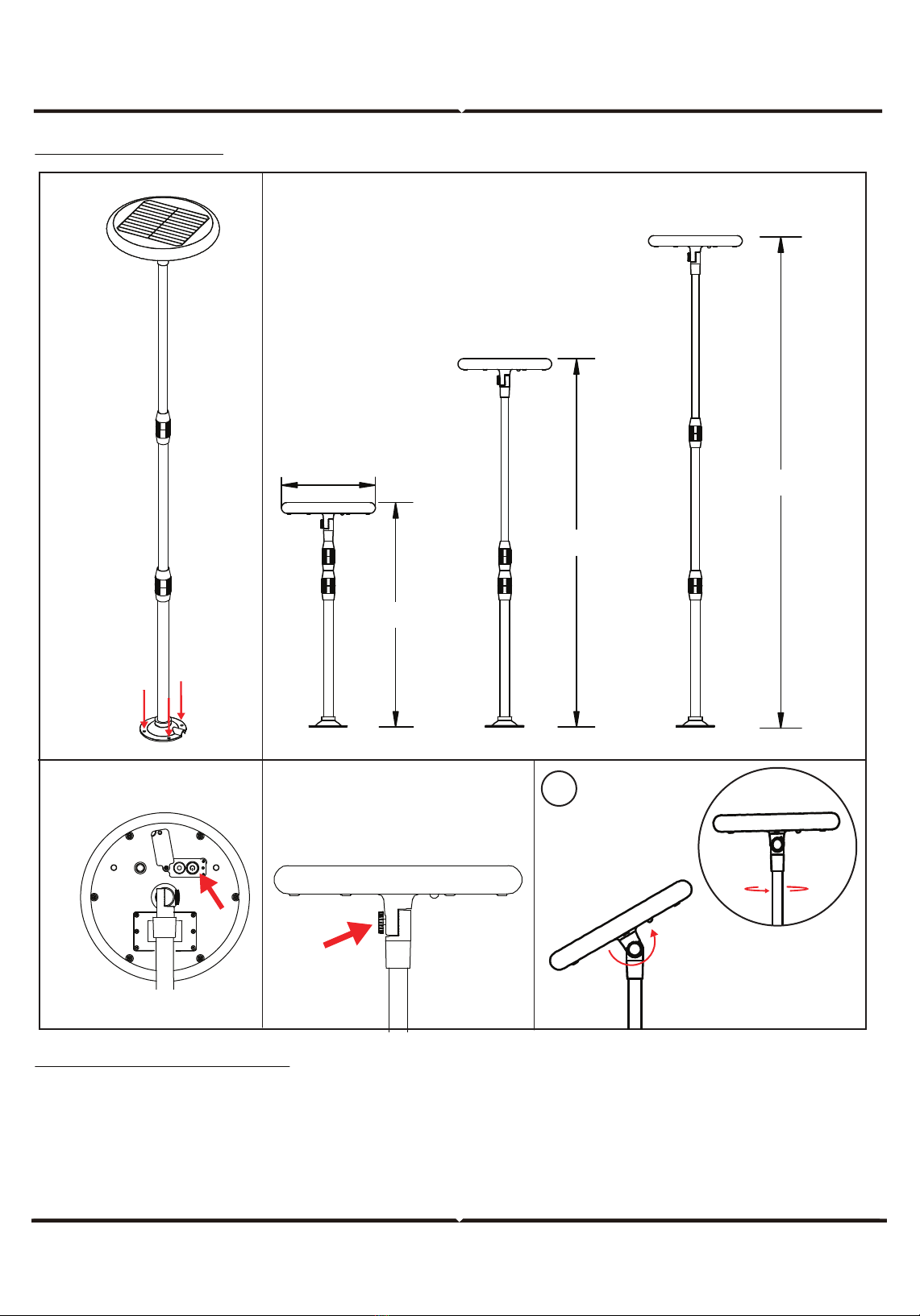

INSTALLATION DIAGRAM
INSTALLATION INSTRUCTIONS
264mm
589.55mm
967.55mm
1290.55mm

5

1. Prepare lamp, accessories and tools well firstly.
2. Lock the lamp onto the ground with expansion screws. (see picture )
3. Adjust the post height as desired. (see picture)
4. Open the ON-OFF button cover plate with the screwdriver, press the buttons to turn on the
lamp and selectdesired working mode, then lock the ON-OFF button cover plate. (see picture )
5. Adjust the solar panel angle properly, make sure it can get efficient solar charging. (see picture )
180° Adjustable
360° Adjustable
ENGLISH

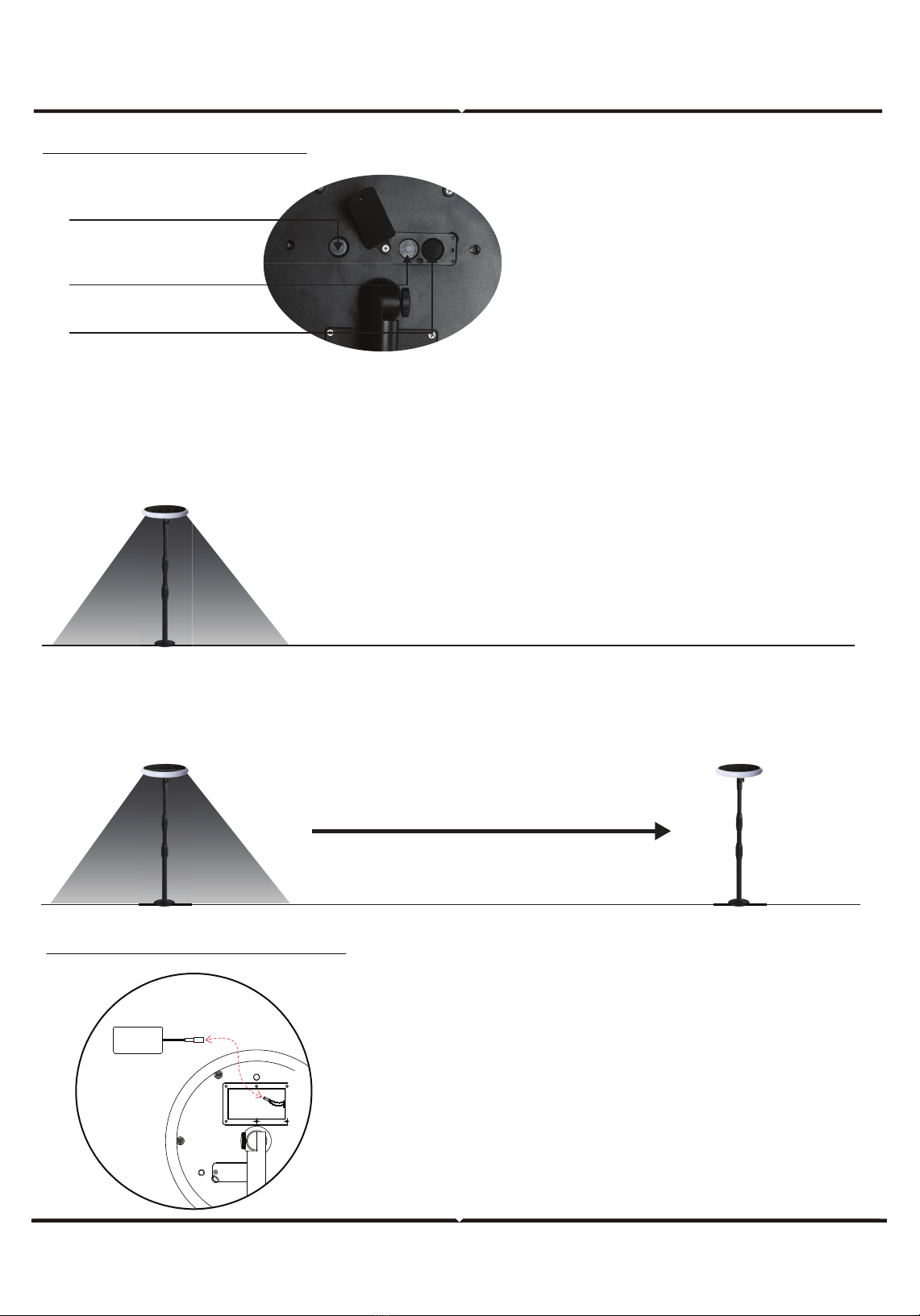

TWO WORKING MODES
HOW TO REPLACE BATTERY
Please press the buttons to
adjust working mode:
1. Press ON-OFF Button 1st time, the
lamp is turned on and work in Mode
A, which is default working mode.
2. Then press the Function Button,
the lamp enter Mode B.
3. Press the ON-OFF Button again, the
lamp turns off.
Mode A
Lamp will automatically lights up at night and keep 100% brightness at the first 3 hours, 70%
brightness for the next 2 hours, and then 50% brightness till dawn. The lamp will adjust brightness
according to the dynamic capacity of the battery.
Mode B
Lamp will automatically lights up at night and keep 100% brightness, after 6 hours or when battery
power is less than 30%, lamp turns off.
After 6 hours
Or when battery power is less than 30%



Battery Pack
18650, 7.4V,
2000mAh, 14.8Wh
1. Loosen the screws, open battery cover.
2. Disassemble the connector and take out the battery
pack.
3. Put the new battery pack inside and connect it well
with connector.
4. Lock the battery cover.
ENGLISH
