V-ZUG DW-M9 User manual

Range hood
DW-M9 / DW-M12 / DI-M10 / DI-M12
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification
plate. These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Type Model no. Type Model no.
DW-M9 787 DI-M10 789
DW-M12 788 DI-M12 790

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance description 9
Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fitted with . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 12
Use 13
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
After-running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Grease filter saturation indicator . . . . . . . . . . . . . . . . . . . . . 14
Care and maintenance 15
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning the grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . 16

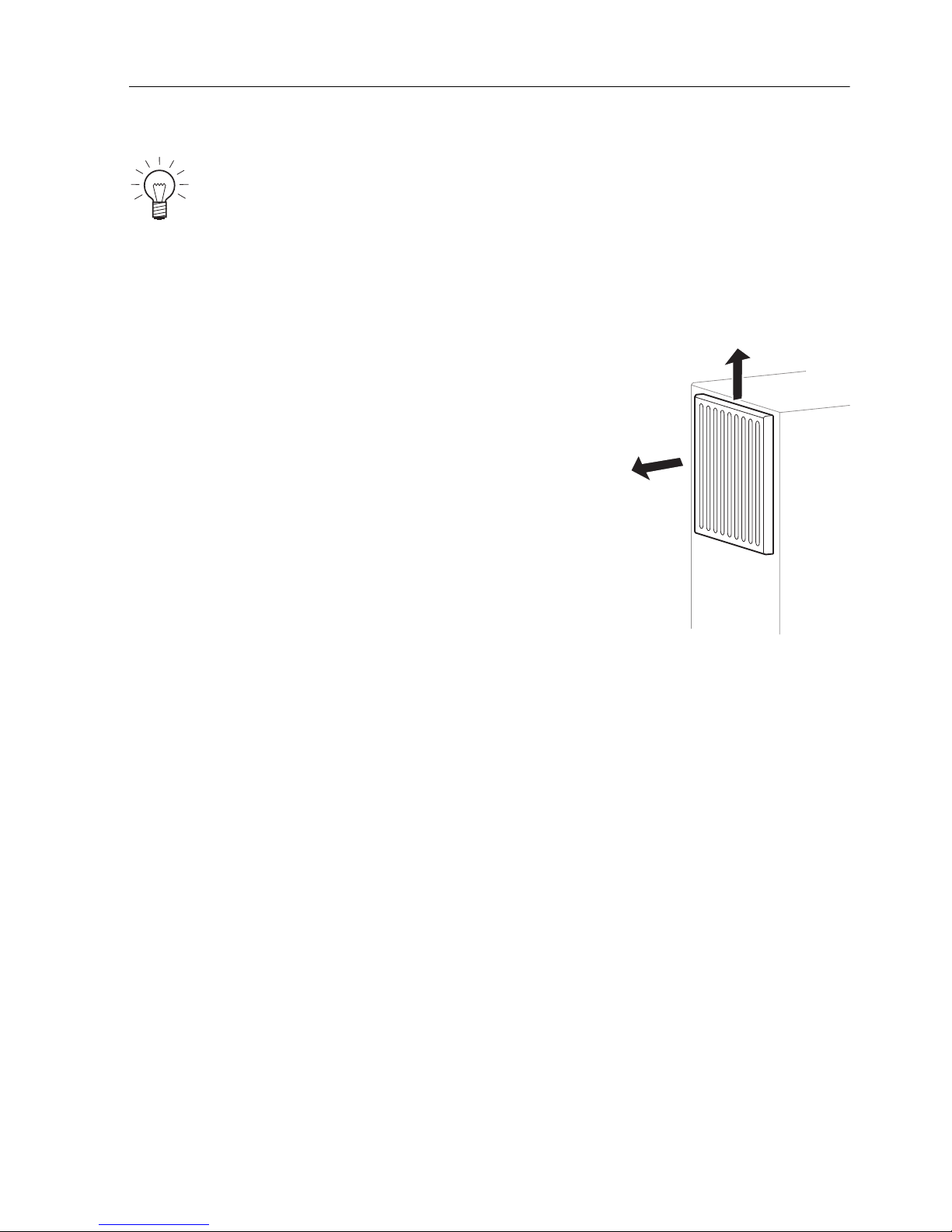

Replacing the activated charcoal filter . . . . . . . . . . . . . . . . 17
Replacing the halogen light . . . . . . . . . . . . . . . . . . . . . . . . 18
Trouble-shooting 19
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

… Contents
4

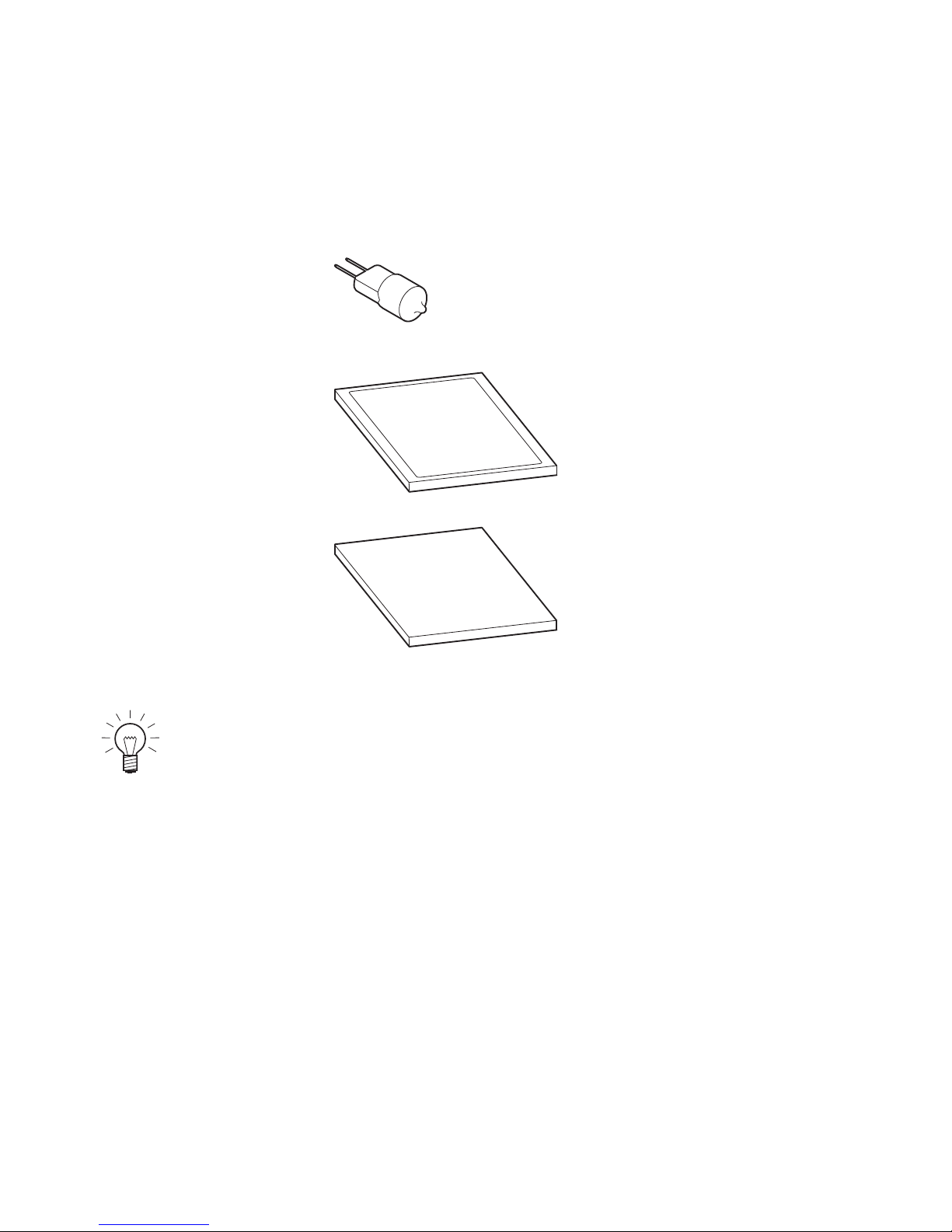

Accessories and spare parts 20
Technical data 21
Disposal 22
Notes 23
Index 25
Repair service 27
Quick instructions 28

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply
in accordance with the separate installation instructions. The necessary
work should be done by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
䡲Ensure the grease filters are properly installed.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
6
Correct use
䡲The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. Please contact our Customer Services if
necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
Children in the home
䡲Packaging material e.g. plastic and polystyrene can be dangerous for chil-
dren. Danger of suffocation! Please keep packaging material away from
children.
䡲The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children can hurt
themselves.

… Safety precautions
7
Note on use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲CAUTION: Accessible parts may become hot when used with cooking
appliances.
䡲Do not flambé food underneath the hood as the grease filters if laden with
grease could catch fire.
䡲If frying on the cooking surface, do not leave the frying appliance unattend-
ed. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire more easily than clean oil.
䡲Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build-up of grease in the grease filter.
䡲Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
䡲Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
䡲Avoid a cross-current of air, which could blow the cooking vapours over
the cooking area.

… Safety precautions
8
䡲If another appliance – fuelled by gas or other fuels – is being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation units.
䡲With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired
heating systems), safe operation is only possible providing a room nega-
tive pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the ap-
pliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed, e.g. via non-closable openings in doors and windows and
combined with ventilation wall bricks for incoming and exhaust air or by
other technical means.
䡲When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
䡲When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it can cause damage.

9
Appliance description
The appliance is designed to extract cooking fumes and smells from the
cooking area. This particular model can be used to extract or to recirculate
air.
Extraction model
The cooking fumes are extracted by a ventilator. The metal grease filters
clean the extracted air, which is passed through a connecting pipe fitted with
an integrated non-return valve and through the air duct to the outside.
Recirculation model
If, for building reasons, it is impossible to vent the air outside, the appliance
can be used as a recirculation model. The cooking fumes and smells are fil-
tered over the metal grease filter through activated charcoal filters and the fil-
tered air is then circulated back into the room through the side openings.
When the appliance is in use, ensure there is a sufficient supply of
fresh air to replace the air that is being extracted.
If activated charcoal filters are not supplied with the appliance, these
should be ordered and installed before using the appliance.
Moisture is not taken out of the air.

… Appliance description
10
Fitted with
䡲1extractionfan
䡲Illumination
䡲1 grease filter
䡲2 activated charcoal filters
The extraction fan has 4 power levels.
䡲= Low, = Medium, = High and = Intensive
level.
䡲Power levels 1–3 can be used for longer periods of operation.
䡲The intensive level is for shorter bursts of intensive extraction of the cook-
ing fumes and smells, e. g. when searing meat. The intensive level runs for
a maximum of 5 minutes at a time.

… Appliance description
11
Construction
1Operating and display elements
2Metal grease filter
3Halogen light
4Hood
5Activated charcoal filter (for recirculating air only)
6Glass panel (fold-away)
5
2
3
4
6
1

… Appliance description
12
Operating and display elements
Power level 1 on / off
Power level 2 on / off
Power level 3 on / off
Intensive level on / off
After-running time
Illumination on / off / dimmed
Grease filter saturation indicator
Depending on the model and design, the specification of the appli-
ance may differ from the standard specification described herein.

13
Use
Switching on
APress the / / or buttons to switch the appli-
ance on.
ASelect a different power level by pressing the corresponding button.
– The control light shows which power level is currently being used
/ / or .
Switching off
To switch the appliance off, press the power level currently being used again.
After-running time
APress the button to activate the after-running time function.
With the after-running time function, the appliance runs for another
15 minutes and then switches off.
We recommend switching the appliance on several minutes before
cooking and allowing it to run for at least another 5 minutes after you
have finished cooking. Use a low power level for normal cooking
smells and a higher power level for very strong cooking fumes and
smells.

… Use
14
Illumination
APress the button to switch the illumination on or off.
AHold the depressed to dim the light.
Grease filter saturation indicator
The display illuminates after 15 operating hours or at the latest
14 days after first being put into operation. The saturation level is reached.
The grease filter must be cleaned.
AAfter cleaning, hold the button depressed for at least 5 seconds.
– The indicator light goes out.
The illumination can be used on its own.

15
Care and maintenance
Cleaning the housing
Cleaning the outside / inside
AClean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up around the grease filter on the
inside.
AClean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Take care that no water gets into the housing! If water gets into the
housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool etc. to clean
the appliance as they can damage the surface.

… Care and maintenance
16
Cleaning the grease filter
The grease filter should be cleaned weekly with normal use, or once every
two weeks at a minimum. If properly cared for, a grease filter should provide
unlimited years of service.
A Using both hands press the glass panel gen-
tly upwards.
– The glass panel opens automatically by
means of a gas pressure absorber.
APull down the grease filter and remove it.
AAfter cleaning, reinstall the grease filter.
APush glass panel upwards until it clicks
into position on the left and right.
AAfter cleaning, hold the button depressed for at least 5 seconds.
– The indicator light goes out.
The accumulation of grease in the grease filter can present a fire
hazard.
For washing in a dishwasher, select
an «intensive» or «heavy» wash – with
a warm pre-wash. Cleaning may
cause the grease filter to become dis-
coloured. However, this will not affect
the functioning of the filter in any way.

… Care and maintenance
17
Replacing the activated charcoal filter
Activated charcoal filters become less effective with use. With normal use,
they have to be replaced at least every four months. They cannot be washed
or regenerated.
APush filter frame in direction of arrow Aand re-
move in direction of arrow B.
AReplace the activated charcoal filter.
AEngage filter frame and push down.
Activated charcoal filters are only used in the recirculation model.
A
B

… Care and maintenance
18
Replacing the halogen light
AFold down the glass panel.
AUsing a small screw driver, carefully remove
the ring.
AReplace the defective halogen light with a
bulb of the same type (max. 20 watts).
AClean the ring and the glass.
AFit the ring and the glass back into the
openings.
AFold the glass panel up again.
APut back screw fuse or switch on circuit breaker again.
Remove screw fuse for appliance or switch off circuit breaker.
Halogen lights get hot during operation! Allow to cool down first.
Avoid touching the new halogen light
with bare hands. Use a soft, dry and
grease-free cloth.

19
Trouble-shooting
What to do if …
… the illumination is not working
… the appliance is not extracting enough air
Possible cause Solution
䡲Fuse or circuit breaker for
electrical installations in
the home is faulty.
AChange the fuse.
AReset the circuit breaker.
䡲Interruption in the power
supply.
ACheck the power supply.
䡲The halogen light is faulty. AChange the halogen light.
Possible cause Solution
䡲Grease filter is dirty. AClean grease filter.
䡲The activated charcoal
filter (in the recirculaton
model) is spent.
AChange the activated charcoal filter.

20
Accessories and spare parts
Please give model number and exact description when ordering parts.
Halogen light
Metal grease filter
Activated charcoal filter
The halogen light is also available from specialist retailers.
