Vacron VVG-CBE27A User manual

Full HD Car Camcorder
User Manual
2016 JAN V2.0
W/O GPS
WITH GPS
optional

Car Camcorder
User Manual
i
Safety Precautions
Please Take and review some testing videos initially to make sure
the images were recorded correctly.
Please note that manufacturer, its subsidiaries and affiliates, or its
distributors are not liable for consequential damages arising from
any malfunction of main device accessory, including malfunction
memory card that results in the failure of recording video or
recorded video ca not be read.
Before using the product, please ensure that you read the safety
precautions described below. Always ensure that the product is
used correctly.
• Please keep this device away from a children or an infant.
• Use only recommended power sources.
• Do not apply multi cigarette lighter adapters-Applying such
devices will cause unstable power input. As a result, the vehicle
video recorder will shut down or cannot record video due to lost
power.
• Please always make sure all power connectors are fully secured.
• Do not attempt to disassemble, alter or apply heat to the
product.
• Avoid dropping or subjecting the product to severe impacts.
• To avoid the risk of injury, do not touch the interior of the
product if it has been dropped or otherwise damaged.

Car Camcorder
User Manual
ii
• Stop using the product immediately if it emits smoke, a strange
smell, or otherwise behaves abnormally.
• Do not use organic solvents such as alcohol, benzene, or thinner
to clean the product.
• Do not let the product come into contact with water (e.g. sea
water) or other liquid.
• Do not allow liquids or foreign objects to enter the Vehicle
Video Recorder.
• Do not allow dirt or metal objects (such as pins or keys) to
contact the terminals or plug.
• Avoid using, placing or storing the product in a humid or dusty
area.

Car Camcorder
User Manual
iii
Index
A. Feature Description .................................................................... 1
B. Specification ............................................................................... 2
C. Accessories ................................................................................. 3
D. Installation Instruction ............................................................... 4
E. Product Dimensions ................................................................... 6
F. SD Card ....................................................................................... 7
G. Remote Controller ...................................................................... 9
H. Recording / Stop Recording .................................................... 10
I. OSD Menu Function ................................................................. 11
J. Playback Video Files ................................................................. 13
K. VACRON Viewer ....................................................................... 14

Car Camcorder
User Manual
1
A. Feature Description
Built-in megapixel Sony CMOS Sensor.
Built-in supercapacitor offers extensional power supply
and ensures video is well stored of critical moment and
compact.
130°Wide angle 6G+IR glare-depressed lens.
Built-in synchronous single-channel microphone.
Recorded Video store in Micro SD card, Max 64GB).
Auto loop recording when memory card is inserted and
device is power on.
Emergency recording button protect data in secured area
from being overwritten.
Build-in G-Sensor event recording.
GPS and Image data are recorded and playable on client
software. (Only available with GPS receiver)
Support FULL HD record and TV-out to car entertainment
cable.

Car Camcorder
User Manual
2
B. Specification
Item Description
Sensor Sony 1/2.9”CMOS Sensor.
Resolution NTSC 1920x1080 (2M) 30 fps.
PAL 1920x1080 (2M) 25 fps.
View Angle 130° Wide-angle.
Power Supply DC5V±5% / 1 Amp.
Built-in 1.5F supercapacitor to backup power.
Operating Tmp. -10ºC ~ +60ºC
Storage Support 8gb class 10 micro sd card or above, up
to 64GB.
Recording Start recording automatically when power up.
Prompt recording when power on Delay 3
seconds after power shutdown.
Recording Data Date/Time/Video/Audio/G-Sensor/GPS data.
Storage Format *.ts file is playable on most players, exclusive
player available on VACRON website.
Use remote control to playback.
Audio Input Built-in microphone.
Time Setting Built-in calendar clock to adjust the time.
Time adjustment with synchronous GPS and
time zone. (GPS model)
G-Sensor Built-in 3D G-sensor.
NOTE 1. Version updating is not going to inform, please check the on-going
updating information
2. SD Card. (optional)

Car Camcorder
User Manual
3
C. Accessories
3.5M mini-USB power cable
5V cigarette power adapter
Remote controller
USB card reader
Suction cup bracket
Bracket holder
Quick user manual
4 pings, 3.5 inch headphone jack to RCA output cable

Car Camcorder
User Manual
4
D. Installation Instruction
1. To install the device on the windshield by” Sucker-type holder
“ or “Stick-Holder” Type
Sucker-type holder Stick-Holder
2. Install the device on the
windshield in the best position
3. To adjust the recording angle
properly
4. Plug in DC5V Power Supply 5. Plug in the Cigarette Lighter
Adaptor
Sticker Adhesive Spot,

Car Camcorder
User Manual
5

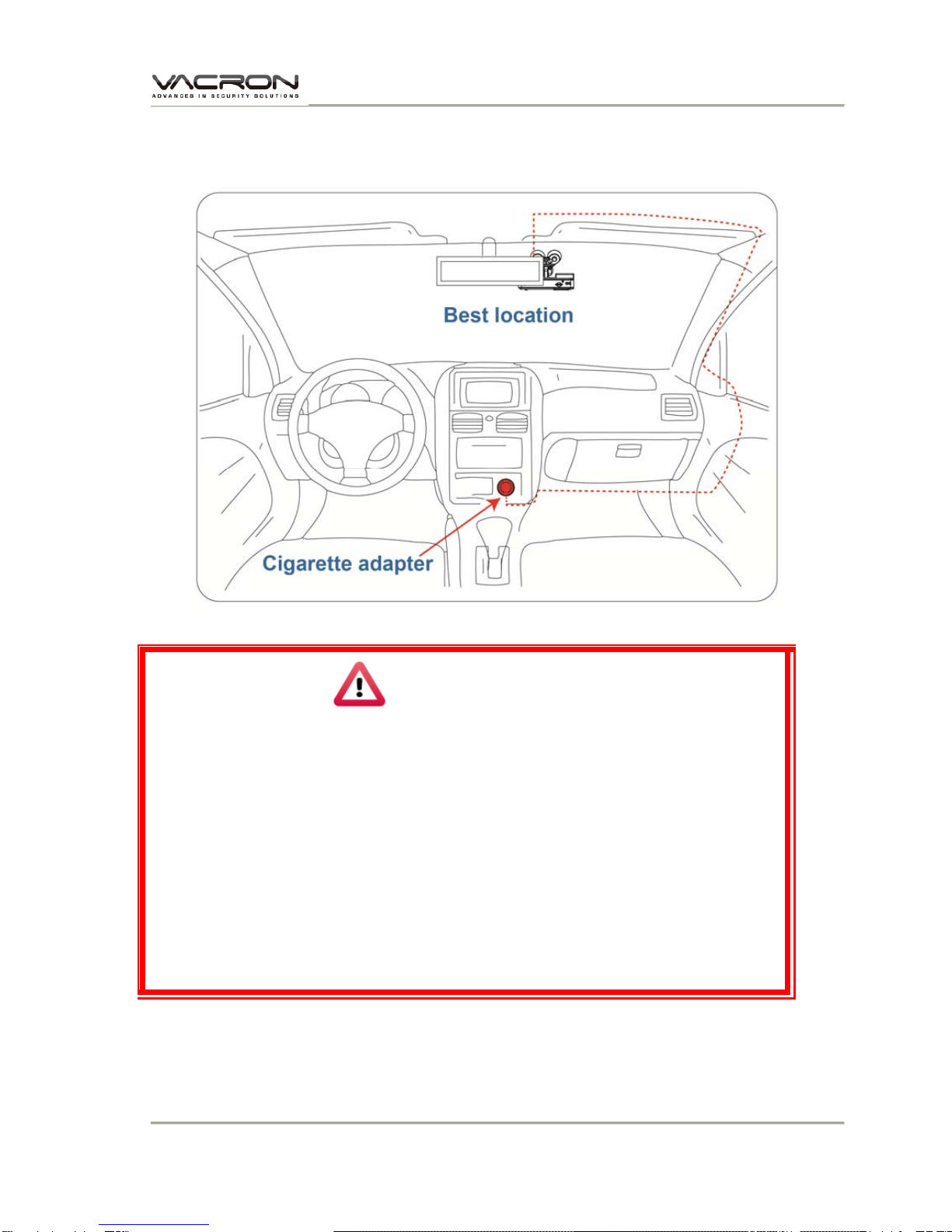

6. VVR installation instruction
Caution
(1). This device should be installed in the area where the Windshield
will be able to be cleaned by windshield wiper.
(2). Formatting SD card on the PC before beginning to use.
(3). Set time zone and timing on OSD. Star the device immediately
after you set time zone to make sure the video files will tally with
normal time.
(4). Setting NTSC or PAL through OSD.

Car Camcorder
User Manual
6

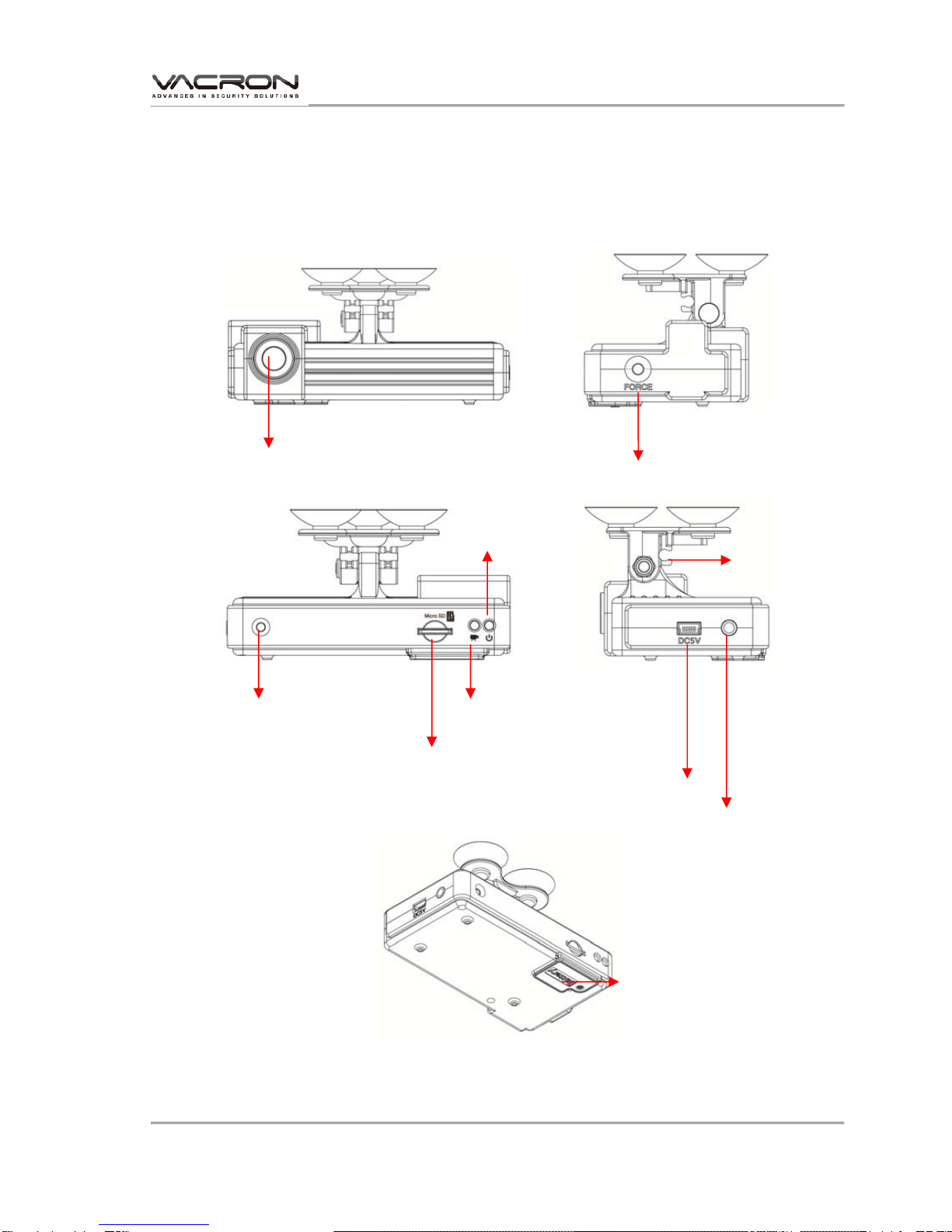

E. Product Dimensions
MICRO SD Card
Lens Force Record
DC5V Power input
Video Out
Cable collect slot
Power Indicator
Recording Indicator
Remote Control Receiver
Battery for permanent
calendar

Car Camcorder
User Manual
7
F. SD Card
1. “Format” Micro SD card
While applying a brand new Micro SD card, or use a Micro SD
card that was take out from other devices, a formatting
procedure is required.
Caution
(1). “Format” will clean all the data saved on Micro SD
card, Please back up the data before
proceed ”Format”.
(2). Before “Format ” Micro SD memory card, please
ensure that Micro SD memory card is unlocked.
(3). If the card is unlocked but still cannot be formatted,
this might be caused by Windows security restrictions.
Please run the program as Administrator to prevent
from this problem.
2. SD Card Installation
Remark: Memory Card is optional

Car Camcorder
User Manual
8
Caution
(1). Recommend memory card class 10 or above 8GB Micro SD
Card, max to 64GB.
(2). Since memory cards have the writing endurance situation, we
recommend to inspect the memory card and use pc for
playback regularly, to ensure that the memory card can read
and write
(3). Hot swap is not supported. Please power off device before
remove memory card. Removing Memory Card while recording
may lose or damage recorded data.
3. Record Time Estimation
The chart below is for reference only. The length of time
recorded can be varied due to variation in image size may be
different.
Capacity
Video Quality
8GB 16GB 32GB
High 90 Min 180 Min 360 Min

Car Camcorder
User Manual
9
G. Remote Controller
How to check if the remote
controller is workable?
√Check the mercury cell is installed in
correct direction. (Check the pole)
√ Check if the cell power is exhaust.
√ Check if the sensor is covered.
√ Check if it nears by Fluorescent Lamp.
Navi
g
ato
r
Sto
p
Enter
Menu
Emer
g
enc
y
REC
Pla
y
back

Car Camcorder
User Manual
10
H. Recording / Stop Recording
1. Power On/Recording
When car power on, the device start up automatically. Please
wait for 15 Sec. to start recording.
2. Power Off/Stop recording
When the car power off, the device will stop to record video and
sound. You can take off the memory card and insert to
computer to view the video.
3. Indication
Caution
(1). The display of booting screen and live view are subject
to change without notice for software upgrade or re-version.
(2). Force recording button has highest priority. Push Force
recording button will pop up recording window and activate
force recording immediately.
(3). CR1220 Battery for calendar can be replaced by users.
(1). Recording indicator: Red
light Blinking when
recording. (Emergency
recording blinking fast)
(2). Power indicator:
Continuous green light
means GPS located
successfull
y
.
Power
indicator
Recording indicator

Car Camcorder
User Manual
11

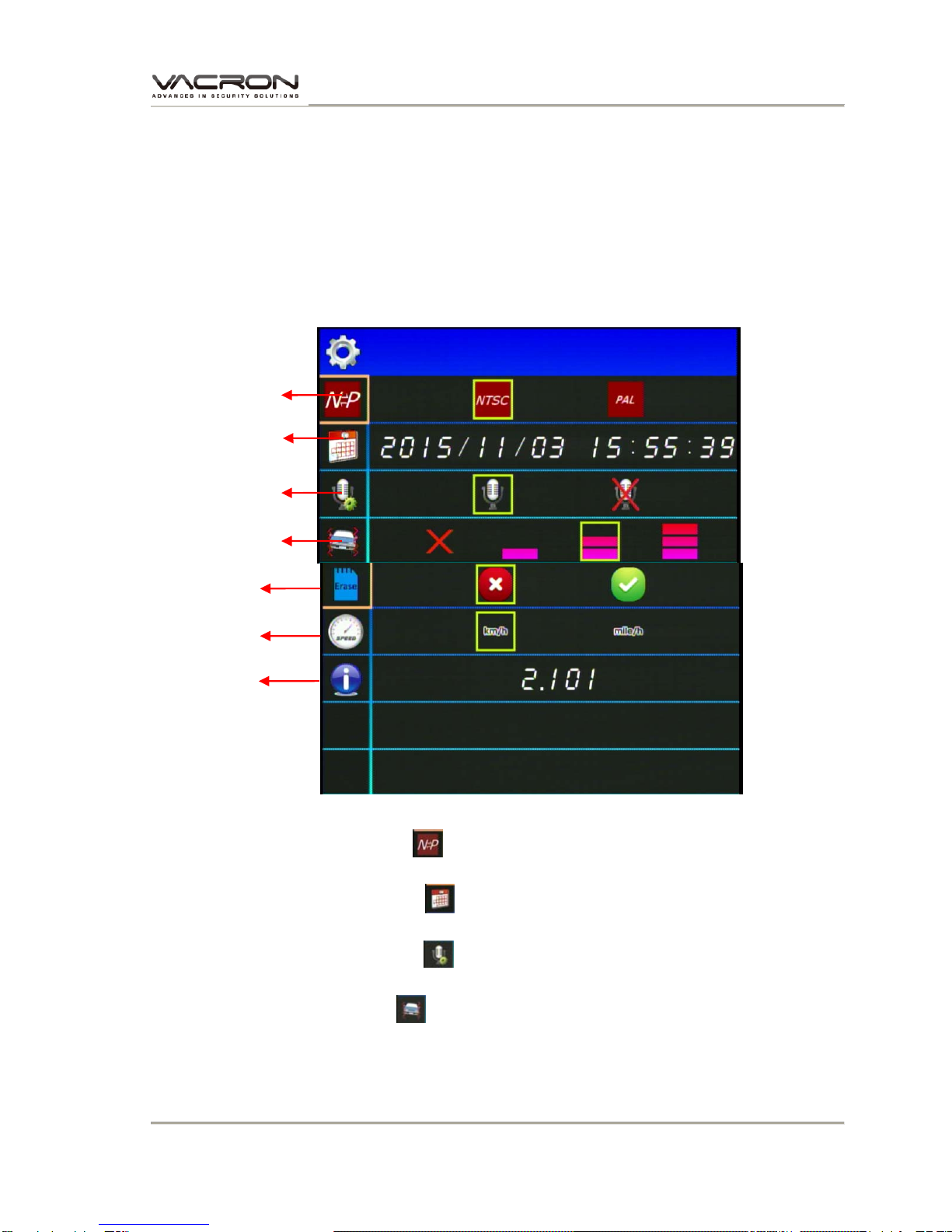

I. OSD Menu Function
In Live view screen press [Menu] will popup OSD operation
menu as follows:
1. Video Type :Click to choose NTSC /PAL.
2. Time setting: Click to adjust clock.
3. Microphone: Click to setup microphone on / off.
4. G-Sensor: Click to set the sensitivity of G-sensor. The
higher the sensitivity on behalf of gravity (G) the more
NTSC / PAL
Time Setting
G-Sensor
Firmware Version
Microphone
Speed Unit Switch
Format

Car Camcorder
User Manual
12
sensitive the sensor, the more likely trigger mandatory
photography; When emergency record is triggered, it will
keep emergency recording and keep the files without being
event video overwritten.
5. Format: Click to format Micro SD card.
6. Speed Unit Switch: Click to switch [ km/h] / [mile/h]. (for
GPS function).
7. Firmware Version: show firmware version.

Car Camcorder
User Manual
13

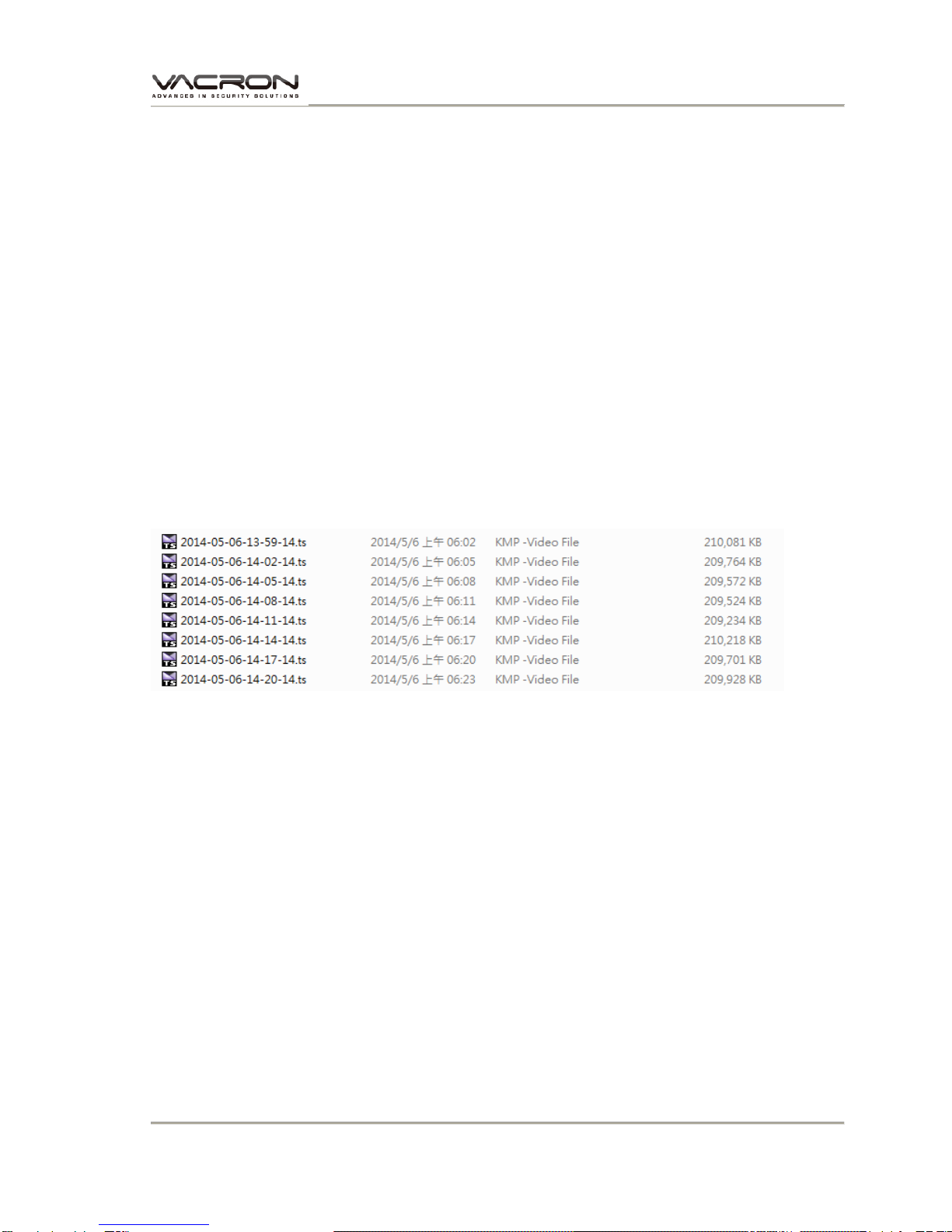

J. Playback Video Files
Playback the video files on PC via the storage card from the vehicle
recorder.
Suggest use exclusive player program or via video play software to
open .TS files. Such as KM、Baofeng、Windows build in Media
player… etc. Please install decoder if can’t play the files.
＊Please backup important files just in case of overwritten.
＊Please use exclusive player to read GPS data.

Car Camcorder
User Manual
14

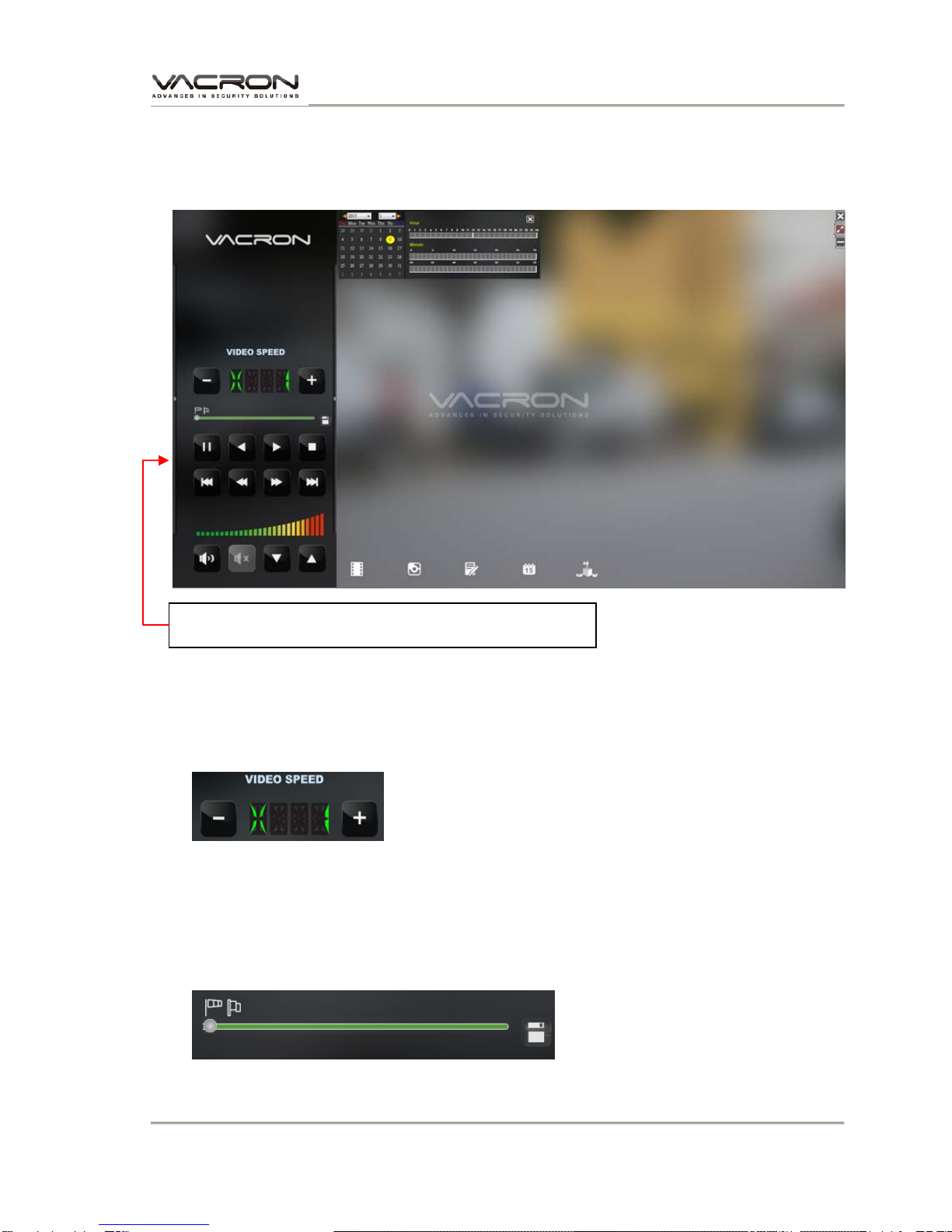

K. VACRON Viewer
★ Reminder- DirectX 9.0 is required.
1. Playback Speed: Fast Forward 2X, 4X, 8X; Slow Forward 1/2X,
1/4X, 1/8X
2. Scroll Bar: playback display can be scrolled to wanted position.
Set the start and end point to identify the range, right click to
backup the video files.
Allow to move the user interface to left or right.

Car Camcorder
User Manual
15

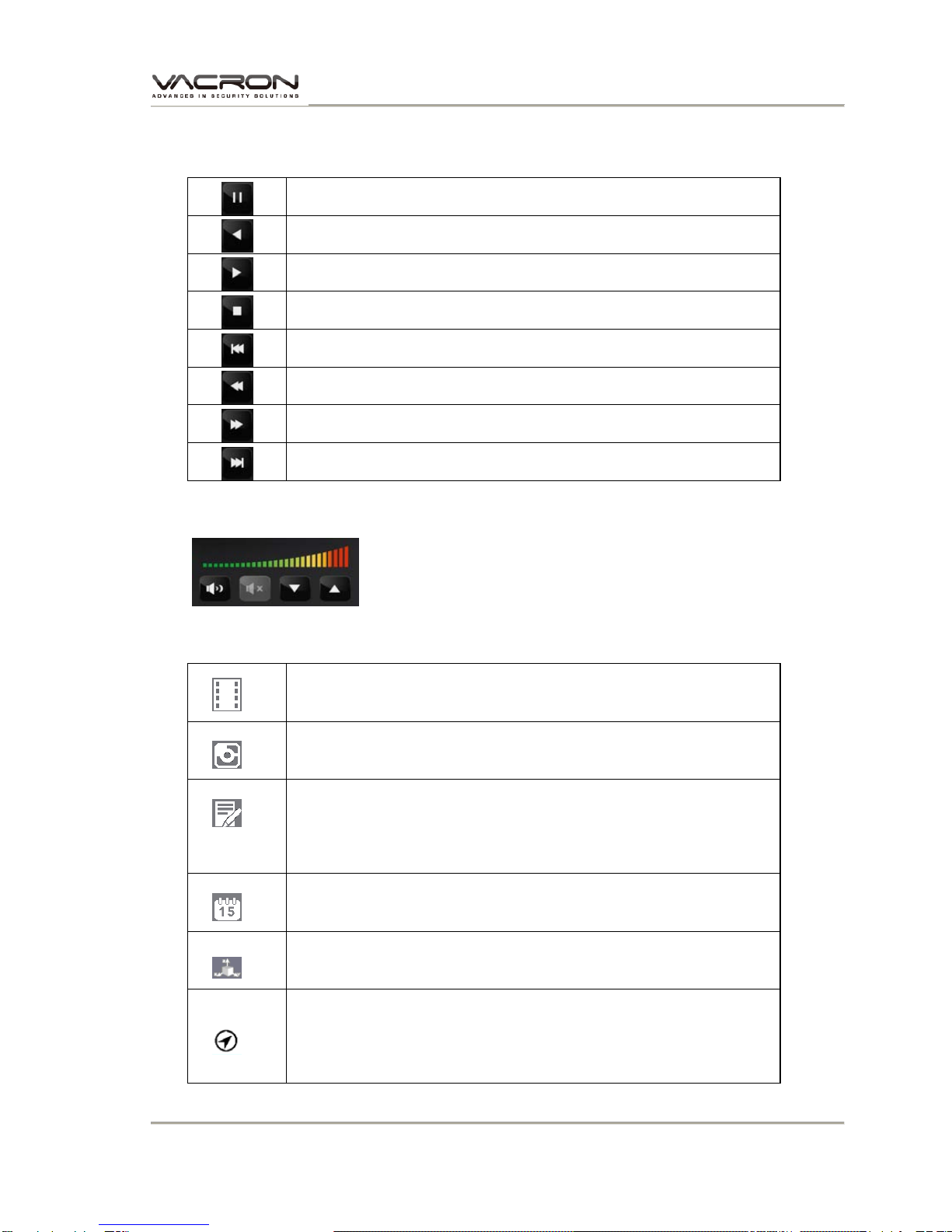

3. Control Panel
Pause
Reverse
Play
Stop
Previous File
Previous Frame
Next Frame
Next File
4. Volume control: Click +、- to adjust volume.
5. Float Interface
Click into video list to play and backup
Capture playing screen and recording data
Display version information and set up version
language
Play list, time list
G-sensor
Show the icon when receiving GPS data, watch
the driving track on map

For More Information
Please check VACRON Website
http://www.vacron.com Made in Taiwan
