Vacron VVH-MDE31D User manual

2CH Vehicle Video Recorder
Operation Manual
2018 OCT V1.0

2-Channel Mobile Video Recorder
User Manual
i
Table of Contents
A. Accessories ...................................................................................................................................................1
B. Features:.........................................................................................................................................................2
C. Specifications...............................................................................................................................................3
D. Product appearance ..................................................................................................................................5
E. Installation of SD card...............................................................................................................................6
F. Cable Installation........................................................................................................................................8
G. Installation diagram................................................................................................................................ 10
Installation on motorcycle................................................................................................................. 10
DVR installation diagram................................................................................................................... 12
H. Remote Controller (optional).................................................................................................................. 13
J. Live view:..................................................................................................................................................... 15
K. WiFi connection ....................................................................................................................................... 17
(a)、QR Code download︰............................................................................................................................. 17
(b)、Android: ........................................................................................................................................................ 17
(c)、IOS ................................................................................................................................................................... 22

2-Channel Mobile Video Recorder
User Manual
ii
Safety Precautions
Dear Vacron user,
Appreciate for you purchase Vacron products. Please contact your local
distributor if you meet any question or need for any assistance. We will
offer you complete and in time service via local distributor. However, we
still have rights to upgrade software and hardware without any kind
notice beforehand. Please read this manual carefully prior to use of this
product.
Installation Precautions
Before installation, please insure wires and cables connect correctly.
Device has to install in ventilated environment and the installation
have to guide or help by professional device installer.
Please use storage device that recommended by manufacture, and
purchase the storage device from official purchase channel.
Please contact local distributor and technology support service if
you have any question and need any help during product usage
In Use Precautions
Please avoid any solid or liquid get into the inner components.
Please do not disassemble the equipment for warranty issue.
Please contact local dealers or the manufacturer for prompt service.
Please remove the battery if remote control keeps idle for quite a
long while.
The equipment best connects with ground wire in case of outdoor
cameras connection or alarm I/O connection. This is to keep the DVR
away from static electricity damage.

2-Channel Mobile Video Recorder
User Manual
iii
Surrounding
Please have the DVR under recommended temperature set it away
from the sun and heating source.
Please keep this equipment away from humid surrounding.
Please keep this equipment away from smoke and dust
environment.
Please avoid strongly collision and do not drop the equipment.
Please set this equipment in ventilation space, and do not block
the device’s ventilator.
Please use device under rated voltage and Amp.
Please keep flammable objects away from the equipment.

2-Channel Mobile Video Recorder
User Manual
1
A. Accessories
Please check every accessory we list below, make sure everything include in
the product package before use. If you found any thing missing, please
contact local distributor.
Note：The product set does not come with memory card, please purchase
the memory card separately.
Standard set：
Power cable
Multi-functional OBD display (built in GPS and microphone)
USB WiFi Dongle
2 pcs camera (DC5V)
2 Pcs camera cable
Velcro tape

2
2-Channel Mobile Video Recorder
User Manual
B. Features:
a) Aluminum casing make it durable and waterproof.
b) Small independent system, 2 channels video and 1 channel audio
recording.
c) H.264 compression format, 4MPvideo resolution.
d) Low power consumption and efficient heat dissipation, no build-in Lithium
battery to prevent possible danger and heat explosion.
e) Devices starts recording automatically when engine is on, file is well
formatted and saved securely with extension recording by super capacitor.
f) Have GPS route tracking function, can display the route tracking by click
Google map during video playing in PC player.
g) Can connect with USB WiFi dongle, connection for APP to display,
playback and backup file directly.

3
2-Channel Mobile Video Recorder
User Manual
C. Specifications
CAR DVR
Item
Specification
Video Input
2CH 4MP
Resolution
4MP
CH1 NTSC/PAL:30FPS/25FPS、
CH2 NTSC/PAL:30FPS/25FPS
Power
Consumption
(a) DC12V input, power consumption is approx. 1A.
(b) DC12V input, ACC OFF standby power consumption is
approx.2.5mA.
(c) Operation voltage: DC10.0v ~ DC15.6v.
(d) Initial voltage: DC8V above.
Operation
Temperature
Operation -20℃～60℃( In disclosed space) .
Storing temperature: -40℃～85℃.
Storage
Device
Memory card speed is recommended to be above U3,
Otherwise it may causes the recording not completely.
Recording
mode
Continuous recording after power ON.
Data Content
Video, date, time, audio, GPS, external alarm trigger log,
G-Sensor.
Storage
Format
TS file format with universal playback software playback;
the device has the function of playback.
Audio Input
Compatible With multi-function display (including
microphone receiver)

4
2-Channel Mobile Video Recorder
User Manual
Time Setting
GPS time zone auto calibration, and initialize with build-
in calendar if no GPS signal.
Please do GPS time calibration after installation, time
memory is kept with car battery, no battery power supply
will result setting return to default, please do time
calibration after connecting to power.
Display
TV-Out, Wifi AP mode by APP

5
2-Channel Mobile Video Recorder
User Manual
Mode
OBD
Indicator
(a) Green light flashing: recording. (Higher flashing
frequency for event recording).
(b) Red light: install or set incorrect.
(c) Blue light: WiFi connection.
(d) Green light: CAM 1 on
(e) Green light: CAM 2 on
Input
(a) Power and signal input:
i. Power input DC12V
ii. ACC signal: power input range DC10.0v ~
DC15.5v。
iii. LAMP signal: power input range DC10.0v ~
DC15.6v for external alarm triggered force event
recording. (Reserved function, no effect)
(b) Video input
(c) Monitor input: GPS, speed, microphone audio input.
(d) Infrared remote controlreception.
(e) SD card slot
Notes : The product specification is subject to change without prior notice
.

2-Channel Mobile Video Recorder
User Manual
5

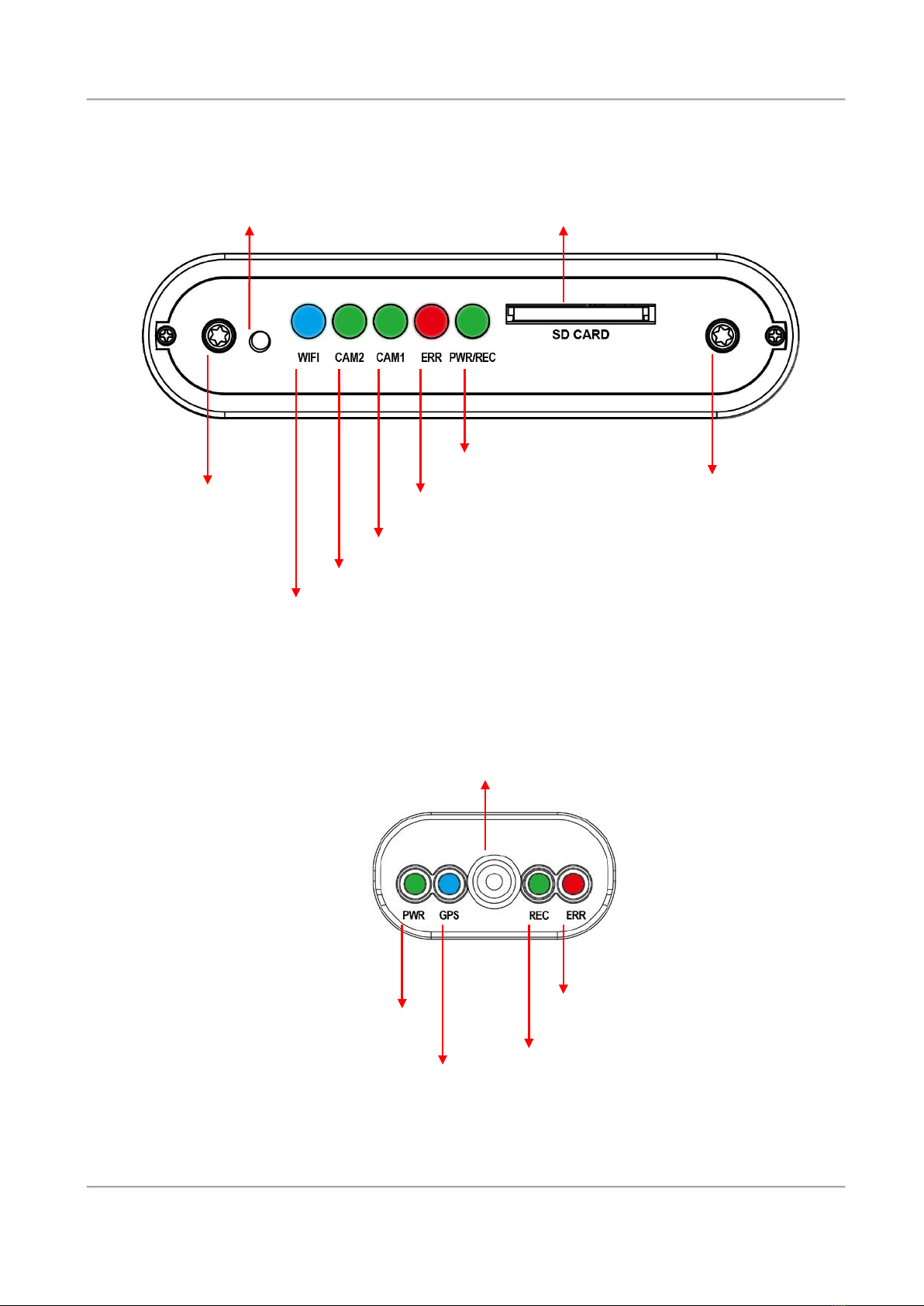

D. Product appearance
Mobile DVR unit:
IR Receiver
SD card slot
WiFi dongle light
OBD (On Board Display)
Microphone
Power
GPS
Error
Recording
Power / Recording
Lid screw
Lid screw
Error Indicator
CAM1
CAM2

2-Channel Mobile Video Recorder
User Manual
6
E. Installation of SD card
SD card slot
Dustproof lid screw Dustproof lid screw
(1). Counterclockwise to unscrew the screw of dustproof lid to install/takeoff the
SD card.
(2). Format/ restoration SD card refer to other chapter description.

2-Channel Mobile Video Recorder
User Manual
7
Attention
(1) Memory card speed is recommended to be above U3, Otherwise it
may causes the recording not completely.
(2) Before using the memory disk, please format the disk first by using the
software player in the CD-ROM. If not, device will automatically erase
all data in the memory disk before recording.
(3) To ensure recording quality, please do not use adapter card with
Micro SD card. Doing so may lead to bad connection due to shock and
vibration.
(4) All memory disks have limited lifespan. Please regularly watch videos
on PC and check the memory disk to ensure proper functioning.
(5) Collision and vibration may cause SD card defective and result
intermittent recording, please check data and backup file periodically.
(6) When you using new memory card insert host, the device will format
the memory card, and beginning recording after approx. 2 second.
(7) Any memory SD card, after being formatted by the device or PC, the
recorded image is played on the Windows operating system and to
format the SD Card by using PC to format.
(8) When accident happen, please remove SD card and set it as write
protection condition, for avoid record being over writing or
tampering.

2-Channel Mobile Video Recorder
User Manual
8
F. Cable Installation
Cables
(1) Power connector
(2) Multi-functional OBD display connector
(3) WiFi dongle slot
(4) Video out
(5) Camera 1 connector
(6) Camera 2 connector
6
5
4
2
1
3
Note: Please use specified camera that provide by manufacture.

9
2-Channel Mobile Video Recorder
User Manual
Power cable
(a) Power connection: reception
(b) Alarm recording (Grey cable): Pre-reserved function. (Reserved function,no
effect)
(c) Power cable (Red): connect to power positive connector.
(d) ACC activation cable (Brown): connect to motorcycle power switch (+).
(e) Ground (Black): connect to power supply (-).
OBD
Microphone
GPS REC
(A) PWR (Green)：power indication.
(B) GPS (Blue)：Flashing mean GPS 3D positioning searching. Consistent blue
light on means 3D positionedsuccessfully.
(C) Microphone：built-in microphoneinput.
(D) REC (Green)：Flashing means continuous recording.
(E) ERR (Red)：Error diagnosis, please check camera signal, OBD display, SD
storage and so on.
a
b
c
d
e
PWR
ERR

10
2-Channel Mobile Video Recorder
User Manual
G. Installation diagram
Installation on motorcycle

11
2-Channel Mobile Video Recorder
User Manual
Attention
(1) Please install this device with the help of professional technician
to avoid damaging your vehicle.
(2) For installation by none-technician, please use tapes instead of
boring tools to avoid damaging the electrical and gasoline
system.
(3) For safety, switch off ignition before installation, and please keep
away from gasoline pipeline and tank.
(4) Before inserting wires through holes, temporarily wrap the
terminal with tape to prevent bad connection from accumulated
dirt or debris.
(5) Tightly seal all electrical connection with tape to prevent loose
connection or leak leaking to the connection.
(6) Connect the power behind the key ignition and fuse (not directly
to the vehicle battery) to avoid depleting the battery.
(7) The device should be fixed to the vehicle. Tumbling inside the
storage trunk will damage the device.
(8) GPS positioning accuracy may be affected by the installation
position, sun-screen or weather condition.

12
2-Channel Mobile Video Recorder
User Manual
DVR installation diagram
(a) DC12V input is approx. 1A
consumption；Standby power
consumption when ACC OFF is
2.5mA.
(b) Operation electric pressure：
DC10.0v ~ DC15.6v.
(c) Device initiate by power DC8v
above.
Power supply:
Red cable: DC (+)
Brown cable: ACC power DC current
Grey cable: Pre-reserved function, no
effect
Black cable: Ground cable

13
2-Channel Mobile Video Recorder
User Manual
H. Remote Controller (optional)
Button Description
No.
Description
No.
Description
1
Split screen display
7
Enter
2
Force Record
8
-
3
Quad display
9
Fast Forward
4
Mute
10
Play back
5
Menu
11
Pause
6
Arrow keys
12
Stop
How to check if the
remote controller is
not workable?
Check the mercury cell is installed inCorrect
direction. (Check the pole)
√ Check the cell power is exhaust or not.
√ Check the sensor is covered or not
√Check if it nearby Fluorescent Lamp.

14
2-Channel Mobile Video Recorder
User Manual
I. Recording and stop recording
1.System initialization /Recording:
System initializes within 30 seconds when power is on. PWR green light ON when
system is rebooting. System starts to recording when REC green light is flashing.
Light Indication:
● PWR/REC：GREEN on means device POWER is on, Flashing resembles
recording.
● ERR：RED on means abnormal, please check possible reason such as camera
signal, HUD display, SD card …etc.
● CAM 1：GREEN means in connection.
● CAM 2：GREEN means in connection.
● WiFi：BLUE means the WiFi dongle has been detective.
2.Shut off/ Stop recording
Device offer prolonged 3 seconds recording after power off to ensure data is well
stored; user can take out the SD card when indication is off.

15
2-Channel Mobile Video Recorder
User Manual
J. Live view:
(1) The monitor can display video record from CH1, CH2 or both CH1 and CH2.
(2) Icon Description:
• : Recording
• : GPS sensor positionsuccessfully.
• : Microphone ON
• : Activate event recording
• : Alarm
(3) OBD Main menu operation and parameter setting description
Recording
Setting
Image Setting
Setting the brightness, contrast, color adjustment
by chooses different channels.
Image input
For lens image adjustment, you can set the normal
mode, mirror mode, flip mode
Time Setting
When GPS signal successful positioning, the system
will automatically adjust time and time zone by GPS.
If device cannot receive GPS signal, user can directly
setting the time on device
GPS Setting
Select and display the vehicle speed and speed unit
on live view video screen.
Vehicle License
Plate Number
Input range: A~Z and 0~9
Record
FPS
NTSC
4M
5-30fps
PAL
4M
5-25fps
Record
Quality
regular
Good
Excellent
