Vacron Mobile Video Recorder User manual

2-Channel
Mobile Video Recorder
User Manual
2013 MAR. V1.1

2-ChannelMobileVideoRecorder UserManual
1
Disclaimer
This document is deemed accurate at time of writing. Due to continuous
hardware and software improvement, images and software screenshots
depicted here may be different from the actual products.
Improper installation or use may cause hazard such as electrical
shock and fire. The user and installer are advised to read this
manual carefully.
The manufacturer provides no warranty against any damage, loss, or claim
arising from negligence, improper installation or use, or transportation
accidents.
The performance of GPS may be affected by external factors out of control
of the device. Such factors may include weather, satellite signal strength,
installation location of the GPS antenna, and other unforeseeable factors.
The manufacturer provides no warranty for LCD pixel defect.
Caution
This manual provides general guidance to installing the device on vehicles.
However, as the actual electrical wiring may vary from vehicle to vehicle,
the user and installer are advised to follow safety advices from the vehicle
manufacturers.
Please seek help from professional technician in installing the product.

2-ChannelMobileVideoRecorder UserManual
2
Table of Contents
A.Key Features..................................................................................3
B.Specifications .................................................................................4
C.Product Description........................................................................5
D.Memory Disk...................................................................................6
E.Cables ............................................................................................7
F.Vehicle Installation..........................................................................8
G.Remote Controller ..........................................................................9
H.Recording.....................................................................................10
I.GPS..............................................................................................11
J.Live Display..................................................................................12
K.Player Software on PC.................................................................14
L.File Backup...................................................................................16
M.Configuring the Memory Disk.......................................................18
N.Video Playback.............................................................................21
O.Image Snapshot ...........................................................................23
P.Formatting the Memory Disk ........................................................23
Q.Player Language Setting..............................................................25

2-ChannelMobileVideoRecorder UserManual
3
A. Key Features
Suitable for motorcycle and small vehicle.
Durable, water resistant all-aluminum casting.
Up to 2 channel video cameras input. Simultaneous recording of video
and audio (with external microphone)
Built-in 3 inch TFT LCD screen for convenient camera viewing angle
adjustment and video footage playback.
Advanced MPEG4/AVC (H.264) compression for ultra small file size.
Adjustable G-sensor sensitivity according to road condition and vehicle
type. On detection of strong shock, the device automatically starts
emergency recording.
In emergency recording, the device saves data including 1~3 minutes
before and after the event for complete record. The footage is not
subject to rewrite from continuous recording.
Low power consumption and excellent heat radiation. Lithium battery is
not used to eliminate risks of overheating and "explosion".
Automatically starts recording at ignition.
If GPS receiver is installed, the recorded route will display on video
playback on computer with support of GOOGLE map.

2-ChannelMobileVideoRecorder UserManual
4
B. Specifications
Items Description
Video input 2 Channel
Frame Size NTSC: 30 fps (D1); PAL: 25 fps (D1)
Power Supply DC12V, 250mA
Operating
Temperature -15°C~ 50°C
Storage SD card, 4G or above, class 10 or better.
(SanDisk and Transcend recommended)
Recording
A
utomatically starts continuous recording when
powered on
Recording
Content Date, time, video, audio, G-sensor data and GPS data (only when GPS receiver is installed).
Playback Software player (on computer) and remote controller
(directly from unit)
A
udio input External microphone (optional)
Time setup
A
utomatic calibration by GPS signals. If GPS signal
is unavailable, internal clock will be used.
G-Senso
r
Internal 3-axis acceleromete
r
Accessories
(1) Standard: (a) 2.5 M Power Cable (b) SD Card Reader
(c) Remote Controller (d) Driver CD
(e) Quick Guide (f) Velcro Tape
(2) Optional: (a) SD card, 4GB or above, class 10 or above
(b) External GPS Receiver
(c) Microphone (no waterproof, need to be installed in a
appropriate position)
(d) Bracket (two type)
bracket (FE30E0900000) bracket (FE30E0900001)

2-ChannelMobileVideoRecorder UserManual
5
C. Product Description
Panel
Dimension (mm)
IR Receiver
SD card slot

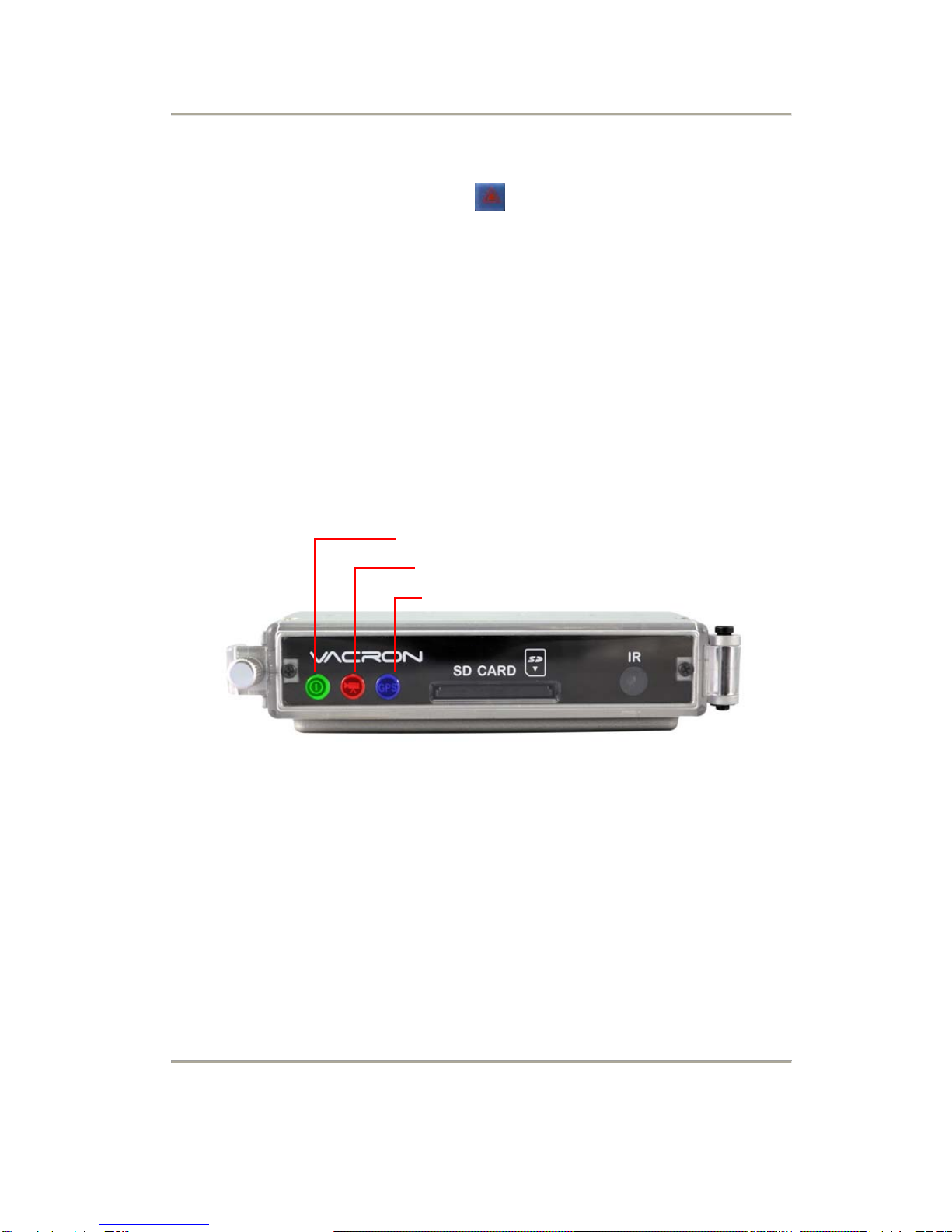

GPS
Recording
Power
Protective cover
Screw

2-ChannelMobileVideoRecorder UserManual
6
D. Memory Disk
Plug the memory disk to recorder:
(1) Loose the screw in counterclockwise rotation, and open the protective
cover to insert/remove SD card.
(2) Tightly close the cover afterward.
NOTE: The memory disk need to be purchased separately
Accessing the memory disk from computer
(1) Insert the memory disk to the USB reader.
(2) Plug the reader to the USB port of your computer.
(3) Launch the player software from the included CD
See also:
Player Software on PC (p14)
File Backup (p16)
Configuring the Memory (p18)
Playback on Computer (p22)
Note
(1) SD card from SanDisk or Transcend is recommended. (class 10, 4GB
above)
(2) Before using the memory disk, please format the disk first using the
software player in the CD-ROM. If not, device will automatically erase all
data in the memory disk before recording.
(3) To ensure recording quality, please do not use adapter card with Micro SD
card. Doing so may lead to bad connection due to shock and vibration.
(4) All memory disks have limited lifespan. Please regularly watch videos on
PC and check the memory disk to ensure proper functioning.
SD Card

2-ChannelMobileVideoRecorder UserManual
7
E. Cables
Cables
(1) Power connecter, male
(2) Channel 1 Video Input*
(3) Channel 2 Video Input*
(4) External microphone input
(5) External GPS antenna input
NOTE: Use this device with
compatible vehicle cameras
Power Cable
(1). Power Adapter - Female connector.
(2). Live Wire: Wire to ACC power or the positive pole of Engine Starter. (+)
(3). Earth Wire: Wire to Negative Pole. (-)
(4). Null Line: Wire to earth wire. Covered with heat-shrinkable tube to
avoid short with motorcycle body.

2-ChannelMobileVideoRecorder UserManual
8
F. Vehicle Installation
Warning
(1) Please install this device with the help of professional technician to avoid
damaging your vehicle.
(2) For installation by none-technician, please use tapes instead of boring
tools to avoid damaging the electrical and gasoline system.
(3) For safety, switch off ignition before installation, and please keep away
from gasoline pipeline and tank.
(4) Before inserting wires through holes, temporarily wrap the terminal with
tape to prevent bad connection from accumulated dirt or debris.
(5) Tightly seal all electrical connection with tape to prevent loose connection
or leak leaking to the connection.
(6) Connect the power behind the key ignition and fuse (not directly to the
vehicle battery) to avoid depleting the battery.
(7) The device should be fixed to the vehicle. Tumbling inside the storage
trunk will damage the device.
Example Installation

2-ChannelMobileVideoRecorder UserManual
9
G. Remote Controller
Icon Function Description
Split Screen
Switch Full screen / split screen switch
Playback Mode Open the playback list and switch to playback
mode
Manual
Recording Saves video from 1~3 minutes before and after press of the button as emergency recording.
Function + Lighten the screen
Function - Darken the screen
Microphone
On/Off Turn on or off audio recording
Menu
Enter
Split Screen Switch
Up, Down, Left, Right
Function -
Function + Audio Recording
On/Off
Manual Recording
Speaker On/Off
Fast Forward
Stop playback /
Stop playback mode
Rewind
Video Playback
Pause
Playback

2-ChannelMobileVideoRecorder UserManual
10
H. Recording
There are two modes of recording:
Continuous After the device is powered up, it automatically starts
recording continuously until it is powered off.
Emergency In the event of emergency, the device saves data from 1~3
minutes before and after the event. The footage is not
subject to rewrite from continuous recording. Emergency
recording may be activated manually or by G-sensor.
In continuous recording, the recording indicator (red) will flash at
normal speed. In emergency recording, the recording indicator will
flash at fast speed.
Continuous Recording
When the device is powered on, the
LCD screen will show a splash screen
and then the firmware version.
The device needs around one minute
to boot. During boot-up, the power
indicator (green) will flash. Then the
recording indicator (red) will flash to
indicate that recording is in progress
Splash Screen
GPS
Recording
Power

2-ChannelMobileVideoRecorder UserManual
11
Manual Recording
To start manual recording, press the button on the remote controller. The
recording indicator (red) will flash at quicken speed to indicate that
emergency recording is in progress.
G-Sensor Recording
When the internal G-sensor detects abnormal shock, the device
automatically switches to emergency recording. To set G-sensor
sensitivity, please refer to “Configuring the Memory ” (page 18)
I. GPS
Flashing GPS indicator (blue) means the system is either searching for
GPS signal or calculating location. Continuous GPS indicator light
means GPS positioning is ready.
NOTE:
The time for the device to determine coordinate may be influenced by
external factors such as location of the GPS receiver, weather, and satellite
signal strength.
GPS
Recording
Power

2-ChannelMobileVideoRecorder UserManual
12
J. Live Display
(1) If the screen shows on top right, it means that both channel 1
(left) and channel 2 (right) have video signal. A icon indicates that
one channel has no video input.
Note: Even if there is no video input, the device still record that channel
(as long as there is power and SD card has no error). The channel
screen will display a blue background
(2) Event Mode: a icon indicates normal (continuous) recording. A
icon manual recording. A icon indicates emergency recording
activated by the G-sensor. See “Recording” (page 10)
Video 1
Video 2
GPS Information
Energy Saving Camera 1
Camera 2
GPS
Microphone
Event Mode

2-ChannelMobileVideoRecorder UserManual
13
(3) Press on the remote controller to switch between CH1 full screen,
CH2 full screen and 2-split screen display (see below)
CH1 full screen CH2 full screen 2-split screen Image
(4) Press on the remote controller in LIVE mode to show firmware
version
(5) Press on the remote controller to turn off audio recording ( will
show on the screen). A icon indicates that audio recording is on.
(6) A icon means either that the device is calculating coordinate or that
there is no satellite signal. A icon means that GPS is ready.
(7) You can use the player software to configure the display brightness on
the SD card. indicates daylight mode, and indicates night mode.
(8) LCD brightness: Press or on the remote controller to adjust
the screen brightness. The screen will show something like below:

2-ChannelMobileVideoRecorder UserManual
14
K. Player Software on PC
Run the player software (included in the CD).
NOTE: The software requires Direct X version 9.0 or above.
NOTE: GPS coordinates, speed and map data are only available if GPS
receiver is connected to the device.
Play the video / file
Seek Bar Drag the car icon to quick search video.
Play Speed Change playback speed (2x or 4x faster, normal, or -2x
or -4x slower)
Seek Bar
Play Speed
Google Map
Channel 1
Channel 2
Control bar
G-Sensor
Vehicle speed
Coordinate
A
udio Volume
Video seek bar

2-ChannelMobileVideoRecorder UserManual
15
G-sensor

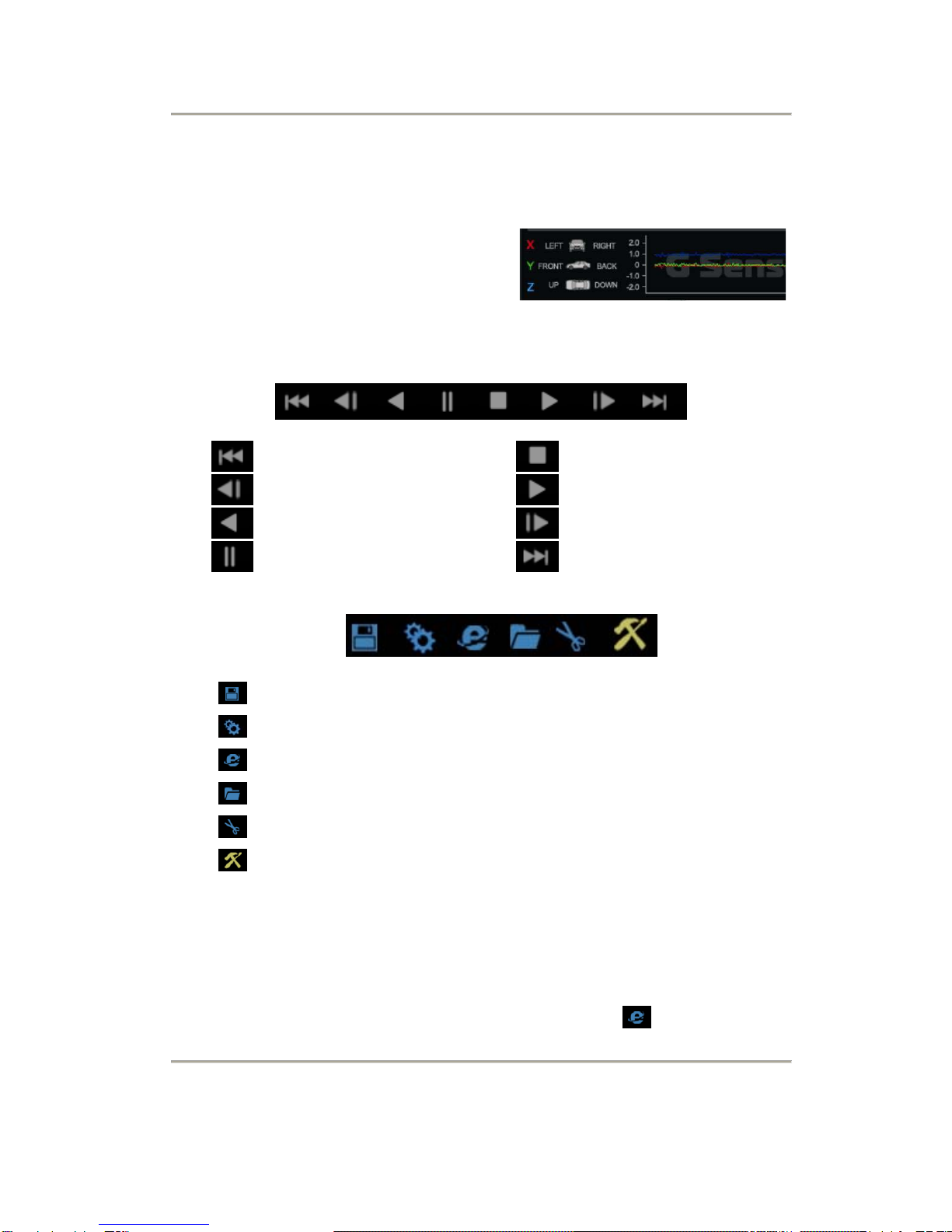

Display vehicle vibration as recorded by internal accelerometer.
X Left and right movement
Y Front and rear movement
Z Vertical movement
Control bar
Previous File Stop
Previous Frame Play
Play Backward Next Frame
Pause
Next File
Video backup.
Configuration
View map in a separate window
Open video (from file or memory disk)
Snapshot
Memory disk format and language setting
Google Map
If GPS data is available (a GPS antenna is attached to the device at the
time of recording), the screen will show the vehicle route using Google Map
To open the Google Map in a separate window, select

2-ChannelMobileVideoRecorder UserManual
16
L. File Backup
On the player software, select and the following window will open.

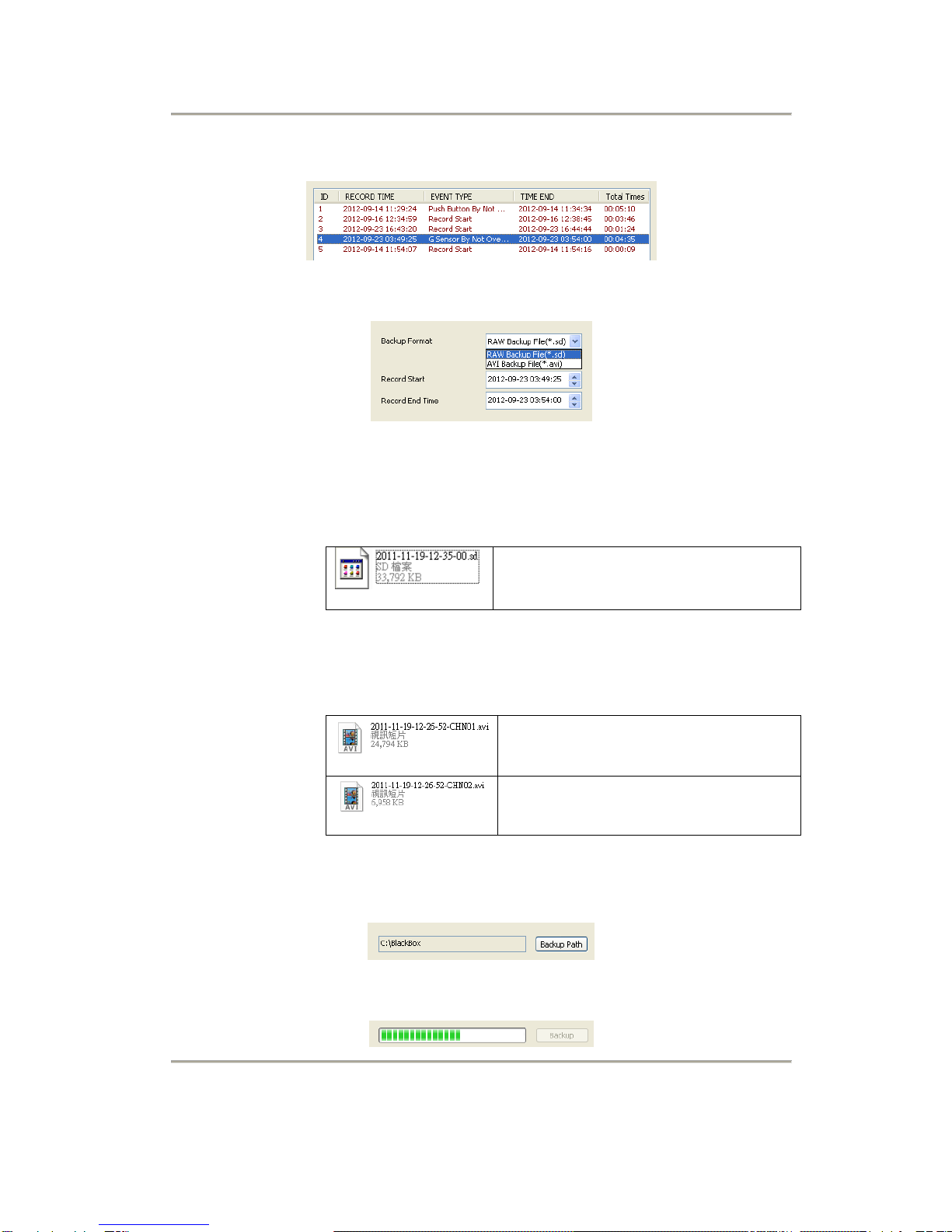

To backup video:
(1) Select the path of the memory disk
1
2
3
4
5

2-ChannelMobileVideoRecorder UserManual
17
(2) Select the footage that you want to backup
(3) Select the Backup Format:
(a)Raw file (.sd)
Backup all footage information (video, audio, and GPS data).
This player software is needed to open the file
(b)AVI File (*.avi)
Backup video and audio to a format that other media player can
open. GPS data will be lost.
chn01 indicates channel 1 footage
chn02 indicates channel 2 footage
(4) Step 4: Select the destination folder of the file.
(5) Step 5: Select Backup to start.

2-ChannelMobileVideoRecorder UserManual
18
M. Configuring the Memory Disk
Before using the memory disk, you need to firstly format and configure the
disk. For disk formatting, please refer to “Formatting the Memory ” on page
23.
To configure the memory disk:
(1) Plug the memory disk to your computer (see page 6).
(2) Run the player software (included in the CD).
(3) Select to open the configuration window
Video
Quality Select the video quality: High/ Normal / Low

2-ChannelMobileVideoRecorder UserManual
19
Video Frame
Rate
Set the number of frames per
second.
NTSC: 5, 10, 15, 20, 30
PAL: 5, 10, 15, 20, 25
Video
Format
Set the frame size
D1 720 x 480 (NTSC)
720 x 288 (PAL)
CIF 360 x 240 (NTSC)
360 x 288 (PAL)
Car
Information
Enter information such as the driver’s
name or license plate number to help
identifying memory disks when the
device is used in a fleet.
Password
This function can encrypt the data
and prevent unauthorized access.
Maximum letters. Password can
contain maximum 15 letters.
NOTE: Password is case-sensitive.
Always keep passwords in secure
location.
After passwords are setup, you will
need to enter the password to access
the disk (video playback,
configuration, formatting, etc.)
Time zone Set the time zone.
Unit of
Speed
Set the unit of speed.
Km/h: kilometer per hour
Mile/h: mile per hour
Knot：knot per hour
G-Sensor
Sensitivity
Set the G-sensor threshold to
activate emergency recording.
Five options are available: OFF, very
low, low, normal, high, very high
