Vacron VVH-MDE31 Configuration guide

2CH Vehicle Video Recorder
Operation Manuel
2015 MAR. V1.0

2-Channel Mobile Video Recorder User Manual
i
Menu
A. Packaging .............................................................................................................................. 1
B. Characteristics: ..................................................................................................................... 2
C. Specification sheet ............................................................................................................. 3
D. Product appearance .......................................................................................................... 6
E. Installation of SD card ....................................................................................................... 7
F. Cable Installation ................................................................................................................ 8
G. Installation diagram ......................................................................................................... 10
H. IR remote control .............................................................................................................. 12
I. Recording ............................................................................................................................ 13
J. Live View: .............................................................................................................................. 14
K. PC Player .............................................................................................................................. 15
L. Data backup ........................................................................................................................ 17
M. Configuring the Memory Disk ..................................................................................... 19
N. Google Map track playback .......................................................................................... 21
O. Data Playback ..................................................................................................................... 22
P. Screenshot tool ................................................................................................................. 25
Q. WiFi Connection ................................................................................................................ 27

2-Channel Mobile Video Recorder User Manual
ii
Safety Precautions
To Whom It May Concern
Thanks for your patronage. Please contact your local dealer for any
assistance. We will backup services via local dealers. Rights are
reserved to upgrade software and hardware without notice beforehand.
Please read this manual prior to use of this product.
Installation Precautions
Make sure power connections clear enough to you before
installation.
System installation is required professional installers and
ventilation space.
Please use recommended and genuine storage device.
Please contact local dealers in case of service requirement.
In Use Precautions
Please keep the inner components off any solid or liquid.
Please do not disassemble the equipment for warranty issue.
Please contact local dealers or the manufacturer for prompt service.
Please remove the battery if remote control keeps idle for quite a
long while.
The equipment best connects with ground wire in case of outdoor
cameras connection or alarm I/O connection. This is to keep the
DVR away from static electricity damage.

2-Channel Mobile Video Recorder User Manual
iii
Surrounding
Please have the DVR under recommended temperature away from
the sun and heating source.
Please keep this equipment away from humid surrounding.
Please keep this equipment away from smoke and dust.
Please do not drop the equipment.
Please keep this equipment in ventilation space.
Please supply rated voltage and Amp. To the equipment.
Please keep flammable objects away from the equipment.

2-Channel Mobile Video Recorder User Manual
1
A. Packaging
1. Accessories
Power cable
Multi-functional OBD display (built with GPS and microphone).
WiFi antenna
CD: user manual, player, and product information.
Velcro Tape
IR remote controller
2. Optional Accessory
SD card reader
SD card, 4GB or above, class 10 or above
3. Review
Please review the package first. The packaging material can resist impact
during delivery. Please remove the PE bag to make sure no damage on the
housing. Finally make sure the screws are not loose.
Front Panel and Rear Panel
Keypad on the front panel and port on the rear panel are described in manual.
Please make sure the model number on the label comes to the same as the
model you purchase. Product labeling has significant meaning to after sale
service. You will be asked to provide model number and serial number the
time you contact our service team.

2-Channel Mobile Video Recorder User Manual
2
B. Characteristics:
1. Aluminum casing make it durable and waterproof.
2. Small independent system, 2 channels video and 1 channel audio
recording.
3. H.264 compression format, 720P video resolution.
4. Low power consumption and efficient heat dissipation, no build-in Lithium
battery to prevent possible danger and heat explosion.
5. Devices starts recording automatically when engine is on, file is well
formatted and saved securely with extension recording by super capacitor.
6. GPS tracking and G-sensor data is to displayed on PC player Carbox player
on Google Map for up-to-date geographic information.
7. Build-in WiFi connection for mobile phone application to display, playback
and backup file directly.

2-Channel Mobile Video Recorder User Manual
3
C. Specification sheet
Item Specification
1 Video Input 2CH 720P
2 Resolution 720P
3 Power
Consumption
(a) DC12V input, power consumption is approx. 1A.
(b) DC12V input, ACC OFF standby power consumption is
approx. 30mA.
(c) Operation voltage: DC10.0v ~ DC14.5v.
(d) Initial voltage: DC11V above.
4 Prolonged
Recording
(a) Extensional power supply for 3 seconds after ACC OFF.
(b) Build-in super capacitor.
5 Temperature
Toleranc e
Operation -20℃～60℃ ( In disclosed space) .
Storing temperature: -40℃～85℃.
6 Storage
Device
Suggest to use SanDisk Class 10, 4GB storage and above
SDHC Card, max. to 128GB.
7 Recording
mode Continuous recording after power ON.
8 Data Content Video, date, time, audio, GPS, external alarm trigger log,
G-Sensor.
9 Storage
Format
Secured data format, please use suggested player.
Playback available on DVR device.
10 Audio Input Secured data format, please use suggested player.
11 Time Setting
GPS time zone auto calibration, and initialize with build-
in calendar if no GPS signal.
Please do GPS time calibration after installation, time
memory is kept with car battery, no battery power supply
will result setting return to default, please do time
calibration after connecting to power.
12 Display
Mode TV-Out
13 OBD (a) Green light flashing: recording. (higher flashing

2-Channel Mobile Video Recorder User Manual
4
Indicator frequency for event recording).
(b) Blue flashing: F/W updating. Red light on means
device error.
(c) Blue light: WiFi connection.
14 Input
(a) Power and signal input:
i. Power input DC12V
ii. ACC signal: power input range DC10.0v ~
DC14.5v。
iii. LAMP signal: power input range DC10.0v ~
DC14.5v for external alarm triggered event
recording.
(b) Video input: please protect with waterproof tape on
connectors after cabling.
(c) Other: GPS, speed, microphone audio input.
(d) WiFi
(e) Infrared remote control reception.
(f) SD card socket.
15 Explanation
(a) Please install device by professional installation
engineer; temporary installation is suggest to fixed
with tape included; please take high attention from
damaging motor oil and power supply.
(b) Please keep device cabling from gasoline tube and oil
tank; please install DVR when engine is off.
(c) Please don’t use micro-SD adaptor as recording
device, it may cause intermittent recording and
unstable connect from driving vibration.
(d) Please use tape to seal connector well after cabling in
order to prevent cabling loosens and dirt, oil, water
from entering.
(e) All cabling should be installed with fuse protection.
(f) DVR should be fixed well to prevent moving and
causes device from damages.
(g) GPS positioning precision is interfered by installation

2-Channel Mobile Video Recorder User Manual
5
position and weather condition.
16 Attention
(a) Camera video and signal may be electromagnetic
interfered of installing on non-EMC certified
vehicles.
(b) Please use alcohol to clean cable connectors to
eliminate dust, mud, oil, …etc. to ensure signal
transmission and video quality.
(c) NTSC or PAL frequency should be set according to
local TV system.
(d) The machine consumes micro electric current
when standby. If the vehicle wouldn’t be used for
long time, please remove DVR power to prevent
power consumption to car battery. User needs to
do time calibration after reconnect the DVR to car
battery.
(e) Boot screen and OSD interface is subject to
change according to software update or revision
change without notice.
(f) Please remove the card and set to lock-state to
avoid being overwritten for important event or
accident records.
(g) Please shut off power before installing or removing
cameras to protect from electric surge or short.
(h) DVR shuts off when ACC power is off, and DVR
time setting is rely on car battery.
Notes : 1. Storage device is not included .
2. The product specification is subject to change without prior notice.

2-Channel Mobile Video Recorder User Manual
6

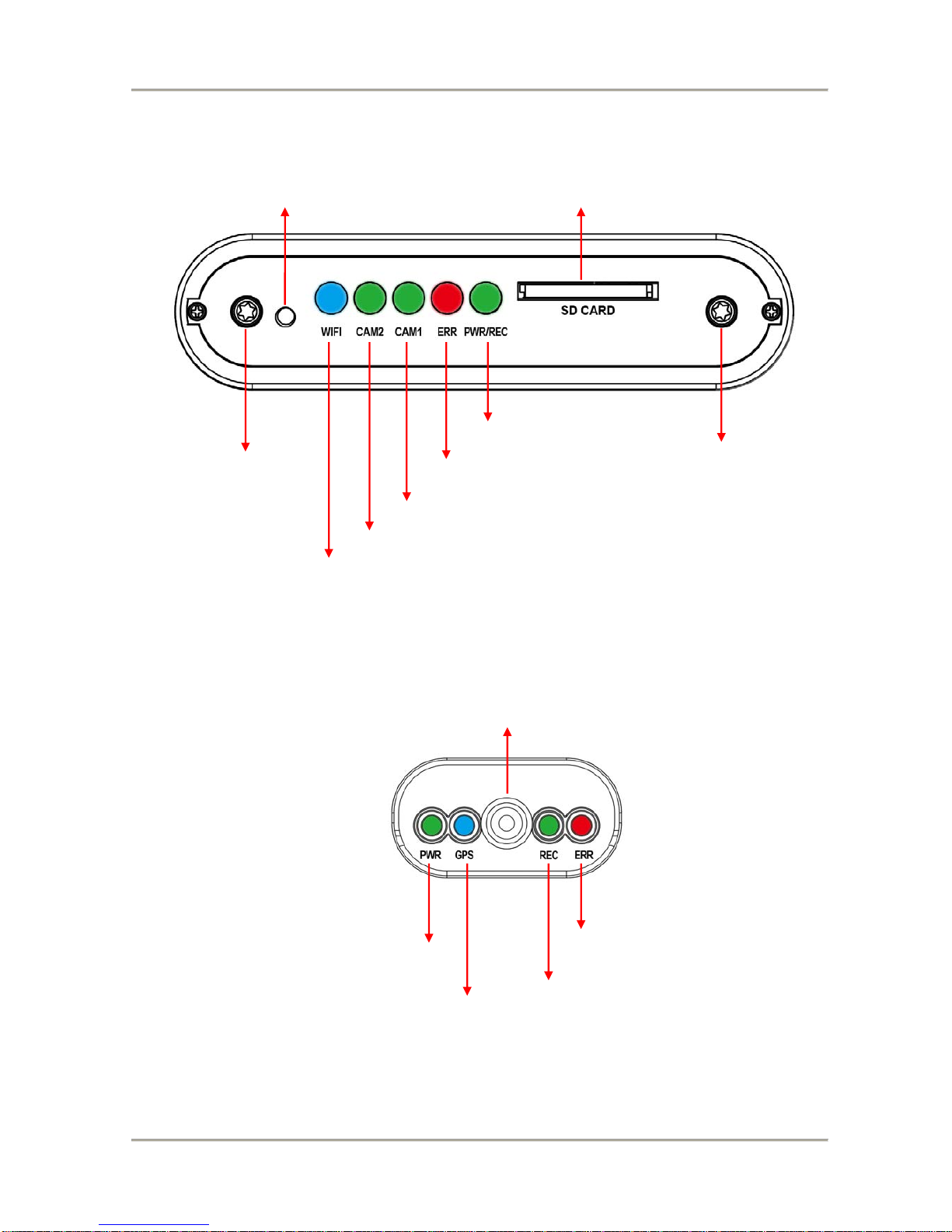

D. Product appearance
Mobile DVR unit:
OBD (On Board Display)
SD card slot
Power / Recording
IR Receiver
Lid screw Lid screw
Error Indicator
CAM1
CAM2
WiFi
Power
Microphone
Error
Recording
GPS

2-Channel Mobile Video Recorder User Manual
7
E. Installation of SD card
(1). Counterclockwise to unscrew the screw of dustproof lid to install/takeoff the
SD card.
(2). Please do SD card format/ restoration with attached player.
Attention
(1). Suggest to use SanDisk or Transcend SD card class 10, 4GB above.
(2). Before using the memory disk, please format the disk first by using
the software player in the CD-ROM. If not, device will automatically
erase all data in the memory disk before recording.
(3). To ensure recording quality, please do not use adapter card with
Micro SD card. Doing so may lead to bad connection due to shock
and vibration.
(4). All memory disks have limited lifespan. Please regularly watch videos
on PC and check the memory disk to ensure proper functioning.
(5). Collision and vibration may cause SD card defective and result
intermittent recording, please check data and backup file
periodically.
SD card slot
Dustproof screw Dustproof screw

2-Channel Mobile Video Recorder User Manual
8
F. Cable Installation
Cables
(1) Multi-functional OBD display connector
(2) Power connector
(3) Camera 1 connector
(4) Camera 2 connector
(5) Video out
(6) WiFi antenna
Note: Please use LVDS camera
Power cable
(a) Power connection: reception
(b) Alarm recording (Grey cable): connect to +12V power to do event
recording by alarm trigged. Can be used together with switch.
(c) Power cable (Red): connect to power positive connector.
(d) ACC activation cable (Brown): connect to motorcycle power switch (+).
(e) Ground (Black): connect to power supply (-).
126
345
a
b cde

2-Channel Mobile Video Recorder User Manual
9
OBD
(A) PWR (Green)：power indication.
(B) GPS (Blue)：Flashing mean GPS 3D positioning searching. Consistent
blue light on means 3D positioned successfully.
(C) Microphone：Audio input.
(D) REC (Green)：Flashing means continuous recording.
(E) ERR (Red)： Error diagnosis, please check camera signal, OBD display, SD
storage…status.
WiFi Antenna
PWR
Microphone
it
ERR
REC
GPS

2-Channel Mobile Video Recorder User Manual
10

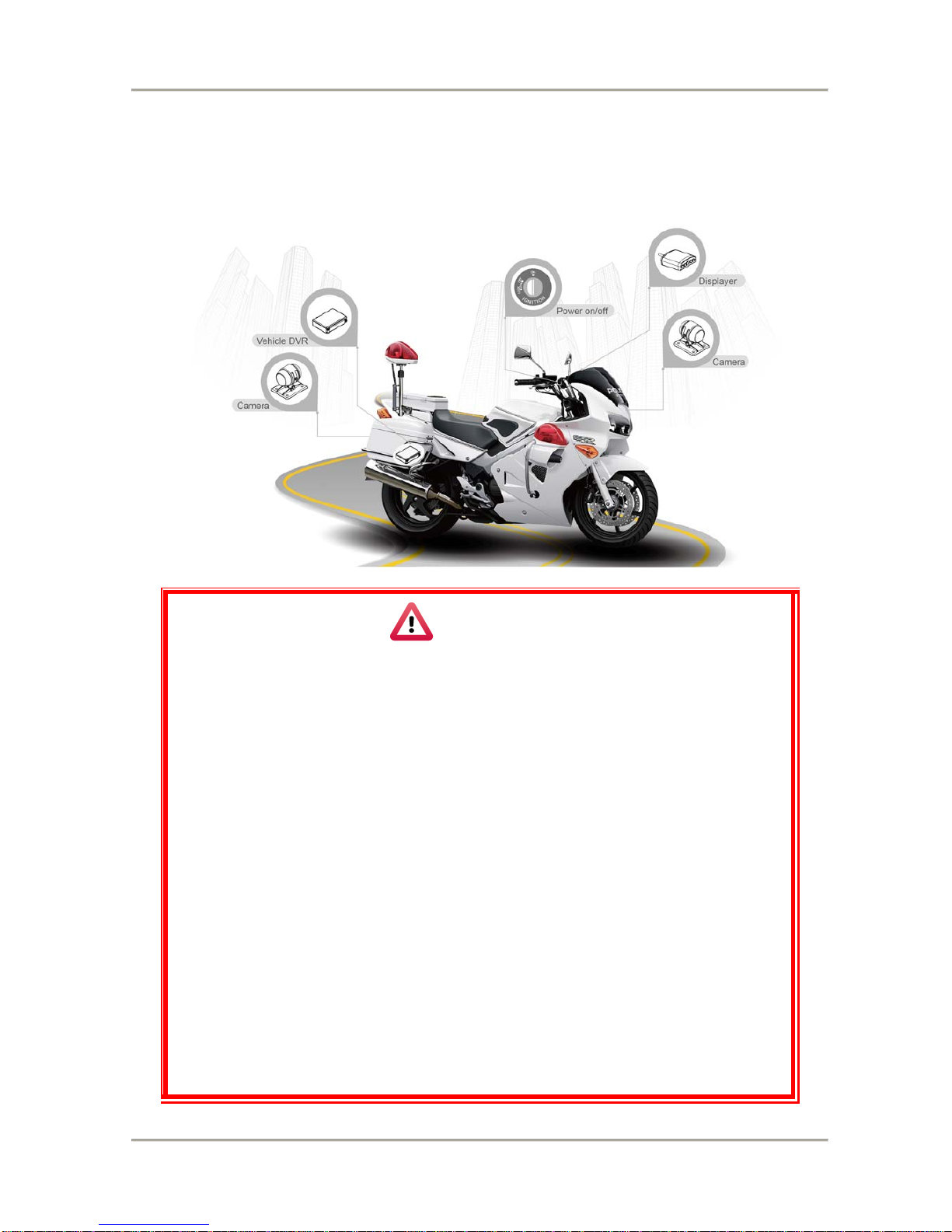

G. Installation diagram
 Installation on motorcycle
Attention
(1). Please install this device with the help of professional technician to avoid
damaging your vehicle.
(2). For installation by none-technician, please use tapes instead of boring
tools to avoid damaging the electrical and gasoline system.
(3). For safety, switch off ignition before installation, and please keep away
from gasoline pipeline and tank.
(4). Before inserting wires through holes, temporarily wrap the terminal with
tape to prevent bad connection from accumulated dirt or debris.
(5). Tightly seal all electrical connection with tape to prevent loose connection
or leak leaking to the connection.
(6). Connect the power behind the key ignition and fuse (not directly to the
vehicle battery) to avoid depleting the battery.
(7). The device should be fixed to the vehicle. Tumbling inside the storage
trunk will damage the device.
(8). GPS positioning accuracy may be affected by the installation position,
sun-screen or weather condition.

2-Channel Mobile Video Recorder User Manual
11
DVR installation diagram
Red cable: DC (+)
Brown cable: ACC power DC current
Grey cable: positive DC power, for LAMP
Black cable: Ground cable
(a) DC12V input is approx. 1A
consumption； Standby
power consumption
when ACC OFF is 30mA。
(b) Operation electric
pressure：DC10.0v ~
DC14.5v。
(c) Device initiate by power
DC11v above.

2-Channel Mobile Video Recorder User Manual
12
H. IR remote control
Icon Function Description
Split screen
switch Single, Duo screen switch
Forced
Recording
DVR saves record to protective area for record
before and after event by pressing the emergency
button. The protective area is reserved as 20% of
total storage and prevent data from being
overwritten.
Audio recording Audio recording ON/OFF
Fast forward
Audio recording switch
Forced recording
Display menu
Confirm
/
Ente
r
Pause
Split screen switch
Up / Down / Left / Right
Stop / Quit
Back forward
Playback / Play

2-Channel Mobile Video Recorder User Manual
13
I. Recording
1.System initialization / Recording:
System initializes within 30 seconds when power is on. PWR green light ON
when system is rebooting. System starts to recording when REC green light is
flashing.
Light Indication:
● PWR/REC：GREEN on means device POWER is on, Flashing resembles
recording.
● ERR：RED on means abnormal, please check possible reason such as
camera signal, HUD display, SD card …etc.
● CAM 1：GREEN means in connection, RED means connection failed.
● CAM 2：GREEN means in connection, RED means connection failed.
● WiFi：BLUE means WiFi module standby, available for connection.
2.Shut off/ Stop recording
Device offer prolonged 3 seconds recording after power off to ensure data is
well stored; user can take out the SD card when indication is off.

2-Channel Mobile Video Recorder User Manual
14
J. Live View:
1. If the screen shows on top right, it means that both channel 1 (left) and
channel 2 (right) have video signal. A icon indicates that one channel has no
video input. shows the audio recording is shut off.
2. Event recording: when shows in LIVE mode mean normally recording, when
press on remote controller, it shows on right side up to represent it is
under manual recording. And when it shows means G-Sensor triggered
recording.
3. User can press to switch to channel 1, 2 on LIVE mode, as below image:
CH1 image CH2 image CH1 and CH2
4. Press on the remote controller in LIVE mode to show firmware version :
5. Press on the remote controller to turn off audio recording ( will show on
the screen). A icon indicates that audio recording is on.
6. A icon means either that the device is calculating coordinate or that there
is no satellite signal. A icon means that GPS is ready.

2-Channel Mobile Video Recorder User Manual
15
K. PC Player
Run the player software (included in the CD).
◎NOTE: The software requires Direct X version 9.0 or above.
1. Viewer Interface
1 CAM1
2 CAM2
3 Speed display
4 G sensor
5 Google Map / File list
6.7 Operation control interface
8 Volume control
9 Play speed
10 Time bar/ File mark
1
6 10
9
2
8
7
543

2-Channel Mobile Video Recorder User Manual
16
2. G SENSOR
G sensor analyzer is to recording the vehicle moving information.
(1) X： Left and right movement
(2) Y： Front and rear movement
(3) Z： Vertical movement
Note：3 axis direction varies according to device posture of installation.
3. Control bar
Start point of backup
End point of backup
Screenshot
Open file
File backup
Device settings
Tool box, memory card formatter,
language setting.
Previous file Stop
Previous frame Play
Back play Next frame
Pause Next file
G SENSOR
