Vacron VDH-SXB804 User manual

4CH 1080P / 8CH 720P
SDI Hybrid DVR
2013 NOV V1.0

CONTENTS
Foreword 【Notices】 ................................................................................................................... 1
A. 【DVR System Operation】...................................................................................... 2
1. Function Illustration ....................................................................................... 2
2. Quick Guide ..................................................................................................... 4
2.1 Main Menu................................................................................................5
2.1.1 Record ........................................................................................................5
2.1.2 Alarm ........................................................................................................10
2.1.3 System ......................................................................................................20
2.1.4 Advanced.................................................................................................52
2.1.5 Info............................................................................................................57
2.1.6 Logout......................................................................................................59
2.2 Record Mode ..........................................................................................59
2.3 PlayBack...................................................................................................60
2.4 PTZ Control .............................................................................................60
2.5 HighSpeedPTZ .......................................................................................61
2.6 Alarm Output..........................................................................................61
2.7 Output Adjust.........................................................................................61
2.8 Logout......................................................................................................62

1
Foreword 【Notices】
WARNING
Do not expose the DVR under the sunlight, heat or wet
environment while installation. As it could decrease the
performance of DVR and damage the machine.
Do not touch the power plug or case with wet hands as this could
result electric shock.
Do not forcedly bend or put heavy object on power cable as this
could result in injury to personal or equipment.
Do not operate with damaged power cord or loose electrical
outlet as this could result in electric shock or accident.
Please use individual power instead of share electrical outlets
with other electrical equipment as this could result in damage or
accident.
Do not attempt to service this DVR by yourself as it may expose
you to dangerous voltage or other hazards. Please refer all
service to the qualified servicing distributor.
Please do not remove the machine housing during operation. It
may cause electric shock or accidental injury.
CAUTION
Do not place the machine on an uneven surface or it would decrease
the DVR efficiency or malfunction.
Avoid any shock or bumping of the DVR while recording.
Improper handling could damage the system.
CAUTION
Make sure the voltage selector switch is set
to appropriate setting before plug in!

2
A. 【DVR System Operation】
1. Function Illustration

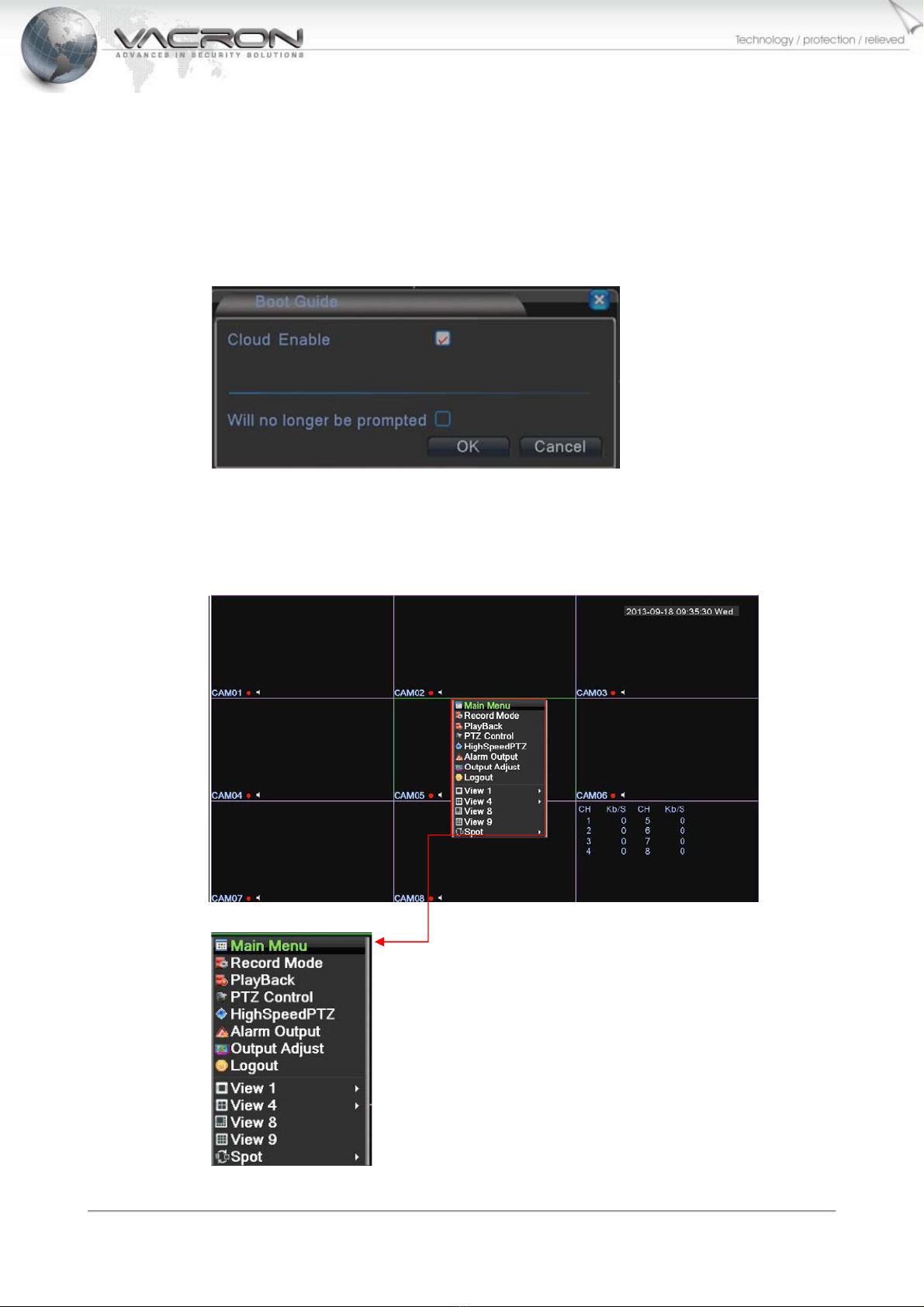

After logo in system, it will ask users whether enable Cloud? If not, it will
ask every time after rebooting the system. Please select the option
“Will no longer be prompted” to avoid it.
After complete configuration, system will show multiple split screens.
Press the right button on the mouse, system will show Quick Menu or
Main Menu, each of them will require login system.

3
The Default login name: admin, password: (NONE)
Select View 1 for monitoring Single screen, optional CAM01~8single
screen.
Select View 4 for monitoring 4 screens, optional CAM1~4 ,4, CAM5~8.

4
Select View 8 for monitoring 8 screens, 8 split screen.
Select View 9 for monitoring 9 screens, 9 split screen.
2. Quick Guide
Right click the mouse, select Main Menu and it will pop out.

5

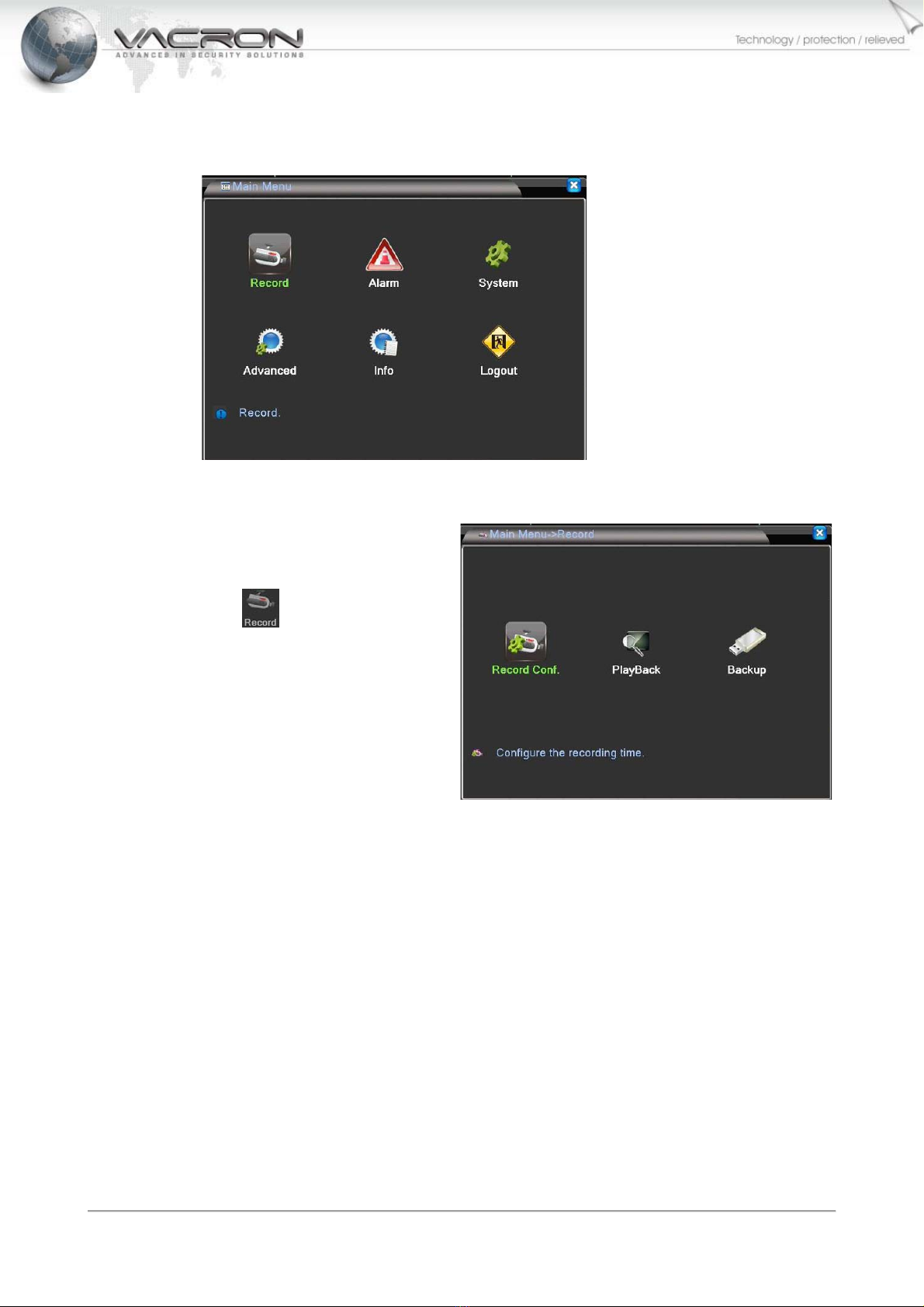

2.1 Main Menu
Path: Quick Guide / Main Menu
2.1.1 Record
Path: Main Menu /
Record
：Record. Record
Cont / PlayBack
/Backup

6
2.1.1.1 Record Cont
a) Channel: click drop down menu of channel. You can setup single channel or all
channels; the default setup will be channel 1.
b) RAID: you can copy all data to another when you connect two HDD; the
default setup will be “uncheck”.
c) Length: setup recording time, least 1 min., limit 120 min.; the default setup will
be 60 min.
d) Mode: Schedule, Manual, Stop, click “Schedule”, you can choose Monday to
Friday or all to setup mode and time of record in the week drop menu. There
are 4 time options for you to choose. Select “Manual” , it will record 24hrs
when the record mode is manual and will be normal recording. ; Select
“Stop”, it will not recording ; the default setup will be Set up.
Path: Main Menu /
Record / Record
Cont
：Configure the
recording time.
a b
c d d

7
2.1.1.2 PlayBack
Path: Main Menu / Record / PlayBack
：Search for and playback recorded video files.
a)
Playback button select date and play channel then click play, it will start playback.
Back forward Rewind Play Video
Stop Stop video playback
Slow playback 4 speed options: 1X、2X、3X、4X. Return to normal speed, just
click play button once again.
Fast rewind 4 speed options: 1X、2X、3X、4X. Return to normal speed, just
click play button once again.
Fast forward 4 speed options: 1X、2X、3X、4X. Return to normal speed, just
click play button once again.
Click pause
rewind button rewind the image frame by frame.
Click pause
playback button playback the image frame by frame.
Previous file
button back to last hour file and playback.
Next file button go to next hour file and playback.
a
b
c

8
Click repeat
button icon becomes to , repeat same file.
Click full screen
button enlarge the image. Click one more time back to normal.
Click scissors
button
Press Cut will become . Selecting how long you want and
press again . It will back up the file which you cut.
USB This function will be used when you use Cut function. It can copy
to USB.
Press to switch to time page, press again will back to date page.
b)
Time bar shows green means normal record; red
means alarm record; yellow means manual
record; it will playback according to your setting.
The default set up will be all check.
Check this function and press pause then will be
Sync; if uncheck, there is only a single channel
effect.
You can select a more precise playback time for
current view, select 24 hours, 2 hours, 1 hour, 30
minutes; the default setting will be 24 hours.
c) Right-Click on the mouse, Menu will display
1) Return: Click Return, it will go back to recording page
2) Playback Stop: Click Stop Playing, it will stop video playback.
3) Full Screen Display: Click Full Screen, the screen display will be
maximum, to cancel full screen display by right-clicking on the mouse.
4) Replay Mode: Available mode options: Playback by frame decoding,
equally decoding, and full-speed decoding.
5) Single Channel Playback: Select single channel from Ch1 to Ch8
randomly for playback.

9

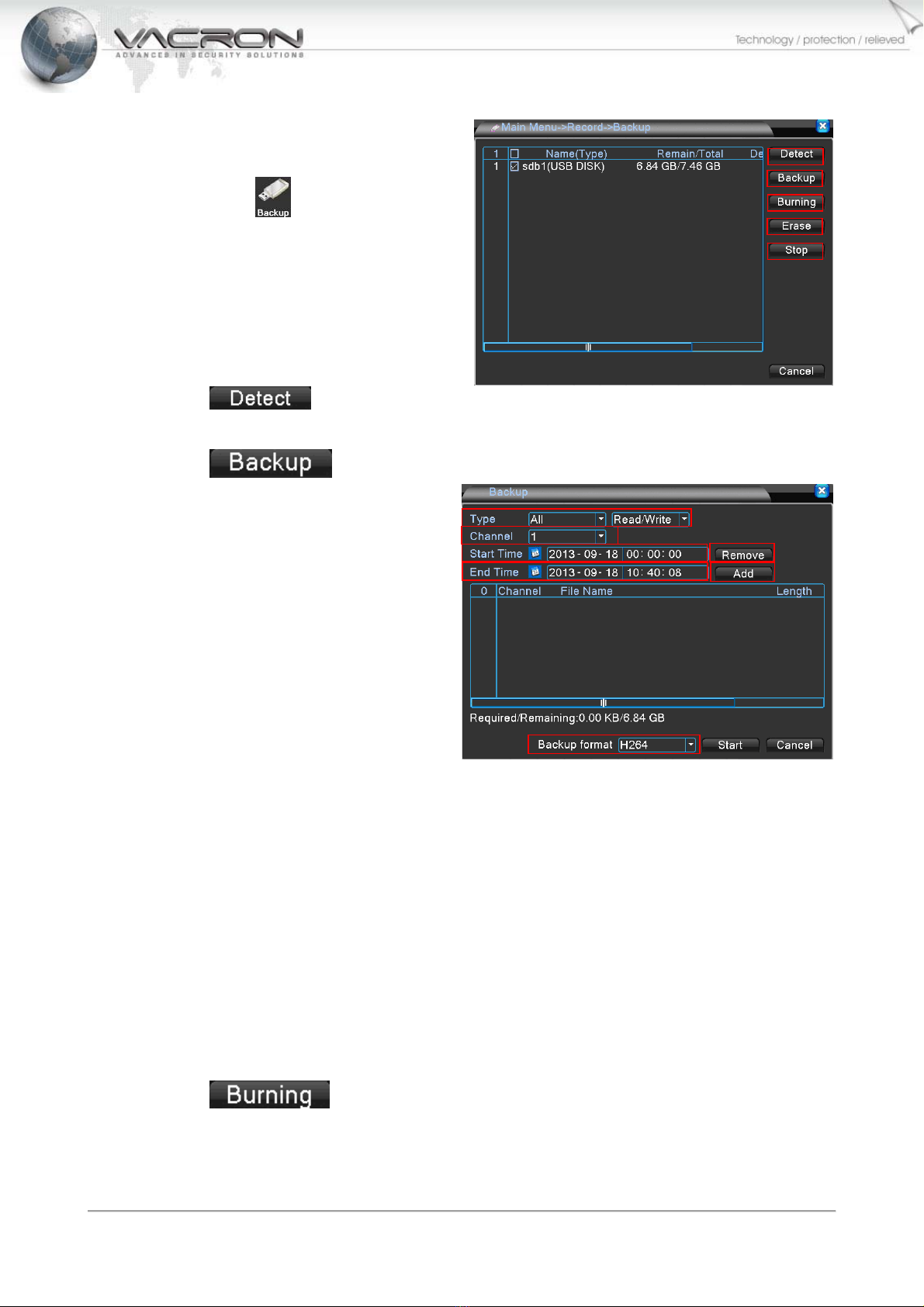

2.1.1.3 Backup
a) ：Plug in USB storage device, click detect to search USB
storage which will be shown in window.
b) ：
1) Type：All、External alarm、Motion detection、All alarm、Manual、
Normal; default value is All channels.
2) Channel：select which channels need to Backup, optional from
Ch1~16; default value is Ch1.
3) Start Time：select what time need to start backup.
4) End Time：select what time to end backup.
5) Remove：Remove selected files.
6) Add：Add selected types or channels.
7) Backup format：select H264 or AVI; default value is H264.
c) ：Select Burning icon to get into page, enable to save any
one Channel’s record into an USB storage device Synchronously.
Path: Main Menu /
Record / Backup
：Backup files to
backup device.
a
b
c
d
e
❶
❷
❸
❹
❺
❻
❼

10
d) ：Format selected USB storage device.
e) ：While backup, click stop icon to stop backup.
2.1.2 Alarm
Path: Main Menu /
Alarm
：Motion Detect /
Video Blind / Video
Loss / Alarm Input /
Alarm Output /
Abnormality /
Intelligent

11
2.1.2.1 Motion Detect
a). Channel：setup ch1~ ch 8 for individual settings, also can
setup for all channels.
b). Enable：Select to setup for the Motion Detect functions;
default value is Off.
c). Sensitivity：Set the sensitivity level, from lowest、lower、
middle、higher、much higher、highest, 6 options. Default
value is middle.
d). Region: Select triggered area; default value is all area.
e). Period：setup the alarm settings from Monday to Sunday,
Any 4 days.
f). Interval：Time between each trigger, 1 ~600 Sec.
g). Alarm Output：According to the settings to trigger alarm
output; default value is Off.
h). Delay: A time period to record after triggering motion
detect alarm, option: 0 ~ 3000 Sec; default value is 10 Sec.
i). Channel Recording：Select which channel to record after
motion detect is triggered; default value is Off.
Path: Main Menu /
Alarm /
Motion Detect
：Configure all
video detection
parameters: active area

12
j). Tour：Channel pops out after alarm is triggered. If select all
channels, it jumps from Ch 1 to ch 8 in sequence; default
value is Off.

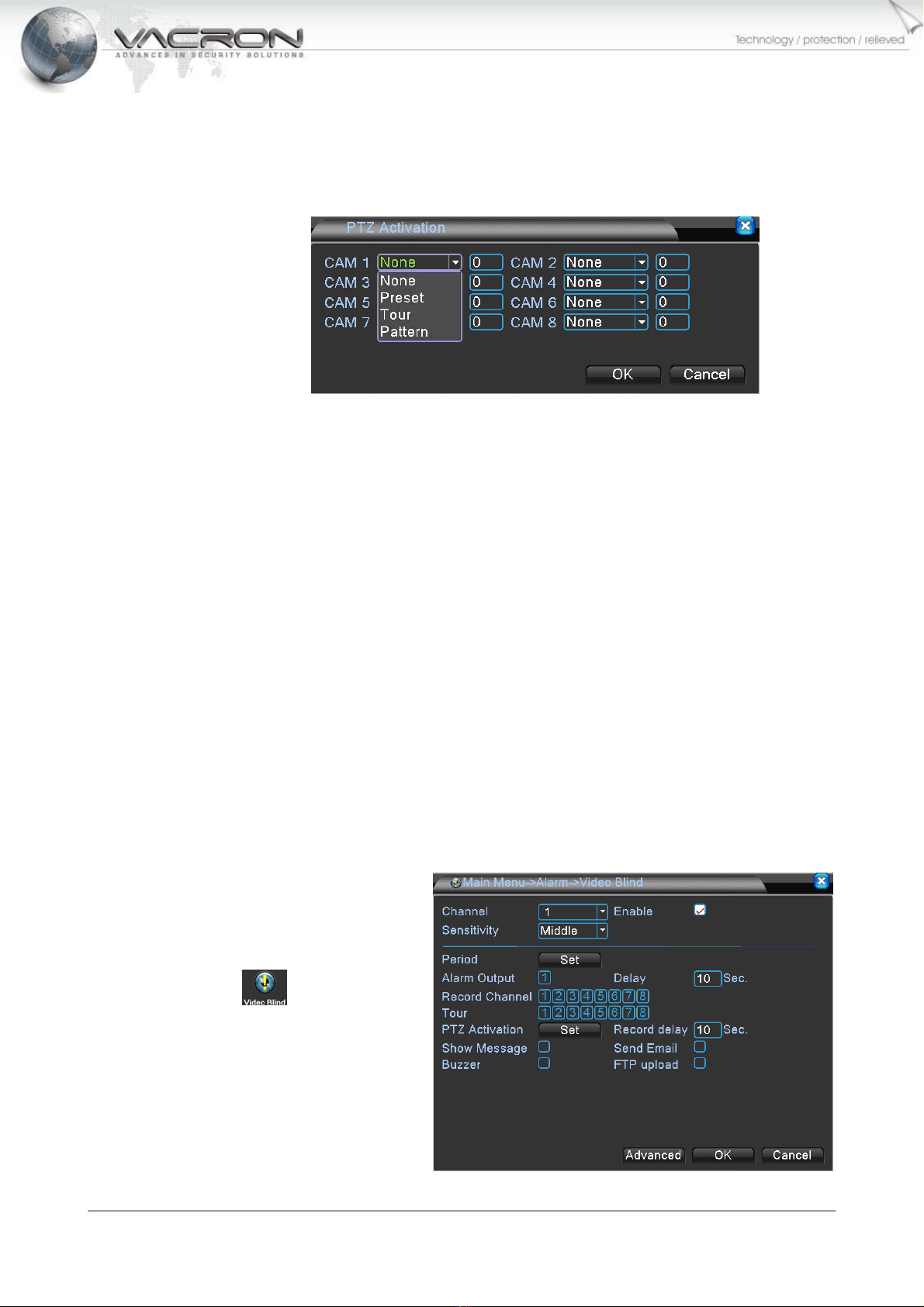

k). PTZ Activation：Setup the PTZ function from Ch1 ~ Ch8.
l). Record delay：The recording duration after the buzzer being
triggered. Option: 0 ~ 3000 Sec; default value is 10 Sec.
m). Show message：Setup for a prompt message show on the
screen when motion alarm is triggered; default value is Off.
n). Send Email：Setup to send triggered photos to assigned
email address when motion alarm is triggered; default value
is Off.
o). Buzzer：Setup for buzzer beeping after motion alarm is
triggered; default value is off.
p). FTP Upload：Setup to upload photos to assigned FTP server
when motion alarm is triggered.
2.1.2.2 Video Blind
Path: Main Menu
/Alarm / Video
Blind
：Settings for
blind detect
parameters.

13
a). Channel：setup ch1~ ch 8 for individual settings, also can
setup for all channels.
b). Enable：Select to setup for the Video Blind functions; default
value is Off.
c). Sensitivity：Set the sensitivity level, from lowest、lower、
middle、higher、much higher、highest, 6 options. Default
value is middle.
d). Period：：setup the Video Blind from Monday to Sunday, Any
4 days.
e). Alarm Output：According to the settings to trigger Video
Blind output; default value is Off.
f). Delay: A time period to record after triggering Video Blind,
option: 0 ~ 3000 Sec; default value is 10 Sec.
g). Record Channel：select which channel to record after Video
Blind is triggered; default value is Off.
h). Tour：Channel pops out after Video Blind is triggered. If
select all channels, it jumps from Ch 1 to ch 8 in sequence;
default value is Off.
i). PTZ Activation：Set the PTZ function from Ch1 ~ Ch8
j). Record Delay：The recording duration after the buzzer
being triggered Video Blind. Option: 0 ~ 3000 Sec; default
value is 10 Sec.
k). Show message：Setup for a prompt message show on the
screen when Video Blind is triggered; default value is Off.
l). Send Email：Setup to send triggered photos to assigned
email address when Video Blind is triggered; default value is
Off.
m). Buzzer：Setup for buzzer beeping after Video Blind is
triggered; default value is Off.
n). FTP Upload：Setup to upload photos to assigned FTP server
when Video Blind is triggered.

14
2.1.2.3 Video Loss
a). Channel：setup ch1~ ch 8 for individual settings, also can
setup for all channels.
b). Enable：Select to setup for the Video Loss functions; default
value is Off.
c). Period：setup the Video Loss from Monday to Sunday, Any 4
days.
d). Alarm Output：According to the settings to trigger Video
Loss output; default value is Off.
e). Delay: A time period to record after triggering Video Loss,
option: 0 ~ 3000 Sec; default value is 10 Sec.
f). Record Channel：select which channel to record after Video
Loss is triggered; default value is Off.
g). Tour：Channel pops out after Video Loss is triggered. If
select all channels, it jumps from Ch 1 to ch16 in sequence;
default value is Off.
h). PTZ Activation：Set the PTZ function from Ch1 ~ Ch8
i). Record Delay：The recording duration after the buzzer
being triggered Video Loss. Option: 0 ~ 3000 Sec; default
value is 10 Sec.
Path: Main Menu /
Alarm / Video Loss
：Settings for
video loss detect
parameters.

15
j). Show message：Setup for a prompt message show on the
screen when Video Loss is triggered; default value is Off.
k). Send Email：Setup to send triggered photos to assigned
email address when Video Loss is triggered; default value is
Off.
l). Buzzer：Setup for buzzer beeping after Video Loss is
triggered; default value is Off.
m). FTP Upload：Setup to upload photos to assigned FTP server
when Video Loss is triggered.

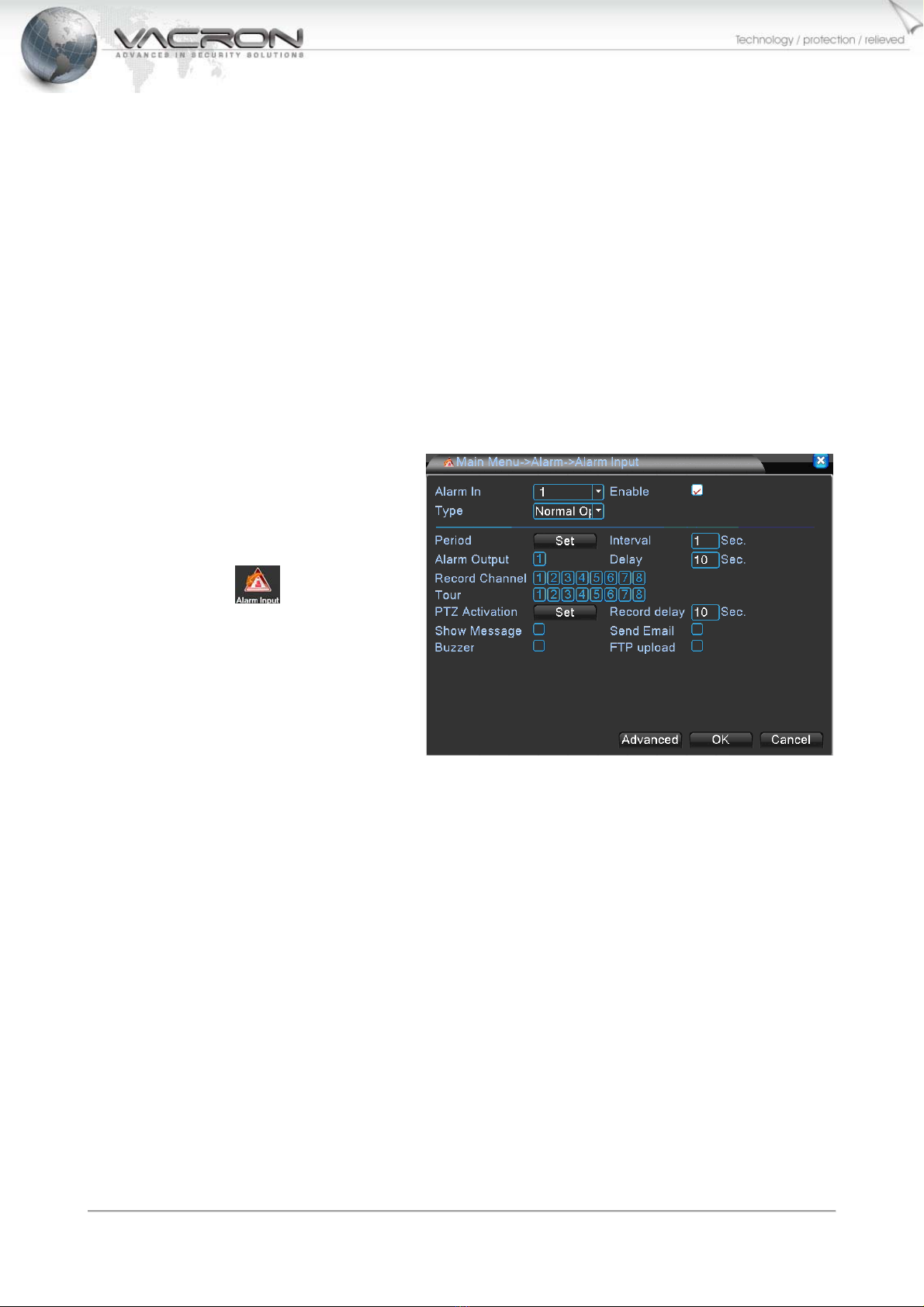

2.1.2.4 Alarm Input
a). Channel：setup ch1~ ch 8 for individual settings, also can
setup for all channels.
b). Enable：Select to setup for the Alarm Input funtions; default
value is Off.
c). Type: Setup Normal open or Normal close; default value is Off.
d). Period：setup the Alarm Input from Monday to Sunday, Any 4
days.
e). Interval：Time between each trigger, 1 ~600 Sec.
f). Alarm Output：According to the settings to trigger Alarm
Input; default value is Off.
g). Delay: A time period to record after triggering Alarm Input,
option: 0 ~ 3000 Sec; default value is 10 Sec.
h). Record Channel：select which channel to record after Alarm
Input is triggered; default value is Off.
Path: Main Menu
/Alarm / Alarm
Input
：Setting of
exterior alarm

16
i). Tour：Channel pops out after Alarm Input is triggered. If select
all channels, it jumps from Ch 1 to ch 8 in sequence; default
value is Off.
j). PTZ Activation：Set the PTZ function from Ch1 ~ Ch8.
k). Record Delay：The recording duration after the buzzer being
triggered Alarm Input. Option: 0 ~ 3000 Sec; default value is
10 Sec.
l). Show message：Setup for a prompt message show on the
screen when Alarm Input is triggered; default value is Off.
m). Send Email：Setup to send triggered photos to assigned email
address when Alarm Input is triggered; default value is Off.
n). Buzzer：Setup for buzzer beeping after Alarm Input is
triggered; default value is Off.
o). FTP Upload：Setup to upload photos to assigned FTP server
when Alarm Input is triggered.
2.1.2.5 Alarm Output
Path: Main
Menu/Alarm
/Alarm Output
：Alarm Out.

17
2.1.2.6 Abnormality
a). Event Type：Optional: No Disk, Disk Error, Disk No Space,
Net Disconnection, IP conflict…etc.
b). Enable：Select to setup for the Abnormality function; default
value is Off.
c). Show message：Setup for a prompt message show on the
screen when Abnormality is triggered; default value is Off.
d). Buzzer：Setup for buzzer beeping after Abnormality is
triggered; default value is Off.
2.1.2.7 Intelligent
a). Channel 1 can be made for the intelligent set ;only channels
1 to do the settings.
Path: Main
Menu/Alarm
/Abnormality
：Abnormal
parameter setup.
Path: Main
Menu/Alarm /
Intelligent
：Set the
Intelligent Analysis
of the alarm
parameters.

18
b). Enable：Select to setup for Intelligent functions; default
value is Off.
c). Algorithm：3 options: Perimeter alert, Items care, Video
Diagnosis.
d). Rule：click “Set” get into, setup whether to Show Traces,
Sensitivity: Higher, middle, low. Move scroll bar for
Minimum moving distance.
1) Cordon: set from left to right or from right to left will triggered
alarm.
2) Warning area: set their own warning area, when someone passes
the selected area will trigger an alarm.
step Cordon Warning area
1
2
