Vacron VVG-CBN29 User manual

HD Vehicle Video Recorder
User Manual
2016. JAN V2.0

Vehicle Video Recorder
User Manual
i
Safety Precautions
Please Take and review some testing videos initially to make sure the images were
recorded correctly.
Please note that manufacturer, its subsidiaries and affiliates, and its distributors are
not liable for consequential damages arising from any malfunction of main device
accessory, including memory device that results in the failure of an image to be
recorded or to be recorded in a way that is machine readable.
Before using the product, please ensure that you read the safety precautions
described below. Always ensure that the product is used correctly.
• Use only recommended power sources.
• Do not attempt to disassemble, alter or apply heat to the product.
• DO not apply multi cigarette lighter adapters-Applying such devices will cause
unstable power input to damage the vehicle video recorder.
• Please always make sure all power connectors are fully secured.
• Avoid dropping or subjecting the product to severe impacts.
• To avoid the risk of injury, do not touch the interior of the product if it has been
dropped or otherwise damaged.
• Stop using the product immediately if it emits smoke, a strange smell, or
otherwise behaves abnormally.
• Do not use organic solvents such as alcohol, benzene, or thinner to clean the
product.
• Do not let the product come into contact with water (e.g. sea water) or other
liquids.
• Do not allow liquids or foreign objects to enter the VVR.

Vehicle Video Recorder
User Manual
ii
• Do not place the VVR near or in direct flame.
• Do not handle the power cord with wet hands.
• Do not use the equipment in a manner that exceeds the rated capacity of the
electrical outlet or wiring accessories.
• Do not use if the power cord or plug are damaged, or not fully plugged into the
outlet.
• Do not allow dirt or metal objects (such as pins or keys) to contact the terminals
or plug.
• Avoid using, placing or storing the product in the humid or dusty areas.

Vehicle Video Recorder
User Manual
iii
Index
A. ACCESSORIES .................................................................................................................................. 1
B. FEATURE DESCRIPTION .............................................................................................................. 2
C. SPECIFICATIONS ............................................................................................................................ 3
D. INSTALLATION ............................................................................................................................... 5
E. PRODUCT FUNCTION INTRODUCTION ............................................................................... 7
F. SD CARD INSTALLATION ........................................................................................................... 9
G. RECORD AND STOP ................................................................................................................... 10
H. REMOTE CONTROL..................................................................................................................... 11
I. OSD MENU FUNCTION ............................................................................................................. 12
J. PLAYBACK....................................................................................................................................... 13
K. VACRON VIEWER ........................................................................................................................ 14
L. RECORD TIME ESTIMATION .................................................................................................... 18
M. CRITERIA OF TFT LCD INSPECTION ...................................................................................... 19
APPENDIX – EXCEPTION CLAUSE ............................................................................................... 20

Vehicle Video Recorder
User Manual
1
A. ACCESSORIES
Please review the contents prior to use. Please contact your local dealer if
something not found in the box.
※ Storage card is not included in the box as free provision.
Standard
Cigar Lighter Adapter
Bracket holder
Suction cup bracket
Quick User Guide
IR Remote Controller
Optional
8G / 16G / 32G / 64G Class10 or above SDHC Card
SD Card USB Reader

Vehicle Video Recorder
User Manual
2
B. FEATURE DESCRIPTION
■Built-in super capacitor offers extensional power supply and ensures video
is well stored of critical moment and compact.
■Wide angle glare-depressed lens .
■Low light high sensitive sensor equipped.
■High environmental tolerant casing, high temperature resistant casing
which doesn’t release toxic gas and deformation.
■HD Recording Resolution.
■SDHC storage card max. to 64GB.
■Auto loop recording when memory card is inserted and device is power
on.
■Emergency recording button protect data in secured area from being
overwritten.
■Build-in G-Sensor event recording. Zoom IN/OUT by mouse wheel on
Carbox player.

Vehicle Video Recorder
User Manual
3
C. SPECIFICATIONS
Item Description
Sensor CMOS Sensor
Resolution
NTSC 1280x720(720p), 30fps。
PAL 1280x720(720p), 25fps。
Power Supply
DC5V±5% / 1 Amp.
Build-in 1.5F super-capacitor.
Operating Tmp. -10℃~ +60℃
Storage
SDHC Card Recommended Class 10or above 8GB at least,
max to 64GB.
Recording
Start recording automatically when power up, extensional
3 seconds recording after power off.
Recording Data Date/Time/Video/Audio/G-Sensor
Playback
TS files playback on normal player, or download player
from Vacron website, also playback by using remote
control on the machine.
Audio Input Built-in microphone
Time setting Use remote control to set up time in OSD interface.
G-Sensor Built-in 3D G-Sensor
※ Storage card is not included as free provision.
※ Specifications shall be changed subject to necessary update.

Vehicle Video Recorder
User Manual
4
Notification:
1. Startup Menu and OSD (on screen display) might be varied with firmware
update.
2. Please refer to the SD card usage and life limit, and check video recording
periodically with Carbox player on PC to ensure normal recording.
3. Please replace build-in battery CR1220 for clock memory when time is
not calibrated.

Vehicle Video Recorder
User Manual
5

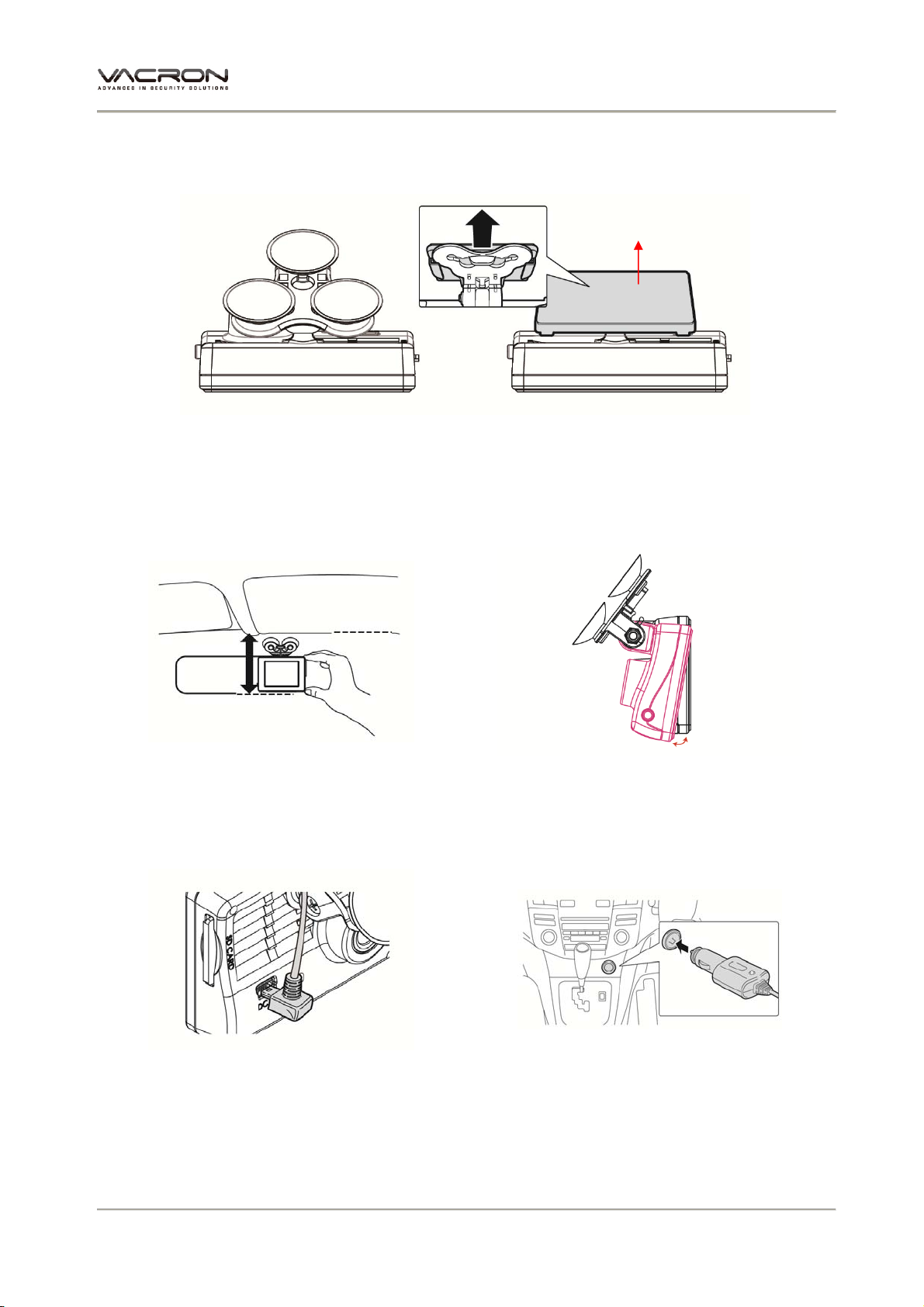

D. INSTALLATION
1. Select 「Suction-cups」or 「Stick-Holder」to install on windshield.
2. The best position to install
the device on the windshield
3. Adjust the view angle properly
4. Plug in DC5V Power Supply 5. Plug in the Cigarette Charger
Sticker Adhesive Spot

Vehicle Video Recorder
User Manual
6

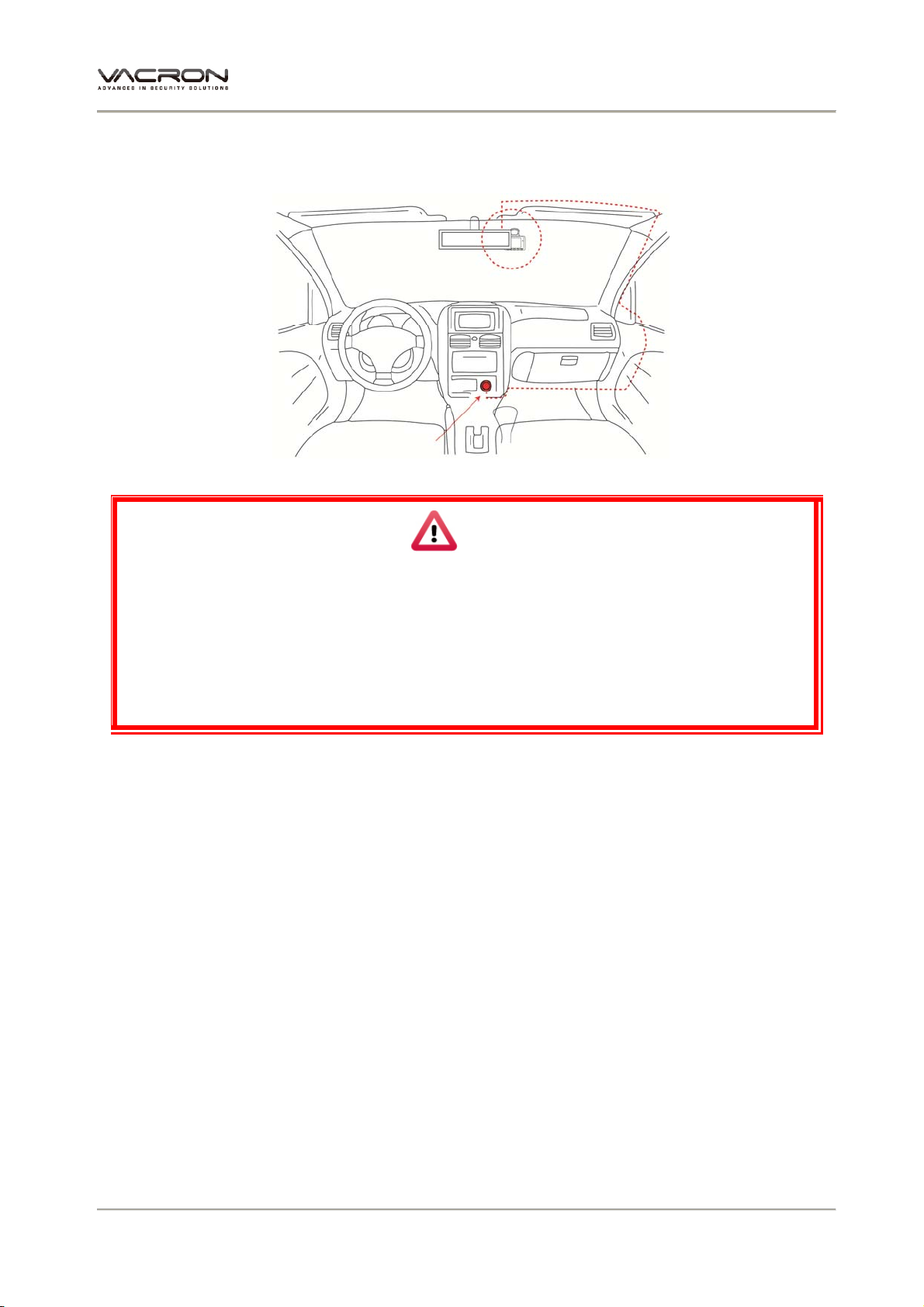

6. VVR Installation
Notice
(a) This device should be installed on the windshield of clean and dry.
(b) The best location must be in the range of the moving wipes.
(c) Format the memory card in the DVR prior the very first recording.
(d) Set time zone and timing on OSD.
Best Location
Cigar Lighter

Vehicle Video Recorder
User Manual
7
E. PRODUCT FUNCTION INTRODUCTION
Manual Force Recording Button
Light Indicator
SD Card Slot
DC5V Power In
Screen
Lens
Bracket
IR receiver

Vehicle Video Recorder
User Manual
8
Size of VVR
Unit：mm

Vehicle Video Recorder
User Manual
9
F. SD CARD INSTALLATION
(1). Please read other pages for detailed information of SD card format.
Reminder – SD card is not free provision from manufacturer.
Warning
(1). Recommended Class 10 or above 8GB at least, maximum support to
64GB
(2). If the memory card is not formatted by the player, the device will
automatically erase all the data.
(3). Please DO NOT use micro SD card adaptor. The adaptor could
cause recording stability.
(4). Memory card has its limit on written times. It is suggested to check
SD card files with PC player Carbox player periodically.

Vehicle Video Recorder
User Manual
10
G. RECORD AND STOP
1. Reboot / Record
Reboot the DVR system ready in 20 seconds. DVR starts recording.
2. Power Off / Stop
It stops recording once power is off, build-in capacitor offer 3 seconds extra
power to make sure file is well stored. User can remove the memory card after
the indication light is off.
3. Light indicator
Red indicator: Flicker means on recording (Force recording with fast flicker.
4. Force Recording
Force recording with enforcement, any statues trigged force recording will
back to record display and start to force recording.

Vehicle Video Recorder
User Manual
11

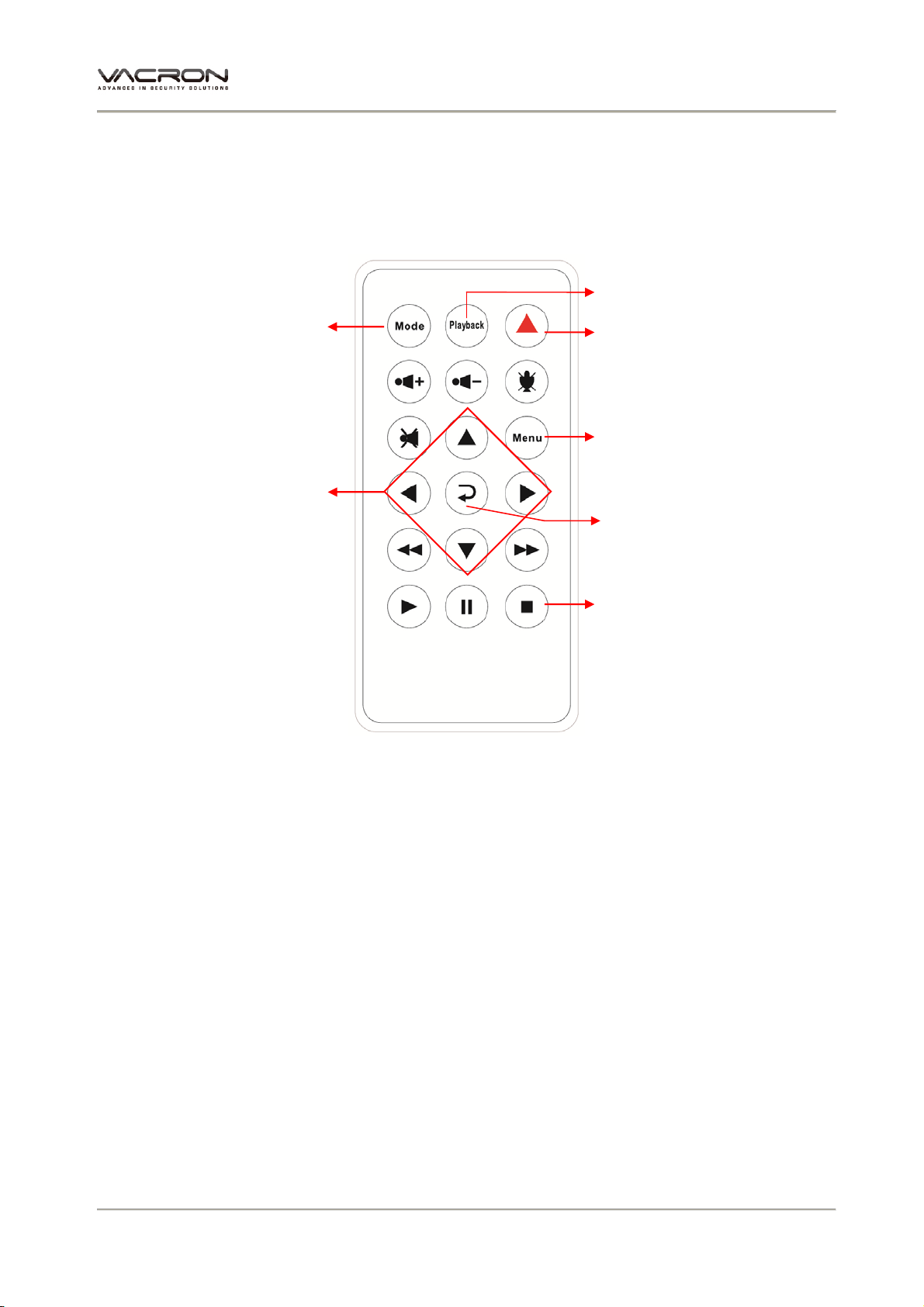

H. REMOTE CONTROL
Play
Navigator
Sto
p
Ente
r
Menu
Emer
g
enc
y
REC
OSD screen
On/Of
f

Vehicle Video Recorder
User Manual
12

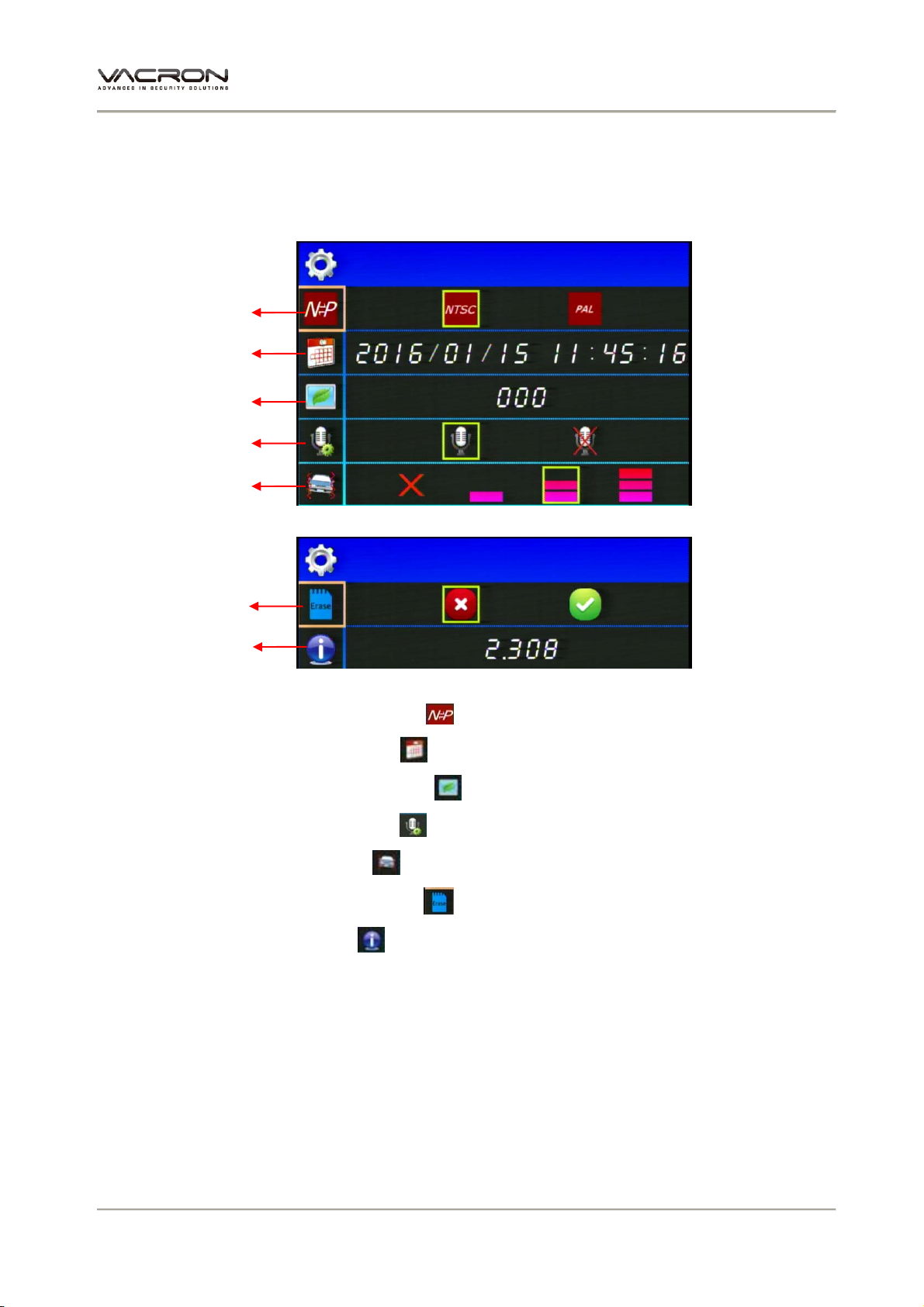

I. OSD MENU FUNCTION
Select Menu enter OSD as below
1. Video standard: click to set NTSC or PAL.
2. Time setting: click to set calendar.
3. Monitor setting: click to set Eco-saving mode.
4. Microphone: click to set microphone on or off.
5. G-sensor: click to adjust the sensitivity of G-sensor.
6. SD card format: click to format SD card.
7. Version: click to show current firmware version information.
Time setting
Eco-saving monitor
G-Sensor
Firmware version
NTSC / PAL
Microphone
SD card format

Vehicle Video Recorder
User Manual
13

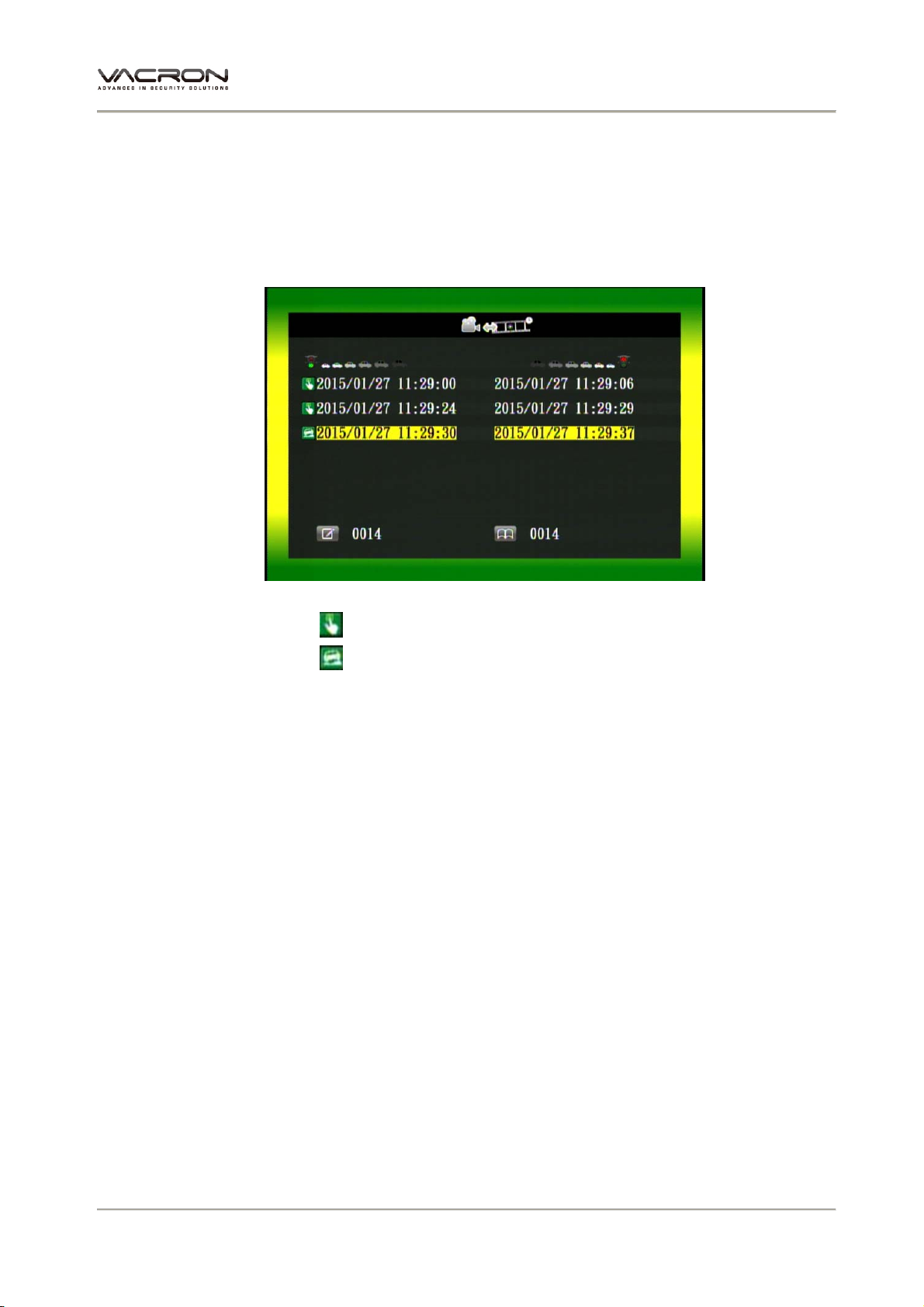

J. PLAYBACK
Click the playback function to enter playback menu, and choose the recorded
video fragment.
1. : Manual/Emergency Recording.
2. : G-Sensor Recording.

Vehicle Video Recorder
User Manual
14

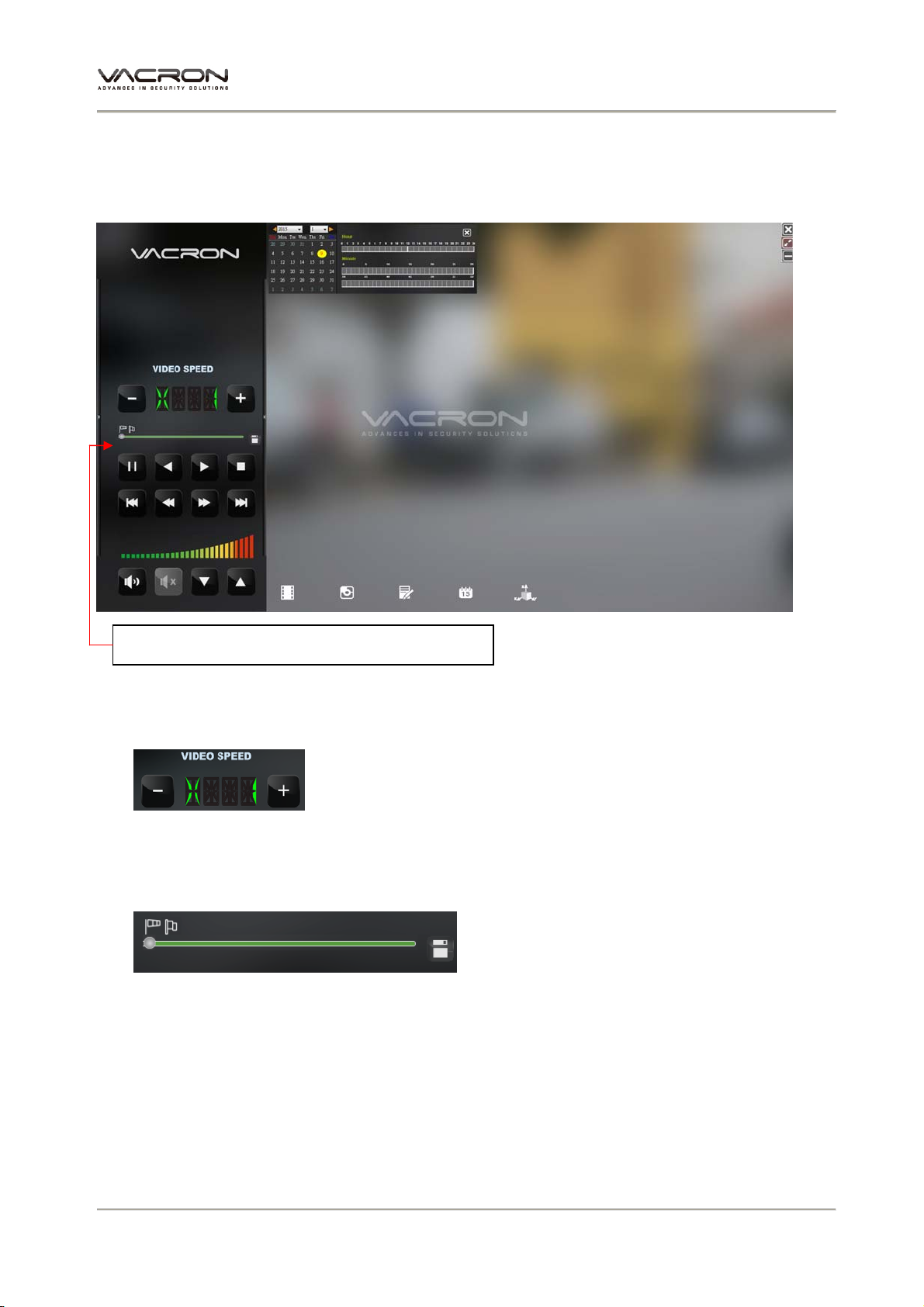

K. VACRON VIEWER
★ Reminder- DirectX 9.0 is required.
1. Playback Speed: Fast Forward 2X, 4X, 8X; Slow Forward 1/2X, 1/4X, 1/8X
2. Scroll Bar: playback display can be scrolled to wanted position. Set the start
and end point to identify the range, right click to backup the video files.
Allow to move the user interface to left or right.

Vehicle Video Recorder
User Manual
15
3. Control Panel
Pause
Reverse
Play
Stop
Previous File
Previous Frame
Next Frame
Next File
4. Volume control: Click +、- to adjust volume.
5. File backup: click to choose file save directory.

Vehicle Video Recorder
User Manual
16

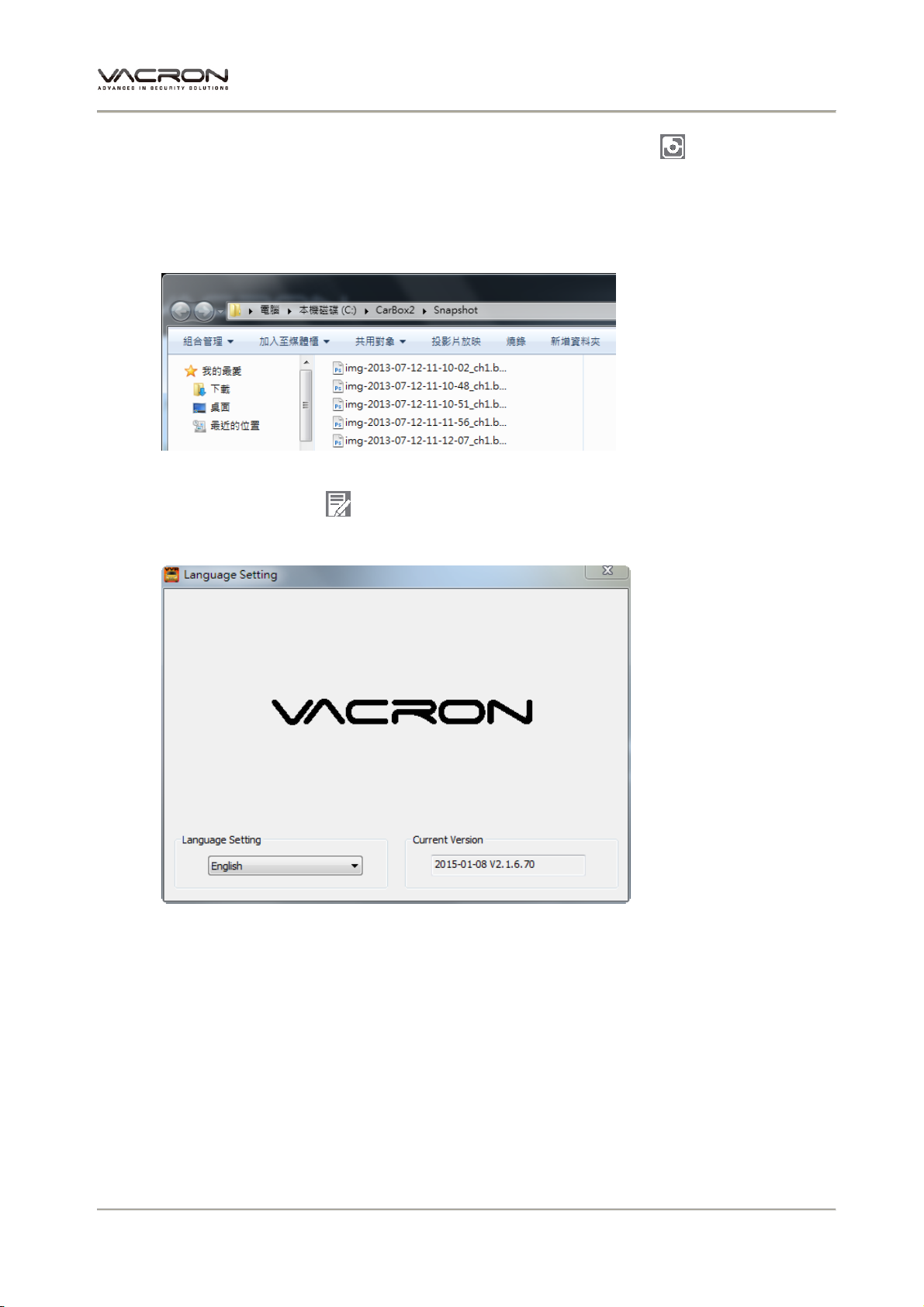

6. Snap Shot: to capture the picture during playback, and click to save the
file to directory (default directory: /Snaptshot, the saving directory can be
changed. The file format is “.bmp”)
7. Current Version: click to view current version and setting language.
