Vaisala HMP60 series User manual

USER'S GUIDE
Vaisala Humidity and Temperature Probes
HMP60, HMP110 and HMP110T
M211060EN-C

PUBLISHED BY
Vaisala Oyj Phone (int.): [phone]
P.O. Box 26 Fax: [phone]
FI-00421 Helsinki
Finland
Visit our Internet pages at www.vaisala.com
© Vaisala 2011
No part of this manual may be reproduced in any form or by any means, electronic or
mechanical (including photocopying), nor may its contents be communicated to a third
party without prior written permission of the copyright holder.
The contents are subject to change without prior notice.
Please observe that this manual does not create any legally binding obligations for
Vaisala towards the customer or end user. All legally binding commitments and
agreements are included exclusively in the applicable supply contract or Conditions of
Sale.

________________________________________________________________________________
VAISALA________________________________________________________________________ 1
Table of Contents
CHAPTER 1
GENERAL INFORMATION............................................................................5
About This Manual...................................................................5
Contents of This Manual.......................................................5
Version Information...............................................................6
Related Manuals...................................................................6
Documentation Conventions.................................................6
Safety.........................................................................................7
ESD Protection .........................................................................7
Recycling ..................................................................................8
Regulatory Compliances.........................................................8
Patent Notice ............................................................................8
Trademarks...............................................................................9
License Agreement..................................................................9
Warranty....................................................................................9
CHAPTER 2
PRODUCT OVERVIEW................................................................................11
Introduction to HMP60, HMP110, and HMP110T.................11
Basic Features and Options..................................................12
Filter Options.......................................................................13
Installation Accessories (Optional)......................................14
Probe Mounting Clamp .......................................................14
Probe Mounting Flange.......................................................14
Duct Installation Kit .............................................................15
Loop Power Converter........................................................16
Cables.................................................................................17
CHAPTER 3
INSTALLATION............................................................................................19
Dimensions.............................................................................19
Mounting the Probe................................................................20
Probe Assembly with Duct Installation Kit .....................20
Drilling Instructions for Duct Installation Kit ...................21
Wiring ......................................................................................22
Wiring with the Loop Power Converter ...............................23
Power Supply Requirements...............................................24
Recommendations.........................................................24
CHAPTER 4
OPERATION.................................................................................................25
Getting Started .......................................................................25
Serial Line Communication...................................................25

User's Guide ______________________________________________________________________
2 ___________________________________________________________________ M211060EN-C
Connecting to the Serial Interface.......................................25
Installing the Driver for the USB Cable................................27
Terminal Application Settings for Probes in RS-485 Mode.28
Terminal Application Settings for Probes in Analog Mode..30
List of Serial Commands .......................................................31
Device Information and Status..............................................32
View Device Information......................................................32
View Calibration Information ...............................................33
View Order Code.................................................................33
View Serial Number.............................................................33
View Software Version........................................................34
Serial Line Output Commands..............................................34
Start Measurement Output..................................................34
Stop Measurement Output..................................................34
Output the Measurement Message Once ...........................35
Configuring Serial Line Operation........................................35
Set Serial Line Settings.......................................................35
Set Serial Interface Mode....................................................36
Set Output Interval...............................................................37
Set Measurement Filtering..................................................37
Set Probe Address ..............................................................38
Set Serial Interface Delay....................................................38
Set Measurement Units.......................................................39
Calibration Commands..........................................................40
Calibrate Humidity Measurement........................................40
Clear Adjustment of RH Measurement................................41
Calibrate Temperature Measurement .................................41
Clear Adjustment of T Measurement...................................42
View User Adjustment Parameters .....................................42
Other Commands ...................................................................43
Set Analog Output Mode.....................................................43
Extend Analog Output Range..............................................44
Display Command List ........................................................44
Display the Currently Active Errors .....................................44
Connect to the Probe in POLL Mode ..................................45
Close the Connection in POLL Mode..................................45
Reset the Probe...................................................................45
Restore Factory Settings.....................................................46
CHAPTER 5
MAINTENANCE............................................................................................47
Periodic Maintenance.............................................................47
Cleaning ..............................................................................47
Changing the Filter..............................................................48
Calibration Procedure............................................................48
Adjustment Procedure (HMP110)..........................................49
One-Point Adjustment of RH Measurement (HMP110) ......49
Two-Point Adjustment of RH Measurement (HMP110) ......50
One-Point Adjustment of T Measurement (HMP110 and
HMP110T)...........................................................................52
Repair Maintenance................................................................54
Changing the INTERCAP® Sensor (HMP60).....................54
Changing the HUMICAP® 180R Sensor (HMP110)...........55

________________________________________________________________________________
VAISALA________________________________________________________________________ 3
CHAPTER 6
TROUBLESHOOTING .................................................................................57
Solving Typical Problems .....................................................57
Technical Support..................................................................58
Product Returns.....................................................................58
CHAPTER 7
TECHNICAL DATA......................................................................................59
Specifications.........................................................................59
Performance (HMP60)........................................................59
Relative Humidity...........................................................59
Temperature...................................................................59
Dewpoint........................................................................59
Performance (HMP110)......................................................60
Relative Humidity...........................................................60
Temperature...................................................................60
Dewpoint........................................................................60
Performance (HMP110T)....................................................60
Temperature...................................................................60
Operating Environment.......................................................61
Inputs and Outputs..............................................................61
Mechanics...........................................................................61
Options and Accessories......................................................62

User's Guide ______________________________________________________________________
4 ___________________________________________________________________ M211060EN-C
List of Figures

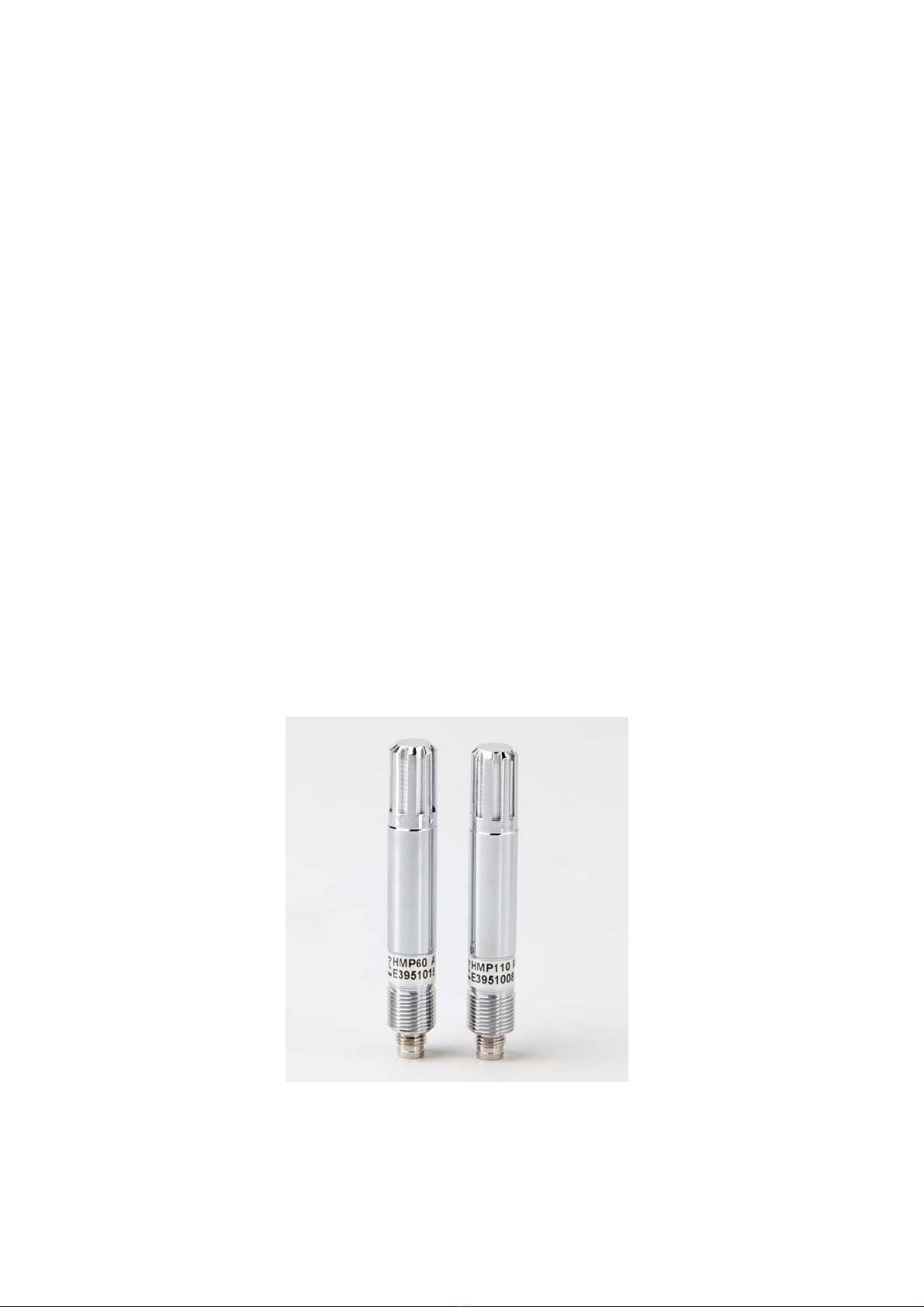

Figure 1 HMP60 (Left) and HMP110 (Right) ..........................................11

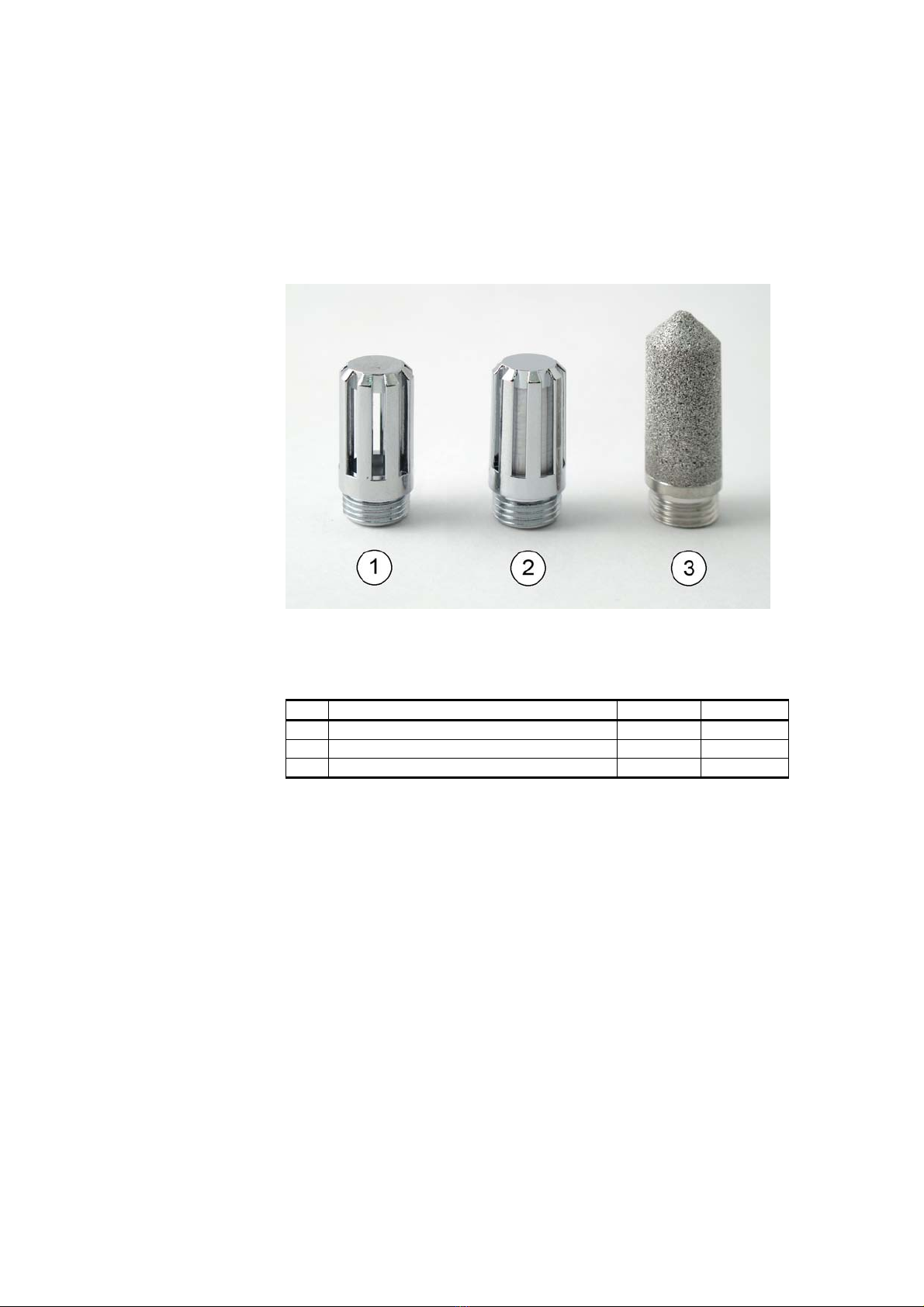

Figure 2 Filter Options ............................................................................13

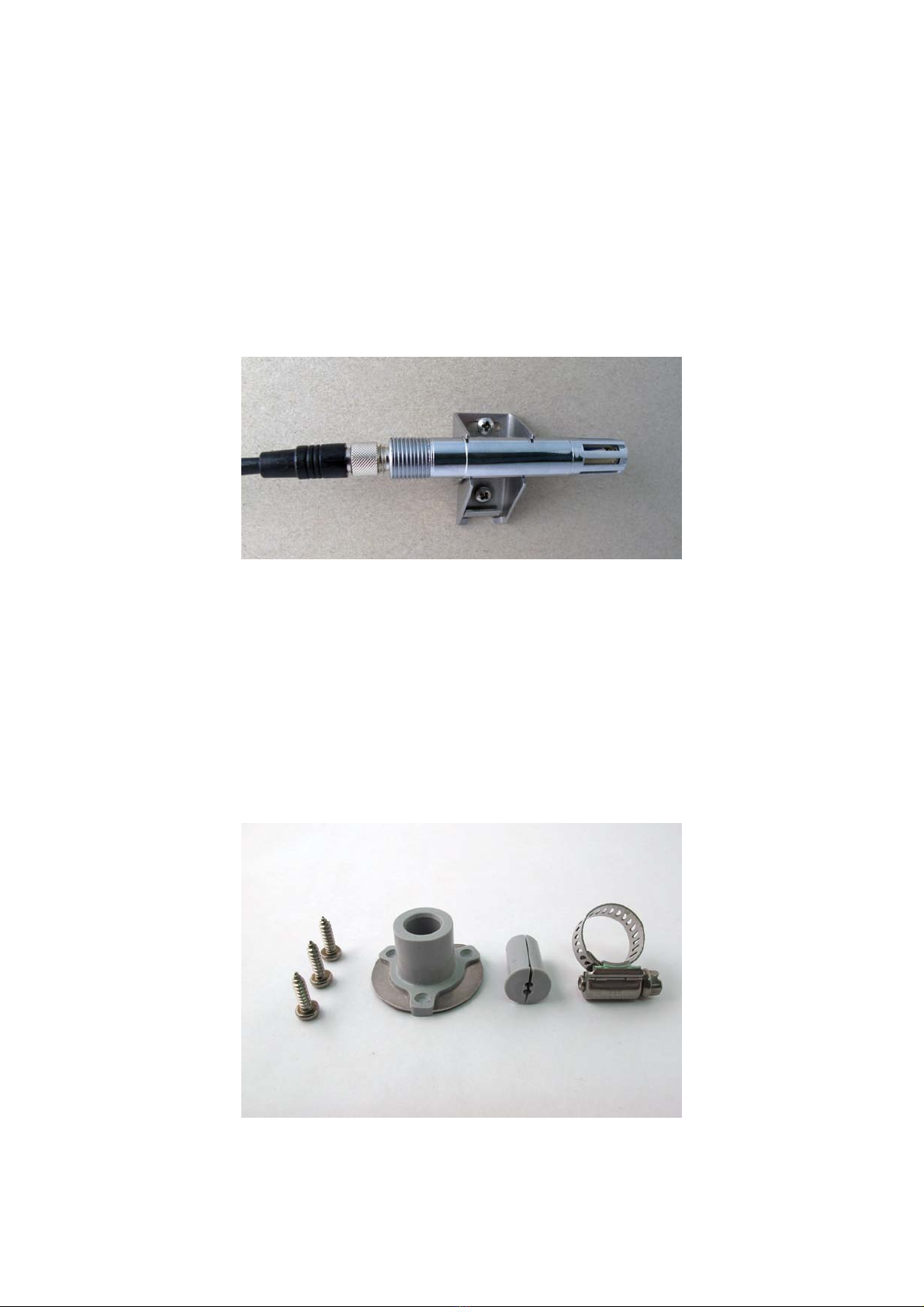

Figure 3 Probe Mounting Clamp in Use..................................................14
Figure 4 Probe Mounting Flange............................................................14

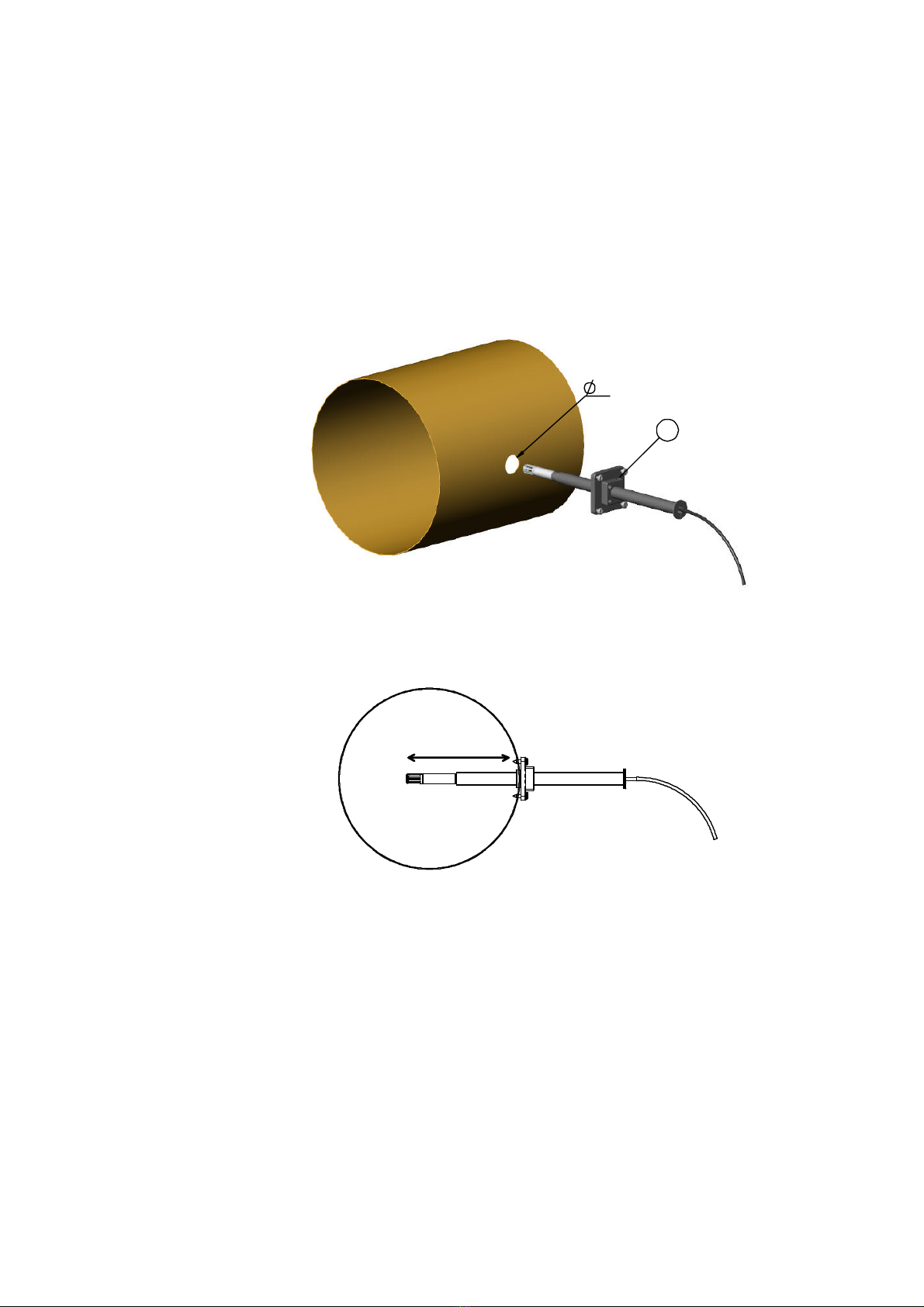

Figure 5 Probe Installation with the Duct Installation Kit ........................15

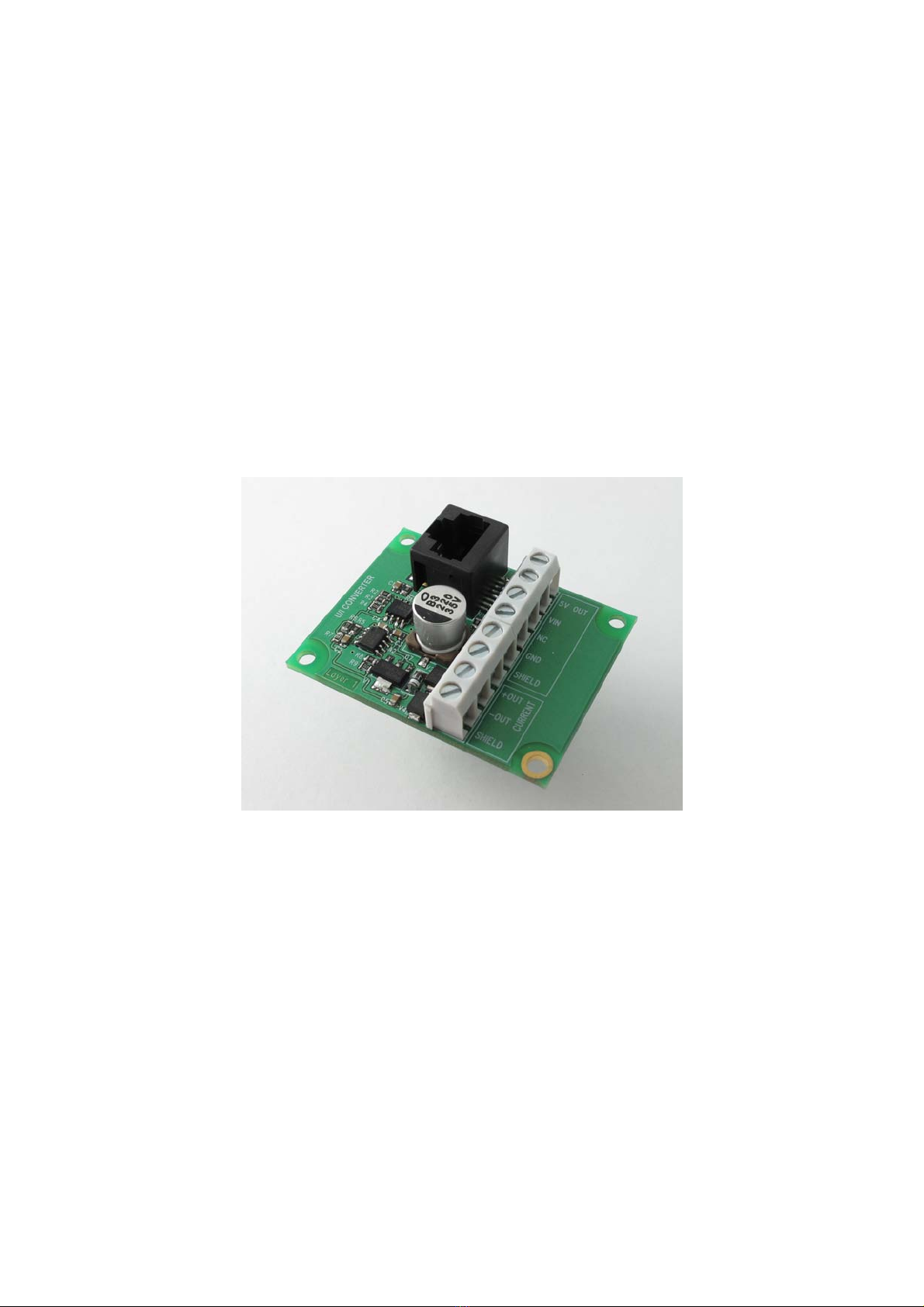

Figure 6 Loop Power Converter..............................................................16
Figure 7 Cable with Threaded Connector...............................................17
Figure 8 USB Serial Interface Cable.......................................................17
Figure 9 HMP60, HMP110, and HMP110T Dimensions ........................19
Figure 10 Installation with Plastic M12 Nuts, Dimensions........................19
Figure 11 Assembly of the Probe with Duct Installation Kit......................20
Figure 12 Drilling Instructions ...................................................................21
Figure 13 Wiring of Analog Output ...........................................................22
Figure 14 Wiring of Digital Output.............................................................22
Figure 15 Wiring with the Loop Power Converter Module........................23
Figure 16 PuTTY Terminal Application.....................................................29
Figure 17 Changing the Sensor................................................................54
List of Tables
Table 1 Manual Revisions.......................................................................6
Table 2 Related Manuals.........................................................................6
Table 3 Quantities Measured by the HMP60 and HMP110 ..................12
Table 4 Quantities Measured by the HMP110T....................................12
Table 5 Filter Properties ........................................................................13
Table 6 Pinout of the Probe Connector.................................................22
Table 7 Default Serial Communication Settings....................................26
Table 8 List of Serial Commands ..........................................................31
Table 9 Additional Commands for Probes with RS-485 Output............32
Table 10 Troubleshooting Table..............................................................57
Table 11 HMP60 Options and Accessories.............................................62
Table 12 HMP110 Options and Accessories...........................................62
Table 13 HMP110T Options and Accessories ........................................63

Chapter 1 ________________________________________________________ General Information
VAISALA________________________________________________________________________ 5
CHAPTER 1
GENERAL INFORMATION
This chapter provides general notes for the manual and the products.
About This Manual
This manual provides information for installing, operating, and
maintaining Vaisala Humidity and Temperature Probes HMP60,
HMP110 and HMP110T.
Contents of This Manual
This manual consists of the following chapters:
- Chapter 1, General Information, provides general notes for the manual
and the products.
- Chapter 2, Product Overview, introduces the product features and
options.
- Chapter 3, Installation, provides you with information that is intended
to help you install the product.
- Chapter 4, Operation, contains information that is needed to operate
the product.
- Chapter 5, Maintenance, provides information that is needed in basic
maintenance of the product.
- Chapter 6, Troubleshooting, describes common problems, their
probable causes and remedies, and contact information for technical
support.
- Chapter 7, Technical Data, provides the technical data of the product.

User's Guide ______________________________________________________________________
6 ___________________________________________________________________ M211060EN-C
Version Information
Table 1 Manual Revisions
Manual Code Description
M211060EN-C June 2011. This manual. Applicable from software
version 1.05.2 onward. Probe material changed to
stainless steel. Technical specification updated.
M211060EN-B Previous version. New probe type HMP110T
added. Serial command AOVER added in software
version 1.03. Serial command descriptions
updated. Technical specification updated.
Related Manuals
Table 2 Related Manuals
Manual Code Manual Name
M211059EN HMP60, HMP110 and HMP110T Quick Guide
M211106EN Loop Power Converter Quick Reference Guide
M211080EN Mounting Flange for Humidity Probes
Quick Reference Guide
Documentation Conventions
Throughout the manual, important safety considerations are highlighted
as follows:
WARNING Warning alerts you to a serious hazard. If you do not read and follow
instructions very carefully at this point, there is a risk of injury or even
death.
CAUTION Caution warns you of a potential hazard. If you do not read and follow
instructions carefully at this point, the product could be damaged or
important data could be lost.
NOTE Note highlights important information on using the product.

Chapter 1 ________________________________________________________ General Information
VAISALA________________________________________________________________________ 7
Safety
The product delivered to you has been tested for safety and approved as
shipped from the factory. Note the following precautions:
WARNING Ground the product, and verify outdoor installation grounding
periodically to minimize shock hazard.
CAUTION Do not modify the unit. Improper modification can damage the product
or lead to malfunction.
ESD Protection
Electrostatic Discharge (ESD) can cause immediate or latent damage to
electronic circuits. Vaisala products are adequately protected against
ESD for their intended use. It is possible to damage the product,
however, by delivering electrostatic discharges when touching,
removing, or inserting any objects inside the equipment housing.
To make sure you are not delivering high static voltages yourself:
- Handle ESD sensitive components on a properly grounded and
protected ESD workbench.
- When an ESD workbench is not available, ground yourself to the
equipment chassis with a wrist strap and a resistive connection cord.
- If you are unable to take either of the above precautions, touch a
conductive part of the equipment chassis with your other hand before
touching ESD sensitive components.
- Always hold component boards by the edges and avoid touching the
component contacts.

User's Guide ______________________________________________________________________
8 ___________________________________________________________________ M211060EN-C
Recycling
Recycle all applicable material.
Dispose of batteries and the unit according to statutory regulations. Do
not dispose of with regular household refuse.
Regulatory Compliances
The HMP60, HMP110 and HMP110T are in conformity with the
provisions of the following EU directive(s):
ROHS Directive (2002/95/EEC)
WEEE Directive (2002/96/EEC)
EMC Directive (2004/108/EC)
The electromagnetic compatibility of the HMP60, HMP110 and
HMP110T has been tested according to the following product family
standards:
EN 61326-1: Electrical equipment for measurement, control and
laboratory use - EMC requirements – for use in industrial locations.
EN 55022 Class B: Information technology equipment - Radio
disturbance characteristics - Limits and methods of measurement.
Patent Notice
The HMP60 and HMP110 are protected by the following patents and
patent applications and their corresponding national rights:
Finnish patent 98861, French patent 6650303, German patent 69418174,
Japanese patent 3585973, UK patent 0665303, U.S. patent 5607564.

Chapter 1 ________________________________________________________ General Information
VAISALA________________________________________________________________________ 9
Trademarks
Vaisala INTERCAP®and Vaisala HUMICAP®are registered
trademarks of Vaisala Oyj.
Windows® is a registered trademark of Microsoft Corporation in the
United States and/or other countries.
License Agreement
All rights to any software are held by Vaisala or third parties. The
customer is allowed to use the software only to the extent that is provided
by the applicable supply contract or Software License Agreement.
Warranty
Visit our Internet pages for more information and our standard warranty
terms and conditions: www.vaisala.com/services/warranty.html.
Please observe that any such warranty may not be valid in case of
damage due to normal wear and tear, exceptional operating conditions,
negligent handling or installation, or unauthorized modifications. Please
see the applicable supply contract or Conditions of Sale for details of the
warranty for each product.

User's Guide ______________________________________________________________________
10 __________________________________________________________________ M211060EN-C
This page intentionally left blank.

Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 11
CHAPTER 2
PRODUCT OVERVIEW
This chapter introduces the product features and options.
Introduction to HMP60, HMP110, and HMP110T
Vaisala Humidity and Temperature Probes HMP60 and HMP110 are
simple and cost-effective humidity transmitters suitable for volume
applications, integration into other manufacturers’ equipment, incubators,
glove boxes, greenhouses, fermentation chambers, and data loggers.
HMP60 uses the interchangeable Vaisala INTERCAP®sensor. No
recalibration is required after sensor replacement.
HMP110 uses the Vaisala HUMICAP®180R sensor for increased
accuracy. The HMP110 requires calibration after sensor replacement.
This can be done on the serial line using the optional Vaisala USB cable.
0912-101
Figure 1 HMP60 (Left) and HMP110 (Right)

User's Guide ______________________________________________________________________
12 __________________________________________________________________ M211060EN-C
Table 3 Quantities Measured by the HMP60 and HMP110
Quantity Abbreviation Metric Unit Non Metric Unit
Relative humidity RH %RH %RH
Dewpoint/Frostpoint
temperature* Td/f ºC ºF
Temperature T ºC ºF
* When the dewpoint is below 0 °C, the probe outputs frostpoint for Td
HMP110T is a temperature measurement only version of the HMP110
probe. It has the same temperature measurement performance and
specifications as the HMP110, but is not equipped with a humidity
sensor.
Table 4 Quantities Measured by the HMP110T
Quantity Abbreviation Metric Unit Non Metric Unit
Temperature T ºC ºF
Basic Features and Options
- HMP60 and HMP110 analog output mode: two analog output
channels, selectable from 0 ... 1 V / 0 ... 2.5 V / 0 ... 5 V / 1 ... 5 V
- HMP110T: analog output mode: single analog output channel (CH1),
selectable from 0 ... 1 V / 0 ... 2.5 V / 0 ... 5 V / 1 ... 5 V
- RS-485 output mode
- Small size
- Low power consumption
- IP65 stainless steel body
- Options and accessories:
- Filter options: plastic grid filter, membrane filter, and stainless
steel sintered filter
- Probe mounting clamp
- Probe mounting flange
- Duct installation kit
- One channel loop power converter 4 ... 20 mA (separate module,
compatible with humidity accuracy only)
- Shielded 0.3 m and 3.0 m connection cables with threaded
connector for probe connection, open end wires on the other end
- Plastic M12 installation nuts

Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 13
Filter Options
The available filters for HMP60, HMP110 and HMP110T are shown in
Figure 2 below. For order codes, see section Options and Accessories on
page 62.
1001-008
Figure 2 Filter Options
Table 5 Filter Properties
No. Filter Diameter Pore Size
1 Plastic grid filter (fastest response time) 12 mm -
2 Membrane filter 12 mm 0.2 µm
3 Stainless steel sintered filter 12 mm 38 µm

User's Guide ______________________________________________________________________
14 __________________________________________________________________ M211060EN-C
Installation Accessories (Optional)
Probe Mounting Clamp
The optional mounting clamp makes it easy to install the probe on the
wall of the measurement environment. The probe can be detached for
calibration simply by loosening the lower screw.
1001-138
Figure 3 Probe Mounting Clamp in Use
Probe Mounting Flange
The probe mounting flange is a silicone flange that can be used to hold
the probe in a through-wall installation. The flange is a general purpose
mounting accessory for Ø12mm probes, and comes with a sealing plug
for coaxial cables that is not needed when the flange is used with
HMP60, HMP110 and HMP110T.
0911-109
Figure 4 Probe Mounting Flange

Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 15
Duct Installation Kit
The duct installation kit includes a plastic pipe with a flange (Vaisala
order code: 215619). To install the probe with the duct installation kit,
drill a hole to the duct wall, assemble the probe to the duct installation
kit, slide the probe head through the hole, and attach the flange to the
duct wall with four screws. See page 20 for details.
24
L
1
0505-176
Figure 5 Probe Installation with the Duct Installation Kit
The following explanations refer to Figure 5 above:
1 = Tension screw
Distance L can be adjusted and locked in place with the tension screw.

User's Guide ______________________________________________________________________
16 __________________________________________________________________ M211060EN-C
Loop Power Converter
The loop power converter is an open frame module that converts one
0 ... 2.5 VDC voltage output to a 4 ... 20 mA current output. To use the
loop power converter module, the probe:
- must be in the analog output mode
- the desired quantity must be on channel 1
- channel 1 must be scaled to 0 ... 2.5 V
Wiring instructions are provided in section Wiring with the Loop Power
Converter on page 22.
1001-001
Figure 6 Loop Power Converter

Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 17
Cables
The probe cables have a standard M8 connector. Also other compatible
M8 series cables can be used.
0910-135
Figure 7 Cable with Threaded Connector
The USB Serial Interface Cable uses a snap-on connector. The USB
cable is intended for maintenance purposes only, not for permanent
installation.
0809-002
Figure 8 USB Serial Interface Cable

User's Guide ______________________________________________________________________
18 __________________________________________________________________ M211060EN-C
