Vaisala HUMICAP HMP4 User manual

M212022EN-A
User Guide
Vaisala HUMICAPâHumidity and
Temperature Probes
HMP4, HMP5, HMP7, HMP8, TMP1

PUBLISHED BY
Vaisala Oyj
Street address: Vanha Nurmijärventie 21, FI-01670 Vantaa, Finland
Mailing address: P.O. Box 26, FI-00421 Helsinki, Finland
Phone: [phone]
Visit our Internet pages at www.vaisala.com.
© Vaisala Oyj 2017
No part of this manual may be
reproduced, published or publicly
displayed in any form or by any
means, electronic or mechanical
(including photocopying), nor
may its contents be modified,
translated, adapted, sold or
disclosed to a third party without
prior written permission of the
copyright holder. Translated
manuals and translated portions
of multilingual documents are
based on the original English
versions. In ambiguous cases, the
English versions are applicable,
not the translations.
The contents of this manual are
subject to change without prior
notice.
Local rules and regulations may
vary and they shall take
precedence over the information
contained in this manual. Vaisala
makes no representations on this
manual’s compliance with the
local rules and regulations
applicable at any given time, and
hereby disclaims any and all
responsibilities related thereto.
This manual does not create any
legally binding obligations for
Vaisala towards customers or end
users. All legally binding
obligations and agreements are
included exclusively in the
applicable supply contract or the
General Conditions of Sale and
General Conditions of Service of
Vaisala.
This product contains software
developed by Vaisala or third
parties. Use of the software is
governed by license terms and
conditions included in the
applicable supply contract or, in
the absence of separate license
terms and conditions, by the
General License Conditions of
Vaisala Group.

Table of Contents
1. About This Document................................................................................... 5
1.1 Version Information.......................................................................................... 5
1.2 Related Manuals................................................................................................ 5
1.3 Documentation Conventions...........................................................................5
1.4 Trademarks........................................................................................................ 6
2. Product Overview........................................................................................... 7
2.1 Probe Structure................................................................................................. 7
2.2 Basic Features and Options............................................................................. 7
2.3 Additional Features with Indigo Transmitters...............................................8
2.4 Safety..................................................................................................................8
2.5 ESD Protection.................................................................................................. 9
2.6 HMP4 Probe.......................................................................................................9
2.7 HMP5 Probe.......................................................................................................9
2.8 HMP7 Probe..................................................................................................... 10
2.9 HMP8 Probe.......................................................................................................11
2.10 TMP1 Probe.......................................................................................................12
3. Installation........................................................................................................ 13
3.1 Probe Body Dimensions and Pinout............................................................. 14
4. Configuration with Insight Software..................................................... 15
4.1 Vaisala Insight Software................................................................................. 15
4.2 Connecting to Insight Software.....................................................................15
4.3 Configuration Options.................................................................................... 16
5. Using Probe with Indigo Transmitters...................................................17
5.1 Indigo Overview...............................................................................................17
5.2 Attaching Probes to Indigo Transmitters..................................................... 19
5.3 Wireless Configuration Interface Overview................................................ 20
5.4 Connecting to Wireless Configuration Interface........................................20
5.5 Logging in to Wireless Configuration Interface......................................... 20
6. Maintenance....................................................................................................22
6.1 Cleaning the Probe.........................................................................................22
6.1.1 Chemical Tolerance................................................................................. 22
6.2 Changing the Probe Filter............................................................................. 23
6.3 Calibration and Adjustment.......................................................................... 23
6.3.1 Adjustment Points and Requirements..................................................24
6.3.2 Adjusting Measurement using Insight Software................................. 24
Table of Contents
1

7. Technical Data................................................................................................26
7.1 HMP4 Specifications...................................................................................... 26
7.2 HMP5 Specifications.......................................................................................28
7.3 HMP7 Specifications........................................................................................31
7.4 HMP8 Specifications...................................................................................... 34
7.5 TMP1 Specifications........................................................................................ 37
7.6 Dimensions......................................................................................................39
7.7 Spare Parts and Accessories..........................................................................41
Appendix A: Modbus Reference........................................................................46
A.1 Default Communication Settings................................................................. 46
A.2 Function Codes...............................................................................................46
A.3 Data Encoding................................................................................................ 46
A.3.1 32-Bit Floating Point or Integer Format...............................................47
A.3.2 16-Bit Integer Format..............................................................................47
A.4 Modbus Registers...........................................................................................48
A.4.1 Measurement Data Registers................................................................ 48
A.4.2 Configuration Registers......................................................................... 50
A.4.3 Device Identification Objects.................................................................52
A.4.4 Test Value Registers................................................................................ 53
A.5 Modbus Communication Examples............................................................. 54
Online Store.................................................................................................................57
Warranty....................................................................................................................... 57
Technical Support..................................................................................................... 57
Recycling...................................................................................................................... 57
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
2

List of Figures
Figure 1 Probe Parts..........................................................................................................7
Figure 2 HMP4 Probe Head Dimensions......................................................................9
Figure 3 HMP5 Probe Head Dimensions......................................................................9

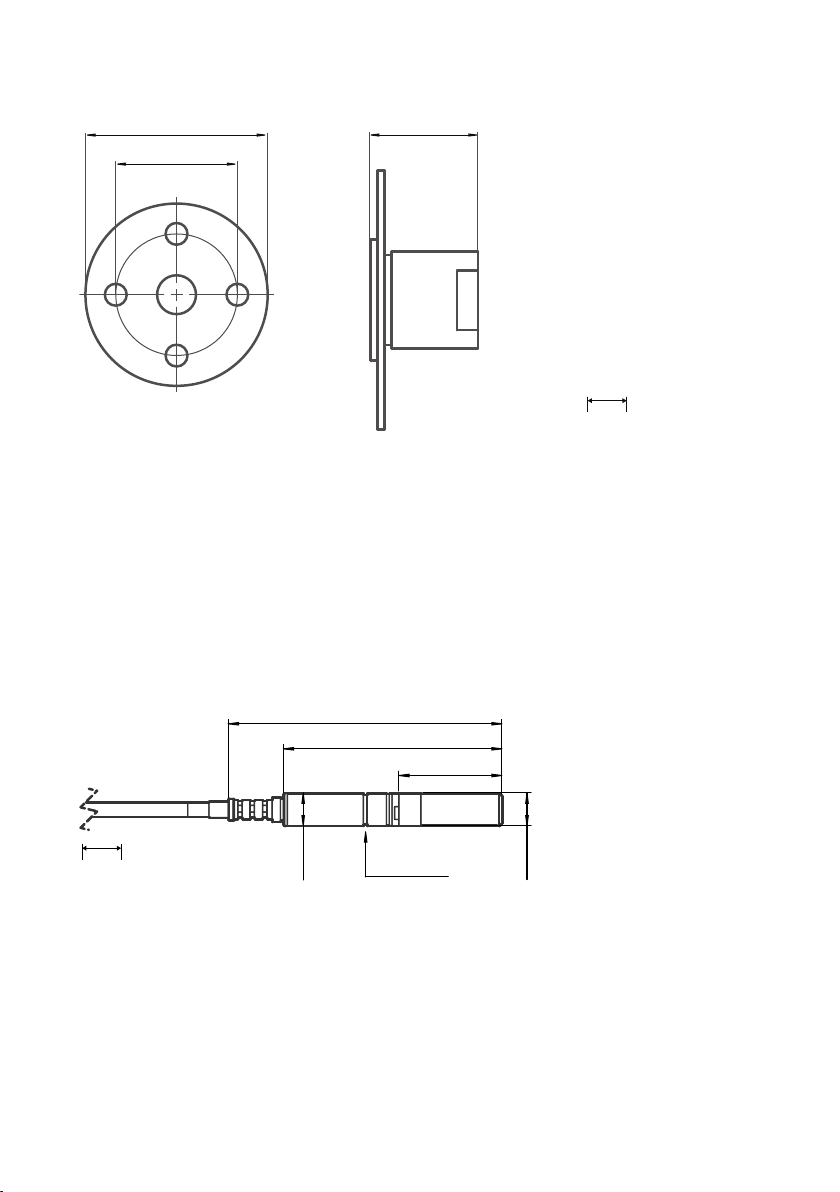

Figure 4 Optional Mounting Flange 210696 Dimensions......................................10
Figure 5 HMP7 Probe Head Dimensions.................................................................... 10
Figure 6 HMP8 Probe Head Dimensions..................................................................... 11
Figure 7 Optional Ball Valve Installation Kit Dimensions........................................11
Figure 8 TMP1 Probe Head Dimensions......................................................................12
Figure 9 Example Installation of HMP8 Model..........................................................13
Figure 10 Probe Body........................................................................................................14
Figure 11 Connecting Probe to Insight......................................................................... 15
Figure 12 HMP5 in Insight Software.............................................................................. 16
Figure 13 HMP7 Attached to Indigo 200 Transmitter...............................................17
Figure 14 HMP7 Attached to Indigo 200 Transmitter with a Cable......................18
Figure 15 Attaching the Probe to Indigo 200 Series................................................19
Figure 16 Enabling and Accessing Indigo's Wireless Configuration
Interface............................................................................................................ 20
Figure 17 Indigo Login View...........................................................................................20
Figure 18 HMP4 Humidity Measurement Accuracy as a Function
of Temperature (Including Non-Linearity and Repeatability)............26
Figure 19 HMP4 Temperature Measurement Accuracy over Full
Range (Including Non-Linearity and Repeatability)............................. 27
Figure 20 HMP5 Humidity Measurement Accuracy as a Function of
Temperature (Including Non-Linearity and Repeatability).................29
Figure 21 HMP5 Temperature Measurement Accuracy over Full
Range (Including Non-Linearity and Repeatability).............................30
Figure 22 HMP7 Humidity Measurement Accuracy as Function of
Temperature (Including Non-Linearity and Repeatability).................32
Figure 23 HMP7 Temperature Measurement Accuracy over Full
Range (Including Non-Linearity and Repeatability).............................32
Figure 24 HMP8 Humidity Measurement Accuracy as a Function
of Temperature (Including Non-Linearity and Repeatability)............ 35
Figure 25 HMP8 Temperature Measurement Accuracy over Full
Range (Including Non-Linearity and Repeatability).............................35
Figure 26 TMP1 Temperature Measurement Accuracy over Full
Range (Including Non-Linearity and Repeatability)............................. 37
Figure 27 Probe Body Dimensions................................................................................39
Figure 28 HMP4 Probe Head Dimensions................................................................... 39
Figure 29 HMP5 Probe Head Dimensions................................................................... 39
Figure 30 HMP7 Probe Head Dimensions....................................................................39

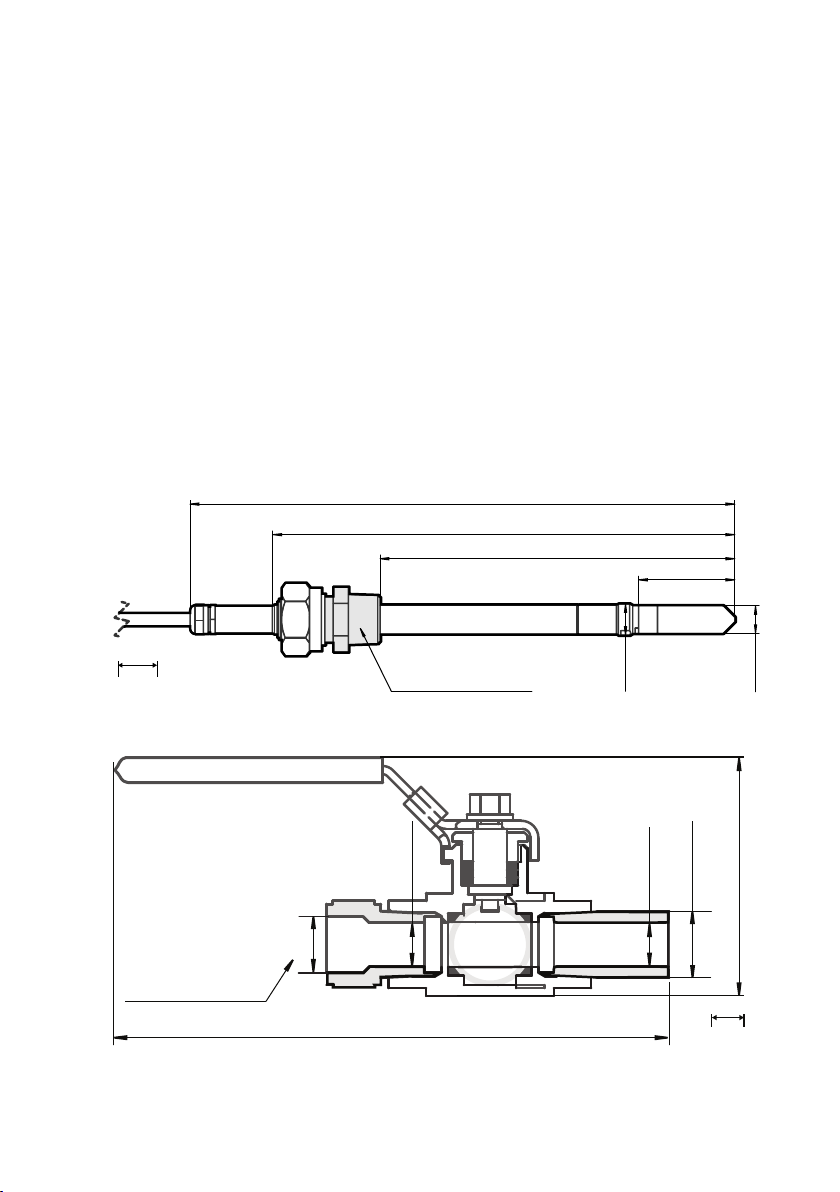

Figure 31 HMP8 Probe Head Dimensions...................................................................40

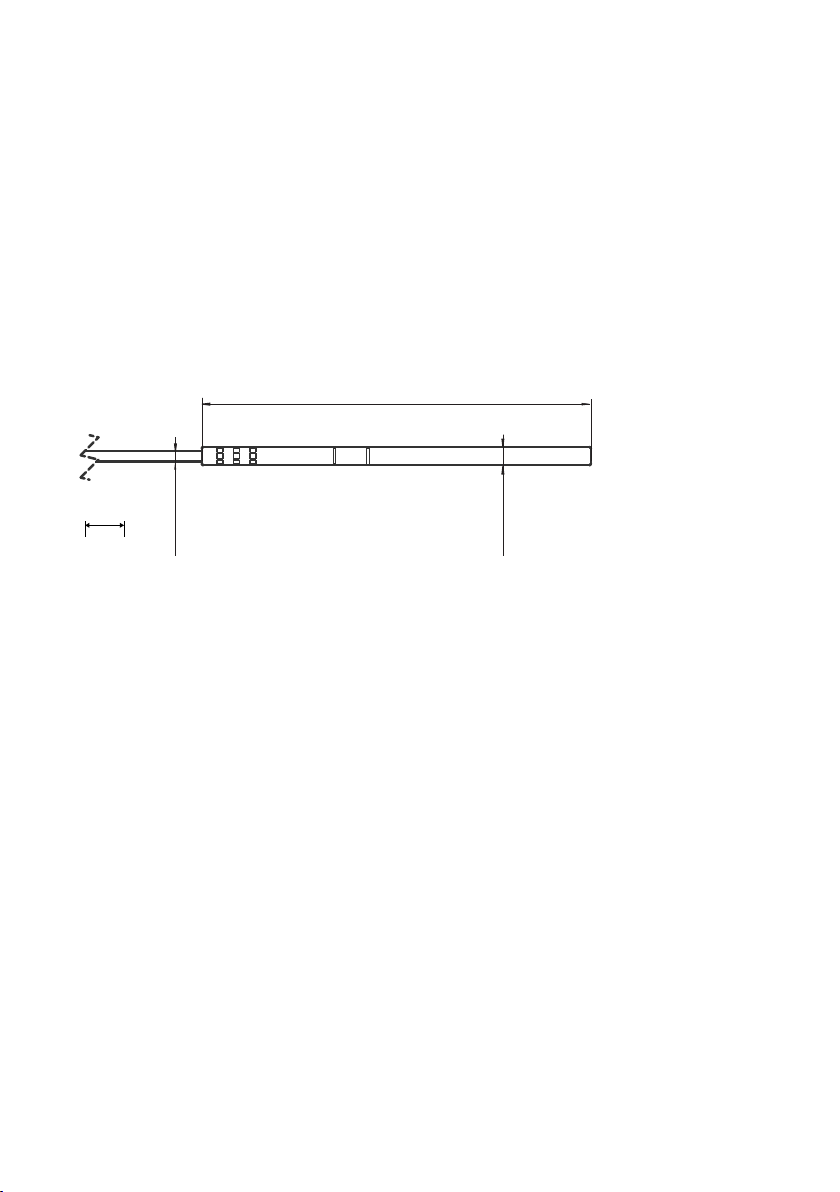

Figure 32 TMP1 Probe Head Dimensions.................................................................... 40
Figure 33 Optional Duct Kit 215003 Dimensions......................................................40
Figure 34 Optional Ball Valve Installation Kit Dimensions.......................................41
List of Figures
3

List of Tables
Table 1 Document Versions.............................................................................................5
Table 2 Related Manuals...................................................................................................5
Table 3 Suitability of Cleaning Agents.......................................................................22
Table 4 Measurement Performance............................................................................26
Table 5 SI Traceable Calibration...................................................................................27
Table 6 Operating Environment...................................................................................27
Table 7 Inputs and Outputs...........................................................................................28
Table 8 Mechanical Specifications.............................................................................. 28
Table 9 Measurement Performance............................................................................28
Table 10 SI Traceable Calibration.................................................................................. 30
Table 11 Operating Environment.................................................................................. 30
Table 12 Inputs and Outputs.......................................................................................... 30
Table 13 Mechanical Specifications............................................................................... 31
Table 14 Measurement Performance.............................................................................31
Table 15 SI Traceable Calibration...................................................................................33
Table 16 Operating Environment...................................................................................33
Table 17 Inputs and Outputs...........................................................................................33
Table 18 Mechanical Specifications.............................................................................. 33
Table 19 Measurement Performance............................................................................34
Table 20 SI Traceable Calibration...................................................................................35
Table 21 Operating Environment.................................................................................. 36
Table 22 Inputs and Outputs.......................................................................................... 36
Table 23 Mechanical Specifications.............................................................................. 36
Table 24 Measurement Performance............................................................................ 37
Table 25 SI Traceable Calibration...................................................................................37
Table 26 Operating Environment...................................................................................37
Table 27 Inputs and Outputs...........................................................................................38
Table 28 Mechanical Specifications.............................................................................. 38
Table 29 Accessories..........................................................................................................41
Table 30 Accessories.........................................................................................................42
Table 31 Accessories.........................................................................................................43
Table 32 Accessories.........................................................................................................44
Table 33 Accessories.........................................................................................................45
Table 34 Default Modbus Serial Communication Settings..................................... 46
Table 35 Modbus Function Codes.................................................................................46
Table 36 16-bit Signed Integer Format Details.......................................................... 47
Table 37 Modbus Measurement Data Registers (Read-Only)...............................48
Table 38 Modbus Configuration Data Registers (Writable)...................................50
Table 39 Device Identification Objects.........................................................................52
Table 40 Modbus Test Registers (Read-Only)............................................................53
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
4

1. About This Document
1.1 Version Information
This document provides instructions for installing, using, and maintaining Vaisala HUMICAPâ
Humidity and Temperature Probes HMP4, HMP5, HMP7, HMP8, and Temperature Probe TMP1.
Table 1 Document Versions
Document Code Date Description
M212022EN-A November 2017 First version.
1.2 Related Manuals
Table 2 Related Manuals
Document Code Name
M211982EN HMP4, HMP5, HMP7, HMP8, and TMP1 Quick Guide
1.3 Documentation Conventions
Warning alerts you to a serious hazard. If you do not read and
follow instructions carefully at this point, there is a risk of injury or even death.
WARNING!
Caution warns you of a potential hazard. If you do not read and
follow instructions carefully at this point, the product could be damaged or
important data could be lost.
CAUTION!
Note highlights important information on using the product.
Tip gives information for using the product more eciently.
Chapter 1 – About This Document
5

Lists tools needed to perform the task.
Indicates that you need to take some notes during the task.
1.4 Trademarks
Vaisalaâand HUMICAPâare registered trademarks of Vaisala Oyj.
All other product or company names that may be mentioned in this publication are trade
names, trademarks, or registered trademarks of their respective owners.
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
6

2. Product Overview
HMP4, HMP5, HMP7, and HMP8 are humidity and temperature measurement probes with a
digital (Modbus) output. TMP1 is a temperature-only version. The probes are designed for
demanding humidity and temperature measurement applications. Each probe model has a
dierent probe head, but the same probe body and a 2 m (6.5 ft) cable between the probe
body and the probe head.
The probes are compatible with Vaisala Indigo™transmitters. They can also be connected to
Vaisala Insight software for configuration, diagnostics, and temporary online monitoring.
2.1 Probe Structure
2
1
3
4
5
6
7
8
Figure 1 Probe Parts
1Protection cap (remove before use)
25-pin M12 connector
3Probe body with type label
4Status indicator:
Green Power on and probe online,
flashes when communicating
Red Error
O Power o or indicator
disabled
5Probe cable. Do not cut.
6Probe head (HMP7 model shown)
7Sensor(s) under protective filter
8Protection cap (remove before use)
2.2 Basic Features and Options
• Comprehensive list 1) of output parameters:
Relative humidity, temperature, delta-T, dew point temperature, frost point temperature,
wet-bulb temperature, absolute humidity, mixing ratio, vapor pressure, saturation vapor
pressure, enthalpy
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
1) Humidity measurement parameters available on HMP models only
Chapter 2 – Product Overview
7

• Sensor purge provides superior chemical resistance (HMP models only)
• Probe and sensor warming functions minimize condensation on probe (HMP models only)
• Traceable calibration certificate:
• HMP models: 5 points for humidity, 1 point for temperature
• TMP1: 2 points for temperature
• Standalone Modbus RTU over RS-485
• Plug & play compatible with Indigo™series of transmitters
• Can be connected to Vaisala Insight software for configuration, diagnostics, and
temporary online monitoring
2.3 Additional Features with Indigo Transmitters
The probes are compatible with Vaisala Indigo 200 transmitters starting from Indigo
transmitter serial number N4650357 (Indigo 200 transmitter software version 1.3.2 or higher).
Connecting the probe to an Indigo transmitter provides a range of additional options for
outputs, measurement viewing, status monitoring, and configuration interface access.
Examples of additional features available with Indigo transmitters include:
• 3.5” TFT LCD color display or non-display model with LED indicator
• Digital output or 3 analog outputs (depending on the transmitter model)
• 2 configurable relays
• Wireless browser-based configuration interface for mobile devices and computers (IEEE
802.11 b/g/n WLAN)
The selection of available additional features (for example, output and connectivity options)
varies depending on the Indigo transmitter model. For more information on Indigo
transmitters, see www.vaisala.com/indigo.
2.4 Safety
When returning a product for calibration or repair, make sure it
has not been exposed to dangerous contamination, and is safe to handle
without special precautions.
WARNING!
Do not attempt to open the probe body. There are no user
serviceable parts inside the probe body.
CAUTION!
Information on spare parts, accessories, and calibration products is available
online at www.vaisala.com and store.vaisala.com.
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
8

2.5 ESD Protection
Electrostatic Discharge (ESD) can cause immediate or latent damage to electronic circuits.
Vaisala products are adequately protected against ESD for their intended use. However, it is
possible to damage the product by delivering an electrostatic discharge when touching,
removing or inserting any objects inside the equipment housing.
Avoid touching component contacts or connectors when working with the device.
2.6 HMP4 Probe
183 [7.20]
120 [4.72]
Fitting body
M22x1.5 or NPT1/2”
41 [1.61]
Ø 12
[0.47]
32 mm 27 mm
mm
[in]
Figure 2 HMP4 Probe Head Dimensions
Vaisala HUMICAPâHumidity and Temperature Probe HMP4 is designed for high-pressure
applications such as compressed air systems in maritime, breathing air, and industrial
applications, where measurement performance and chemical tolerance are essential.
• Operating pressure 0 ... 10 MPa (0 ... 100 bar)
• M22x1.5 and NPT1/2” probe fittings included
• Sintered AISI316L filter standard in delivery
2.7 HMP5 Probe
41 [1.61]
Ø 12
[0.47]
Ø 13.5
[0.53]
253 [9.96]
243 [9.57]
mm
[in]
Figure 3 HMP5 Probe Head Dimensions
Chapter 2 – Product Overview
9

75 [2.95]
50 [1.96]
19 [0.75]
mm
[in]
Figure 4 Optional Mounting Flange 210696 Dimensions
Vaisala HUMICAPâHumidity and Temperature Probe HMP5 is designed for high-temperature
applications such as baking ovens, pasta dryers and industrial drying kilns where measurement
performance and chemical tolerance are essential.
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• 250 mm (9.84 in) probe allows easy process installation through insulation
• Sintered AISI316L filter standard in delivery
2.8 HMP7 Probe
99.5 [3.92]
79.5 [3.13]
37.5 [1.48]
Ø 12
[0.47]
Ø 12
[0.47]
Groove for
lock ring
mm
[in]
Figure 5 HMP7 Probe Head Dimensions
Vaisala HUMICAPâHumidity and Temperature Probe HMP7 is designed for applications that
involve constant high humidity or rapid changes in humidity such as drying and test chambers,
combustion air and other humidifiers and meteorological measurements where measurement
performance and chemical tolerance are essential.
• Probe and sensor warming functions minimize condensation on probe
• Vapor and pressure proof construction
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
10

• Stainless steel mesh filter standard in delivery
Probe Heating
HMP7 supports probe heating. Probe heating heats up not only the sensor, but the entire
probe head. When probe temperature is heated above dew point temperature, condensation
on the probe can be avoided while measuring the dew point temperature of the process.
Probe heating is disabled by default. If you enable probe heating, output parameters that are
dependent on temperature measurement (such as relative humidity) are disabled unless the
true temperature of the measured environment is updated to the temperature compensation
register of the probe from another measurement instrument (for example, the TMP1 probe).
Output parameters such as dew point temperature that can be measured or calculated
without this external temperature information are available even without the temperature
input.
2.9 HMP8 Probe
Ø 12
[0.47]
232 [9.13]
194 [7.64]
41 ... 149 [1.16 ... 5.87]
41 [1.61]
Ø 13.5
[0.53]
Fitting body
ISO1/2” or NPT1/2”
mm
[in]
Figure 6 HMP8 Probe Head Dimensions
Ø 21.5 [0.83]
(drilling)
Ø 14 [0.55]
Ø 14 [0.55]
195 [7.67]
ISO1/2” fitting body
supplied with HMP8
ISO1/2”
80 [3.15]
mm
[in]
Figure 7 Optional Ball Valve Installation Kit Dimensions
Chapter 2 – Product Overview
11

Vaisala HUMICAPâHumidity and Temperature Probe HMP8 is designed for pressurized
applications in compressed air systems, refrigerant dryers, and other pressurized industrial
applications where easy insertion and removal of the probe and adjustable installation depth
into the pipeline are needed.
• Probe installation depth can be freely adjusted and probe can be hot-swapped from
pressurized pipelines with an installation valve
• Operating pressure 0 ... 4 MPa (0 ... 40 bar)
• ISO1/2" and NPT1/2" probe fittings and press handle included
• Sintered AISI316L filter standard in delivery
2.10 TMP1 Probe
130 [5.12]
Ø 3.2 [0.13]
Ø 6 [0.24]
mm
[in]
Figure 8 TMP1 Probe Head Dimensions
Vaisala Temperature Probe TMP1 is designed for demanding temperature measurements in
industrial applications such as pharmaceutical industry and calibration laboratories, where
accuracy and robustness are essential.
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• Temperature accuracy up to 0.1 °C (0.18 °F)
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
12

3. Installation
-40 ... +80 °C
(-40 ... +176 °F)
-70 ... +180 °C
(-94 ... +356 °F)
12
43
Figure 9 Example Installation of HMP8 Model
1Mount the probe head horizontally to prevent any water condensing on the probe head
from running to the sensors.
2Let the cable hang loosely to prevent condensed water from running along the cable to
the probe head.
3Attach the probe body to a wall or other surface using the two mounting clips (Vaisala
item 243257SP) supplied with the probe. Each clip attaches to the installation surface with
one screw (screw hole Ø 4.2 mm).
4Cable to Modbus master or Indigo™transmitter.
If the temperature of the measured environment diers greatly from ambient
temperature, the whole probe and preferably plenty of cable must be inside the
process. This prevents measurement inaccuracy caused by heat conduction along
the cable.
More Information
‣Default Communication Settings (page 46)
Chapter 3 – Installation
13

3.1 Probe Body Dimensions and Pinout
136 [5.35]
Probe cable
2000 [78.74]
Ø 25
[0.98]
M12/5
1
5
34
2
M12/5
Male Connector
mm
[in]
Figure 10 Probe Body
Pin # Function Notes Wire Colors in Vaisala
Cables
1 Power supply Supply voltage:
• HMP7: 18 ... 30 VDC
• Other models: 15 ... 30 VDC
Typical current 10 mA, max. 500 mA.
Brown
2 RS-485- White
3 Power GND Blue
4 RS-485+ Black
5 Not connected Gray
Recommended maximum length of the RS-485 line is 30 m (98 ft).
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
14

4. Configuration with Insight Software
4.1 Vaisala Insight Software
Vaisala Insight software is a configuration software for Indigo-compatible devices. The
supported operating systems are Windows 7 (64-bit), Windows 8.1 (64-bit), and Windows 10
(64-bit).
With the Insight software, you can:
• See probe information and status
• See real-time measurement
• Calibrate and adjust the probe
•Configure probe features such as measurement filtering, chemical purge, heating, and
serial communication
Download Vaisala Insight software at www.vaisala.com/insight.
The probe can be connected to Vaisala Insight software using a Vaisala USB cable (no.
242659).
4.2 Connecting to Insight Software
• Computer with Vaisala Insight software installed
• USB connection cable (no. 242659)
Figure 11 Connecting Probe to Insight
1. Open the Insight software.
2. Connect the USB cable to a free USB port on the PC.
3. Connect the probe to the USB cable.
4. Wait for Insight software to detect the probe.
Chapter 4 – Configuration with Insight Software
15

4.3 Configuration Options
Select > Configure Device to access configuration options in Insight software.
The available configuration options in correspond to the Modbus configuration registers; see
A.4.2 Configuration Registers (page 50). Insight software is the recommended way to change
the probe configuration.
You can restore the probe back to its default settings using the Factory Default
Settings > Restore Settings function. Doing this will also clear any user
adjustment and restore the latest factory calibration.
Figure 12 HMP5 in Insight Software
HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A
16

5. Using Probe with Indigo Transmitters
5.1 Indigo Overview
4
2
6
5
3
1
Figure 13 HMP7 Attached to Indigo 200 Transmitter
13.5” TFT LCD color display: non-display option with LED available for certain models
2Locking wheel: insert probe, hold in place, and turn the wheel counterclockwise
3Cable to probe head
4Wireless configuration interface (WLAN) activation button
5Rubber lead-through with strain relief. Cable feedthrough option also at back of
transmitter.
6Input/output cable
Chapter 5 – Using Probe with Indigo Transmitters
17

1
3
2
Figure 14 HMP7 Attached to Indigo 200 Transmitter with a Cable
1Cable to probe head
2Locking wheel: insert cable, hold in place, and turn the wheel counterclockwise
3Connection cable
The probe can be connected to Vaisala Indigo transmitters, either directly on the transmitter
from the probe's connector, or by using a cable between Indigo and the probe.
Indigo transmitters are host devices that extend the feature set of connected probes with a
range of additional options for outputs, configuration access, measurement viewing, and
status monitoring.
The selection of available additional features (for example, output and connectivity options)
varies depending on the Indigo transmitter model. Depending on the model, a display is
available as an optional selection or as a standard feature. In the non-display model, an LED
indicator is used for notifications.
