Digital Feedback Eliminator/Message Stacker
General Design
The V-9964 is designed to eliminate acoustic
feedback and act as a message stacker. When
a page is made, the message is digitized and
saved. Upon completion of the live page, the
message is released for broadcast over the
speakers. While a message is being broadcast,
additional messages may be recorded with a
maximum of 4 messages queued per V-9964.
Additionally, up to four V-9964 units may be
chained together to allow up to sixteen
messages to be simultaneously processed.
Specifications
Features
•Automatic Gain Control (AGC)
•Adjustable VOX sensitivity
•Compatible with Valcom Multi-Zone Control
Units and Station Adaptors
•Two input channels: Switch selectable
primary and priority, or two channels with
equal priority; both inputs are switch
selectable for Loop Start or VOX operation
•Two audio outputs:
600 Ohms with loop supervision to a page
control unit or 8 Ohms line level output to
amplified speakers
•Background music input
•Total of three normally open relay contacts
for PLAY, RECORD and BUSY mode
(one contact each)
•LED status indicators for POWER,
RECORD, PLAY and BUSY
•Dip switch option programming
•Message abort feature
Access
•Vacant Loop Start Trunk Port or
C. O. Line Port
•Page Port
•Line Level Audio Feed
•An adaptor is required for C. O. Line or
station access (see V-9970 or V-9940)
Dimensions/Weight
•11.76" H x 7.10" W x 1.72" D
(29.87cm H x 18.03cm W x .37cmD)
•2.6 lbs. ( 1.18Kg )
Nominal Specifications
Power requirements: 24VDC 200mA filtered
Input impedance: 600 Ohms
Input level: -10dBm
Loop Output impedance: 600 Ohms
Line Output impedance: 8 Ohms
Output level: -10dBm
VOX sensitivity: 3 seconds after
last sensed audio
Maximum recorded page time: 58 seconds
(28 seconds per V-9964 in call stacker Mode)
Frequency response:
Page: 80Hz to 7kHz
Background Music: 50Hz to 17kHz
Environment
Temperature: 0 to +40°C
Humidity: 0 to 80% non-precipitating

2
FCC Information
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.
Installation/Connection
Cabling
Category 3 or 5 twisted pair cable is
recommended for all Valcom distributed
amplified paging installations. Screw terminals
are provided for the basic connections. RJ45
jacks are provided for chaining multiple V-9964
units together. Removing the narrow right side
panel of the V-9964 provides access to controls,
connections and option switches. To remove
the panel, loosen the two screws holding the
panel in place and lift the panel.
Mounting
The V-9964 may be wall mounted or rack
mounted in a standard 19 inch equipment rack
using the brackets included.
Connections

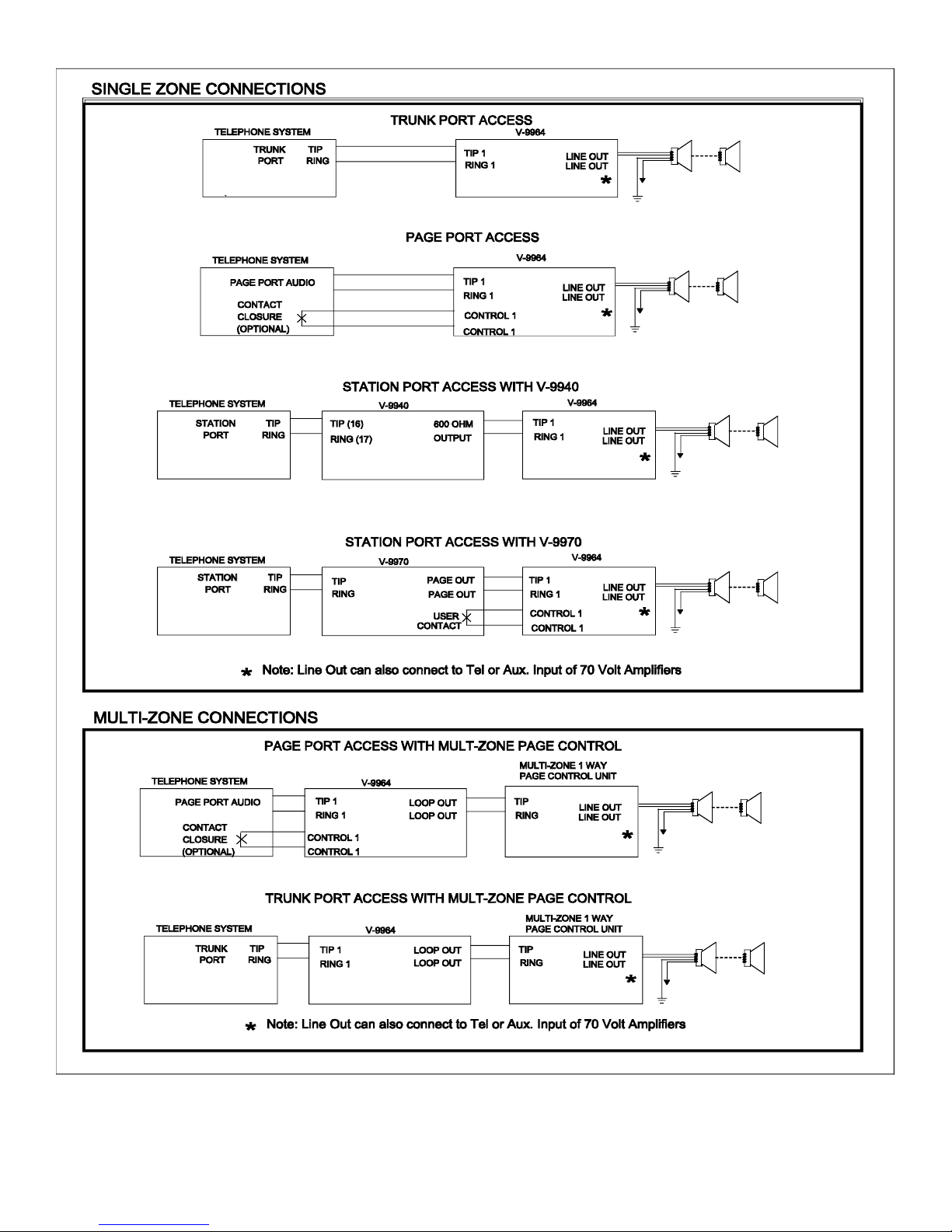

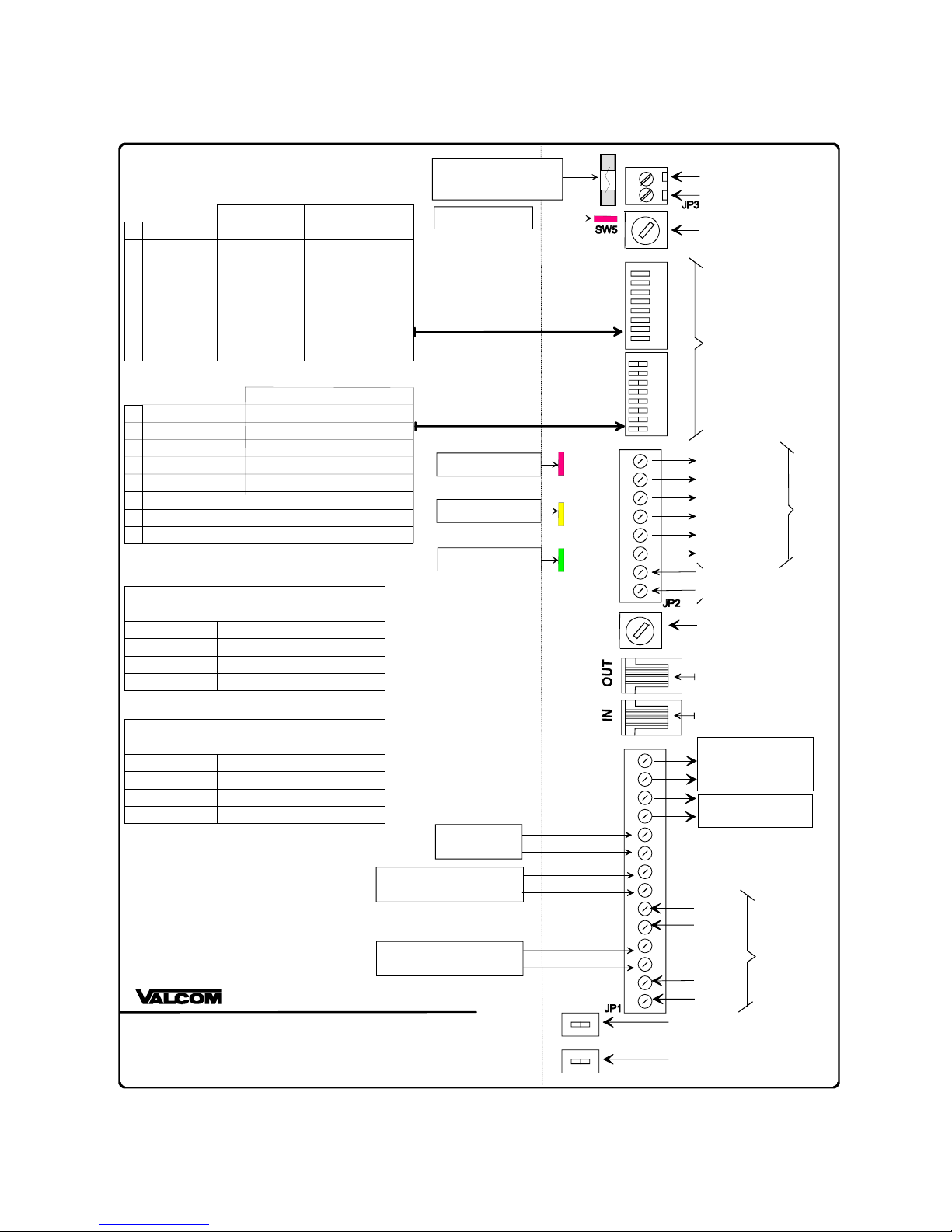

See Figure 1 for a connection diagram.
Tip 1, Ring 1
INPUT 1 is the normal Primary or Call Stacker
system input, and connects to a Loop Start
Trunk Port, 600 Ohm Page Port or some Valcom
Page Controls.
Note: Do not connect to a C. O. Line.
Control Input 1
Provides contact closure activation when using a
Page Port.
Tip 2, Ring 2
INPUT 2 is the Override page or Call Stacker
line two input. If desired, connect this to a
second Loop Start Trunk Port or Page Port.
Note: Do not connect to a C. O. Line.
Control Input 2
Provides contact closure activation when using a
Page Port.
Background Music Input
Connection for external line level music source
(Example: V-2952, FM Tuner).
NOTE: If using multiple V-9964 units in a
chained configuration, all speakers must
connect to the output of the last unit in the
chain.
Line Out
Output connections to Valcom amplified
speakers or 70 Volt amplifier Aux input.
Loop Out
Connects to Tip and Ring input on a Valcom
multi-zone page control unit.
Expansion In
RJ45 connection from the previous V-9964 in a
chained configuration.
Expansion Out
RJ45 connection to the next V-9964 in a chained
configuration. Closing a switch connected to pin
7 and pin 3 of either Expansion In or Expansion
Out will hold all queued recorded messages, on
all linked V-9964s. During this time, additional
messages may still be recorded into the
V-9964(s). Once the switch is opened, all
queued messages, including DTMF, will play in
their entirety.
Abort
To abort a message during play, connect an
external relay contact across the two abort
terminals.
NOTE: To abort a message during the record
sequence, press any DTMF button on the dial
pad of the access telephone.
Relay Closure Outputs
(PLAY) PLYSW and PLYMK
Normally open relay contact that closes while a
message is being broadcast.
(RECORD) RECSW and RECMK
Normally open relay contact that closes while a
message is being recorded.

3
(BUSY) BSYSW and BSYMK
Normally open relay contact that closes when
the unit cannot accept any more messages.
Switches and Controls
NOTE: (OFF-Left) (ON-Right)
Refer to figure one for locations.
SW1: Tip 1 Ring 1
No Battery Feed (Page Port) OFF
Battery Feed supplied (Loop
Trunk Port) ON
SW2: Tip 2 Ring 2
No Battery Feed (Page Port) OFF
Battery Feed supplied (Loop
Trunk Port) ON
SW5: VOX Sensitivity
Sets audio detection threshold for input ports.
SW4-1 or SW4-2 must be in the "ON" position
for this adjustment to be effective.
SW5 Level SW5 Level
0 -20dBm 8 -28dBm
1 -21dBm 9 -29dBm
2 -22dBm A -30dBm
3 -23dBm B -31dBm
4 -24dBm C -32dBm
5 -25dBm D -33dBm
6 -26dBm E -34dBm
7 -27dBm F * -35dB
*Typical Setting
Program DIP Switch Settings
NOTE: (ON-Left) (OFF-Right)
SW3-1: DTMF Signaling Options
No DTMF signaling (single zone) OFF
DTMF signaling (multi-zone) ON
SW3-2, SW3-3: Number of Digits to Receive
Before Recording the Page.
1 Digit SW3-2 OFF SW3-3 OFF
2 Digits SW3-2 ON SW3-3 OFF
3 Digits SW3-2 OFF SW3-3 ON
4 Digits SW3-2 ON SW3-3 ON
SW3-4: Priority Port Options
Leave in "OFF" position when used as a Call
Stacker (SW4-4 is "ON").
Records Primary and Priority pages;
Priority page broadcast first OFF
Priority page broadcast in real-time;
Primary page in progress is recorded
and broadcast after Priority page
ON
SW3-5: Message Playback Control
Play message once OFF
Play message twice ON
SW3-6, SW3-7: Pre-page Alert Tones
No tones SW3-6 OFF SW3-7 OFF
Single tone SW3-6 ON SW3-7 OFF
Dual tone SW3-6 OFF SW3-7 ON
Quad tone SW3-6 ON SW3-7 ON
SW3-8: Inter-page Timing
1 Second between pages OFF
3 Seconds between pages ON
SW4-1: Primary or Line 1 Page Access
Loop detect OFF
Audio detect ON
SW4-2: Priority or Line 2 Page Access
Loop detect OFF
Audio detect ON
SW4-3: Pre-Record Ready Tone
Normal (3 seconds delay) with ready
to record tone OFF
No pre-record tone; allows
immediate recording activation ON
Note: This option is effective only when the
inputs are set for LOOP start (SW4-1 OFF).
SW4-4: Normal or Call Stacker Mode
2 Inputs-Primary and Priority OFF
2 Inputs will function as Call Stacker ON
Note: Only one Priority port may be used on
a Multi V-9964 system.
SW4-8 Output Control
Slave unit in a Chained system;
Multiple V-9964 OFF
Single unit or Master in a Chained
system ON

4

5
Technical Assistance
When trouble is reported, verify the unit is
turned on and there are no broken
connections leading to the unit.
Assistance in troubleshooting is available
from the factory. When calling from the job
site, you should have a Volt/Ohm Meter and
a telephone test set available for testing. Call
[phone], press 1 for Technical
Support, or visit our Website at
http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom maintains service facilities in
Roanoke, VA. Should repairs be necessary,
clearly tag the unit with your company name,
address, telephone number, contact person
and a description of the problem. Send the
unit to:
Valcom Inc.
Repair and Return Department
5614 Hollins Road
Roanoke, VA 24019-5056
