Valcom VP-2124A User manual

VSP-VP-2124A
Issue 3
1947281
VP-2124A/VP-2124A-EC/VP-2124A-UK
POWER SUPPLY
SPECIFICATIONS
Input: 100-250 Vac, 50/60 Hz
IEC 320 input receptacle
Output: 24 Vdc, 2A Regulated
5.5mm x 2.5mm connector center
positive (mating wire assembly
included)
Dimensions: 5.8”H x 3.0”W x 1.7”D
(147mmH x 76mmW x 43mmD)
Weight: 2.0 lbs. (.91 kg)
Mounting: Wall or shelf mount near an electrical
outlet (wall mount hardware included)
Features: Output voltage indicator
FOR INDOOR USE ONLY

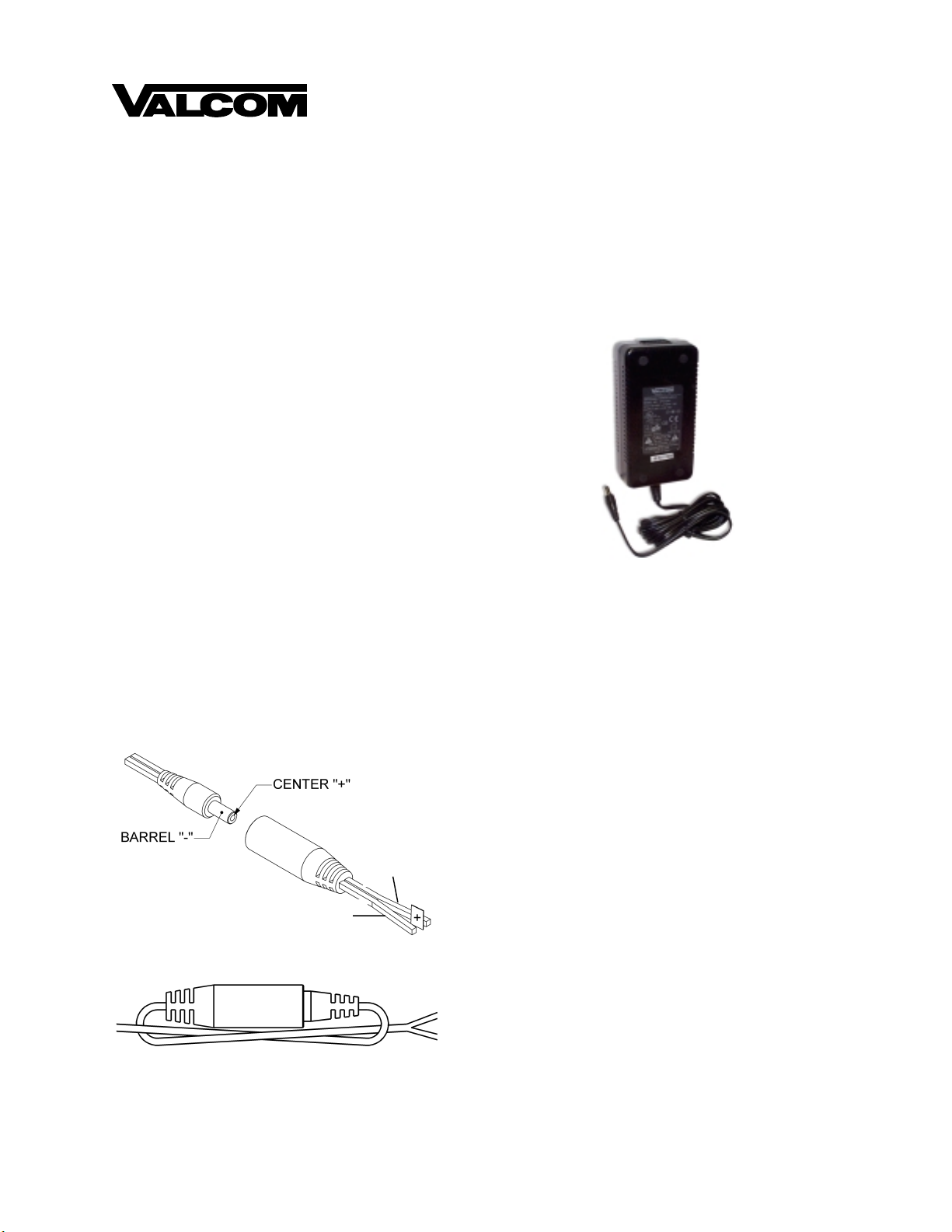

OUTPUT CONNECTIONS
•Connect “+” wire to connection labeled GND on
Valcom equipment
•Connect “-” wire to connection labeled –24V on
Valcom equipment
Suggested loop for strain relief.
REGULATORY INFORMATION
UL, cUL and CE Approvals
Meets VDE and FCC Class B Regulations
TECHNICAL ASSISTANCE
When trouble is reported, verify that AC power is
being supplied to the unit. To test the power supply,
remove all output connections and measure the output
voltage with a meter. If no voltage is measured,
replace the unit.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM and a
test set available and be calling from the job site.
Call [phone] or [phone] and ask for
Technical Support, or call [phone] for
Valcom 24-hour Automated Support or visit our
website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person, and the nature of the
problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
“+”
“-”

2947281
Wall Mount Bracket
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service
for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim,
2. the defect is not the result of damage, misuse, or negligence after the original shipment.
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service
charge plus parts and labor will be applied to units defaced or physically damaged),
4. freight charges for the return of products to Valcom are prepaid,
5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will be
subject to additional charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be
liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection
with the purchase, operation, or use of the product.
This warrantyspecifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.
