QUICK SETUP GUIDE
.68 CALIBER ELECTRONIC MARKER
valken.com

valken.com valken.com
WARNING SPECIFICATIONS
IMPORTANT SAFETY INSTRUCTIONS
Rules of Safe Marker Handling.
1.Treat every marker as if it were loaded.
2. Never look down the barrel of a paintball marker.
3. Keep your finger off the trigger until ready to shoot.
4. Never point the marker at anything you don’t wish to shoot.
5. Keep the marker on “safe” until ready to shoot.
6. Keep the barrel blocking device in/on the marker’s muzzle when not shooting.
7. Always remove paintballs and propellant source before disassembly.
8. After removing propellant source, point marker in safe direction and discharge until marker is degassed.
9. Store the marker unloaded and degassed in a secure place.
10. Follow warnings listed on propellant source for handling and storage.
11. Do not shoot at fragile objects such as windows.
12. Every person within range must wear eye, face and ear protection designed specifically to stop
paintballs and meeting ASTM standard F1776.
13. Always measure your marker’s velocity before playing paintball and never shoot at velocities in excess
of 300 feet-per-second.
This is not a toy. Misuse may cause serious injury or death. Eye protection designed specifically for paintball
must be worn by the user and persons within range. Recommend 18 years of age or older to purchase.
Persons under 18 years of age must have adult supervision. READ OWNERS MANUAL BEFORE USING.
WARNING:
Caliber: 0.68
Barrel: 12” Aluminum ported .689
Battery: 1 - 9V Alkaline
Air: Compressed air or nitrogren
Mode: Unlimited Semi, Adjustable Semi, PSP
Ramping, PSP Burst, NXL Full Auto,
Millennium Ramping, Normal Ramping,
Auto Response, Burst and Full Auto
Material: Aerospace aluminum alloy for body,
frame and other major parts
ROF: Max 30bps
Auto Shut-Off: 30min
CODE SPECIFICATIONS:

QUICK SETUP GUIDE
valken.com valken.com
QUICK SETUP GUIDE
The barrel simply threads on. The barrel threads are autococker type. Press power button. Eyes on is blue/blinking blue for blocked/
unblocked eyes. Blinking yellow for eye malfunction (if the eyes
don’t see the bolt return like if you block the eyes continually
with your finger). Eye malfunction reduces rate of fire to prevent
additional chopping.
Hold power button for 2 seconds or until the LED goes off to turn
off the marker.
The CODE has a break beam sensor system. The eyes can be cleaned by simply removing the bolt and using a squeegee, or using
a 1/16” hex key to remove the eye cover. If any malfunction should occur the software automatically overrides the eye function and
reduces the rate of fire. When the marker first powers up, the eyes are on by default. To disable the sensor system, press the on/off
button for 1 sec until the LED is blinking red. To enable the eyes again, simply press the on/off button again for 1sec until the LED is
blinking blue.
Open the clamp lever and place the loader into the feedneck. Adjust the tightness of the clamp with a 5/32” hex key. Close the clamp
lever.
Remove grip cover from foregrip. Press the button on the lower front of the foregrip. Pull the 9V battery out and dislodge it from the
battery cap. Replace with a fresh 9V battery. We recommend the use of a high quality alkaline battery.
The CODE has a standard ASA to accept a screw in air tank. First, make sure that the On/OFF is in OFF position (lever pointing to the
front). Carefully screw in the air tank until it stops. Flipping the lever backward will allow air to flow into the marker from the tank.
To remove the tank, flip the lever forward.This will release all the air in ASA and make it easier to remove the tank. We recommend the
use of compressed air or nitrogen air tank with a maximum output pressure of 800 PSI.
Attaching the barrel Turning the marker ON
Turning the marker OFF
Intelligent break beam ball sensor system
Attaching the loader
Battery replacement
Connecting the air source

valken.com valken.com

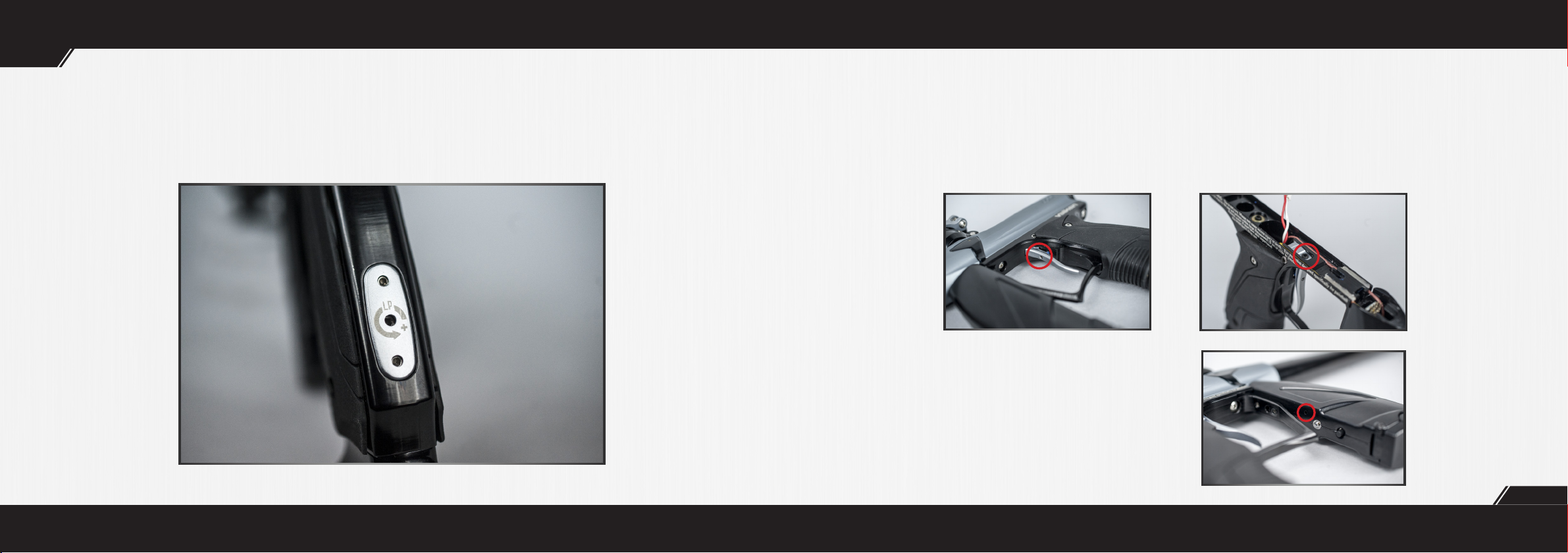

TRIGGER ADJUSTMENTVELOCITY ADJUSTMENT
The CODE has an adjustable regulator in the handle frame that controls the pressure in the marker thereby controlling the velocity.
The best way to adjust the velocity is to turn the adjusting screw clockwise using a 3/32” hex key. This will be the minimum velocity.
Please DO NOT over tighten the screw as it will damage the seal and cause leaking. Check the velocity with a chronograph and
gradually increase the velocity by turning the screw counterclockwise.
The trigger has adjustments for microswitch activation point and pre travel.
Pre travel adjustment. Use a 3/32” hex key to remove the frame screws. Carefully unplug the solenoid harness. Use a 1/16” hex key
to adjust the set screw on top of the trigger.
Microswitch activation adjustment. using a 3/64” hex key to adjust the set screws in the trigger. Please make sure to leave enough
space for the screw to travel. Setting the screw too deep will damage the microswitch while firing.
Adjusting the velocity Trigger adjustment
The tournament lock is located inside the upper right of the LED on
the foregrip, after removing the grip cover. This feature prevents
users from entering programming mode while in the field.
While the gun is in the specific firing mode, press and hold the lock
switch for 2 seconds to toggle it on or off. The LED will flash green
to indicate it is locked or red to indicate it is unlocked. When the
lock is off, you can enter programming mode by turning the board
off, then turning it on while the trigger is held.
Tournament Lock

valken.com valken.com
PROGRAMMING MODE
valken.com valken.com
User can change the setting by entering the programming mode.
Programming Mode
Enter programming mode by holding down trigger and then turning the marker on. Cycle through different setting by pressing the
trigger once. Color Setting:
• Green.................. Firing Modes
• Purple ................ Max Rate of Fire
• Yellow ................. Fine timing for max rate of fire
• Blue .................... Debounce
• Red ..................... Dwell
• White .................. Ramp Start
• Aqua .................. Ramp Percent
Once you are in the desired setting, press and hold the trigger again for 2sec and the LED will start blinking. The last accessed setting
is remembered so you don’t have to keep cycling through settings when you want to test different dwell settings, for instance. When
the blink stopped, you can enter the new numbers by pressing the trigger.
CHANGING THE PARAMETERS Firing Modes(Green)
The firing mode can be changed after entering the programming mode.
# Blinks in Fire Mode
1 Unlimited Semi auto
2 Adjustable Semi auto
3 PSP ramping
4 PSP Burst
5 NXL Full Auto
6 Millennium Ramping
7 Normal Ramping
8 Auto Response
9 Burst
10 Full Auto
Max Rate of Fire(Purple)
Blinks BPS Blinks BPS Blinks BPS Blinks BPS Blinks BPS
5 5 11 11 17 17 23 23 29 29
6 6 12 118 18 24 24 30 30
7 7 13 13 19 19 25 25 31 Unlimited
8 8 14 14 20 20 26 26
9 9 15 15 21 21 27 27
10 10 (Default) 16 16 22 22 28 28
PROGRAMMING MODE

valken.com valken.com
PROGRAMMING MODEPROGRAMMING MODE
Fine timing for max rate of fire(Yellow)
Debounce(Blue)
Blinks ms Blinks ms Blinks ms Blinks ms Blinks ms
1111 11 21 21 31 31 41 41
2212 12 22 22 32 32 42 42
3313 13 23 23 33 33 43 43
4414 14 24 24 34 34 44 44
5515 15 25 25 35 35 45 45
6616 16 26 26 36 36 46 46
7717 17 27 27 37 37 47 47
8818 18 28 28 38 38 48 48
9919 19 29 29 39 39 49 49
10 10 (Default) 20 20 30 30 40 40 50 50
Blinks Increments BPS Blinks Increment BPS Blinks Increment BPS
1 0.0 (Default) 5 0.4 9 0.8
2 0.1 6 0.5 10 0.9
3 0.2 7 0.6
4 0.3 8 0.7
Dwell(Red)
Ramp Start(White) Use by PSP and normal ramping Modes.
Blinks BPS Blinks BPS Blinks BPS
4 4 8 8 12 12
5 5 (Default) 9 9 13 13
6 6 10 10 14 14
7 7 11 11
Blinks ms Blinks ms Blinks ms Blinks ms Blinks ms
2 2 7 7 12 12 17 17 22 22
3 3 8 8 13 13 18 18 23 23
4 4 9 9 14 14 19 19 24 24
5 5 10 10 15 15 (Default) 20 20 25 25
6 6 11 11 16 16 21 21

valken.com valken.com
MAINTENANCEPROGRAMMING MODE
Ramp %(Aqua) Use by PSP and normal ramping Modes.
Blinks % Blinks % Blinks % Blinks % Blinks %
110 11 110(Default) 21 210 31 310 41 410
2 220 12 120 22 220 32 320 42 420
3 30 13 130 23 230 33 330 43 430
4 40 14 140 24 240 34 340 44 440
5 50 15 150 25 250 35 350 45 450
6 60 16 160 26 260 36 360 46 460
7 70 17 170 27 270 37 370 47 470
8 80 18 180 28 280 38 380 48 480
9 90 19 190 29 290 39 390 49 490
10 100 20 200 30 300 40 400 50 500
The CODE has been designed to require a minimal amount of maintenance for proper operation. It is recommended that before each
use you put 2 drops of light gun oil in the ASA. When the marker is gassed up the oil will distribute through the marker. This will be
adequate to keep the marker working properly.
Removing the ball detents for cleaning
The CODE uses two rubbery ball detents to prevent the double feeding of paintballs.They are located near the front of the receiver.
To remove, insert a 1/16” hex key into the access hole in the eye cover. Make sure that the hex key is fully engaged in the screw
otherwise you may strip the hex in the screw. Unscrew the cover and lift out the ball detent.
To install the ball detent
Place the ball detent and detent spring in the hole in the receiver. Put the cover screw in the slot of the cover and put the hex key in
the screw through the access hole in the cover. Place the cover over the ball detent/spring and tighten the screw.
Note: Do not over-tighten the screw otherwise you may strip the hex in the screw which will make it difficult to remove the cover.
Cleaning the CODE
First remove the bolt assembly by lifting the Cap button at the back
of the rear cap and pull it out. If the bolt is left in the breach, insert
a soft head stick from the front to push the bolt back out. You can
use a standard squeegee to clean the bore of the marker. Insert the
squeegee from the back of the marker and pull it through the front.
When the bore is cleaned, push the bolt assembly back from the
back until it click. PLEASE MAKE SURETHE REAR CAP BUTTON IS
LOCKED(DOWN)POSITION.
MAINTAINING YOUR CODE

valken.com valken.com
CODE SCHEMATICSCODE SCHEMATICS
1
2
3
4
5
6
7
8
9
10
11
34
13
14
20
15
16
17
18 19 12
21
22
23
24
12
12
25 26
27
28 29 3031
32
33
91
38
38 40
41
42 44 45
46 47 22 48
50
43
28
28
54
50
55
56 57
58
59 60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
79
57
57
80
38
82 83 84 85 38
86
87
7
57
57
67
67
88
88
89
89
53
81
36
49
75
95
96
97
CODE-爆炸圖
CODE
39
52
76
90
94
35
93
37 100
92
51
98
77
99
10
78
詠燦實業有限公司
WORLITE INDUSTRY CO., LTD
設 計
料號
品名
表面處理
機種
單位:
TOLERANCES
UNLESS OTHERWISE SPECFIED
X.XX
.10 /X.X .15
X
.30
ALL DIMENSION MILLMETERS
TOL
RANGE
0~6
6~30
30~80
80~180
180~315
315~800
TOL
ANG.
0
~30
30 ~60
60 ~90
核 准
審 核
繪 圖
材質
熱處理
比例:
日期 第一版本發行版本
4
2
3
1
mm
Item Description Item Description Item Description Item Description
1 Main Body 29 Back Cap lock spring 57 BHCS 6-32 X .250 85 ASA Plug
2 Feedneck Body 30 Back Cap Lock pin 58 Regulator Cover 86 Fliter Cap
3 Feedneck lever 31 Set Screw M2 0.5 X 0.45 59 Frame 87 Air Fliter
4 Feedneck nut 32 Back Cap Button shaft 60 Cover Plate Regulator 88 BHCS 8-32 X .3125
5 BHCS 6-32 X .125 33 Back Cap Button 61 Seal Rubber Regulator 89 BH M2 0.4 X 4
6 SHCS 10-32 X .625 34 19mm*1mm 70 BUNA 62 Spring OPP Regulator 90 Light Pipe
7 SHCS 10-32 x .375 35 ASA Adapter 63 Seal Regulator 91 Solenoid Screw
8 Ball Detent Cover-Right 36 REG Body 64 Trigger 92 Regulator Release spring
9 Ball Detent Cover- Left 37 Oring 004/70 Buna 65 Set Screw 4-40 X .3125 93 1/8" ball bearing
10 Ball Detent 38 O Ring-010/90 Urethane 66 Set screw 8-32 x .1875 94 Solenoid
11 BHCS 3-48 X .125 39 BH Screw M2 0.4 X 12 Philips 67 6-32x 16.5mm set screw 95 Circuit Board A
12 O Ring-020/70 Buna 40 O Ring-011/ 90 Urethane 68 #N/A 96 Circuit Board B
13 O Ring-017/70 Buna 41 O Ring-014/70 Buna 69 Foregrip Left 97 Circuit Board C
14 O Ring-017/90 Urethane 42 Regulator Piston Guide 70 Foregrip Right 98 Wire Harnesses-A
15 Bolt-Front 43 O Ring-014/90 Urethane 71 Feedneck tube 99 Wire Harnesses-B
16 O Ring-015/90 Urethane 44 Regulator Piston 72 SH M2 0.4 X 18 10 0 O Ring-011/ 70 Buna
17 O Ring 16mm x 2mm ID 70 Urethane 45 Seal 73 Foregrip End Cap
18 O Ring-012/90 Urethane 46 Regulator Spring 74 O Ring-2mm x 1mm ID 70 BUNA
19 Ram Bumper 47 Regulator Vent Adjuster Piston 75 Micro Switch
20 BH Screw M3 0.5 X 10 48 Retaining Ring INT 9mm 76 5mm x 1.5mm Magnet
21 Valve 49 Barrel 77 Wire Harness assembly
22 O Ring-009/90 Urethane 50 O Ring -4mm x 1mm ID 70 BUNA 78 Foregrip sleeve
23 O Ring- 21mm x 1mm ID 70 BUNA 51 Rubber Seal 79 FH Screw 6-32 x 3/8
24 Back Cap 52 Air Transfer Plate 80 ASA On/Off Lever
25 Valve Shaft 53 Grip 81 BHCS 6-32 X .3125
26 Back Cap Screw 54 Macro Hose 82 ASA Guide
27 Back Cap lock nut 55 Solenoid Body 83 ASA Pin
28 O Ring-008/90 Urethane 56 Set Screw 10-32X5/16 84 O Ring 006/90 Urethane

valken
1 Hawk court, Swedesboro, NJ, 08085, USA
Tel: [phone]
www.valken.com
LIMITED WARRANTY
Valken Paintball guarantees the CODE against defects in material and/or workmanship of
this marker for twelve (12) months from the original date of purchase by the original retail
purchaser. To activate your warranty, fill out the warranty card and mail it along with a
copy of the original purchase receipt. In the event that a part is defective Valken Sports will
send out a replacement part free of charge. Wearable items such as o-rings, seals, screws,
ball detents and the like are not covered under this warranty. Failure of any part due to an
accident, abuse, neglect, modification, misuse, operator error, lack of maintenance, or use of
parts inconsistent with the use originally intended for the marker as sold is not covered by
this warranty.
Valken makes no other warranties or guarantees, expressed or implied. Valken Paintball
limits its sole and exclusive liability and that of it’s authorized dealers, affiliates, or agents
pursuant to this warranty to cover repair or replacement of the defective part. Incidental and
consequential damages are expressly excluded hereunder. Valken Paintball, its authorized
dealers, affiliates, or agents, will not be liable under this warranty, nor under any state or
federal law, or the common law or otherwise for any damage or failure, including personal
injury, resulting from such use and/or alteration. This warranty gives you specific legal rights,
and you may also have other rights that may vary from state to state.
